| Brand | Siemens |
| Model | KG34NVW35G |
| Product Type | Refrigerator with Freezer Compartment |
| Refrigerant | R600a |
| Climate Class | SN (+10°C to 32°C), N (+16°C to 32°C), ST (+16°C to 38°C), T (+16°C to 43°C) |
| Temperature Range Refrigerator | +2°C to +8°C |
| Temperature Range Freezer | -16°C to -24°C |
| Super Cooling | Yes, automatically switches off after approx. 15 hours |
| Super Freezing | Yes, automatically switches off after approx. 2.5 days (per manual: 212 days, likely a unit error) |
| NoFrost System | Yes, in freezer compartment |
| Eco Mode | Yes, sets fridge to +8°C, freezer to -16°C |
| Door Alarm | Continuous sound if door open >1 minute |
| Temperature Alarm | Sounds if freezer too warm, temperature display flashes |
| Light | LED (maintenance-free) |
| Adjustable Shelves | Yes, glass shelves can be repositioned |
| Vegetable Container | With humidity control (high/low) |

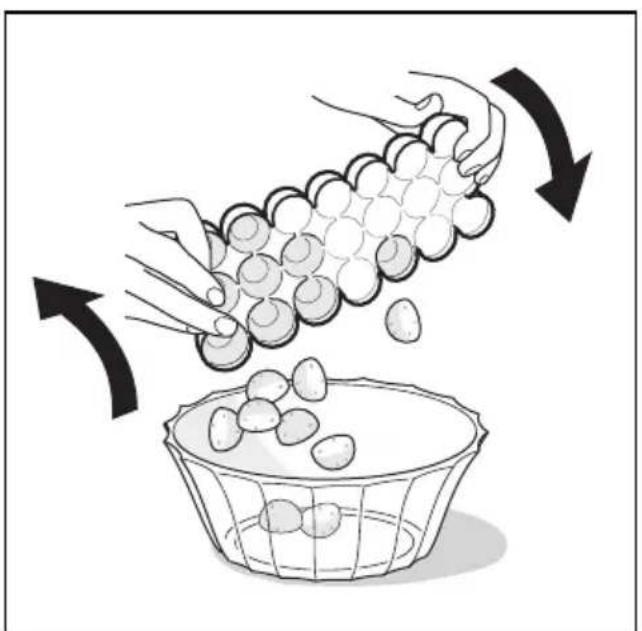

| Ice Cube Tray | Yes |

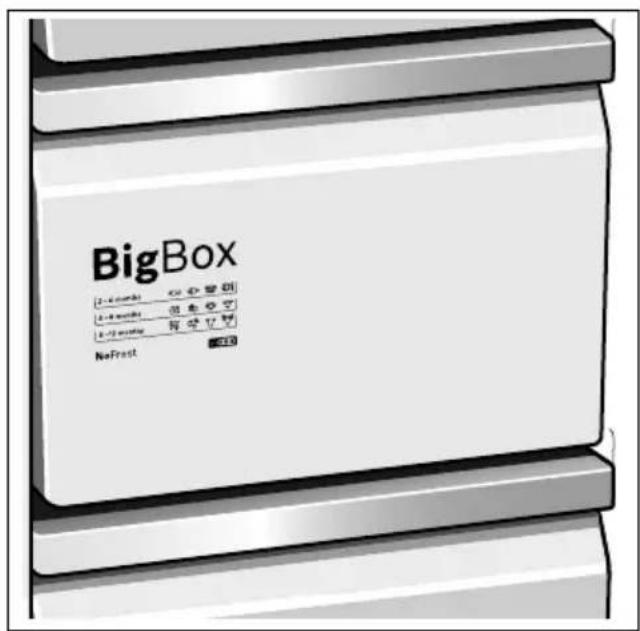

| Freezer Calendar | Storage duration indicators (months) |
| Ice Blocks | Yes, for power failure or temporary cooling |
| Bottle Shelf | Yes (on some models) |
| Electrical Connection | 220-240 V/50 Hz, 10 A to 16 A fuse, protective conductor |
| Energy Saving Tips | Avoid direct sunlight, ensure ventilation, cool food before storing, open door briefly |
| Cleaning | Use soft cloth, lukewarm water, pH-neutral detergent; no abrasive or chloride agents |
| Safety | Flammable refrigerant R600a; keep away from ignition sources; do not use electrical appliances inside |
Frequently Asked Questions - KG34NVW35G SIEMENS
User questions about KG34NVW35G SIEMENS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual KG34NVW35G - SIEMENS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KG34NVW35G by SIEMENS.
USER MANUAL KG34NVW35G SIEMENS
siemens-home.bsh-group.com/welcome
en Instruction for Use 5
Register your product online
en Table of Contents
Safety and warning information .... 5
Information concerning disposal ..... 8
Scope of delivery 8
Installation location 9
Observe ambient temperature and ventilation 9
Connecting the appliance 10
Getting to know your appliance ..... 10
Switching on the appliance 11
Setting the temperature 12
eco 12
Alarm functions 12
Usable capacity 13
Refrigerator compartment 13
Super cooling 15
Freezer compartment 15
Max. freezing capacity 15
Freezing and storing food 15
Freezing fresh food 16
Super freezing 17
Thawing frozen food 17
Interior fittings 18
Sticker "OK" 18
Switching off and disconnecting the appliance 19
Cleaning the appliance 19
Light (LED) 20
Tips for saving energy 20
Operating noises 20
Eliminating minor faults yourself ..... 21
Customer service 23
Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.
Technical safety
Fire hazard
The tubes of the
refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
If damage has occurred
- Keep naked flames and/or ignition sources away from the appliance,
■ thoroughly ventilate the room for several minutes,
■ switch off the appliance and pull out the mains plug,
■ inform customer service.
The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m 3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.
When installing the appliance, ensure that the mains cable is not trapped or damaged.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, Customer Service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
Do not use multiple sockets, extension leads or adapters.
Fire hazard
Portable multiple outlets or power supplies may overheat, causing a fire.
Never leave portable multiple outlets or portable power supplies behind the appliance.
Important information when using the appliance
■ Never use electrical appliances inside the appliance (e.g. heaters, electric ice makers, etc.). Risk of explosion!
■ Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
- Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer. Risk of explosion!
- Do not use pointed or sharp-edged implements to remove frost or layers of ice. You might damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
- Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
■ Do not stand on or lean heavily against the base of the appliance, drawers, doors, etc.
■ For defrosting and cleaning, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.
■ Store high-percentage alcohol tightly sealed and in an upright position.
- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
■ Never cover or block the ventilation openings of the appliance.
■ Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
■ Never put frozen food straight from the freezer compartment in your mouth.
Risk of low-temperature burns!
- Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!
■ Avoiding placing children and vulnerable people at risk:
At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
Check that children and vulnerable people have understood the hazards.
A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
Only children aged 8 years and above may use the appliance.
Supervise children while the appliance is being cleaned or maintained.
Never allow children to play with the appliance.
Children in the household
- Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
■ Do not allow children to play with the appliance!
■ If the appliance features a lock: keep the key out of the reach of children!
General regulations
The appliance is suitable
■ for refrigerating and freezing food,
■ for making ice.
This appliance is intended for use in the home and the home environment.
The refrigeration circuit has been checked for leaks.
This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Warning
Redundant appliances
- Pull out the mains plug.
- Cut off the power cord and discard with the mains plug.
- Do not take out the trays and receptacles: children are therefore prevented from climbing in!
- Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any damage in transit.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
The delivery consists of the following parts:
■ Free-standing appliance
- Interior fittings (depending on model)
■ Bag containing installation materials
- Operating instructions
■ Installation manual
■ Customer service booklet
■ Warranty enclosure
■ Information on the energy consumption and noises
Installation location
A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:
■ 3 cm to electric or gas cookers.
■ 30 cm to an oil or coal-fired cooker.
The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.
Distance from wall
When installing the appliance, ensure that the door can be opened by 90irc .
Observe ambient temperature and ventilation
Ambient temperature
The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.
The climate class can be found on the rating plate. Fig. 12
| Climate class Permitted ambient temperature |
| SN +10 °C to 32 °C |
| N +16 °C to 32 °C |
| ST +16 °C to 38 °C |
| T +16 °C to 43 °C |
Note
The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.
Ventilation
Fig. 3
The air on the rear panel and on the side panels of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!
Connecting the appliance
After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.
Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).
Electrical connection
The socket must be near the appliance and also freely accessible following installation of the appliance.
Warning
Risk of electric shock!
If the length of the mains cable is inadequate, never use multiple sockets or extension leads. Instead, please contact Customer Service for alternatives.
The appliance complies with protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be protected by a 10 A to 16 A fuse.
For appliances operated in non-European countries, check whether the indicated voltage and current type match the values of your electricity supply. This information can be found on the rating plate, Fig. 12.
Warning
Never connect the appliance to electronic energy saver plugs.
Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.
Getting to know your appliance
Please fold out the illustrated last page. These operating instructions refer to several models.
The features of the models may vary.
The diagrams may differ.
Fig. 1
* Not all models.
A Refrigerator compartment
B Freezer compartment
1–9 Controls
10 Shelf for small bottles
11 Shelf for large bottles
12 Light
13* Bottle shelf
14 Cold storage compartment
15 Vegetable container with humidity control
16 Frozen food container (small)
Controls
Fig. 2
1 Display alarm
This lights up if the appliance becomes too warm.
2 Refrigerator compartment temperature selection button
The button sets the temperature in the refrigerator compartment.
3 "super" display
Illuminates, if the super cooling is in operation.
4 Temperature display refrigerator compartment
The numbers correspond to the set refrigerator compartment temperatures in irc C.
5 Eco indicator
This lights up when eco mode is switched on in the cooling compartment.
6 Temperature selection button freezer compartment
The button sets the temperature in the freezer compartment.
7 "super" display (freezer compartment)
Illuminates when super freezing is on.
8 Temperature display freezer compartment
The numbers correspond to the set freezer compartment temperatures in irc C.
9 Eco indicator
This lights up when eco mode is switched on in the freezer compartment.
Switching on the appliance
Fig. 2
- Insert the plug in the socket.
- A warning signal sounds. The temperature display 8 flashes.
- Press the temperature setting button
- The warning signal switches off.
When the freezer compartment has reached the set temperature, the temperature display 8 is lit.
The factory recommends the following settings:
■ Refrigerator compartment: medium setting
■ Freezer compartment: -18°C
Store delicate foods in the refrigerator compartment.
Operating tips
- When the appliance has been switched on, it may take several hours until the set temperatures have been reached.
■ The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.
■ The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal.
en
If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.
Setting the temperature
Refrigerator compartment
The temperature can be set from +2 °C to +8 °C.
Keep pressing the temperature election button 2 until the required refrigerator compartment temperature is set.
The value last selected is saved. The set temperature is indicated on temperature display 4.
Note
To reach the selected temperature, open the ventilation openings to 1/3, Fig. 6.
Freezer
The temperature can be set from -16 °C to -24 °C.
Keep pressing temperature setting button 6 until the required freezer compartment temperature is set.
The value last selected is saved. The set temperature is indicated on temperature display 8.
We recommend a factory setting of -18 °C in the freezer compartment.
eco
The eco function switches the appliance to energy-saving mode.
The appliance automatically sets the following temperatures:
■ Refrigerator compartment: +8 °C
■ Freezer compartment: -16 °C
Switching on eco
Keep pressing the temperature setting button 6 until the eco indicator is highlighted.
Alarm functions
Fig. 2
Door alarm
The door alarm (continuous sound) switches on if the appliance door is open for longer than one minute. Close the door to switch off the warning signal.
Temperature alarm
The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing.
Temperature display, Fig. 2/8, is flashing.
The alarm may switch on without any risk to the frozen food:
■ when the appliance is switched on,
■ when large quantities of fresh food are placed in the appliance,
■ if the freezer compartment door is open too long.
Note
Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.
No longer store the frozen produce for the max. storage period.
Switching off the alarm
Fig. 2
Press the temperature setting button 6 to switch off the warning signal.
Usable capacity
Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 12
Fully utilising the freezer volume
To place the maximum amount of frozen food in the freezer compartment, you can remove the containers. You can then stack the food directly on the shelf and on the floor of the freezer compartment.
Note
Avoid contact between food and rear panel. Otherwise the air circulation will be impaired.
Food or packaging could freeze to the rear panel.
Removing the fittings
Pull out the frozen food container all the way, lift at the front and remove.
Fig. 9
Refrigerator compartment
The refrigerator compartment is the ideal storage location for meat, sausage, fish, dairy products, eggs, ready meals and pastries.
Storing food
■ Store fresh, undamaged food. The quality and freshness will then be retained for longer.
In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer.
■ To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment.
- Allow warm food and drinks to cool down before placing in the appliance.
Note
Do not block air outlet openings with food, otherwise the air circulation will be impaired. Food which is stored directly in front of the air outlet openings may be frozen by the cold air flowing out.
en
Note the chill zones in the refrigerator compartment
The air circulation in the refrigerator compartment creates different chill zones:
The coldest zones are in front of the air outlet openings and in the chill compartment, Fig. 1/14.
Note
Store perishable food (e.g. fish, sausage, meat) in the coldest zones.
■ Warmest zone is at the very top of the door.
Note
Store e.g. hard cheese and butter in the warmest zone. The aroma of hard cheese can then continue to develop and butter remains spreadable.
Vegetable container with humidity control
Fig. 7
To create the optimum storage climate for fruit and vegetables, you can set the humidity level in the vegetable container:
- Mainly vegetables as well as for a mixed or small load – high air humidity
- Mainly fruit as well as for a large load – low air humidity
Notes
- Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8 °C to +12 °C for optimum preservation of quality and flavour.
- Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.
Cold storage compartment
Fig. 6
The cold storage compartment has lower temperatures than the refrigerator compartment. Even temperatures below 0\ °C may occur.
Ideal for storing fish, meat and sausage. Not suitable for lettuce and vegetables and produce sensitive to cold.
The temperature of the chill compartments can be varied using the ventilation opening. Push temperature controller upwards to reduce the temperature. Push temperature controller downwards to increase the temperature.
Fig. 6
Super cooling
Super cooling sets the refrigerator temperature to the coldest temperature setting for approx. 15 hours. Then the appliance automatically switches to the temperature set prior to super cooling mode.
Switch on super cooling mode, e.g.
■ before placing large quantities of food in the refrigerator compartment.
■ for the fast cooling of drinks.
Note
When super cooling is switched on, increased operating noises may occur.
Switching on and off
Fig. 2
Keep pressing the temperature setting button 2 until the super indicator 3 is lit.
Freezer compartment
Use the freezer compartment
■ To store deep-frozen food.
■ To make ice cubes.
■ To freeze food.
Note
Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!
Max. freezing capacity
Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 12
Prerequisites for max. freezing capacity
- Switch on super freezing before placing fresh products in the compartment (see chapter entitled “Super freezing”).
■ Remove containers; stack food directly on the shelf and on the floor of the freezer compartment.
■ Freeze large quantities of food preferably in the very top compartment where food freezes particularly quickly and therefore also gently.
Freezing and storing food
Purchasing frozen food
■ Packaging must not be damaged.
■ Use by the “use by” date.
■ Temperature in the supermarket freezer must be -18 °C or lower.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.
en
Note when loading products
■ Preferably freeze large quantities of food in the top compartment, where food freezes particularly quickly and therefore also gently.
- Place the food over the whole area of the compartments or the frozen food containers.
Note
Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to other frozen food containers.
Storing frozen food
Insert frozen food container all the way to ensure unrestricted air circulation.
Freezing fresh food
Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Literature on freezing and blanching can be found in bookshops.
Note
Keep food which is to be frozen away from food which is already frozen.
■ The following foods are suitable for freezing:
Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
■ The following foods are not suitable for freezing:
Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.
Packing frozen food
To prevent food from losing its flavour or drying out, place in airtight containers.
- Place food in packaging.
- Remove air.
- Seal the wrapping.
- Label packaging with contents and date of freezing.
Suitable packaging:
Cling wrap, tubular film made of polyethylene, aluminium foil, freezer containers.
These products are available from specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.
Items suitable for sealing packaged food:
Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.
Bags and tubular film made of polyethylene (PE) can be sealed with a film heat sealer.
Shelf life of frozen food
Storage duration depends on the type of food.
At a temperature of -18 °C:
■ Fish, sausage, ready meals and cakes and pastries:
up to 6 months
■ Cheese, poultry and meat: up to 8 months
■ Vegetables and fruit: up to 12 months
Super freezing
Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.
Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.
As a rule, 4–6 hours is adequate.
This appliance runs constantly and the freezer compartment drops to a very low temperature.
If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment.
Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”.
Note
When super freezing is switched on, increased operating noises may occur.
Switching on and off
Fig. 2
Keep pressing the temperature selection button 6 until the Super display 7 is lit.
Super freezing automatically switches off after approx. 212 days.
Thawing frozen food
Depending on the type and application, select one of the following options:
■ at room temperature
■ in the refrigerator
■ in an electric oven, with/without fan assisted hot-air
in the microwave
Caution
Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.
No longer store the frozen produce for the max. storage period.
Interior fittings
Shelves and containers
You can reposition the inner shelves and the containers in the door as required: pull shelf forwards, lower and swivel out to the side. Lift the container and remove.
Special features
(not all models)
Bottle shelf
Fig. 5
Bottles can be stored securely on the bottle shelf.
Ice cube tray
Fig. 11
- Fill the ice cube tray 34 full of drinking water and place in the freezer compartment.
- If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).
- To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.
Freezer calendar
Fig. 10
To prevent the quality of the frozen food from deteriorating, do not exceed the storage duration. The figures next to the symbols indicate the permitted storage period of the produce in months. In the case of commercially available frozen food observe the date of manufacture or use-by date.
Ice block
If a power failure or malfunction occurs, the ice blocks can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack on the food in the top compartment.
The ice blocks can also be used to cool food temporarily, e. g. in a cold bag.
Sticker "OK"
(not all models)
The sticker “OK” lets you check whether the refrigerator compartment achieves the safe temperature ranges of +4 °C or colder recommended for food. If the sticker does not indicate “OK”, gradually reduce the temperature.
Note
When the appliance is switched on, it may take up to 12 hours until the set temperature is reached.
Correct setting
Switching off and disconnecting the appliance
Switching off the appliance
Pull out mains plug or switch off fuse.
Refrigerating unit switches off.
Disconnecting the appliance
If you do not use the appliance for a prolonged period:
- Pull out the mains plug or switch off the fuse.
- Clean the appliance.
- Leave appliance doors open.
Cleaning the appliance
Caution
- Do not use abrasive, chloride or acidic cleaning agents or solvents.
- Do not use scouring or abrasive sponges.
The metallic surfaces could corrode.
■ Never clean shelves and containers in the dishwasher.
The parts may become deformed!
The cleaning water must not get into the following areas:
Controls
■ Illumination
■ Ventilation openings
■ Openings in the separating plate
Proceed as follows:
- Pull out the mains plug or switch off the fuse.
- Take out the frozen food and store in a cool location. Place ice pack (if available) on the food.
- The rinsing water must not drip into the controls, lighting, ventilation openings or the openings in the partition!
Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid. - Wipe the door seal with clear water only and then wipe dry thoroughly.
- After cleaning reconnect the appliance.
- Put the frozen food back into the appliance.
Interior fittings
All variable parts of the appliance can be taken out for cleaning.
Take out shelves in the door Fig. 4
Lift shelves upwards and take out.
Take out glass shelves
Pull the glass shelves forwards and take out.

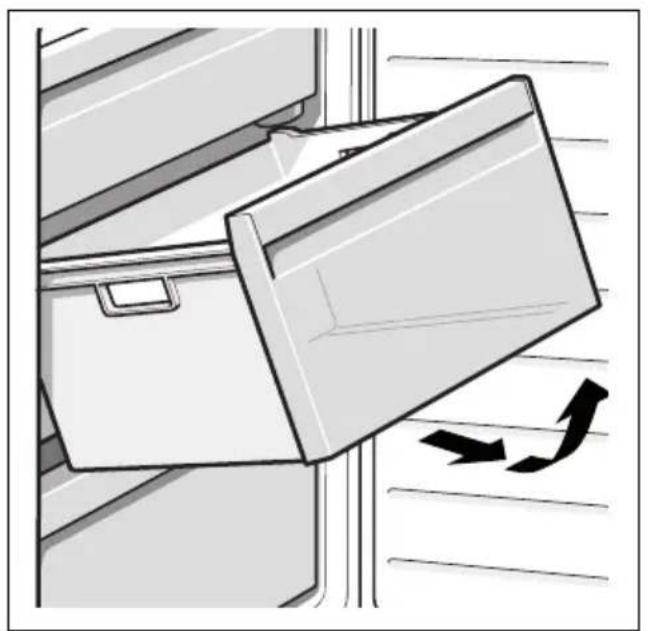

Removing the container
Fig. 8
Pull out the container all the way, lift at the front and remove.
Taking out the frozen food container Fig. 9
Pull out the frozen food container all the way, lift at the front and remove.
Light (LED)
Your appliance features a maintenance-free LED light.
These lights may be repaired by customer service or authorised technicians only.
Tips for saving energy
■ Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
If required, use an insulating plate.
- Allow warm food and drinks to cool down before placing in the appliance.
■ Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
- Open the appliance as briefly as possible.
■ To achieve the lowest energy consumption, leave a small wall gap at the side.
■ The arrangement of the fittings does not affect the energy rating of the appliance.
Operating noises
Quite normal noises
Note
When super freezing is switched on, increased operating noises may occur.
Droning
Motors are running (e.g. refrigerating units, fan).
Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/off.
Cracking
Automatic defrosting is running.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.
The appliance is not free-standing
Please move the appliance away from adjacent units or appliances.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them correctly if required.
Bottles or receptacles are touching each other
Move the bottles or receptacles slightly away from each other.
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following information.
Customer service will charge you for advice – even if the appliance is still under guarantee!
| Fault Possible cause Remedial action | ||
| Temperature differs greatly from the set value. | In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day. | |
| Warning signal sounds.Temperature display flashes.Fig.2/8 | Fault - the freezer compartment is too warm!Frozen food is at risk.Appliance is open. Close the appliance. | To switch off the warning signal, press the temperature setting button, Fig.2/6. |
| Ventilation openings have been covered. | Ensure that there is adequate ventilation. | |
| Too much food was placed in the freezer at once. | Do not exceed max. freezing capacity. | |
| When the fault has been rectified, the temperature display stops flashing. | ||
| The temperature in the freezer compartment is too warm. | Appliance opened frequently. | Do not open the appliance unnecessarily. |
| The ventilation openings have been covered. | Remove obstacles. | |
| Large quantities of fresh food are being frozen. | Do not exceed max. freezing capacity. | |
| The light does not function. The LED light is defective. See chapter “Light (LED)” section. | ||
| Controls have reduced luminosity. | When the appliance is not used for some time, the display on the fascia switches to energy saving mode. | As soon as the appliance is again used, e.g. the door is opened, the display switches back to normal illumination. |
| Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly. | Connect mains plug. Check whether the power is on, check the fuses. | |
| Appliance is not cooling, temperature display and light are lit. | Showroom mode is switched on. | Hold down temperature selection button fig. 2/2 for 10 seconds until an acknowledgement signal sounds. After a short time check whether your appliance is cooling. |
| Freezer compartment door was open for a long time; temperature is no longer reached. | The evaporator (refrigeration generator) in the NoFrost system is covered in thick ice and can no longer be defrosted fully automatically. | To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location. Switch off the appliance and move it away from the wall. Leave the appliance door open. After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance. To prevent the evaporation pan from overflowing in this case, mop up the condensation with a sponge. The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again. |
| Condensation accumulates on the surface of the appliance and on the shelves inside. | The effect is reinforced if ambient temperatures are warm and humid. | Wipe away the water with a soft, dry cloth. Open the appliance as briefly as possible Make sure that the appliance is always closed properly. |
Customer service
Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).
This information can be found on the rating plate. Fig. 12
To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.
Repair order and advice on faults
Contact information for all countries can be found on the enclosed customer service list.
GB 0344 892 8999 Calls charged at
local or mobile rate.
IE 01450 2655 0.03 € per minute
at peak. Off peak
0.0088 € per
minute.
US 866 447 4363 toll-free
10
12
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
siemens-home.bsh-group.com
Κατασκευάζεται από την BSH Hausgeräte GmbH με άδεια εμπορικού σήματος της Siemens AG Manufactured by BSH Hausgeräte GmbH under Trademark License of Siemens AG Gyártó a BSH Hausgeräte GmbH, a Siemens AG védjegyhasználati engedélye alapján Izdelalo podj. BSH Hausgeräte GmbH po licenci za blagovno znamko Siemens AG Виготовлено BSH Hausgeräte GmbH за ліцензією на товарний знак Siemens AG
- en Table of Contents
- Safety and warning information
- Before you switch ON the appliance
- Technical safety
- If damage has occurred
- Fire hazard
- Important information when using the appliance
- ■ Avoiding placing children and vulnerable people at risk:
- Children in the household
- General regulations
- Information concerning disposal
- Disposal of packaging
- Disposal of your old appliance
- Warning
- Scope of delivery
- Installation location
- Distance from wall
- Observe ambient temperature and ventilation
- Ambient temperature
- Note
- Ventilation
- Fig. 3
- Connecting the appliance
- Electrical connection
- Getting to know your appliance
- Controls
- Fig. 2
- Switching on the appliance
- Operating tips
- en
- Setting the temperature
- Refrigerator compartment
- Freezer
- eco
- Switching on eco
- Alarm functions
- Door alarm
- Temperature alarm
- Switching off the alarm
- Usable capacity
- Fully utilising the freezer volume
- Removing the fittings
- Storing food
- Note the chill zones in the refrigerator compartment
- Vegetable container with humidity control
- Fig. 7
- Notes
- Cold storage compartment
- Fig. 6
- Super cooling
- Switching on and off
- Freezer compartment
- Use the freezer compartment
- Max. freezing capacity
- Prerequisites for max. freezing capacity
- Freezing and storing food
- Purchasing frozen food
- Note when loading products
- Storing frozen food
- Freezing fresh food
- Packing frozen food
- Suitable packaging:
- Unsuitable packaging:
- Items suitable for sealing packaged food:
- Shelf life of frozen food
- Super freezing
- Thawing frozen food
- Caution
- Interior fittings
- Shelves and containers
- Special features
- Bottle shelf
- Ice cube tray
- Freezer calendar
- Ice block
- Sticker "OK"
- Switching off and disconnecting the appliance
- Switching off the appliance
- Disconnecting the appliance
- Cleaning the appliance
- The cleaning water must not get into the following areas:
- Proceed as follows:
- Take out shelves in the door Fig. 4
- Take out glass shelves
- Removing the container
- Taking out the frozen food container Fig. 9
- Light (LED)
- Tips for saving energy
- Operating noises
- Quite normal noises
- Droning
- Clicking
- Cracking
- Preventing noises
- The appliance is not level
- The appliance is not free-standing
- Containers or storage areas wobble or stick
- Bottles or receptacles are touching each other
- Eliminating minor faults yourself
- Customer service
- Repair order and advice on faults
Brand : SIEMENS
Model : KG34NVW35G
Category : Refrigerator
