| Product Type | Video Projector |
| Brand | Acer |
| Model | PF-L200X |
| Native Resolution | XGA (1024 x 768) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Lamp Life | Up to 10,000 hours (Eco Mode) |
| Projection Distance | 3.3 – 39.4 ft (1 – 12 m) |
| Image Size | 27 – 300 inches |
| Keystone Correction | ±40° Vertical |
| Input Ports | HDMI, VGA, Composite, USB |
| Built-in Speaker | 10W Mono |
| Noise Level | 30 dB (Eco Mode) |
| Power Supply | 100 – 240 V, 50/60 Hz, 300W |
| Dimensions (W x D x H) | 12.2 x 8.7 x 3.5 in (310 x 220 x 89 mm) |
| Weight | 6.6 lbs (3.0 kg) |
| Lamp Type | UHP 240W |
| Filter Cleaning | Every 500 hours (user accessible) |
| Operating Temperature | 32 – 104°F (0 – 40°C) |
| Included Accessories | Power cord, VGA cable, remote control, user manual |
Frequently Asked Questions - PF-L200X ACER
How do I clean the air filter?
Turn off the projector and unplug it. Locate the filter cover, remove the filter, and gently vacuum or wash with mild soap and water. Let it dry completely before reinstalling. Clean every 500 hours of use.
How do I replace the lamp?
Use only genuine Acer replacement lamps (model LMP-128). Open the lamp cover, loosen the screws, remove the old lamp, and insert the new one. Tighten screws and close cover. Reset the lamp hour counter via the menu.

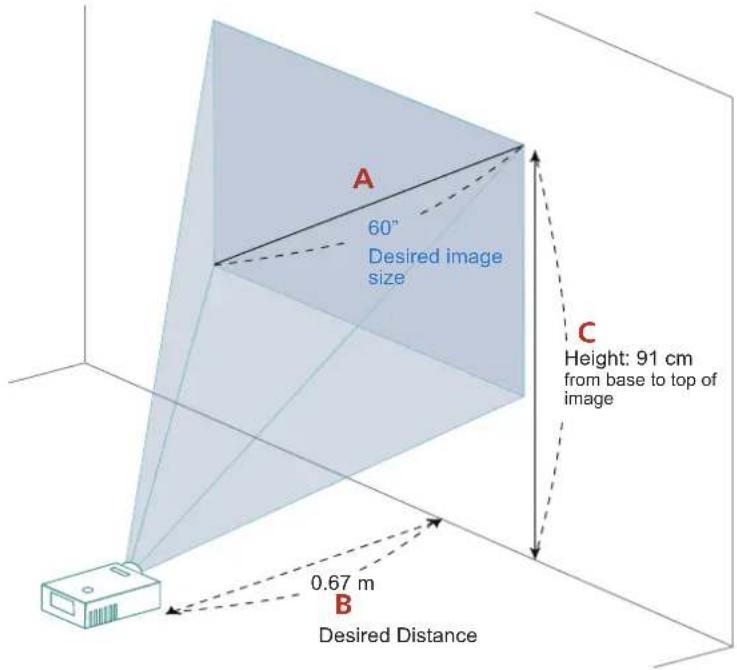

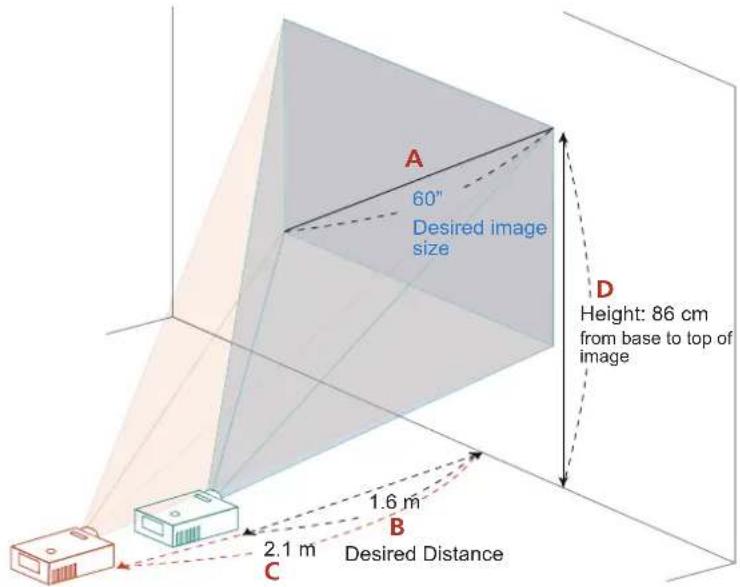

What projection screen size can I get?
The projector can display images from 27 to 300 inches diagonally. Adjust the zoom and distance between 3.3 and 39.4 ft for your desired size.

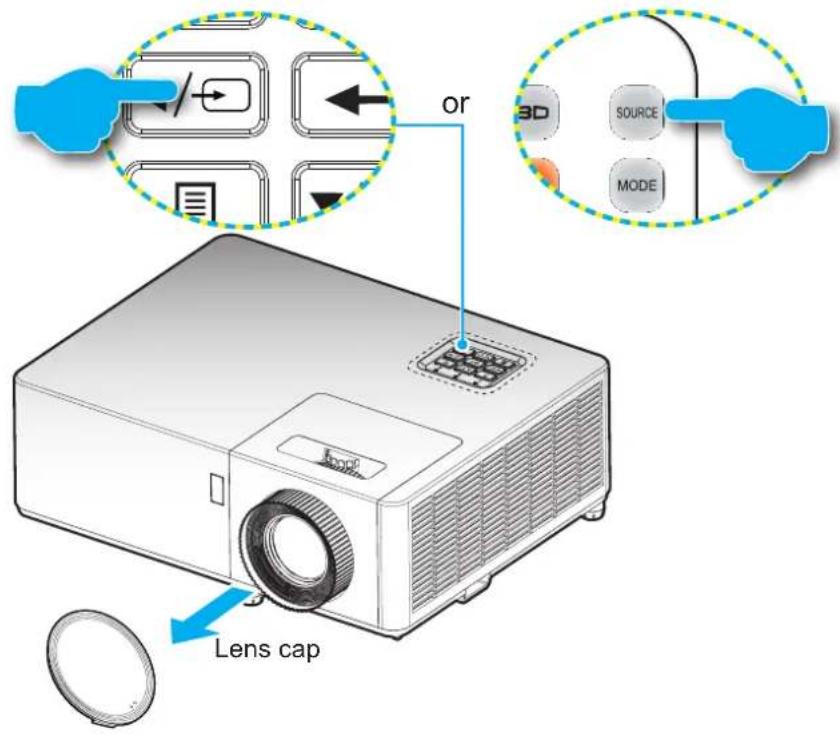

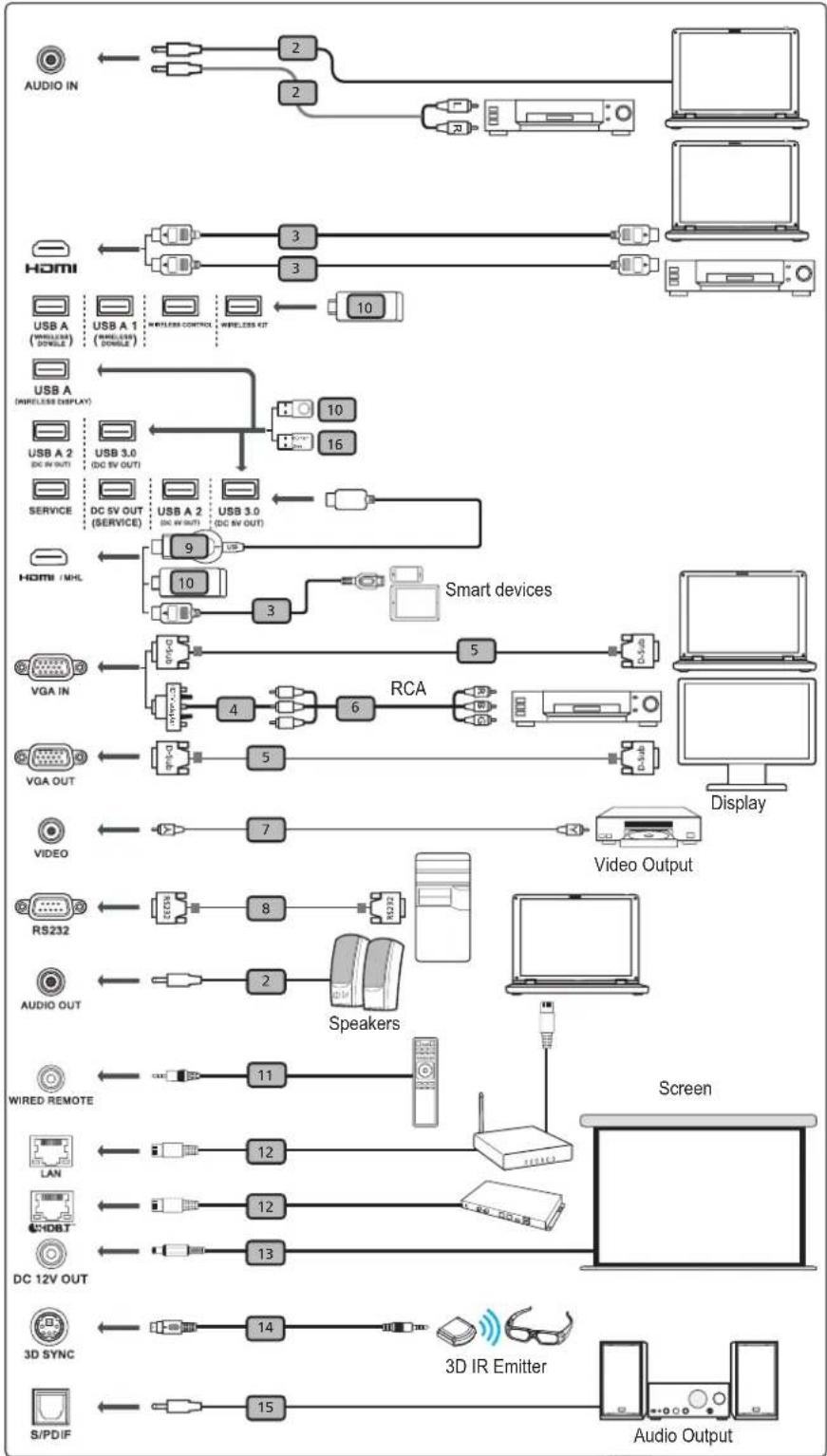

How do I connect a laptop?
Use an HDMI or VGA cable to connect your laptop to the corresponding port on the projector. Select the correct input source using the remote or on-screen menu.
Why does the projector shut off suddenly?
Common causes: overheating (check filter and ventilation), power supply issues, or lamp failure. Ensure the projector is in a well-ventilated area and clean the filter. If problem persists, consult service.

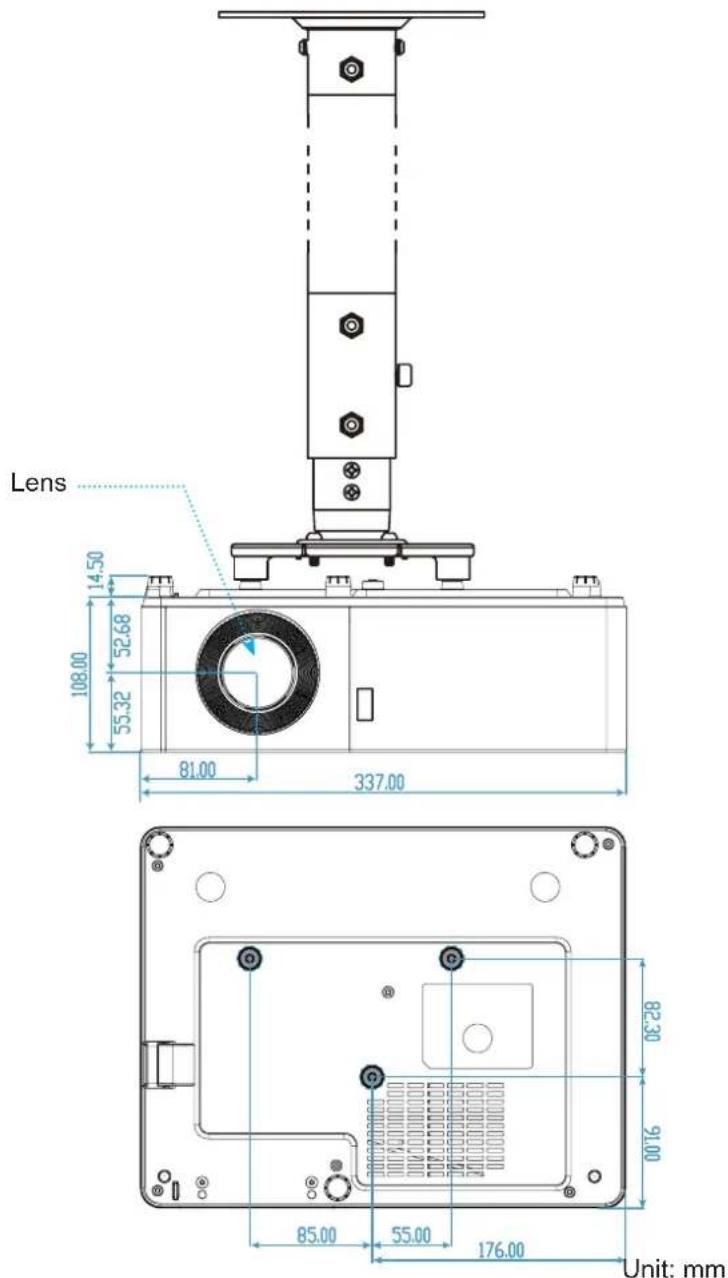

Can I mount the projector on the ceiling?
Yes, the PF-L200X supports ceiling mounting. Use an approved Acer ceiling mount kit and follow the installation instructions. Ensure proper ventilation and secure mounting.
What is the maximum resolution supported?
Native resolution is XGA (1024×768). It can accept higher resolutions like 1080p but will scale down to XGA.
How do I adjust the image focus?
Rotate the focus ring on the lens barrel until the image appears sharp. For fine adjustment, use the keystone correction if needed.

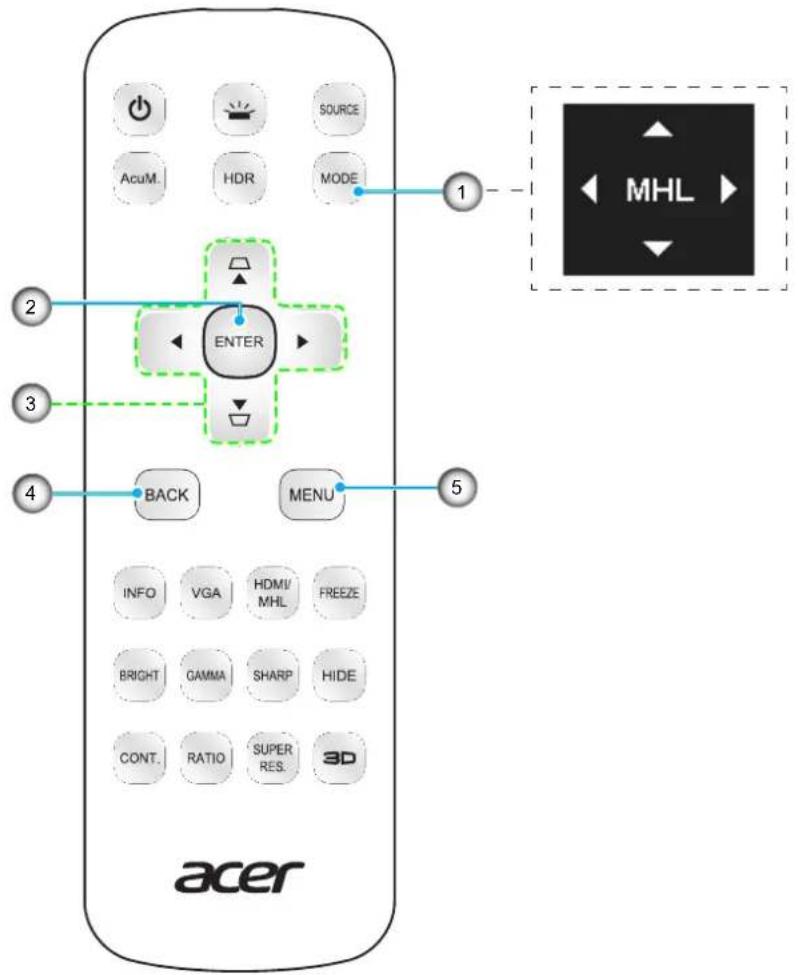

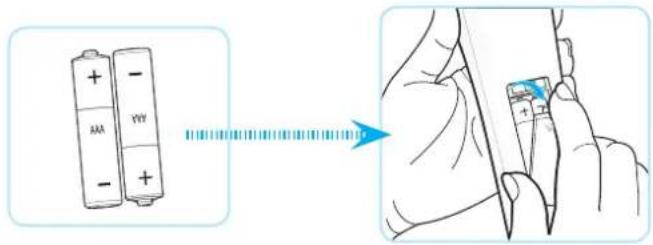

Does the projector have a remote control?
Yes, a remote control is included. It allows you to power on/off, adjust volume, switch inputs, and navigate the on-screen menu from a distance.

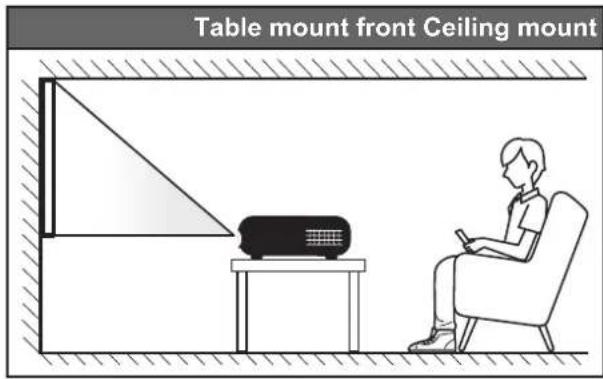

What do I do if the image is inverted?
Go to the on-screen menu, navigate to Projection or System Settings, and select the correct projection mode: Front, Rear, Ceiling Front, or Ceiling Rear depending on your setup.
