F2WN2S6N4E - Washing machine LG - Free user manual and instructions

Product Type	Front-loading washing machine
Brand	LG
Model	F2WN2S6N4E
Capacity	10.5 kg
Dimensions (H x W x D)	850 x 600 x 560 mm
Net Weight	67 kg
Energy Efficiency Class	A+++
Maximum Spin Speed	1400 rpm
Motor Type	Inverter Direct Drive (AI DD)
Steam Function	Steam+ technology
Noise Level (Wash/Spin)	48 dB / 72 dB
Water Consumption per Cycle	49 L
Annual Energy Consumption	152 kWh
Number of Programs	14
Special Programs	Hygiene, Allergy Care, Quick 14, Mixed Fabric, Cotton, Synthetics, Delicates, Wool, Hand Wash, Sports Wear, Duvet, Stain Cycle, Tub Clean, Rinse+Spin, Spin Only, Drum Clean
Display Type	LED display
Control Type	Touch control + Dial
Delay Start	Up to 19 hours
Safety Features	Child Lock, Overheating Protection, Overflow Prevention, Unbalanced Load Detection, Door Lock, Water Leak Protection
Self-Cleaning	Tub Clean program, Drain Pump Filter cleaning indicator
Smart Features	ThinQ app, Wi-Fi connectivity, Smart Diagnosis
Included Accessories	User manual, Quick reference guide, Hose, Drain hose bracket, Screws for lid, Caps for transit bolts
Warranty	2 years parts and labor (may vary by region)

Frequently Asked Questions - F2WN2S6N4E LG

How do I install the LG F2WN2S6N4E washing machine?

Remove all packaging and transit bolts (usually 4 at the back). Level the machine using the adjustable feet. Connect water inlet hose to a cold water tap and drain hose to a standpipe or sink. Plug into a grounded outlet. Run a drum clean cycle before first use.

What does error code 'OE' mean on the display?

Error code OE indicates a drainage problem. The machine is not emptying water. Check the drain hose for kinks or blockages. Clean the drain pump filter located at the bottom front of the machine.

How do I clean the detergent drawer?

Press the lever inside the drawer and pull it out completely. Rinse under warm water and scrub with a soft brush. Remove the insert for the liquid detergent compartment if present. Dry and reinsert.

What is the proper way to clean the drum and door seal?

Run the Tub Clean program monthly using a drum cleaner or 100 ml of bleach. After each wash, wipe the door seal (gasket) with a dry cloth to remove moisture and lint. Leave the door ajar when not in use.

Can I use bleach or fabric softener?

Yes, but follow the detergent drawer guidelines. Put bleach in the pre-wash compartment (labeled with bleach symbol) and fabric softener in the compartment marked with the flower symbol. Do not exceed the max line.

How do I reset the washing machine?

Press the Power button to turn off. Wait 1 minute, then press and hold the Start/Pause button while turning the power back on. Hold until the display shows '0'. Release and turn off again. This resets the machine.

What is the maximum load weight for different programs?

For cotton, max 10.5 kg; synthetics 5.0 kg; delicates 3.0 kg; wool 2.0 kg. Always check the clothing labels and do not overload the drum for best results.

How do I activate the child lock?

Press and hold the Child Lock button (or Temp + Spin simultaneously depending on model) for 3 seconds. A padlock icon will appear on the display. Repeat to deactivate.

Why is the machine vibrating excessively during spin?

Check if the transit bolts were removed. Ensure the machine is level on all four feet. Rearrange the load evenly (avoid washing single heavy items like a duvet). Make sure the floor is solid.

How do I use the ThinQ app with this washing machine?

Download the LG ThinQ app from your app store. On the machine, press and hold the Remote Start button for 3 seconds to enable Wi-Fi. Follow the app instructions to connect to your home network. You can then monitor cycles, download additional programs, and receive notifications.

USER MANUAL F2WN2S6N4E LG

HR HRVATSKI SR SRPSKI

RO ROMÂNĂ

SL SLOVENŠČINA

TARTALOMJEGYZÉK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

BIZTONSÁGI ELŐÍRÁSOK

HASZNÁLATBAVÉTEL ELŐTT OLVASSA EL AZ ÖSSZES UTASÍTÁST

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 BIZTONSÁGI ELŐÍRÁSOK

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Mosószer

Pure electrical circuit lines without any symbols

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 TELEPÍTÉS

TELEPÍTÉS

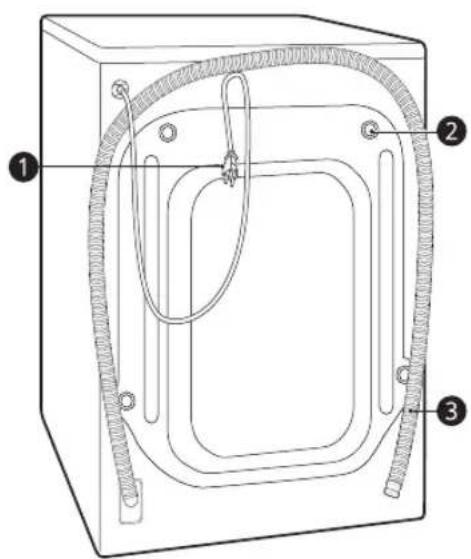

1 Vezérlőpanel

1 Tápcsatlakozó

2 Szállítócsavarok

3 Leeresztő tömlő

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Tartozékok

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 TELEPÍTÉS

Technical line drawing of a mechanical component with two views: top shows circular grooves and a threaded bolt, bottom shows a hexagonal nut (no text or symbols)

MEGJEGYZÉS

Two diagrams showing a mechanical lever mechanism with rotating arrows, no text or symbols present.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

MEGJEGYZÉS

Simple diagram of a mechanical or electrical component with three circular holes and a curved base, no text or symbols present.

Mechanical diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 TELEPÍTÉS

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

MEGJEGYZÉS

Illustration showing a person using a device to observe a magnified view of the device (no text or symbols present)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

hu_main.book.book Page 17 Tuesday, September 1, 2020 8:31 AM

TELEPÍTÉS 17

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 ÜZEMELTETÉS

ÜZEMELTETÉS

Cross-sectional diagram of a biological structure inside a circular chamber, showing internal tissue and a marked region (no text or labels)

Medical illustration showing a hand operating a catheter in a car, with an inset close-up of the catheter being held (no text or labels present)

Line drawing of a refrigerator interior with doors and shelves (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

7 Indítsa el a programot.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 ÜZEMELTETÉS

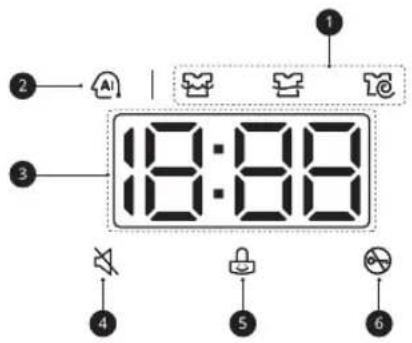

Vezérlőpanel

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 ÜZEMELTETÉS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 ÜZEMELTETÉS

Öblítő rekesz

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programtáblázat

Mosási program

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 ÜZEMELTETÉS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Extra opciók

MEGJEGYZÉS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 ÜZEMELTETÉS

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

32 ÜZEMELTETÉS

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INTELLIGENS FUNKCIÓK

LG ThinQ Alkalmazás

Illustration of hands cleaning a circular object with a lid and brush (no text or symbols)

FIGYELMEZTETÉS

Diagram showing a mechanical component with an arrow indicating rotational motion (no text or symbols)

Illustration of a tool being cut with scissors, showing motion and assembly (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 KARBANTARTÁS

Illustration of a hand holding a folder with a tool, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 HIBAELHÁRÍTÁS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Hallható zajok

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Szag

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

SIGURNOSNE UPUTE

PROČITAJTE SVE UPUTE PRIJE UPOTREBE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 SIGURNOSNE UPUTE

vosak, ulje, boja, benzin, odmašćivači, otapala za kemijsko čišćenje, kerozin, sredstva za uklanjanje mrlja, turpentin, biljno ulje, ulje za kuhanje, aceton, alkohol itd.). Nepravilna upotreba može uzrokovati požar ili eksploziju.

- Ne koristite niti ne pohranjujte zapaljive ili gorive tvari (eter, benzen, alkohol, kemijske tvari, LPG, zapaljivi sprej, benzin, razrjeđivač, nafta, insekticid, osvježivač zraka, kozmetika itd.) blizu uređaja.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Održavanje

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

8 SIGURNOSNE UPUTE

• Energetski najučinkovitiji programi uglavnom su oni koji se izvode na nižim temperaturama i traju dulje.
• Na buku i preostali sadržaj vlage utječe brzina centrifuge: što je veća brzina centrifuge u fazi centrifugiranja, to je veća buka i niži je preostali sadržaj vlage.
• Jednoliko punjenje rublja do težinu koju navodi proizvođač odgovarajućih programa doprinijet će uštedama energije i vode.
• Prilikom pranja manje količine rublja sustav za automatsko prepoznavanje količine rublja za pranje smanjit će potrošnju vode i energije.
• Koristite brzi program za male količine lagano zaprljanog rublja.
• Deterdženti za pranje rublja u hladnoj vodi učinkoviti su na niskim temperaturama (oko 20 °C). Uporabom postavki temperature od 20 °C koristit će manje energije od postavki temperature od 30 °C ili viših.

Deterdžent

• Deterdžent je potrebno birati prema vrsti, boji, zaprljanju tkanine i temperaturi pranja. Potrebno je pridržavati se uputa za upotrebu koju navodi proizvođač deterdženta. Koristite samo deterdžente prikladne za perilice rublja s bubnjem (prednje punjenje).
• Za manje punjenje koristite manje deterdženta.

- Djelomično punjenje: 1/2 normalne količine.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Zbrinjavanje starog uređaja

• Ovaj simbol prekrižene kante za smeće na kotačićima označava kako se otpadni električni i električni proizvodi (WEEE) moraju zbrinjavati odvojeno od komunalnog otpada. Dotrajali električni proizvodi mogu sadržavati opasne tvari stoga će ispravno zbrinjavanje vaših dotrajalih uređaja pomoći u sprječavanju potencijalnih negativnih posljedica na okoliš i ljudsko zdravlje. Vaš dotrajao uređaj može sadržavati dijelove koji se mogu ponovo iskoristiti za popravak drugih proizvoda te druge vrijedne materijale koji se mogu reciklirati i tako sačuvati ograničene resurse.
• Ovisno o razini smetnje / štete i dobi stavke, stari proizvodi mogu se popraviti za više radnog života koji će spriječiti izbjeći otpada. Proizvodi koji nisu prikladni za ponovnu uporabu može se reciklirati da se oporavim vrijedne resurse i pomoći da se smanji globalno potrošnju novih sirovina.
• Uređaj možete odnijeti u trgovinu u kojoj ste kupili proizvod ili možete kontaktirati ured za zbrinjavanje otpada kod vaših mjesnih nadležnih tijela te od njih saznati više informacija o najbližem ovlaštenom WEEE sabirnom centru. Za najnovije informacije iz svoje države pogledajte internetske stranice www.lg.com/global/recycling

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 POSTAVLJANJE

POSTAVLJANJE

1 Upravljačka ploča
② Ladica dozatora deterdženta
3 Bubanj
4 Vrata
5 Pokrovni poklopac
6 Odvodni čep
7 Filtar odvodne pumpe
8 Noge za poravnavanje

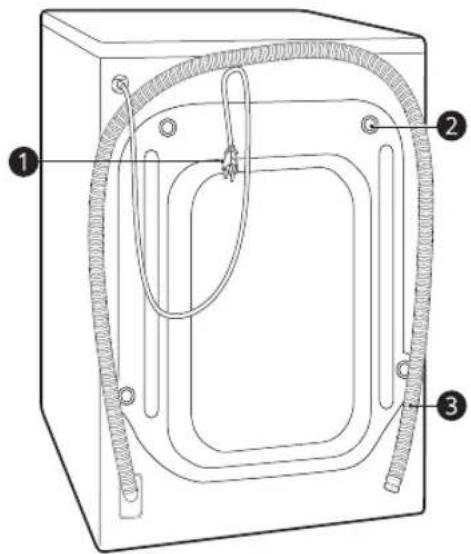

Prikaz straga

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pribor

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 POSTAVLJANJE

Technical line drawing of two mechanical components: a flanged circular component and a threaded bolt (no text or symbols)

• Kako biste spriječili vibraciju, preporučujemo da postavite gumene čepove debljine barem 15 mm ① ispod svake noge uređaja, vijcima učvršćene na barem dvije podne grede.
• Ako je moguće, postavite perilicu u kut sobe gdje je pod najstabilniji.
• Postavite gumene prstenove kako biste smanjili vibraciju.

OPREZ

• Provjerite uklanja li se držač bubnja 1* zajedno s podlogom i pobrinite se da nije zaglavljen za dno uređaja.
• Ako trebate spustiti uređaj kako biste uklonili kartonsku podlogu ②, uvijek zaštitite bočnu stranu uređaja i pažljivo ga položite na stranu. Uređaj nemojte spuštati na prednju ili stražnju stranu.

Uklanjanje sklopova matičnih vijaka za prijevoz

Radi sprječavanja opasnih vibracija i loma uređaja uklonite matične vijke za prijevoz i stezaljki.

2 Izvadite sklopove vijaka uz lagano pomicanje gore-dolje i lijevo-desno.

3 Postavite poklopce za otvore.

- Pronađite poklopce za otvore ② koji su uključeni u dodatnom priboru ili pričvršćeni sa stražnje strane.

NAPOMENA

- Pohranite matične vijke za prijevoz i stezaljke za buduću upotrebu.

Diagram of a mechanical clamp or tool with a rotating arm and lever (no text or symbols)

Mechanical linkage diagram showing a lever and fulcrum with motion arrow (no text or symbols)

NAPOMENA

Simple diagram of a beam supported by two circular holes, with a curved line below (no text or symbols)

3 Učvrstite podesive noge s pomoću sigurnosnih matica ② okretanjem suprotno od kazaljke sata prema dnu uređaja.

Mechanical assembly diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

4 Provjerite jesu li sve matice na dnu perilice dobro učvršćene.

NAPOMENA

• Pravilnim postavljanjem i poravnavanjem perilice osigurat će dug, redovit i pouzdan rad.
• Uređaj mora biti 100 % horizontalan i čvrsto stajati na tvrdom i ravnom podu.
• Ne smije se „klackati“ preko rubova pod teretom.
• Pazite da se noge perilice ne smoče. U suprotnom može doći do vibracija ili buke.

Spajanje crijeva dovoda vode

Napomena o spajanju

Diagram of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or labels)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 POSTAVLJANJE

NAPOMENA

Illustration showing a person using a handheld device to interact with another person holding a magnifying glass (no text or symbols present)

- Kod modela koji imaju samo jedan ventil za dovod vode crijevo nemojte spajati na toplu vodu. Spojite ga samo na hladnu vodu.

NAPOMENA

• Ako nakon spajanja iz crijeva curi voda, ponovite postupak. Za dovod vode upotrijebite standardni tip slavine. Ako je slavina kvadratna ili prevelika, uklonite vodilicu prije umetanja slavine u adapter.
• Pazite da crijevo nije savijeno ili zaglavljeno.

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

RAD

Pregled rada

Medical illustration showing a cross-sectional view of internal organs within a circular structure (no text or labels)

3 Zatvorite vrata.

OPREZ

Medical illustration showing a hand pointing to a car interior with a magnified inset of the hand holding a device (no text or symbols present)

4 Dodajte proizvode za čišćenje ili deterdžent i omekšivač.

- Dodajte ispravnu količinu deterdženta u dozator deterdženta. Ako želite, dodajte izbjeljivač ili omekšivač tkanine u odgovarajuće dijelove dozatora.

Line drawing of a refrigerator interior with no text or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18 RAD

- Zatim odaberite temperaturu pranja i brzinu centrifuge. Obratite pozornost na oznake za njegu odjeće.

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

7 Započnite ciklus.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

20 RAD

Prikaz vremena i statusa

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Priprema rublja za pranje

• Osjetljivo rublje (najlonke, donje rublje) perite u mrežici za pranje.
• Zatvorite patentne zatvarače, kukice i vezice kako biste bili sigurni da se ovi predmeti neće zahvatiti za drugu odjeću.
• Prije pranja očetkajte prljavštinu i mrlje malom količinom razvodnjenog deterdženta kako biste pomogli podići prljavštinu.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 RAD

Dodavanje deterdženata i omekšivača

Doziranje deterdženta

- Deterdžent bi se trebao upotrebljavati u skladu s uputama proizvođača deterdženta i odabrati u

skladu s vrstom, bojom, razinom zaprljanosti tkanine i temperaturom pranja. Koristite samo deterdžente prikladne za perilice rublja s bubnjem (prednje punjenje).

- Ako se pojavi previše sapunice, smanjite količinu deterdženta.

- Ako se upotrijebi previše deterdženta, može nastati previše sapunice i to će dovesti do slabih rezultata pranja ili uzrokovati teško opterećenje motora.

- Ako želite upotrebljavati tekući deterdžent, slijedite smjernice koje vam pruži proizvođač deterdženta.

- Možete uliti tekući deterdžent izravno u glavnu ladicu deterdženta ako odmah pokrećete ciklus pranja.

- Nemojte upotrebljavati tekući deterdžent ako ste aktivirali funkciju Delay End (Vremenska odgoda) ili ako ste odabrali mogućnost Pre Wash (Pretpranje) jer će se tekućina odmah raspodijeliti i može se stvrdnuti u ladici ili bubnju.

① Odjeljak za deterdžent za glavno pranje
2 Odjeljak za deterdžent za pretpranje
3 Odjeljak za tekući omekšivač tkanina

3 Prije pokretanja ciklusa pažljivo zatvorite ladicu dozatora deterdženta.

• Grubo i žestoko zatvaranje ladice može prouzročiti prelijevanjem deterdženta u drugi odjeljak ili puštanjem u bubanj ranije od programiranog.
• Pazite kako ne biste pričepili ruku dok zatvarate ladicu.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

- Normalno je da u odjeljcima dozatora na kraju ciklusa ostane mala količina vode.

Odjeljak za omekšivač tkanina

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 RAD

Tablica programa

Program pranja

Cotton (Pamuk)		40 °C (Cold (Hladno) do 95 °C)	Maksimalno punjenje: nazivno
Opis	Pere normalno zaprljanu odjeću kombiniranjem različitih kretnji bubnja.Pritiskom tipkPokretanje/Zaustavljanjebez odabira programa uzrokovat će trenutno pokretanje programa Cotton (Pamuk) uz zadane postavke.

Eco 40-60 (Eko 40-60)		40 °C (40 °C do 60 °C)	Maksimalno punjenje: nazivno
Opis	Pranje normalno zaprljane pamučne odjeće koja ima oznaku za pranje na temperaturama 40 °C ili 60 °C.

Mixed Fabric (Mješovita tkanina)		40 °C (Cold (Hladno) do 60 °C)	Maksimalno punjenje 3 kg
Opis Istodobno	pranje miješanih tkanina. Upotrebljavajte za različite vrste tkanina osim posebnih odjevnih predmeta (svila/osjetljivo rublje, sportska odjeća, tamna odjeća, vuna, posteljina/zastori).

Easy Care (Sintetika)		40 °C (Cold (Hladno) do 60 °C)	Maksimalno punjenje 3 kg
Opis	Pranje odjeću koja se nakon pranja ne mora glačati.• Upotrebljavajte za rublje od poliamida, akrila, poliestera.

Silent Wash (Tiho pranje)		40 °C (Cold (Hladno) do 60 °C)	Maksimalno punjenje 3 kg
Opis	Pranje odjeće uz manje buke i vibracija nego drugi programi pranja.Koristite za lagano zaprljano bijelo pamučno (donje) rublje.

Hygiene (Higijena) 60 °C Maksimalno punjenje 3 kg
Opis Pere odjeću na visokoj temperaturi.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 RAD

Dodatne mogućnosti

NAPOMENA

- Za svaki program pranja u ovoj tablici moguće je odabrati opcije Intensive (Intenzivno), Rinse+ (Ispiranje+), Delay End (Vremenska odgoda) i Add Item (Naknadno dodavanje odjeće).

Program Pre Wash (Pretpranje)
Cotton (Pamuk)	●
Eco 40-60 (Eko 40-60)	●
Mixed Fabric (Mješovita tkanina)	●
Easy Care (Sintetika)	●
Silent Wash (Tiho pranje)
Hygiene (Higijena)
Baby Care (Njega dječje odjeće)
Delicates (Osjetljivo rublje)
Hand/Wool (Ručno pranje/vuna)
Sportswear (Sportska odjeća)
Quick 30 (Brzi pogram 30)	●
Duvet (Posteljina)

Mogućnost odabira maksimalne brzine centrifuge

Program	Brzina centrifuge
	Zadano Dostupno
Cotton (Pamuk)	1200 okretaja u minuti Sve
Eco 40-60 (Eko 40-60)	1200 okretaja u minuti Sve
Mixed Fabric (Mješovita tkanina)	1000 okretaja u minuti Sve
Easy Care (Sintetika)	1200 okretaja u minuti Sve
Silent Wash (Tiho pranje)	800 okretaja u minuti Do 1000 okretaja u minuti

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Program	Brzina centrifuge
	Zadano Dostupno
Hygiene (Higijena)	1200 okretaja u minuti	Sve
Baby Care (Njega dječje odjeće)	1000 okretaja u minuti Do 1000	okretaja u minuti
Delicates (Osjetljivo rublje)	800 okretaja u minuti Do 800	okretaja u minuti
Hand/Wool (Ručno pranje/vuna)	800 okretaja u minuti Do 800	okretaja u minuti
Sportswear (Sportska odjeća)	800 okretaja u minuti Do 800	okretaja u minuti
Quick 30 (Brzi pogram 30)	800 okretaja u minuti Sve
Duvet (Posteljina)	1000 okretaja u minuti Do 1000	okretaja u minuti

NAPOMENA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 RAD

Program	kg	h:mm	kWh	°C	Litara	okretaja pominuti	%
Mixed Fabric (Mješovita tkanina)	3	1:21	0,283	32	44,0	1000	62,0
Quick 30 (Brzipogram 30)	2	0:30	0,125	24	37,0	800	79,0
Cotton (Pamuk) + Intensive (Intenzivno)	3	4:00	0,649	32	81,0	1200	55,0
Eco 40-60 (Eko 40-60) (Puna)*1	6,5	3:23	1,180	50	58,0	1200	50,0
Eco 40-60 (Eko 40-60) (Polovina)*1	3,25	2:39	0,610	41	35,0	1200	52,0
Eco 40-60 (Eko 40-60) (Četvrtina)*1	1,625	2:32	0,240	27	30,0	1200	60,0

*1 U istom ciklusu može prati uobičajeno zaprljano rublje od pamuka predviđeno za pranje na temperaturama 40 °C ili 60 °C i taj program se koristi za ocjenu usklađenosti s propisima za EU ekološku oznaku (EU 2019/2023).

NAPOMENA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 RAD

Pre Wash (Pretpranje)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 PAMETNE FUNKCIJE

PAMETNE FUNKCIJE

Aplikacija LG ThinQ

Aplikacija LG ThinQ omogućava komunikaciju s uređajem putem pametnog telefona.

http://www.lg.com/global/support/cedoc/cedoc#LG Electronics European Shared Service Centre B.V.

Krijgsman 1, 1186 DM Amstelveen, Nizozemska

ODRŽAVANJE

⚠ UPOZORENJE

Illustration of hands cleaning a circular object with arrows indicating direction (no text or symbols)

⚠ UPOZORENJE

Diagram showing a mechanical component with an arrow indicating rotational motion (no text or symbols)

Illustration of a tool being handled with scissors, no text or symbols present

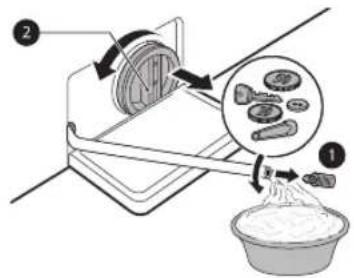

Čišćenje filtra odvodne pumpe i izvođenje hitnog pražnjenja vode

Illustration of a hand holding a folder with a tool, showing a curved arrow indicating rotation (no text or symbols present)

3 Najprije izvadite čep za ispuštanje iz cijevi za pražnjenje ①, a zatim ispustite vodu. Zatim polagano odvijte filtar odvodne pumpe ② kako biste ispustili preostalo vodu, a zatim iz filtra uklonite svu prljavštinu ili predmete.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 RJEŠAVANJE PROBLEMA

RJEŠAVANJE PROBLEMA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Simptomi Mogući	uzrok i rješenje
OEPOGREŠKA ODVODAVODE	Odvodno crijevo je izvijeno ili začepljeno. Voda u perilici rublja ne otječe ili otječe sporo. • Očistite i izravnajte odvodno crijevo.
	Začepljen je odvodni filtar. • Provjerite i očistite odvodni filtar.
dE dE l dE2 dE4POGREŠKA VRATA	Senzor vrata je neispravan. • Nazovite servisni centar tvrtke LG. Telefonski broj lokalnog servisnog centra tvrtke LG možete pronaći u jamstvenom listu.
tEPOGREŠKA KONTROLE	Pogreška kontrole perilice. • Isključite strujni utikač i pozovite servis.
LEPOGREŠKA MOTORA	Preopterećenje motora. • Pričekajte 30 minuta da se ohladi motor perilice i zatim ponovno pokrenite ciklus.
FEPOGREŠKAPRELIJEVANJA	Prelijevanje vode zbog možda neispravnog ventila vode. • Zatvorite slavinu za vodu. Iskopčajte strujni utikač. Pozovite servis.
PEPOGREŠKA SENZORATLAKA	Senzor za razinu vode je neispravan. • Zatvorite slavinu za vodu. Iskopčajte strujni utikač. Pozovite servis.
u5POGREŠKA SENZORA ZAVIBRACIJE	Senzor za vibracije je neispravan. • Pozovite servis.
FFPOGREŠKASMRZAVANJA	Jesu li opskrbno/odvodno crijevo ili pumpa smrznuti? • Dovedite toplu vodu u bubanj kako biste odmrzli odvodno crijevo i pumpu. Dovodno crijevo pokrijte vlažnim i toplim ručnikom.
RECURENJE VODE	Curenje vode. • Pozovite servis.
PFPOGREŠKA NAPAJANJA	Došlo je do prekida napajanja uređaja. • Ponovno pokrenite ciklus.

Zvukovi koje možete čuti

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 RJEŠAVANJE PROBLEMA

Neugodan miris

Simptomi Mogući	uzrok i rješenje
Pljesniv ili neugodan miris u perilici	Unutrašnjost bubnja nije pravilno očišćena.Redovito izvršavajte funkcijuTub Clean (Čišćenje bubnja).
	Crijevo za izbacivanje vode nije pravilno postavljeno pa voda teče natrag u perilicu.Prilikom ugradnje crijeva za izbacivanje vode pazite da se ne savije ili blokira.
	Dozator deterdženta se ne čisti redovito.Izvadite i očistite dozator deterdženta, posebice gornji i donji dio otvora dozatora.
	Može doći do pojave neugodnih mirisa ako crijevo za izbacivanje vode nije pravilno postavljeno pa voda teče natrag u perilicu.Prilikom ugradnje crijeva za izbacivanje vode pazite da se ne savije ili blokira.
	Ako dozator deterdženta redovito ne čistite moguća je pojava neugodnih mirisa zbog plijesni ili stranih tvari.Izvadite i očistite dozator deterdženta, posebice gornji i donji dio otvora dozatora.

Briga o kupcima i servis

Kontaktirajte LG Electronics informacijski centar za kupce.

• Ovlaštene LG Electronics servise pronaći ćete na našoj internetskoj stranici www.lg.com, pa slijedite tamo navedene upute.
• Ne preporučuje se samostalno popravljati uređaj jer ga to može dodatno oštetiti i poništiti valjanost jamstva.
• Rezervni dijelovi navedeni u Uredbi 2019/2023 dostupni su tijekom najmanje 10 godina.

KORISNIČKO UPUTSTVO

MAŠINA ZA PRANJE VEŠA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

UPUTSTVA ZA BEZBEDNOST

PROČITAJTE SVA UPUTSTVA PRE UPOTREBE PROIZVODA

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

UPUTSTVA ZA BEZBEDNOST

5

• Nemojte da priključujete uređaj u višestruke utičnice, razvodne kablove ili produžne kablove za napajanje.
• Ne prepravljajte utikač koji dolazi uz uređaj. Ako ne odgovara utičnici za napajanje, kvalifikovani električar treba da instalira odgovarajuću utičnicu.
• Uređaj je opremljen kablom za napajanje koji ima provodnik za uzemljenje opreme/provodnik za uzemljenje (igla za uzemljenje) i utikač za uzemljenje. Utikač mora da se priključi u odgovarajuću utičnicu koja je instalirana i uzemljena u skladu sa svim lokalnim propisima i uredbama.
• Nepravilno priključivanje provodnika za uzemljenje opreme može dovesti do opasnosti od strujnog udara. Konsultujte se sa kvalifikovanim električarem ili serviserom ako niste sigurni da li je uređaj ispravno uzemljen.
• Uređaj ne sme da se instalira iza vrata koja se mogu zaključati, kliznih vrata ili vrata sa šarkama sa suprotne strane mašine u odnosu na vrata uređaja, tako da se ograniči potpuno otvaranje vrata uređaja.

Rad

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 UPUTSTVA ZA BEZBEDNOST

- Ne ostavljajte vrata uređaja otvorena. Deca mogu da se zakače za vrata ili uđu u uređaj, što može izazvati oštećenja ili povrede.

- Ne stavljajte, ne perite i ne sušite stvari koje su čišćene, prane, natapane ili umrljane zapaljivim ili eksplozivnim supstancama (kao što su vosak, odstranjivači voska, nafta, farba, benzin, odmašćivači, rastvarači za hemijsko čišćenje, kerozin, petrolej, odstranjivači fleka, terpentin, biljno ulje, jestivo ulje, aceton, alkohol itd.) Nepravilno korišćenje može izazvati požar ili eksploziju.

- Ne koristite i ne čuvajte zapaljive ili vrele materije (etar, benzen, alkohol, hemikalije, LPG, zapaljive sprejeve, benzin, razređivač, petrolej, insekticide, osveživače vazduha, kozmetiku itd.) u blizini uređaja.

- Nikada ne stavljajte ruke u uređaj kada radi. Sačekajte da se bubanj potpuno zaustavi.

- Ne dodirujte vrata dok se izvršava program sa visokom temperaturom.

- U slučaju curenja vode iz uređaja ili poplave, isključite utikač iz utičnice i kontaktirajte sa korisničkim centrom LG Electronics.

- Zavrnite slavine za vodu da smanjite pritisak na creva i ventile i da umanjite curenje ako dođe do loma ili bušenja. Proverite stanje creva za punjenje; treba ih menjati nakon 5 godina.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

UPUTSTVA ZA BEZBEDNOST

7

• Kada je temperatura vazduha visoka, a temperatura vode niska, može doći do kondenzacije i mokrog poda.
• Obrišite prlljavštinu i prašinu sa utikača za napajanje.

Održavanje

• Isključite uređaj iz napajanja pre čišćenja uređaja. Postavljanje kontrola na položaj ISKLJUČENO ili stanje pripravnosti ne isključuje ovaj uređaj iz napajanja.
• Priključite utikač u utičnicu nakon što ste u potpunosti uklonili vlagu ili prašinu.
• Ne prskajte vodu ni po spoljašnjosti ni po unutrašnjosti uređaja kako biste ga očistili.
• Nikada ne isključujte uređaj povlačenjem kabla za napajanje. Uvek čvrsto uhvatite utikač i ravnim izvlačenjem ga isključite iz utičnice.
• Samo kvalifikovane osobe iz servisnog centra kompanije LG Electronics treba da rasklapaju, popravljaju ili menjaju uređaj. Obratite se centru za informisanje korisnika kompanije LG Electronics ako pomerate ili instalirate uređaj na drugoj lokaciji.

Odlaganje

• Pre odlaganja starog uređaja isključite njegov kabl iz utičnice. Isecite kabl odmah iza uređaja da biste sprečili nepravilnu upotrebu.
• Odložite sav materijal za pakovanje (poput plastičnih kesa i stiropora) dalje od dece. Materijal za pakovanje može da izazove gušenje.
• Uklonite vrata pre uklanjanja uređaja iz upotrebe ili njegovog odlaganja da biste sprečili da se deca ili male životinje zarobe u unutrašnjosti uređaja.

Pure electrical circuit lines without any symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 UPUTSTVA ZA BEZBEDNOST

ČUVANJE ŽIVOTNE SREDINE

Saveti o životnoj sredini i ekonomičnosti

Potrošnja vode i energije

• Težina punjenja može da utiče na potrošnju vode i upotrebu energije. Da najbolje iskoristite svoj uređaj, napunite maksimalnu količinu suve odeće za određeni program.
• Najefikasniji programi u terminima potrošnje energije su generalno oni programi koji rade na nižim temperaturama i u dužem trajanju.
• Brzina centrifuge utiče na buku i preostalu količinu vlažnosti: što je veća brzina centrifuge u fazi centrifugiranja, veća je i buka, a niža preostala količina vlažnosti.
• Ujednačeno ubacivanje veša do kapaciteta koji je naznačio proizvođač za odgovarajuće programe doprineće uštedi energije i vode.
• Za pranje manje količine odeće, sistem za automatsko prepoznavanje punjenja će pomoći da se smanji količina vode i upotreba energije.
• Koristite brzi program za malu količinu blago zaprljanog veša.
• Deterdženti za pranje u hladnoj vodi mogu da budu efikasni na nižim temperaturama (oko 20 °C). Ako koristite podešavanja za 20 °C, upotrebiće se manje energije nego na 30 °C i višim temperaturama.

Deterdžent

- Deterdžent treba izabrati prema vrsti, boji, zaprljanosti tkanine i temperaturi pranja. I treba ga koristiti prema uputstvima proizvođača deterdženta. Koristite jedino deterdžente koji su pogodni za mašine za pranje s bubnjem (sa vratima sa prednje strane).

- Koristite manje deterdženta za manje količine veša.

- Delimično punjenje: 1/2 normalne količine.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 MONTAŽA

MONTAŽA

Delovi i specifikacije

NAPOMENA

1 Kontrolna tabla
2 Dozirna posuda za deterdžent
3 Bubanj
4 Vrata
5 Poklopac
6 Odvodni zapušač
7 Filter odvodne pumpe
8 Nožice za nivelisanje

Prikaz zadnje strane

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Dodatna oprema

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 MONTAŽA

Technical line drawing of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

• Uverite se da je potpora bubnja 1* uklonjena sa podloge i da nije zaglavljena na dnu uređaja.
• Ako morate da položite uređaj da biste uklonili kartonsku podlogu ^2 , uvek zaštitite stranu uređaja i pažljivo ga položite na stranu. Ne polažite uređaj na prednju ili zadnju stranu.

Uklanjanje transportnih vijaka sa navrtkom

Da biste sprečili ozbiljne vibracije i oštećenja, uklonite transportne vijke sa navrtkom i držače.

1

Počevši od dva vijka za transport ^① , koristite ključ (priložen) da u potpunosti olabavite sve vijke za transport tako što ćete ih okrenuti u smeru suprotnom od kretanja kazaljki na satu.

14 MONTAŽA

2 Uklonite sklopove vijaka tako što ćete ih blago mrdati dok ih izvlačite.

3 Postavite čepove za rupe.

- Pronađite čepove za rupe ② koji su uključeni u pakovanje sa dodatnom opremom ili su prikačeni pozadi.

NAPOMENA

• Ostavite transportne vijke sa navrtkom i držače za kasniju upotrebu.
• Transportujte ovaj uređaj radi sprečavanja oštećenja na sledeći način:

- Transportni vijci sa navrtkom se ponovo postavljaju.

Two diagrams showing a mechanical lever mechanism with rotating arrows, no text or symbols present.

NAPOMENA

• Nemojte da postavljate mašinu za pranje na baze, postolja ili podignute površine osim ako nisu proizvedeni u kompaniji LG Electronics za upotrebu uz ovaj model.
  2 Proverite da li je uređaj savršeno iznivelisan korišćenjem libele ①.

Simple diagram of a mechanical or electrical component with a numbered point and curved base (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

3 Pričvrstite nožice za nivelisanje navrtkama ② okretanjem u smeru suprotnom od kretanja kazaljki u odnosu na podnožje uređaja.

Mechanical diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

Illustration of a faucet with a valve and pipe connection, showing fluid flow direction (no text or symbols)

NAPOMENA

- Nakon što povežete crevo za dovod vode sa slavinom za vodu, uključite slavinu za vodu da biste isprali strane materije (prašinu, pesak, opiljke itd.) iz creva za vodu. Pustite da voda iscuri u kofu i proverite temperaturu vode.

16 MONTAŽA

Illustration showing a person using a handheld device to observe a magnified view of the device (no text or symbols present)

Line drawing of a kitchen sink with faucet and handle (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

RAD

Pregled rada

Korišćenje uređaja

Pre prvog pranja, izaberite program pranja Cotton (Pamuk) i dodajte pola količine deterdženta. Pokrenite uređaj bez odeće. Time ćete ukloniti moguće ostatke i vodu iz bubnja koji su možda preostali tokom proizvodnje.

Cross-sectional diagram of a biological structure inside a circular container, showing internal tissue and a marked X (no text or symbols)

3 Zatvorite vrata.

OPREZ

Medical illustration showing a hand performing a procedure on a patient's abdomen, with magnified detail of the procedure (no text or labels)

4 Dodajte proizvode za čišćenje ili deterdžent i omekšivač.

Line drawing of a refrigerator interior with doors and shelves (no text or symbols)

5 Pritisnite dugme Napajanje da biste uključili uređaj.

6 Izaberite željeni ciklus.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

sr_main.book.book Page 18 Monday, August 31, 2020 5:55 PM

18 RAD

- Sada izaberite temperaturu pranja i brzinu centrifuge. Obratite pažnju na informacije o održavanju na etiketi vaše odeće.

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

7 Pokrenite ciklus.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

20 RAD

Prikaz vremena i statusa

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 RAD

Dodavanje deterdženta i omekšivača

Doziranje deterdženta

• Deterdžent treba da se koristi prema uputstvima proizvođača deterdženta i bira prema tipu, boji i zaprljanosti tkanine i temperaturi pranja. Koristite jedino deterdžente koji su pogodni za mašine za pranje s bubnjem (sa vratima sa prednje strane).
• Ako bude previše pene, smanjite količinu deterdženta.
• Ako se stavi previše deterdženta, može da se pojavi previše pene, a to će uzrokovati loše pranje ili izazvati preopterećenje za motor.
• Ako želite da koristite tečni deterdžent, pratite uputstva koja je obezbedio proizvođač deterdženta.
• Tečni deterdžent možete da sipate direktno u glavnu dozirnu posudu ako odmah pokrećete ciklus pranja.
• Ne koristite tečni deterdžent ako koristite funkciju Delay End (Odložen kraj) ili ako ste izabrali opciju Pre Wash (Pretpranje) jer će tečnost odmah da se doda i može da se stvrdne u dozirnoj posudi ili bubnju.
• Možda će biti potrebno da se korišćenje deterdženta prilagodi temperaturi vode, tvrdoći vode, količini i zaprljanosti veša u mašini. Za najbolje rezultate izbegavajte preteranu upotrebu deterdženta. Ako to ne uradite doći će do stvaranja previše pene.
• Pogledajte etiketu na odeći pre dodavanja deterdženta i izbora temperature vode.

• Koristite isključivo pogodne deterdžente za odgovarajuću vrstu odeće:

• Tečni deterdžent je često osmišljen za specijalne primene, npr. za obojenu tkaninu, vunu, osetljivu ili tamnu odeću.

• Praškasti deterdžent je pogodan za sve vrste tkanine.
• Za bolje rezultate pranja bele i svetle odeće, koristite praškasti deterdžent sa izbeljivačem.
• Deterdžent se iz dozirne posude uzima ispiranjem na početku ciklusa pranja.

NAPOMENA

1 Odeljak za deterdžent za glavno pranje
2 Odeljak za deterdžent za pretpranje
3 Odeljak za tečni omekšivač

3 Nežno zatvorite dozirnu posudu za deterdžent pre početka ciklusa.

• Ako zalupite dozirnu posudu, može doći do prelivanja deterdženta u druge odeljke ili prosipanja u bubanj pre nego što je to programirano.
• Pazite da ne zaglavite ruku u dozirnu posudu prilikom zatvaranja.
• Normalno je da mala količina vode ostane u odeljcima posude na kraju ciklusa.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 RAD

Tabela programa

Program pranja

Cotton (Pamuk)		40 °C (Cold (Hladno) do 95 °C)	Maks. punjenje: nominalno
Opis	Pere normalno zaprljanu odeću kombinujući različita kretanja bubnja.Pritiskanje dugmetaPokretanje/Pauza bez odabira programa će da prouzrokuje da se program Cotton (Pamuk) odmah pokrene koristeći podrazumevane postavke.

Eco 40-60 (Eko 40-60)		40 °C (40 °C do 60 °C)	Maks. punjenje: nominalno
Opis	Pere normalno zaprljanu odeću na kojoj je navedeno da se pere na 40 °C ili 60 °C.

Mixed Fabric (Mešovita tkanina)		40 °C (Cold (Hladno) do 60 °C)	Maks. punjenje 3 kg
Opis Pere mešovite tkanine istovremeno.Koristite za različite vrste tkanina osim posebnih tkanina (svila/osetljivo, sportska odeća, tamna odeća, vuna, jorgani/zavese).

Easy Care (Lako za održavanje)		40 °C (Cold (Hladno) do 60 °C)	Maks. punjenje 3 kg
Opis Pere odeću	koja ne zahteva peglanje nakon pranja.Koristite za poliamid, akril, poliester.

Silent Wash (Tiho pranje)		40 °C (Cold (Hladno) do 60 °C)	Maks. punjenje 3 kg
Opis	Pere odeću uz manju buku i vibracije od drugih programa pranja.Koristiti za blago zaprljan beli pamuk (donji veš).

Hygiene (Higijenski) 60 °C Maks.		punjenje 3 kg
Opis Pere odeću	na visokoj temperaturi.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 RAD

Dodatne opcije

NAPOMENA

- Opcije Intensive (Intenzivno), Rinse+ (Ispiranje+), Delay End (Odložen kraj) i Add Item (Dodaj veš) mogu da se izaberu za svaki program pranja u ovoj tabeli.

Program Pre Wash (Pretpranje)
Cotton (Pamuk)	●
Eco 40-60 (Eko 40-60)	●
Mixed Fabric (Mešovita tkanina)	●
Easy Care (Lako za održavanje)	●
Silent Wash (Tiho pranje)
Hygiene (Higijenski)
Baby Care (Nega dečije odeće)
Delicates (Osetljiva odeća)
Hand/Wool (Ručno/Vuna)
Sportswear (Sportska odeća)
Quick 30 (Brzi program 30)	●
Duvet (Posteljina)

Izabrana maksimalna brzina centrifuge

Program	Brzina centrifuge
	Podrazumevano Dostupno
Cotton (Pamuk)	1200 o/min Sve
Eco 40-60 (Eko 40-60)	1200 o/min Sve
Mixed Fabric (Mešovita tkanina)	1000 o/min Sve
Easy Care (Lako za održavanje)	1200 o/min Sve
Silent Wash (Tiho pranje)	800 o/min Do 1000 o/min

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Program	Brzina centrifuge
	Podrazumevano Dostupno
Hygiene (Higijenski)	1200 o/min	Sve
Baby Care (Nega dečije odeće)	1000 o/min Do 1000 o/min
Delicates (Osetljiva odeća)	800 o/min Do 800 o/min
Hand/Wool (Ručno/Vuna)	800 o/min Do 800 o/min
Sportswear (Sportska odeća)	800 o/min Do 800 o/min
Quick 30 (Brzi program 30)	800 o/min Sve
Duvet (Posteljina)	1000 o/min Do 1000 o/min

NAPOMENA

- Stvarna maksimalna brzina centrifuge može varirati u zavisnosti od uslova opterećenja. Gornje vrednosti su zaokružene na najbližu stotinu.

Podaci o potrošnji

Opis jedinice

kg: Količina veša

h:mm: Trajanje programa

kWh: Potrošnja energije

°C: Maksimalna temperatura u tekstilu koji se tretira

Litre: Potrošnja vode

rpm: Maksimalna brzina centrifuge

%: Preostala vlažnost na kraju faze centrifugiranja. Što je veća brzina centrifuge, veća je buka, a manja preostala vlažnost.

Obični programi

Program	kg	h:mm	kWh	°C	Litara	obrtaji u minuti	%
Cotton (Pamuk) 20 °C	6,5	2:37	0,194	23	79,0	1200	55,0
Cotton (Pamuk) 60 °C	6,5	4:00	1,234	51	79,0	1200	55,0
Mixed Fabric (Mešovita tkanina)	3	1:21	0,283	32	44,0	1000	62,0

28 RAD

Program	kg	h:mm	kWh	°C	Litara	obrtaji u minuti	%
Quick 30 (Brzi program 30)	2	0:30	0,125	24	37,0	800	79,0
Cotton (Pamuk) + Intensive (Intenzivno)	3	4:00	0,649	32	81,0	1200	55,0
Eco 40-60 (Eko 40-60) (Puno)*1	6,5	3:23	1,180	50	58,0	1200	50,0
Eco 40-60 (Eko 40-60) (Pola)*1	3,25	2:39	0,610	41	35,0	1200	52,0
Eco 40-60 (Eko 40-60) (Četvrtina)*1	1,625	2:32	0,240	27	30,0	1200	60,0

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 RAD

3 Pritisnite dugme Pre Wash (Pretpranje) po potrebi.
4 Pritisnite dugme Pokretanje/Pauza.

Add Item (Dodaj veš)

Ovu opciju možete da koristite da biste ubacili ili izvadili odeću nakon pokretanja programa pranja.

1 Pritisnite dugme Napajanje.
2 Izaberite program pranja.
3 Pritisnite dugme Pokretanje/Pauza.
4 Pritisnite dugme Add Item (Dodaj veš) po potrebi.
5 Otvorite vrata nakon što se otključaju i ubacite ili izvadite potrebne odevne predmete.
6 Zatvorite vrata i pritisnite dugme Pokretanje/Pauza

NAPOMENA

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

sr_main.book.book Page 31 Monday, August 31, 2020 5:55 PM

RAD 31

2 Pritisnite i držite dugmad Delay End (Odložen kraj) u Add Item (Dodaj veš) isto vreme 3 sekunde da biste deaktivirali ovu funkciju.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 PAMETNE FUNKCIJE

PAMETNE FUNKCIJE

LG ThinQ aplikacija

Aplikacija LG ThinQ omogućava vam da komunicirate sa uređajem koristeći pametni telefon.

Instalacija aplikacije LG ThinQ

Pretražite aplikaciju LG ThinQ u radnji Google Play Store & Apple App Store putem pametnog telefona. Pratite uputstva za preuzimanje i instalaciju aplikacije.

Funkcija aplikacije LG ThinQ

Mogućnost komunikacije sa uređajem putem pametnog telefona primenom odgovarajućih pametnih funkcija.

Smart Diagnosis (Pametna dijagnostika)

Ova funkcija pruža korisne informacije o otkrivanju i rešavanju problema sa uređajem na temelju obrasca upotrebe.

Smart Diagnosis (Pametna dijagnostika)

Ova funkcija je dostupna samo na modelima sa logotipom 📍 ili 📍.

Upotrebite tu funkciju da lakše dijagnostikujete i otklonite probleme sa svojim uređajem.

NAPOMENA

- Zbog razloga koji se ne mogu pripisati nemaru kompanije LGE, usluga možda neće biti u funkciji zbog spoljašnjih faktora, kao što su, bez ograničenja, nedostupnost funkcije Wi-Fi, prekid povezivanja sa funkcijom Wi-Fi, politika lokalne prodavnice aplikacija ili nedostupnost aplikacije.

- Funkcija može da podleže promenama bez prethodnog upozorenja i može da se javlja u različitim oblicima u zavisnosti od toga gde se nalazite.

Korišćenje zvučne dijagnostike za dijagnostikovanje problema

Pratite uputstva u nastavku za korišćenje metode zvučne dijagnostike.

- Pokrenite aplikaciju LG ThinQ i izaberite funkciju Smart Diagnosis u meniju. Pratite uputstva za zvučnu dijagnostiku priložena u aplikaciji LG ThinQ.

Illustration of hands cleaning a circular object with arrows indicating direction (no text or symbols)

⚠ UPOZORENJE

- Ostavite vrata otvorena kako bi se osušila unutrašnjost uređaja samo ako su deca kod kuće pod nadzorom.

Diagram showing a cable being inserted into a plug with an arrow indicating direction (no text or symbols)

2 Uklonite filter za dovod vode koristeći mala klešta i zatim očistite filter pomoću srednje mekane četkice za zube.

Illustration of a tool being cut with scissors, showing motion and assembly (no text or symbols)

Čišćenje filtera odvodne pumpe i obavljanje hitnog pražnjenja vode

Illustration of a hand holding a folder with a scroll, showing a hand holding a pen and a scroll (no text or symbols present)

3 Prvo uklonite čep sa odvodne cevi ①, a zatim ispustite vodu. Zatim polako odvrnite filter odvodne pumpe ② da ispustite preostalu vodu, a zatim nastavite da uklanjate ostatke ili objekte iz filtera.

4 Nakon čišćenja filtera odvodne pumpe, pažljivo ponovo umetnite filter i zavrnite čep na odvodnu cev u pravcu kazaljki na satu da izbegnete preplitanje niti i curenje. Ponovo umetnite čep na odvodnu cev i postavite cev u držač.
5 Zatvorite poklopac.

OPREZ

• Budite pažljivi prilikom izbacivanja vode, jer ona može biti vruća.
• Jednom mesečno pokrenite program čišćenja bubnja (ili češće ako je potrebno) da biste uklonili zaostali deterdžent i druge ostatke.

Čišćenje dozirne posude

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 REŠAVANJE PROBLEMA

REŠAVANJE PROBLEMA

Korišćenje vašeg uređaja može da dovede do grešaka i kvarova. Sledeća tabela sadrži moguće uzroke i napomene za rešavanje poruke o grešci ili kvara. Preporučuje se da pažljivo pročitate tabelu da biste uštedeli vreme i novac koje možete potrošiti prilikom pozivanja servisnog centra kompanije LG Electronics.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Simptomi Mogući	uzrok i rešenje
OEGREŠKA NA IZLAZU ZAVODU	Odvodno crevo je presavijeno ili zapušeno. Voda iz uređaja se ne izbacuje ili se izbacuje sporo.Očistite i ispravite odvodno crevo.
	Odvodni filter je zapušen.Proverite i očistite odvodni filter.
dE dE l dE2 dE4GREŠKA NA VRATIMA	Senzor vrata je u kvaru.Pozovite servisni centar kompanije LG. Možete da pronađete broj telefona svog lokalnog servisnog centra kompanije LG u garantnom listu.
tEGREŠKA KONTROLE	To je greška u upravljanju.Izvadite utikač za napajanje iz utičnice i pozovite servisni centar.
LEGREŠKA ZBOGZAKLJUČANOGMOTORA	Preopterećenje motora.Ostavite uređaj da sačeka 30 minuta dok se motor ne ohladi, a zatim ponovno pokrenite ciklus.
FEGREŠKA ZBOGPRELIVANJA	Voda se preliva zbog moguće neispravnog ventila za vodu.Zatvorite slavinu za vodu. Isključite utikač za napajanje. Pozovite servisni centar.
PEGREŠKA SENZORAPRITISKA	Senzor nivoa vode je u kvaru.Zatvorite slavinu za vodu. Isključite utikač za napajanje. Pozovite servisni centar.
uSGREŠKA SENZORAVIBRACIJA	Senzor vibracija je u kvaru.Pozovite servisni centar.
FFKVAR ZBOGZAMRZAVANJA	Da li je smrznuto dovodno/odvodno crevo ili pumpa za izbacivanje vode?Isporučite toplu vodu u bubanj da biste odmrzli odvodno crevo i odvodnu pumpu. Pokrijte dovodno crevo vlažnim i toplim peškirom.
RECURENJE VODE	Voda curi.Pozovite servisni centar.
PFKVAR NAPAJANJA	Na uređaju je došlo do kvara napajanja mreže.Ponovno pokrenite ciklus.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 REŠAVANJE PROBLEMA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 REŠAVANJE PROBLEMA

Neprijatni miris

Simptomi Mogući	uzrok i rešenje
Miris ustajalosti ili buđi u uređaju	Unutrašnjost bubnja nije pravilno očišćena.Redovno pokrećite funkcijuTub Clean (Čišćenje bubnja).
	Odvodno crevo nije dobro namešteno što izaziva zadržavanje vode (voda se vraća nazad u uređaj).Prilikom postavljanja odvodnog creva, pazite da se ono ne savije ili zapuši.
	Posuda za deterdžent se ne čisti redovno.Izvadite i očistite posudu za deterdžent, naročito vrh i dno otvora posude.
	Mirisi mogu da se pojave i ako odvodno crevo nije dobro namešteno što izaziva zadržavanje vode (voda se vraća nazad u uređaj).Prilikom postavljanja odvodnog creva, pazite da se ono ne savije ili zapuši.
	Ako se posuda za deterdžent ne čisti redovno, mogu da se jave mirisi usled pojave buđi ili stranih materija.Izvadite i očistite posudu za deterdžent, naročito vrh i dno otvora posude.

Smart Diagnosis ....37

ПОДДРЪЖКА

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

12 МОНТИРАНЕ

Аксесоари

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical line drawing of two mechanical components: a circular component with internal slots and a hexagonal bolt (no text or symbols)

ЗАБЕЛЕЖКА

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 МОНТИРАНЕ

ЗАБЕЛЕЖКА

Two diagrams showing a mechanical lever mechanism with rotational arrows, no text or symbols present.

ЗАБЕЛЕЖКА

Simple diagram of a mechanical or electrical component with three circular holes and a curved base, no text or symbols present.

Mechanical diagram showing a bolt and nut assembly with a directional arrow indicating motion (no text or symbols)

Diagram of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or labels)

ЗАБЕЛЕЖКА

Illustration showing a person using a handheld device to interact with another person holding a magnifying glass (no text or symbols present)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 МОНТИРАНЕ

ЗАБЕЛЕЖКА

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ЕКСПЛОАТАЦИЯ

Medical illustration showing a cross-sectional view of internal organs within a circular structure (no text or labels)

3 Затворете люка.

ВНИМАНИЕ

Medical illustration showing a hand performing a laparoscopic procedure on a car wheel (no text or labels present)

Line drawing of a cabinet interior with shelves and doors (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 ЕКСПЛОАТАЦИЯ

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 ЕКСПЛОАТАЦИЯ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

bg_main.book.book Page 23 Monday, August 31, 2020 5:59 PM

ЕКСПЛОАТАЦИЯ

23

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 ЕКСПЛОАТАЦИЯ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 ЕКСПЛОАТАЦИЯ

Таблица с програми

Програма за пране

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 ЕКСПЛОАТАЦИЯ

ЗАБЕЛЕЖКА

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 ЕКСПЛОАТАЦИЯ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ЕКСПЛОАТАЦИЯ

33

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 ЕКСПЛОАТАЦИЯ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

http://www.lg.com/global/support/cedoc/cedoc#LG Electronics European Shared Service Centre B.V.

Krijgsman 1, 1186 DM Amstelveen, Холандия

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 ПОДДРЬЖКА

ПОДДРЪЖКА

ПРЕДУПРЕЖДЕНИЕ

Illustration of hands cleaning a circular object with arrows indicating motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram showing a cable being inserted into a plug with an arrow indicating direction (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 ПОДДРЬЖКА

Illustration of a tool being cut with scissors, showing motion and assembly (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

46 ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

48 ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Мирис

AVEM GRIJĂ DE MEDIUL ÎNCONJURĂTOR....8

INSTALARE

Smart Diagnosis ....33

ÎNTRETINEREA

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTRUCTIUNI DE SIGURANTĂ

CITITI TOATE INSTRUCTIUNILE ÎNAINTE DE UTILIZARE

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTRUCTIUNI DE SIGURANTĂ

5

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 INSTRUCTIUNI DE SIGURANTĂ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTRUCTIUNI DE SIGURANTĂ

7

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 INSTRUCTIUNI DE SIGURANTĂ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 INSTALARE

INSTALARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Accesorii

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALARE

Technical line drawing of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

NOTĂ

Diagram of a mechanical lever mechanism with a fulcrum and pivot point (no text or symbols)

Mechanical linkage diagram showing a lever and pivot point with motion arrow (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

NOTĂ

Simple diagram of a mechanical or electrical component with three vertical supports and a curved base, no text or symbols present.

Mechanical assembly diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 INSTALARE

Diagram of a faucet with a valve and valve assembly, showing fluid flow direction (no text or labels)

NOTĂ

Illustration showing a hand using a tool to interact with a device, with an inset magnified view of the device (no text or symbols present)

Pure electrical circuit lines without any symbols

ro_main.book.book Page 17 Wednesday, September 2, 2020 8:36 AM

INSTALARE 17

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Line drawing of a kitchen sink with faucet and handle (no text or symbols)

ROMÂNĂ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 OPERARE

OPERARE

Cross-sectional diagram of a biological structure inside a circular chamber, showing internal tissue and a marked region (no text or symbols)

3 Închideti uşa.

ATENTIE

Medical illustration showing a hand operating a catheter in a car, with magnified inset illustrating the procedure (no text or labels present)

Line drawing of a refrigerator interior with shelves and legs (no text or symbols)

Pure electrical circuit lines without any symbols

OPERARE 19

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 OPERARE

Panou de control

Panoul de control efectiv poate diferi de la model la model.

Caracteristicile panoului de control

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

22 OPERARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 OPERARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Tabel referitor la programe

Program de spălare

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 OPERARE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Optiuni suplimentare

NOTĂ

Date privind consumul

Descrierea unității

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Program	kg	h:mm	kWh	°C	Litri	rot/min	%
Quick 30 (Program scurt 30)	2	0:30	0,125	24	37,0	800	79,0
Cotton (Bumbac) + Intensive (Intensiv)	3	4:00	0,649	32	81,0	1200	55,0
Eco 40-60 (Completă)*1	6,5	3:23	1,180	50	58,0	1200	50,0
Eco 40-60 (Jumătate)*1	3,25	2:39	0,610	41	35,0	1200	52,0
Eco 40-60 (Un sfert)*1	1,625	2:32	0,240	27	30,0	1200	60,0

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 OPERARE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

32 OPERARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

FUNCTII INTELIGENTE

Aplicația LG ThinQ

Illustration of two hands cleaning a circular object with arrows indicating motion (no text or symbols)

Pure diagram of a cable being inserted into a plug, no text or symbols present

Illustration of a tool being handled with scissors and a magnifying glass, showing motion (no text or symbols)

36 ÎNTRETINEREA

Illustration of a hand holding a folder with a pen, showing a curved arrow indicating movement (no text or symbols present)

Pure electrical circuit lines without any symbols

ro_main.book.book Page 37 Wednesday, September 2, 2020 8:36 AM

ÎNTRETINEREA

37

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 DEPANARE

DEPANARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 DEPANARE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Performanță

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 DEPANARE

Miros

UPORABNIŠKI PRIROČNIK

PRALNI STROJ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VARNOSTNA NAVODILA

PRED UPORABO PREBERITE VSA NAVODILA

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VARNOSTNA NAVODILA

5

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

6 VARNOSTNA NAVODILA

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Vzdrževanje

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 VARNOSTNA NAVODILA

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Odstranjevanje vaše stare naprave

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 NAMESTITEV

NAMESTITEV

Deli in specifikacije

OPOMBA

1 Napajalni vtič
2 Transportni vijaki
3 Odtočna cev

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Dodatna oprema

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 NAMESTITEV

Technical illustration of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

OPOMBA

14 NAMESTITEV

2 Sklope vijakov odstranite, tako da jih nekoliko zamajete, medtem ko jih izvlečete.

3 Namestite pokrovčke lukenj.

OPOMBA

Two diagrams showing a mechanical lever mechanism with rotational arrows, no text or symbols present

OPOMBA

Simple diagram of a mechanical or electrical component with a numbered point and curved base (no text or symbols)

Mechanical diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

4 Preverite, ali so vse zaklepne matice na dnu naprave ustrezno privite.

OPOMBA

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

OPOMBA

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 NAMESTITEV

Illustration showing a person using a handheld device to observe a magnified view of the eye (no text or symbols present)

- Cevi ne priključujte na dovod tople vode pri modelih z enim dovodom vode. Priključite le dovod hladne vode.

OPOMBA

• Če po končani povezavi pride do puščanja vode iz cevi, ponovite iste korake. Za oskrbo z vodo uporabite najobičajnejšo vrsto pipe. V primeru, da je pipa kvadratna ali prevelika, odstranite vezno ploščico, preden vstavite pipo v adapter.
• Poskrbite, da cev ni prepognjena ali zagozdena.

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

DELOVANJE

Pregled delovanja

Uporaba naprave

Pred prvim pranjem izberite pralni program Cotton (Bombaž) in dodajte polovično količino pralnega sredstva. Napravo zaženite brez oblačil. S tem boste iz bobna odstranili morebitne ostanke in vodo, ki so morda v njem ostali po proizvodnji.

Cross-sectional diagram of a biological structure inside a circular container, with no visible text or symbols.

3 Zaprite vrata.

POZOR

Medical illustration showing a hand pointing to a car interior with a magnified inset of the hand holding a catheter (no text or symbols present)

SLOVENŠČINA

Line drawing of a refrigerator interior with no text or symbols

5 Pritisnite gumb Napajanje, da vklopite napravo.

6 Izberite želeni cikel.

- Večkrat pritisnite gumb cikel ali obračajte gumb za izbiro cikla, dokler ne izberete želenega cikla.

Pure electrical circuit lines without any symbols

sl_main.book.book Page 18 Monday, August 31, 2020 6:10 PM

18 DELOVANJE

Diagram of a circular mechanical component with two curved arrows indicating rotational motion (no text or symbols)

7 Cikel se začne.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

20 DELOVANJE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 DELOVANJE

1 Prekat za pralno sredstvo za glavno pranje
2 Prekat za pralno sredstvo za predpranje
3 Prekat za tekoči mehčalec

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

- Normalno je, da po koncu cikla v prekatih dozirnika ostane majhna količina vode.

Prekat za mehčalec

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 DELOVANJE

Tabela programov

Pralni program

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Delicates (Občutljiva tkanina)		20 °C (Cold (Hladno) do 40 °C)	Maks. količina perila 2 kg
Opis	Opere žensko spodnje perilo, ki je primerno za strojno pranje, ter fina in čipkasta oblačila.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric lines and shapes without any text, numbers, or symbols

28 DELOVANJE

Program	kg	h:mm	kWh	°C	Litri	vrt./min.	%
Quick 30 (Hitri program 30)	2	0:30	0,125	24	37,0	800	79,0
Cotton (Bombaž) + Intensive (Intenzivno)	3	4:00	0,649	32	81,0	1200	55,0
Eco 40-60 (Polno)*1	6,5	3:23	1,180	50	58,0	1200	50,0
Eco 40-60 (Polovica)*1	3,25	2:39	0,610	41	35,0	1200	52,0
Eco 40-60 (Četrtina)*1	1,625	2:32	0,240	27	30,0	1200	60,0

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 DELOVANJE

3 Po potrebi pritisnite gumb Pre Wash (Predpranje).
4 Pritisnite gumb za Start/Pavza.

Add Item (Dodajanje perila)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

sl_main.book.book Page 31 Monday, August 31, 2020 6:10 PM

DELOVANJE

31

2 Hkrati pritisnite in pridržite gumba Delay End (Zamik konca pranja) in Add Item (Dodajanje perila) za 3 sekunde, da deaktivirate to funkcijo.

Beep On/Off (Vklopljen/izklopljen zvočni signal) Ko se ta naprava zažene ali zaustavi, zaigra melodijo.

- Hkrati pritisnite in 3 sekunde pridržite gumba Rinse+ (Izpiranje+) in Pre Wash (Predpranje), da aktivirate/deaktivirate to funkcijo.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 PAMETNE FUNKCIJE

PAMETNE FUNKCIJE

Aplikacija LG ThinQ

Aplikacija LG ThinQ vam omogoča, da z napravo komunicirate prek pametnega telefona.

Illustration of hands cleaning a circular object with arrows indicating motion (no text or symbols)

OPOZORILO

Pure diagram of a cable being inserted into a wire, no text or symbols present

2 Odstranite filter dovoda vode z majhnimi kleščami, nato pa ga očistite s krtačo s srednje velikimi ščetinami.

Illustration of a tool being cut with scissors, showing motion and assembly (no text or symbols)

Illustration of a hand holding a clipboard with a tool, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 ODPRAVLJANJE TEŽAV

ODPRAVLJANJE TEŽAV

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 ODPRAVLJANJE TEŽAV

Neprijeten vonj

sl_main.book.book Page 47 Monday, August 31, 2020 6:10 PM

LG

Life's Good
