BL-350 - Kitchen appliance Vivax - Free user manual and instructions

Type of product	Kitchen appliance (blender)
Model	Vivax BL-350
Jug capacity	1.5 liters
Power consumption	350 W
Number of speed settings	2 (low and high)
Pulse function	Yes
Blade material	Stainless steel
Jug material	Glass
Dimensions (H x W x D)	35 cm x 15 cm x 15 cm
Weight	2.5 kg
Power supply	220-240 V, 50/60 Hz
Cord length	1.2 m
Non-slip feet	Yes
Automatic safety shut-off	Yes (overheat protection)
Easy to clean	Removable blades and jug dishwasher safe
Accessories included	Blending jug, lid with measuring cap
Warranty	2 years

Frequently Asked Questions - BL-350 Vivax

How do I assemble the blender?

Place the jug on the base, align the locking mechanism, and twist until it clicks. Ensure the lid is securely fastened before use.

Can I blend hot liquids?

No, allow hot ingredients to cool to room temperature before blending. Hot liquids can cause pressure buildup and damage the jar.

How do I clean the blender?

Rinse the jug and lid immediately after use. Wash with warm soapy water or place in the dishwasher (top rack). Wipe the base with a damp cloth.

What is the maximum capacity for blending?

Do not exceed 1.0 liter for thick mixtures and 1.2 liters for liquids to avoid spills.

The blender stops suddenly during use. What should I do?

Unplug the appliance and let it cool for 15-30 minutes. The thermal protection switch may have activated. Check for overload.

Can I use the blender for crushing ice?

Yes, but only in short bursts using the pulse function. Do not add ice continuously.

The blade seems stuck. How do I fix it?

Turn off and unplug. Check for large food pieces blocking the blade. Remove with a spatula. Do not force the blade.

What spare parts are available?

Replacement jugs, lids, and blade assemblies are available through authorized service centers.

How long is the warranty?

The Vivax BL-350 comes with a 2-year warranty against manufacturing defects. Keep your purchase receipt.

Is the blender BPA-free?

Yes, the jug and all plastic parts are made from BPA-free materials for safe food preparation.

USER MANUAL BL-350 Vivax

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Važno je da prije uporabe uređaja u potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

DOBRODOŠLI!

Ovaj uređaj zadovoljava najviše standarde, inovativnu tehnologiju i visoku udobnost i učinkovitost korištenja.

VAŽNA UPOZORENJA I SIGURNOSNE UPUTE

Munja sa simbolom strelice unutar jednakostraničnog trokuta upozorava korisnika na prisutnost opasnog i neizoliranog napona unutar proizvoda koji može biti dovoljno snažan da predstavlja opasnost od strujnog udara.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika na prisutnost važnih uputa za uporabu i održavanje u dokumentu priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA NE OTVARATI

Ne skidajte poklopac uređaja. Ni u kojem slučaju korisniku nije dozvoljeno da provodi bilo kakve radnje popravka ili prepravke uređaja. Prepustite taj posao kvalificiranom ovlaštenom serviseru.

SIGURNOSNE MJERE

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a blender with handle and spout, labeled with number 3 (no text or symbols on the diagram itself)

Simple line drawing of a windmill with a propeller and base, no text or symbols present

Prije prve uporabe

Preporuka je da prije prve uporabe dobro očistite vaš novi blender.

Okretne oštrice vrlo su oštre. Perite ih sa oprezom.
Nemojte dodirivati oštrice prstima.

KORIŠTENJE

Line drawing of a blender with handle and base (no text or symbols)

Nakon uporabe blendera

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Važno je da pre upotrebe uređaja u potpuno pročitate ova uputstva te ih sačuvate na sigurnom mestu za buduću upotrebu.

DOBRODOŠLI!

Ovaj uređaj zadovoljava najviše standarde, inovativnu tehnologiju i visoku udobnost i efokasan je u upotrebi.

Pažljivo pročitajte ova uputstva pre nego krenete s korišćenjem vašeg novog uređaja i sačuvajte ih i stavite na znano mesto za slućaj buduće potrebe.

Ukoliko se budete pridržavali uputstava, novi uređaj verno će da vam služi dugi niz godina.

PAŽLJIVO PROČITAJTE OVE UPUTE I ODLOŽITE IH NA ZNANO MJESTO ZA BUDUĆU POTREBU!

UKOLIKO PRODAJETE ILI POKLANJATE OVAJ UREĐAJ, OBAVEZNO UZ UREĐAJ PRILOŽITE I OVA UPUTSTVA!

VAŽNA UPOZORENJA I SIGURNOSNE NAPOMENE

Munja unutar jednakostraničnog trougla upozorava korisnika na prisustvo opasnog napona unutar proizvoda koji može da bude dovoljno snažan da predstavlja opasnost od strujnog udara.

Uzvičnik unutar jednakostraničnog trougla upozorava korisnika na postojanje važnih uputstava za upotrebu i održavanje, u dokumentu priloženom uz proizvod.

OPREZ OPASNOST OD STRUJNOG UDARA NE OTVARATI

Line drawing of a blender with handle and base (no text or symbols)

Nakon upotrebe blendera

• Odspojite kabl napajanja iz utičnice.
• Uklonite veliki poklopac (zajedno sa malim poklopcem) sa posude.
  ■ Uklonite posudu (zajedno sa setom sečiva) sa kućišta.
• Odvojite set sečiva sa posude.
• Očistite sve delove blendera prema uputstvima danim u poglavlju "Čišćenje".

SAVETI ZA KORIŠĆENJE VAŠEG BLENDERA

Opaska: Preporučljivo je isecati meso ili drugu hranu na manje delove pre stavljanja u posudu. Ne miksajte velike količine hrane istovremeno.

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a blender with handle and spout, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a blender with handle and base, no text or symbols present

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Line drawing of a blender with handle and base (no text or symbols)

KËSHILLA PËR PËRDORIMIN E BLENDERIT TUAJ

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

WELCOME!

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.

SAFETY PRECAUTIONS

1. The appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Children must not be permitted to operate the appliance.
4. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Never unplug the feed cable from the plug by tugging on the cable. Do not touch the feed cable with wet hands. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
8. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
9. The user must not leave the device unattended while it is connected to the supply.
10. This appliance is only to be used for household purposes and only for the purpose it is made for.

11. This appliance is intended for indoor use only

12. To protect yourself against an electric shock, do not immerse the cord, plug or appliance cabinet (motor body) in the water or any other liquid.

13. The appliance is not intended to be operated by means of an external timer or a separate remote-control system. Your device must not be used connected to the same power cable or fuse with another device.
14. Only use the appropriate power plug and power socket for this device.
15. Do not use this appliance outdoors, near water, in a wet basement or near a swimming pool. Do not expose the device or power cable to excessive heat or dust, direct sunlight, or humidity.
16. Failure to maintain the appliance in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.
17. WARNING: Switch off the appliance before changing accessories or approaching parts which move in use.
18. Steam cleaner is not to be used.
19. If your device will not be used for a long period of time, the device must be unplugged. Store your device in dry and enclosed locations.
20. Device must be unplugged from the mains during mounting and maintenance or repair works.
21. The use of accessory attachments, not recommended or sold by the appliance manufacturer, may cause hazards.
22. Do not use appliance other than for its intended use.
23. This device is equipped with a two-pole plug for AC power. The unit has a double insulation (Class II protection) and no additional grounding is required.

1. Never touch the rotating tools while still in motion; always wait for them to stop. To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

Electrical connection

Make sure that the voltage (see name plate) and your home power supply match.

The mains plug should only be inserted into a correctly installed 220-240 V \~ 50 Hz socket.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care, however, the marked electrical rating should be at least as great as the electrical rating of this appliance.

The extension cord should not be allowed to drape over the counter or tabletop where it can be pulled by children or tripped over.

CLEANING.

WARNING: Device must be unplugged from the mains during cleaning, mounting and maintenance or repair works!

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. After use and before cleaning, remove plug from power socket.
2. Disassemble all removable parts before cleaning
3. Clean the body of the appliance using only a dump cloth.
4. Clean the jug and blades under running water or in the dishwasher. Rinse and dry fully before storing.
5. On completion of using your appliance it is strongly recommended that you clean the accessories immediately. This will remove any bath drying out of the residue food. Making cleaning easier and the possibility of bacterial growth.

DO NOT IMMERSE POWER CABLE AND MOTOR CABINET IN WATER OR ANY LIQUID

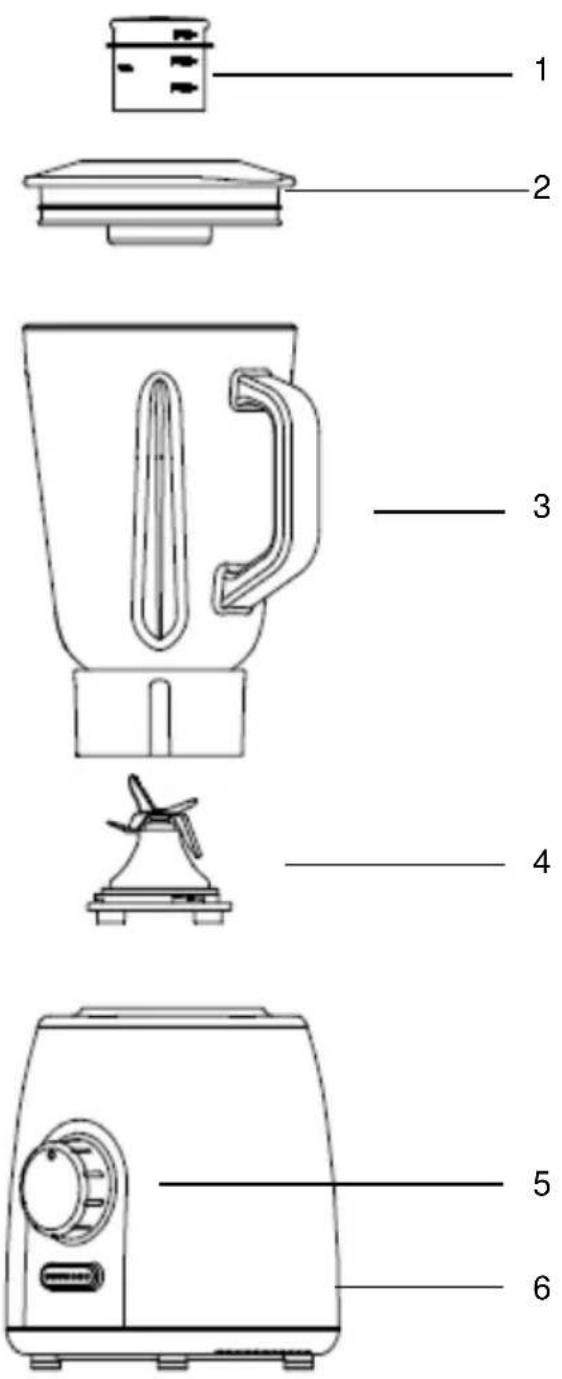

PARTS NAME

1. Measuring Cup
2. Lid

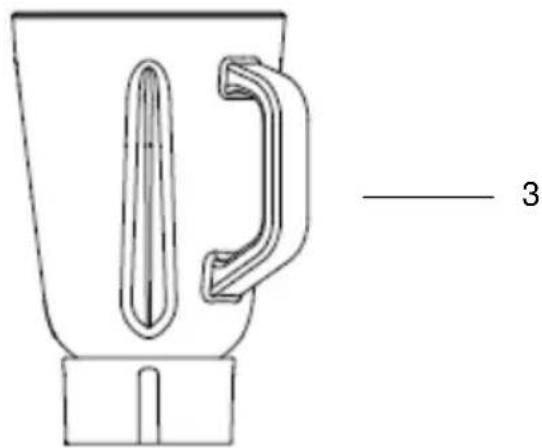

3. Glass Jar
4. Blade Assembly Unit

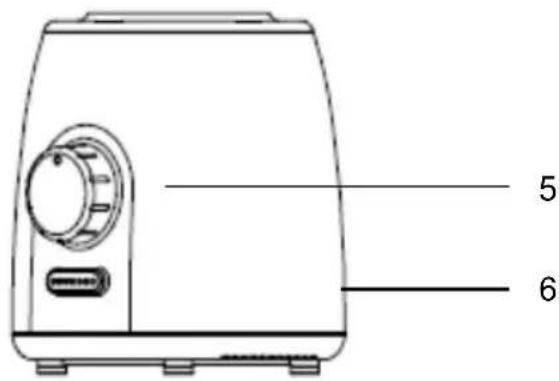

5. Control Panel
6. Motor Unit

Before first use

Clean the units and parts thoroughly before you use the appliance for the first time.

The blades are very sharp. Wash with care.
Never touch the blade with your finger.

HOW TO USE

Safety precautions for your table blender

• Operating the blender with lid closed
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off and mains disconnected.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the jar while the motor is on.
• Avoid contacting moving parts.

How to Assemble the Appliance

To use your blender, you must check the blade assembly unit carefully every time when you use.

Step 1:

- Insert the blade assembly unit onto jar by rotating it anti-clockwise.

Step 2:

- Place the jar insert the main body.

P.S. Make sure the glass jar is in position tightly.

After using the blender

■ Disconnect the power from main supply.
- Remove the lid (together with measuring cup) from the jar.
- Remove the jar (together with blade assembly unit interface) from the motor part.
- Detach the blade assembly unit interface from the bottom of the jar.
- Clean all blender parts according to Cleaning instructions given in Chapter "Cleaning".

Line drawing of a blender with handle and base, no text or symbols present

TIPS OF USING YOUR BLENDER

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar.

Do not operate with large quantities of food at one time.

• Do not blend dry, thick or heavy mixtures for more than 10 seconds continuously. Let the appliance cool down to room temperature before continue operating the appliance again.

• Blend Ice, not more than 2 seconds continuously.

• Do not place the lid into a dishwasher or boiling water, the lid may deform.
  ■ Always hold the edge of the lid while operating the blender.

After every max operation period, please let the appliance cool down to room temperature before continue operating the appliance again.

TECHNICAL DATA

Model: BL-600G

Output: 600W

Power Supply: AC 220-240V\~50/60Hz

Safety Class: II

TRANSPORT AND SERVICE

CAUTION: Pay attention not to run down the device. If you run down the device during operation, firstly unplug it. Some parts may be broken and device may be damaged during falling, in this case, have device checked by authorized service before operation.

WARNING: Handling and transportation. It is required to perform transportation of device in its own original box. Plastic parts may be broken during Incorrect packaging. Its electrical parts may be damaged.

Unplug It while It is operating for transport, maintenance or repair purposes.

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartiklala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

5. JAMSTVO NE OBUHVAĆA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. Redovnu provjeru, održavanje uz zamjenu dijelova koji se troše normalnom upotrebom, prilagođavanje ili promjene za poboljšanje proizvoda za primjenu koji nisu opisane u tehničkim uputama za korištenje, osim ako je za te preinake predočena suglasnost M SAN GRUPA d.d.
6. Jamstvo se ne priznaje u sljedećim slučajevima:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
