CFR-245H - Freezer Vivax - Free user manual and instructions

Product Type	Upright Freezer
Model	CFR-245H
Brand	Vivax
Capacity	245 Liters (estimated)
Dimensions (H x W x D)	Approx. 1500 x 600 x 600 mm
Weight	Approx. 55 kg
Power Supply	220-240 V ~ 50 Hz
Current	10 A (dedicated socket required)
Refrigerant	R600a (flammable)
Climate Class	SN, N, ST, T (extended temperate to tropical)

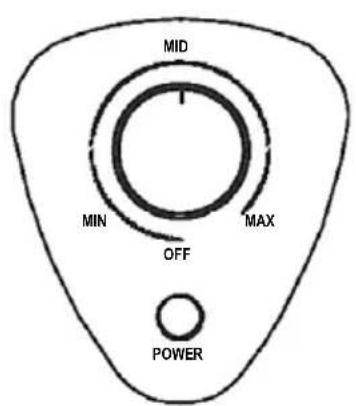

Temperature Control	Mechanical thermostat with rotary knob
Display Indicators	Power, Running, Alarm (LED)
Defrost Type	Manual (defrost when frost reaches 3-4 mm)
Freezing Capacity	Not specified (typical for 4-star freezer)
Noise Level	Not specified (normal compressor noise)
Energy Efficiency	Not specified (class not listed)
Interior Accessories	Drawers, shelves, door baskets
Door Opening	Reversible (left/right, hinge not specified)
Installation Type	Freestanding (not built-in)
Spare Parts Availability	At least 7 years after last model launch
Warranty	5 years (as per included warranty card)

Frequently Asked Questions - CFR-245H Vivax

How do I set the temperature on the Vivax CFR-245H freezer?

Turn the thermostat knob clockwise to lower the temperature (colder) and counterclockwise to raise it (warmer). The 'OFF' position or below 'MIN' stops cooling but does not disconnect power.

What does the 'ALARM' indicator mean?

The orange 'ALARM' light illuminates when the internal temperature is too high, indicating possible door left open or overload. It is a warning; check the freezer and close the door.

How often should I defrost the freezer?

Defrost when frost on the evaporator reaches 3-4 mm thickness. Turn the thermostat to 'OFF', unplug, remove food, open drain holes, let frost melt, wipe dry, then restart.

Can I use an extension cord with this freezer?

No. Do not use extension cords or external timers. The freezer must be plugged directly into a dedicated grounded socket (10A min).

How do I clean the interior?

Unplug the freezer. Remove all shelves and drawers. Wipe inside with a soft cloth dipped in a weak solution of bicarbonate soda and warm water. Rinse with clean water and dry thoroughly before replacing accessories.

What should I do if the freezer makes loud noises?

Check if the freezer is level (adjust leveling feet). Ensure no food packages are vibrating. Gurgling or hissing from refrigerant is normal. If abnormal, contact qualified service.

How long can food stay frozen during a power failure?

The freezer can keep food frozen for several hours (even in summer) if the door is kept closed. Do not add fresh food during a power cut. Check food quality after power returns.

Is the refrigerant R600a dangerous?

R600a is a flammable natural gas but safe under normal use. If refrigerant leaks (e.g., from damaged pipes), avoid open flames, ventilate the room immediately, and call service.

What spare parts are available for this model?

Thermostat, temperature sensors, printed circuit boards, light sources, door handles, hinges, trays, baskets, and door baskets are available for at least 7 years after the last model launch.

How do I change the light bulb?

The LED lamp must be replaced by authorized service personnel. Contact Vivax support or a qualified technician.

USER MANUAL CFR-245H Vivax

Simple line drawing of a refrigerator with an open door and a warning symbol (no text or labels)

Simple line drawing of a cardboard box with a small box on top and an exclamation mark at the bottom (no text or symbols)

uzemljenu utičnicu od 10A jakosti struje. Ukoliko u vašem domu ne postoji takva utičnica, molimo Vas da se posavjetujete sa ovlaštenim električarem ili vašim distributerom električne energije. Zamjenu prepustite kvalificiranom električaru. Utičnicu nemojte dijeliti s drugim električnim aparatima.

• Nemojte koristiti produžne kabele ili vanjske tajmere.
• Utikač i kabel napajanja mora biti čvrsto umetnut u utičnicu, kako bi se spriječila mogućnost iskrenja i izazivanja požara.
• Nemojte gnječiti, povlačiti ili uvijati kabel napajanja.
• Hladnjak je namjenjen priključenju na napajanje 220-240V, 50Hz. Fluktuacija napona preko granica od 220-240 ± 10%V može uzrokovati kvar ili oštećenja uređaja. Ukoliko imate nestabilan izvor napajanja, osigurajte stabilizator napajanja minimalne snage od 750W.

Simple line drawing of a box with a magnified view showing a face and a small object, no text or symbols present.

Simple line drawing of a box with a hand inside and a starburst on the side, no text or symbols present.

Simple line drawing of a child climbing inside a box with an exclamation mark and warning symbol (no text or labels)

- Ne stavljajte teže predmete i više predmeta na uređaj. Prilikom otvaranja vrata, predmeti mogu pasti sa uređaja i izazvati oštećenje ili ozljede.

- Obavezno odspojite utikač napajanja u slučaju nestanka električnog napajanja u mreži ili prilikom čišćenja i održavanja uređaja.

- Nemojte priključivati uređaj na napajanje u roku od pet minuta nakon odspajanja, kako bi se spriječilo oštećenje kompresora zbog uzastopnog pokretanja.

Cartoon character with sad expression, standing on a box-like structure with warning symbols (no text or labels)

Upozorenja vezana uz odlaganje namirnica

- Ne koristite uređaj za skladištenje eksplozivnih tvari kao što su aerosolne limenke ili posude koje sadrže zapaljiva sredstva jer to može izazvati oštećenje uređaja ili požar. Boce, koje sadrže visoki postotak alkohola, moraju biti smještene vertikalno.

• Ne držite eksplozivne tvari, kao što su posude sa aerosolom, zapaljivim plinom u hladnjaku.
• Ne stavljajte staklene boce ili nikakve druge spremnike čvrstih stijenki napunjenih tekućinom u odjeljak zamrzavanja, jer može doći do rasprskavanja.
• Ne jedite led koji ste uklonili iz zamrzivača.
• Ne dirajte zamrznutu hranu vlažnim rukama. Nemojte odmah jesti zamrznutu hranu.

UPOZORENJA

Simple line drawing of a person pushing a cardboard box next to an electrical cabinet (no text or symbols)

Odložite ambalažu uređaja podalje od dohvata male djece. Obratite pažnju da se djeca ne igraju ambalažom, jer to može izazvati gušenje i ozljede opasne po život.

Uređaj držite na dobro prozračenim mjestima, podalje od topline, prašine i nemojte ga izlagati direktnim sunčevim zrakama.

Simple line drawing of a smiling refrigerator and a cabinet (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and sun, next to a potted plant (no text or symbols)

Simple line drawing of a container with a downward arrow inside (no text or symbols)

Simple line drawing of a door with a cross symbol on the wall (no text or labels)

VAŽNO: Uređaj mora stajati čvrsto na podlozi i biti ravan sa podom.

Okrenite nivelirajuće nogice dok uređaj nije stabilan.

Simple line drawing of a smiling rectangular object with a small plug and base, no text or symbols present.

Panel Ver 3

Illustration of various cooking utensils including a gas container, microlife, and a hot pot (no text or symbols)

- Koristite vlažnu krpu za čišćenje vanjskih površina. Možete koristiti standardne čistaće za čišćenje namještaja. Pazite da kemikalije za čišćenje ne dođu u doticaj sa gumenom brtvom vrata.

◆ Brtvu vrata čistite vlažnom i mekanom krpom.

◆ Rešetku kondenzatora na stražnjoj strani uređaja možete usisati pomoću nastavka sa mekom četkom (ukoliko postoji).

Savjeti za čišćenje

CFR-142

CFR-198
CFR-245H

CFR-297H

CFR-421H

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

SR BiH CG

Korisničko uputstvo

Sadržaj

Simple line drawing of a kitchen appliance with a door and control panel, no text or symbols present

Simple line drawing of a box with a small object on top and an exclamation mark at the bottom (no text or symbols)

Simple line drawing of a box with a sad face, plus signs and a magnifying glass (no text or symbols)

Simple line drawing of a box with a hand and starburst mark, no text or symbols present

- Rastojanja između vrata i između vrata i kućišta su mala. Pazite da ne prikleštite prste.

Simple line drawing of a child climbing inside a box with a warning symbol (no text or labels)

otvorenom prostoru i ne izlažite ga kiši kako ne bi došlo do kvara na električnoj instalaciji i izolaciji. Ne izlažite uređaj direktnoj sunčevoj svetlosti i toploti.

Cartoon character with sad expression, standing on a box-like structure with warning symbols (no text or labels)

Upozorenja vezana za upotrebu frižidera

- Ne upotrebljavate frižider za čuvanje eksplozivnih supstanci kao što su aerosolne limenke ili posude koje sadrže zapaljiva sredstva jer to može da izazove oštećenje uređaja ili požar. Flaše, koje sadrže visok procenat alkohola, moraju da budu smeštene vertikalno.

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Simple line drawing of a smiling refrigerator and a door (no text or symbols)

Cartoon illustration of a sad cube character with sun and a potted plant nearby (no text or symbols)

Samostojeći uređaji nisu namenjeni da se koriste kao ugradni!

Iznad vrha uređaja treba ostaviti prostor veći od 70 cm, a udaljenosti od strana i sa zadnje strane uređaja mora da bude veća od 20 cm kako bi se olakšalo otvaranje i zatvaranje i raspoređivanje toplote.

VAŽNO: Uređaj mora čvrsto da stoji na podlozi i da bude ravan sa podom

Simple line drawing of a smiling rectangular object with a small plug attached to its side (no text or symbols)

Panel Ver 3

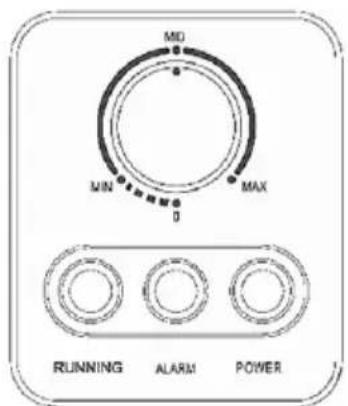

• Indikator "ALARM" će svetli u slučaju da je unutar zamrzivača temperatura previsoka (opcija, ne svi modeli).

• Indicator "RUNING" će svetliti kada radi kompresor.

• Temperatura unutar zamrzivača podešava se pomoću okruglog dugmeta termostata. Okretanjem u smeru kazaljke na satu, podešena temperatura u zamrzivaču biće niža i obrnuto.

• Kada je termostat na položaju OFF, zamrzivač ne hladi.

Illustration of various household items including a gas jar, alcohol spray bottle, and a kettle with a flame (no text or symbols)

• Za čišćenje upotrebljavajte mekanu krpu ili suđer potopljen u vodu sa blagim rastvorom neutralnog deterdženta.
  ◆ Izvadite sve police korpe i fioke iz uređaja.
  Obrišite unutrašnjost uređaja u blagom rastvoru sode bikarbone, a zatim obrišite unutrašnjost mekanom krpom ili sunderom. Na kraju, suvom krpom osušite unutrašnjost. Na isti način operite i osušite police i fioke.
  ♦ Koristite vlažnu krpu za čišćenje spoljnih površina. Možete da koristite standardne čistaće za čišćenje nameštaja. Pazite da hemikalije za čišćenje ne dođu u dodir sa dihtung gumom vrata.
  ◆ dihtung gumu vrata čistite vlažnom i mekanom krpom.
  ◆ Rešetku kondenzatora (ako postoji) na zadnjoj strani uređaja možete usisati pomoću nastavka sa mekom četkom.

Saveti za čišćenje

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

SLO

Navodila za uporabo

Vsebina

Varnostna opozorila

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a box with a small object on top and an exclamation mark at the bottom (no text or symbols)

Simple line drawing of a cardboard box with a sad face, and scattered geometric shapes including a pencil and a circle (no text or symbols)

Simple line drawing of a box with a starburst on the lid and an exclamation mark in the corner (no text or symbols)

Simple line drawing of a child climbing inside a box with an exclamation mark and warning symbol (no text or labels)

Cartoon character with sad expression, standing on a box with boxes on top and holding a document (no text or symbols)

Simple line drawing of a person carrying a cardboard box and a smiling refrigerator (no text or symbols)

Simple line drawing of a smiling refrigerator and a closed door (no text or symbols)

Hladilnik-zamrzovalnik je treba postaviti v zračen prostor, naprava mora stati trdno na tleh in v ravnini s tlemi.

Cartoon illustration of a sad cube character with a sun and potted plant nearby (no text or symbols)

POMEMBNO: Aparat mora stati trdno na podlagi in biti raven s tlemi.

Obračajte nogo za izravnavo, dokler aparat ni stabilen.

Simple line drawing of a smiling rectangular device connected to a power outlet (no text or symbols)

- Preverite, da napajanje navedeno na etiketi izdelka ustreza napajanju vašega električnega omrežja. Napajalni vtič mora biti priključen na napajanje 220-240 V \~ 50 Hz

Panel Ver 3

- Indikator "ALARM" bo zasvetil, će bo temperatura v notranjosti zamrzovalnika previsoka (Oranžna luč).

- Indikator "RUNING" zasveti, ko kompresor deluje

Temperatura v zamrzovalniku se nastavi z obračanjem gumba termostata.

• Z vrtenjem gumba smeri urinega kazalca se nastavi temperatura v zamrzovalniku na nižjo in obratno.
• Ko je termostat na OFF ali pod oznako "MIN", je zamrzovalnik izklopljen.

OPOZORILO: V tem položaju, čeprav se hladilnik ne ohladi, to ne pomeni, da je aparat izklopljen.

Simple line drawings of various household items including a gas jar, alcohol spray bottle, and a kettle with steam (no text or symbols)

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

EN

Instruction manual

Contents

■ Safety warnings

Meaning of safety warning symbols

Electricity related warnings

Related warnings for Use

Warnings related with Placement items

Warnings related to Disposal

Servicing and Transport Warnings

Use

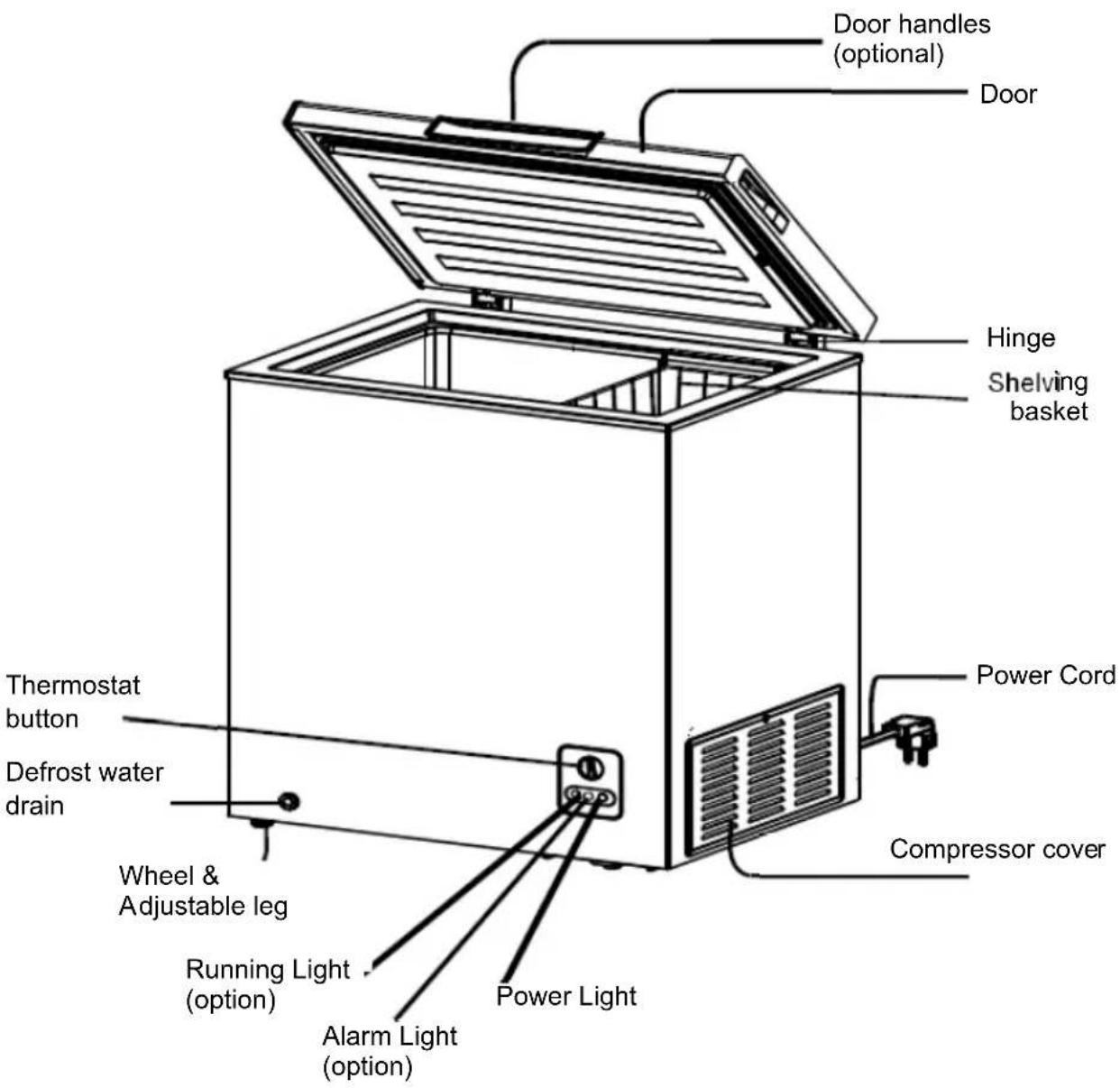

Names of components

Interior Accessories

Operation

The first Start

Maintenance

Cleaning

Defrost

Switch off for long periods of time

■ Frequently asked questions

■ Tips for Energy Savings

■ Disposal, EU Declaration of Conformity, Product Fiche Links

DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet.

Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal.

This appliance must be only used for its intended purpose.

Please read these instructions carefully before installing and powering the refrigerator. The manufacturer is not responsible for improper device usage.

Follow the instructions for use. Dispose your instructions to the known and safe place to keep them in case of reused.

Safety warnings

Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

CAUTION:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• Cleaning and user maintenance shall not be mad by children without supervision.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments, farm houses;
• bed and breakfast type environments.

Electricity related warnings

• Do not pull the power cord when disconnect the power plug from wall socket. Please firmly grasp the plug and pull out it from the socket directly.
• Never plug in/out the power plug with damp or wet hands in order to not expose the danger of electrical shock.

- Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

- Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.

- Please use a dedicated grounded power socket which is 10A or more and the power socket shall not be shared with other electrical appliances.

- Do not use extension cords or external timers.

- The power cord should be firmly contacted with the socket or else fires might be caused. Do not pull or band power cable.

Simple line drawing of a room with a cabinet and monitor, no text or symbols present

• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations over the range of 220-240 ±10%V will cause malfunction or even damage, so a 750W automatic voltage regulator must be installed in concert with the AC power.

Related warnings for Use

CAUTION Risk of fire!

- Refrigerator contains refrigerant R600a gas and Cyclopentane insulation. Gas type is indicated on the label inside the refrigerator. Gas is completely environmentally friendly, R600 is a natural gas and is completely harmless, but flammable. When transporting and installing the equipment, make sure that there is no damage of any parts (components) of a refrigerator or freezer. In case of damage, avoid open flame or exposure devices hot springs, and immediately ventilate the room where the device is located. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances at the top of the refrigerator, those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

- Unauthorized demolition or renovation of the refrigerator is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the refrigerator must be carried out by professionals.

Simple line drawing of a box with a magnifying glass and a small object, accompanied by directional arrows and a circle (no text or symbols)

Simple line drawing of a box with a starburst on the side and an exclamation mark in the corner (no text or symbols)

- Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

- The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained.

- The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the refrigerator door to avoid falling articles.

- Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

- Do not allow children to enter or climb the refrigerator to prevent that children are sealed in refrigerator and other electrical appliances considering the refrigerator or children are injured by the falling refrigerator.

- Do not spray or wash the freezer;

- Do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

- Do not place heavy objects on the top of the refrigerator considering that

objectives may fall when switching the door, and accidental injuries might be caused.

- Please pull of the plug in case of power failure or cleaning.

Simple line drawing of a child climbing inside a box with a warning symbol (no text or labels)

Cartoon character with sad expression, standing on a box-like structure with warning symbols (no text or labels)

- Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

Warnings related to placing items

- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

- Do not place flammable items near the refrigerator to avoid fires.

- This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

- Do not place items such as glass bottles or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

- Do not eat ice, which have removed from the freezer.

- Do not touch frozen food with wet hands. Do not immediately eat frozen food.

WARNINGS

- WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING Do not damage the refrigerant circuit.

- WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

- WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Please abandon the refrigerator-freezer according to local regulators for it use flammable blowing gas and refrigerant.

- Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

- Do not use extension cords or ungrounded (two prong) adapters.

Placement

Before using the refrigerator, remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and the refrigerator body (if exist).

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Keep away all packaging from small children. Do not allow children to play with packaging.

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

For freestanding appliances this refrigerating appliance is not itended to be used as a built-in appliance.

Simple line drawing of a smiling rectangular box next to a door with four compartments (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and sunburst effect, next to a potted plant (no text or symbols)

There should be more than 70 cm above the top of the appliance and more than 20 cm on both sides and back of the appliance to make it easier to open and close and distribute heat.

IMPORTANT: refrigerator or freezer must be placed that all feet firmly lying on the ground.

Adjust leveling feet to adjust proper position of the appliance. The device must stand upright and stable!

Warnings related to Disposal

The refrigerator's R600a refrigerant and cyclopentane foam materials are combustible materials and discarded refrigerators should be isolated from fire sources and cannot be burned.

Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

DANGER: RISK OF CHILD ENTRAPMENT

Please remove the door of the refrigerator or freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the appliance.

If this appliance to replace an old refrigerator with a lock; remove the lock for safety reasons, to protect children while playing from your own lock.

Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

Do not shield positions of air outlet and return air inlet of the refrigerator

Do not keep foods of higher temperature close to temperature sensor.

Take out drawer of freezing chamber of refrigerator and put foods directly on the glass partition.

Transport

The appliance should be transported in its original box and partitions or as wrapped with a soft cloth.

Incorrect packaging may cause damage to the outer surface of the appliance.

Before moving the refrigerator, please remove all items in the refrigerator and fasten the glass partitions, fruit and vegetable boxes, freezer drawers with taps lest the door opens during displacement;

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Do not turn upside, horizontally place or vibrate the refrigerator,

The carrying angle cannot be greater than 45^

NOTE:

ANY MALFUNCTION OR DAMAGE CAUSED DURING LOADING, UNLOADING OR TRANSPORT AFTER THE DELIVERY OF PRODUCT TO THE CUSTOMER IS NOT COVERED BY THE WARRANTY.

Freezer use

Names of components

Drawers, food boxes, shelves, etc placed accordingly to position in the picture above are the most energy efficient.

* All images in this instruction manual are for indication only; please refer to your individual unit for details

Interior accessories:

Various wire or plastic storage shelves are included with your appliance - different models have different combinations.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

Refrigerator compartment and Freezer (if exist)

Cooling compartment in the refrigerator is suitable for cooling foods such as fruits, vegetables, beverages and other foods that are consumed in the short term, suggested storage time is 3 to 5 days.

Warm food must not be placed in the refrigerator until cool to room temperature.

It is recommended that foods are tightly closed (in a container or plastic bag) before placing into refrigerator.

Shelves can be moved by the amount of space inside the refrigerator in order to optimally organize space.

Freezer (if exists) is used for a long storage of food (up to 6 months).

For additional information about possible storage duration, check the packaging of the product or food.

Never freeze again already thawed food.

Tips for Keeping Food in the Unit

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
  Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
  ◆ To prevent transfer of favors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  ◆ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  ◆ To avoid contamination of the food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the apliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been use for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

- In case that your device has freezing compartment with 4 stars, this refrigerating appliance is suitable for freezing foodstuffs

In case that your device has freezing compartment with 1, 2 or 3 stars, this refrigerating appliance is NOT suitable for freezing foodstufs.

- Two-star * frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.

- One-, two- and three-star * compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance

The first Start

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit.

Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

Simple line drawing of a smiling rectangular object with a small plug attached to its side (no text or symbols)

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until one hour after moving the unit.

The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

Operation

Switching On Your Unit

- Connect the freezer to power supply, and the indicator "POWER" will light on.

Panel Ver 1

Panel Ver 2

Panel Ver 3

• Indicator "ALARM" will light on in case the temperature is too high (some models).
• Indicator "RUNING" will turn on while compressor is working.
• The temperature inside the freezer is set via the rotary knob of the thermostat.

The temperature in the freezer is set lower and vice versa by turning the knob clockwise. When the thermostat knob is turned to OFF or below the "MIN", the freezer is not cooling.

WARNING: In the lowest Thermostat position, although the freezer is not cooling, it does not mean that the device is disconnected from the power supply. For cleaning and maintenance, to disconnect the power supply pull the power plug out of the socket!

Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Change the Light Bulb (if exists)

The LED lamp must be replaced by authorized service. Please contact authorized service or manufacturer.

Maintenance

Cleaning

Please unplug the Freezer for defrost and cleaning

Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.

Illustration of various cooking and cooking items including a syringe, a micelle, a spray bottle, and a kettle (no text or symbols present)

◆ Remove all the shelves.
◆ Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a “wrung-out”
sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
◆ Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
The grille of the condenser (if exist) at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning lighting lamps, temperature control knob and electrical components.

Defrost

Defrost the freezing compartment whenever the layer of frost on the surface of the evaporator reaches 3 or 4 mm.

1. Set the thermostat at "OFF" position and disconnect the freezer from main supply.
2. Remove drawers with frozen food, Store frozen food on some cold place.
3. Open the outflow holes and drainage holes; indoor doors will naturally melt,
4. Wipe the water with a dry, soft cloth.
5. You can use ice scraper to remove frosting / ice
6. After the frost has melted, discard the melted water and clean all the interior.
7. Dry up the interior.
8. Put drawer-basket into compartment and put back frozen foods.
9. Plug in freezer on main supply and turn thermostat to the desired setting.

It is recommended that you use frozen food as soon as possible

Do not use metal utensils or electric heater for defrost so as not to damage the appliance.

Please remove the food and put in a cool place when defrosting before removing drawers and other accessories.

Switching Off for Long Periods of Time

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance. Keep the door open to avoid the bad odor.

Continuous operation is recommended when the freezer is started.

Please do not move the freezer under normal circumstances so as not to affect the refrigerator's service life.

Frequently asked questions

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Unit is not work	Whether the freezer is plugged and connected to power; Low voltage;Failure power or tripping circuit
Odor	Odorous foods should closely wrapped; Whether foods are rotten;Whether the interior shall be cleaned
Foods in the refrigerating chamber are frozen	Whether the thermostat is over adjusted; Whether foods containing water is put in inside the glass partition.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled;Frequent opening of refrigerator door.Thick frost layer (defrost is needed)
The refrigerator door cannot be properly closed.	The freezer door is stuck by food packages; Too much food; Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

Warm tips:

• The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
  ◆ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
  ◆ Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.
  ◆ Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
• Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.
  Due to the humid and warm environment, ice may accumulate at the edges of the freezer compartment. It's normal. If necessary, remove the accumulated ice or defrost according to the instructions. During such weather conditions, avoid opening the door frequently.

Tips for Energy savings

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.

◆ The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
◆ Let hot foods cool to room temperature before placing in the appliance.
◆ Overloading the appliance forces the compressor to run longer.
◆ Foods that freeze too slowly may lose quality, or spoil.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
◆ Organize and label food to reduce door openings and extended searches.
◆ Remove as many items as needed at one time, and close the door as soon as possible

Spare parts

The ordered parts in the following table can be acquired from channel:

Ordered Part Provided by		Minimum Time Required for Provision
Thermostat	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Door handles	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Door hinges	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Trays	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Basket	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Door baskets	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market

Climate classes

For the climate class of your device, please refer the Rating label on your device.

Class Symbol Ambient average temperature (°C)
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Suptropical ST + 16 to + 38
Tropical T + 16 to + 43

◆ Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 C to 32 C;
◆ Temperate : this refrigerating appliance is intended t be used at ambient temperatures ranging from 16 C to 32 C;
Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 C to 43 C.
- Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C

Disposal, EU Declaration of Conformity

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

Product information sheet

Product Information sheet data entered into the EPREL database For more info and Product Information sheet, please scan QR code or visit Vivax web site: www.vivax.com

CFR-142

CFR-198

CFR-245H

CFR-297H

CFR-421H

A plain gray horizontal bar with no text, symbols, or markings.

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.
2. UVJETI GARANCIJE: Garantni rok počinje teći od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE
36 MJESECI (3 godine)	ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:
