PS-156B - Scale Vivax - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	Vivax
Model	PS-156B
Maximum Capacity	150 kg (330 lb)
Division (Readability)	100 g / 0.2 lb
Display Type	LCD
Display Size	73 x 30.5 mm
Platform Material	6 mm Tempered Safety Glass
Power Source	1 x CR2032 Lithium Battery (3V)
Auto Power On	Yes (Step-on activation)
Auto Power Off	Yes (after 10 seconds idle)
Unit Selection	kg / lb / st (switch in battery compartment)
Low Battery Indication	Yes
Overload Indication	Yes
Usage	Household (not for medical/commercial)
Cleaning	Wipe with damp cloth; no chemical solvents; avoid water ingress

Frequently Asked Questions - PS-156B Vivax

How do I replace the battery in the Vivax PS-156B scale?

Open the battery compartment on the back. Remove the old CR2032 battery and insert a new one with the correct polarity (+ side up). Close the compartment securely. The scale uses a standard CR2032 3V lithium battery.

What does the 'Lo' or battery symbol on the display mean?

It indicates that the battery is low and needs to be replaced. The scale will automatically turn off soon. Replace the battery as described above.

How do I change the weighing unit from kg to lb?

Open the battery compartment. You will find a small slide switch. Move it to select kg, lb or st (stones). Close the compartment and the scale will use the selected unit.

Why does my scale show 'Err' or overload symbol?

This means the weight exceeds the maximum capacity of 150 kg (330 lb). Step off immediately to avoid damaging the scale. The scale will reset when weight is removed.

How do I clean the scale properly?

Wipe the surface with a soft, damp cloth. Do not use chemical solvents or abrasive cleaners. Avoid letting water enter the scale. Dry thoroughly after cleaning.

Can I use the scale on a carpet?

No, place the scale on a hard, flat surface (like tile or hardwood) for accurate measurement. Carpets or soft surfaces can affect the reading.

What is the auto-off time?

The scale turns off automatically approximately 10 seconds after you step off or if no weight is detected while showing zero.

Is the scale safe for people with disabilities?

People with reduced physical capabilities should be assisted by another person when using the scale. Use a handrail or support if needed. Do not step on the edges or display area.

What is the maximum weight limit?

The maximum capacity is 150 kg (330 lb). Exceeding this will trigger an overload warning and may damage the scale.

How should I store the scale when not in use?

Remove the battery if storing for more than 3 months. Keep the scale in a dry, enclosed place away from direct sunlight, heat, and humidity.

USER MANUAL PS-156B Vivax

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

Važno je da prije uporabe uređaja u potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

SPECIFIKACIJE

● Maksimalni kapacitet 150kg
- Osjetljivost: 100g/0.2lb
● LCD veličina zaslona: 73*30.5mm
- 6mm ojačano sigurnosno kaljeno staklo
- CR2032, 3v baterija
● Funkcija automatskog uključivanja - "step-on"
• O dabir jedinice mjerenja (kg/lb/st)
- Upozorenje o slaboj bateriji i prevelikom opterećenju

DOBRODOŠLI!

Ovaj uređaj zadovoljava najviše standarde, inovativnu tehnologiju i visoku udobnost i učinkovitost korištenja.

Close-up of a vintage electrical switch with a circular dial and terminal blocks (no visible text or symbols)

UPUTE ZA MJERENJE

KORAK 1. Postavite vagu na čvrstu ravnu površinu

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

Važno je da pre upotrebe uređaja u potpunosti pročitate ova uputstva te ih sačuvate na sigurnom mestu za buduću potrebu.

SPECIFIKACIJE

● Maksimalni kapacitet 150kg
• Osetljivost: 100g/0.2lb
● LCD veličina ekrana: 73*30.5mm
- 6mm ojačano sigurnosno kaljeno staklo
- CR2032, 3v baterija
● Funkcija automatskog uključivanja - "step-on"
● Odabir jedinice merenja (kg/lb/st)
- Upozorenje o slaboj bateriji i prevelikom opter ećenju

DOBRODOŠLI!

Close-up of a mechanical component with visible internal components and no readable text or symbols

UPUTSTVA ZA MERENJE

KORAK 1. Postavite vagu na čvrstu ravnu površinu

(izbegavajte sagove ili druge meke površine).

KORAK 2.

Oprezno stanite na vagu. Poravnajte noge na vagi, ne pomerajte se i s a čekajte da vaga iz m er i težinu. Zatim će se na sledeći način prikazati izmerena težina:

AUTOMATSKO ISKLJUČIVANJE

Close-up of a computer control panel with buttons and a dial, no visible text or symbols

OZNAKE NA EKRANU

Prevelika težina

Kada ekran prikazuje ovaj znak označava se da je prekoračen maksimalni kapacitet merenja.

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

Close-up of a mechanical device with a circular dial and labeled ports (no readable text or symbols)

УПАТСТВО ЗА МЕРЕЊЕ

Close-up of a vintage computer control panel with a dial and indicator lights (no readable text or symbols)

СИМБОЛ ПОТСЕТНИК

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

Close-up of a computer control panel with buttons and a dial, no visible text or symbols

SIMBOLET E PËRKUJTUESIT

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

HOME DIGITAL WEIGHING SCALE

PS-156B

PS-154

Digital and plain digital balance scales with floral patterns on black background (no text or symbols)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SPECIFICATION

● Max capacity: 150kg
- Division: 100g/0.2lb
- 73*30.5mm LCD digital size
- 6mm tempered glass
- CR2032 battery
- Auto on function
● Weighing unit switch between kg/lb/st
● Low battery and overload indication

WELCOME!

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

SAFETY PRECAUTIONS

1. The appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Cleaning and user maintenance shell not be made by children unless they are supervised

3. Children shall not play with the appliance.

4. Children should be supervised to ensure that they do not play with the appliance

5. This appliance is only to be used for household purposes and only for the purpose it is made for.

6. This appliance is intended for indoor use only

7. Failure to maintain the appliance in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.

8. If your device will not be used for a long period of time, remove the batteries, store your device in dry and enclosed locations.

9. Do not use appliance other than for its intended use.

10. WARNING: Avoid using this device on slippery wet floors or while you are still wet from the bath.
11. Do not jump onto the scale, or hop up and down on the scale.
12. Do not use this scale when your body and/or feet are wet, such as after taking a bath.
13. Do not step on the edge or display area of the scale.
14. People with disabilities, or who are physically frail, should always be assisted by another person when using this scale. Use a handrail or so when stepping on the scale.
15. Do not disassemble, repair, or remodel the scale.
16. Do not use batteries not specified for this scale. Do not insert the batteries with the polarities in the wrong direction.
17. Replace worn batteries with new ones immediately.
18. Do not dispose of batteries in fire.
19. If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.
20. Remove the batteries from this scale when you are not going to use it for a long period of time (approximately three months or more).
21. Do not use different types, new or worn batteries together.

BATTERY INSTALLATION

• Included Lithim battery CR2032. Please remove the insulation sheet from th ebattery contacts before use.
• Replace battery when the scale display shows:

- PIs open the battery cover, and put the battery according to the battery direction shown on the right picture

Open battery compartment

Close-up of a vintage rotary dial with visible buttons and a central dial (no readable text or symbols)

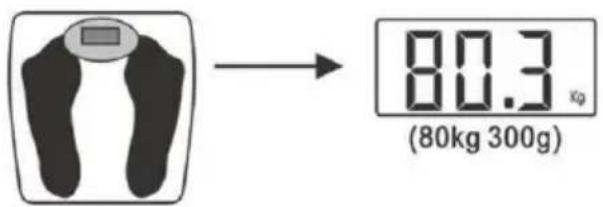

INSTRUCTION FOR MEASUREMENT

STEP 1. Put the sacale on a hard and flat surface (avoid carpet or soft surface).

STEP 2.

Gently step on the scale. Put your feet evenly on the scale without moving and wait while the scale computes your weight. Your correct weight will be displayed on the Display:

AUTOMATIC SWITCH OFF

When you step off the scale, it will automatically switch off.

(If no weighing is carried out while the zero is being displayed, the scale switches off automatically after approximate 10 seconds)

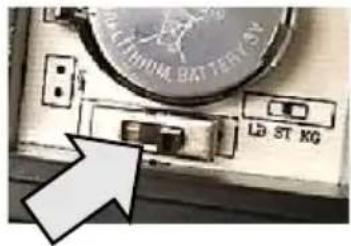

MEASURMENT UNIT CHANGE

To change the display unit, slide the unit switch located in the battery compartment.

REMINDER SYMBOL

Overload indication

When display show this sign, it means the measuring weight exceed the max capacity.

PIs get off the scale to avoid damage it

Low battery indication

When display show this sign, it means low battery, the scale will auto off, pls replace the battery.

ADVICE FOR USE AND CARE

1. Do not clean this unit with chemical solvent and submerge it in water. Clean you scale with a damp cloth but do not allow water to get inside the scale.
2. Do not drop the scale or jump on it.
3. Place the unit in a area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
4. Remove the batteries if the scale is not being used for a long time.
5. If the scale can not work, pls check if the battery contact well.Pls replace battery if the scale use for a long time.
6. This product is only for personal use and not suitable for commercial use or medical use.

TRANSPORT AND SERVICE

WARNING: Handling and transportation. It is required to perform transportation of device in its own original box. Plastic or Glass parts may be broken during Incorrect packaging. Its electrical parts may be damaged.

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling. By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

DISPOSAL OF WASTE BATTERIES

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries that are found in all retail shops where you can buy batteries.

EU DECLARATION OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

5. JAMSTVO NE OBUHVAĆA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. Redovnu provjeru, održavanje uz zamjenu dijelova koji se troše normalnom upotrebom, prilagođavanje ili promjene za poboljšanje proizvoda za primjenu koji nisu opisane u tehničkim uputama za korištenje, osim ako je za te preinake predočena suglasnost M SAN GRUPA d.d.
6. Jamstvo se ne priznaje u sljedećim slučajevima:

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava uCrnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Nakon isteka roka za saobraznost potrošaču će biti obezbijeden servis i snadbijevanje rezervnim djelovima u skladu sa važećim zakonskim propisima.
6. garancija na bateriju je 12 mjeseci
7. PRAVO NA REKLAMACIJU NE OBUHVATA
