Product type	Battery charger
Brand	BOSCH
Model	AL 1404
Article number	2 607 225 0..
Charging voltage	7.2 - 14.4 V (automatic detection)
Charging current	400 mA
Charging time (battery 1.2 Ah)	3 hours
Charging time (battery 1.5 Ah)	4 hours
Charging time (battery 2.0 Ah)	5 hours
Charging temperature range	0 °C to 45 °C
Weight	0.4 kg
Protection class	II (double insulation)
Compatible battery types	Bosch NiCd/NiMH with APT connector
Charge indicator	LED (lit during charging)
Power supply	230 V ~ (220 V possible)
Maintenance and cleaning	Clean with a dry cloth, do not immerse
Spare parts	Available from Bosch after-sales service
Repairability	Repair only by a Bosch authorized professional
General information	Do not expose to rain or moisture

Frequently Asked Questions - AL 1404 BOSCH

What types of batteries can I charge with the BOSCH AL 1404?

The charger is designed for Bosch NiCd/NiMH batteries with APT connector. Compatible voltages are 7.2 V to 14.4 V. Do not charge other types of batteries, as this could cause a fire or electrocution.

How do I know when charging is complete?

The charger does not stop automatically. The LED indicator lights up during charging. When the battery feels hot to the touch, it indicates it is fully charged. Then unplug the charger and remove the battery.

Can I use the charger outdoors?

Yes, but only with a residual current device. Do not expose it to rain or moisture. Water ingress increases the risk of electric shock.

What should I do if the charge indicator does not light up?

Check that the mains plug is correctly connected and that the battery is properly inserted into the compartment. If the problem persists, test the electrical outlet or have the charger checked by a Bosch after-sales service.

How long does it take to charge a 2.0 Ah battery?

Charging time is approximately 5 hours for a 2.0 Ah battery. For a 1.2 Ah battery, allow 3 hours, and for 1.5 Ah, 4 hours.

Does the charger heat up normally?

Yes, heating is normal, especially during successive charging cycles. This does not indicate a defect. However, make sure not to use it on a flammable surface such as paper or textile.

How to clean the charger?

Keep the charger clean by wiping it with a dry cloth. Do not use water or cleaning products. Soiling can cause a risk of electric shock.

Can I charge new batteries?

Yes, a new battery or one that has been unused for a long time reaches its full power after approximately 5 charge and discharge cycles. Leave it in the charger until it becomes hot.

Where can I find spare parts for the AL 1404?

Spare parts are available from Bosch after-sales service. For any order, specify the ten-digit article number (2 607 225 0..) located on the rating plate.

What to do if the battery life decreases?

If the service time decreases significantly after recharging, it means the battery is worn out and must be replaced. Also make sure the contacts are clean.

USER MANUAL AL 1404 BOSCH

Operating instructions

Service. +43 (0)1/61 03 80

Fax. [phone]

Kundenberater. +43 (0)1/7 97 22 30 66

E-Mail:[e-mail]

Schweiz

0 44/8 47 15 11

Fax [phone]

Luxemburg

+32(0)70/225565

Fax. [phone]

E-Mail: [e-mail]

Entsorgung

Connect battery chargers that are used in the open via a ground fault circuit breaker.
- Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
- Do not charge other batteries. The battery charger is suitable only for charging Bosch NiCd/NiMH batteries with the voltages listed in the technical data. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.

Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save these instructions.

Product Features

The numbering of the product features refers to the illustration of the battery charger on the graphics page.

1 Battery with contact APT*
2 Charging compartment
3 Battery charge indicator

*The accessories illustrated or described are not included as standard delivery.

Technical Data

Battery Charger		AL 1404	AL 2404
Article number		2 607 225 0..	2 607 225 1..
Output voltage (automatic voltage detection)	V=	7.2–14.4	7.2–24
Charging current	mA	400	400
Allowable charging temperature range	°C	0–45	0–45
Charging time for battery capacity
- 1.2 Ah	h	3	3
- 1.5 Ah	h	4	4
- 2.0 Ah	h	5	5
Weight according to EPTA-Procedure 01/2003	kg	0.4	0.6
Protection class		☐ / II	☐ / II

Please observe the article number on the type plate of your battery charger. The trade names of individual battery chargers may vary.

Operation

Starting Operation

Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230V can also be operated with 220V .

Charging Procedure

The charging procedure starts as soon as the mains plug of the battery charger is plugged into the socket outlet and the battery 1 is inserted into the charging compartment 2.

The battery charge indicator 3 is not a charge-control indicator. The lit indicator signalises the flow of charging current.

The charging procedure is not ended automatically. Therefore, disconnect the battery charger from the mains supply after the battery has been charged and remove the battery. A temperature increase of the battery indicates that the battery is fully charged.

Operating Instructions

With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charger.

A battery that is new or that has not been used for a longer period will not achieve its full capacity until after approx. 5 charging and discharging cycles. Leave such a battery in the battery charger until it has warmed up considerably.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Troubleshooting - Causes and Corrective Measures

Cause	Corrective Measure
No charging procedure possible
Battery contacts contami-nated	Clean the battery con-tacts (e. g. by inserting and removing the battery several times) or replace the battery
Battery defective	Replace the battery
Battery charge indicator 3 does not light up
Mains plug of battery charger not plugged in (properly)	Insert mains plug (fully) into the socket outlet
Battery not inserted (prop-erly)	Insert battery (fully) into the battery charging com-partment
Socket outlet, mains cable or battery charger defec-tive	Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools

Maintenance and Service

Maintenance and Cleaning

If the battery charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number on the type plate of the battery charger.

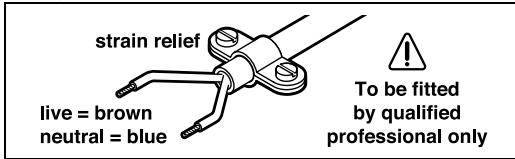

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.

Service and Customer Assistance

Exploded views and information on spare parts can be found under:

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

MIDDLEX UB 9 5HJ

Service: +44 (0) 18 95 / 83 87 82

Advice line: +44 (0) 1895/838791

Fax: [phone] / 83 87 89

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

Service: .+353 (0)1 / 4 14 94 00

Fax: +353 (0)1 / 4 59 80 30

Australia and New Zealand

Robert Bosch Australia Pty. Ltd.

RBAU/SPT

1555 Centre Road

P.O.Box 66

3168 Clayton/Victoria

6 61 (0)1 / 3 00 30 70 44

Fax: +61 (0)1 / 3 00 30 70 45

www.bosch.com.au

Disposal

Battery chargers, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of battery chargers into household waste!

According to the European Guideline 2002/96/EG for Waste Electrical and Electronic Equipment and its implementation into national right, battery charge

ers that are no longer usable must be collected separately and disposed of in an environmental correct manner.

Subject to change without notice.
