Product Type	Cylinder Vacuum Cleaner
Brand	Samsung
Model	SC15F60WU
Power Consumption	1600 W
Dust Capacity	2.5 L
Filtration System	Cyclonic + Micro HEPA
Noise Level	Approx. 78 dB(A)
Cord Length	6 m
Weight	5.2 kg
Dimensions (L x W x H)	440 x 280 x 250 mm
Bagless	Yes
Variable Power Control	No (single power)
Floor Nozzle Type	Multi-surface with brush on/off
Accessories Included	Crevice tool, upholstery brush, combination tool
Warranty	2 years
HEPA Filter Washable	Yes
Automatic Cord Rewind	Yes
Suction Control	Manual on handle
Repairability Index	8.1 / 10

Frequently Asked Questions - SC15F60WU SAMSUNG

How do I empty the dust bin?

Press the button on top of the bin to release the bottom lid. Empty over a trash can. Tap to remove debris. Do not rinse the bin.

How do I wash the HEPA filter?

Remove the filter from the unit. Rinse it under running water (cold) until clean. Let it dry completely for 24 hours before reinserting. Do not use detergent.

What accessories are included?

The package includes a multi-surface floor nozzle, a crevice tool, an upholstery brush, and a combination dusting brush. Check the box for all parts.

Why is the suction weak?

Check for blockages in the hose, wand, or floor nozzle. Clean the dust bin and filters. Ensure the dust bin is properly seated. If problem persists, the motor may need service.

How do I replace the HEPA filter?

Purchase a genuine Samsung HEPA filter (part code DJ97-01419A). Open the filter cover, remove old filter, insert new one. Replace every 6-12 months.

Can I use it on hardwood floors?

Yes. The floor nozzle has a brush on/off switch. For hardwood, turn the brush off to prevent scratching. Use lowest suction setting if available.

What does the red light on the bin mean?

The red light indicates the dust bin is full or needs to be emptied. Empty the bin and ensure the bottom lid is closed securely. The light should turn off.

How do I clean the cyclonic unit?

Remove the dust bin and take out the cyclonic grid. Rinse it under cold water. Dry completely before reassembling. Do not use brushes on the grid.

Where can I buy replacement parts?

Order from Samsung official website or authorized dealers. Common parts: filter, floor nozzle, hose. Use the model number SC15F60WU to find correct parts.

My vacuum overheats and shuts off. What to do?

Turn off and unplug. Check for blockages in the hose and wand. Clean the dust bin and filters. Allow the unit to cool for 30 minutes before restarting. If still overheating, contact support.

USER MANUAL SC15F60WU SAMSUNG

Vacuum Cleaner User Manual

Before operating this unit, please read the instructions carefully.

For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

SAMSUNG

Safety Information

SAFETY INFORMATION

Before operating the appliance, please read this manual thoroughly and retain it for your reference.

Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.

• This vacuum cleaner is designed for household use only.

Do not use this vacuum cleaner to clean building waste and debris, toner of laser printer. Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.

Dry carpet cleaners or fresheners, powders, and fine dust such as flour should only be vacuumed in very small amounts.

Always clean the dust bin and filters after vacuuming them.

Do not use this vacuum cleaner with any of the filters or dust bin removed.

Do not use worn, deformed, or damaged filters.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty. Never twist the micro filter after washing. It can cause deformation or damage to the filter.

If the filter is deformed or damaged, please replace it (it can cause dust and debris to penetrate the motor).

Please insert the filter properly without any gap between the filter and the filter cover (it can cause dust and debris to penetrate the motor).

02_ safety information

Safety Information

IMPORTANT SAFEGUARDS

GENERAL

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• WARNING: Do not use the vacuum cleaner when the rug or floor is wet. Do not use it to suck up water.
• Close supervision is necessary when any appliance is used by or near children.

Do not allow the vacuum cleaner to be used as a toy.

Do not allow the vacuum cleaner to run unattended at any time.

Use the vacuum cleaner only for its intended use as described in these instructions.

- Do not use the vacuum cleaner without a dust bin.

Empty the dust bin before it is full in order to maintain the best efficiency.

- Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources.

Heat can deform and discolour the plastic parts of the unit.

- Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.

Do not stand on the hose assembly.

Do not put weight on the hose.

Do not block the suction or the exhaust port.

- Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet.

Disconnect the plug from the electrical outlet before emptying the dust bin.

To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• For information on Samsung's environmental commitments and product specific regulatory obligations e.g.

REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

UV BRUSH

• Since the UV rays from the UV Brush damage skin and eyes, never allow the rays to make contact with skin or eyes and do not let children or the elderly use the UV Brush. It may damage your eyesight.
• If the transparent window is broken and the UV rays are exposed directly, turn the power off and contact the service center.
• Do not use the UV Brush for purposes other than the sterilization of mattresses, bedclothes, beds, cushions and so on made from material.

The company will not be held liable for any loss due to accidents from using the UV Brush for purposes other than its original purpose as listed above.

- Do not sit on the UV Brush or drop it, and avoid imparting impacts on the product.

Failing to do so may result in injury or product damage.

- Do not touch the power terminals on the back of the UV Brush with a metal pin or rod.

This may result in electric shock or fire.

• When the UV lamp is out of order, never disassemble or modify the product yourself. Please contact the manufacturer or service center for a replacement.
• Since an internal discharge occurs within the UV Brush, never use the product near an inflammable spray or substance.
• Take care not to touch the UV lamp window after using the UV Brush for an extended period of time as the surface of the window may be hot.
• The UV Brush may start slowly at a low temperature due to the inherent characteristics of UV lamps.

Please keep the UV Brush indoors.

contents

ASSEMBLING THE CLEANER

07

11 Using the UV brush (Option)

MAINTAIN TOOLS AND FILTER

12

12 Using accessory

14 Maintain floor tools

16 Dust full indicator

16 Changing the dust bag

16 Cleaning inlet filter

17 Cleaning outlet filter

17 Change the battery (remote-control type)

TROUBLESHOOTING

18

06_ contents

assembling the cleaner

01 ASSEMBLING THE CLEANER

- For storage, park the floor nozzle.

assembling the cleaner _07

operating the cleaner

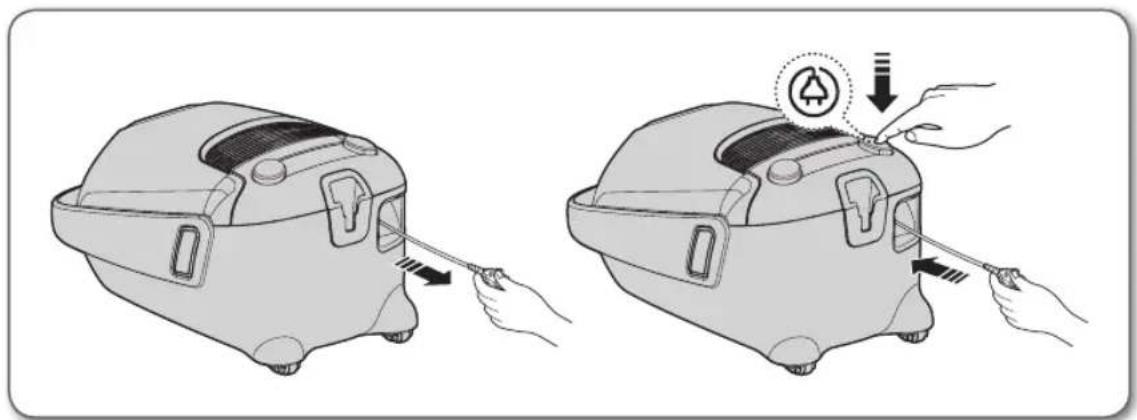

POWER CORD

CAUTION

- When removing the plug from the electrical outlet, grasp the plug, not the cord.

ON/OFF SWITCH

08_ operating the cleaner

POWER CONTROL

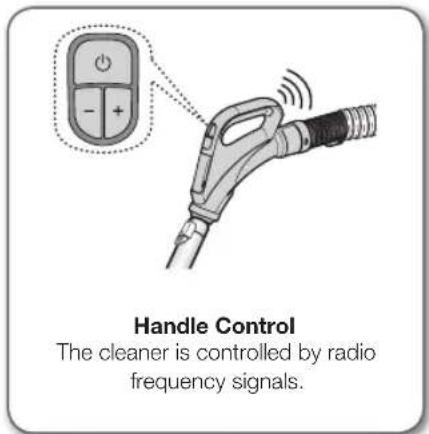

Remote-control type

HOSE (SC07F60J, SC08F60J Series)

1. ON/OFF (⏻ Button)

- Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.

- Press the (+) button to operate the vacuum at high suction power. Press the (-) button to operate the vacuum at low suction power.

If no button is pressed for 30 minutes while cleaning, the safety device is activated and the power is cut off. In this case, press the [Power] button on the main unit or unplug and then plug the power cord in again.

HOSE (SC07F60Y, SC08F60Y Series)

1. ON/OFF (⏻ Button)

- Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.

1. SUCTION (-/+) Button

Press the [SUCTION (-/+)] button to increase or decrease the suction power. Each time you press the button, you gradually increase the suction power. After the suction power reaches its maximum, the next time you press the button, you return the suction power to its minimum.

1. BRUSH ON/OFF Button

Press the [BRUSH ON/OFF] button to operate the UV Brush. Press again to stop the UV Brush.

If no button is pressed for 30 minutes while cleaning, the safety device is activated and the power is cut off. In this case, press the [Power] button on the main unit or unplug and then plug the power cord in again.

operating the cleaner _09

BODY

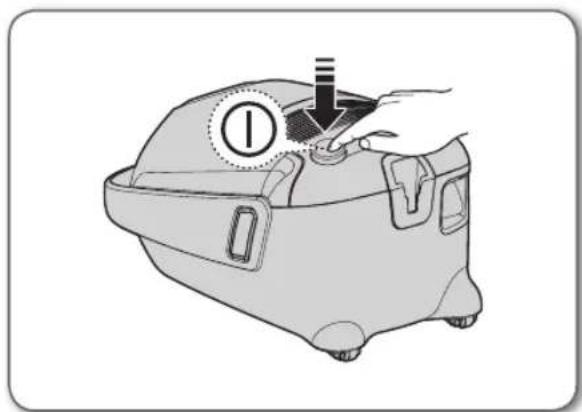

Press the power ON/OFF button repeatedly to start and to stop the vacuum cleaner. (OFF → ON → OFF)

If the remote handle control is not working, the cleaner can be operated using the ON/OFF button on the body of the machine.

(1) The neon lights up blue when the power source is connected.
(2)	If the filter check indicator turns red, check and eliminate possible blockages in brushes, pipe, hoses, filters and if necessary. Empty and replace dust bag.

Body-control type (SC05F60W, SC07F60W, SC08F60W Series)

HOSE

To reduce suction for cleaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open.

BODY

To control power level, just slide the power control right and left.

MIN = For delicate fabrics, e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

(1)

If the filter check indicator turns red, check and eliminate possible blockages in brushes, pipe, hoses, filters and if necessary. Empty and replace dust bag.

10_ operating the cleaner

USING THE UV BRUSH (OPTION)

1. Insert the brush into the hose handle.

Insert the UV brush securely into the hose handle until you hear a "clicking" sound.

1. Press the [BRUSH ON/OFF] button to use UV Brush.
2. Press the [Suction -/+] button to start cleaning and choose the appropriate suction strength.
3. Press the [BRUSH ON/OFF] button. • UV sterilization cannot be activated by itself.

1. When you have finished UV cleaning, press the [button.

Press the [button to stop the cleaner.

For safety reasons, UV brushing only runs for 30 minutes and then stops operating. To resume the operation, press the [SUCTION (-/+)] button again.

The UV brush, which is inserted into the hose handle (not directly connected to the telescopic pipe), is dedicated for bedclothes.

maintain tools and filter

USING ACCESSORY

Pipe

- Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

- To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

Accessory

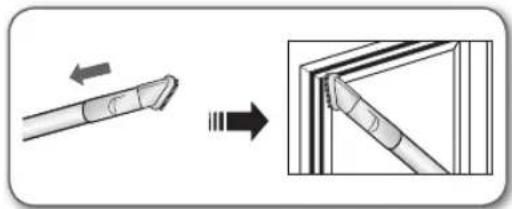

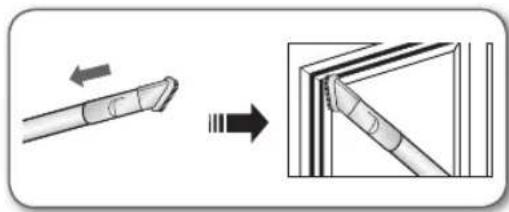

- To use the crevice tool, push the accessory onto the end of the hose handle in the opposite direction.

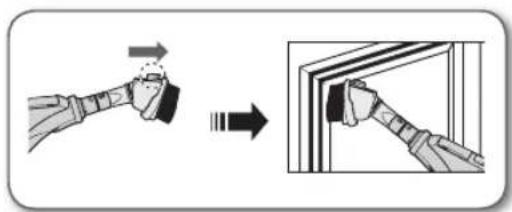

- Pull out the button to use the dusting brush.

- To use the upholstery tool, push the accessory onto the end of the hose handle.

12_ maintain tools and filter

Accessory

- Push the accessory onto the end of the hose handle.

- Pull out the dusting brush to use the crevice tool.

- Push the accessory onto the end of the pipe.

- Pull out the dusting brush to use the crevice tool.

MAINTAIN FLOOR TOOLS

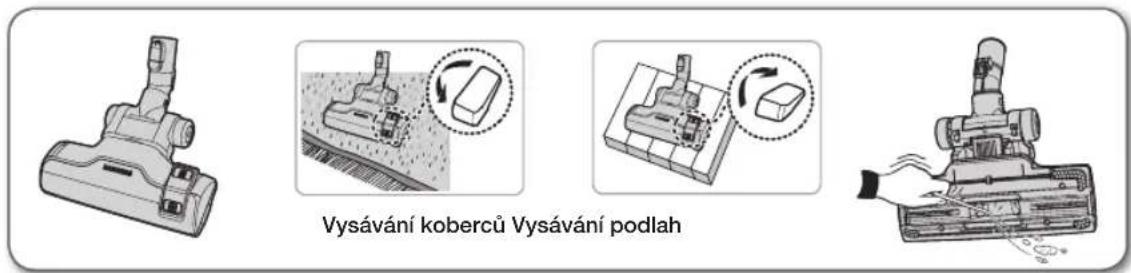

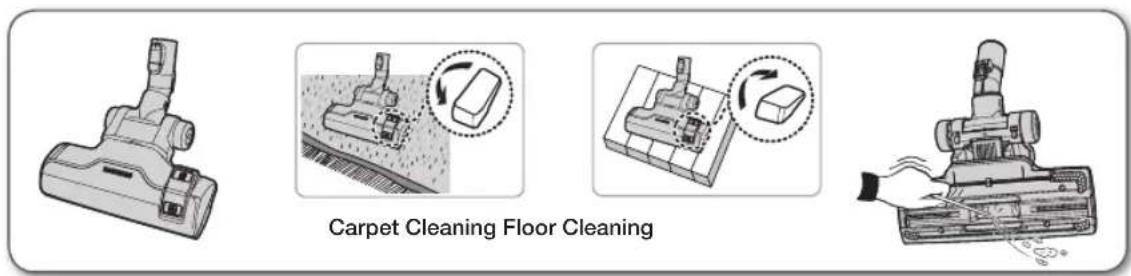

2-Step Brush

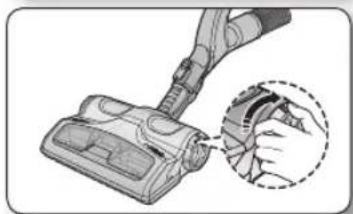

• Adjust the inlet lever according to the floor surface.
• Remove waste matter completely if the inlet is blocked.

Power Pet Plus Brush (Option)

- Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around.

1. Push the Open button of the transparent screen cover to separate the cover.
2. Remove the brushbar from the transparent screen.
3. Remove waste matter such as dust and hair tangled around the brushbar using scissors.
4. Remove dust inside the brush housing using a dry duster or crevice tool.
5. Insert brushbar into rotating belt and assemble.
6. Click the transparent screen cover back into place to reassemble.

Parquet Master Brush (Option)

• Vacuum dust in wide area at once. - Remove waste matter completely if the inlet is blocked.

14_ maintain tools and filter

To remove dust from the dust bin of the UV brush (Option)

When you notice that the dust bin is filled, use the [Dust Removal] button to empty the dust bin.

1. To remove dust from the dust bin, move the [Dust Removal] button to the "Open" position.

- While the cleaner is operating (suction), use the [Dust Removal] button for this purpose.

1. When done, move the [Dust Removal] button to the "Close" position.

- When the [Dust Removal] button is in the "Open" position, the suction power of the cleaner is reduced.

- Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around.

Cleaning the UV brush (Cleaning the drum) (Option)

You should check your vacuum cleaner's Brush roll regularly. Strings, hair and carpet fibers can wrap around the brush and hamper its ability to clean. To prevent this you should clean the brush.

1. Push the [Open Transparent Cover] button inward to remove the cover.
2. Use the crevice tool to remove impurities such as dust and hair from the brush roll.
3. When done, push the button outward to close the cover.

DUST FULL INDICATOR

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around. The lamp will turn red when suction is reduced. If the light comes on, please change the bag.

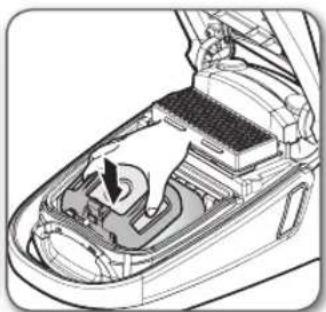

CHANGING THE DUST BAG

You can purchase dust bags in the shops where you bought this vacuum cleaner or authorized SAMSUNG service center.

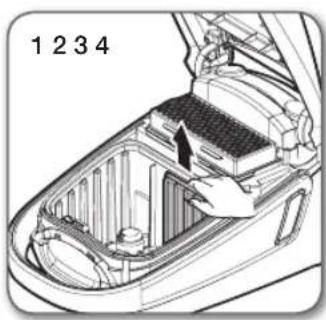

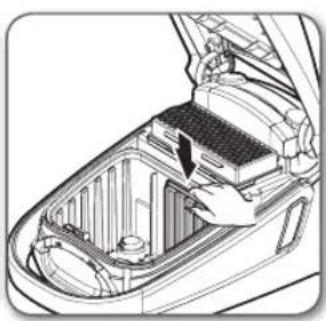

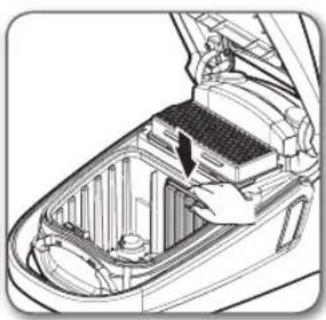

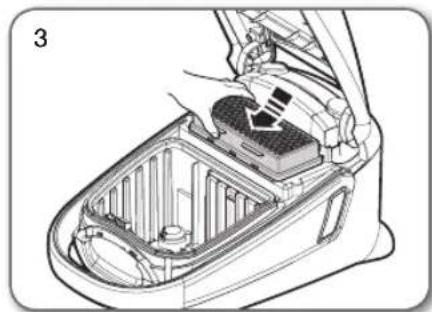

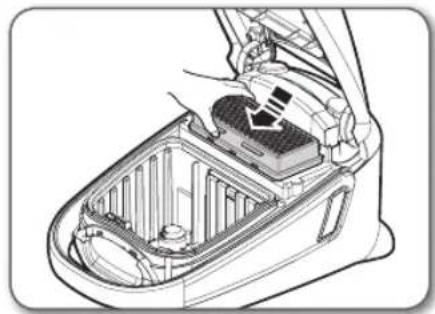

CLEANING INLET FILTER

Don't throw away the filter.

16_ maintain tools and filter

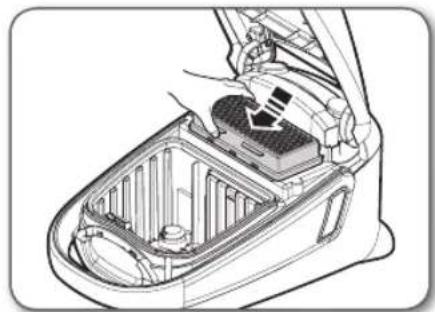

CLEANING OUTLET FILTER

- Please replace the filter 1~2 times a year.

- When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter. Note. Do not wash filter. If cleaning does not resolve the problem Please replace blocked out filter.

- Replacement filters are available at your local Samsung distributor.

CHANGE THE BATTERY (REMOTE-CONTROL TYPE)

- When the vacuum cleaner does not work, replace the batteries. If the problem persists, please contact our authorized dealer.

• Use 2 batteries of size AAA.

• Never disassemble or recharge the batteries.
• Never heat up the batteries or throw them into fire.
• Do not reverse (+), (-) poles.
• Dispose of the batteries properly.

BATTERY TYPE: AAA Size

Troubleshooting

PROBLEM SOLUTION
Motor does not start.	Check cable, plug and socket.Leave to cool.
Suction force is gradually decreasing.	Check for blockage and remove.
Cord does not rewind fully.	Pull the cord out 2-3 m and push down the cord rewind button.
Vacuum cleaner does not pick up dirt.	Check hose and replace if required.
Low or decreasing suction.	Please check filter and, if required, clean as illustrated in the instructions. if filters are out of condition change them to new ones.
Body overheating.	Please check filters, if required clean as illustrated in the instruction.
Static electricity discharge.	Please decrease power suction.This can also occur when air in the room is very dry.Please ventilate the room to air humidity become a normal.

Thermal protector: This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Make sure that there is power in the socket. To avoid electric shock, please contact a qualified electrician. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

If the vacuum cleaner still does not run, contact a service engineer.

This vacuum cleaner is compliant with the following regulations:

- RTTE Directive (1999/5/EC)

- Electromagnetic Compatibility Directive: 2004/108/EEC

- Low Voltage Directive: 2006/95/EC

The official Declaration of Conformity may be found at http://www.samsung.com, go to Support

Please search Product Support and enter the model name.

18_troubleshooting

Product fiche

[English]

According to Commission Regulation (EU) No 665/2013 and No 666/2013

A Supplier Samsung Electronics., Co. Ltd
B Model	SC07F60WU	SC07F60JV SC07F60YX SC08F60WU SC08F60JV SC08F60YX SC05F60WV
C Energy Efficiency Class	A B A						+
D Annual Energy Consumption (kWh/yr)	28.0 34.0 22.0
E Carpet Cleaning Performance Class	C D C
F Hardfloor Cleaning Performance Class	A B A
G Dust Re-Emission Class	A A A
H Sound Power Level (dBA)	74 76 74
I Rated Input Power (W)	700 750 500
J Type	General purpose vacuum cleaner

1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

2) Measurements for power consumption and performance are based on methods in EN 60312-1 and EN 60704.

SAMSUNG

Vacuum cleaner

Assembling the vacuum cleaner _07

Operating the vacuum cleaner

POWER CORD

- When unplugging from the wall outlet, grasp the plug, not the cord.

ON/OFF SWITCH

08_Operating the vacuum cleaner

Handle control This vacuum cleaner is operated via radio frequency signals.

If you do not press any button for 30 minutes during cleaning, the protective device will activate and cut off the power. In that case, press the [Power] button on the main unit or unplug and replug the power cord.

HOSE (SC07F60Y, SC08F60Y series)

1. ON/OFF button [💡]
2. Press the ON/OFF button to turn the vacuum cleaner on. Press it again to turn it off.
3. SUCTION (-/+) button
4. Press the [SUCTION (-/+)] button to increase or decrease the suction power. Each time you press the button, the suction power gradually increases. After the suction power reaches its maximum, the next time you press the button, the suction power returns to minimum.

Handle control This vacuum cleaner is operated via radio frequency signals.

1. BRUSH ON/OFF button
2. Press the [BRUSH ON/OFF] button to use the UV brush. Press again to stop the UV brush.

If you do not press any button within 30 minutes during cleaning, the protective device will activate and cut off the power. In that case, press the [Power] button on the main unit or unplug and replug the power cord.

MAIN BODY

Press the ON/OFF button to turn the vacuum cleaner on or off. (OFF → ON → OFF)

MAIN BODY

Move the power control switch to the right or left to adjust the suction power.

MIN = For delicate fabrics such as curtains.

MAX = For floors and heavily soiled carpets.

(1)

Ako indikator statusa filtera počne da svetli crveno, proverite i po potrebi uklonite zapušenja u četkama, cevi, crevima i filterima. Ispraznite i zamenite vreću za prašinu.

10. Handling the vacuum cleaner

USING THE UV BRUSH (OPTIONAL)

1. Insert the brush into the hose handle.
2. Insert the UV brush firmly into the hose handle until you hear a "click".

1. Press the [BRUSH ON/OFF] button to use the UV brush.
2. Press the [Suction -/+] button to start vacuuming and select the appropriate suction power.
3. Press the [BRUSH ON/OFF] button.
4. UV sterilization cannot be activated by itself.
5. When you have finished UV cleaning, press the [∅] button.

- Press [Master] to stop the vacuum cleaner.

- For safety reasons, the UV brush operates for only 30 minutes and then stops. To continue, press the [SUCTION (-/+)] button again.

UV brush, which is inserted into the hose handle (not directly connected to the telescopic tube), is intended for bedding.

Additional accessories

- If you want to use the crevice tool, attach it to the end of the hose handle so that it faces the opposite direction.

- Pull out the button to use the dusting brush.

- If you want to use the upholstery tool, attach it to the end of the hose handle.

- Pull out the dusting brush to use the crevice tool.

• Push the accessory into the end of the tube.

- Pull out the dusting brush to use the crevice tool.

FLOOR CLEANING TOOLS

2-step brush

• Adjust the handle on the suction part according to the type of floor.
• Completely remove dirt if the suction part is blocked.

Professional pet hair brush (optional)

- Frequent vacuuming of hair or pet hair may cause the rotation speed to decrease due to tangled material.

1. Press the opening button on the transparent cover to detach it.
2. Remove the brush tape from the transparent cover.
3. Using scissors, remove dirt such as dust and hair tangled around the brush tape.
4. Remove dust from the brush housing using a dry dusting tool or a crevice tool.
5. Place the brush tape on the rotating belt and assemble it.
6. Put the transparent cover back in place.

Professional parquet brush (optional)

• One-pass dust pickup over a wide area.
• Completely remove dirt if the suction part is blocked.

- Frequent vacuuming of hair or pet fur may cause the rotation speed to decrease due to tangled material.

Cleaning the UV brush (Drum cleaning) (Optional)

You should regularly check the vacuum cleaner brush. Threads, hair, and carpet fibers can wrap around the brush and reduce its ability to clean carpets effectively. To prevent this, clean the brush.

1. Press the [Open Transparent Cover] button inward to remove the cover.
2. Use the crevice tool to remove dirt around the brush such as dust and hair.
3. When you are finished, pull the button to close the cover.

Cleaning tools and filter _15

DUST BAG FULL INDICATOR

Dust bags can be purchased at stores where this vacuum cleaner is sold or at an authorized SAMSUNG service center.

REPLACING THE EXHAUST FILTER

Do not throw away the filter.

- Replace the filter 1~2 times a year.

- If the suction power is continuously noticeably reduced or the vacuum cleaner heats up abnormally, clean the exhaust filter. Note: Do not wash the filter. If cleaning does not solve the problem, replace the clogged filter.

BATTERY TYPE: Size AAA

Troubleshooting

PROBLEM REŠENJE
Motor se ne uključuje.	Proverite kabl, utikač i utičnicu.Ostavite uređaj da se ohladi.
Snaga usisavanja se postepeno smanjuje.	Proverite da li postoji zapušenje i uklonite ga.
Kabl se ne uvlači u potpunosti.	Izvucite kabl 2-3 m, pa pritisnite dugme za uvlačenje kabla.
Usisivač ne usisava prljavštinu.	Proverite crevo i zamenite ga po potrebi.
Mala ili opadajuća snaga usisavanja.	Proverite filter i po potrebi ga očistite u skladu sa uputstvima. a u slučaju da je dotrajao zamenite ga.
Kućište se pregreva.	Proverite filtere i po potrebi ih očistite u skladu sa uputstvima.
Pražnjenje statičkog elektriciteta.	Smanjite snagu usisavanja.Ovo može da se dogodi i kada je vazduh u prostoriji veoma suv.Provetrite prostoriju da bi vlažnost vazduha postala normalna.

Thermal protector: This vacuum cleaner has a special thermostat that protects the motor in case of overheating. If the vacuum cleaner suddenly turns off, turn off the switch and unplug the power cord from the outlet. Check that the outlet has power. To avoid electric shock, contact a qualified electrician. Check the vacuum cleaner for possible sources of overheating such as a full dust tank, blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before using the vacuum cleaner. After 30 minutes, plug the power cord back into the outlet and turn on the switch. If the vacuum cleaner still does not work, contact a service technician.

Assembling the vacuum cleaner _07

Operating the vacuum cleaner

POWER CORD

When unplugging the power plug from the wall outlet, hold the plug, not the cable.

ON/OFF SWITCH

08_operating the vacuum cleaner

POWER CONTROL

Control on the handle

The vacuum cleaner is operated using radio frequency signals.

Control on the handle

The vacuum cleaner is operated using radio frequency signals.

1. BRUSH ON/OFF BUTTON

HOUSING

To adjust the power level, simply turn the power control knob to the right or left.

(1)

Ako indikator provjere filtra počne svijetliti crveno, provjerite i po potrebi uklonite moguća začepljenja u četkama, cijevi, crijevima, filtrima. Ispraznite i zamijenite vrećicu za prašinu.

10_operating the vacuum cleaner

USING THE UV BRUSH (OPTION)

1. When you have finished UV cleaning, press the button [

- Press the button [ ♦ to turn on the vacuum cleaner.

- For safety reasons, UV cleaning runs for only 30 minutes and then stops. To continue working, press the [SUCTION (-/+)] button again.

- To check for blockages, disconnect the telescopic tube and reduce its length. This makes it easier to remove accumulated debris from the tube.

Accessory

- To use the dusting brush, pull out the button.

- To use the upholstery nozzle, push the accessory onto the end of the hose handle.

12_ Maintenance of accessories and filter

Accessory

• Push the accessory onto the end of the hose handle.

• Push the accessory onto the end of the tube.

MAINTENANCE OF FLOOR NOZZLE

2-position brush

• Adjust the suction opening lever according to the floor surface.
• If the suction opening is clogged, remove accumulated debris.

Additional pet hair brush (optional)

- Frequent vacuuming of pet hair may cause the rotation to slow down due to tangled material.

14_ maintenance of attachments and filter

Removing dust from the UV brush dust container (Option)

1. When finished, move the [Dust Removal] button to the "Close" position.

- When the [Dust Removal] button is in the "Open" position, suction power decreases.

- Frequent vacuuming of pet hair may cause slower rotation due to tangled material.

maintenance of attachments and filter _15

DUST BAG FULL INDICATOR

Remote control type Control on the device

- Frequent vacuuming of pet hair may cause slower rotation due to tangled material. When suction power decreases, the indicator lights up red. When the indicator turns on, replace the bag.

CHANGING THE DUST BAG

Dust bags can be purchased at stores where you bought this vacuum cleaner or at an authorized SAMSUNG service center.

CLEANING THE INLET FILTER

Do not discard the filter.

16_ maintenance of attachments and filter

CLEANING THE OUTLET FILTER

BATTERY TYPE: AAA size

Troubleshooting

PROBLEM RJEŠENJE
Motor se ne pokreće.	Provjerite kabel, utikač i utičnicu.Ostavite uređaj da se ohladi.
Usisna snaga postepeno se smanjuje.	Provjerite postoji li začepljenje i uklonite ga.
Kabel se ne može namotati do kraja.	Izvucite 2-3 metra kabela i pritisnite gumb za namotavanje kabela.
Usisivač ne skuplja prljavštinu.	Provjerite crijevo i prema potrebi ga zamijenite.
Usisavanje je slabo ili postaje slabije.	Provjerite filtar i prema potrebi ga očistite u skladu s ilustracijama u uputama. Ako filtri više nisu funkcionalni, zamijenite ih novima.
Pregrijavanje kućišta.	Provjerite filtre i prema potrebi ih očistite u skladu s ilustracijama u uputama.
Pražnjenje statičkog elektriciteta.	Smanjite usisnu snagu.To se može događati i kada je zrak u prostoriji vrlo suh.Prozračite prostoriju kako bi se povećala vlažnost zraka na uobičajenu razinu.

Overheating protection: The vacuum cleaner contains a special thermostat that protects the motor in case of overheating. If the vacuum cleaner suddenly turns off, turn off the switch and unplug the vacuum cleaner from the power supply. Check if the outlet is providing power. To avoid electric shock, contact a qualified electrician. Check possible sources of overheating in the vacuum cleaner, such as whether the dust container is full, whether the hose or tube is blocked, and whether the filter is clogged. If you have discovered any of the mentioned sources of overheating, remove it and wait at least 30 minutes before using the vacuum cleaner again. After 30 minutes, plug the vacuum cleaner into the power supply and turn it on. If you still cannot start the vacuum cleaner, contact a service engineer.

WARNING

BODY

Accessories

BODY

Accessories

FLOOR CARE TOOLS

2-step brush

DUST FULL INDICATOR

Do not discard the filter.

ON/OFF BUTTON

BODY

Accessories

MAINTENANCE OF FLOOR ACCESSORIES

2-step brush

DUST FILL INDICATOR

CHANGING THE DUST BAG

BATTERY TYPE: AAA size

troubleshooting

WARNING

HOUSING

Accessories

CAUTION

BODY

Accessory

WARNING!

DEVICE HOUSING

MAINTENANCE OF FLOOR CARE ACCESSORIES

Two-position brush

DUST LEVEL INDICATOR

OTHER SYMBOLS USED

WARNING

08_ operating the vacuum cleaner

HOSE (SC07F60J, SC08F60J series)

Control on the handle

Control on the handle

BODY

Accessories

MAINTENANCE OF FLOOR NOZZLES

Two-position brush

DUST BAG FULL INDICATOR

Do not discard the filter.

01 ASSEMBLING THE VACUUM CLEANER

- To store the device, insert the floor nozzle into the holder.

Assembling the vacuum cleaner

Operating the vacuum cleaner

POWER CORD

CAUTION

- When unplugging the plug from the electrical outlet, do not pull on the cord, but grasp the plug directly.

SWITCH

BODY

Accessories

- Press the accessory onto the end of the tube.

FLOOR CARE TOOLS

2-step brush

BATTERY TYPE: Size AAA

Troubleshooting

(ON) MIN (MIN.) → MID (MED.) → MAX (MAX.)

(ON) MIN (MIN.) → MID (MED.) → MAX (MAX.)

HOUSING

Accessories

MAINTENANCE OF FLOOR CLEANING TOOLS

assembling the vacuum cleaner _07

using the vacuum cleaner

POWER CORD

CAUTION

- When unplugging from the electrical outlet, grasp the plug, not the cord.

ON/OFF SWITCH

HOUSING

To adjust the power, move the power button left or right.

1. To use the UV brush, press the [BRUSH ON/OFF] button.
2. To start cleaning and select the appropriate suction power, press the [Suction -/+] button.
3. Press the [BRUSH ON/OFF] button. • UV sterilization does not activate automatically.

Accessories

- To use the dust brush, pull out the button.

- To use the crevice nozzle, pull out the dust brush.

• Insert the accessory into the end of the hose.

- To use the crevice nozzle, pull out the dust brush.

MAINTENANCE OF FLOOR CLEANING ATTACHMENTS

Two-stage brush

FULL BAG INDICATOR

Do not discard the filter.

• Replace the filter once or twice a year.

BATTERY TYPE: AAA size

Troubleshooting
