Product Type	Label Printer
Brand	Samsung
Model	STP-103PDK
Print Technology	Direct Thermal / Thermal Transfer
Resolution	203 dpi
Print Speed	Up to 4 ips (102 mm/s)
Max Print Width	104 mm (4.1 inches)
Dimensions (W x D x H)	Approx. 220 x 180 x 150 mm
Weight	Approx. 1.5 kg
Power Supply	AC Adapter (Input: 100-240VAC, 50/60Hz)
Interface	USB, RS232 (optional)
Media Sensors	Gap, Black Mark, Label Out
Supported Barcodes	1D: Code 39, Code 128, EAN-13, etc.; 2D: QR, Data Matrix
Maximum Label Length	Up to 1200 mm (roll)
Cleaning	Use isopropyl alcohol wipes on print head and platen roller
Safety Precautions	Do not expose to moisture; use only supplied power adapter
Spare Parts	Print head, cutter, platen roller available
Repairability	Modular design; user-replaceable print head and cutter
General Information	Desktop label printer for retail, logistics, healthcare

Frequently Asked Questions - STP-103PDK SAMSUNG

How do I load labels into the Samsung STP-103PDK?

Open the top cover, place the label roll on the holder, feed the label through the guide path, and close the cover until it clicks.

What type of labels can I use with this printer?

The printer supports continuous, die-cut, and fanfold labels with a width up to 104 mm. Use direct thermal or thermal transfer labels.

How do I change the print head?

Power off the printer, open the top cover, release the print head latch, remove the old head, and install the new one by securing the latch.

Why is the printer not feeding labels properly?

Check the media sensor alignment, ensure labels are not jammed, and verify that the label size matches the software settings.

Can I print barcodes with this printer?

Yes, it supports both 1D barcodes (Code 39, Code 128, EAN-13) and 2D barcodes (QR Code, Data Matrix) via compatible software.

How do I clean the print head?

Use a cotton swab dipped in isopropyl alcohol, gently wipe the print head elements, and allow it to dry before printing.

What is the maximum print speed?

The printer can achieve up to 4 inches per second (102 mm/s) under optimal conditions.

Does the printer come with a power adapter?

Yes, an AC adapter is included in the package. Use only the supplied adapter to avoid damage.

How do I troubleshoot a 'Label Out' error?

Ensure labels are loaded correctly, the sensor is aligned with the label gap, and the label roll is not empty.

Can I connect the printer to a mobile device?

The STP-103PDK primarily connects via USB. Bluetooth or Wi-Fi options are not available on this model.

USER MANUAL STP-103PDK SAMSUNG

When using this appliance, please observe the following safety regulations to prevent any hazard or material damage.

WARNING

Failure to follow these instructions can cause serious injury or death.

Do not plug multiple products into one multi-outlet.

• This can cause overheating and fire. - If the plug is wet or dirty, dry or wipe it before use. - If the plug does not fit perfectly into the outlet, do not plug it in. - Be sure to use only standardized multi-outlets.

Use only the supplied adapter.

- Using other adapters is dangerous.

Do not pull the cable to unplug.

- This can damage the cable, which may cause a fire or breakdown of the printer.

Keep the plastic bag out of children's reach.

- If not, a child may put the bag over their head.

Do not plug in or unplug with wet hands.

- You could be electrocuted.

Do not bend the cable forcefully or place heavy objects on it.

• A damaged cable can cause a fire.

CAUTION

Violating the following instructions can cause slight injury or damage to the appliance.

If you observe strange smoke, odor, or noise from the printer, unplug it before taking the following measures.

• Switch off the printer and unplug it from the mains. After the smoke disappears, call your dealer to repair it.

TO UNPLUG

Keep the desiccant out of children's reach.

- If not, they may eat it.

PROHIBITED

Install the printer on a stable surface.

- If the printer falls, it can be broken and you can hurt yourself.

PROHIBITED

Use only approved accessories and do not try to disassemble, repair, or remodel it yourself.

• Call your dealer when you need these services.
• Do not touch the blade of the auto cutter.

DISASSEMBLING PROHIBITED

Do not let water or other foreign objects enter the printer.

- If this happens, switch off and unplug the printer before calling your dealer.

PROHIBITED

Do not use the printer when it is out of order. This can cause a fire or an electrocution.

- Switch off and unplug the printer before calling your dealer.

TO UNPLUG

■ Warning - U.S.A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

■ Notice - Canada

This apparatus complies with class "A" limits for radio interference as specified in the Canadian Department of Communications radio interference regulations.

Waste Electrical and Electronic Equipment (WEEE)

This marking shown on the product or its literature indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Label Material: PET

Introduction

* Printer Part Names

(1) Cover top (2) Case top (3) Case bottom (4) Control panel (5) Roller (6) Power switch (7) Interface connector (male) (8) DC Jack (9) Interface connector (female) (10) Roll paper (11) Detector switch

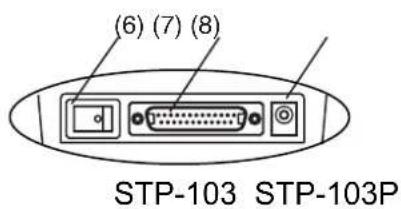

Rear View

The STP-103 and STP-103P Roll Printer are designed for use with electronic instruments such as system ECR, POS, banking equipment peripheral equipment, etc. The main features of the printer are as follows:

1. High speed printing.
2. Low noise thermal printing.
3. RS-232 serial interface (STP-103), Parallel interface (STP-103P).
4. The data buffer allows the unit to receive print data even during printing.
5. Different print densities can be selected by DIP switches.

Please be sure to read the instructions in this manual carefully before using your new STP-103 and STP-103P.

NOTE※

The socket-outlet shall be near the equipment and it shall be easily accessible.

※ All specifications are subject to change without notice.

Table of Contents

1. Setting Up the Printer....7

1-1 Unpacking....7 1-2 Locating the Printer....7 1-3 Functions 8

2. Connecting the cables....9

2-1 Connecting the AC adapter to the printer 9 2-2 Connecting the printer to your Computer.... 10 2-2-1 STP-103 Serial Interface 11 2-2-2 STP-103 Parallel Interface....11 2-2-3 STP-103DK Serial Interface (Option) 12 2-2-4 STP-103DK Parallel Interface (Option).... 13

3. Setting the Dip Switches.... 14

4. Roll Paper Installation 15

5. Self Test.... 16

6. Hexadecimal Dumping ...... 17

7. Specification 18

1. Setting Up the Printer

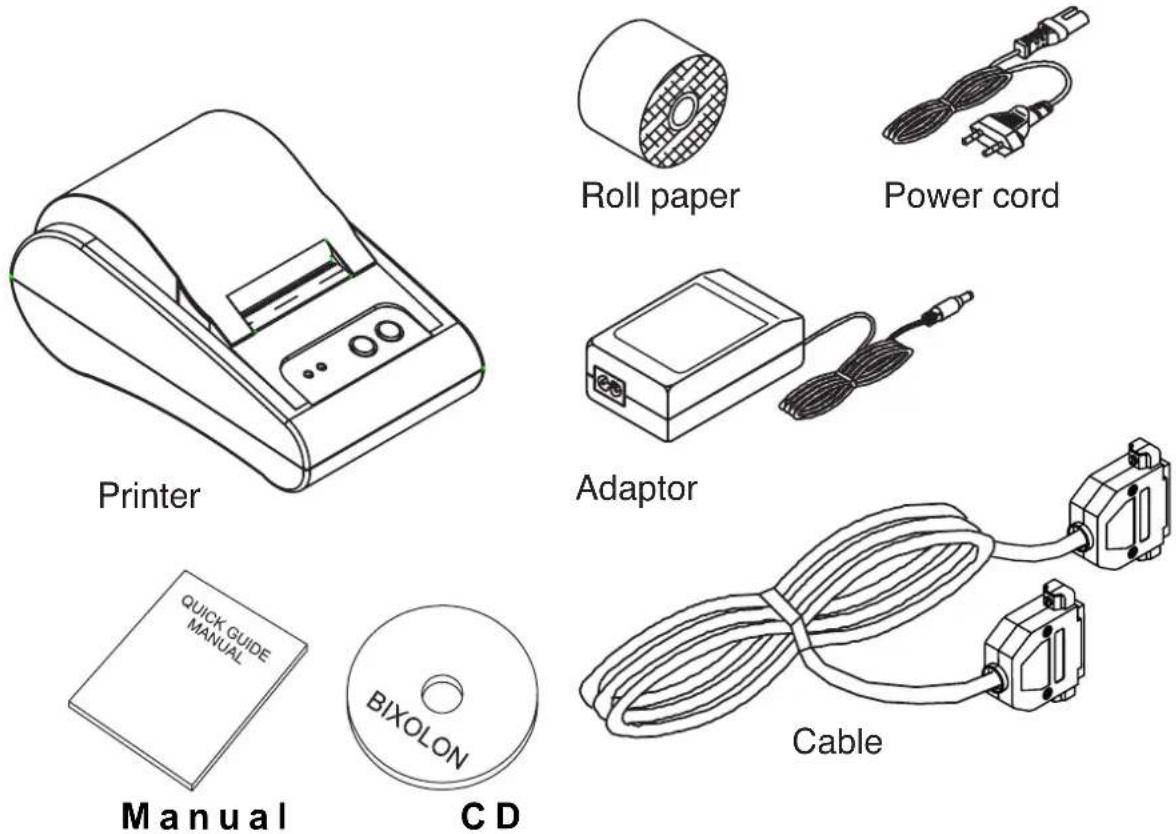

1-1 Unpacking

The items illustrated below are included with your printer. If any items are damaged or missing, please contact your dealer for assistance.

1-2 Locating the Printer

Avoid locations in direct sunlight or excessive heat. Avoid using or storing the printer in places subject to excessive moisture. Do not use or store the printer on a horizontal surface. Avoid places subject to intense vibration or shock. Make sure there is enough space around the printer so that it can be used easily.

1-3 Functions

The control panel has two buttons and two lights.

POWER ERROR FEED ON LINE

Buttons

The control panel buttons perform paper feeding and on line function.

ON LINE

Press the ON LINE button to ready to receive data from the computer.

FEED

Press the FEED button once to advance paper one line.

You can also press the FEED button continuously to feed paper continuously.

Feed button is valid when ON LINE button is off.

Indicator Lights

The control panel lights provide information on printer conditions.

POWER (green)

The POWER light is on when the printer power is on.

ERROR (red)

The error LED blinks fast when paper is out.

The error LED blinks when the Near End Sensor is triggered.

2. Connecting the cables

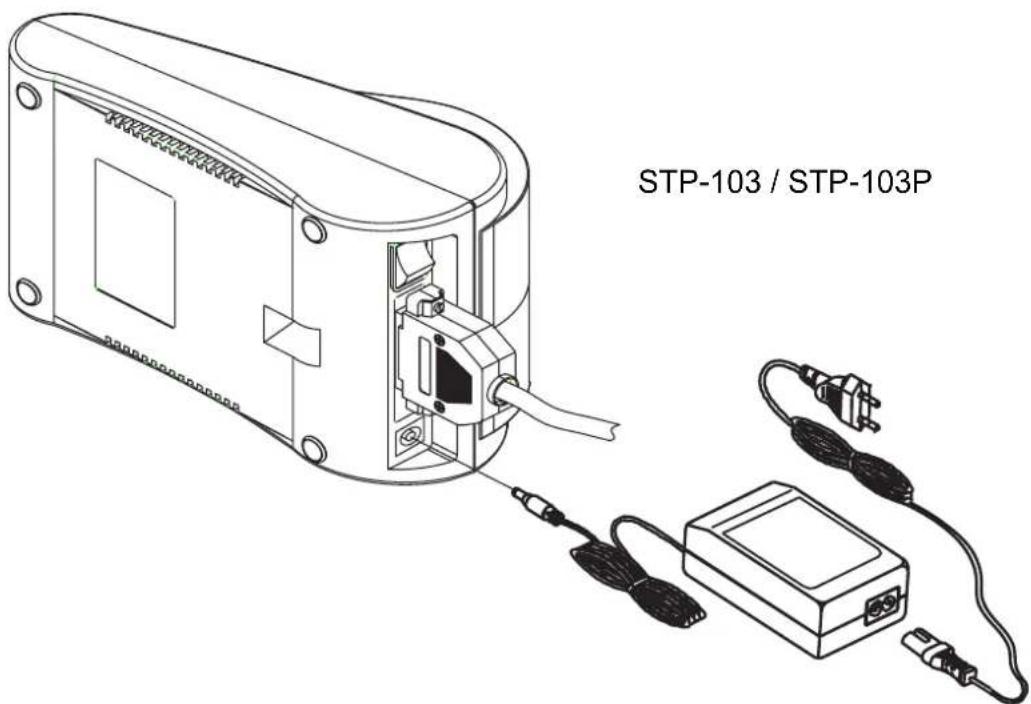

2-1 Connecting the AC adapter to the printer

When the printer is used, use the optional AC adapter.

WARNING

Using an incorrect power supply may cause fire or electrical shock.

CAUTION

When connecting or disconnecting the power supply from the printer, make sure that the power supply is not plugged into an electrical outlet; otherwise you may damage the power supply or the printer.

2-1-1 Make sure that the printer's power switch is turned off, and that the power supply's power cord is unplugged from the electrical outlet.

2-1-2 Check the label on the power supply to make sure that the required voltage matches that of your electrical outlet.

2-1-3 Plug the power supply's DC cable connector into the printer's power connector as shown below.

2-1-4 Plug the AC adapter's power cord into an electrical outlet.

NOTE:

To remove the DC cable connector, grasp the connector at the arrow and pull it straight out. Make sure that the main unit's power cord is unplugged before you disconnect the DC cable connector.

2-2 Connecting the printer to your computer

You need an appropriate serial or parallel interface cable to connect your computer to the printer's built-in interface.

• Make sure that both the printer and computer are turned off; then plug the cable connector securely into the printer's interface connector.
• Tighten the screws on both sides of the cable connector.
• Plug the other end of the cable into the computer.

2-2-1 STP-103 Serial Interface

PRINTER
20	TXD (O)
19	RXD (I)
21	CTS (I)
22~25	GND
18	RTS (O)
FGND
25 PINE MALE

		HOST
	2	RXD	(I)
	3	TXD	(O)
	7	RTS	(O)
	5	GND
	8	CTS	(I)
4	DTR (O)
6	DSR (I)
FGND
9 PINE FEMALE

2-2-2 STP-103 Parallel Interface

PRINTER
1	/STROBE (I/O)
2	DATA0 (I/O)
3	DATA1 (I/O)
4	DATA2 (I/O)
5	DATA3 (I/O)
6	DATA4 (I/O)
7	DATA5 (I/O)
8	DATA6 (I/O)
9	DATA7 (I/O)
10	/ACK (I)
11	BUSY (I)
12	PE (I)
13	SLCT
15	/ERROR (I)
16~21	N.C
22~25	GND
FGND
25 PINE MALE

HOST
1	/STROBE (I/O)
2	DATA0 (I/O)
3	DATA1 (I/O)
4	DATA2 (I/O)
5	DATA3 (I/O)
6	DATA4 (I/O)
7	DATA5 (I/O)
8	DATA6 (I/O)
9	DATA7 (I/O)
10	/ACK (I)
11	BUSY (I)
12	PE (I)
13	SLCT
15	/ERROR (I)
16	/INIT (O)
18~25 GND
FGND
25 PINE MALE

2-2-3 STP-103DK Serial Interface (Option)

2-2-4 STP-103DK Parallel Interface (Option)

PRINTER				HOST
1 /STROBE (I/O) 1 /STROBE (I/O)
2 DATA0 (I/O) 2 DATA0 (I/O)
3 DATA1 (I/O) 3 DATA1 (I/O)
4 DATA2 (I/O) 4 DATA2 (I/O)
5 DATA3 (I/O) 5 DATA3 (I/O)
6 DATA4 (I/O) 6 DATA4 (I/O)
7 DATA5 (I/O) 7 DATA5 (I/O)
8 DATA6 (I/O) 8 DATA6 (I/O)
9 DATA7 (I/O) 9 DATA7 (I/O)
10 /ACK (I) 10 /ACK (I)
11 BUSY (I) 11 BUSY (I)
12 PE (I)		12		PE (I)
13 SLCT				13 SLCT
15 /ERROR (I)		15 /ERROR (I)
				16 /INIT (O)
22~25 GND				18~25 GND
FGND				FGND
				25 PINE MALE
		* RJ11 6P
22	SG	----	1	GND	6
14	SOL1	----	2	SOL1
16	COMPS/W	----	3	COMPS/W
17	SLCT	----	4	SLCT
			5
22	SG	----	6	GND
25 PINE MALE

3. Setting the Dip Switches

CAUTION:

Turn off the printer while setting the DIP switch to prevent an electrical short, which can damage the printer.

You can change your interface and printer density settings by changing the DIP switch setting.

3-1 Make sure the printer is turned off.

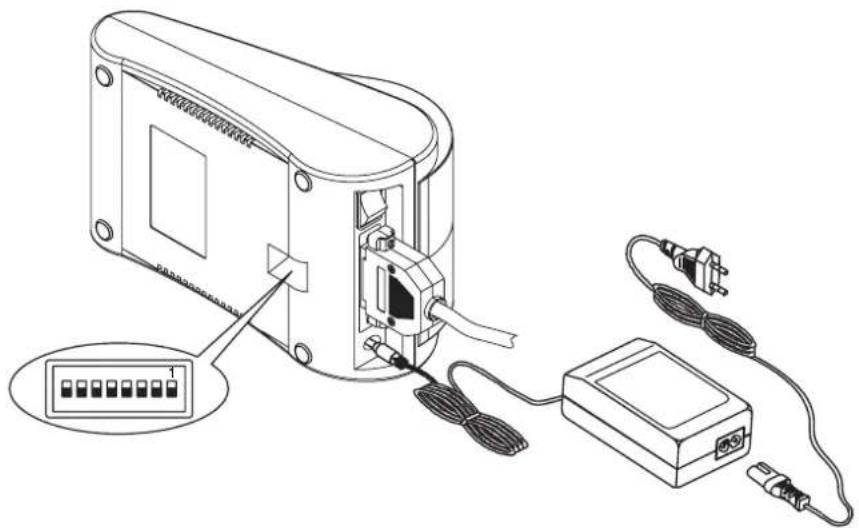

3-2 There is a switch. Notice that ON is marked on each set of switches. Use tweezers or another narrow tool to move the switches.

3-3 Use the following tables to set the DIP switches.

BPS SW1 SW2 SW3 Default
2400 bps On Off	Off			9600 On
4800 bps Off On	Off
9600 bps Off Off	On
19200	bps	On	Off
38400 bps On On	Off
57600	bps	Off	On	On
115200 bps On On	On

SW	Function	On	Off	Default
SW4	Density		Dark	Normal Normal
SW5	Handshaking	Xon/Xoff	RTS/CTS	RTS/CTS (DTR/DSR)
SW8	Firmware Download	Download	Printing	Printing

SW7		SW6		Default
Language		CPL
On	English	On	24	English32CPL
		Off	32
Off	Korean	On	Johap
		Off	Wansung

4. Roll Paper Installation

Use a paper roll that matches the specifications.

NOTE※

The printer must be turned off before installing the paper roll.

4-1 Open the printer cover and remove the used paper roll core if there is one.

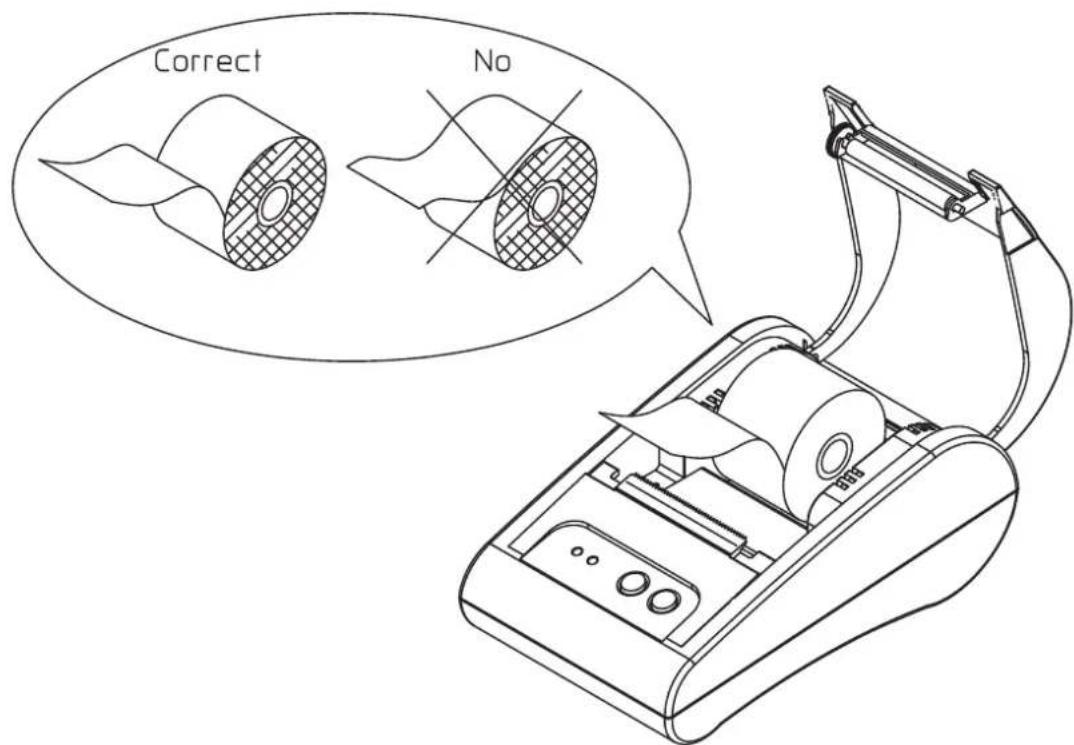

4-2 Insert the paper roll as shown below.

4-3 Pull out the paper roll until the paper comes out from the top of the printer. Then close the printer cover.

4-4 Turn on the Printer.

5. Self Test

5-1 Self-test printing

* Starting the self test

To start printing the self-test on a paper roll, hold down the PAPER FEED button and turn on the printer with the cover closed. The self-test prints the current printer settings, which provide the following information:

• control software version
• dip switch state

* Standby state

After printing the current printer status, the printer prints the message "Please press the FEED BUTTON.". The LED indicator blinks and the printer enters the test printing standby state.

Press the FEED BUTTON to start test printing.

5-2 Ending the self-test

After a number of lines are printed, the printer indicates the end of the self-test by printing " ** TEST COMPLETED ** ".

If the self-test is not completed, then you must reboot your printer.

6. Hexadecimal Dumping

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands.

To use the hexadecimal dump function, follow these steps:

6-1 After you make sure that the printer is off. Close the cover. 6-2 Turn on the printer, while holding down the FEED button and ONLINE button. 6-3 Then the printer enters the hexadecimal dump mode.

6-4 Run any software program that sends data to the printer. The printer will print all the codes it receives in a two-column format. The first column contains the hexadecimal codes and the second column gives the ASCII characters that corresponds to the codes.

1B	21	00	1B	26	02	40	40	.	!	.	.	&	.	@	@
1B	25	01	1B	63	34	00	1B	.	%	.	.	c4	.	.
41	42	43	44	45	46	47	48	A	B	C	D	E	F	G	H

• A period (.) is printed for each code that has no ASCII equivalent.
• During the hex dumping, any commands other than DEL EOT and DLE ENQ do not function.

6-5 When the printing finishes, turn off the printer.

6-6 Turn on the printer and then the hexadecimal mode is off.

1. Specification

Printing method Thermal line printing
Dot density 203 x 203 Dpi (8 dot/mm)
Printing width 48mm
Paper width	58.0±0.5mm
Characters per line 32 (Font A) (12x24), 42 (Font B) (9x24)
Printing Speed	Approximately 1.97 inches / sec50 mm/secat 25°C/printing duty 12.5%
Paper	Paper thickness: 0.062 ~ 0.075mm
	Roll size: ∅60mm
	Roll spool diameter- Inside: ∅12mm (0.47")- Outside: ∅18mm (0.71")
Receive buffer size 15K bytes
SMPS Supply voltage 100~240 VAC
Environmental conditions	Temperature	5 ~ 40°C (operating)-10 ~ 50°C (storage)
	Humidity	30 ~ 80% RH (operating)10 ~ 90% RH (storage)
MCBF	Mechanical	30,000,000 line
	Head	100km
