Product Type Canister Vacuum Cleaner
Model VK9830UHA
Brand LG
Dimensions (H x W x D) 435 x 310 x 280 mm
Weight 5.5 kg
Power Consumption 1800 W
Cord Length 6 m
Dust Capacity 2.5 L (bag)
Filtration System HEPA filter, Exhaust filter
Noise Level 75 dB
Suction Control Variable, with electronic slider
Included Accessories Turbo brush, crevice tool, upholstery nozzle
Bag Type Disposable dust bag
Filter Maintenance Washable exhaust filter; replace HEPA every 6 months
Safety Features Thermal overload protection, automatic shut-off
Repairability Spare parts available through LG service centers
General Information Suitable for carpets and hard floors; 4.5 m hose

Frequently Asked Questions - VK9830UHA LG

How do I clean the HEPA filter on my LG VK9830UHA?
The HEPA filter should be tapped clean over a bin or gently vacuumed. Do not wash it. Replace every 6 months or when visibly dirty.
Why does my vacuum lose suction?
Check for blockages in the hose, nozzle, or bag. Ensure the dust bag is not full and the filters are clean. Also verify the suction control is set to maximum.
Can I use the LG VK9830UHA on hardwood floors?
Yes, it is suitable for hard floors. Use the floor nozzle without rotating brush or adjust the brush height to prevent scratching.
How do I replace the dust bag?
Open the bag compartment, remove the full bag by pulling the tab, and insert a new LG dust bag (type VK). Ensure it clicks into place.
The turbo brush stops spinning. What should I do?
Turn off the vacuum and unplug. Remove the brush and clean out hair or debris tangled around the roller. Check the belt for wear.
Is the power cord retractable?
Yes, the LG VK9830UHA features an automatic cord rewind. Press the pedal to retract the cord smoothly.
What is the warranty period for this vacuum?
LG offers a 2-year limited warranty for manufacturing defects. Contact LG support or check your manual for details.
How often should I replace the dust bag?
Replace the bag when the indicator light turns red, or every 2-3 months under normal use. Use only LG VK series bags.
Can I wash the exhaust filter?
Yes, the exhaust filter (sponge) is washable. Rinse with cold water and let it dry completely before reinstalling. Do not twist or wring.
Where can I purchase replacement accessories?
Replacement parts and accessories are available from LG authorized dealers or online at the LG parts store. Verify compatibility with model VK9830UHA.

User questions about VK9830UHA LG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual VK9830UHA - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VK9830UHA by LG.

USER MANUAL VK9830UHA LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 3, 4, 5 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

VK9830UHA

Table of contents

Important safety instructions 3\~5

How to use 6\~21

Assembling vacuum cleaner 6\~7

Operating vacuum cleaner 8

Using all floor nozzle and hard floor nozzle 9

Using carpet and floor nozzle and mini turbine nozzle....10

Using 2 in 1 nozzle .... 11

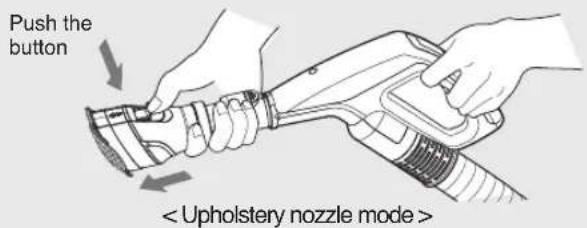

Using accessory nozzles 12

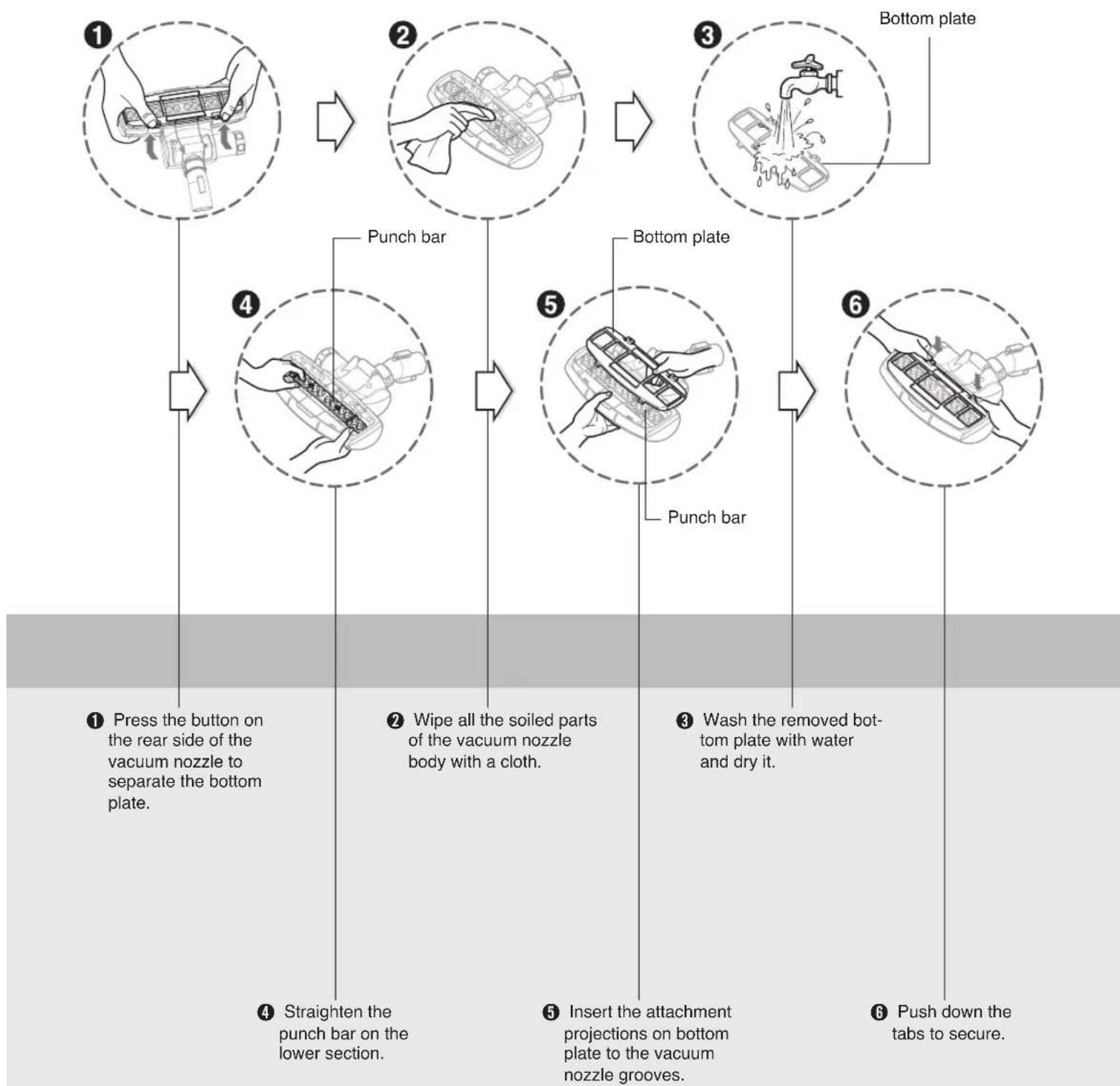

Using sani punch nozzle 13\~17

Emptying dust tank 18

Cleaning dust tank 19

Cleaning dust separator 20

Cleaning exhaust filter 21

What to do if your vacuum cleaner does not work 22

What to do when suction power decreases 22

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

LG VK9830UHA - IMPORTANT SAFETY INSTRUCTIONS - 1

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

LG VK9830UHA - IMPORTANT SAFETY INSTRUCTIONS - 2

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

LG VK9830UHA - WARNING - 1

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

LG VK9830UHA - CAUTION - 1

WARNING

  1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  2. Children should be supervised to ensure that they do not play with the appliance.
  3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
  4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

  • Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.
  • Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
  • Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.

Failure to do so could result in electrical shock or personal injury.

- Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

- Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, cut punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

  • Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
    Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
  • Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
  • Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

gear ×

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

- Do not put any objects into openings.

Failure to do so could result in product damage.

- Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

- Do not use vacuum cleaner without the dust tank and/or filters in place.

Failure to do so could result in product damage.

• Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

- The vacuum cleaner is not intended to use by young children or infirm people without supervision.

Failure to do so could result in personal injury or product damage.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

- Use accessory nozzles in sofa mode.

Failure to do so could result in product damage.

- Don't grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 18)

- Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

- Do not dry the filter in an oven or microwave.

Failure to do so could result in fire hazard.

- Do not dry the filter in a clothes dryer.

Failure to do so could result in fire hazard.

- Do not dry near an open flame.

Failure to do so could result in fire hazard.

- Do not use filters that is not dried.

- If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

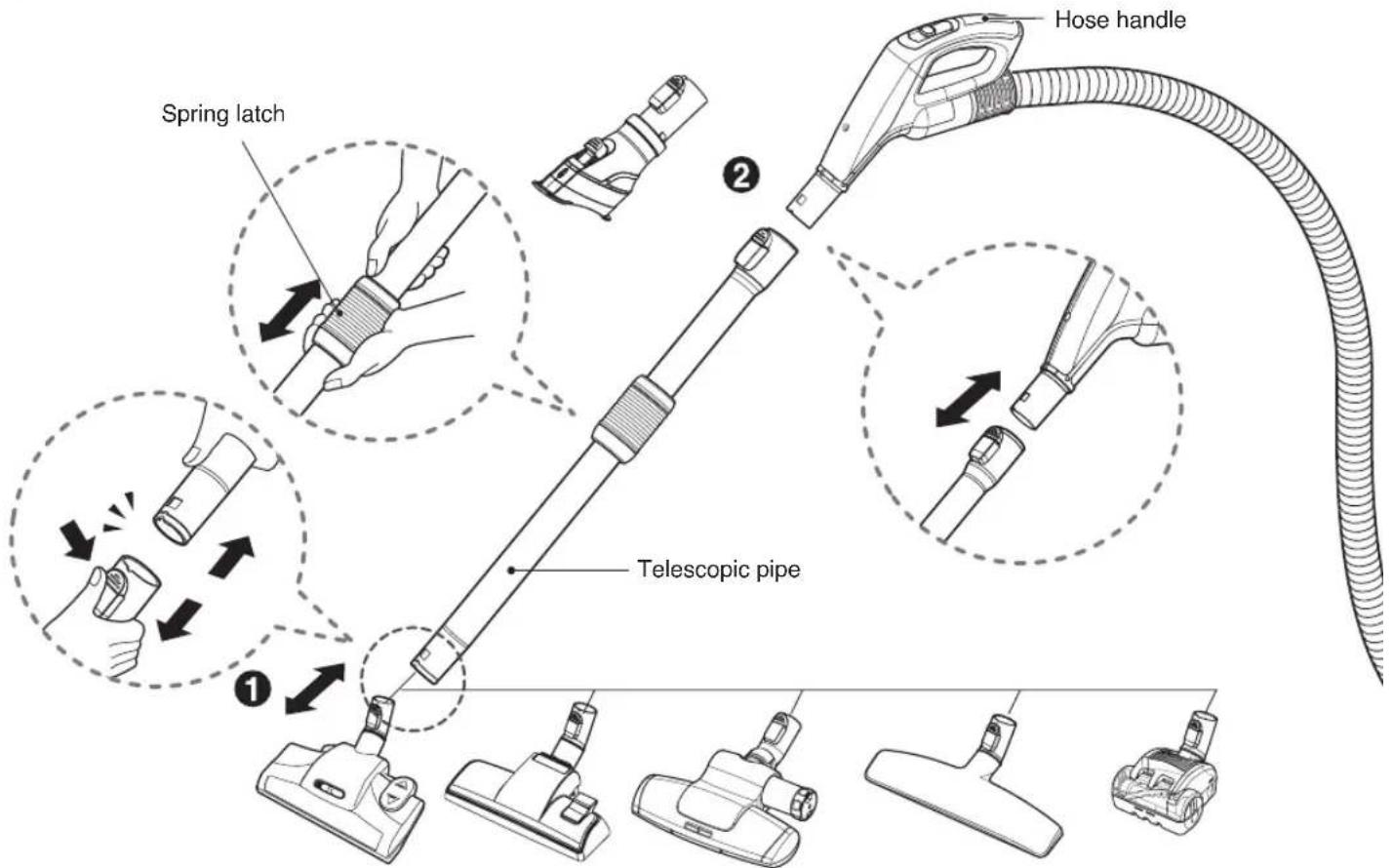

How to use Assembling vacuum cleaner

Spring latch Hose handle Telescopic pipe

(depend on model) (depend on model) (depend on model) (depend on model) (depend on model)

① All floor nozzle (depend on model)

Push the telescopic pipe into the nozzle.

② Telescopic pipe

  • Push the hose handle firmly into the telescopic pipe.
  • Grasp the spring latch to expand.
  • Pull out the pipe to desired length.

Click! Button Fitting pipe Flexible hose Attachment point

③ Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

LG VK9830UHA - ③ Connecting the hose to the vacuum cleaner - 1

① How to operate

• Pull out the power cord to the desired length and plug into the socket.
- Place the control knob of the hose handle to the required position.
• To turn off, slide control knob to OFF position.
- Press the cord reel button to rewind the power cord after use.

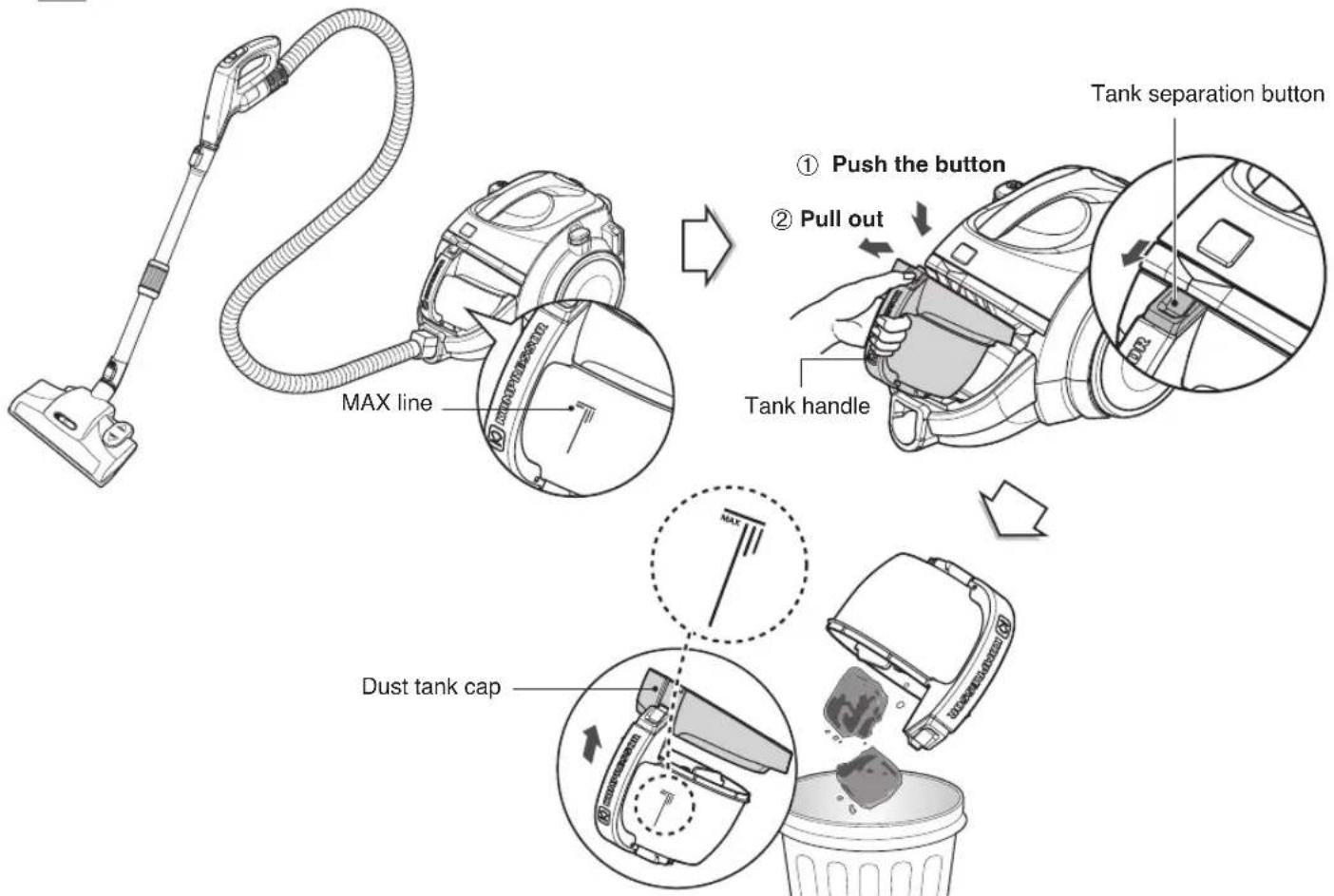

② Emptying the dust tank

• Always empty the dust tank when the dust tank level reaches the MAX line.

③ Park mode

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.

- Slide the hook on the nozzle into the slot on the side of vacuum cleaner.

④ Storage

  • When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.
  • You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.

LG VK9830UHA - ④ Storage - 1

WARNING

No liquid suction.

Liquid suction can cause defects.

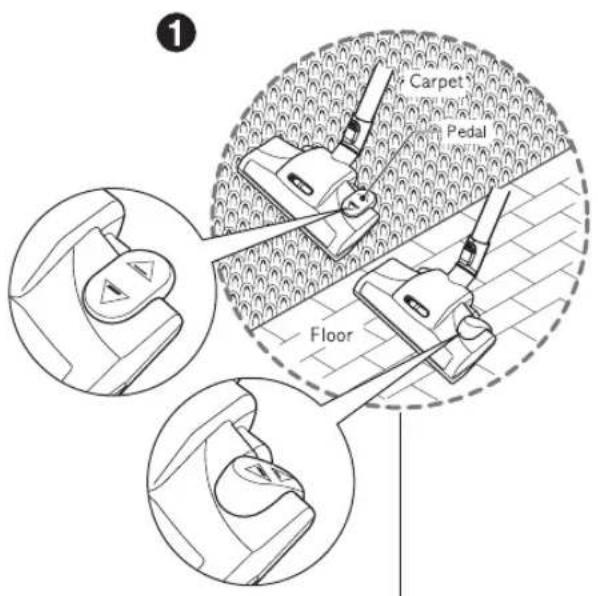

How to use Using all floor nozzle and hard floor nozzle

Carpet Pedal Floor

LG VK9830UHA - How to use Using all floor nozzle and hard floor nozzle - 2

natural_image Simple line drawing of a Y-shaped tool or bracket inside a dashed circular border (no text or symbols)

① All floor nozzle (depend on model)

② Hard floor nozzle (depend on model)

• The 2 position nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal (△), then brush is will rotate

- Hard floor position

Press the pedal ( ), then brush will stop rotating

• Efficient cleaning of hard floors (wood, linoleum, etc)

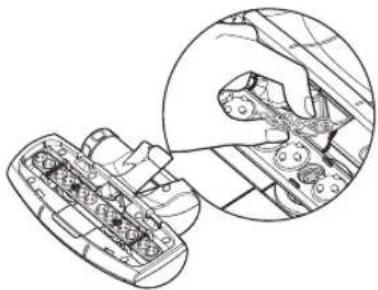

- Cleaning all floor nozzle

LG VK9830UHA - - Cleaning all floor nozzle - 1

natural_image Illustration of a hand using a tool to adjust a mechanical component (no text or symbols present)

- Open the cover by pulling the hook.

- Clean the hole and brush of the nozzle.

How to use Using carpet and floor nozzle and mini turbine nozzle

3 Carpeti Pedal Floor

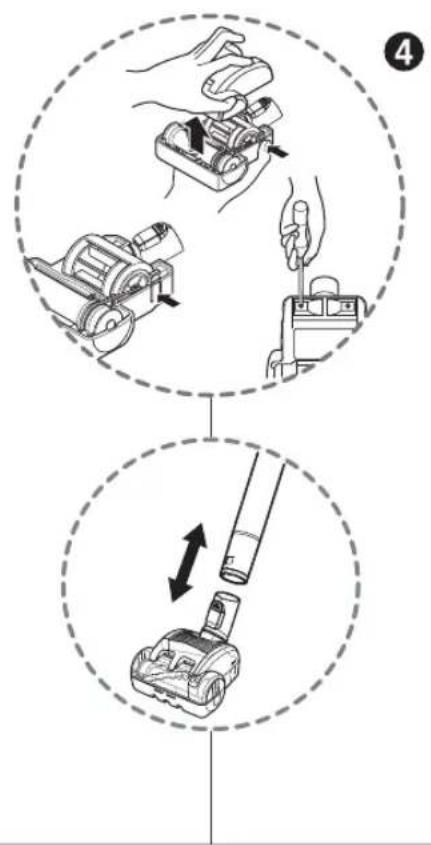

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

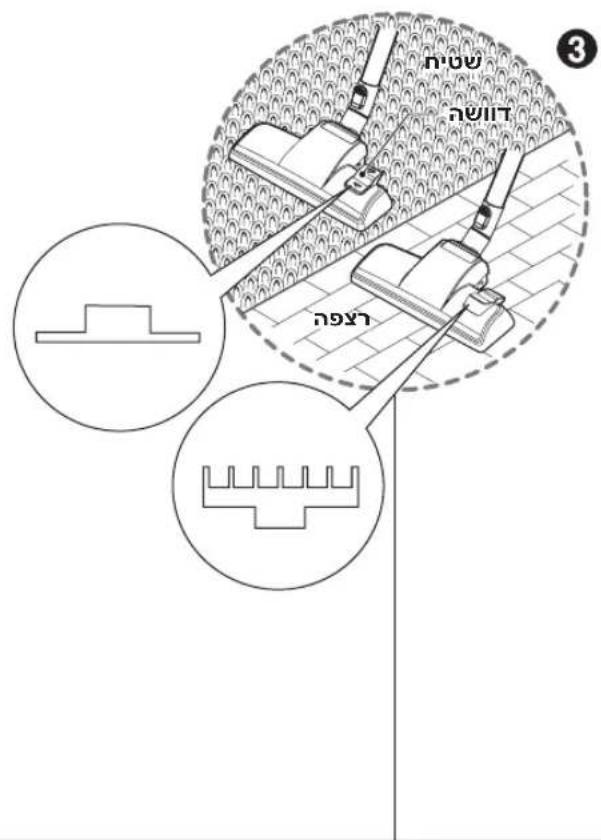

③ Carpet and floor nozzle(depend on model)

• The 2 position nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal (☐) to lower brush.
- Hard floor position (tiles, parquets floor)
Press the pedal ( ) to lift the brush up.

④ Mini turbine nozzle(depend on model)

  • Mini turbine is used for stairs and other hard to reach places.
  • To clean the mini turbine nozzle, remove the nozzle cover :

Remove 2 screws on the bottom and take mini turbine nozzle cover off as shown.

- Frequently clean and remove hair, string, and lint build-up in the brush area. Failure to do so could damage to mini turbine nozzle.

- Cleaning carpet and floor nozzle

LG VK9830UHA - - Cleaning carpet and floor nozzle - 1

natural_image Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

- Clean the hole and the brush of the nozzle.

Upholstery nozzle ⑤

Dusting brush 6

⑤ Upholstery nozzle(depend on model)

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Push the button < Upholstery nozzle mode >

⑥ Dusting brush(depend on model)

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Pull the cover < Dusting brush mode >

LG VK9830UHA - ⑥ Dusting brush(depend on model) - 2

natural_image Illustration of an open box being transferred to a closed screen (no text or symbols present)
  • 2 in 1 nozzle included in the "BOX" with owner's manual(depend on model)

How to use Using accessory nozzles

Crevice tool Upholstery nozzle Dusting brush

LG VK9830UHA - How to use Using accessory nozzles - 1

natural_image Diagram of a hairdryer tool interacting with a metal bracket, enclosed in a dashed circle (no text or symbols)

LG VK9830UHA - How to use Using accessory nozzles - 2

natural_image Illustration of a car seatbelt being adjusted using a tool, no text or symbols present

LG VK9830UHA - How to use Using accessory nozzles - 3

natural_image Illustration of a desk lamp with a brush applying paint to a small paper, enclosed in a dashed circle (no text or symbols)

⑦ Crevice tool (depend on model) ⑧ Upholstery nozzle (depend on model) ⑨ Dusting brush (depend on model)

Crevice tool is for vacuuming in those normally hard-to-reach place such as reaching cobwebs or between the cushions of sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

The thread collectors help to pick up the threads and fluff.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

NOTICE

Use accessory in the sofa mode.

LG VK9830UHA - NOTICE - 1

LG VK9830UHA - NOTICE - 2

LG VK9830UHA - NOTICE - 3

natural_image Simple line drawing of an open box with a magnifying glass showing a small object inside (no text or symbols)

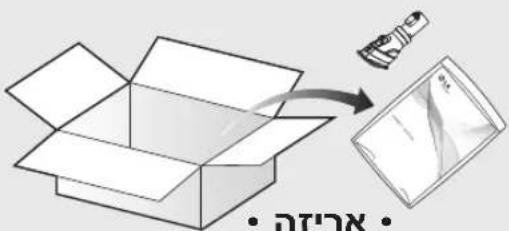

- Accessory nozzles included in the "PE BAG" with owner's manual (depend on model)

How to use Using sani punch nozzle

Features

This nozzle picks up even dust inside through beating. The bottom part can be separated to be cleaned. Since the bottom does not stick to the surface, vacuuming is easy.

How to use

Follow the directions below for properuse.

Assembly

Connect the nozzle to the telescopic pipe.

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing hand positioning and tool path changes.

⑩ Sani punch nozzle (depend on model)

Set the suction power control switch to MAX POWER before vacuuming. Depending on the type of bedding, handling may be awkward or it may cause a lot of noise. If this is the case, adjust the suction power control switch to a lower setting.

This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.

LG VK9830UHA - ⑩ Sani punch nozzle (depend on model) - 1

When using on the carpet

When using on the floor

Sani-punch is used for carpet.

It is easier to clean a light blanket or sheetby pushing the nozzle in the direction of the arrow. To increase cleaning efficiency for light blankets, lay on top of a bulky blanket and then clean.

For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic pipe and attach the crevice tool to vacuum dust.

Top Bottom Inside
LG VK9830UHA - When using on the floor - 1

natural_image Line drawing of a hand holding a handheld device with a cylindrical component (no text or symbols)

LG VK9830UHA - When using on the floor - 2

natural_image Line drawing of a hand using a tool to adjust or install a device with a grid of buttons (no text or symbols visible)

LG VK9830UHA - When using on the floor - 3

natural_image Technical line drawing of a mechanical component with an inset close-up showing a hand interacting with a housing (no text or symbols present)

You can remove dust by hand, if you can't remove dust which is inside of nozzle by crevice tool.

Since the vibrator inside is composed of precision parts, never disassemble the body.

Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle.

Since removal of the punch bar may cause performance problems, do not warp or remove it.

Attach the bottom plate properly before using. Without this bottom plate, it may not function.

Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and upholstery, use it only for these cleaning purposes.

(Using it to clean the floor may result soiling it or a drop in performance, do not use it for such purposes.)

Follow the instruction below for through washing.

(Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction)

LG VK9830UHA - When using on the floor - 4

LG VK9830UHA - When using on the floor - 5

③ Waste the dust in the bin ④ Take the bin to fix into the
projection part and then turn it clockwise to connect.

How to use Emptying dust tank

MAX line ① Push the button ② Pull out Tank handle Tank separation button MAX Dust tank cap

The dust tank needs emptying when the dust tank level reaches the MAX line.

  • Turn off the vacuum cleaner and unplug it.
  • Grasp the handle of the tank and then press the tank separation button.
  • Pull out the dust tank.
  • Empty the tank and then assemble the dust tank as shown.

Assembling the dust tank
Diagram illustrating two steps of a handwashing a device, labeled ① and ②, with arrows indicating the process.

NOTICE

- If suction power decreases after emptying the dust tank, clean the dust tank. next page

Moving the vacuum cleaner

- Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

Tank handle Carrier handle

How to use Cleaning dust tank

LG VK9830UHA - How to use Cleaning dust tank - 1
  • Press tank separation button and pull out the dust tank.
  • Raise the dust tank cap.
  • Wash the dust tank.
  • Dry fully in shade so that moisture is entirely removed.

NOTICE

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter. → Next page

How to use

Cleaning dust separator

- Inside of dust separator, air filter, motor safety filter

LG VK9830UHA - - Inside of dust separator, air filter, motor safety filter - 1

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter.

The air filter and the motor safety filter are located on the top of the vacuum cleaner as above the figure.

  • Open the vacuum cleaner cover by pushing the button.
  • Grasp the handle of the dust separator and take out it.
  • Open the guide cover by pulling the guide cover lever and remove the dust.
  • Open the air filter cover by pushing the air filter cover lever and take out the air filter.
  • Separate the motor safety filter from the dust separator.
  • Wash the air filter and the motor safety filter.
  • Do not wash filters with hot water.
  • Dry fully in shade so that moisture is entirely removed.
  • The air filter and the motor safety filter should be cleaned as above the figure.

LG VK9830UHA - - Inside of dust separator, air filter, motor safety filter - 2

WARNING

Dry fully for more than 24 hours in shade.

NOTICE

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent.

Wash filters at least Once a month.

How to use Cleaning exhaust filter

LG VK9830UHA - How to use Cleaning exhaust filter - 1

• The exhaust filter is a reusable filter.
- To clean the exhaust filter, open the exhaust filter cover by pushing the button.
- Separate the exhaust filter by pushing the lever.
- Dust off the exhaust filter.(Do not wash the exhaust filter with water.)
- Insert the exhaust filter lugs into the grooves of the motor housing and push the exhaust filter.
• The exhaust filter should be cleaned at least a year.

What to do if your vacuum cleaner does not work

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do when suction power decreases

  • Turn off the vacuum cleaner and unplug it.
  • Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
  • Check that the dust tank is not full. Empty if necessary.
  • Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
  • Check that the air filter and the motor safety filter are not clogged. Clean the them if necessary.
  • Check the inside of the dust separator. Clean the inside of the dust separator if necessary.

LG VK9830UHA - What to do when suction power decreases - 1

natural_image Simple line drawing of a trash bin with crossed x and y axes, no text or symbols present

Disposal of your old appliance

  1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
  2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
  3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
  4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

אַתְרָה בְּרָה

הכלה,הכלה.הכלה is not to be seen in the future of the year. LG Electronics

הכלה (בַרְׁה)

.שְׁרַעָה בְּרַעָה

natural_image Simple line drawing of a Y-shaped tool or bracket inside a dashed circular border (no text or symbols)

Diagram showing two-step tool manipulation process: adding a component to a tool and adjusting a handle mechanism.

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

LG VK9830UHA - הכלה (בַרְׁה) - 3

natural_image Technical line drawing of a mechanical clamp or clamp device (no text or symbols)

תְקָרִי אַלְאָה

בַרְשָׁה

.ת"ב"

הכלה 6

He's the source He's the source

• א'

natural_image Illustration of a car seatbelt being adjusted using a handheld device, no text or symbols present

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to change from a single brush to a multi-cranked device.

natural_image Technical line drawing of a mechanical assembly with a magnified inset showing a hand operating a component (no text or symbols present)
natural_image Line drawing of a hand using a tool to adjust or install a device with no visible text or symbols
natural_image Line drawing of a hand holding a cylindrical device with two handles (no text or symbols)

.הכלהה,הכלהה,הכלהה

    subgraph Section 1
        H["1. Top View: Disassembly of a device"]
        I["2. Top View: Assembly of a device"]
        J["3. Top View: Disassembly of a device"]
    end

    subgraph Section 2
        K["2. Top View: Assembly of a device"]
        L["3. Top View: Disassembly of a device"]
    end

    subgraph Section 3
        M["3. Top View: Disassembly of a device"]
        N["4. Top View: Assembly of a device"]
    end

    subgraph Section 4
        O["4. Top View: Disassembly of a device"]
        P["5. Top View: Disassembly of a device"]
    end

    subgraph Section 5
        Q["5. Top View: Disassembly of a device"]
        R["6. Top View: Disassembly of a device"]
    end

    subgraph Section 6
        S["6. Top View: Disassembly of a device"]
        T["7. Top View: Disassembly of a device"]
    end

    subgraph Section 7
        U["7. Top View: Disassembly of a device"]
        V["8. Top View: Disassembly of a device"]
    end

    subgraph Section 8
        W["8. Top View: Disassembly of a device"]
        X["9. Top View: Disassembly of a device"]
    end

    subgraph Section 9
        Y["9. Top View: Disassembly of a device"]
        Z["10. Top View: Disassembly of a device"]

LG VK9830UHA - הכלה (בַרְׁה) - 8

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

LG VK9830UHA - הכלה (בַרְׁה) - 9
תְקּוֹתָה

LG VK9830UHA - הכלה (בַרְׁה) - 10

natural_image Illustration of a person holding a device with a thought bubble (no text or symbols)

תָאַעְרִי בּוֹת

הכלה, MAX

.תְקָרִי בְּוֹ
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : LG

Model : VK9830UHA

Category : Vacuum Cleaner
