Product Type	Gas Hob
Brand	Zanussi
Model	PWL49
Overall Dimensions (W x D)	580 x 510 mm
Cut-out Dimensions (W x D)	560 x 480 mm
Gas Supply	LPG 30 mbar
Electric Supply	230 V ~ 50 Hz
Power Rating (Rapid Burner)	2.45 kW
Power Rating (Semi-rapid Burner)	1.60 kW
Power Rating (Auxiliary Burner)	0.95 kW
Number of Burners	4 (1 rapid, 2 semi-rapid, 1 auxiliary)
Ignition	Automatic pushbutton ignition
Safety Features	Thermocouple flame failure device
Pan Supports	Dishwasher safe
Burner Caps and Crowns	Removable for cleaning
Hob Lid	Optional (available on request)
Gas Connection	RC 1/2 inch (rear right)
Appliance Class	3
Installation Requirements	Qualified personnel, proper ventilation
Cleaning	Warm soapy water; avoid abrasive cleaners

Frequently Asked Questions - PWL49 ZANUSSI

How do I light a burner on the Zanussi PWL49 hob?

Press the ignition pushbutton (marked with a spark symbol), then push down the relevant control knob and turn it anticlockwise to maximum. Keep the knob pressed for about 5 seconds after lighting to activate the thermocouple safety device.

What should I do if the burner does not light after 15 seconds?

Release the control knob, turn it to the 'off' position, and wait at least 1 minute before trying again. If the problem persists, check that the burner cap and crown are correctly positioned.

Can I use the hob without electricity?

Yes, in the absence of electricity, you can light the burner manually with a flame (e.g., a match or lighter). Approach the burner with the flame, push the knob down, and turn it anticlockwise to maximum.

What pan sizes are recommended for each burner?

Use flat-bottomed pans: Rapid burner: 18-26 cm diameter; Semi-rapid burners: 12-22 cm; Auxiliary burner: 8-16 cm. Using smaller pans may cause the handle to overheat.

How do I clean the hob and burners?

Disconnect the appliance from the power supply. Clean the hob top with a soft cloth wrung in warm soapy water. Remove burner caps and crowns and wash them in hot soapy water. Rinse and dry thoroughly. Avoid steam cleaners and abrasive pads.

What type of gas does the PWL49 use?

The hob is designed for LPG (Liquefied Petroleum Gas) at a pressure of 30 mbar. The gas supply connection is RC 1/2 inch.

Is the hob suitable for built-in installation?

Yes, it is designed for built-in installation. The cut-out dimensions are 560 x 480 mm. Ensure proper ventilation and that the worktop can withstand heat. Installation must be carried out by a qualified professional.

What should I do if the gas ring burns unevenly?

Check that the main jet is not blocked and that the burner crown is clean of food particles. Also ensure the burner cap and crown are correctly replaced after cleaning.

Can I use the hob with a lid?

An optional lid is available to keep dust off and collect splashes. However, always ensure all burners are off before closing the lid, as the crystal lid can splinter if overheated.

What are the electrical requirements for the hob?

The hob requires a 230 V ~ 50 Hz AC supply and must be earthed. The appliance comes with a 3-core flexible cord and plug. For permanent connection, install a double pole switch with at least 3 mm contact gap.

USER MANUAL PWL49 ZANUSSI

Operating instructions

Gas hob

PWL49

PNL 49

PXL49

IL

ZANUSSI

Thank you for selecting our appliance

We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances.

Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance.

Contents

For the User

Important Safety Information 5

Description of the Hob 7

When the hob is first installed 8

Operation 8

Using the hob correctly.... 10

Cleaning and Maintenance 11

Something Not Working? 13

For the Installer

Technical data 14

Installation 15

Gas Connection 15

Building In 15

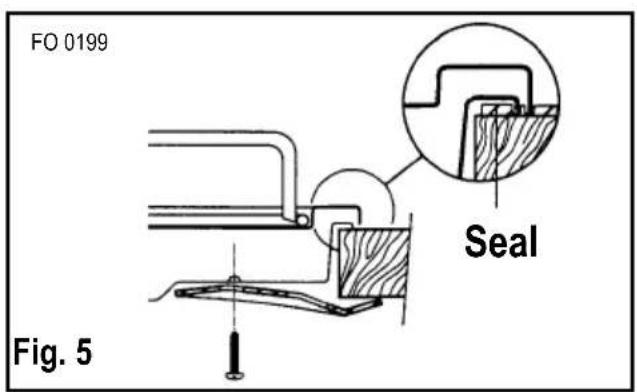

Fitting the hob to the worktop 17

Electrical Connection.... 18

Commissioning 19

Technical Maintenance 19

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental information

It is very important that this instruction book should be kept safely for future consultation. If the appliance should be sold or given to another person, please ensure that the booklet goes together with it, so that the new owner can know of the functions of the machine and also be aware of the warnings.

These instructions are only for the countries stated by the symbol printed on the front cover of this instruction book.

English

Important safety information

This warnings has been given for the safety of you and others. We therefore ask you to carefully read the procedures of installing and using this cooker.

Installation

• The work of installation must be carried out by competent and qualified installers according to the regulations in force.
• Any modifications to the domestic electrical mains which may be necessary for the installation of the appliance should be carried out only by competent personnel.

During Operation

- This appliance has been designed for non professional purpose in private houses only. It is meant to cook edible foodstuff only and must not be used for any other purposes.

- It is dangerous to alter the specification in any way.

- For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats or other foodstuff could result in a fire.

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

- Ensure that all control knobs are in the OFF position when not in use.

- Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables are not in contact with it and keep them far enough from the heated parts of this appliance.

- If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance has been designed to be operated by adults and children under supervision. Young children must not be allowed to tamper with the controls or play near or with the oven.
• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Accessible parts of this appliance may become hot when it is in use. Children should be kept away until it has cooled.

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations.
• Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.
• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.
• Ensure that the gas supply complies with the gas type stated on the identification label, placed near the gas supply pipe.
• This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation

regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.
  • The manufacturer disclaims any responsibility should all the safety measures not be carried out.

Service

- Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

Environmental Information

●After installation, please dispose of the packaging with due regard to safety and the environment.
- When disposing of an old appliance, make it unusable, by cutting off the cable.

The symbol ☐ on the product or

on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

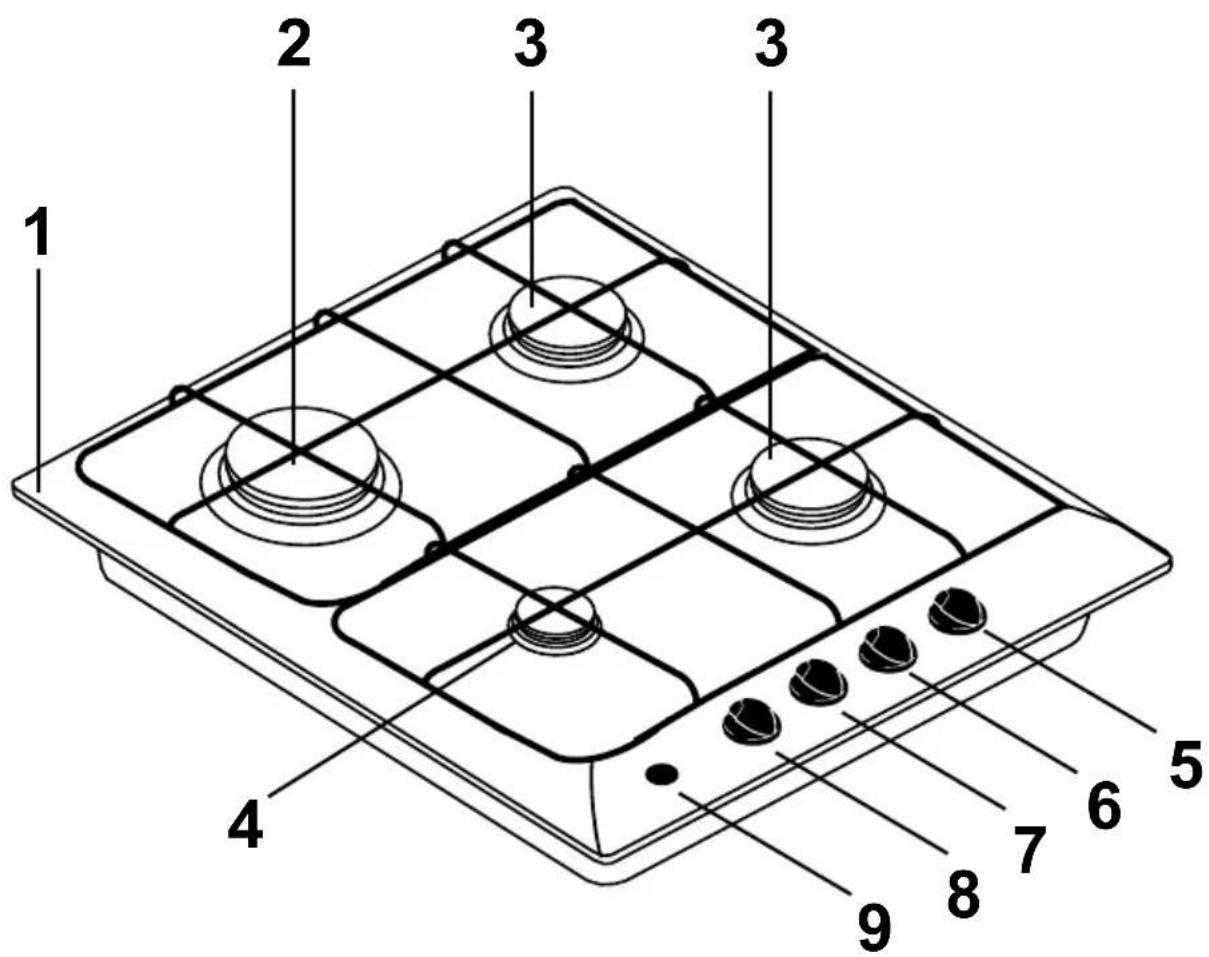

Description of the Hob

1. Hob Top
2. Powered Rapid Burner
3. Semi-rapid Burners
4. Auxiliary Burner
5. Control knob for back right burner (semi-rapid)
6. Control knob for back left burner (semi-rapid)
7. Control knob for front left burner (powered rapid)
8. Control knob for front right burner (auxiliary)
9. Automatic ignition pushbutton

When the hob is first installed

Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.

Operation

Hob burner control knobs

The symbols on the knobs mean:

= no gas supply

= maximum gas supply

= minimum gas supply

For easier lighting, proceed before putting a pan on the pan support.

Lighting the burners

To light a burner:

1. press the ignition pushbutton which is marked with a little spark ★

2. then push down the relevant control knob and turn it anticlockwise to maximum position.

Do not keep the control knob pressed for more than 15 seconds.

If the burner does not light even after 15 seconds, release the control knob, turn it the "off" position and wait for at least one minute before trying to light the burner again.

After lighting the flame, keep the knob pushed down for about 5 seconds. This will allow the "thermocouple" (Figs. letter D) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted. Then, check the flame is regular and adjust it as required.

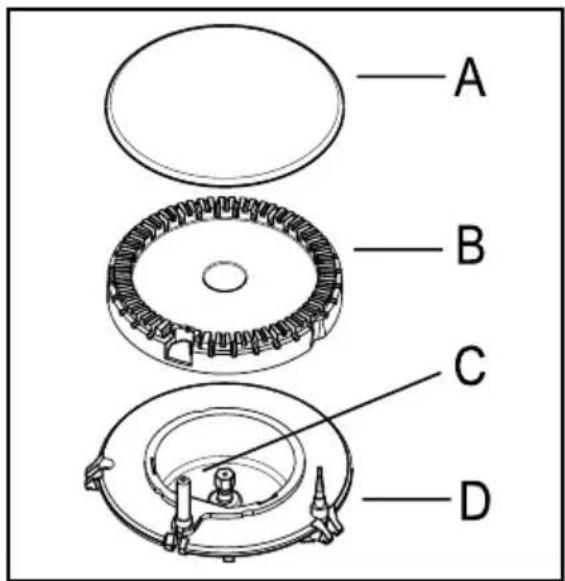

A - Burner cap
B - Burner crown
C - Ignition candle
D - Thermocouple

If you cannot light the flame even after several attempts, check the "cap" (A) and "crown" (B) are in the correct position.

In the absence of electricity, ignition can occur without the electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the "maximum" position.

To switch off burners

To put the flame out, turn the knob to the symbol (■)

If the burner accidentally goes out, turn the control knob to the "off" position and wait for at least 1 minute before trying to light the burner again.

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

The hob lid

In order to make the appliance match with the kitchen design, a lid can be fitted on the hob.

• The lid (available on request) is meant to avoid dust to settle on the hob, when it is closed, and to collect splashes of oil or fat, when it is open. Do not use it for any other purpose.
• Always wipe off any splash of liquid before opening the lid.
• Always clean the lid from cooking residues before opening it or taking it off.

WARNING! The crystal lid can splinter when overheated. Always ensure all the burners are off before closing it.

Using the hob correctly

i Practical hints

The burners

To ensure maximum burner efficiency, you should only use pots and pans with a flat bottom fitting the size of the burner used.

Rapid Burner diameter 18-26 cm

Semi-rapid Burner diameter 12-22 cm

Auxiliary Burner diameter 8-16 cm

• For easier lighting, proceed before putting a pan on the pan support.
• Use only pans or pots with flat bottom.
  • Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.
• If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to overheat.
• Prolonged cooking with potstones, earthenware pans or cast-iron plates is inadvisable. Also, do not use aluminium foil to protect the top during use.

- Make sure pots do not protrude over the edges of the cooktop and that they are centrally positioned on the rings in order to obtain lower gas consumption.

- Do not place unstable or deformed pots on the rings: they could tip over or spill their contents, causing accidents.

- Pots must not enter the control zone.

- If the control knobs become difficult to turn, please contact your local Service Force Centre.

- As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.

Three laboratory containers with bubbles and a crossed-out stand, no text or symbols present

Cleaning and Maintenance

Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.
The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool.
This appliance cannot be cleaned with steam or with a steam cleaning machine.

The burners

●The burner caps and crowns can be removed for cleaning.
- Wash the burners taps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove.
●After cleaning, be sure to wipe dry with a soft cloth.
- Frequently wash the "caps" and the "crowns" with hot soapy water, carefully taking away any built-up of food.

The pan supports

- The pan supports are dishwasher proof. If washing them by hand, take care when drying them as the enamelling process occasionally leaves rough edges. If necessary, remove stubborn stains using a paste cleaner.

The Hob Top

- Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little wasing up liquid has been added. Avoid the use of the following:

• household detergent and bleaches;
• impregnated pads unsuitable for non-stick saucepans;
• steel wool pads;
• bath/sink stain removers.

- Should the hob top become heavily soiled, the following products are recommended:

• For stainless steel hobs use a proprietary stainless steel cleaner.
• For other hobs use Hob Brite or Bar Keepers Friend.

- Do not leave acid or alkaline substances (e.g. vinegar, salt, lemon juice, etc.) on the cooktop.

The Ignition electrode

The electric ignition is obtained through a ceramic electrode with a metal electrode (Fig - C). Keep these components very clean, to avoid difficult lighting, and check that the burner crown holes (Fig - B) are not obstructed.

A - Burner cap
B - Burner crown
C - Ignition candle
D - Thermocouple

Something Not Working?

If the appliance is not working correctly, please carry out the following checks before contacting your local Service Centre.

SYMPTOM■There is no spark when lighting the gas	SOLUTION◆Check that the unit is plugged in and the electrical supply is switched on.◆Check the mains fuse has not blown.◆Check the burner cap and crown have been replaced correctly, e.g. after cleaning.
■The gas ring burns unevenly	◆Check the main jet is not blocked and the burner crown is clear of food particles.◆Check the burner cap and crown have been replaced correctly, e.g. after cleaning.

If after all these checks, your appliance still does not operate correctly, contact your local Service Centre.

Technical data

Burner gas power (LPG 30 mbar)

Rapid burner 2,45 kW

Semi-rapid burner 1,6 kW

Auxiliary burner 0,95 kW

Category 13

Gas supply LPG 30 mbar (1 mbar = 10 mm water coloumn).

Gas connection RC 1/2 inch (1/2 inch male) Rear right hand corner

Electric supply 230 V \~ 50 Hz supply, 3 core flexible cable with non rewireable plug.

Appliance class 3

Hob dimensions

Width	580 mm
Depth	510 mm

Cut out dimensions

Width	560 mm
Depth	480 mm

By-pass diameters

Burner ∅ By-pass in 1/100 mm.
Auxiliary	28
Semi-rapid	35
Rapid	45

Gas burners

BURNER kW kCal/h	NOMINAL NOMINALPOWER POWER NOZZLE GAS FLOW100/mm RATE		g/h
Auxiliaryburner 0,95 814 50 75
Semi-rapidburner 1,60 1368 65 126
Rapidburner 2,45 2095 77 193

Installation

IMPORTANT

This appliance must be installed by qualified personnel.

The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this book be ignored.

Gas Connection

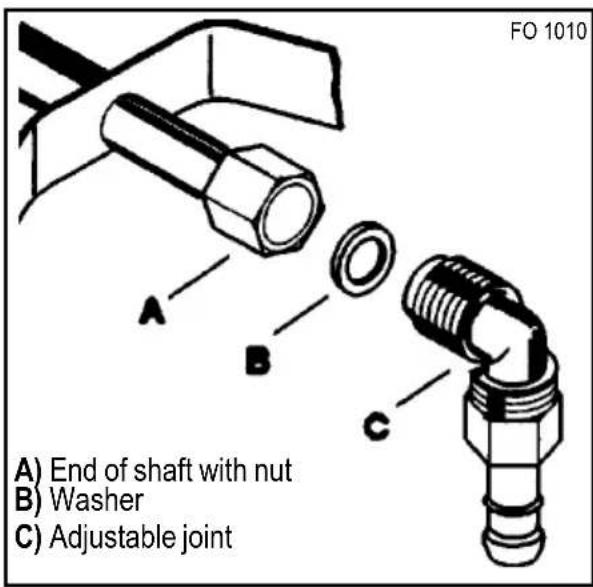

On the end of the shaft (A), which includes the GJ 1/2" threaded elbow, an adjustable joint is fixed so that the washer (B) is fitted between the components as shown in the diagram.

A drop of paint at both edges of the "L" joint (C) will evidence that the good seal of the connection has been tested in the factory.

Before connecting the gas supply pipe to the joint (C), the installer will ensure that the paint drop is unbroken and the "L" connector has not been moved by the vibrations during handling and transportation.

When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installation. Ensure that the main connection pipe does not exert any strain on the hob.

Building In

Cut Out Size

The dimensions of the cut-out are given in the diagram.

Dimensions are given in mm.

Building over a cupboard or drawer

If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface.

Building over a kitchen unit with door

Proper arrangements must be taken in designing the furniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in the Fig. 1.

The panel fitted under the hob ("a") should be easily removable to allow easy access if technical assistance is needed. The space behind the kitchen unit ("b") can be used for connections.

Fig. 1

a) Removable panel
b) Room for connections

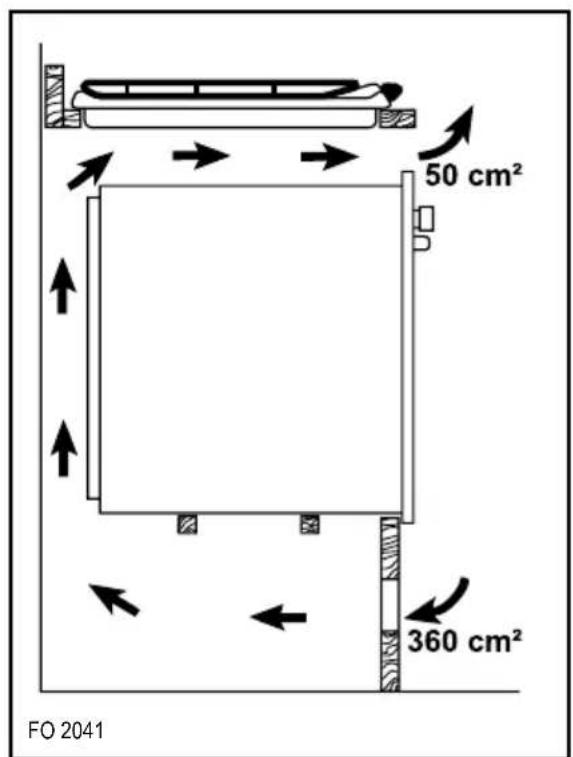

Building over a kitchen unit with oven

If the hob is built into a kitchen unit with an oven underneath, the recess must have the dimensions shown in Fig. 2, and should also incorporate suitable oven crosspiece supports to ensure an efficient cooling air circulation.

Figures 3 and 4 give two building-in examples.

The electric connection of the hob and the oven should be carried out separately, for electrical safety reasons to permit easy extraction of the oven from the front part of the kitchen unit.

Fig. 3 Fig. 4

Fitting the hob to the worktop

Carry out the building in of the hob as follows:

• put the seals supplied with the hob on the edges of the cut out, taking care that the seals meet without overlapping;
• place the hob in the cut out, taking care that it is centred;
• fix the hob with the relevant fixing clamps and screws, as shown in Fig. 5. When the screws have been tightened, the excess seal can be removed.

The edge of the hob forms a double seal which prevents the ingress of liquids.

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person, in accordance with the current regulations.

THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should these safety measures not be observed. This appliance is designed to be connected to a 230 V 50 Hz AC electrical supply.

Before the appliance is connected:

1) check that the main fuse and the domestic installation can support the load (see the rating label);
2) check that the power supply is properly earthed in compliance with the current rules;
3) check the socket or the double pole switch used for the electrical connection can be easily reached with the appliance built in the forniture unit. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. The rating plate is located on the bottom of the hob. A copy is attached on the back cover of this book.

The appliance is supplied with a 3 core flexible supply cord incorporating a plug. Connect the plug to an adequate socket.

Permanent Connection

In the case of a permanent connection, it is necessary that you install a double pole switch between the appliance and the electricity supply (mains), with a minimum gap of 3 mm between the switch contacts and of a type suitable for the required load in compliance with the current electric regulations.

The switch must not break the yellow and green earth cable at any point and it should be 2-3 cm longer than the other cables.

Ensure that the hob supply cord does not come into contact with surfaces with temperatures higher than 50 deg. C.

Commissioning

When the hob has been fully installed it will be necessary to check the minimum flame setting. To do this, follow the procedure below.

• Turn the gas tap to the MAX position and ignite.
• Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX several times. If the flame is unstable or is extinguished follow the procedure below.

Procedure:

Re-ignite the burner and set to MIN. Remove the control knob, use a thin bladed screwdriver to turn the adjustment screw. Check the flame is steady and does not extinguish when the knob is turned from MIN to MAX. Repeat this procedure for all burners.

Technical Maintenance

Check at regular intervals the condition and serviceability of the gas connection hose and pressure regulator, if any is fitted; in case of malfunction, do not repair but replace the whole faulty part.

To ensure a smooth and safe operation, it is necessary to periodically grease the gas taps.

03-6508245.079,03-6508282.70

DECUL 2014

הכלהה

MEMBER OF RALCO GROUP

58001 7173 31 7174

03-6508245.079.03-6508282.70

www.ralco.co.il

הכלהה

ZANUSSI

:תָרִיְשָׁ

:110

תַלְרָהוֹת, לַעֲב

:תָרְקּוֹת

:תְרָה, בְּב

:DAT

Three mechanical components with arrows indicating assembly or movement, no visible text or symbols

ת.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Three laboratory glassware items: beakers with bubbles and a lid, and a crossed-out gas jar with a cross (no text or symbols)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

הכלההוּרָה

Operating instructions

תאַעְרָה תִיּוֹם

Gas hob

תְרָה תִּ
