120 Pro X (2004) - Snowmobile POLARIS - Free user manual and instructions

Product Type	Youth Snowmobile
Brand	Polaris
Model	120 Pro X (2004)
Engine Displacement	121 cc
Engine Type	4-stroke, single cylinder
Fuel Requirement	87 octane non-oxygenated or 89 octane oxygenated
Fuel Tank Capacity	0.5 gal (1.9 L)
Engine Oil Capacity	0.6 qt (0.57 L)
Oil Type	Polaris Premium 4 All Season Synthetic 0W-40
Dimensions (L x W x H)	75 x 34 x 31 in (190.5 x 86.4 x 78.7 cm)
Ski Center Distance	30 in (76.2 cm)
Track Length	69 in (175.3 cm)
Track Width	10 in (25.4 cm)
Dry Weight	147.5 lb (67 kg)
Maximum Rider Weight	140 lb (63.5 kg)
Seating Capacity	1 (no passengers)
Minimum Operator Age	6 years
Brake Type	Mechanical
Clutch Type	Centrifugal
Spark Plug	NGK BR6ES (gap 0.028 in / 0.70 mm)
Maintenance Intervals	Oil change every 20 hrs initially, then every 50 hrs; general inspection at 50, 100, 150 hrs
Safety Features	Tether strap, engine stop switch, throttle safety switch, ignition key, headlight and taillight (daylight use only)
Recommended Use	Daylight, off-road, on snow with adequate cover

Frequently Asked Questions - 120 Pro X (2004) POLARIS

What age is the Polaris 120 Pro X designed for?

The snowmobile is intended for riders at least 6 years old, under adult supervision.

What is the maximum rider weight?

The maximum rider weight capacity is 140 lbs (63.5 kg).

What type of fuel does the 120 Pro X require?

Use 87 octane non-oxygenated or 89 octane oxygenated gasoline.

How do I start the engine?

Turn the key ON, ensure the engine stop switch is UP, pull the choke if cold, and pull the recoil starter handle briskly. Do not press the throttle while starting.

What oil should I use?

Use Polaris Premium 4 All Season Synthetic 0W-40 oil. Do not mix brands.

How often should I change the oil?

Change the oil after the first 20 hours of operation, then every 50 hours thereafter.

Can an adult ride this snowmobile?

No, the 120 Pro X is designed for children only. Adult use may cause serious damage due to weight and size.

What are the three ways to stop the engine?

Push the engine stop switch down, pull off the tether strap, or turn the ignition key off.

How do I adjust the track tension?

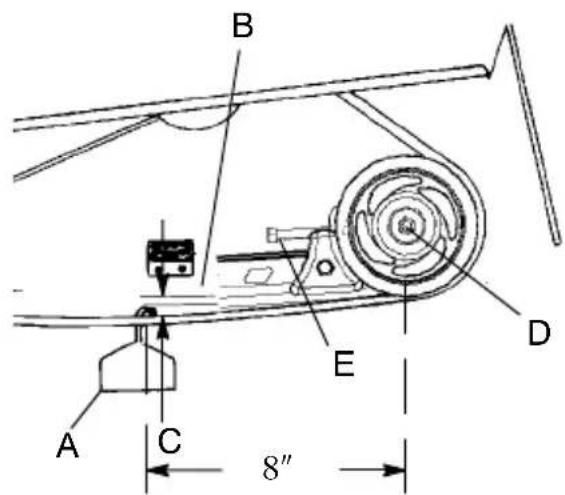

With the rear supported off the ground, hang a 10 lb weight 8 inches from the rear idler wheel center. The deflection between the hi-fax and track should be 3/4 inch. Adjust the rear idler shaft bolts and adjusting screws as needed.

What is the recommended spark plug gap?

The spark plug gap should be 0.028 inches (0.70 mm). Use NGK BR6ES plugs.

USER MANUAL 120 Pro X (2004) POLARIS

Owner's Manual for Vehicle Maintenance and Safety

WARNING

Read, understand, and follow all of the instructions and safety precautions in this manual and on all product labels.

Failuretofollowthesafetyprecautionscouldresult inseriousinjuryordeath.

PROPOSITION65 WARNING

Snowmobileenginesdischargefuel andexhaust,whichcontainchemicals knowntotheStateofCaliforniato causecancerandbirthdefectsorother reproductiveharm,ontothesnowon whichtheyoperate.Keepthisengine properlytunedandavoidunnecessary idlingandspillageduringfueling.

WARNING

Theengineexhaustfromthis productcontainschemicalsknown tocausecancer,birthdefector otherreproductiveharm.

What's the hottest thing on snow?

APolarisowner'sWebsite,designedjustforYOU!

• Technicaltips
• Newproductintroductions
• Eventschedules
• PartsandServiceManualinformation
  •ExcitingdetailsaboutTheWayOut

Checkitout...

www.polarisindustries.com/owner

POLARIS®

The Way Out.

Copyright2003PolarisSalesInc.Allinformationcontainedwithinthispublicationis basedonthelatestproductinformationatthetimeofpublication.Duetoconstant improvementsinthedesignandqualityofproductioncomponents,someminor discrepanciesmayresultbetweentheactualvehicleandtheinformationpresentedinthis publication.Depictionsand/orproceduresinthispublicationareintendedforreference useonly.Noliabilitycanbeacceptedforomissionsorinaccuracies.Anyreprintingor reuseofthedepictionsand/orprocedurescontainedwithin,whetherwholeorinpart,is expresslyprohibited.PrintedinU.S.A.

TABLEOFCONTENTS

TableofContents3.

Welcome4.

Introduction5.

ImportantNotesforOwnersandDrivers6.....

PreservationoftheEnvironment7.....

Vehicle Identification Numbers 9

Safety 10

YOUTH SECTION 13

Know Your Snowmobile 14

Pre-Ride Check 19

Riding Rules 21

ADULT SECTION 25

Pre-Ride Check 26

Operation Warnings 30

Component Identification 42

Break-In Period 44

Operation 46

Maintenance 51

Accessories 79

Troubleshooting 79

Specifications 80

Polaris Products 82

Warranty 83

Index 89

WELCOME

DearParents:

We believe your children should have the opportunity to enjoy The Way Out experience along with you. We've provided this owner's manual to assist you and your children in learning about the safe operation and care of your new Polarissnow mobile. Please review the information in this manual with any child whom may operate the snow mobile. Help your children learnt to operate the snow mobile with safety as atoppriority. Help them also learnt to show respect for our environment and for their right so others while operating the snow mobile. Sincethe operator will be anew comerto the exciting wintersport of snow mobile, please besure he/she understand this information before or hiding the snow mobile. Never allow a child to operate the snow mobile without adult supervision.

Thepreventivemaintenanceprogramoutlinedinthismanualis designedtoensurethatallcriticalcomponentsonyourchild's snowmobilearethoroughlyinspectedatvariousintervals.Forsafeand enjoyableoperationofthevehicle,besuretofollowallofthe instructionsandrecommendationsinthismanual.Atableof Polaris-recommendedproductsisprovidedonpage82.Ifyouhave anyquestionsaboutthesnowmobile,contactaPolarisdealerfor assistance.

ThisOwner's Manual contains instructions for minimaintenance, but major repairs are covered in the Polaris Service Manual and should be performed by a Factory Certified MSD (MasterService Dealer) Technician.

DearChildren:

BeforeyourideyournewPolarissnowmobile,therearesome importantthingsthatyouneedtoknow.YourparentsandPolariswant youtoenjoyridingyournewsnowmobile,andthat'swhyyouneedto readandunderstandtheinformationinyouowner'smanual.

Askyourparentstoexplainanythingyoudon'tunderstand,andpay closeattentiontothewarningsandinstructionsyouread.Yoursafety andthesafetyofothersisthemostimportantthingtothinkaboutatall times.

Asthedriverofthesnowmobile,youmustlearnhowtokeepyourself andthosearoundyousafewhileyou’reriding.Soreadyourmanual, andthenenjoyridingyournewPolarissnowmobile!

INTRODUCTION

Afterreading this manual, store it in the snow mobile for convenient reference. It should remain with the snow mobile when sold.

√Thismanualcontainsthelatestinformationatthetimeofprinting. Wereservetherighttomakeproductchangesandimprovements withoutnotice.
√Theillustrationsandphotosusedinthismanualaregeneral representations.Yourmodelmaydiffer.
√ Follow them maintenance program outlined in this manual. Preventivemaintenance ensure that critical component so the snowmobile are inspected by your dealer at specific mileage intervals.
√ A table of Polaris-recommended products for your snowmobile is providedonpage82.
√ You and your dealer must complete the registration for in included with yoursnowmobile and forwardittous. This completed form isnecessary to ensure warranty coverage.
√Protectandpreserveyourrighttoridebyjoiningyourlocaltrail ridingclubs.

IMPORTANT

ParentsshouldsitdownwiththeirchildrenandreadtheYouth Sectionwiththembeforeallowingthemtousethissnowmobile. ParentsmustalsoreadtheAdultSectionbeforeallowingtheir childrentoridethissnowmobile.

INTRODUCTION ImportantNotesforOwnersandDrivers

PARENTS: Donotallowanyoneundertheageofsix(6)tooperate thismachine. Review the information in this manual with any child whom maybe operating these snowmobile. It is up to you to teach any operator the proper and safety or ideas snowmobile. You must set boundaries and adhered to them, keeping the operator's safety foremost in your mind. Never allow a child to operate this machine without adult supervision.

Theseunitsarenotdesignedforadultuse.Seriousdamagetothe vehiclemayoccurifthemaximumriderweightcapacityisexceeded. Themaximumriderweightcapacityis140lbs.(63.5kg).

CHILDREN: Before your ride your new Polarissnow mobile, there are some important thing that you need to know. Yours safety and the safety of others is most important thing to think about all times. Asthedriver of the snow mobile, you must learn how to keep yourself and those around you as a few you're riding.

Payattentionwhenyouseethissymbol:

Thisisthesafetyalertsymbol.Whenyouseethis symbolonyoursnowmobileorinthismanualitmeans PAYATTENTIONbecauseyoucoulddieorbeseriously hurtifyoudon'tfollowtheinstructions.

INTRODUCTION

PreservationoftheEnvironment

Teachyourchildtodrivetheirsnowmobilewithconsiderationforthe protectionandpreservationoftheenvironment.

NoiseLevel

Oneofthemostpublicizedsubjectswithregardtosnowmobilesis noise. The Society of Automotive Engineers (SAE), which is the standard-setting body for snowmobiles, has recommended that snowmobiles conform to prescribed sound levels. This Polaris snowmobile has been engineered to conform to these SAE standards.

Inordertobemeaningful, allregulationsrequirethecooperationofthe snowmobileowner.Mufflingsystems, designedtoreducenoiselevels, shouldnotbealteredorremoved.Snowmobiledriversmustbeaware thattheyhaveapublicresponsibilitytooperatetheirsnowmobileswith concernforothers.Asasnowmobileoperatoryoumaynotrealizethe soundofyoursnowmobilemayannoynon-snowmobilers.Weare attemptingtodoourpartthroughthemanufactureofquietermachines, andwealsoaskyourhelpintheefforttofurtherreducetheimpactof noise.

AirPollution

AsapartofPolaris'planforthesnowmobile'scompatibilitywithinthe environment,ourengineersareinvestigatingwaystoreduceemission levelsofengines.Weexpectoureffortstoleadtothereductionof potentialairpollution.

The four-stroke engine used in this snow mobile produces lessexhaust emissions and reduces noise, as well.

Inadditiontotechnologicalresearch,wealsosuggestthat governmentalagencies,manufacturers,distributors,dealers,ecologists, andotherinterestedpartiesworktogethertodevelopdataon environmentaltopics.Wewillcontinuetoparticipateinthistypeof studysothatsomedaywemayfindtheanswerstothesedifficult issues.

INTRODUCTION PreservationoftheEnvironment EnvironmentalProtection

Aspartofthecontinuingenvironmentaleducationcampaign,weare encouragingstateandprovincialgovernmentsacrossthesnowbeltto adoptrigoroussafetytrainingprogramswhichalsoencourage protectionofourenvironment,wildlifeandvegetation.Snowmobile clubsandotherorganizationsareworkingtogethertoprotectour environment.Itisveryimportantthatweencouragethemaswellas becomeactivelyinvolvedourselves.Teachyourchildthefollowing:

Respectyoursnowmobile; respectyourenvironment; andyouwillearn therespectofeveryone.

INTRODUCTION

VehicleIdentificationNumbers

Theframevehicleidentificationnumber(VIN)andengineserial numberareimportantformodelidentificationwhenregisteringyour vehicle,whenobtaininginsurance,andwhenorderingreplacement parts.Intheeventyourvehicleisstolen,thesenumbersareessentialto therecoveryandidentificationofyourvehicle.

Removethesparekeyandstoreitinasafeplace.Yourkeycanbe duplicatedonlybymatingaPolariskeyblankwithoneofyour existingkeys.Ifbothkeysarelost,theignitionswitchmustbe replaced.SeeyourPolarisdealer.

Pleaserecordyoursnowmobileidentificationnumbersbelowforfuture reference:

1. TunnelVIN(lowerrightsideofthetunnel)

2. EngineSerialNumber(rightfrontsideofenginecrankcase)

3.KeyNumber:

SAFETY

WARNING

Failuretofollowthewarningsinthismanualcanresultinsevere injuryordeath.Readandunderstandtheowner'smanualandall warningsbeforeoperatingaPolarissnowmobile.Adultsmust thoroughlyexplainthisinformationtoalloperatorsofthe snowmobile.

Alloperatorsmustbeatleastsix(6)yearsoldandmust understandtheriskinvolvediftheseimportantwarningsand cautionsarenotheeded.

EquipmentModifications

All Polarissnowmobiles have been designed and tested top provides safe operation when used as directed. Failure of critical machine components may result from operation with an modification; especially those that increase speed or power. There's significant possibility of loss of control at higherspeeds.

We are concerned for the safety of four customers and for the general public. Anymodification to the originale equipment of the vehicle create as substantial safety hazard and increase risk of bodily injury. Therefore, we strongly recommend that consumers do not install a Polarissnow mobile any equipment that may increase the speed or power of the vehicle, or make any other modification to the vehicle for these purposes.

Thewarranty your Polarissnowmobile is terminated if any equipment has been added to the vehicle, or if an modifications have been made to the vehicle, that increase its speed or power.

MaintenanceProgram

Aswithallsnowmobiles, cautionmustbeobservedtoensureoperator safety. Particularcautionmustbetakentomakesurethatthe snowmobileisinexcellentoperatingconditionatalltimes. We stronglyrecommendthattheoperator, aswellasanadult, checkmajor andvitalsafetycomponentsbeforeeachuseofthevehicle.

Wealsorecommendthatyoustrictlyfollowthemaintenanceschedule outlinedinthismanualtoensurethatallcriticalcomponentsonthe snowmobilearethoroughlyinspectedbyyourdealeratvariousmileage intervals.

Thisnowmobileisnotatoy.Itisawell-engineeredand well-constructedrecreationalvehicle.Theinformationinthismanual isprovidedtoaidyouinitssafeoperation.

SAFETY SafetyDecals

Safetyandwarningdecalshavebeenplacedonthevehicleforthe operator'sprotection.Makesuretheoperatorunderstandsthe informationonalldecals.Ifanydecalbecomesillegibleorcomesoff, contactyourPolarisdealerforareplacement.Anysafetydecal needingreplacementwillbeprovidedbyPolarisatnocharge.Thepart numberisprintedonthedecal.

CAUTION

Improperuseofthissnowmobileorfailuretomaintainitingood operatingconditioncanresultinjury. Toreducethispossibility, readtheimportantsafetyinformationonthefollowingdecaland makesurealloperatorsandguestsarefamiliarwithallwarnings, cautionsandsafeoperatingprocedures. Theymustalso understandtheconsequencesandrisksiftheychoosetoignore orneglectthisinformation.

SAFETY

The following signal words and symbols appear throughout this manual and on your vehicle. Yoursafety is involved when these words and symbols are used. Become familiar with their meanings before reading them manual.

Thesafetyalertsymbol, on your vehicle or in this manual, alerts you to the potential for personal injury.
WARNING

Thesafetyalertwarning indicates apotentialhazardthatmay resultinseriousinjuryordeath.

CAUTION

Thesafety alert caution indicates a potential hazard that may result in minor personal injury or damage to the vehicle.

CAUTION

Acaution indicates asituation that may result in damage to the vehicle.

IMPORTANT

IMPORTANTwillalertyoutoimportantinformationor instructions.

NOTE: A note will alert you to key information or instructions.

YOUTHSECTION KnowYourSnowmobile

Before you have an adult start the engine for you forth the first time, let's learn about the control on your new machine.

1. Engine Stop Switch - When the engine is running, you can push this buttondownandtheenginewillstop.Thestopswitchmust beintheUPpositiontostarttheengineagain.

2. Throttle Control - The throttle control makes your snowmobile go forwardwhenyoupressitwithyourthumb.Youmustalways makesurethethrottlecontroldoesnotstickbeforeyouoperate yoursnowmobile.Readmoreaboutitonpage19.

3. Recoil Starter Handle - Pull the recoil starter handle to start your snowmobile.Anadultwillhelpyoustartitthefirsttime.

4. ChokeKnob-Youmayneedtousethechoketohelpstartyour snowmobileiftheengineiscold.Readmoreaboutitonpage48.

Alwayshaveanadulputgasinyoursnowmobile.Nevertrytodo ityourself.

1. Gas Cap - The gas cap has to be taken off when an adult puts gas in yoursnowmobile.Nevertakethegascapoff.Alwaysmakesure it'stightlyclosed.

YOUTHSECTION

KnowYourSnowmobile

Alwaystakeyourthumboffthethrottleleverwhenyousqueeze thebrakelever.

1. BrakeLever-Squeezethebrakelevertowardthehandlebarto makeyoursnowmobileslowdownorstop.

2. IgnitionSwitch-Theignitionswitchkeymustbe turnedON beforepullingontherecoilstarterhandletostartyoursnowmobile. Youcanalsousethiskeytoturnofftheengine.

Neverridewithoutthetetherstrapattachedtoyourrightwristand toyoursnowmobile.Becarefulnottoletthecordgettangled aroundthehandlebarsoranypartofyourbody.

1. Tether Strap/Switch - The tether strap must always be attached snuglytoyourrightwristandtoyoursnowmobileeverytimeyou drive.Ifyoufalloffyoursnowmobile,thetetherstrapwillpullaway fromtheswitchandtheenginewillstop.

Alwaysmakesurethehoodhold-downstrapsarelatchedbefore youride.

1. Hood Hold-Down Strap - There are two straps to hold down the hoodofyoursnowmobile.Theymustalwaysbelatchedbeforeyou startyourmachine.

YOUTHSECTION KnowYourSnowmobile

Let'slearnmoreaboutthepartsofyoursnowmobilebeforewetalk aboutriding.

YOUTHSECTION

KnowYourSnowmobile

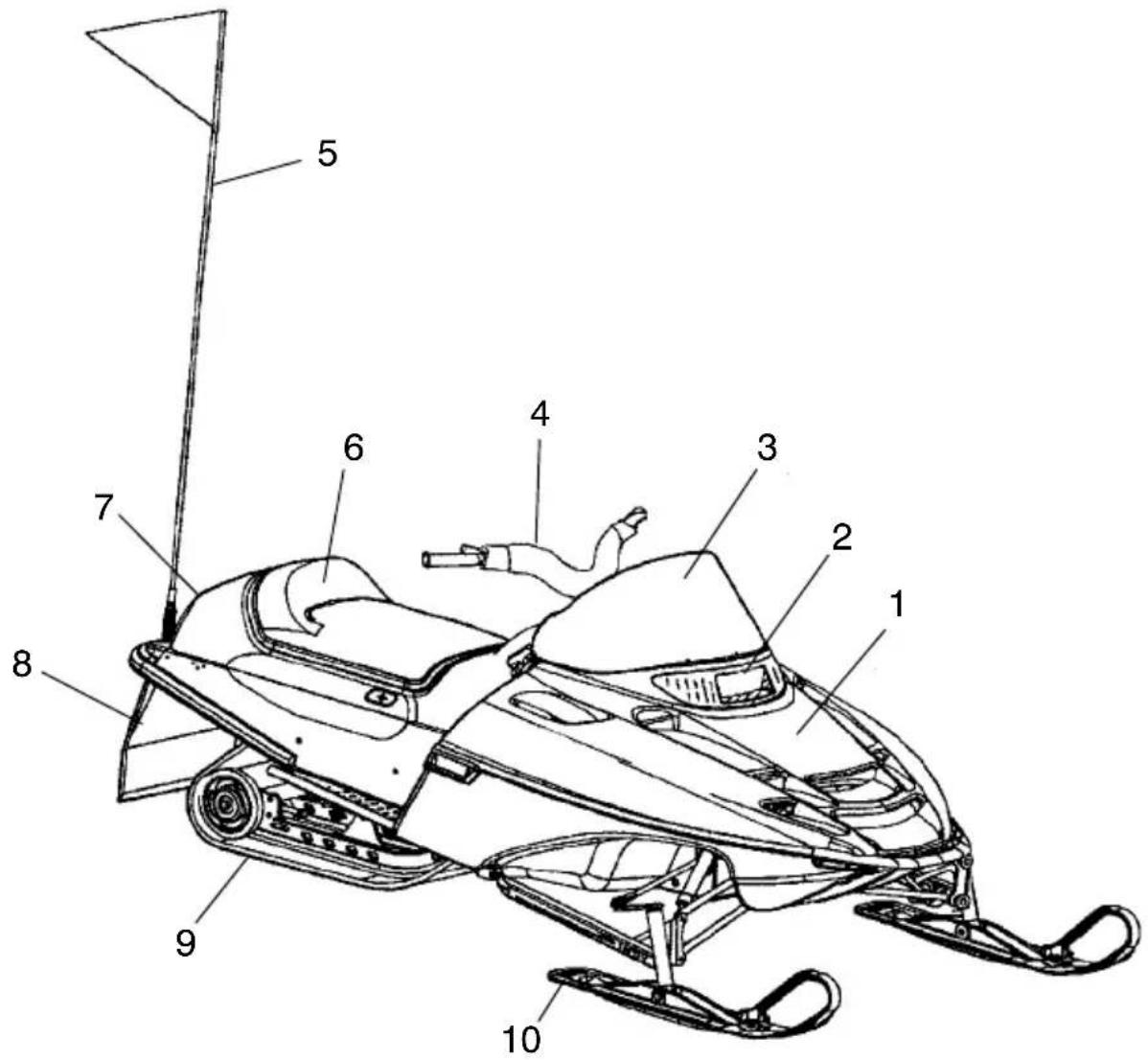

1. Hood-Thehoodcoversthemovingandhotpartsoftheengine andmustbesecurelylatchedbeforeyouridethesnowmobile.
2. Headlight-Theheadlightisalwaysonwhentheengineis running.Ithelpsothersseeyouwhenyou’ reridingduring daylight,butit’snotsupposedtobestrongenoughtohelpyousee inthedark.Driveyoursnowmobileonlyinthedaylight.
3. Windshield - Always keep your windshield clean so you can see whereyou'redriving.
4. Handlebar - The handlebar is connected to the skis. When you turn the handlebar, the skisturn in the samedirection.
5. Flag - The flag helps other people see where you're riding. Your snowmobileissmallerthananadultsnowmobile,soit'sharderto see.Neverremovetheflagfromyoursnowmobile.
   6.SeatandStorage-Whentheengineisn'trunning,youcantake theseatcushionoffandputthingsundertheseatinthespecial compartment.
6. Taillight - The taillight is always on when the engine is running. It will help others see you when you're riding.
7. SnowFlap-Thesnowflapkeepssnow, iceorotherthings from flying out behind yoursnowmobile.

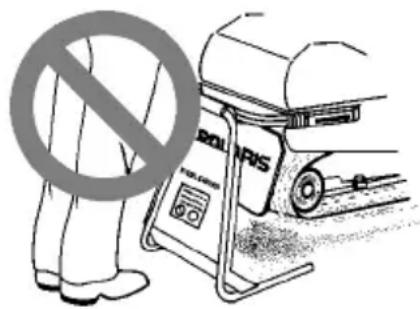

Nevergetclosetoamovingtrack. Neverwearclothing that could get caught in amoving track, like along scar for baggy clothing. Tie up longhair.

1. Track - The engine makes the track turn. The turning track makes yoursnowmobilegoforward.

2. Skis - The skis turn your snowmobile in the same direction that youturnthehandlebar.

YOUTHSECTION KnowYourSnowmobile

Let'sreviewthethreewaystostopyoursnowmobile:

1. Pushthestopswitchdown.
2. Pulloffthetetherstrap.
   3.Turnthekeyoff.

YOUTHSECTION

Pre-RideCheck

You'realmostreadytohaveanadultstartyoursnowmobile.Before thesnowmobileisstartedforthefirsttime,youmustdoaPRE-RIDE CHECK. Infact, everytimeyourideyoursnowmobileyoumusthave anadulthelpyoucheckthesethingsbeforestartingit. Let'slearn aboutthesethingsnow.

Neverstarttheengineifyouhaveastickythrottle.Youcouldget hurtifyouridewithastickythrottle.Haveanadultoryour Polarisdealerfixthethrottlebeforeyouride.

√ Make sure the throttle doesn’t stick. Push the throttle lever toward thehandlebarandthenletitgo.Thelevershouldcomerightback towhereitwasbeforeyoupushedit.Ifitcomesbackslowlyor staysclosetothehandlebar,youhaveastickythrottle.Thismeans thatsomethingiswrongorbroken.Don’tstartthesnowmobile untilanadultfixesthestickythrottle.

Neverstarttheengineifyouhavestickybrakes.Youcouldget hurtifyouridewithstickybrakes.HaveanadultoryourPolaris dealerfixthebrakesbeforeyouride.

√ Make sure the brakes don’t stick. Squeeze the brake lever toward thehandlebarandthenletitgo.Itshouldcomerightbackto whereitwasbeforeyousqueezedit.Ifitgoesbackslowlyorstays closetothehandlebar,yourbrakesaresticking.

If you've used the storage area under these at, makes sure these at locking tabs are in place.

√Makesureyourhoodislatchedtightbeforestartingyourmachine.

Nevercheckthetrackorskiswhentheengineisrunning.You couldgethurt.Neverstandbehindorinfrontofanysnowmobile whentheengineisrunning.

√ Makesureyourtrackandskisarenotfrozentothesnow.Stand behindthemachineandliftuponthebackofthesled.Thiswill freethetrackifitisfrozentotheground.Turnthehandlebarsto movetheskisbackandforthtomakesuretheyaren'tfrozen.If anyofthisishardtodo,haveanadulthelpyou.

YOUTHSECTION

Pre-RideCheck

Alwayshaveanadultputgasinyoursnowmobile.Nevertrytodo ityourself.

√Haveanadultcheckthegasleveltoseeifyoursnowmobileneeds more.Childrenshouldneveraddtheirowngasoline.Thismust alwaysbedonebyanadult.Beforeanyoneaddsgasolinetoyour snowmobiletheymustreadtheinstructionsandwarningsonpage 46inthisOwner'sManual.
√Haveanadultchecktheengineoillevelwhentheengineiscold. Theengineisveryhotafterithasbeenrunning.Itcouldburnyour skin.Childrenshouldneverchecktheoil.Onlyanadultshould beresponsibleforkeepingthegasandoillevelstothefullmarks.
√Thelastcheckisdonewiththeengine running.Alwayscheckto makesurethatALLTHREEWAYSTOSTOPTHE SNOWMOBILEareworkingthewaythey should.Doyou remember what they are?If you can’t list them, gobacktopage 18 and review.

YOUTHSECTION

RidingRules

Nowyou’ rereadytolearnaboutdrivingyourPolarissnowmobile. Therearesomethingsyoucandoandtherearesomethingsyoumust neverdo.Rulesareveryimportantwhenyou’redrivingasnowmobile. Adultshaveridingrules,too.Theruleshelpkeepussafewhenwe ride.

Youmustbeatleastsix(6)yearsoldbeforeyoucanridethis snowmobile.Theadultwithyouisyourteacher.Alwayspayattention towhatyourteachersayssoyoucanlearnhowtoalwaysdrivesafely.

Let'slearnhowtoride!

Alwaysfollowthesaferidingrulesfoundonthenextpages.You orothersaroundyoucouldbeseriouslyhurtorkilledifyoudon't followthesaferidingrules.

▶Yoursnowmobileismadeforoneperson.Nevercarryapassenger. Apassengerwillmakethesnowmobilehardertodrive.Youmay losecontrolandhurtyourselfandyourpassenger.

▶Neverpullanythingbehindyoursnowmobile.

- Makesureyouknowwhereyou'regoingtodrivewhenyoursnowmobileisstarted.Makesuretheareaissafeallaroundyoursnowmobile.

▶Neverridealone.Anadultshouldalwaysbewatchingyouincase youneedhelp.Alwaysdrivewithinthesightofanadult.

▶Neverrideonpublictrails.

▶Whenyou'reabeginner,alwaysstayonlevelground.

▶Don'trideyoursnowmobileonroadsoroverrailroadtracks. Your snowmobilemakesnoisethatwillkeepyoufromhearingcars, trucksortrainsthatmaybecomingtowardsyou.

Fencesandsnowmobilesdon'tmix.Makesureyouknowwhereall thefencesarebeforeyouride.Ifyoudriveintoafence,youcould gethurt.

▶Don'trideatnight.Theheadlightonyoursnowmobileisthereonlysootherscanseeyoudrivingduringtheday.

YOUTHSECTION

RidingRules

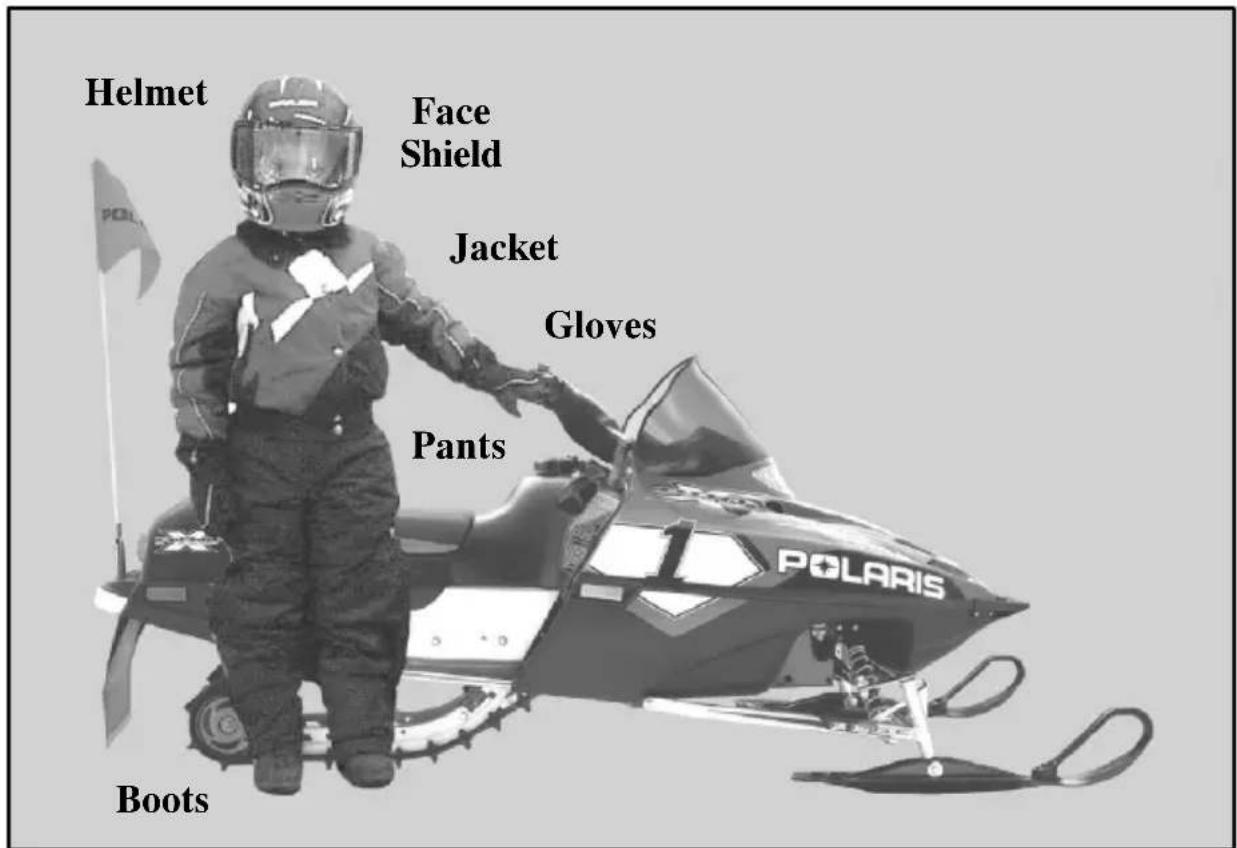

▶ Always wear the right kind of clothing when you’re riding your snowmobile. You’llneedagoodhelmetwithafaceshieldor goggles. Wearawarmjacketandsnowpants. Makesureyourclothingfitsproperly. Ifit’stoosmall, itcouldkeepyoufrommoving easily. Ifit’stoobig, itcouldhangdownandgetcaughtinthetrack or another moving part. Never, ever wear a long scarf. Wear warm snowmobilebootsandgloves, andmakesureyourbootlacesare tied. Ifyouhavelonghair, besuretotieitup.
▶Learnwheretherearelakes, rivers, pondsandditchesinyourdrivingarea. Stayawayfromthem. Neverrideonfrozenwater. You couldgethurtoryoucouldevendie. Allicecanbedangerous!
▶Alwaysbealertandpayattentiontowhereyou'redriving.Pay attentiontootherdriversandbeevenmorecarefularoundthembecauseyoudon'tknowwhatthey'regoingtodo.

YOUTHSECTION

RidingRules

▶Alwaysdriveyoursnowmobilewhilesittingdown.Keepboth handsonthehandlebarsandkeepbothfeetontherunningboards.

▶Neverfollowanothersnowmobiletooclosely.Alwaysallowlotsoftimeandspacetostopyoursnowmobile.

▶Rideyoursnowmobileonly whereyouknowit'ssafeto driveandwhereyouhavepermissiontodrive.Becarefulof thethingsaroundyou.

▶Alwaysbeapolitedriver.(No drivingthroughtheflowergardenoroverthelittletreesyou planted.)

▶Alwaysattachthetetherstrapto yourwristandmachinebefore riding.

YOUTHSECTION

RidingRules

Learnhowtoridesafelyandcorrectly.Learnhowtouseyourhands andarmsassignals.ReadandunderstandyourOwner'sManual.

LeftTurnRightTurn

Stop

ADULTSECTION

Pre-RideCheck

It’suptoyou, the adult, to teach your child the proper and safeway to ride as now mobile. You must set boundaries and adher to them, keeping your child’s safety foremost your mind. Never allow your child to operate this machine without adult supervision.

WARNING

TeachtheoperatorstoperformthefollowingPre-RideCheck beforeeachuseofthesnowmobile.Seriousinjuryordeathcould resultiftheydonotcheckthemachineproperlybeforeriding.

√ Checkthethrottleforproperoperation.
√ Checkthebrakeforproperoperation.
√ Checkforproperoperationofsteeringsystem.
√ Checkthethrottlesafetyswitchforproperoperation.
√Makesureallthreewaystostoptheenginearefunctioning.
√Inspectthetrack.
√Makesuretheseatislockedintoplace.
√Makesurethetrackandskisarenotfrozentotheground.
√ Anadultshouldcheckthegasandoillevelsfortheriderandadd moreifnecessary.
√Makesurethehoodislatched.
√Makesureheadlightandtaillightareworkingproperly.

Thesechecksshouldbecomeautomaticforyourchildrenbeforeeach ride.It'suptoyou,theadult,toinstillinyourchildrentheimportance ofperformingthisPre-RideCheckbeforetheyoperatethe snowmobile.

ADULTSECTION

Pre-RideCheck

BeforeStartingTheEngine

ReadandUnderstandYourOwner'sManual

ReadandmakesuretheoperatorsunderstandtheOwner'sManual completelybeforeallowinganyonetoperatethissnowmobile.It's alsoagoodideatoreviewitperiodicallytoreinforcetheinformation. It'sveryimportanttofamiliarizetheoperatorandguestswiththe cautionsandwarningspertainingtothemachineaswellassafe operatingprocedures.We'veattemptedtoprovideyouwithasmuch informationaspossibletoalertyoutothesafetyrequirementsof snowmobiling.

WARNING

Thethrottleandbrakearetheprimarycontrolsofthe snowmobile.Ifeithershouldmalfunction,theoperatorcouldlose control,whichcouldleadtoseriousinjuryordeath.Alwayscheck thethrottleandbrakeleversforproperoperationbeforeoperating thevehicle.

√ Checkthrottleforproperoperation

Whencheckingthethrottle, makesurethecontrollevercompresses evenlyandsmoothly. Whentheleverisreleased, it should immediately return to the idle position without binding or hesitation. If the throttledoesnotfunctions smoothly, donot attempt to start the engine. Havethethrottleserviced before starting the engine.

√Checkbrakeforproperoperation

Theneedforaproperlyfunctioningbrakeiscritical.Thebrakemust becheckedforcorrectoperationbeforestartingtheengine.Seepage 31forbrakelevertravelspecifications.

√Checkforproperoperationofsteeringsystem

Checkforproperoperationofthesteeringsystembymanuallyturning theskiscompletelytotherightandtotheleft. Ifdifficulty is encountered, checkforiceandsnowbuildupwhichmaybeobstructing thesteeringlinkage. Makesureallgreasablecomponentsareproperly lubricated.

ADULTSECTION

Pre-RideCheck

√Checkthrottlesafetyswitch

Testthethrottlesafetyswitchsystem onadailybasisbeforethemachine isused.

Whileseatedinanormalriding position, and with the engine idling, hold the throttle lever pinstationary by exerting pressure on the pivot pin in the directions shown in the illustration (A). Apply as light amountofthrottleopening.Aproperlyfunctioningswitchmustshut downtheengine.

Thethrottlesafetyswitchisdesignedtostoptheenginewheneverall pressureisremovedfromthethrottleleverandthethrottlecableor valvedoesnotreturntothenormalclosedposition.

Ifexcessiveplaydevelopsinthe throttlecable,thesafetyswitchmay beactivatedandwillpreventthe enginefromstarting.Iftheengine doesn'tstartandthrottlesafetyswitch malfunctionissuspected,returnthe machinetoanauthorizedPolaris dealerforservice.Ifanadultmust starttheengineinanemergencysituation,thethrottlesafetyswitch andenginestopswitchmaybedisconnectedfromthewireharness.In thissituation,theignitionkeyswitchmustbeusedtoshutoffthe engine.Besuretoreconnectthesafetyswitchesandhavethe snowmobileservicedbeforeoperatingthevehicleagain.

.03in.

WARNING

Donotcontinuetooperatethemachinewiththethrottlesafety switchdisconnectedasseriousinjuryordeathcouldresult. ReturnthemachinetoanaauthorizedPolarisdealerforservice beforeoperating.

ADULTSECTION Pre-RideCheck

√Checkenginestopswitch

Testtheenginestopswitchbefore eachuseofthesnowmobile.To stoptheengineinanemergency, pushdownonthestopswitch(A). Thiswillgroundouttheignition andbringtheenginetoaquickstop. Torestarttheengine,theswitch must be pulled up to the ON position.

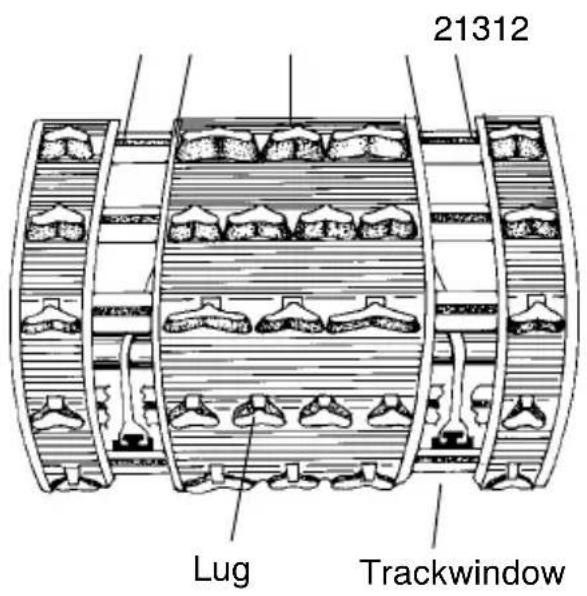

Inspectthetrack

Drivingforextendedperiodsoftimewithmarginallubricationcould severelydamagethetrack.Drivingonicytrailssordrivingwhenthere islittleornosnowaretwoexamplesofsituationsthatwouldprovide marginallubricationandarenotrecommended.

WARNING

Operatingthesnowmobilewithadamagedtrackwillincreasethe possibilityofadditionaltrackdamageand/orfailure. Thiscould causelossofcontrol,resultinginsevereinjuryordeath. Always inspectfordamagebeforeusingthesnowmobile.

NOTE: Trackdamageorfailurecausedbyoperationunderpoor lubricationconditionswillvoidthetrackwarranty.

ADULTSECTION

OperationWarnings

√Donotcarrypassengers

This snowmobile is designed for a single operator.

√ Donotoperatewithintakesilencerremoved

CAUTION

If the engine is operated with the intakesilencer removed, damageto the engine may occur. Donot operate the engine with the intakesilencer removed.

√Stayclearoftrack

WARNING

Duringwarm-upandoperation, standclearoftherotatingtrack. Entanglementandseriousinjuryordeathmayresult. Usejust enoughthrottletorotatethetrackandwarmuptheengine.

√Donotoperatewithdrivechainguardremoved

WARNING

Thedrivechainguardisdesignedtoprotecttheoperatorfrom metalpartsintheeventofadrivechainfailure.Althoughthe chanceoffailureisextremelyremote,donotdefeatthepurpose oftheguardbyremovingit.Itisprovidedforthesafetyofthe child.

ADULTSECTION OperationWarnings

√Donottouchtheengineafterit'sbeenrunning

WARNING

Hotcomponentscancauseseriousburnstoskin.Donottouch engineandexhaustpartsaftertheenginehasbeenrunning.

√Disabledoperators

WARNING

Safeoperationofthisrider-activevehiclerequiresgood judgementandphysicalskills.Personswithcognitiveorphysical disabilitieswhooperatethisvehiclehaveanincreasedriskof overturnsandlossofcontrol,whichcouldresultinseriousinjury ordeath.

ADULTSECTION

OperationWarnings

√Checkbrakelevertravel

Measuretheclearance betweentheleverandbrake block.Inspectionshouldbe madewiththelever firmlydepressed. DistanceAshouldbeno morethan3/4" (1.9cm).

Excessivetravelindicates aneedtoadjustthebrakecable.

Refertothemechanicalbrakeadjustmentinformationonpage59.

√Makesurethehoodissecurelylatched

The hoodofthesnowmobileprotectstheoperatorfrommovingandhot partsaswellasaidinginsoundemissioncontrolandvariousotherfunctions. Under no circumstances should your snowmobile be operated with thehoodopenorremoved.

√Teststopswitchoperation

Starttheengineandpushthestopswitchdowntotestforproper operation.Theengineshouldimmediatelystoprunning.

√Testtetherswitchoperation

Starttheengineanddisconnectthetetherswitchtotestforproper operation.Theengineshouldimmediatelystoprunning.

√Removetheignitionkey

Don't temptsomeonetostealorride yoursnowmobile without permission by leaving the key in the ignition.

√Checklights

Starttheengineandcheckthatboththeheadlightandtaillightare operating.

ADULTSECTION OperationWarnings

√ Checksurroundingstoverifyclearoperatingarea

It'simportanttomakesurethere'saclearareaallaroundthe snowmobile,includinganareaclearofbystanders.Somesideways movementispossiblewhenstartingout,anddebrismaybethrownby thetrack.Teachtheoperatortochecktheoperatingareabeforeeriding.

√Sitproperlyonthesnowmobile

Improperoperatorpositiononthesnowmobilecanbethesourceof seriousinjury. Operatingasnowmobiledoesrequireskillandbalance forpropercontrol, and an improper position can seriously reduce the child's ability to control the snowmobile. Theriding position may vary asthe operator becomes moreskilled, but undermost conditions the proper position is tobeseated with both feet on their running boards, in a comfortable position for proper throttle, brake and steering control.

WARNING

Neverholdthesnowmobileupor standbehinditwhilewarmingupthe track.Aloosetrackorflyingdebris couldcauseseriouspersonalinjury ordeath.

Thisnowmobileispropelledbyarevolvingtrack,whichmustbe partiallyexposedforproperoperation.Seriousinjuriesmaybecaused byoperatorcarelessness,resultinginhands,feet,hairorclothing becomingentangledinthetrack.Teachyourchildtorespectthis machineandallthemovingparts.Stressthatbeingproperlyseated keepsthechildclearofthetrack.

OperationWarnings

√Stopenginebeforeattemptingadjustments

WARNING

Thesnowmobileenginecompartmentcontainsmovingparts. Shieldsandguardshavebeenprovidedforsafety,butitisstill possibletocarelesslygetyourhandsorfingersintoamoving chainorarotatingshaft.Forthisreasonneverattempt adjustmentswiththeengineerunning.Seriouspersonalinjuries canresult.Thepropermethodistoturnofftheignition,raisethe hood,maketheadjustment,secureshieldsandguards,secure thehood,andthenre-starttheenginetocheckitsoperation.The sameistrueoftrackalignment.Ifthetrackmustbere-aligned,it isrecommendedthatthisservicebeperformedbyyourdealer.

√Alwayswearclothingdesignedforsnowmobiling

Clothingdesignedforsnowmobilingiswarm,comfortableandsafe.

WARNING

Alwaysmakesuretheoperatoriswearinganapprovedhelmet andeyeprotection.Donotallowthechildtowearlooseclothing orlongscarvesbecausetheycaneasilybecomeentangledin movingparts.Ifyourchildhaslonghair,besureitisalwaystied upsecurelyandtuckedintothehelmetorjacket.

Extremelycoldweathercancausefrostbiteand/orhypothermia. Alwaysbeawareofweatherconditions,especiallythewindchill. Seethetableonpage36.

ADULTSECTION OperationWarnings

√Knowlimitationsofmachineandskillsofdriver

Theoperatorshouldbeawarethattherearestateandlocalaws governingsnowmobileoperationandthattheselawsshouldbe followed.Theyhavebeenestablishedfortheprotectionofall snowmobileriders.Moststatesofferasnowmobilesafetycoursefor children.Checkyourstateorcountyagenciesforthisservice.

Thisvehicleisintendedfordaylightuseonly.Checkboththe headlightandtaillightofthemachinetoensureproperoperation. IMPORTANT:Theheadlightandtaillightareintendedonlyto increasethevisibilityofthe120PROXduringdaylightoperation.Do notoperatethesnowmobileinthedark.

ADULTSECTION

OperationWarnings

Wirefencesareaserioushazard. Teach yourchildtoalwaysbeonthealertfor fences.Singlestrandsareespecially dangerous, sincetherecanbeagreat distancebetweenposts.Guywireson utilitypolesarealsodifficultto distinguish.Teachyourchildto reducespeedwhentravelingnear poles,posts,orotherobstacles.

Teachyourchildthatthesoundofthe machinewillmakeitdifficulttohear thesoundofapproachingvehicles.Do notallowyourchildtooperatethesnowmobileonornearroadsand railroadtracks.

Teachyourchildwhatitmeanstodrivedefensively.Nevertailgate andalwaysallowamplestoppingdistances.

Yourchildmustbetaughttoalwaysbealertandpayattentiontothe drivingareaahead.

Whenteachinginexperiencedoperatorstoride, setupnearby predeterminedcourse. Establishboundariesandmakesurethe operator(s)knowandunderstandthem.Makesuretheyknowhowto driveandcontrolthesnowmobilebeforeyouallowthemtomake supervisedlongerdistanceruns.Teachthempropersnowmobile courtesy.

It'sagoodideatopredeterminesomehandsignalsasawayto communicatewithyourchildwhilegivinginstruction.Itmaybe difficultforyourchildtohearyourvoiceoverthesoundofthe snowmobileandthroughahelmet.

ADULTSECTION OperationWarnings

Windchill/TemperatureCharts

The following information is provided as a guidetodeterminewhat temperatures are dangerous when riding your snowmobile.

WINDCHILLCHART(°F)

Estimated Wind Speed in MPa	Actual Thermometer Reading(°F)
	50403	020100-1	0-20-3						0	-40	-50	-60
	Equivalent Temperature(°F)
Calm50	4030201	00-10-20	-3						0	-40	-50	-60
5	48	37	27	16	6	-5	-15	-26	-36	-47	-57	-68
10	40	28	16	4	-9	-21	-33	-46	-58	-70	-83	-95
15	36	22	9	-5	-18	-36	-45	-58	-72	-85	-99	-112
20	32184	-10-25-3	9-53-67-8						2	-96	-110	-124
25	30160	-15-29-4	4-59-74-8						8	-104	-118	-133
30	28	13	-2	-18	-33	-48	-63	-79	-94	-109	-125	-140
35	27	11	-4	-20	-35	-49	-67	-82	-98	-113	-129	-145
40	26	10	-6	-21	-37	-53	-69	-85	-100	-116	-132	-148
Wind Speeds Greater Than 40 MPH Have Little Added Effect	Little Danger (ForProperly Clothed Person)				Increasing Danger			Great Danger
					DangerFromFreezingofExposedFlesh

ADULTSECTION

OperationWarnings

WINDCHILLCHART(°C)

Estimated Wind Speed inKPH	Actual Thermometer Reading(°C)
	50-5-	10-15-20	-25-30-35	-40
	Equivalent Temperature(°C)
050-5	-10-15-20	-25-30-35	-40
101-4-	-11-16-22	-27-33-38	-45-50
20-4	-9-17	-23-29-36	-42-48	-54-61
30-7-13	-21-28-35	-42-48	-55-63-69
40-9-16	-24-32-39	-47-53	-61-69-76
50	-11-18	-26-34-41	-49-57	-64-73-80
60	-12-19	-27-35-43	-51-59	-66-75-82
70	-13-20	-28-36-44	-52-60	-68-76-84
Wind Speeds Greater Than 70 KPH Have Little Added Effect	LittleDanger (ForProperly ClothedPerson)			Increasing Danger			Great Danger
				DangerFromFreezingofExposedFlesh

ADULTSECTION OperationWarnings

ColdWeatherDrive-Away

Wheneverthemachinehasbeenparkedforsomelengthoftime, especiallyovernight, alwaysshakeloosetheskisandtrackforthe operatorbeforeattemptingtoputthemachineintomotion. The throttlewillrequiresomepressuretomovethemachine. Teach the operatornottobeafraidofapplyingpressuretothethrottlebutatthe sametime, teach themnottobetooforcefulwiththethrottlewhich could causethemachinetolurchforward.

PowderSnowOperation

Thisnowmobileisdesignedtooperatebestonsnow.Maneuverability is attained by the steering, skis, and the shifting of the driver's body weight. Maximum control will be attained by shifting body weight. Maneuverability will change for lighter operators.

Ifthemachinebecomesstuckinsnow,freetherunningboardareaand stepdownthesnowinfrontofthemachinesothatwhenthethrottleis openedthemachinewillbeabletoclimbout.Theoperatorcanthen getbackonthemachineandcontinue.Itisbesttoencouragethe operatortostayonestablishedridingareastoavoidthepossibilityof gettingstuck.

TrackLubrication

Donotoperate for prolonged periods in condition so marginal lubrication.

CAUTION

It'sessentialthatthismachinebeoperatedunderconditionswith adequatesnowcover,assnowprovidestheonlylubricationfor thetrack.Failuretodosowillresultinexcessiveewearand damagetothesliderailandtrack.

ADULTSECTION

OperationWarnings SnowandIceBuild-Up

Snowandicebuildupintheunderhoodareacaninterferewiththe steering.

WARNING

Beforeallowingyourchildtodrivethemachine,besurethatice andsnowarenotinterferingwiththesteering.Manuallyturnthe skistotheleftandright.lfdifficultyisencountered,checkforce andsnowbuildupwhichmaybeobstructingthesteeringlinkage.

HardPackedSnow

Teachyourchildtoreducespeedasrequiredtomaintaincontrolinall drivingconditions.Ifnecessary,maximumspeedmayberegulatedby usingtheprocedureoutlinedonpage47.

WARNING

Steeringandbrakingcontrolaresubstantiallyreducedwhen operatingononhardsurfaces,hard-packedsnoworicysurfaces.

ADULTSECTION OperationWarnings DrivingonIce

Itisdangeroustooperateoniceorunderslipperyconditions.Ificeor slipperyconditionsareunavoidable,useextremecautionandoperateat speedsnofasterthanawalk.Neverattemptanabruptchangeof directiononaslipperysurface.Thechanceof“spin-out”increases undertheseconditions.Beingabletoturnasnowmobiledepends primarilyontheskisbeinginsnow.Onhardsurfaces,suchasice,the abilitytoturnisreducedandthemachinewillnotturnverywell.In thissituationitmaybebesttodismountandmoveeitherthefrontor rearofthemachinetopointitintheproperdirection.

Teachyourchildtorespecttheunknown.Childrenmustbetaughtthat theyarenottoventureoutontheirowninunapprovedterritory.They mustlearnthattheymustneverrideasnowmobileonafrozenbodyof water.Youandthedriverofthemachinesshouldknowandunderstand thatsevereinjuryordeathcanresultifthesnowmobileandits occupantbreakthroughtheice.

DrivinginHillyTerrain

WARNING

Travelingonhillyterrainisnotrecommended.Ittakessome maneuveringofbodyweightthatachildmaynotbecapableof, whichwillleavethechildatrisk.Iftravelingonhillyterrainis unavoidable,teachyourchildtoexerciseextremec cautionaswell astheproperoperatingprocedureasoutlinedbelow.

DrivingUphill

Ridinguphillrequiresextremec cautionandshouldbeattemptedonly byexperiencedoperators.Theoperatorshouldassumeastanding positionwithbodyweightkeptlowandforward,acceleratingbefore thestartoftheclimbandthenreleasingthrottlepressureenoughto preventtrackslippage.

Whenreachingthecrestofthehill,theoperatormustslowdownand bepreparedtoreacttoobstacles,sharpdrops,orotherpeopleor vehicleswhichmaybeontheothersideofthehill.

ADULTSECTION

OperationWarnings DrivingDownhill

Whenridingdownhill, the operator must keep the speed at a minimum. It is important to apply just enough throttle to keep the clutch engaged while descending the hill. This will allow use of the engine's compression to help slow the machine, and keep the snow mobile from rolling freely down hill.

WARNING

Teachyourchildtoneverstandorgetoffthemachineonthe downhillsideofthemachine.Seriousinjuryordeathcouldresult.

DrivingResponsibly

Itisuptoyou, theadult, to teach your child the proper and safeway to ride as now mobile. You must set boundaries and adher to them, keeping your child's safety foremost in your mind. Never allow your child to operate this machine without adult supervision.

ADULTSECTION ComponentIdentification

1.Hood8.RearSuspension
2.Headlight9.Nosepan
3. Windshield10. TrailingArm
4. Handlebar11. Skis
5.Seat12.FrontBumper
6.Storage(underseat) 13.RearBumper
7.Taillight 14.SnowFlap
8.Track

ADULTSECTION

ComponentIdentification

1. StopSwitch
2. TetherStrap
   3.ThrottleControl
   4.RecoilStarterHandle
   5.HoodHold-Down
3. ChokeButton
   7.GasCap
   8.IgnitionSwitch
4. Console
   10.BrakeLever
   11.TetherSwitch

ADULTSECTION

Break-InPeriod

EngineBreak-In

Thebreak-inperiodforyournewsnowmobileisdefinedasthefirstten hoursofoperation,orthetimeittakestousethefirsttwotanksfullof gasoline.Nosingleactiononyourpartisasimportantasaproper break-inperiod.Carefultreatmentofanewenginewillresultinmore efficientperformanceandlongerlifefortheengine.Performthe followingprocedurescarefully.

1Driveslowlyatfirst.Selectanareathat'sopenandwillallowroom tofamiliarizeyourselfwithvehicleoperationandhandling.

2Varythethrottlepositions.Donotoperateatsustainedidle.

3Performregularchecksonfluidlevels,controlsandallimportantareas onthevehicle,asoutlinedinthemaintenancesection.

4Breakintheoil. Changetheoilafterthefirst20hoursofoperation.

CAUTION

Nevermixbrandsofoil.Seriouschemicalreactionscancauseoil passageblockage,resultinginsevereenginedamageand voidingofenginewarranty.Theonlyoilrecommendedforthis systemisPolarisPremium4AllSeasonSyntheticoil.Thisoil hasbeenspeciallyformulatedforalltemperaturesandhas extremecoldflowcharacteristics.

Donotoperateatprolongedfullthrottleforthefirstthreehoursof operation. Varythethrottleopeningsandmachinespeeds. This willreducefrictiononallclosefittingmachinedpartsandallow themtobreakinslowlywithoutdamage.

Avoidoperatingoniceorhard-packedsurfaces,roads,etc.The absenceoflubricationandcoolingbysnowwillleadto overheatingofthesliderailandtrackresultinginprematurewear andfailure.Reducespeedsandfrequentlydriveintofreshsnow toallowadequatecoolingandlubricationofthesliderailandtrack surfaces.

Drivewithextrac cautionduringthebreak-inperiod.Perform regularchecksonfluidlevels,lines,andallimportantareasofthe machine.

ADULTSECTION

Break-InPeriod

CAUTION

Mixingbrandsorusinganon-recommendedoilmaycause seriousenginedamage.WerecommendtheuseofPolaris Premium4AllSeasonSyntheticoil.Neversubstituteormixoil brands.

CheckingEngineOil

Beforecheckingorrefillingengine oil,besuretheengineisstoppedand thevehicleispositionedonastable, levelsurface.

NOTE: Alwayschangetheoilifit's becomecontaminated.

1. Removethedipstickandwipeit drywithacleanshoptowel.

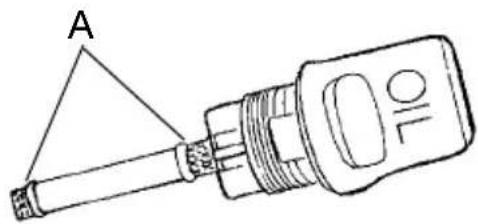

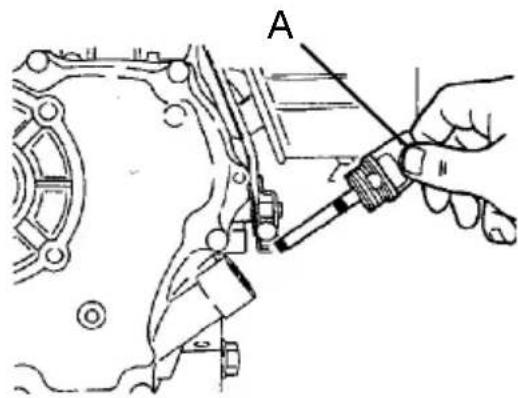

2. Insertthedipstick(A)intotheoil fillhole, thenremoveitandread theoillevel. NOTE: Donot threadthedipstickintothehole toperformtheoilcheck.
3. If the oil level is below the lower level mark (B) on the dipstick, add there recommended oil to the upper mark (C).

B

NOTE:AlwaysusePolarisPremium4AllSeasonSyntheticOilor anyclassSE,SF(APIclassification)orhighergradeoil.If multi-gradeoilisused,oilconsumptionwillincreasewhenthe ambienttemperatureishigh.

ADULTSECTION

Operation

Fuel

When refueling, use either leadedor unleaded gasolinewith a minimum pump octanenumber of 87=(R+M/2)octane.

FuelSafety

WARNING

Gasolineishighlyflammableandexplosiveundercertain conditions.

Alwaysexerciseextremec cautionwheneverhandlinggasoline.

Alwaysrefuelwiththeenginestopped,andoutdoorsorinawell ventilatedarea.

Donotsmokeorallowopenflamesorsparksinornearthearea whererefuelingisperformedorwheregasolineisstored.

Donotoverfillthetank.Donotfillthetankneck.

Ifgasolinespillsonyourskinorclothing,immediatelywashitoff withsoapandwaterandchangeclothing.

If you get gasoline in your eyes orify your wallow gasoline, see your doctor immediately.

Neverstarttheengineorletitruninanenclosedarea.Engine exhaustfumesarepoisonousandcancauselossof consciousnessordeathinashorttime.

Turnthefuelvalveoffwheneverthevehicleisstoredorparked.

WARNING

The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm.

Operatethisvehicleonlyoutdoorsorinwell-ventilatedareas.

ADULTSECTION

Operation

Speed/PerformanceRegulation

Adultshavetheresponsibilityforteachingchildrentheproperandsafe waytorideasnowmobile.Pleasesetboundariesandadheretothem, keepingyourchild'ssafetyforemostinyourmind.Neverallowachild tooperatethismachinewithoutadultsupervision.

Undercertaincircumstancesitmaybenecessaryforanadultto regulatethespeedandaccelerationofthesnowmobilebymovingthe governorleverspring. Usethefollowingproceduretosetthe performancelevel.

CAUTION

Hotenginecomponentscancauseseriousburnstoskin.Always performthefollowingprocedureswhentheengineiscool.

Formaximumperformance, movegovernorspring(A)to hole#3.

Forminimumperformance movegovernorspringtohole #1.

ADULTSECTION

Operation

StartingtheEngine

Neverstartthesnowmobilewithoutcheckingallcomponentstobesure ofproperoperation.RefertothePre-RideCheckbeginningonpage 25.

StartingaColdEngine

1. TurnthekeytoON.
2. Pulltheenginestopswitch(shut-offswitch)uptotheRUN position.
3. PullthechokelevercompletelyoutwardtotheFULLONposition.
   NOTE: Donotdepressthethrottlewhilestarting.
4. Graspthestarterhandleandpullslowlyuntiltherecoilengages, thenpullabruptlytostart.

CAUTION

Extendingthestarterropetoofarorallowingittosnapbackinto thehousingwillcausedamagetotherecoilassembly.Donot extendthestarterropetoitsmaximumlength,anddonotdrop theropehandleduringstarting.

1. If the engines slows or stops, position the chokeknobhalf way into allow proper engine warm-up.

2. Apply the brakes and vary the engine RPM slightly with the throttle to aid in warm-up. When the engine is less smoothly, push the choke all the way in. NOTE: Top prevent excessive weapon the clutch components, don't engage the clutch while performing the warm-up.

StartingaWarmEngine

1. TurnthekeytoON.
2. Pulltheenginestopswitch(shut-offswitch)uptoRUN.
3. Graspthestarterropehandleandpullslowlyuntiltherecoil engages, then pullabruptlytostart.

ADULTSECTION

Operation

EmergencyStoppingProcedures

The following chart lists methods for stopping the engine in the event of an emergency.

SYSTEMWHATITDOESTHROTTLE		CONDITION
EngineStopSwitchInterruptsignitioncircuitAll
IgnitionSwitchInterruptsignitioncircuitAll
TetherSwitchInterruptsignitioncircuitAll
ThrottleSafetySwitchInterruptsignitioncircuitAll
ChokeFloodsengine1/2throttleorless
Brake	Slowsdriveshaft	All

DailyStorage

Wheneverthemachine is placed overnightdailystoragethe followingsteps mustbetaken:

1. Parkthesnowmobileonalevel surfaceandsupportit attherear sothetrackis suspended approximately 4" (20 cm) from theground.

2. Removethekeyandcoverthe machineusingthePolariscover availableforyourmodel. See yourdealerformoreinformation.

ADULTSECTION

Operation

Pre-RideWarm-Up

Alwayswarmuptheengine, drivetrainandtrackbeforeoperatingthe snowmobile. With the snowmobilesecurely supported by therear bumper with a minimum clearance of 4" (10cm) from the ground, use the following procedure to properly warmup the snowmobile.

WARNING

Aloosetrackorflyingdebriscouldcauseseriouspersonalinjury ordeath.Besuretherearsupportisstable.Standclearofthe frontofthemachineandthemovingtrack.Neverholdthe snowmobileuporstandbehinditwhileperformingthisprocedure. Donotusetoomuchthrottleduringwarm-uporwhenthetrackis free-hanging.

1. Start the engine and allow it to warm up to three minutes.
2. Engagethedrivesystemabruptly and allow it to rotate the track several revolutions. NOTE: The outside temperature will determin the amount of track warm-up required.
   3.Shutofftheengineandremovetherearsupport.
3. Grasptheskisbytheirfrontloopsandmovefromsidetoside. Thiswillloosenfrozensnowfromtheskibottoms,allowingthe machinetomoveforwardmoreeasily.
4. The engine, drives system and track are now properly warmed up and them machine can be driven following normals safety practices.

Maintenance

PolarisRecommendedMaintenanceProgram

Your Polarissnowmobilehasbeenengineeredandmanufactured by skilledPolarispersonneltothehighestdegreeofperformance and reliabilitypossible.Inordertomaintainthislevelofquality,your machinemusthaveregularserviceandmaintenanceinspections.

ThePolarisRecommendedMaintenanceProgramisintendedtoassist youinperformingroutingmaintenancethatwillensuretrouble-free enjoymentofyourPolarissnowmobile.Iftherecommendedregular maintenanceandservicechecksarefollowed,youwillbedoingyour partinkeepingthissnowmobileinexcellentoperatingconditionatall times.

Therecommendedmaintenancescheduleforyoursnowmobilecallsfor aserviceandmaintenanceinspectionat50hours,at100hoursandat 150hours. Theseinspectionsshouldbeperformedbyaqualified servicetechnician.

NOTE: Anyreplacementpartsandlaborincurred, with the exception of authorized warranty repairs, are the responsibility of the registered owner. If parts failures occur during the course of the warranty period as a result of owner neglect in performing there recommended periodic maintenance, the cost of repair shall be the responsibility of the owner.

Pleasereadandfollowtherecommendedmaintenanceprogram illustratedonthefollowingpagestomaintaintheperformanceand reliabilityofyourPolarissnowmobile.

ADULTSECTION

Maintenance

Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspection, adjustment and lubrication of important components are explained in the following chart and in the maintenance section of this manual.

Service and adjustments are critical. If you're not familiar with safe service and adjustment procedures, have a qualified dealer perform these operations.

NOTE: The following chartisaguide based on averageriding conditions. You may need to increase frequency based on riding conditions. When inspection reveal the need for replacement parts, we recommend the use of genuine polarisparts, available from your Polarisdealer.

ITEMDAILYWEEKLYOR		BEFORE EXTENDED PERIODOF OPERATION	50 HRS	100 HRS	150 HRS	SEE PAGE
Checkbrakeoperationand adjustment	X58-59
Test engine stopswitch (auxiliaryshut-offswitch)	X					28
Test throttle safety switch	X					27
Test tether switch	X					31
Test throttle lever operation	X					26
Test brake lever operation	X					26
Checksteeringsystem operation	X					26
Checkoperationof headlight andtaillight	X					31
Clean dust andchaff from engine	X
Checkski skags, replace when worn to1/2 originaldiameter	X					76
Inspect fuellines, replace if needed	X					56
Check engine oil level	X					62
Oil the drive chain		Every 10 Hrs
Checktracktension,tightenif necessary		Every 10 Hrs				67
Grease the clutch		Every 15 Hrs				61
Change oil		At 20 Hrs	X	X	X	62

ADULTSECTION

Maintenance

ITEMDAILYWEEKLYOR	BEFORE EXTENDED PERIOD OF OPERATION	50 HRS	100 HRS	150 HRS	SEE PAGE
ChecktrackalignmentX69
CheckdrivechaintensionX60
Checkandtightenanyloose suspensionmountingbolts	X				77
Tightenskisaddleandspindle boltsifloose	X				74
Checkfrontandrearlimiter strapcondition,tightenloose bolts	X				78
Checkhi-faxthickness,replace whenworn(seedealer)	X				72
Tightenrearidlerwheelboltsif loose	X				69
ChecksparkplugconditionX61
Checkforbrakecablewear andadjustment	X				58
ThrottlecablepivotslugXXX	58
Lubricatesteeringpostsupport bracketandpivot(aerosol)		XXX	63
Greaseskispindles		XXX	63
Lubricateskibushingsto spindlearea		XXX	63
Grecelowersteeringpost pivot		XXX	77
Greaserearsuspensionpivot shafts		XXX	77
Lubricatethrottlecable			XX	58
Lubricatechokeslideandcable			XX	58
Inspectexhaustpipeforcracks ordamage		XXX	56

ADULTSECTION

Maintenance

Presentthissectionofyourmanualtoyourdealereachtimeyour snowmobileisserviced.Thiswillprovideyouandfutureownerswith anaccuratelogofmaintenanceandservicesperformedonthe snowmobile.

50HourInitialMaintenanceInspection

AuthorizedPolarisServicingDealer ____

ServicingTechnician ____

DateMileage ____ ____

100HourMaintenanceInspection

AuthorizedPolarisServicingDealer ____

ServicingTechnician ____

DateMileage ____ ____

150HourMaintenanceInspection

AuthorizedPolarisServicingDealer ____

ServicingTechnician ____

DateMileage ____ ____

AdditionalServicesPerformed

AuthorizedPolarisServicingDealer ____

ServicingTechnician ____

DateMileage ____

TypeofService

AdditionalServicesPerformed

AuthorizedPolarisServicingDealer ____

ServicingTechnician ____

DateMileage ____ ____

TypeofService ____

Maintenance

SparkPlugs

Anewenginecancausetemporarysparkplugfoulingeventhoughthe heatrangeisproper,duetothepreservativewhichhasbeenadded duringassemblyoftheenginetocombatrustandcorrosion.Avoid prolongedidlespeeds,asplugfoulingandcarbonizationwillresult.

CAUTION

Using non-recommended spark plug scan result in serious engine damage. Always use Polaris recommended spark plugs.

• UseBR6ESsparkplugs.
  • Proper electrode gap is .028" (.70 mm).
  •Sparkplugtorqueis12-14ft.lbs.(16-19Nm).
  •Alwayscarryysparesparkplugs

Sparkplugconditionisindicativeofengineoperation. Thesparkplug firingendconditionsshouldbereadaftertheenginehasbeenwarmed upandthevehiclehasbeendriven.Immediatelycheckthesparkplug forcorrectcolor.

WARNING

Ahotexhaustsystemandenginecancauseseriousburns.Wear protectivegloveswhenremovingasparkplugforinspection.

1.Normal

Thenormalinsulatortipisgray, tanorlightbrown. Therewillbefew combustiondeposits. Theelectrodesarenotburnedoreroded. This indicate the property and heat range for the engine and the service.

NOTE: Thetipshouldnotbewhite.Awhiteinsulatortipindicates overheating,causedbyuseofanimpropersparkplugorincorrect carburetionadjustments.

2.WetFouled

Thewetfouledinsulatortipisblack.Adampoilfilmcoversthefiring end.Theremaybeacarbonlayerovertheentirenose.Generally,the electrodesarenotworn.Generalcausesoffoulingareexcessiveoil, useofnon-recommendedoil,improperuseofthechoke,orincorrect carburetionadjustments.

ADULTSECTION

Maintenance

SparkPlugs

SparkPlugRemovalandReplacement

1. Removethesparkplugcap.
2. Using the special wrench provided in the tool pouch, rotate the spark plug counterclock wisetoremove.
3. Reversetheprocedure for spark plugin installation. Torqueto 12-14 ft. lbs. (16-19Nm).

FuelValve/FuelLines

Thefuelvalveandthefuellinessshouldbe inspectedregularly.Specialattention shouldbegiventothesystem'sfuelline conditionafterperiodsofstorage.Normal deteriorationfromweatherandfuel compoundscanoccur.

ExhaustSystem

Atapproximately50hours,checkthe exhaustsystemforwearordamage.To inspect,allowtheengineandexhaust systemtocoolcompletely. Openthehoodandinspectthemufflerand pipesforcracksordamage. Checkforweakormissingretaining springsordamper/supportgrommets.

CAUTION

Seriousburnsmayoccurifthisinspectionisperformedwithout allowingadequatetimefortheexhaustsystemtocool.Exhaust system temperatures can exceed 900°F (500°C). Never performthisprocedurewiththeengine runningorshortlyafterit's beenrunning.

Maintenance

Carburetor

Propercarburetoradjustmentiscritical,sinceamixturetoolean(too muchair,toolittlefuel)willresultinoverheatingofthecombustion chambercausingpre-ignitionofthefuel.Thisresultsinpiston burning,bearingfailure,orcompleteenginefailure.Aleanmixture canbetheresultoffuellinerestrictions,foreignmatterinthe carburetor,etc.Amixturetoorich(toomuchfuel,toolittleair)isalso unfavorablebecauseitcanfoulplugsandcausegenerallypoorengine performance.

Allcarburetorshavebeenpre-setatthefactoryforadequatefuel supply.Higheraltitudeoperationmayrequiredifferentadjustmentand settings.Thenumberstampedintheendofthemainjetindicateshe jetsizethatwasinstalledatthetimeofmanufacture.Forquestions aboutoptionaljettingforconditionsinyourarea,seeyourPolaris dealer.

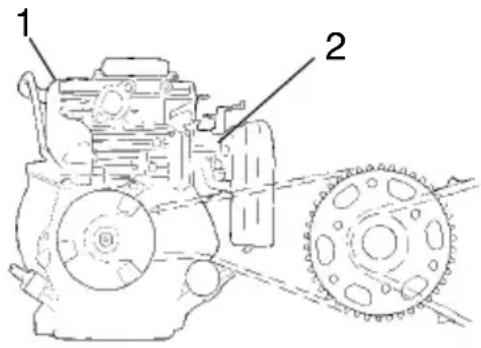

1. Engine

2. Carburetor

CorrectsetupprovidesengineRPM withinitsgivenpowerbandatfull throttlesettingsandalsoprovides maximumefficiencyandoperation atallotherthrottleopenings.See yourdealerforcarburetor adjustments,whichmayincludethe

• Carburetorcomponentchangesforspecificaltitudeandambient temperatures;
• Chokeadjustment;
• Airscrewsettings,ifapplicable;
• IdleRPMadjustments;
• Throttlesafetyswitchchecksandservicing;
• Throttleblocktothrottleflipperclearanceadjustment

CAUTION

Impropercarburetoradjustmentscanresultinsafetyhazardsas wellasseriousenginedamage.Werecommendthatall carburetoradjustmentsbeperformedbyyourPolarisdealer.

ADULTSECTION Maintenance

ThrottleCableLubrication

With the engine off, lubricate the thethrottle cable occasionally. Turn the handle bars to the left and lubricate liberally with Polaris All Season Grease.

Choke/CableLubrication

Lubricatethechokeslideandcables occasionallyasshown.Operatethechoke intermittentlybeforeturningthemachine off.Thisdrawsmoistureoutofthechoke plungerareaandreducesthepossibilityof thechokebecomingfrozen.

ThrottleCablePivotSlug

Lubricatethethrottlecablepivot slug(A)every50hoursortwice ayearusinganaerosollubricant.

BrakeLeverTravel

Measure the clearance between the lever and brake block. Inspections should be made with the lever firmly depressed. Distance B should be more than 3/4" (1.9cm)

Excessivetravelindicatesaneedforbrake cableadjustment.

ADULTSECTION

Maintenance BrakeAdjustment

Ifexcessivebrakelevertobrakeblockclearanceisevident,thebrake cableshouldbeadjusted.Ifproperadjustmentcannotbeachievedby usingthefollowingmethods,checkthebrakebandforexcessivewear. Yoursnowmobiledealerercaninstallanewbrakebandwhennecessary.

WARNING

Improperbrakeadjustmentcanresultinbrakefailure,which couldresultinsevereinjuryordeath.Performtheadjustment proceduresexactlyasoutlinedorseeyourPolarisdealerfor service.

1.Slidethetworubberprotectorcovers(A)backtoexposethecable adjuster.
2. Using an 8 mmwrench to hold the barrel nut (B), loosent the jam nut (C) with a 10 mmwrench.
3. With your lefthand, grasp thecables (D) asclosetotheadjusteras possible. Use your righthand torot at the barrel nut until you have reached the proper brake lever adjustment.

1. Check the actuator linkageto ensure there is adequate freedom of movement for positive brake operation and that all floating parts move freely and that all parts are mounted securely. Tighten hardware as required.

2. Tightentheadjusterjamnut and slidetherubberprotectorsback ontotheadjuster.

3. Thebrakebandisadjustedcorrectlywhen there's1/4"-3/8"(6-10mm)brakelever freeplayandclearancebetweenthebrake leverandblockwiththeleverfully depressedisnomorethan3/4"(1.9cm). Torquethebandboltnut(E)to6ft.lbs. (8Nm).

ADULTSECTION

Maintenance

ChainTensioner

Inspect the chain. The chain should have 1" of deflection as shown. If not, loosen the nut on the chain tensioner (A) and raise until 1" (B) of deflectionisattained.Tightennutto15-18ft.lbs.(20-24Nm).

Whenthechaincomeswithin1/8" (C)ofthemufflermountbracket (D)onthechassis,thechainhasstretchedandmustbereplaced.

Inspectthesprocketsastheyalsobecomewornandoftenneed replacementwhenthechainisreplaced.

ADULTSECTION

Maintenance

Lubrication

NOTE: Drivelinenoise is normal and inherent in each and drives system such as this machine uses.

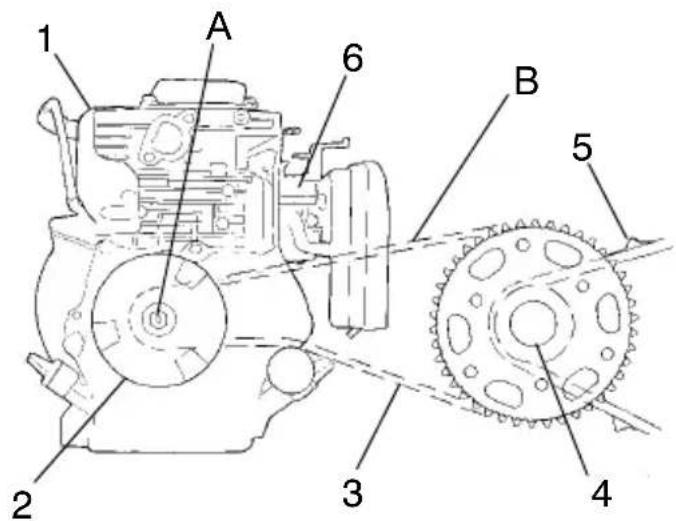

Toensurelonglifeofthesnowmobile'sdriveline,lubricateasfollows:

• LubricatePointA every 15 hour so operation with a small amount of Polaris Premium All Season Grease.
  • LubricatePointBevery10hoursofoperationwithaerosolchain lubeorSAE30oil.

• Engine
  2.TorqueConverter (CentrifugalClutch)

• Chain
  4.DriveShaft
• Track
• Carburetor

ADULTSECTION Maintenance

OilLevel

Maintaintheoillevelbetweenthe safemarks(A)onthedipstick.

OilChange

Changetheoilaftertheinitial20 hoursofoperationandagainaftereach50hours.

WashingYourSnowmobile

Keepingyoursnowmobilecleanwillnotonlyimproveitsappearance butitcanalsoextendthelifeofvariouscomponents.Withafew precautions,yoursledcanbecleanedmuchlikeanautomobile.

Thebestandsafestwaytocleanyourslediswithagardenhoseanda pailofmildsoapandwater.Useaprofessionaltypewashingmitten, cleaningtheupperbodyfirstandthelowerpartslast.Rinsewithwater frequently and dry with a chamois to prevent water spots. NOTE: If warninglabelsaredamaged,contactyouraPolarisdealerforfree replacement.

Ifahighpressuretypecarwashsystemisused,extremecaremustbe taken to avoid water damage to the hood, console, nosepan, decals, and warninglabels.Manyexpensiverepairbillscanresultfromusinghigh pressuredetergentsystems.

NOTE: If a high pressure car wash is used, grease all zerk fittings immediately after washing. Also run the vehicle to evaporate any water that might have entered the engineorexhaust system.

WaxingYourSnowmobile

Yoursnowmobilecanbewaxedwithanyhighqualitybrandof automotivepastewax.Avoidtheuseofharshcleanerssincetheycan scratchthebodyfinish.

ADULTSECTION

Maintenance

ControlsandLinkage

Allbushings, spindleshafts, and tierodendsshouldbecoated with a lightcoatofoilorgrease. Throttle and brake controls and cables should be lubricated with Polaris Premium All Season Grease. Force a small amount of lubricant down the cable.

Bearings

Topreventcorrosionwhichwilldestroythebearings,alwaysgrease driveshaftclutchsidebearingswithahighqualitybearinggrease.

ElectricalConnections

Separate electrical connector blocks and clean corrosion buildup from connectors. Lubricator pack connector block with Nyogel ^™ grease and re-connect. Replace worn or frayed electrical wire and connectors. Besure wiring harness is properly secured away from sharpedges, steering linkage, moving parts, and hot exhaust.

FrontSuspension

Tominimize fatigue on the front shocks and springs during extended storage, it is recommended that the front end of the machine besafely blocked off the ground to remove tension from the shocks and springs.

ADULTSECTION

Maintenance

Engine

Properoff-seasonpreparationoftheengineandfuelsystemisvitalto thepreventionofrustandcorrosionformationonprecisionengine partsduringstorage.

Withoutproperstorage,jetrestrictioncancauseleanconditionsand verypoorslowspeeddrivingquality.

Whenpreparingyoursnowmobileforoff-seasonstorage, we recommendthatyouaddfuelconditioner/stabilizerorPremiumCarbon Clean(PN2871326)tothefueltank.Followtheinstructionsonthe can.Runtheengineforfiveminutestogetadditivesthroughtheentire fuelsystem.Thentopoffthetankwithfreshfuel.

NOTE: This procedure is performed best when the front of the machine is elevated and the engine is tilted rearward.

Storage

Offseasonorextendedstorageofyoursnowmobilerequiresyouto takepreventativemeasurestoaidagainstdeteriorationandtoprolong theusefullifeofmanycomponents.

Yoursnowmobileshouldbestoredinadrygarageorshed,outof directsunlight,andcoveredwithafabricsnowmobilecover.Plastic tarpcancausecondensationtoformandmaydamagesome snowmobilecomponents.

Maintenance

CarburetorProtectionDuringOff-SeasonStorage

Whenpreparingyoursnowmobileforoff-seasonstoragewe recommendthatyouaddafuelconditioner/stabilizerorPremium CarbonClean(2871326)tothefueltank.Followtheinstructionson thecan.Runtheengineforfiveminutestogetadditivesthroughthe entirefuelsystem.Thentopoffwithfreshfuelandturnthefuelvalve toOFF.

Ifstabilizerisnotused, makesurethefuelvalveisOFFanddrainthe carburetor.Catchfuelinacontainerorshopcloth.

Removethesparkplugandpourapproximately5ccofengineoilinto cylinder.Slowlypulltherecoilstartersotheengineturnsovertwoor threetimes.Reinstallplugsecurely.Positionpistonatbottomdead center(BDC).Observeallfiresafetyruleswhendrainingcarburetor. Seegasolinewarningsonpage46.

Slowlypulltherecoilstarterhandleuntilresistanceisfelt.Leaveitin thatposition.Cleantheenginethoroughlywithanoiledcloth.

Ifstabilizerisnotused,turnthefuelvalvetoOFF.Removethe strainercup,placethestraineroveracontainer,andopenthestrainer cocktodischargefuelfromthefueltank.Removethecarburetorfloat chamberboltfromthebottomanddischargefuelfromthecarburetor. Replacebolt.

ADULTSECTION

Maintenance

TransportingtheSnowmobile

Wheneverthesnowmobileistransportedthefollowingmeasures shouldbetaken:

1. Turnthefuelvalveoff.
2. Besurethefuelcapisinstalledcorrectly.
3. Alwaystiethesnowmobiletothetransportingunitsecurely using suitablestraps.

NOTE: Transportation to and from a Polaris dealer is the responsibility of the snow mobile owner. Any expenses involved will not bereimbursed.

FallTune-Up

Toobtainmaximumperformanceandusefromyoursnowmobile,we encourageyoutoarrangeforafallservicetune-upwithyourPolaris dealer.Hehasanexperiencedandtrainedservicetechnicianwhois interestedinkeepingyourmachineinpeakoperatingcondition.

Towing

Donotusethissnowmobiletotow.

Ifasituationarisesrequiringthesnowmobileetobetowedbyanother snowmobile,attachthetowropetothespindles,nottotheskitoe loops.

ForYourProtection

Foryouraddedprotectionitisagoodideatocarrythefollowingitems inyoursnowmobilewhentravelingfartherthanafive-minutewalk fromhome.

• ExtraSparkPlugs
  -FirstAidKit
• WinterSurvivalKit
• ExtraGloves
• Owner'sManual

ADULTSECTION

Maintenance

WARNING

Yoursnowmobileispropelledbyarevolvingtrack,whichmustbe partiallyexposedforproperoperation.Seriousinjuriesmaybe causedbytheoperator'shands,feetorclothingbecoming entangledinthetrack.Bealert.Alwayssitproperlyontheseat.

TrackandSuspension

Undernormalconditions moderatetracktensionshould bemaintainedduringsummer storage.Therearofthe machineshouldbesupported offthegroundtoallowfree hangingofthetrack.

TrackTension

Trackadjustmentiscriticalfor properhandling.Always maintaincorrecttension and alignment.

Tensionadjustmentsshouldbe madeonlyafterthetrackis warmedupandlimber.

1. Turnthemachineoff.
2. Lifttherearofthemachine andsafelysupportitoffthe ground.

3.Hanga10poundweight(A) 8inchesfromthecenterof therearidlerwheel.Thedeflectionatthispointwiththisamountof weightshouldmeasure3/4" betweenthebottomofhi-fax(B)and theinsideofthetrack.

NOTE: Measure at the point where the weight is hanging.

1. Checkforspecifiedslackbetweenthewearsurfaceofthetrackclip andtheplastichi-fax(C).

ADULTSECTION

Maintenance

TrackAdjustment

Ifthetrackneedsadjustment:

1. Loosenrearidlershaftbolt(D).
2. Tightenorloosenthetrackadjustingscrews(E)asnecessary to provide equal adjustment on both sides of the track.
3. Repeat measurement on the otherside of the track. NOTE: Check more frequently when the machine is new.
4. Startmachine and slowly rotate the track at least five revolutions, let the track stop rotating by itself (donot apply brakes).
5. Checktrackalignment(sidetoside)bycomparingthedistance fromthedrivelugtotheHi-faxonbothsides.Readjustuntil centered.
6. Tightenidlershaftbolt.
7. Readjustthetoeblocktoproperspacingandtighten.

ADULTSECTION

Maintenance

TrackAlignment

Aperiodiccheckshouldbemadetoseethatthetrackiscentered and running evenlyonthesliderails.Misalignmentwillcauseexcessive weartothetrackandsliderail.

WARNING

When performing the following checks and adjustments, stay clear of all moving part to avoid serious personal injury.

Beforecheckingtracktension,makesurethetrackcontainsno objectsthatcouldbethrownoutwhilethetrackisrotating.Keep clearoftrack.Thisincludesbutisnotlimitedtohands,tools,feet andclothing.Makesurenooneisstandingclosetothemachine whilethetrackisrotating.

1. Safelysupporttherearofthemachine withthetrackoffthegroundusinga jackstand.

2.Starttheengineandapplyasmall amountofthrottleuntilthetrack turnsslowlyatleastfivecomplete revolutions.Stoptheengine.

1. Inspecttrackalignmentbylooking throughthetrackwindowstomake suretherails(A)areevenlyspaced oneachside.Ifthetrackrunstothe left,loosentheleftidlerwheel mountingboltandtightentheleft trackadjustingbolt.Ifthetrackruns totheright,loosentherightidler wheelmountingboltandtightenthe righttrackadjustingbolt.

2. Afteradjustmentsarecomplete, be suretotightenlocknutsandidler shaftbolts.Torqueto35-40ft.lbs. (47-54Nm).

5.Repeatstep2toverifyproperalignment.

ADULTSECTION Maintenance

TrackWarmUp

Whenstoringyoursnowmobile outsideovernight,itis recommendedthatthetrackbe warmedupprioritodrivingthe snowmobile. Thisreducesdrive clutchwear.Towarmupthetrack, safelysupporttherearofthe snowmobileofftheground,start theengineandabruptlyengagethe clutch.Allowthetracktoturnfora shorttime.Releasethethrottle, applythebrakesandshutthe engineoffpriortoloweringittothe ground.

WARNING

Neverholdthesnowmobileupor standbehinditwhilewarmingupthe track.Aloosetrackorflyingdebris couldcauseseriouspersonalinjury ordeath.

Maintenance TrackInspection

WARNING

Inspectingthetrackwhiletheengineisrunningcanresultin seriouspersonalinjuryifthetrackshouldbeingtomove.Never inspectthetrackwiththeengineerunning

Usingahoistorjackstand, safelyliftandsupportthe rearofthesnowmobileoff theground.Rotatethetrack byhandtocheckforany possibledamage.

Toinspecttrackrods, carefullyexaminethetrack alongtheentirelengthof eachrod,bendingthetrack andinspectingforbreakage. Thethreemostcommon placeswherebreakage occursareshowninthe illustration.

Checkthetrackclipsandtightenifloose.Ifanyroddamageisfound, thetrackshouldbereplaced.

WARNING

Seriouspersonalinjuryordeathmayoccurifthesnowmobileis operatedwithadamagedtrack.Brokentrackrodsareaserious hazard,sincetheycancausearotatingtracktocomeoffthe machine.Neveroperatethesnowmobileorrotateunderpowera trackthat'stornordamaged.

NOTE: The120PROXtrackhasmoldedintrackclips. It is commonforathinlayerofrubbertodetachfromclipareaandpeeloff duringinitialuse.

ADULTSECTION Maintenance

Hi-FaxReplacement

The120PROXusesXTRA LifestyleHi-Fax.Whenany areaoftheHi-Faxiswornto 7/16" (1.1cm),itshouldbe replaced.Thiswillsavewear onothervitalcomponents. The sliderail is designed operate in conditions with adequates now cover to

providesufficientlubrication.Excessivewearmaybeduetoimproper alignment,impropertrackadjustmentormachineoperationonsurfaces without snow. Take the machine to your dealer for Hi-fax replacement.

ADULTSECTION

Maintenance

TrackLubrication

Trackfailure, lossof vehicle control and braking ability can result from extended use of this vehicle on surfaces providing marginal lubrication between hi-fax and track guide clips. Examples of marginal lubrication would include lakes without snow cover, icy trails and no-snow conditions.

Thesliderailisdesignedtooperateinconditionswithadequatesnow coverinordertoprovidesufficientlubrication.Excessivewear indicatesinsufficientlubrication.Newhi-faxcancausefasterheat buildupinlimitedlubricationthanusedhi-fax,resultinginexcessive wear.

NOTE: Trackdamageorfailurecausedbyoperationoniceorpoor lubricationconditionsmayvoidthetrackwarranty.

SteeringSystem

WARNING

Improperalignmentoradjustmentmaycauselossofsteering control,resultinginseriousinjuryordeath.Donotattemptto changetheskialignment.ContactyourPolarisdealer.

ThesteeringsystemsonPolarissnowmobilescanbeadjustedwithski toealignment.Impropertoealignmentcancauseerraticsteering. Consultyourdealerifaneedforadjustmentsshouldbecomenecessary.

ADULTSECTION Maintenance

SteeringInspectionandAdjustment

Thesteeringassemblyofthe machineshouldbechecked periodicallyforloosenutsand bolts.SeeA,B,C,D,E,F,and Ginillustrationatright.

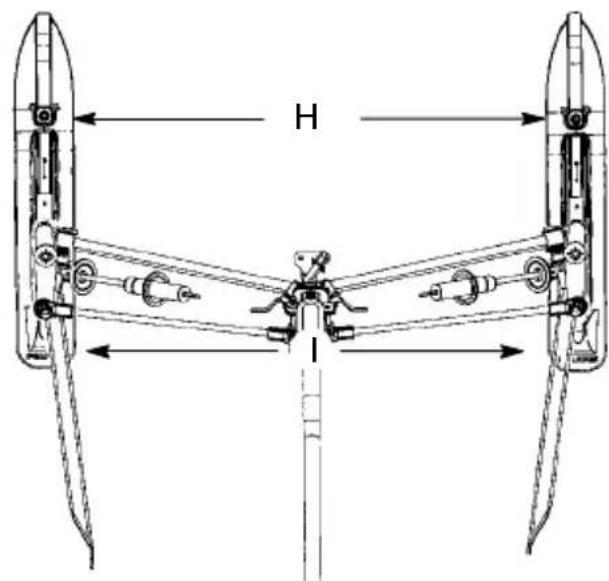

Withhandlebarsinstraight aheadpositionandmeasuring fromthestraightedgeofthe skis,themeasurement betweentheskisatpointH shouldbe1/8inchesgreater thanpointI,asshownonthe followingpage.NOTE:This measurementshouldbetaken withthevehicleweight compressingthesuspension. Iftheskisaremisaligned,we recommendthatyourdealer makethenecessary adjustments.

ADULTSECTION

Maintenance HandlebarAdjustment

6.Slidethehandlebarpad upwardtoaccesstheadjuster bolts.Ifadditionalroomis required,unziponeofthe handlebarpadzippersandroll thepadtotheside.

1. Toadjust, removetheupper flangenutandcarriagebolt.

2. Loosenthelowerflangenut onlyenoughsothebracketcan movefreely.

3. Position the handlebartothedesiredheightandre-installtheuppercarriageboltandflangenut.

4. Torquetheflangenutsto15-17ft.lbs.(20-23Nm).

5. Reinstallthehandlebarpad.

ADULTSECTION Maintenance

SkiSkags

Theskag(A)isareplaceablebar attachedtotheundersideof theski.Thepurposeofthe skagistoassistinturning thesnowmobileandto preventthewearingawayofthe skicausedbycontactwithroads andotherbareterrain.We recommendthatskagsbechecked onceaweektomaintainpositive steeringcharacteristics. Skagsmustbereplacedwhenworntohalf theiroriginaldiameter.

NOTE: Seedealertrackstuddingandskagchartforrecommended skags.

WARNING

Wornskisand/orskagswilladverselyaffecthandlingandcan causelossofvehiclecontrol,whichcanleadtoseriousinjuryor death.Replacewornskisand/orskagswheninspectionreveals wear.

SkagReplacement

1. Raise and support the front of the machines to these is are approximately 6" (15.2cm) from the ground.

2.Removetheattachingnutsandprystheskagdownward.

1. Removetheforwardportionoftheskag.

Reversethisprocedurefornewskaginstallation.

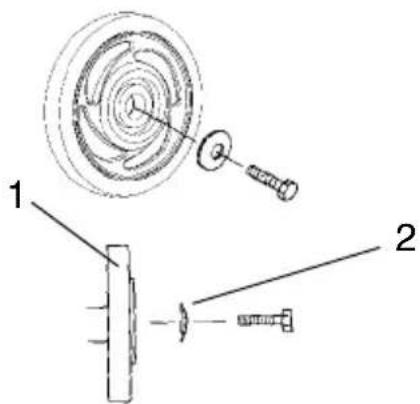

NOTE: If therearidlerwheel assembly(1) washersareremoved, besuretheyarereinstalled with the domedsideofthewasherfacing out(2)asshown.

ADULTSECTION

Maintenance

SuspensionLubrication

Tomaintainridercomfortandtoretardwearofthepivotshafts,the suspensionpivotshaftsshouldbelubricatedwithPolarisPremiumAll SeasonGreaseseveraltimesduringtheseasonandagainbefore summerstorageeeachyear.Theridingcharacteristicsofthe snowmobilewillbeaffectedbylackoflubricationoftheseshafts.

NOTE: Agreasegunkitcompletewithgreaseandadaptors
availabletolubricateallfittingsonPolarissnowmobiles.Seepage 82.

IMPORTANT: Makeitaweeklypracticetocheckforlooseboltsand nutsonthesuspensionsystem.Ifanylooseboltsarefoundontherail besuretocleanthethreadsandapplyLoctite262beforetightening.

ADULTSECTION

Maintenance

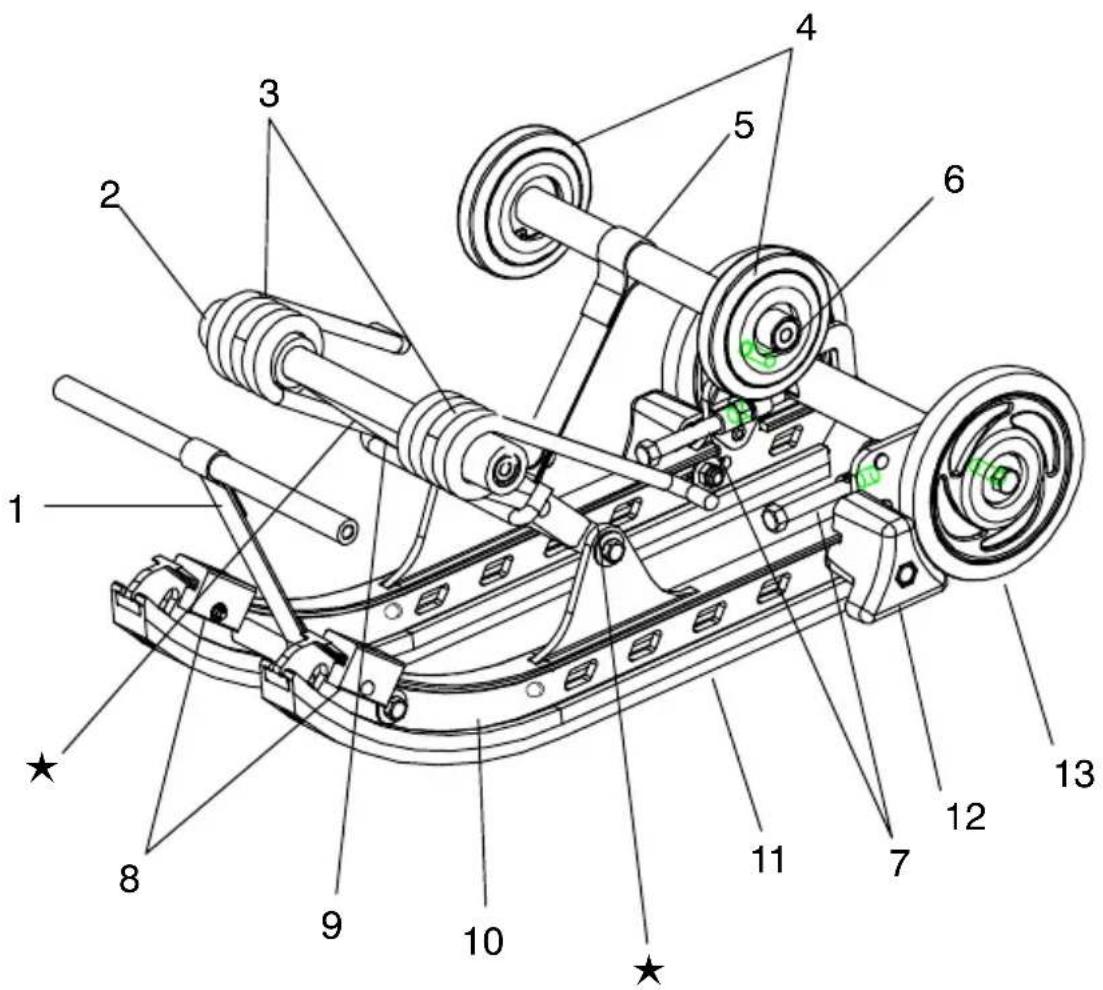

SuspensionComponents

SuspensionLubricationpointsareindicatedbya★.

1. FrontLimiterStrap8. RailBumper
2. TorsionSpringSleeves9. TorqueArm
   3.TorsionSpring10.Rail
   4.CarrierWheel11.Hi-fax
3. RearLimiterStrap12. ToeGuard
   6.Spacer13. IdlerWheel
4. Adjuster Bolts

ADULTSECTION

Accessories

MaintenanceltemsandAccessories

Thetoolsandmaintenanceitemsmentionedinthisbook,aswellasa longlineofotherPolarisaccessories,areavailableatyourPolaris dealer.

PaintCodes

ColorDescriptionPolaris“P”No.RawMaterialNo.
IndyRedP29385	20297
IndyBlackP06785	20246

PaintscanbeordereddirectfromMidwestIndustrialCoatings(612)942-1836.Mixasdirected.

Troubleshooting

Contact your Polaris dealer for service if you're unable to identify solutions using the following chart.

EngineTurnsOver, FailstoStart

PossibleCauseSolution
Tether switch not engaged	Install tether switch/strap
Engine stop switch not on	Pull stop switch up to RUN position
Throttle safety switch malfunction	See your Polaris dealer
Outoffuel	Refuel
Clogged fuel valve or filter	Inspect and clean or replace
Water is present in fuel	Drain the fuel system and refuel
Fuel valve is turned off	Turn the fuel valve on
Old or non-recommended fuel	Replace with new fuel
Fouled or defective spark plug(s)	Inspect plug(s), replace if necessary
No spark to spark plug	Inspect plug(s), verify stop switch is on
Overuse of choke	Inspect, clean and/or replace spark plugs
Mechanical failure	See your Polaris dealer

SPECIFICATIONS

JettingChart

	Ambient Temperature	Below -30°F (-34°C)	-30° to -10°F (-34° to -23°C)	-10° to +10°F -23° to -12°C	+10° to +30°F -12° to -1°C	+30° to +50°F -1° to +10°C	Above +50°F Above +10°C
Altitude in Meters (Feet)	0-600 (0-2000)	7572.	572.572.5	7070
	600-1200 (2000--4000)	7572.	572.572.5	7070
	1200--1800 (4000-6000)	72.570	707067.56	7.5
	1800-2400 (6000-8000)	7067.	567.567.56	6565
	2400-3000 (8000-10000)	67.565	656562.56	2.5
	3000-3600 (10000-12000)	6562.	562.562.56	6060

CapacitiesandDimensions
BodyStyleMiniIndy
Riders/Weight1/150lbs.(68kg)maximum	m
EngineOil.6qts.(.57l)
Dry Weight(est.)147.5lbs.(67kg)
FuelTank.5gal.(1.9l)
Height31in.(78.7cm)
Length75in.(190.5cm)
SkiCenterDistance30in.(76.2cm)
Width34in.(86.4cm)
BrakeType	Mechanical
ClutchType	Centrifugal
TrackLength	69in.(175.3cm)
TrackWidth	10in.(25.4cm)
DriveChain Length#40
Suspension
FrontType	IFS
IFSShockType	Mini
RearType	MiniIndy
Engineand Cooling
EngineModelNumber	EH122PM013
AlternatorOutput	50watt@ 3600rpm
Bore x Stroke	60 x 43 mm
Displacement	121cc
Carburctor Model	Mikuni BV18
MainJet	72.5
PilotJet	50
Cutaway	170 Throttle Valve
FuelScrew1.5Turns
PilotAirJet	1.3
Idle RPM	1600+/-200
Cooling	Air
Cylinders	1
Ignition Timing	23° BTDC @ 3600 rpm
Ignition Type	Flywheel Magneto (solid state)
OilInjection	0W-40Synthetic
Spark PlugNGKBR6ES
Spark Plug Gap	.028 in. (.70 mm)
Minimum Fuel Requirement	87 Octane Non-Oxygenated or 89 Octane Oxygenated

POLARISPRODUCTS

PartNo.Description
EngineLubricant
2871281Premium	Synthetic0W-40EngineOil(4-Cycle)(qt.)
Gearcase/TransmissionLubricants
2873602Premium	SyntheticGearcaseLubricant(qt.)
2871653Premium	FrontGearcaseLube(8oz.)
2871654Premium	DriveHubFluid(8oz.)
Grease/SpecializedLubricants
2871312GreaseG	unKit,PremiumAllSeason(3oz.)
2871322Premium	AllSeasonGrease(3oz.cartridge)
2871423Premium	AllSeasonGrease(14oz.cartridge)
2871460StarterDr	veGrease(2oz.)
2871515Premium	U-JointLube(3oz.)
2871551Premium	U-JointLube(14oz.)
2871329Dielectric	Grease(NyogelTM)
Coolant
287132360/40Cod	lant(gal.)
287153460/40Cod	lant(qt.)
Additives/Miscellaneous
2870791FoggingO	il(12oz.Aerosol)
2871326CarbonC	eanPlus(12oz.)
2870652FuelStabilizer	(16oz.)
2870990DOT3Brake	Fluid(12oz.)
2872893EngineDegreaser	(12oz.)

ServiceAndWarrantyInformation ObtainingServiceandWarrantyAssistance

ReadandunderstandtheservicedataandthePolariswarranty informationcontainedinthismanual.ContactyourPolarisdealerfor replacementparts,serviceorwarranty.Yourdealerreceivesfrequent updatesonchanges,modificationsandtipsonsnowmobile maintenance,whichmaysupersedeinformationcontainedinthis manual.YourdealerisalsofamiliarwithPolarispoliciesand proceduresandwillbehappytoassistyou.

When contacting us about parts, service, or warranty, always provide the following information:

1.Serialnumber5.Detailsoftroubleexperienced
2. Modelnumber6. Lengthoftime and conditionsofoperation
3. Dealername7. Previous correspondence
4. Dateofpurchase

UsethepageprovidednearthefrontofyourOwner'sManualtorecord theidentificationnumbersofyoursnowmobileanditsengine.

PolarisCustomerService

UnitedStates:1-763-417-8650

Canada:1-204-925-7100

PolarisAnti-TheftSystem

The Polarisanti-theftsystem(PATS)monitoringprogramisdesigned toaidownersofregisteredsnowmobilesinrecoveryofstolen machines.

Administration

1. Polarissnowmobileownerreportstheft.

A. In addition to notifying the proper law enforcement officials, the owner must call Polaris Customer Service.
B. Owners must provide their name, address, telephone number and them model and serial number of stolen machines.

1. Polariswarrantywillprovidealldealershipswithamonthly updatedlistofallstolenunitstofurthermonitorthefts.

2. Polariswarrantywillaidinnotifyingtheproperownerwhenaunit isrecovered.

WARRANTY

LimitedWarranty

PolarisSalesInc.,2100Highway55,Medina,MN55340,providesaONEYEARLIMITEDWARRANTYonallcomponentsofthePolarissnowmobileagainstdefectsin materialorworkmanship.Thiswarrantycoversthepartsandlaborchargesforrepairor replacementofdefectivepartsthatarecoveredbythiswarranty.Thewarrantybeginson thedateofpurchase.Thiswarrantyistransferrabletoanotherconsumer,duringthewarrantyperiod,throughaPolarisdealer.

Registration

Atthetimeofsale,the WarrantyRegistrationFormmustbecompletedbyyourdealer andsubmittedtoPolariswithintendays.Uponreceiptofthisregistration,Polariswill recordtheregistrationforwarranty.Noverificationofregistrationwillbesenttothe purchaserasthecopyoftheWarrantyRegistrationFormwillbethewarrantyentitlement.Ifyouhavenotsignedtheoriginalregistrationandreceivedthecustomercopy, pleasecontactyourdealerimmediately.NOWARRANTYCOVERAGEWILLBE ALLOWEDUNLESSTHESNOWMOBILEISREGISTEREDWITHPOLARIS.

Initial dealer preparation and set-up of your snowmobile is very important in ensuring trouble-free operation. Purchasing a snowmobile in the crate or without proper dealer set-up will void your warranty coverage.

WarrantyCoverageandExclusions

Limitationsofwarrantiesandremedies

This warranty excludes any failures not caused by defect in material or workmanship. The warranty does not cover accidental damage, normal wear and tear, abuse or improper handling. The warranty also does not cover any snow mobile that has been structurally altered, neglected, improperly maintained, used for racing or used for purposes other than for which it was manufactured. The warranty does not cover any damage that occurs during trailer transitor as a result of unauthorized service or parts. In addition, this warranty does not cover physical damage at paint for finish, stress cracks, tearing or puncturing of upholstery material, corrosion or defects in parts, components or the snow mobile duetofire, explosions or any other cause beyond Polaris' control.

This warranty does not cover the use of unauthorized lubricants, chemicals, or fuel that are not compatible with the snow mobile.

The exclusiveremedyforbreachofthiswarrantyshallbe, at Polaris' exclusive option, repairor replacement of any defective materials, or components or products. THEREM-EDIESSETFORTHINTHISWARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARISSHALL HAVENOLIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL ORSPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESSOR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEG-LIGENCE, OR OTHER TORTOR OTHERWISE. Somestates donot permit the exclusion or limitation of incidental or consequential damages or implied warranties, so the above limitations are exclusions may not apply to you if inconsistent with controlling statelaw.

Limitationsofwarrantiesandremedies

ALLIMPLIEDWARRANTIES(INCLUDINGBUTNOTLIMITEDTOTHEIM- PLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICU- LARPURPOSE)ARELIMITEDINDURATIONTOTHEABOVEONEYEAR WARRANTYPERIOD.POLARISFURTHERDISCLAIMSALLEXPRESSWAR- RANTIESNOTSTATEDINTHISWARRANTY.Somestatesdonotallowlimitations onhowlonganimpliedwarrantylasts,sotheabovelimitationmaynotapplytoyouif inconsistentwithcontrollingstatelaw.

HowtoObtainWarrantyService

If yoursnowmobilerequireswarrantyservice,youmusttakeittoaPolarisdealerauthorizedtorepairPolarissnowmobiles.WhenrequestingwarrantyserviceyoumustpresentyourcopyoftheWarrantyRegistrationformtothedealer.(ThecostoftransportationtoandfromthedealerisYOURresponsibility).Polarisrecommendsthatyouuseyouroriginalsellingdealer;however,youmayuseanyPolarisServicingDealertoperformwarrantyservice.

Pleaseworkwithyourdealertoresolveanywarrantyissues. Yourdealerwillcontactthe appropriatepersonnelatPolarisifadditionalassistanceisneeded.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If any of the aboveterms are void because of state or federal law, all other warranty terms will remain ineffect.

EngineOil

1. Mixingoilbrandsorusingnon-recommendedoilmaycauseenginedamage. We recommendtheuseofPolarisengineoil.
2. Damageresultingfromtheuseofnon-recommendedlubricantsmaynotbecovered bywarranty.

WARRANTY

ConditionsandExclusions

Inordertoqualifyforwarranty, theproductmusthavebeenproperlysetupandtestedby aPolarisDealer(ifapplicable).FailurecofanydealertoperformtherequiredvehiclePre--DeliveryInspection, performallapplicableservicebulletinsandhavetheconsumersign thePDIfrompriortodeliverymayvoidthewarranty.Failuretoprovideproofofrequiredperiodicmaintenanceuponrequestmayresultindenialofwarrantycoverage.Use oftherecommendedPolarisproductsforlubricationandmaintenanceasdirectedbythe Owner'smanualishighlyrecommended.Shouldafailureoccurduringthewarranty periodresultingfromtheuseofnon-recommendedproducts,warrantycoveragemaybe denied.

Warranty does not apply to part sex exposed to frictions surfaces, stresses, environmental conditions and/or contamination. The following items are excluded from warranty consideration if the failure was duetowear or not the direct result of a defect:

SkisSkiwearrods

TracksSliderails

SuspensioncomponentsFinishedandunfinishedsurfaces

BrakecomponentsCarburetor/Throttlebodycomponents

SeatcomponentsEnginecomponents

ClutchesandcomponentsDrivebelts

SteeringcomponentsHydrauliccomponents

Batteries

Circuitbreakers/Fuses

Lightbulbs/Sealedbeamlamps

Electroniccomponents

Idlerwheels

Warranty appliesto theproductonlyanddoesnotallowforcoverageofpersonalloss. Someitemsareconsidered“consumable,”meaningtheyareconsideredpartofnormal maintenanceorpartofcompletinganeffectiverepair.Thefollowingitemsareexcluded fromwarrantycoverageintheeventofawarrantyclaim:

SparkPlugs

Lubricantssuchasoil,grease,etc.

Filters

Batteries(unlessdefective)

Fuel

Cosmeticdamage/repair

Sealants

Coolants

Hotelfees

Meals

Towingcharges

Shipping/handlingfees

Mileage

Productpick-up/delivery

Rentals/Loss of product use

Loss of vacation/personal time

This warranty also excludes failures resulting from improper lubrication; improperening timing; improper fuel; surface imperfections caused by external stress, heat, coldor contamination; operator error or abuse; improper component alignment, tension, adjustment or altitude decompensation; failure due to snow, water, dirt or other foreign substance ingestion/contamination; improper maintenance; modified components; use of aftermarket components resulting in failure; unauthorized repairs; repairs made after the warranty period expires or by an unauthorized repair center; use of the product in competition or for commercial purposes. Warranty will not apply to any product which has been damaged by abuse, accident, fire or any other casualty not determined a defect of materials or workmanship.

PolarisSecondYearEngineServiceContract

Second Year Engine Service Contract is standard on all eligible new and unused snow mobile that were Snow checked through an authorized polaris dealer during the March/April Snow Check promotion. The free Second Year Engine Service Contract is honored by all authorized polarissnowmobile dealers in North America and is transferable 120 days after the original purchase date, free of charge, through any polaris snowmobile dealer. Coverage on Snow Check units automatic. Although you donot receive awarrantycard, your dealership should have printed a copy of the warranty registration form. This form is your proof of warranty.

ConsumerExclusions

• Eachrepairvisitafterthefirsttwelvemonthsofstandardwarrantycoverageissubject toa\$50deductible.
• ThefreeSecondYearEngineServiceContractappliestothefirst5,000milesortwo (2)calendaryearsfromdateofpurchase,whichevercomesfirst.Tamperingwiththe odometershallvoidallwarranties/servicecontracts.Noextensionstocoverageunder thisengineservicecontractcanbegiven.Usedsnowmobilesarenoteligibleunder thisprogram.
• Snowmobilesusedforcommercialpurposesorforracingareexcludedfromcoverage.

Coverage

Coverageforsecondyearenginefailuresduetodefectsinmaterialsandworkmanship willbedeterminedbyPolarisinitsssolediscretion.Coverageisautomaticwithno additionalpaperworkrequired.ThefreeSecondYearEngineServiceContractissubject toa\$50deductiblepervisit.Regular,documentedservicemaintenancevisitsare requiredtovalidatethiswarranty.

Apartiallistofitemsexcludedfromcoverageincludes:

• Damage due to accident, fire, explosion, theft, or other causes beyond Polaris' control.
• Damagecausedbythefailureofothercomponentsofthesnowmobile.
• Failurescausedbyimproperfueloroil.
• Pistonseizures, unless caused by a defective engine component.
• Failurescausedduetoimproperadjustments.
• Failureduetounauthorizedservice.

- Failuresduetolackofserviceasrequiredintheowner'smanualorPolarisupdates. Thisincludesoff-seasonstorageaslistedintheowner'smanual.

- Failureduetouseofunauthorizedpartsormodifications.

- Normalwearparts, including but not limited to spark plugs, hoses, batteries, controls, and recoilropes are excluded from coverage. Gaskets are recovered, as are intake and exhaust manifold sex excluding paint coverage.

- Electrical coverage is limited to the ECU box, coils, stator plate, and sensors. Wiring and other electrical components are excluded from coverage.

- Coolingsystemcoverageislimitedtothewaterpumpassemblyandcomponents,fan, fanbearings,temperaturesensor,gasketandseals.

• Non wear related throttle body parts are covered. The fuel pump is covered.

- Clutchesandrelatedclutchparts,includingbutnotlimitedto,thedrivebelt,areexcludedfromcoverage.

- Electrical components are excluded from coverage.

- Gearcasesandtransmissionsareexcludedfromcoverage.

WARRANTY

ExportedVehicles

EXCEPTWHERESPECIFICALLYREQUIREDBYLAW, THEREISNOWAR- RANTYORSERVICEBULLETINCOVERAGEONTHISVEHICLEIFITISSOLD OUTSIDETHECOUNTRYOFTHESELLINGDEALER'SAUTHORIZEDLOCA- TION.

Thispolicydoesnotapplytovehiclesthathavreceivedauthorizationforexportfrom PolarisIndustries.Dealersmaynotgiveauthorizationforexport.Youshouldconsultan authorizeddealertodeterminethisvehicle'swarrantyorservicebulletincoverageifyou haveanyquestions.

Thispolicydoesnotapplytovehiclesregisteredtogovernmentofficialsormilitarypersonnelonassignmentoutsidethecountryofthesellingdealer'sauthorizedlocation.

ThispolicydoesnotapplytoSafetyRecalls.

HowtoGetService

IntheCountrywhereyourvehiclewaspurchased:

WarrantyorServiceBulletinrepairsmustbedonebyanaauthorizedPolarisdealer.Ifyou moveoraretravelingwithinthecountrywhereyourvehiclewaspurchased,Warrantyor ServiceBulletinrepairsmayberequestedfromanyaauthorizedPolarisdealerwhosells thesamelineasyourvehicle.

OutsidetheCountrywhereyourvehiclewaspurchased:

If you are traveling temporarily outside the country where your vehicle was purchased, you should take your vehicle to an authorized polaris dealer. You must show the dealer photo identification from the country of the selling dealer's authorized location as proof of residence. Upon residence verification, the servicing dealer will be authorized to perform the warranty repair.

IfYouMove:

If you moveto another country, besure to contact Polaris Customer Assistance and the customs department of the destination country before you move. Vehicles importation rules vary considerably from country to country. You may be required to present documentation of your moveto Polaris Industries in order to continue your warranty coverage. You may also be required to obtain documentation from Polaris Industries in order to registry your vehicle in your new country.

If Purchased From A Private Party:

If you purchase a Polaris product from a private citizen outside of the country in which the vehicle was originally purchased, all warranty coveragewill bedenied.

Notice

If your vehicle is registered outside of the country where it was purchased, and you have not followed the procedures set out above, your vehicle will no longer be eligible for warranty or service bulletin coverage of any kind. (Vehicles registered to Government officials or military personnel on assignment outside of the country where the vehicle was purchased will continue to be covered by the basic warranty.)

ForquestionscallPolarisCustomerAssistance(seepage83).

INDEX

A

Accessories79.

AutoChainTensioner60.

B

BrakeAdjustment59.

BrakeLeverTravel58.

Break-InPeriod44-45. . . . . . . . . . . . .

C

Carburetor57.

CarburetorProtection65.

CheckingEngineOil45.

ChokeandCableLubrication58

ClutchingChart 80.

ComponentIdentification ..... 42-43

E

ElectricalConnections 63

EmergencyStoppingProcedure ..... 49

EngineBreak-In 44.

EngineStopSwitch 28

EquipmentModifications ..... 10

ExhaustSystem 56.

F

FallTune-Up 66

FrontSuspension 63.

Fuel Safety 46

H

Hi-FaxInspection,Replacement .... 72

J

Jetting Chart 80

K

Know Your Snowmobile ..... 14-18

L

Lubrication 61

M

MaintenanceInspection 54

MaintenanceProgram 11,51

0

Oil 45

OilChange 62.

OilLevel 62

Operation 46-50

OperationWarnings 29-41

OxygenatedFuels 46.

P

PaintCodes79.

Pre-RideWarmUp 50. . . . . .

Pre-RideCheck 19-20.....

Preservation of the Environment ... 7-8

R

RidingRules 21-24

S

Safety 10-13

SafetyDecals 12

Serviceand WarrantyInformation 83-84

Signalwords 13

SkagReplacement 76.....

SkiSkags 76

SparkPlugs 55-56.....

Specifications 80-81

SpeedRegulation 47.....

Starting a Cold Engine 48

Starting.a Warm Engine 48

StartingtheEngine 48.

Steering Inspection and Adjustment . 74

SteeringSystem 73.

Storage 49,63-64

Maintenance 51-78

SuspensionComponents 78

SuspensionLubrication 77

Symbols 13

T

Throttle Cable Lubrication 58

Throttle Cable Pivot Slug 58

Throttle Safety Switch 27

Towing 66

TrackAdjustment 68.

TrackAlignment 69.

TrackandSuspension67. . . . . . . . . . . .

TrackInspection 71.

TrackLubrication 73.

TrackTension 67

TrackWarm-Up 70.

Transporting 66

Troubleshooting 79.....

V

Vehicle Identification Numbers ..... 9

W

Warranty 85-88

Washing 62

Waxing 62

Welcome: 4

Windchill/Temperature Charts ..... 36

POLARIS®

The Way Out.

For your nearest Polaris dealer,

call 1-800-POLARIS

or visit www.polarisindustries.com

Polaris Sales Inc.,

2100 Hwy. 55, Medina, MN 55340

Phone [phone] Fax [phone]

Part No. 9918224 Rev 01

Printed in USA
