Product Type	LED Driver (Constant Current)
Brand	Mean Well
Model	ELG-150-C1050DA-3Y
Output Current	1050 mA
Output Power	150 W
Input Voltage	100 ~ 277 VAC
Input Frequency	47 ~ 63 Hz
Efficiency	> 90%
Dimming Control	DALI
Protection	Short circuit, over voltage, over temperature
Ingress Protection	IP67
Dimensions (L x W x H)	240 x 68.5 x 38.8 mm
Weight	1.1 kg
Warranty	3 years
Operating Temperature	-40°C ~ +70°C
Installation	Indoor or outdoor (suitable for damp locations)
Compliance	UL, CE, RoHS

Frequently Asked Questions - ELG-150-C1050DA-3Y Mean Well

What is the output current of the ELG-150-C1050DA-3Y?

The output current is a constant 1050 mA (1.05 A).

What dimming protocol does this driver support?

It supports DALI (Digital Addressable Lighting Interface) for dimming and control.

Can this driver be used outdoors?

Yes, it has an IP67 rating, making it suitable for outdoor and damp locations.

What is the input voltage range?

The input voltage range is 100-277 VAC at 47-63 Hz.

How do I connect multiple DALI drivers?

DALI drivers can be connected in a daisy-chain or parallel bus topology. Ensure proper addressing and bus termination per DALI specifications.

What protections does this driver have?

It includes short circuit, over voltage, and over temperature protection.

What is the maximum LED load voltage?

With 150 W power at 1050 mA, the maximum output voltage is approximately 143 VDC.

Is this driver compatible with 0-10V dimming?

No, this model uses DALI only. For 0-10V dimming, refer to Mean Well 'DA' models with suffix '-A' or '-B'.

How long is the warranty?

The warranty period is 3 years from the date of manufacture.

What is the size and weight of this driver?

Dimensions are 240 x 68.5 x 38.8 mm (9.45 x 2.70 x 1.53 inches) and it weighs approximately 1.1 kg (2.43 lbs).

User questions about ELG-150-C1050DA-3Y Mean Well

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your LED Controller in PDF format for free! Find your manual ELG-150-C1050DA-3Y - Mean Well and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ELG-150-C1050DA-3Y by Mean Well.

USER MANUAL ELG-150-C1050DA-3Y Mean Well

Constant Current mode output
Metal housing design with functional Ground • Built-in active PFC function
<0.5W No load / Standby power consumption
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) I; ; Smart timer dimming; DAL Auxiliary DC output

• Typical lifetime>50000 hours

- 5 years warranty

Applications

LED street lighting • LED harbor lighting
LED bay lighting • LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

■ Description

The ELG-150-C series is a 150W LED AC/DC driver featuring constant current mode and high voltage output. ELG-150-C operates from 100~360VAC and offers models with different rated currents ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40°C~+85°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.

■ Model Encoding

150 - C700EAG Input wiring type Function options Rated output current (500/700/1050/1400/1750/2100mA) Rated wattage Series name Blank: 2-wire input for standard model 3Y: 3-wire input for standard model

Type	IP Level	Function	Note
Blank	IP67	Io fixed.	In Stock
A	IP65	Io adjustable through built-in potentiometer.	In Stock
B	IP67	3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)	In Stock
AB	IP65	Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)	In Stock
DA	IP67	DALI control technology.	In Stock
Dx	IP67	Built-in Smart timer dimming function by user request.	By request
D2	IP67	Built-in Smart timer dimming and programmable function.	In Stock
BE	IP67	3 in 1 dimming function and Auxiliary DC output	In Stock

SPECIFICATION

MODEL			ELG-150-C500 □	ELG-150-C700 □	ELG-150-C1050 □	ELG-150-C1400 □	ELG-150-C1750 □	ELG-150-C2100 □
OUTPUT	RATED CURRENT		500mA	700mA	1050mA	1400mA	1750mA	2100mA
	RATED POWER		100VAC ~ 180VAC
		(For All the Types)	105W	105W	105W	105W	105W	105W
			200VAC ~ 305VAC
		(Except for BE Type)	150W	149.8W	150.15W	149.8W	150.5W	151.2W
		(For BE Type only)	135W	134.4W	134.4W	133W	133W	134.4W
	CONSTANT CURRENT REGION Note.2		150 ~ 300V	107 ~ 214V	72 ~ 143V	54 ~ 107V	43 ~ 86V	36 ~ 72V
	CONSTANT CURRENT REGION Note.2 (For BE Type only)		150 ~ 270V	107 ~ 192V	72 ~ 128V	54 ~ 95V	43 ~ 76V	36 ~ 64V
	OPEN CIRCUIT VOLTAGE(max.)		315V	225V	151V	115V	94V	80V
	CURRENT ADJ. RANGE		Adjustable for A/AB-Type only (via built-in potentiometer)
			250 ~ 500mA	350 ~ 700mA	525 ~ 1050mA	700 ~ 1400mA	875 ~ 1750mA	1050 ~ 2100mA
	CURRENT RIPPLE 5.0% max. @rated current
	CURRENT TOLERANCE		±5.0%
	AUXILIARY DC OUTPUT		Nominal 15V(deviation 11.5~15.5V)@0.3A for BE-Type only
	SET UP TIME Note.4		1600ms/115VAC 500ms/230VAC
INPUT	VOLTAGE RANGE Note.3		100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr(Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF ≥0.97/115VAC, PF ≥0.95/230VAC, PF ≥0.92/277VAC@full load(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION		THD< 20%(@load≥50%/115VC; @load≥60%/230VAC; @load≥75%/277VAC)(Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
	EFFICIENCY (Typ.)		92%	92%	92%	91%	91%	91%
	EFFICIENCY (Typ.)(for BE Type only)		90%	90%	90%	89%	89%	89%
	AC CURRENT (Typ.)		1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
	INRUSH CURRENT(Typ.)		COLD START 65A(width=485μs measured at 50% lpeak)/230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER		3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
	NO LOAD / STANDBY POWER CONSUMPTION		No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION	SHORT CIRCUIT		Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		320 ~ 360V	230 ~ 265V	155 ~ 180V	128 ~ 150V	96 ~ 106V	82 ~ 92V
			Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.		Tcase=-40 ~ +90°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.		Tcase=+90°C
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/°C (0 ~ 60°C)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL8750(type"HL")(except for BE-type), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 700A,1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved
	DALI STANDARDS		Compliance to IEC62386-101,102,(207 by request) for DA Type only
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION		Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≥60%); BS EN/EN61000-3-3; GB17743, GB17625.1;EAC TP TC 020; KC KN15, KN61547
	EMC IMMUNITY		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15, KN61547
OTHERS	MTBF		3102.4K hrs min. Telcordia SR-332 (Bellcore);308.5K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION		2196335.5 mm (LWH)
	PACKING		0.95Kg; 16pcs / 16.0kg / 0.77CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%-100% of maximum voltage under rated power delivery.3. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-quality EMC Directive on the complete installation again.6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly IC point (or TMP, per DLC), is about 75°C or less.7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.8. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).9. For any application note and IP water proof function installation caution, please refer our user manual before using.https://www.meanwell.com/Upload/PDF/LED_EN.pdf10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name: ELG-150-C-SPEC 2022-03-16

BLOCK DIAGRAM


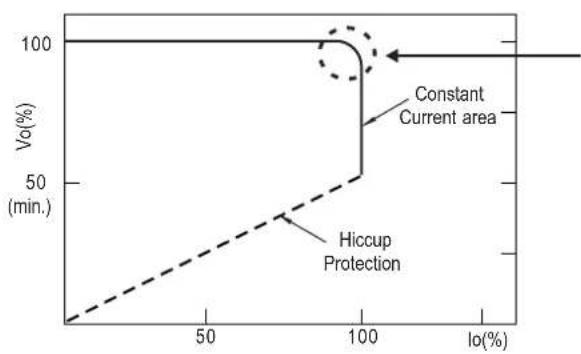

■ DRIVING METHODS OF LED MODULE

※ This series works in constant current mode to directly drive the LEDs.

| Io(%) | Vo(%) | |-------|-------| | 0 | 0 | | 50 | 25 | | 100 | 50 | | 100 | 100 |

Typical output current normalized by rated current (%)

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems.

Should there be any compatibility issues, please contact MEAN WELL.

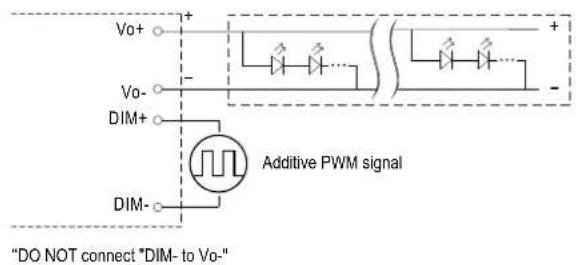

DIMMING OPERATION AC/N (Blue) AC/L (Brown) ELG-150-C DIM+ (Purple)* DIM- (Pink)** Vo- (Blue) Vo+ (Brown) * DIM+ for B/AB-Type

※ 3 in 1 dimming function (for B/AB-Type)

- Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 0 ~ 10VDC, or 10V PWM signal or resistance.

- Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.

- Dimming source current from power supply: 100 μA (typ.)

* DIM+ for B/AB-Type DA+ for DA-Type PROG+ for D2-Type

**DIM- for B/AB-Type DA- for DA-Type PROG- for D2-Type

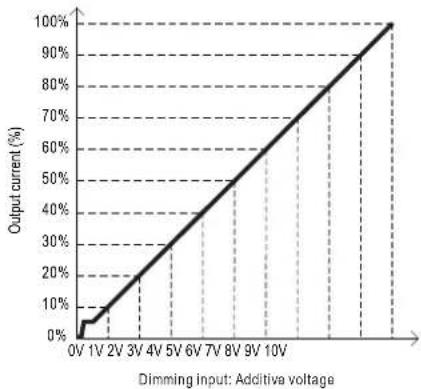

| Dimming Input: Additive voltage | Output current (%) | | ------------------------------- | ------------------ | | 0V | 0 | | 1V | 5 | | 2V | 15 | | 3V | 25 | | 4V | 35 | | 5V | 45 | | 6V | 55 | | 7V | 65 | | 8V | 75 | | 9V | 85 | | 10V | 95 | | Final (Final) | 100 |

| Duty cycle of additive 10V PWM signal dimming input | Output current (%) | | :--- | :--- | | 0% | 0 | | 10% | 5 | | 20% | 20 | | 30% | 30 | | 40% | 40 | | 50% | 50 | | 60% | 60 | | 70% | 70 | | 80% | 80 | | 90% | 90 | | 100% | 100 |

◎ Applying additive resistance: Vo+ Vo- DIM+ DIM- Additive Resistance "DO NOT connect DIM- to Vo-"

| Dimming input: Additive resistance | Output current (%) | | ---------------------------------- | ------------------ | | Short | 0% | | 10K/N | ~5% | | 20K/N | ~20% | | 30K/N | ~35% | | 40K/N | ~50% | | 50K/N | ~65% | | 60K/N | ~80% | | 70K/N | ~90% | | 80K/N | ~95% | | 90K/N | ~98% | | 100K/N | 10…

Note: 1. Min. dimming level is about 8% and the output current is not defined when 0% < Iout < 8%. 2. The output current could drop down to 0% when dimming input is about 0kΩ or 0Vdc, or 10V PWM signal with 0% duty cycle.

※ DALI Interface (primary side; for DA-Type)

• Apply DALI signal between DA+ and DA- • DALI protocol comprises 16 groups and 64 addresses. - First step is fixed at 8% of output.

※ Smart timer dimming function (for Dxx-Type by User definition)

MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level to perform up to 14 consecutive hours. 3 dimming profiles hereunder are defined accounting for the most frequently seen applications. If other options may be needed, please contact MEAN WELL for details.

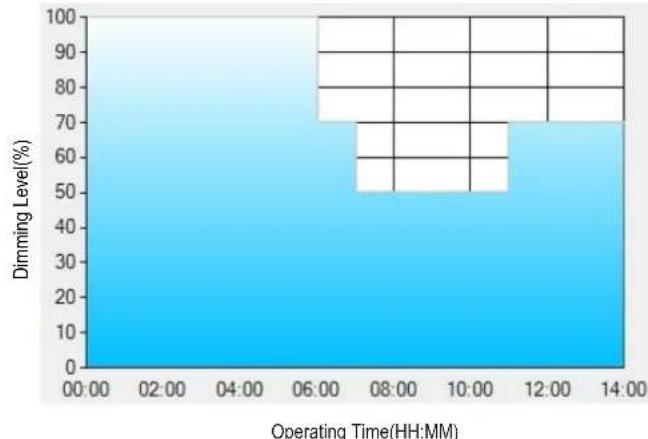

Ex : ◎ D01-Type: the profile recommended for residential lighting

| Operating Time(HH:MM) | Dimming Level(%) | | --------------------- | ---------------- | | 06:00 | 70 | | 08:00 | 60 | | 10:00 | 50 | | 12:00 | 70 | | 14:00 | 70 |

Set up for D01-Type in Smart timer dimming software program:

	T1	T2	T3	T4
TIME**	06:00	07:00	11:00	---
LEVEL**	100% 70%		50%	70%

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Example: If a residential lighting application adopts D01-Type, when turning on the power supply at 6:00pm, for instance:

[1] The power supply will switch to the constant current level at 100% starting from 6:00pm. [2] The power supply will switch to the constant current level at 70% in turn, starting from 0:00am, which is 06:00 after the power supply turns on. [3] The power supply will switch to the constant current level at 50% in turn, starting from 1:00am, which is 07:00 after the power supply turns on. [4] The power supply will switch to the constant current level at 70% in turn, starting from 5:00am, which is 11:00 after the power supply turns on. The constant current level remains till 8:00am, which is 14:00 after the power supply turns on.

Ex: © D02-Type: the profile recommended for street lighting

| Operating Time(HH:MM) | Dimming Level(%) | |---|---| | 00:00 | 50 | | 02:00 | 80 | | 04:00 | 90 | | 06:00 | 70 | | 08:00 | 60 | | 10:00 | 80 | | 12:00 | 70 | | 14:00 | 80 |

Set up for D02-Type in Smart timer dimming software program:

	T1	T2	T3	T4 T5
TIME**	01:00	03:00	8:00 11:00		---
LEVEL**		80%50%	100%	60% 80%

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level. Example: If a street lighting application adopts D02-Type, when turning on the power supply at 5:00pm, for instance: [1] The power supply will switch to the constant current level at 50% starting from 5:00pm. [2] The power supply will switch to the constant current level at 80% in turn, starting from 6:00pm, which is 01:00 after the power supply turns on. [3] The power supply will switch to the constant current level at 100% in turn, starting from 8:00pm, which is 03:00 after the power supply turns on. [4] The power supply will switch to the constant current level at 60% in turn, starting from 1:00am, which is 08:00 after the power supply turns on. [5] The power supply will switch to the constant current level at 80% in turn, starting from 4:00am, which is 11:00 after the power supply turns on. The constant current level remains till 6:30am, which is 14:00 after the power supply turns on.

Ex: ☐ D03-Type: the profile recommended for tunnel lighting | Operating Time(HH:MM) | Dimming Level(%) | |---|---| | 00:00 | 70 | | 02:00 | 80 | | 04:00 | 90 | | 06:00 | 100 | | 08:00 | 90 | | 10:00 | 80 | | 12:00 | 70 | | 14:00 | 70 |

Set up for D03-Type in Smart timer dimming software program:

	T1 T2 TB
TIME** 01:30		11:00 ---
LEVEL** 70% 100% 70%

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Example: If a tunnel lighting application adopts D03-Type, when turning on the power supply at 4:30pm, for instance:

[1] The power supply will switch to the constant current level at 70% starting from 4:30pm. [2] The power supply will switch to the constant current level at 100% in turn, starting from 6:00pm, which is 01:30 after the power supply turns on. [3] The power supply will switch to the constant current level at 70% in turn, starting from 5:00am, which is 11:00 after the power supply turns on.

The constant current level remains till 6:30am, which is 14:00 after the power supply turns on.

■ OUTPUT LOAD vs TEMPERATURE(Note.7) | Ambient Temperature, Ta (°C) | Load (%) | | ---------------------------- | -------- | | -40 to -25 | 90 | | 0 to 10 | 90 | | 15 to 30 | 100 | | 30 to 55 | 100 | | 55 to 70 | 100 | | 70 to 85 | 100 | | 85 to 100 | 60 |

| Tcase (°C) | LOAD (%) | | ---------- | -------- | | 230VAC | 100 |

■ STATIC CHARACTERISTIC | INPUT VOLTAGE (V) 60Hz | LOAD (%) | | ---------------------- | -------- | | 100 | 70 | | 180 | 70 | | 200 | 100 | | 305 | 100 |

※ De-rating is needed under low input voltage.

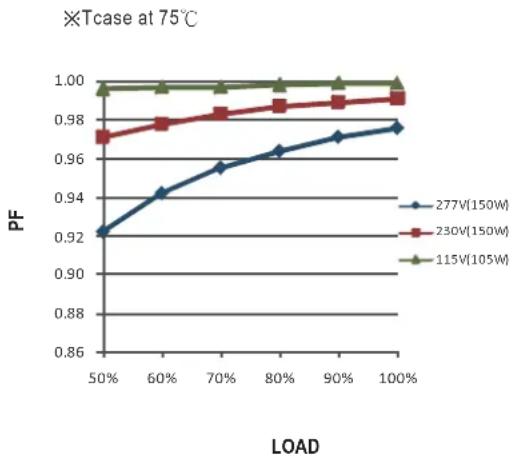

■ POWER FACTOR (PF) CHARACTERISTIC | LOAD | 277V(150W) | 230V(150W) | 115V(105W) | | ---- | ---------- | ---------- | ---------- | | 50% | 0.92 | 0.97 | 0.99 | | 60% | 0.94 | 0.98 | 0.99 | | 70% | 0.95 | 0.98 | 0.99 | | 80% | 0.96 | 0.98 | 0.99 | | 90% | 0.97 | 0.98 | 0.99 | | 100% | 0.98 | 0.99 | 0.99 |

■ TOTAL HARMONIC DISTORTION (THD) ※500mA Model, Tcase at 75°C | LOAD | 277VAC(150W) | 230VAC(150W) | 115VAC(105W) | | ---- | ------------ | ------------ | ------------ | | 50% | 16% | 10% | 5% | | 60% | 14% | 9% | 4.5% | | 70% | 12% | 8% | 4.5% | | 80% | 10% | 7.5% | 4.5% | | 90% | 9% | 7% | 4.5% | | 100% | 8% | 6.5% | 4.5% |

■ EFFICIENCY vs LOAD ELG-150-C series possess superior working efficiency that up to 92% can be reached in field applications. ※500mA Model, Tcase at 75°C | LOAD | 277V(150W) | 230V(150W) | 115V(105W) | | ---- | ---------- | ---------- | ---------- | | 50% | 89.0 | 89.0 | 89.0 | | 60% | 90.0 | 90.0 | 89.5 | | 70% | 90.5 | 90.5 | 89.5 | | 80% | 91.0 | 91.0 | 89.5 | | 90% | 91.5 | 91.5 | 89.5 | | 100% | 92.0 | 92.0 | 89.5 |

LIFETIME | Time Point | Lifetime (Kt) | | ---------- | ------------- | | 2030 | 100 | | 405 | 100 | | 606 | 100 | | 807 | 100 | | 808 | 100 | | 809 | 100 | | 810 | 100 | | 811 | 100 | | 812 | 100 | | 813 | 100 | | 814 | 100 | | 815 | 100 | | 816 | 100 | | 817 | 100 | | 818 | 100 | | 819 | 100 | | 820 | 100 |…

Tcase(°C)

MECHANICAL SPECIFICATION

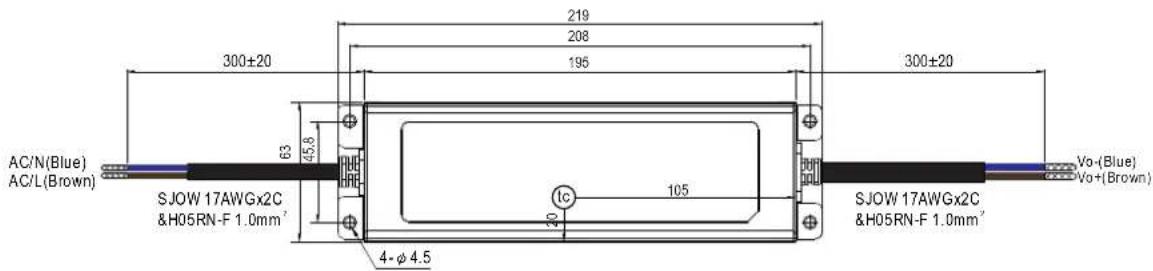

Blank-Type

CASE NO.: 237A Unit:mm

AC/N (Blue) AC/L (Brown) SJOW 17AWGx2C &H05RN-F 1.0mm² 63 45.8 219 208 195 300±20 300±20 105 20 4-φ4.5 SJOW 17AWGx2C &H05RN-F 1.0mm² Vo- (Blue) Vo+ (Brown)

• tc : Max. Case Temperature

35 36.5

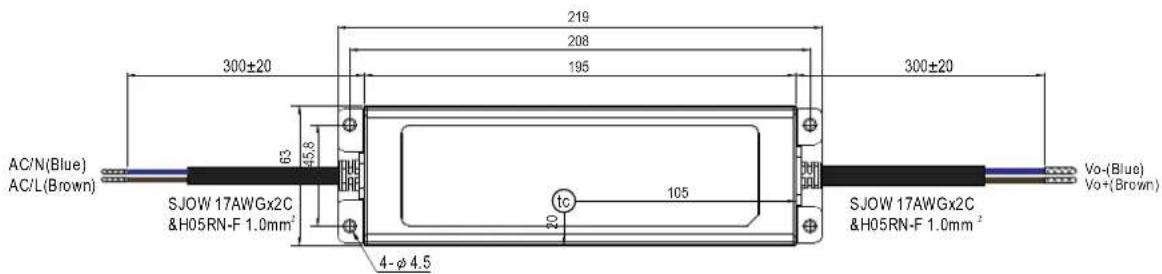

※ A-Type (except for 1750mA, 2100mA models) AC/N (Blue) AC/L (Brown) SJOW 17AWGx2C &H05RN-F 1.0mm' 63 45.8 219 208 196 300±20 105 4-φ 4.5 SJOW 17AWGx2C &H05RN-F 1.0mm' Vo- (Blue) Vo+ (Brown)

• tc : Max. Case Temperature

35 35.5

TOY 16.5 50.5

※ A-Type (for 1750mA, 2100mA models) • tc : Max. Case Temperature Mean Well ELG-150-C1050DA-3Y - ■ DRIVING METHODS OF LED MODULE - 24

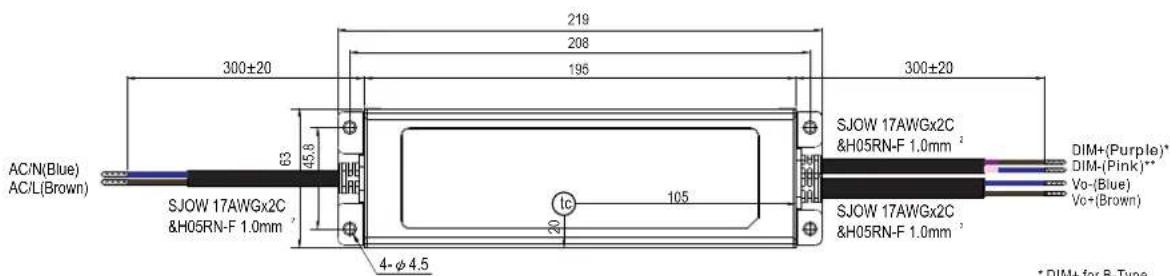

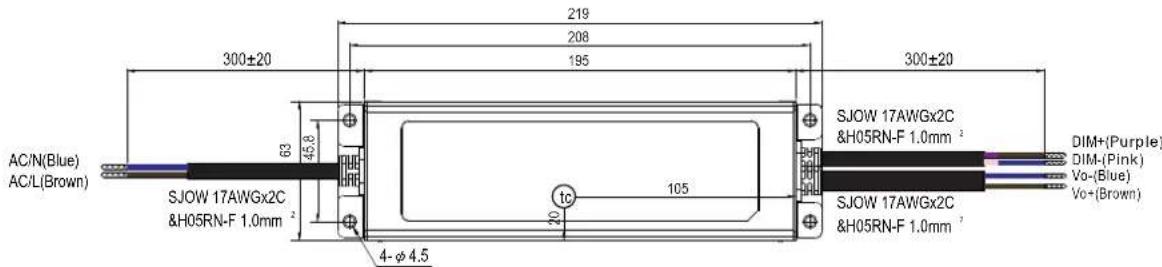

※ B/DA/D2-Type 300±20 63 45.8 219 208 196 300±20 SJOW 17AWGx2C &H05RN-F 1.0mm 105 20 4-φ4.5 AC/N (Blue) AC/L (Brown) SJOW 17AWGx2C &H05RN-F 1.0mm SJOW 17AWGx2C &H05RN-F 1.0mm DIM+ (Purple)* DIM- (Pink)** Vo- (Blue) Vo+ (Brown) * DIM+ for B-Type

• tc : Max. Case Temperature * DIM+ for B-Type DA+ for DA-Type PROG+ for D2-Type **DIM- for B-Type DA- for DA-Type PROG- for D2-Type

35 36.5

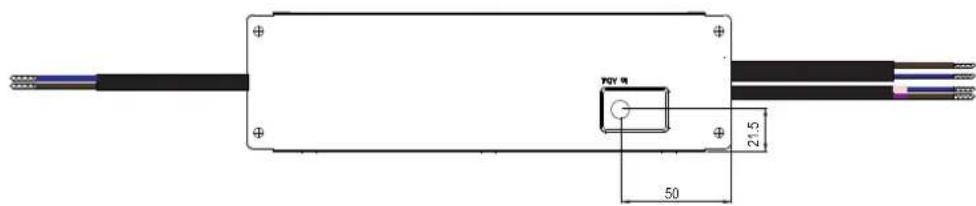

※ AB-Type (except for 1750mA, 2100mA models) • tc : Max. Case Temperature Mean Well ELG-150-C1050DA-3Y - ■ DRIVING METHODS OF LED MODULE - 27

※ AB-Type (for 1750mA, 2100mA models) 300±20 63 45.8 219 208 195 300±20 AC/N (Blue) AC/L (Brown) SJOW 17AWGx2C &H05RN-F 1.0mm² 4-φ 4.5 20 105 SJOW 17AWGx2C &H05RN-F 1.0mm² DIM+ (Purple) DIM- (Pink) Vo- (Blue) Vo+ (Brown)

• tc : Max. Case Temperature

35 35.5

POT 50 21.5

※ BE-Type AC/N (Blue) AC/L (Brown) FG+ (Green/Yellow) SJOW 17AWGx3C &H05RN-F 1.0mm² 63 45.8 219 208 195 200±20 105 20 4-φ4.5 SJOW 17AWGx4C &H05RN-F 1.0mm² AUX+ (Red) AUX- (Black) DIM+ (Purple) DIM- (Pink) Vo- (Blue) Vo+ (Brown) SJOW 17AWGx2C &H05RN-F 1.0mm² 300±20

• tc : Max. Case Temperature

35 36.5

※ 3Y Model (3-wire input) AC/N (Blue) AC/L (Brown) PE (Green/Yellow) SJOW 17AWGx3C &H05RN-F 1.0mm' 63 219 208 195 300±20 6.8 20 105 4-φ4.5 SJOW 17AWGx2C &H05RN-F 1.0mm'

• tc : Max. Case Temperature

Note1: Please connect the case to PE for the complete EMC deliverance and safety use.

Note2: Please contact MEAN WELL for input wiring option with PE.

INSTALLATION MANUAL

Please refer to : http://www.meanwell.com/manual.html
