Product Type	LED Driver / Controller (Constant Voltage)
Brand	Mean Well
Model	HBG-100-36A
Category	LED Controller
Output Voltage	36V DC
Output Current	2.8A
Output Power	100.8W
Input Voltage Range	90~305V AC
Input Frequency	47~63Hz
Efficiency	Typically 90%
Power Factor	>0.9 at full load
Dimensions (L x W x H)	227 x 68.8 x 38.8 mm
Weight	600 g
Protection Rating	IP65 (indoor/outdoor use)
Protection Functions	Overload, Overvoltage, Overtemperature, Short Circuit
Operating Temperature	-30°C to +70°C
Cooling Method	Convection cooling (fanless)
Dimming	Non-dimmable (constant voltage)
Safety Standards	UL/ENEC/CB certified
Warranty	5 years typical
Maintenance	No user-serviceable parts; keep clean and dry

Frequently Asked Questions - HBG-100-36A Mean Well

What is the output voltage and current of the Mean Well HBG-100-36A?

The output is 36V DC constant voltage with a maximum current of 2.8A, providing up to 100.8W.

Can the HBG-100-36A be used outdoors?

Yes, it has an IP65 rating, making it suitable for outdoor use when properly installed in a weatherproof enclosure.

How do I connect the HBG-100-36A to my LED strip?

Connect the AC input to mains power (90-305V AC) and the DC output (V+ and V-) to your 36V LED strip, observing polarity. Use appropriate wire gauge for the current.

Is this driver dimmable?

The HBG-100-36A is a non-dimmable constant voltage driver. For dimming, consider the HBG-100-36B model or an external PWM controller.

What is the maximum ambient temperature for operation?

It operates from -30°C to +70°C. Above 50°C, derating may apply; refer to the manual for derating curves.

Does the HBG-100-36A have short circuit protection?

Yes, it includes protections for short circuit, overload, overvoltage, and overtemperature.

What is the efficiency of the HBG-100-36A?

Typical efficiency is 90% at full load, ensuring low energy loss.

Can I use this driver with a dimmer switch?

No, it is not compatible with standard triac or 0-10V dimmers. Use only as a constant voltage source.

How do I mount the HBG-100-36A?

Mount it on a flat surface using the mounting brackets. Ensure adequate ventilation and avoid covering the unit to prevent overheating.

What certifications does the HBG-100-36A have?

It is certified to UL, ENEC, and CB standards, meeting international safety requirements.

User questions about HBG-100-36A Mean Well

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your LED Controller in PDF format for free! Find your manual HBG-100-36A - Mean Well and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HBG-100-36A by Mean Well.

USER MANUAL HBG-100-36A Mean Well

Mean Well HBG-100-36A - 1

Mean Well HBG-100-36A - 2

Mean Well HBG-100-36A - 3

Mean Well HBG-100-36A - 4

Mean Well HBG-100-36A - 5

SELV

IP65 IP67

(CCC optional)

Mean Well HBG-100-36A - 6

Mean Well HBG-100-36A - 7

(for 36A,48A,60A only)

Mean Well HBG-100-36A - 8

Mean Well HBG-100-36A - 9

Mean Well HBG-100-36A - 10

Features

Constant Current mode output
• Circular metal housing with class design I
• Built-in active PFC function
• IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
• Typical lifetime>50000 hours
5 years warranty

Applications

• LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

■ Description

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90\~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40°C \~ +85°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

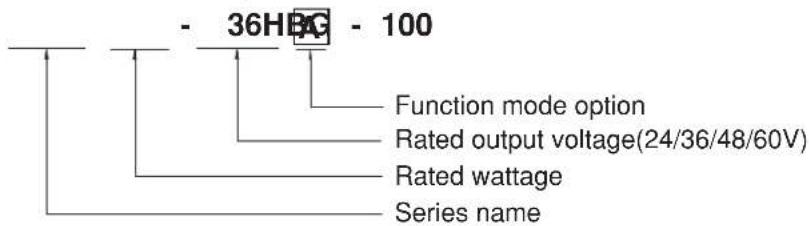

■ Model Encoding

- 36HBG - 100 Function mode option Rated output voltage(24/36/48/60V) Rated wattage Series name

Type	IP Level	Function Note
Blank	IP67	Io fixed.	In Stock
A	IP65	Io adjustable through built-in potentiometer.	In Stock
B	IP67	3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)	In Stock
AB	IP65	Io adjustable through built-in potentiometer with 3 in 1 dimming function	In Stock
DA IP67		DALI control technology.	In Stock

SPECIFICATION

MODEL		HBG-100-24	HBG-100-36	HBG-100-48	HBG-100-60
OUTPUT	RATED CURRENT	4A	2.7A	2A	1.6A
	RATED POWER	96W	97.2W	96W	96W
	CONSTANT CURRENT REGION Note.2	14.4~24V	21.6~36V	28.8~48V	36~60V
	OPEN CIRCUIT VOLTAGE(max.)	25V	37V	49V	62V
	CURRENT ADJ. RANGE	Adjustable for A/AB-Type (via built-in potentiometer)
		2.4~4A	1.62~2.7A	1.2~2A	1.0~1.6A
	CURRENT RIPPLE	5.0% max. @rated current
	CURRENT TOLERANCE	±5.0%
	SETUP TIME Note.4	2000ms / 115VAC 500ms / 230VAC
INPUT	VOLTAGE RANGE Note.3	90~305VAC 127~431VDC(Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION	THD<20%(@load≥60%/115VC,230VAC; @load≥75%/277VAC)(Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
	EFFICIENCY (Typ.) Note.5	90.5%	91%	91%	91.5%
	AC CURRENT (Typ.)	1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 60A(width=550μs measured at 50% lpeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
	NO LOAD / STANDBY POWER CONSUMPTION	Standby power consumption <0.5W for B/AB/DA-TypeBlank/A-Type please refer to Note. 7
PROTECTION	OVER CURRENT	95~108%
		Constant current limiting
	OVER VOLTAGE	28~35V	41~49V	54~63V	65~75V
		Shut down o/p voltage re-power on to recovery
	OVER TEMPERATURE	Shut down o/p voltage re-power on to recovery
ENVIRONMENT	WORKING TEMP.	Tcase=-40~+85°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.	Tcase=+85°C
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C, 10~95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10~500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL8750(type*HL).CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384:GB19510.1,GB19510.14, BIS IS15885(for 36A,48A,60A only), IP65 or IP67 approved EAC TP TC 004,
	DALI STANDARDS	Compliance to IEC62386-101, 102, 207 for DA-Type only
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION Note.7	Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≥60%); BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020
	MTBF	2433.4K hrs min. Telcordia SR-332 (Bellcore);299.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSIONOTHERS	∅130mm 66.5mm (D H)
	PACKING	1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type), 1.89CUFT(E Type)
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.2. Please refer to "DRIVING METHODS OF LED MODULE".3. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.5. The DA type power supply is less efficient than the typical efficiency in specification by 1%.6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly ©point (or TMP, per DLC), is about 75°C or less.9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com10. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).11. For any application note and IP water proof function installation caution, please refer our user manual before using.https://www.meanwell.com/Upload/PDF/LED_EN.pdf※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

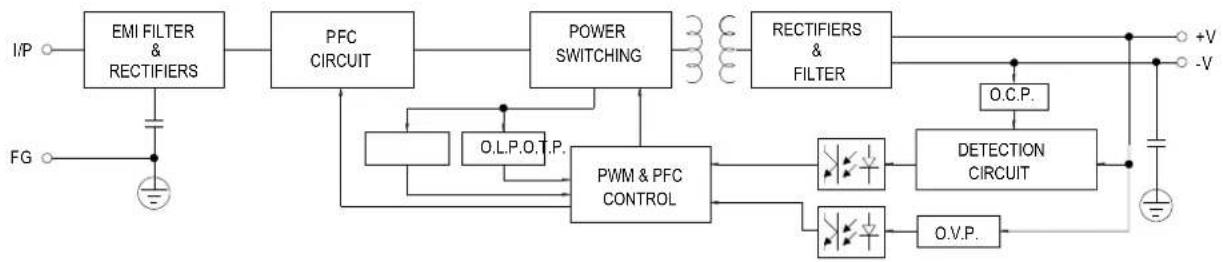

BLOCK DIAGRAM

fosc : 100KHz


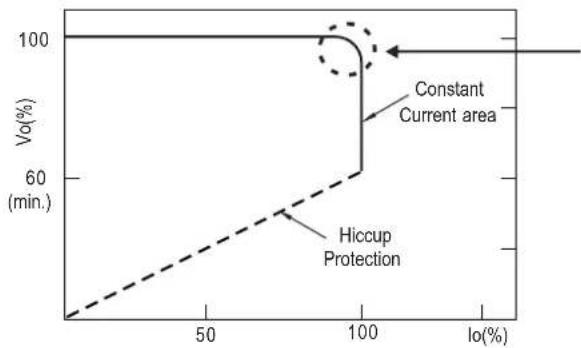

■ DRIVING METHODS OF LED MODULE

※ This series works in constant current mode to directly drive the LEDs.

| Io(%) | Vo(%) | |-------|-------| | 0 | 100 | | 50 | 100 | | 100 | 60 | | 150 | 100 |

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems.

Should there be any compatibility issues, please contact MEAN WELL.

Typical output current normalized by rated current (%)

DIMMING OPERATION

AC/L(Brown) AC/N(Blue) FG (Green/Yellow) SJTW 18AWG*3C **DIM-(Pink) *DIM+(Purple) UL2517 22AWG*2C *SJTW 18AWG*2C +V(Red) -V(Black) * DIM+ for B/AB-Type DA+ for DA-Type ** DIM- for B/AB-Type DA- for DA-Type

※ 3 in 1 dimming function (for B/AB-Type)

Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 \~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 100 A (typ.)μ

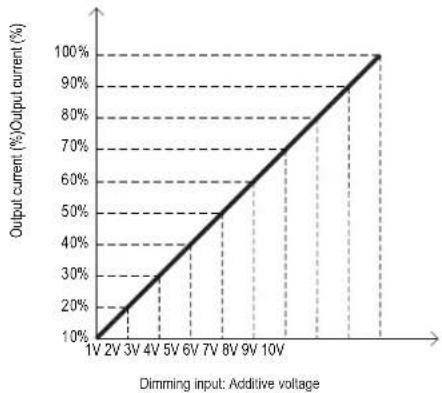

○ Applying additive 1 \~ 10VDC
+V -V DIM+ DIM- Additive Voltage "DO NOT connect "DIM- to -V"

| Dimming input: Additive voltage | Output current (%)/Output current (%) | | ------------------------------- | ------------------------------------- | | 1V | 10% | | 2V | 20% | | 3V | 30% | | 4V | 40% | | 5V | 50% | | 6V | 60% | | 7V | 70% | | 8V | 80% | | 9V | 90% | | 10V | 100% |

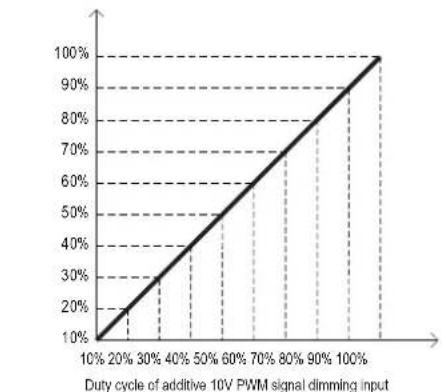

◎ Applying additive 10V PWM signal (frequency range 100Hz \~ 3KHz):
+V -V DIM+ DIM- Additive PWM signal "DO NOT connect "DIM- to -V"

| Duty cycle of additive 10V PWM signal dimming input | Value | | -------------------------------------------------- | ----- | | 10% | 10% | | 20% | 20% | | 30% | 30% | | 40% | 40% | | 50% | 50% | | 60% | 60% | | 70% | 70% | | 80% | 80% | | 90% | 90% | | 100% | 100% |

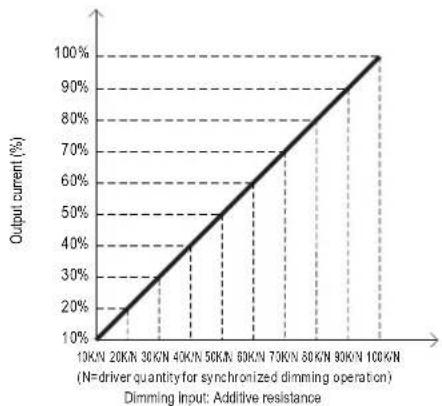

◎ Applying additive resistance:
+V -V DIM+ DIM- Additive Resistance "DO NOT connect "DIM- to -V"

| Dimming Input: Additive resistance (N=driver quantity for synchronized dimming operation) | Output current (%) | | :--- | :--- | | 10K/N | 10 | | 20K/N | 20 | | 30K/N | 30 | | 40K/N | 40 | | 50K/N | 50 | | 60K/N | 60 | | 70K/N | 70 | | 80K/N | 80 | | 90K/N | 90 | | 100K/N | 100 |

Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL for other options.

Using a switch and relay can turn ON/OFF the lighting fixture.

※ DALI Interface (primary side; for DA-Type)

Apply DALI signal between DA+ and DA-.
• DALI protocol comprises 16 groups and 64 addresses.
First step is fixed at 8% of output.

■ OUTPUT LOAD vs TEMPERATURE(Note.9)
| Ambient Temperature, Ta (°C) | Load (%) | | ---------------------------- | -------- | | -25 | 100 | | 60 | 0 |

| Tcase (°C) | LOAD (%) | | ---------- | -------- | | -4 | 100 | | 4 | 100 | | 1 | 100 | | 5 | 0 |

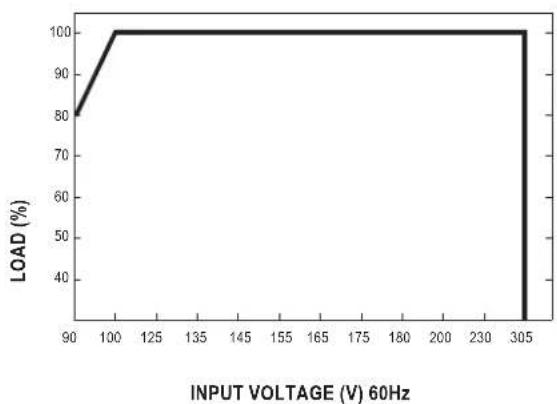

■ STATIC CHARACTERISTIC
| INPUT VOLTAGE (V) 60Hz | LOAD (%) | | ---------------------- | -------- | | 90 | 80 | | 100 | 100 | | 305 | 100 |

※De-rating is needed under low input voltage.

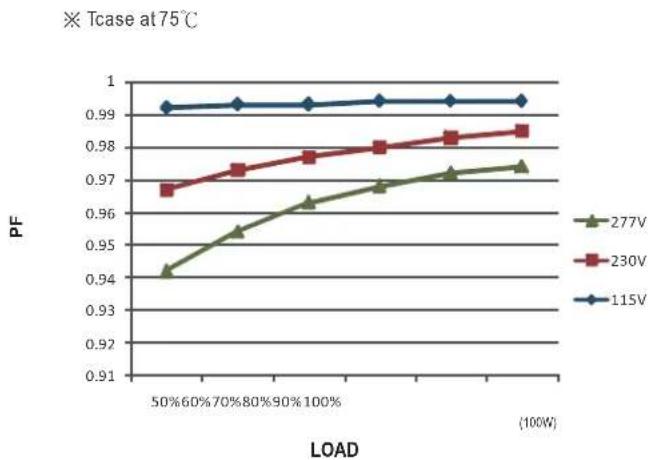

■ POWER FACTOR (PF) CHARACTERISTIC
| LOAD (100W) | 277V | 230V | 115V | |-------------|--------|--------|--------| | 50% | 0.94 | 0.965 | 0.99 | | 60% | 0.95 | 0.97 | 0.99 | | 70% | 0.955 | 0.972 | 0.99 | | 80% | 0.96 | 0.975 | 0.99 | | 90% | 0.962 | 0.977 | 0.99 | | 100% | 0.965 | 0.978 | 0.99 | | 110% | 0.968 | 0.98 | 0.99 | | 120%…

■ TOTAL HARMONIC DISTORTION (THD)
| LOAD | 277VAC | 230VAC | 115VAC | |------|--------|--------|--------| | 50% | 16% | 15% | 9% | | 60% | 14% | 13% | 8% | | 70% | 12% | 12% | 8% | | 80% | 11% | 11% | 8% | | 90% | 10% | 10% | 8% | | 100% | 10% | 10% | 8% |

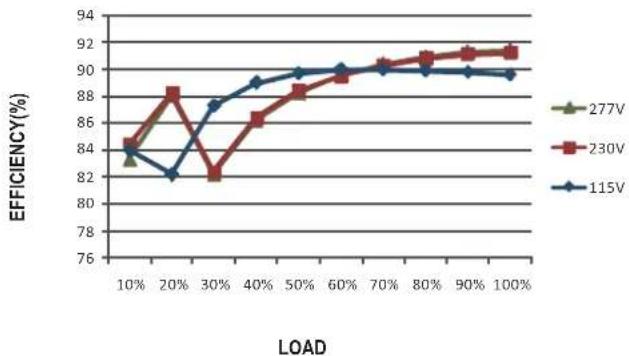

■ EFFICIENCY vs LOAD
HBG-100 series possess superior working efficiency that up to 91% can be reached in field applications. ※ 48V Model, Tcase at 75°C

| LOAD | 277V | 230V | 115V | | ---- | ---- | ---- | ---- | | 10% | 84 | 84 | 84 | | 20% | 86 | 88 | 82 | | 30% | 82 | 82 | 87 | | 40% | 86 | 86 | 89 | | 50% | 88 | 88 | 90 | | 60% | 90 | 90 | 90 | | 70% | 90 | 90 | 90 | | 80% | 91 | 91 | 90 | | 90% | 91 | 91 | 90 | | 100% | 91 | 91 | 90 |

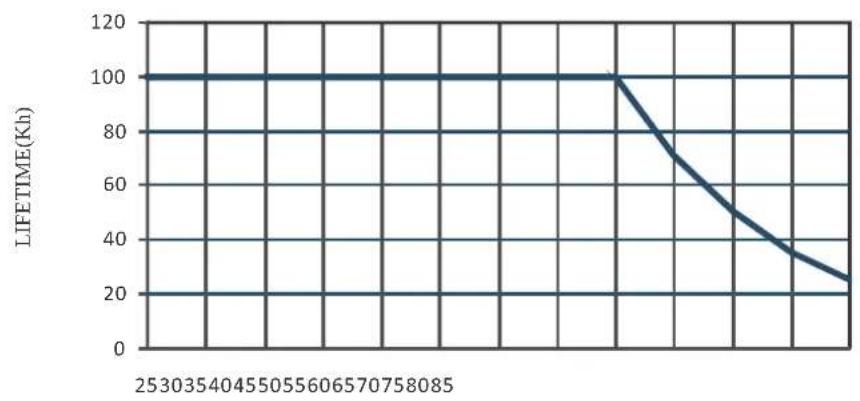

LIFE TIME
| X Value | Lifetime (Kl) | | ------- | ------------- | | 25303540455055606570758085 | 100 | | 25303540455055606570758085 | 100 | | 25303540455055606570758085 | 100 | | 25303540455055606570758085 | 98 | | 25303540455055606570758085 | 92 | | 25303540455055606570758085 | 82 | | 25303540455055606570758…

Tcase)(℃)

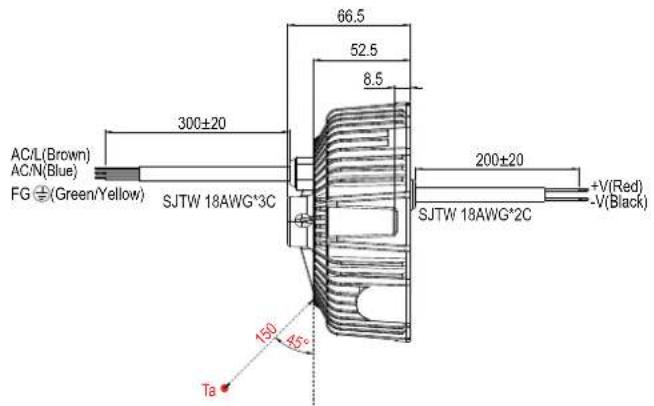

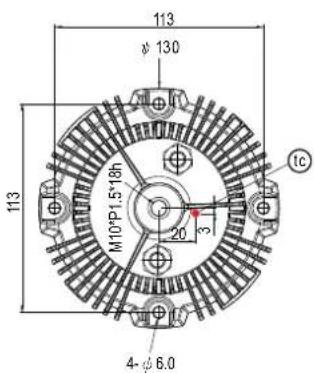

MECHANICAL SPECIFICATION

Case No.217 Unit:mm

Blank-Type
113 φ 130 M10P1.5*18n 20 3 4-φ6.0 113 1c

AC/L(Brown) AC/N(Blue) FG ⊕(Green/Yellow) SJTW 18AWG*3C 300±20 66.5 52.5 8.5 200±20 +V(Red) -V(Black) SJTW 18AWG*2C 150 45° Ta

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

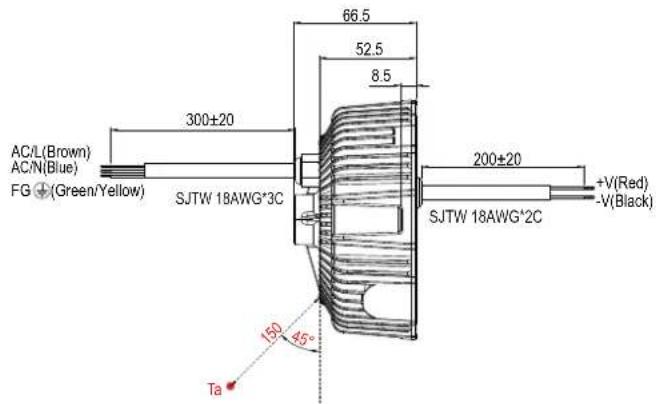

※ A-Type
113 φ 130 M10*P1.5*18h 20 3 13 4-φ6.0 lc

AC/L(Brown) AC/N(Blue) FG +(Green/Yellow) 300±20 SJTW 18AWG*3C 66.5 52.5 8.5 200±20 +V(Red) -V(Black) SJTW 18AWG*2C 150 45° Ta

33.61 4.74 100mm AEA L

• (tc) : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

※ B/DA-Type
113 φ 130 M10°P-1.518h 20 3 4-φ6.0 113 tc

AC/L(Brown) AC/N(Blue) FG ⊕(Green/Yellow) SJTW 18AWG*3C 300±20 66.5 52.5 8.5 200±20 +S(V(Red) -V(Black) **DIM-(Pink) *DIM+(Purple) UL2517 22AWG*2C 150 45° Ta * DIM+ for B-Type DA+ for DA-Type **DIM- for B-Type DA- for DA-Type

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

※ AB-Type
113 φ 130 113 M10*P1.5*6h 20 3 4-φ 6.0 AC/L(Brown) AC/N(Blue) FG (Green/Yellow) SJTW 18AWG*3C 300±20 300±20 UL2517 22AWG*2C 66.5 52.5 8.5 200±20 +V(Red) -V(Black) SJTW 18AWG*2C Ta 150 φ 33.61 4.74 R R R R R R R R R R R R R R R R R R

• (tc): Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

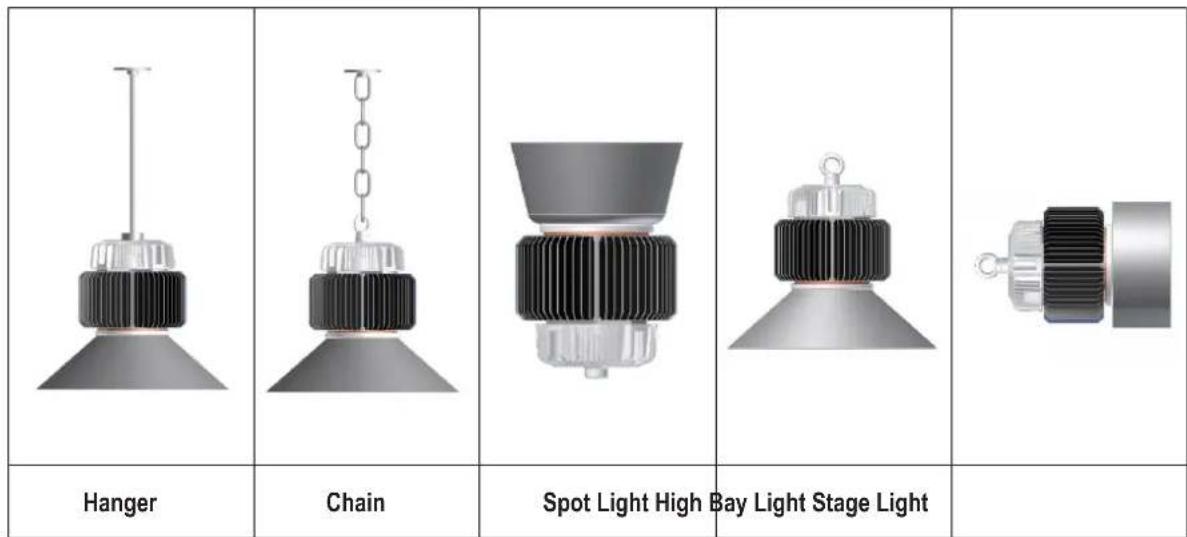

INSTALLATIONS
Hanger Chain Spot Light High Bay Light Stage Light

Caution

Please inspect the appearance of the driver if the package is damaged. There should not be any cracks.
Please do not drop or bump the driver.
All screws including the suspension screw should be paired with a spring washer and locked tight.
The entire luminaire, including the driver, should be limited to 10Kg or less.
The luminaire should be cautiously protected from damage due to shock throughout packaging and transportation.
Please thoroughly follow the preceding cautionary notes to prevent the luminaire from falling, leading to injuries.
