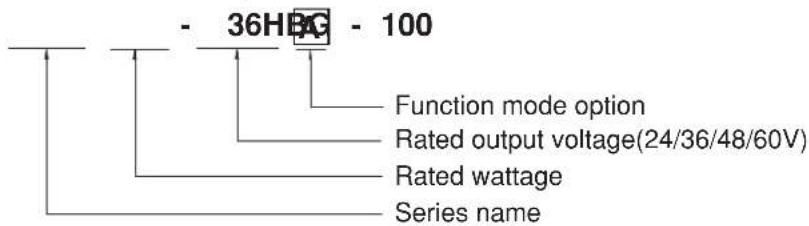

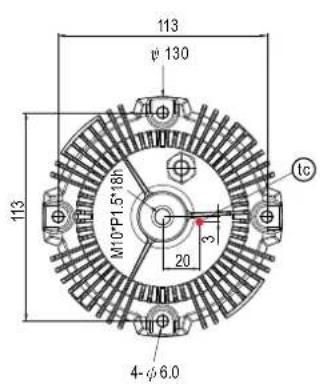

| Product Type | LED Driver / Controller |
| Series | HBG-100 |
| Model | HBG-100-48A |
| Input Voltage | 100 ~ 277 VAC |
| Output Voltage | 48 VDC |
| Output Current | 2.1 A (max) |
| Output Power | 100 W |
| Dimming Control | 0-10 VDC / PWM (via blue and white wires) |
| Protections | Overvoltage, Overcurrent, Overtemperature, Short Circuit |
| IP Rating | IP65 (indoor/outdoor use) |
| Dimensions (L x W x H) | 8.66 x 2.99 x 1.69 inches (220 x 76 x 43 mm) |
| Weight | 1.0 kg (2.2 lbs) |
| Operating Temperature | -30°C ~ +70°C |
| Cooling Method | Convection (no fan) |
| Warranty | 5 years |
| Input Connection | 3-pin terminal block (L, N, FG) |
| Output Connection | 2-pin terminal block (V+, V-) |
| Dimming Connection | 2-pin terminal block (blue: DIM+, white: DIM-) |
| Housing Material | Aluminum with anti-corrosion coating |
| Safety Standards | UL 8750, ENEC, CB, CE |
| Maintenance | Clean with dry cloth; no user-serviceable parts inside |
Frequently Asked Questions - HBG-100-48A Mean Well
What is the input voltage range for the HBG-100-48A?
The input voltage range is 100 ~ 277 VAC, making it suitable for global use.
Can I use this driver with a dimmer?

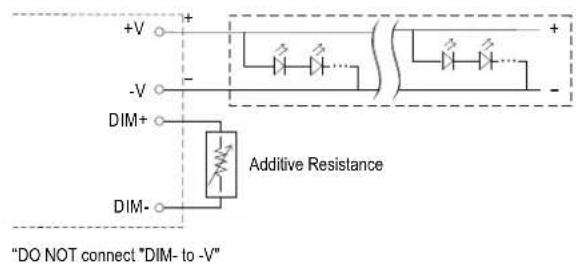

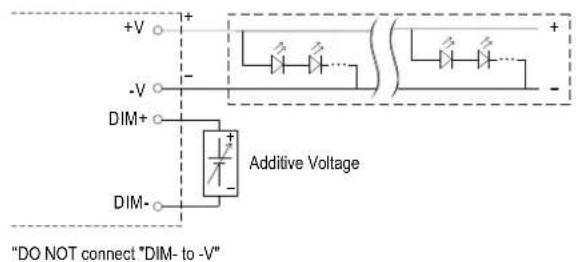

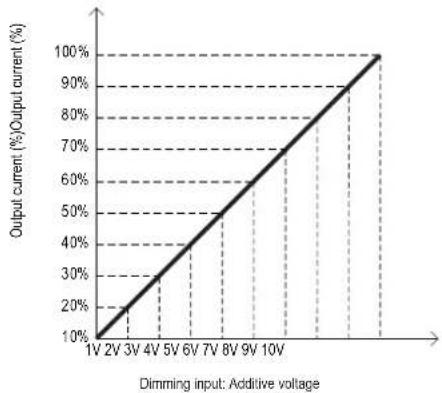

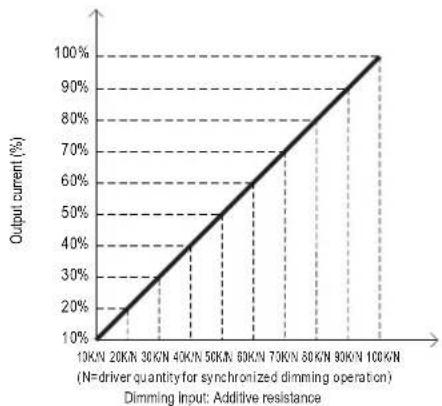

Yes, it supports 0-10V or PWM dimming via the blue (DIM+) and white (DIM-) wires.
How do I connect the AC input?
Connect Live (L) to brown, Neutral (N) to blue, and Ground (FG) to green/yellow wire on the input terminal block.
Is the HBG-100-48A suitable for outdoor use?
Yes, it has an IP65 rating, meaning it is dust-tight and protected against water jets.
What is the output current and voltage?
The output is 48 VDC with a maximum current of 2.1 A (100 W).
Does this driver have built-in protections?
Yes, it includes overvoltage, overcurrent, overtemperature, and short circuit protection.
Can I connect multiple LED strips in parallel?
Yes, as long as the total current does not exceed 2.1 A and the voltage matches.
What is the warranty period?
Mean Well offers a 5-year warranty for the HBG-100-48A.
How can I adjust the output current?

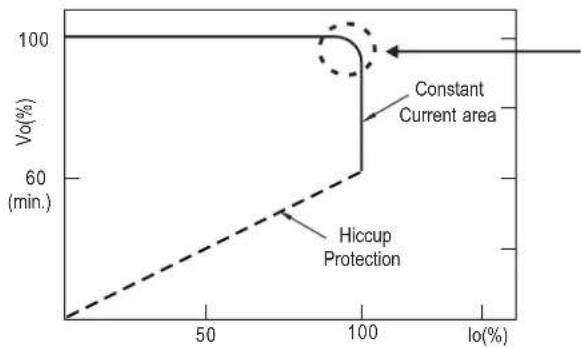

The output current is fixed (constant voltage/constant current). For dimming, use the 0-10V or PWM control.
Can this driver be used with a motion sensor?
Yes, if the sensor provides a 0-10V or PWM signal, it can be connected to the dimming wires.
