Product Type	Digital Cable Receiver (STB) with Built-in HDD
Model	DCB-P853Z
Brand	Samsung
Dimensions (W x D x H)	381 x 267 x 60 mm
Weight (Net)	3.1 kg
Power Supply	AC 230V~, 50/60 Hz, Max 30W (Standby 18W)
Memory	Flash: 8 MB, SDRAM: 64 MB
Built-in Storage	HDD 160 GB
External Storage Support	USB 2.0 Host for external HDD (FAT32)
Tuner	VHF, UHF 50-870 MHz, DVB-C, QAM 16-256
Video Decoding	MPEG-2 MP@ML, 4:3 and 16:9 aspect ratio
Audio Decoding	MPEG-1 Layer I & II, Stereo, 32/44.1/48 kHz
Digital Audio Output	Optical (Toslink)
Connections	2x SCART (TV/VCR), RCA Video/Audio, RF Loop-through, USB, Optical
Remote Control	Full function IR remote with TV control
PVR Functions	Instant recording, time shift, timer recording, A-B repeat, bookmark
Playable File Formats	Music: MP3, Photo: JPG
EPG	Advanced Electronic Programme Guide with full/mini guide
Smartcard Slot	1x Conax smartcard slot
Safety Features	Overload protection, ventilation requirements, lightning protection
Cleaning Instructions	Disconnect from mains, clean with damp cloth (no solvents)

Frequently Asked Questions - DCB-P853Z SAMSUNG

How do I perform initial installation after plugging in the receiver for the first time?

Press MENU, go to Setup > System > Initial Installation. Enter your PIN code (default: 0000). Select language, then confirm to start auto channel scanning. After scanning, press OK to save channels.

Can I record two channels simultaneously with the DCB-P853Z?

Yes, you can record two separate channels at the same time. Press REC on the first channel, then change to another channel and press REC again. To stop, press STOP, select the channel, and press STOP again.

How do I use the Time Shift function?

Press PLAY/PAUSE (▶II) during live TV to pause. The receiver automatically records to the hard disk. Press again to resume. Use SKIP and SEARCH buttons to navigate. Press LIVE (■) to return to live broadcast.

What should I do if the remote control stops working?

First, ensure the remote is in STB mode (press STB button). Check batteries for correct insertion or replace them. Point directly at the receiver. If still not working, try resetting the remote by removing batteries and pressing any button for 10 seconds.

How can I customize the channel list?

Press OK while watching a programme. Use ▲/▼ to select a channel, then press RED to sort (alphabetic/default), GREEN to lock (after PIN), YELLOW to add to favorites, or BLUE to rename. You can also renumber favorites by pressing GREEN in the Favorite List.

How do I set up timer recording?

Go to Menu > Timer Recording > Scheduled Recordings. Press RED to add a new timer. Use ▲/▼/◄/► to set channel, date, start/end time, and frequency (Once, Daily, Weekly, Workday). Press RED again to confirm. You can also schedule via EPG: press GUIDE, select a future programme, then press RED.

Why is there no signal on screen?

Check the antenna cable connection at the receiver's ANT IN terminal. Ensure it is finger-tight. Go to Menu > Info Menu (press INFO(i) three times) and check signal strength. If weak, adjust antenna alignment. Also verify that the receiver is not in standby mode.

How do I play music or photo files from a USB drive?

Connect a USB storage device (FAT32 format) to the USB port on the front panel. Press MENU, select Library > Music or Photo. Use ▲/▼/◄/► to navigate folders. Press OK to play. For photos, you can start a slideshow with background music by setting Slide Option to Music On.

How do I lock certain channels for parental control?

Go to Menu > Channel > Channel List. Select the channel using ▲/▼, then press GREEN (Lock). Enter your PIN code (default 0000). The channel will show a lock icon. To unlock, repeat the process. You can also set a program grade in Menu > Channel > Parental Guide to restrict content by age.

What is the correct way to clean the receiver?

Before cleaning, disconnect the receiver from the mains socket. Use a cloth lightly dampened with water (no solvents) to clean the exterior. Do not allow liquids to enter the device. Ensure ventilation holes are not blocked.

USER MANUAL DCB-P853Z SAMSUNG

Instructions for use ....GB

MF68-00415A REV. 1.0

DIGITAALINEN KAAPELIVASTAANOTIN SISÄÄNRAKENNETULLA KIINTOLEVYAJURILLA

DIGITAALINEN KAAPELIVASTAANOTIN SISÄÄNRAKENNETULLA KIINTOLEVYAJURILLA

DCB-P853Z

Käyttöohjeet

FIN

TURVALLISUUSOHJEET

5. Kanavaluettelo

8. Tekstitys

10. Pikatallennus

Abstract pattern of horizontal lines and a circular symbol (no text or symbols)

Exterior view of a neoclassical building with domed roof and ornate towers, partially obscured by a small inset image (no visible text or symbols)

1.1. Koko opas

1.2. Pienoisopas

2.5.2. Lukitse

5. Asennus

5.3. Kieli

Flash: 8 Mt SDRAM: 64 Mt

SISÄÄNRAKENNETTU HDD 160 Gt

PÄÄSY ULKOINEN HDD USB 2.0 (ISÄNTÄ)

TOISTETTAVAT TIEDOSTOMUODOT

Instructions for use

GB

SAFETY INSTRUCTIONS

This STB has been manufactured to satisfy international safety standards.

Please read the following recommended safety precautions carefully.

MAINS SUPPLY: AC 230V\~, 50/60Hz

OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or electric shock.

LIQUIDS: Keep liquids away from the STB.

CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened with water(no solvents) to clean the exterior.

VENTILATION: Do not block the STB ventilation holes. Ensure that free airflow is maintained around the STB. Never store the STB where it is exposed to direct sunlight or near heating equipment e.g. a radiator. Never stack other electronic equipment on top of the STB. Place the STB at least 10cm from the wall.

ATTACHMENTS: Do not use any attachment that is not recommended by the manufacturer; it may cause a hazard or damage the equipment.

CONNECTION OF CABLE, TV, AND STB:

Connect all components before plugging any power cords into the wall outlet. Always turn off the STB, TV and other components before you connect or disconnect any cables. To disconnect this STB, from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

SERVICING: Do not attempt to service this product yourself. Any attempt to do so will make the warranty invalid. Refer all servicing to a qualified service agent.

LIGHTNING: If the STB is installed in an area subject to intense lightning activity, protection devices for the STB mains connector and modem telephone line are essential. The individual manufacturer's instruction for safeguarding other equipment, such as TV set, Hi-Fi, etc., connected to the STB must also be followed during lightning storms.

GROUNDING: Signal cable MUST BE EARTHED. The grounding system must comply with SABS 061.

Note : Dispose the used batteries at designated place for environment protection.

WARNING!

1. Follow these directions in order not to damage the power cord or plug.

2. Do not modify or process the power cord or plug arbitrarily.

3. Do not bend or twist the power cord too much.
4. Make sure to disconnect the power cord with holding the plug.

5. Separate heat appliances from the power cord as distantly as possible in order to prevent the cover from being melted.

6. Failure to follow one of them may cause electric shock or fire.

7. Do not open the main body.

8. Do not insert metals or inflammable objects inside the product.
9. Do not touch the power plug with a wet hand.
10. Disconnect the power cord in case of lightning.
11. Do not cover the receiver's ventilation openings with items such as newspapers, clothes etc.
12. Do not place the receiver on top of household appliances that emit heat.

13. Do not expose the receiver to rain or moisture.

14. Do not use the product when it is out of order. If you continue to use the product with a defect, it can cause a serious damage to the product. Make sure to contact your local product distributor when the product is out of order.

15. Do not turn the power off suddenly while the hard disk drive is running. The company shall not be liable for any corruption of data on the hard disk drive caused by the carelessness or misuse of users.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

CONTENTS

Safety Instructions ....2

General Features ....5

Connecting Your "STB"......6

Description 8

Front Panel 8

Rear Panel....9

Remote Control 10

Setting Up TV Operations with the Remote Control....12

Initial Installation....13

Basic Functions 14

Operating The Receiver....24

Main Menu....24

1. Guide 24

1.1.Full Guide....25

1.2. Mini Guide....25

1.3. Using the colour buttons....25

2. Channel 26

2.1. Favorite Channel 26

2.2. Auto Scanning....28

2.3.Manual Scanning....28

2.4. Linear Scanning....28

2.5. Channel List....29

2.6. Parental Guide....31

3. Library 32

3.1. Video 32

3.2. Music....35

3.3. Photo....37

3.4. Radio....39

4. Timer Recording....40

4.1. Scheduled Recordings 40

4.2. EPG Setting 42

4.3. Manual Setting....42

5. Setup 43

5.1.PVR....43

5.2. Preferences....44

5.3. Language 46

5.4. System 48

5.5. Conax....49

Available TV Manufacturer Numbers 51

Troubleshooting....59

Technical Specifications....60

GENERAL FEATURES

1. USER SECTION

▶ 400 PROGRAMMABLE CHANNELS
ADVANCED ELECTRONIC PROGRAMME GUIDE
▶ MULTI LANGUAGE SUPPORTED FOR OSD
SUBTITLE & TELETEXT SUPPORTED WITH MULTI LANGUAGES
FULL FUNCTION INFRARED REMOTE CONTROL
▶ AUTO SCAN FACILITY
▶ CHANNEL ORGANISING (PROGRAMMABLE)
- LOW POWER CONSUMPTION
▶ AUTO UPDATED EPG
▶ PVR(PERSONAL VIDEO RECORDER) FUNCTION

2. TUNER SECTION

▶ VHF, UHF BAND 50\~870 MHz
MAX 7 Msps SYMBOL RATE
16\~256 QAM MODULATION FORMAT
RF LOOP-THROUGH OUTPUT(MALE) FOR ANALOG RECEIVER

3. VIDEO SECTION

▶ DVB-C COMPLIANT
MPEG-2 VIDEO(MP@ML)
COMPATIBLE FOR BOTH SCPC/MCPC
▶ SUPPORTS ASPECT RATIO 4:3(NORMAL) AND 16:9(WIDE SCREEN)
1\~15 Mb/s DATA RATE
2 SCART
▶ COMPOSITE VIDEO OUTPUT

4. AUDIO SECTION

▶ MPEG 1 AUDIO LAYER I & II
▶ STEREO AUDIO MODE
32, 44.1, AND 48kHz SAMPLING FREQUENCIES
VOLUME CONTROL AND MUTE FUNCTION THROUGH REMOTE CONTROL
▶ OPTICAL DIGITAL AUDIO OUTPUT

CONNECTING YOUR "STB"

1. LOCATION OF THE RECEIVER

Your receiver should be placed under proper ventilation. Don't put in completely enclosed cabinet that will restrict the flow of air, resulting in overheating. The location should be safeguarded from direct sunlight, excess moisture, rough handling or household pets. Avoid stacking other electronic components on the top of the receiver. The location should be safely accessible by the cable from your antenna system.

2. CONNECTING THE RECEIVER WITH CABLE SYSTEM

After installing your cable system, connect the coaxial cable to "ANT IN" terminal marked at the rear of the STB.

All cable connectors should be finger tightened; do not use any kind of wrench while tightening connectors. The cable should be 75 ohm impedance coaxial cable.

3. CONNECTING THE RECEIVER TO TV

To connect the receiver with your television, you can use the following methods; Via SCART cable, RF cable or RCA cable. Connect the RF cable to the terminal marked "RF OUT" on the rear panel of STB and its other end to the TV RF input socket. In here, "RF OUT" means the loop through.

In the case of connecting your TV through SCART cable, connect the SCART connector marked AV1 (TV) to the respective SCART port on the TV.

4. CONNECTING YOUR VCR OR DVD PLAYER

To connect a VCR or DVD player, the STB has been provided with SCART at the rear marked "AV2 (EXT)." Using a SCART connector, the VCR or DVD player can be connected to the receiver.

5. CONNECTING EXTERNAL AUDIO / HI-FI SYSTEM

To connect any external Audio Hi-Fi system, the receiver has been provided with two RCA connectors at the back of the receiver, marked with AUDIO L and R respectively to connect the left and right Audio.

6. CONNECTING DIGITAL AUDIO SYSTEM

Connect a fiber optic cable between OPTICAL on the receiver and OPTICAL on the Digital Audio System.

7. INSERTING SMARTCARDS FOR CONAX SERVICES

In order to view a scrambled service, you need to have a valid Smartcard. This STB has embedded the Conax to view Conax programmes.

Note : Insert the Smartcard with the gold coloured chip facing downwards.

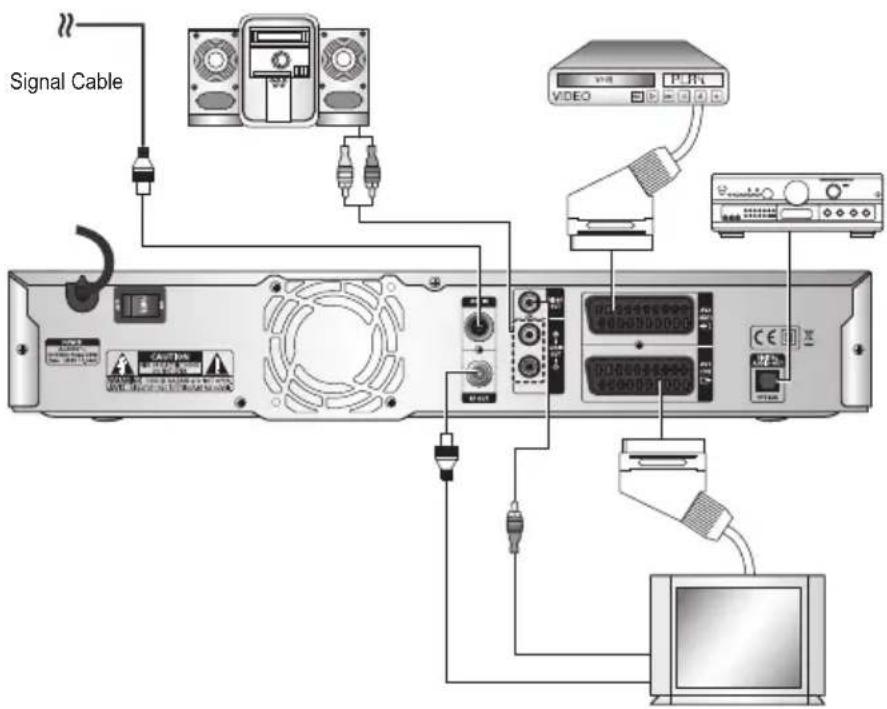

Connecting Figure

If degraded picture quality is observed while viewing copy-protected VOD (Video-on-Demand) movies, connect the set-top box directly to the TV set. Do not connect through a VCR.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

TruSurround XT, SRS and ● Symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS labs, Inc

DESCRIPTION

Front Panel

1. (POWER) Turns the receiver on and off (standby).
2. Smart Card Slot 1 slot for Conax smartcard.

Note : Smart Cards are only distributed by service providers and special distributors, not by SAMSUNG.

1. USB Port Connects an external USB storage device such as USB-HDD or thumb-drive.
2. Display Displays the playing status.
3. GUIDE Displays TV/Radio EPG (Electronic Programme Guide).
4. MENU Opens up or exits the menu.
5. EXIT Exits the current menu.
6. Infrared Sensor Receives IR commands from the remote control.
7. ∧/∨/K Moves the highlight bar for selecting options on the menu.
8. OK Enters and confirms any data to the receiver in the menu.
9. REC Indicator Lights when the receiver is recording.
10. REC Records for Live TV and Radio programmes.

Rear Panel

Fan
The fan always revolves when the power is on.
Ensure a minimum of 10cm clear space on all sides of the fan when installing the product.

1. AC MAINS This is to plug in the AC mains power cord. The input AC voltage range is 230V\~, 50/60Hz supply.
2. POWER SWITCH This is used to turn AC mains power on and off.
3. ANT IN Connects to a terrestrial aerial (or antenna).
4. RF OUT Connects to your TV aerial.
5. VIDEO OUT Connects to a video input of your TV using a RCA video cable.
6. AUDIO OUT Connects to audio inputs of your TV using RCA audio cables.
7. AV2(EXT) Connects to your VCR, DVD player or other equipment using a SCART cable.
8. AV1(TV) Connects to your TV using a SCART cable.
9. DIGITAL AUDIO OUT(OPTICAL) Connects to an optical input of your digital amplifier using an optical cable.

Remote Control

1. TV Switches the TV mode.

2. STB Switches the STB mode.

3. TV/RADIO Toggles between the TV channel and Radio channel.

4. INPUT SEL. Selects input signal in external input mode.

5. STANDBY/ON Turns the receiver on and off (standby).

6. PIP Used for PIP(Picture in Picture) function.

7. TV STANDBY/ON Turns the TV on and off (standby).

8. NUMERIC(0\~9) Enters numeric values and selects the channel directly by entering its number. Also used for inputting text.

9. FAV.CH Displays the favorite channel list.

10. BOOKMARK Used for bookmark function.

11. REC Records for Live Broadcasting.

12. T.REC Used for configuring the timer recording.

13. SKIP(I◄◄/►►I) Buttons Used for skipping backwards or forwards. (every 30 seconds)

14. SEARCH(◀◀/▶▶) Buttons Used for searching backwards or forwards.

15. LIVE(■) Button Used for stopping play in HDD mode or returning to Live Broadcasting when the Time Shift is active.

16. TIME SHIFT▶II) Used for starting and pausing play in HDD mode or starting the Time Shift.

17. VOL+/- Increases or decreases the volume.

18. CH^/\~Selects channels (programmes).

19. ☐(MUTE) Toggles between normal and muted audio.

20. MENU(☐) Opens up or exits the menu.

21. RETURN(○) Returns to the previous menu.

22. DIRECTION Buttons Moves the highlight bar for selecting options on the menu.

23. OK Enters data or confirms the selection on the menu.

24. REPEAT Repeats selected section (A–B).

25. GUIDE Displays TV/Radio EPG (Electronic Programme Guide).

26. INFO(i) Displays the channel information and programme information. If pressed again, it displays the Info menu, which includes information about signal information, time details, audio/video track, Add to FAV list, PIP On/Off, and recording status.

27. EXIT(∅) Exits the current menu.

28. RED(LIBRARY) Displays the recorded list. This button functions the same as the RED button on the menu.

29. GREEN(ALT) Selects the audio and video track list for the current service. This button functions the same as the GREEN button on the menu. Press it once and audio track list appears. Press it twice and video track list appears. The audio and video track services are not provided for every channel and depend on the conditions the operator is in.

30. YELLOW(TEXT) Selects the Teletext or Subtitle mode. This button functions the same as the YELLOW button on the menu.

31. BLUE(PRE.CH) Moves the previous channel. This button functions the same as the BLUE button on the menu.

Setting Up TV Operations with the Remote Control

Enter the manufacturer number into the remote control to control the TV with the remote control (see "Available TV Manufacturer Numbers" on pages 51\~58).

1. Turn the TV on.
2. Point the remote control towards the TV.
3. Enter the TV manufacturer number by using the NUMERIC(0\~9) buttons while pressing the TV button. E.g. For a Samsung TV, press 0, 0 and 1 in this order by using the NUMERIC(0\~9) buttons while pressing the TV button.
4. When the TV is turned off or on, the configuration is finished.

TV functions that you can control with the remote control

Button Function
TV STANDBY/ON Press to turn the TV on or off.
INPUT SEL. Press to select an external input source for the TV.
VOL+/- Press to adjust the TV volume / Exclusive to the TV
CH^/Press to select a TV channel.
(MUTE) Press to mute the TV sound.
NUMERIC(0~9) Press to enter the number

Note : 1. There is a model that can only be turned on by pressing the NUMERIC buttons "0" on the remote control.

1. TV models of other manufacturer that can be controlled with the remote control are limited, and some functions may not work.

2. If you replace the remote control batteries or enter a new manufacturer number, the previously configured TV manufacturer number is deleted.

3. When a connected device is an integrated TV model (VCR, DVDP), take care when using the remote control because it may operate both of them simultaneously.

4. If the configuration number does not work, try another number.

INITIAL INSTALLATION

You have to set up your receiver when it is plugged in for the first time. For this action, after pressing the MENU(☐) button, select Setup > System > Initial Installation. After entering your PIN code (the initial setting is "0000"), do the following actions:

Setting Language

- Use the ◀/▶ buttons to select a desired menu language.

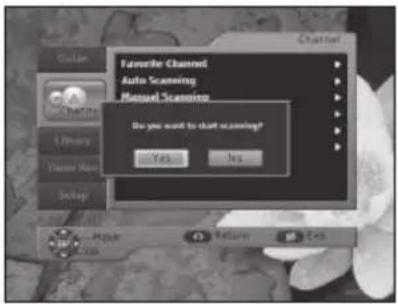

Executing Auto Channel Scanning

• After select option, use the▲/▼ buttons to select Confirm, then press the OK button.
  Auto channel scan will be started.
• After auto channel scan completes, press the OK button to save the TV and Radio channels.

BASIC FUNCTIONS

1. Display Screen

Before you can view the television programme, you must perform the installation. Therefore you will see only menu images at first.

After the television channels have been programmed, you will see the following picture (banner) each time you change channels:

- Press the INFO(i) button in Live mode.

- Select the channel by pressing the NUMERIC(0\~9) buttons or CH^/buttons and select the TV/RADIO button to move to TV or Radio channel. You will also see this picture each time you change channels.

When you press the TV/RADIO button on the remote control, TV and Radio programmes are toggled.

Detailed programme information

- Press the INFO(i) button twice while you are viewing a programme. First you will see the channel information. If pressed again, detailed information on the current programme is displayed as shown in the picture.

• [◀/▶ buttons]: displays information of the previous or next programmes.
• [▲/▼ buttons]: scrolls the current information.

Note: This service depends on the service provider.

2. Volume Control

To control the volume level :

• Press the VOL +/- buttons to adjust the volume level.
• Press the (MUTE) button to turn to silence mode.
• Press the ☒(MUTE) button again or VOL +/- buttons in order to cancel the mute function.

3. Select audio track

• Press the GREEN(ALT) button to see the audio track list.
• Use the ▲/▼ buttons to select an audio language, press the OK button.

Note: 1. Although the channel you are trying to record contains many audio tracks, you can listen to the limited number of audio tracks after the recording is complete.(minimum 1 / maximum 3 audio tracks)

• If the channel does not contain the subtitle and teletext: Maximum three audio tracks are available for recording.
• If the channel contains either the subtitle or teletext: Maximum two audio tracks are available for recording.

• If the channel contains both the subtitle and teletext: One audio track is only available for recording.

• For the channels that contains many audio tracks, use the GREEN(ALT) button to select audio tracks while recording. Then you can listen to the selected audio tracks after the recording is complete.

4. Select video track

• Press the GREEN(ALT) button twice to see the video track list.
• Use the ▲/▼ buttons to select a video, press the OK button.

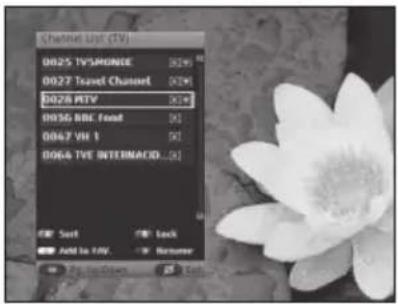

5. Channel List

• Press the OK button while you are watching a programme.
• Press the TV/RADIO button to select a TV or Radio channel.

You can select any of TV, Radio, and All channel lists.

- Press the ▲/▼ buttons to select a desired channel, then press the OK button. To move to the previous or next page on the channel list, use the ◀/▶ buttons.

• [RED(LIBRARY) button]: Sorts by alphabetic order or default setting.
• [GREEN(ALT) button]: Locks the channel after entering your PIN code.
• [YELLOW(TEXT) button]: Adds to the favorite list.
• [BLUE(PRE.CH) button]: Renames the channel.

6. Favorite List

• Press the FAV.CH button while you are viewing a programme.
• Press the TV/RADIO button to select a TV or Radio channel.

You can select any of TV, Radio, and All channel lists.

- Press the ▲/▼ buttons to select a desired channel, then press the OK button. To move to the previous or next page on the channel list, use the◀/▶ buttons.

• [RED(LIBRARY) button]: Removes the favorite channel.
• [GREEN(ALT) button]: Renumbers the channel. The channel number is changed using the◀/▶ buttons or NUMERIC buttons.
• [BLUE(PRE.CH) button]: Used when performing extra functions (such as Sort by name, Sort by number, or Rename List).

Sort by name: Sorts by alphabetic order.

Sort by number: Sorts by channel order.

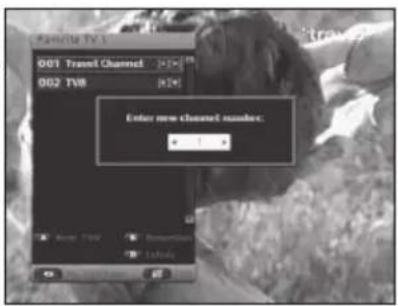

Rename List: Renames the channel.

7. Teletext

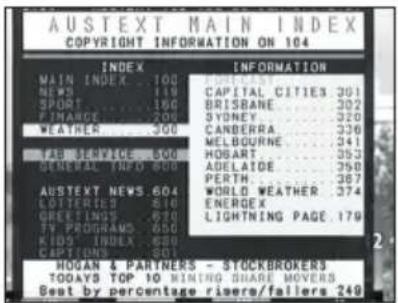

When the current broadcasting programme provides teletext, press the YELLOW(TEXT) button to see the current teletext language list. The first press displays the VBI (vertical blanking interval) teletext and the second press displays the OSD teletext.

To change the teletext language:

• Press the YELLOW(TEXT) button to see the teletext language list.
• Use the ▲/▼ buttons to select a teletext language you want.
• Press the OK button and then the selected teletext language is displayed.

To use the coloured-button for teletext:

• [RED(LIBRARY) button]: Goes back to the previous page. (It can be different depending on the service provider.)
• [GREEN(ALT) button]: Goes to the next page. (It can be different depending on the service provider.)
• [▲/▼ buttons]: Moves to the previous/next page.

Note: When the YELLOW(TEXT) button is pressed, no action follows but the Teletext banner disappears after about four seconds.

8. Subtitle

When the current broadcasting programme provides subtitle, press the YELLOW(TEXT) button three times to see the current subtitle language list.

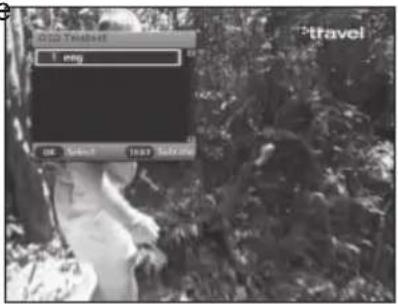

To change the subtitle language:

• Press the YELLOW(TEXT) button twice to see the subtitle language list.
• Use the ▲/▼ buttons to select the subtitle language you want.
• Press the OK button and then the selected subtitle language is displayed.

9. Programme Information (EPG—Electronic Programme Guide)

The electronic programme guide shows you programme information for the selected channel.

Note: 1. This service depends on the service provider.

1. After the receiver recognises the GMT-time from the signal which takes few seconds, it can display correct EPG information.

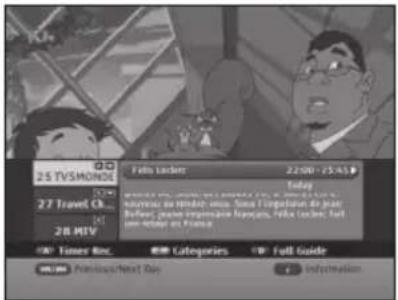

- Press the GUIDE button while you are viewing a programme.

Programme Information is displayed on the screen on the time basis.

• [▲/▼ buttons]: Selects channels.
• [◀/▶ buttons]: Used to display the program information by 30 minutes per block.

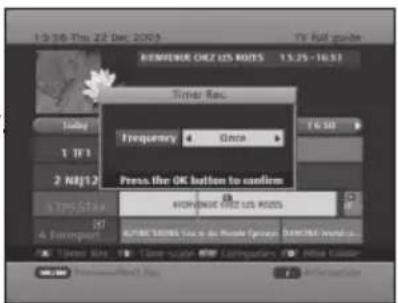

• [OK button]: You can select a current live channel, and also can schedule the future coming programmes for recording.

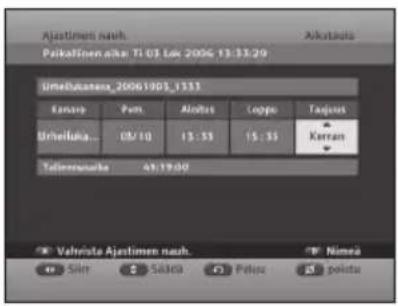

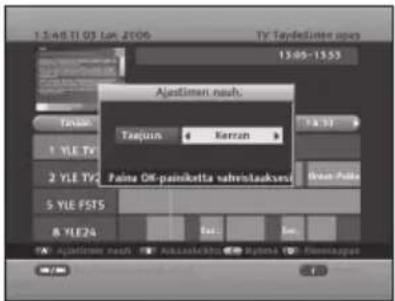

• [RED(LIBRARY) button]: Used for adding or cancelling timer recording.
• [GREEN(ALT) button]: Changes the time scale to 15 minutes, 30 minutes, or 1 hour.
• [YELLOW(TEXT) button]: Displays programmes by categories. (All, Movie/Drama, News/Affairs, Show/Game Show, Sports, Children's/Youth Programmes, Music/Ballet/Dance, Arts/Culture, Social/Political Issues/Economics, Education/Science, Leisure hobbies, Others)
• [BLUE(PRE.CH) button]: Toggles between Full Guide and Mini Guide.
• [SKIP(I◀◀) button]: Moves back to the previous day.
• [SKIP(▶▶I) button]: Moves to the next day.

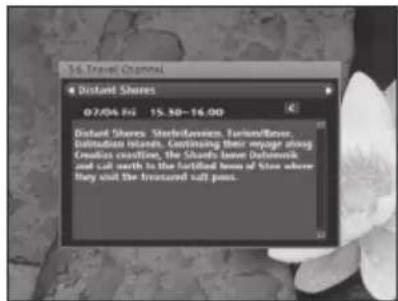

• [INFO(i) button]: Displays the programme information.

10. Instant Recording

Directly records while enjoying Live TV or Radio programme. The recorded file will be automatically saved to Video and Radio folders in the Library menu. This is not for permanent recording, so if you plug out the set without stopping the record, no file is saved. You can also record two separate channels at the same time.

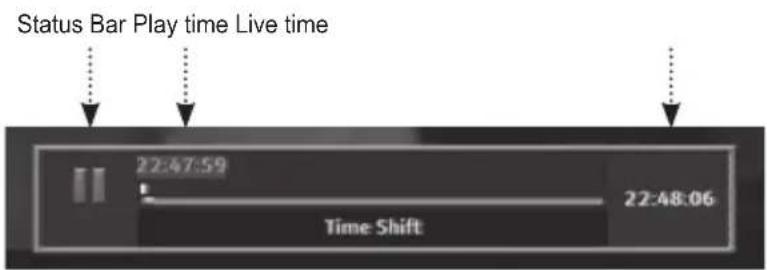

11. Time Shift

Time Shift function enables replay of previous scenes while playing a programme. The system automatically records the active live programme on the built-in HDD. First press the PLAY/PAUSE▶II) button during play and the current live programme will be paused. After a while, press the PLAY/PAUSE▶II) button and the programme resumes. The Time status bar appears to show you the current operating status. Use the playback-related buttons to play contents saved in the HDD.

• [TIMESHIFT(▶II)]: Used to start the Time Shift. To resume the stilled screen, press it again.
• [LIVE(■)]: Returns to the live channel.
• [SKIP(◀◀/▶▶▶)]: Skips backwards or forwards.
• [FAST SEARCH(◄◄/►►)]: Fast-searches backwards or forwards.
• [SLOW SEARCH(◄◄/►►)]: Slow-searches backwards or forwards while the screen is paused.

To record one channel:

• Change to the channel you want to record, then press the REC button to start recording.
• To stop the recording, press the STO(■) or REC button. The recording option menu will appear. Press the STO(■) button again.

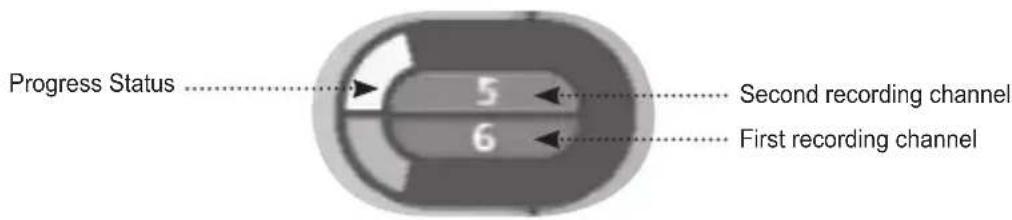

To record two channels:

• Change to the channel you want to record, then press the REC button to start recording.

• Change to another channel you want to record, then press the REC button to start recording. The red color indicates the channel that is currently displayed.
  • To stop the recording,

• Press the STOR(■) button. The recording option menu will appear.

• Select the channel to stop the recording using the◀/▶ buttons after moving the cursor by the▲ button, and press the STOP(■) button.
• To stop the second recording also, press the STQ(■) button and press it again when the option menu opens.

Note: When recording two channels, you can watch only one of those.

Abstract pattern of horizontal lines and a circular element (no text or symbols)

To use the Recording Option menu:

• Press the REC button during recording. The Recording Option menu will appear.
• [◀/▶ buttons]: To change the recording end time such as Unlimited, 30, 60, 90, and 120 minutes.
• To exit the menu, press the EXIT(0) button.

12. A-B Repeat Function

Repeatedly plays a selected section (A–B).

• Press the REPEAT button during playback.
• Press the OK button at the scene you want to start repeating.
• Press the OK button again at the scene you want to end repeating.

The specified A–B section will be played repeatedly.

- To deactivate the repeat function, press the REPEAT button again while the A–B section is playing, then the function will be deactivated.

13. Bookmark Function

You can bookmark specific scenes of the recorded file for easier search.

To add a bookmark:

• Press the BOOKMARK button during playback.
• Press the RED(LIBRARY) button when a desired scene appears. The number "1" is displayed at the top on the screen and the scene is memorised.
• Press the RED(LIBRARY) button again when the next desired scene appears. To get the scene quickly, use the SEARCH(◄◄/►►) buttons. The number "2" is displayed and the scene is memorised.
• Bookmarks can be added by repeating the steps above. You can bookmark up to 10 scenes.

To find a preset bookmark:

• Press the ◀▶ buttons to search the bookmark that you want. The selected bookmark number changes.
• After selection, press the OK button to play from that point.

To delete a bookmark:

• Press the ◀/▶ buttons to select the bookmark that you want to delete. The selected bookmark number changes.
• After selection, press the BLUE(PRE.CH) button to delete from the preset bookmarks. The final bookmark number decreases by 1 with no change to locations.

To move to the bookmark starting point:

- Press the JUMP button to get to the starting point of the current bookmark.

14. Info Menu

To see the Info menu about the programme on a live channel or the recorded play on HDD, press the INFO(i) button.

14.1. On live programme

With in the live programme, do the following:

- Press the INFO(i) button 3 times. The first press opens the channel information while the second press opens the programme information.

- The Info menu box displays the following items for your own taste.

- [Audio Track]: Use the ▲/▼ buttons to select an audio language, then press the OK button. When the Dolby Digital is available and it has priority, you can select it also.

- [Video Track]: Use the▲/▼ buttons to select a video track number, then press the OK button.

- [PIP]: After setting it to "On," you can watch two channels with main and sub pictures by pressing the PIP button. When you are watching 2 programmes at a time, use the RED(LIBRARY) button for swapping between main and sub pictures. The channel on the sub picture is changed upward by the YELLOW(TEXT) button, while it is changed downward by the BLUE(PRE.CH) button. To remove the sub picture, press the PIP button or change the setting to "Off."

- [Signal Info]: Displays the signal strength and quality.

- [Recording Status]: If any recording is going on, it displays the recording information. For more details, see the following sections.

Black-and-white photo of a cracked surface with a small inset showing a bright light source (no text or symbols visible)

14.2. While a recorded file is played

With in a recorded file playing, do the following:

- Press the INFO(i) button. It displays the following items for your own taste.

• [Time]: Displays the current time.
• [Playing Time]: Displays the played period of time.
• [Remain Time]: Displays the remaining time to the end.
• [Audio Track]: Use the▲/▼ buttons to select an audio language, then press the OK button. When the Dolby Digital is available and it has priority, you can select it also.
• [PIP]: After setting it to "On," you can watch a live programme on the sub picture as mentioned above.
• [Recording Status]: If any recording is going on, it displays the recording information as mentioned above.

14.3. Signal Info

You can check the signal strength and quality of the current channel.

14.4. Recording Status

You can check the recording status such as channel number, event name, record type, frequency, free space, and record proceeding time. When there are 2 recordings available, use the ◀/▶ buttons to see the recording status between recording 1 and recording 2.

After installing your aerial system and STB with appropriate connectors.

• Plug in the AC main power and switch on the receiver.
• Press the MENU button to bring up the main menu.

The following on screen display will appear:

You will see the main menu on the TV screen as shown below.

• Moves into the desired sub menu using the ▲/▼/◄/► buttons.
• Press the OK button to confirm your selection.

1. Guide

In this menu, you can get information about programmes on various channels.

Note : 1. This service depends on the service provider. 2. After the receiver recognises the GMT-time from the received signal that takes few seconds, it can display correct programme information.

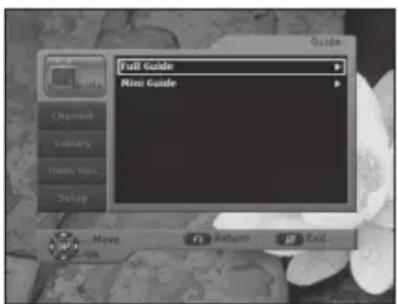

• Use the ▲/▼ buttons to select Guide in the main menu, then press the OK or▶ button.
• Use the ▲/▼ buttons to select Full Guide or Mini Guide, then press the OK or▶ button.

The programme information may include: current time, channel name, name of the current and next programme, the start and total time of the current and next programme.

1.1. Full Guide

The function gives you information for the full channels. This service depends on the service provider.

When you select a channel using the▲/▼ buttons, it will display various information such as current time and date, channel name, programme name, schedule of programmes, and programme status (Recording, Favorite Channel, Parental Guide, Pay TV, etc.).

• Use the ▲/▼/◄/► buttons to select a desired channel, then press the OK button. You can also schedule the future coming programmes for recording. To schedule the programme for recording, press the RED(LIBRARY) button.
• Press the INFO(i) button, then you can get more information selected programme.

1.2. Mini Guide

Mini Guide menu is similar to Full Guide menu. Use ◀/▶ buttons to get previous or next programme information.

• Use the ▲/▼ buttons to select Mini Guide in the Guide menu, then press the OK or▶ button.
• Press ◀/▶ buttons to select previous or next programme.

You can use OK and INFO(i) buttons as in Full Guide menu.

Note : 1. It can reach as far as the time displaying the EPG information.
2. If you select a locked channel, you can input the password only when the Mini Guide menu is gone.

1.3. Using the colour buttons

• When you press the RED(LIBRARY) button, the timer recording can be assigned with a desired recording frequency. For recording frequency, you can select any of Once, Daily, Weekly, and Workday (Monday to Friday).
• When you press the GREEN(ALT) button, you can change the time scale to 15 minutes, 30 minutes, or 1 hour.
• When you press the YELLOW(TEXT) button, the programmes are displayed by categories like sports, news, movie, and such.
• Full Guide and Mini Guide are toggled by the BLUE(PRE.CH) button.

2. Channel

Channel menu have six sub menus: Favorite Channel, Auto Scanning, Manual Scanning, Linear Scanning, Channel List, and Parental Guide.

These options enable you to change channel settings. You can set the various settings you want.

• Use the ▲/▼ buttons to select Channel in the main menu, then press the ▶ button.
• Use the ▲/▼ buttons to select a sub menus, then press the OK or ▶ button.

2.1. Favorite Channel

You can select TV or Radio channel from the favorite list. The screen displays five different favorite groups.

Select a favorite group you want.

• Press the TV/RADIO button to toggle the TV and Radio favorite list.
• Use the ▲/▼/◄/► buttons to select a desired channel.
• You can edit the favorite channel list using Rem. FAV, Renumber, and Extras.
• To exit, press the EXIT(€) button.

2.1.1 Remove Favorite channel

You can remove channels on the favorite list.

• Use the ▲/▼ buttons to select the channel you want to remove.
• Press the RED(LIBRARY) button.
• Use the ◀/▶ buttons to select Yes, then press the OK button.

The selected channel is removed.

2.1.2. Renumber

You can change the channel number of the selected one on the list.

• Use the ▲/▼ buttons to select the channel you want to renumber, then press the GREEN(ALT) button.
• Use the ◀/▶ buttons or NUMERIC buttons to change the channel number, then press the OK button.

2.1.3. Extras

You can perform extra functions in the favorite list. (See page 16)

2.2. Auto Scanning

This menu automatically downloads available channels with the predefined network ID.

• Select Yes and press the OK button to start scanning.
  • After scanning completes, press the OK button to save.
• To exit without saving, press the MENU(☐) or EXIT(☐) button.

2.3. Manual Scanning

This menu enables to download the channels manually.

• If you want to change the items below, use the▲/▼ buttons to select them, then press the◄/► buttons to change the value.
• [Frequency]: Selects the channel frequency.
• [Modulation]: Selects the modulation scheme.
• [Symbol Rate]: Selects the rate of state changes on the communication circuit.
• [Signal Status]: Displays the signal strength.
• Press the OK button to start scanning.
  • After scanning completes, press the OK button to save.
• To exit without save, press the MENUTT or EXIT(€) button.

2.4. Linear Scanning

This menu is used when the auto scanning fails. It enables to download the channels with no network ID.

• Select Yes and press the OK button to start scanning.
• After scanning completes, press the OK button to save.
• To exit without saving, press the MENU(☐) or EXIT(☐) button.

2.5. Channel List

You can select TV or Radio channel from the channel list.

• Press the TV/RADIO button to toggle the TV and Radio channel list.
• Use the ▲/▼/◄/► buttons to select a desired channel list and press the OK button.
• You can edit the channel list using Sort, Lock, Add to FAV., and Rename.
• To exit, press the EXIT(☐) button.

ICONS of the Channel List

: Locked channel.
❤️: Favorite channel.
€ : Scrambled channel.

2.5.1. Sort

You can sort channels on the channel list.

• Press the RED(LIBRARY) button to sort channels.
• Use the ▲/▼ buttons to select a desired sorting method from Alphabetic and Default.
• When you press the OK button, channel list is sorted by your desired sorting method.

2.5.2. Lock

You can block the current channel.

• Press the GREEN(ALT) button to lock the channel. Then the menu requesting the PIN code appears.
• Enter the PIN code using the NUMERIC buttons.

2.5.3. Add to FAV.

You can add the current channel to the favorite list.

- Use the ▲/▼ buttons to select the channel you want to add to the favorite list, then press the YELLOW(TEXT) button.

2.5.4. Rename

You can rename the current channel.

- Press the BLUE(PRE.CH) button to rename the channel.

• [▲/▼/◄/► buttons]: Moves the cursor.
• [OK button]: Enters characters.
• [RED(LIBRARY) button]: Toggles between upper case and lower case.

• [BLUE(PRE.CH) button]: Toggles between special characters and alphabets.

• After changing completes, use the▲/▼/◄/► buttons to select SAVE, then press the OK button.

• Up to 30 characters are allowed as a channel name.
• To exit without saving, press the MEN(1) or EXIT(∅) button.

2.6. Parental Guide

This function prevents children or unauthorized persons from watching programme. Also you can change your PIN (Personal Identification Number) code.

• Enter your own PIN code. (The factory preset PIN code: 0000)
• Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

2.6.1. Program Grade

You can change the programme grade.

- Use the ▲/▼ buttons to select a programme grade, then press the OK or▶ button.

• [Off]: Parental lock is inactive.
• [4...17]: You can block for each age from 4 to 17.
• [AII]: Locks for all users.

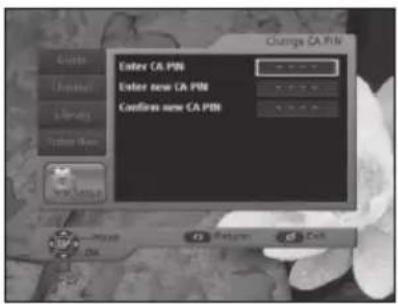

2.6.2. Change PIN Code

You can change the PIN code.

• Use the NUMERIC(0\~9) buttons to enter the old PIN code and new PIN code.
• To confirm it enter the new PIN code again.

Please remember the PIN code should be a 4-digit numerical value.

The factory preset PIN code: 0000

Note: If you forgot the PIN code, contact the Service Provider. Once you change your password, you must keep it in mind.

3. Library

You can play and edit TV channel recordings, Radio channel recordings, video files, photo files, and music files in the Library menu.

You can also enjoy JPG and MP3 files stored in your external USB storage device.

• Use the ▲/▼ buttons to select Library in the main menu, then press the▶ button.
• Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

3.1. Video

You can play and edit TV channel recordings.

- Use the ▲/▼/◄/► buttons to select a recorded file or video file, then press the OK button.

• [PLAY/PAUSE▶II) button]: Plays or pauses the current file.
• [STOP(■) button]: Stops playback and exits to the file list.

• [SKIP(I ◀ ◀ ◀ ▶ I) buttons]: Each press performs a 30-second commercial skip. It enables you to evade from watching commercials.

• To enter a folder, use the ▲/▼/◄/► buttons to select a folder, then press the OK button.

• To change to a higher level folder, use the ▲/▼/◄/► buttons to select the □.. icon, then press the OK button. After selecting a folder, you can edit by options such as Rename, Delete, and New Folder after pressing the GREEN(ALT) button.

Note : According to the size recorded on HDD, the booting time may vary.

• After selecting a file, you can use the following buttons:
• [YELLOW(TEXT) button]: You can list the files by the selected media such as Video, Music, Photo, and Radio using the ▲/▼ and OK buttons.
• [GREEN(ALT) button]: You can edit files using Sort, Move, Rename, Lock, Delete, and New Folder. Use the ▲/▼ buttons to select a sub menu, then press the OK button.

3.1.1. Sort

You can sort video files in the file list.

• Use the ▲/▼ buttons to select a desired sorting type such as length, channel, event name, and date.
• When you press the OK button, file list is sorted by your desired sorting type.

3.1.2. Move

Files can be moved between different HDD folders.

If Move is selected, it lists the video files.

• To move to the file list, press the button.
• Use the ▲/▼ buttons to select each file to move, then press the OK button.
• To move the selected files to the destination folder, use the ◀/▶ button to set the destination. After a folder is selected, press the YELLOW(TEXT) button. The selected files are moved to the destination folder.

Note: You can select multiple files using ▲/▼ and OK buttons.

3.1.3. Rename

You can change the name of file or folder. (See page 30)

3.1.4. Lock/Unlock

You can lock or unlock files in the list.

- Enter your own PIN code. (The factory preset PIN code: 0000)

If a file is locked, you can see icon. In order to see the locked file, you must enter the PIN code.

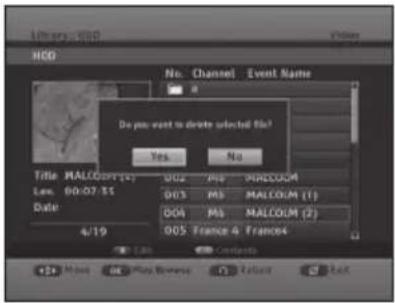

3.1.5. Delete

You can delete files from the file list.

- Use the ◀/▶ buttons to select Yes, then press the OK button.

3.1.6. New folder

A new folder can be created on the current directory.

• Enter the name of new folder as in page 30.
• Select Save using the▲/▼/◄/► buttons, then press the OK button.

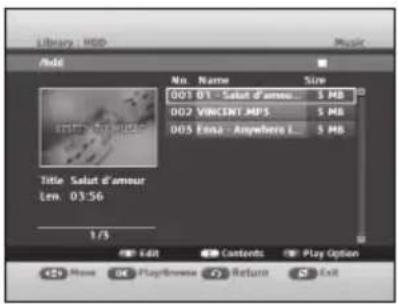

3.2. Music

You can play and edit music files with the extension *.mp3.

- Use the ▲/▼/◄/► buttons to select a music file, then press the OK button.

• [PLAY/PAUSE▶II) button]: Plays or pauses the current file.
• [STOP(■) button]: Stops playback and exit to the file list.

• [SKIP(I◄◄/►►I) buttons]: Moves to the previous or next music title.

• For entering a folder, first use the ▲/▼/◄/► buttons to select a folder, then press the OK button.

• To change to a higher level folder, use the ▲/▼/◄/► buttons to select the □... then press the OK button.

- [RED(LIBRARY) button]: Selects the storage device between the built-in HDD and the external USB storage device. If the external USB storage device is not connected, this button is deactivated.

Note: When using external USB HDD, its file system must be FAT32.

• [GREEN(ALT) button]: Edits files by Add to Playlist, Sort, Copy, Rename, Delete, and New folder. Use the ▲/▼ button to select a sub menu, then press the OK button.
• [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the▲/▼ button to select a content, then press the OK button.
• [BLUE(PRE.CH) button]: Selects the play option such as Repeat and Random. Repeat repeatedly plays the selected file or the files in the selected folder. Random repeatedly plays the files in the selected folder.

3.2.1. Add to Playlist

You can add the selected file to the Playlist folder. If the Playlist folder does not exist, the folder is created on the root directory automatically.

- To remove the file from the Playlist folder, select a file to remove using the ▲/▼ buttons, then press the GREEN(ALT) button and select Delete

3.2.2. Sort

You can sort music files in the file list.

• Use the ▲/▼ to select a desired sorting type such as file name and size.
• When you press the OK button, the file list is sorted by your desired sorting type.

3.2.3. Copy

Files can be copied from an external USB storage device to your receiver and vice versa. You can also copy files between folders on the hard disk drive.

• After selecting a file for copy, press the GREEN(ALT) button. The selected file is highlighted.
• Select Copy using the▲/▼ buttons, then press the OK button.
• Select a target folder in the HDD or USB device and press the YELLOW(TEXT) button. To change to the external USB device, press the RED(LIBRARY) button, which can toggle between HDD and USB device.

3.2.4. Rename

You can change the name of file or folder. (See page 30)

3.2.5. Delete

You can delete files from the file list.

- Use the ◀/▶ buttons to select Yes, then press the OK button.

3.2.6. New folder

A new folder can be created on the current directory. (See page 34)

3.3. Photo

You can play and edit photo files with the extension *.jpg.

- Use the ▲/▼/◄/► buttons to select a photo file, then press the OK button.

• [PLAY/PAUSE▶II) button]: Plays or pauses the slide show.
• [STOP(■) button]: Stops playback and exit to the file list.
• [◀/▶ buttons]: Changes to the previous or next image.

• [SEARCH(◄◄/►►) buttons]: Changes the slide show in fast speed.

• For entering a folder, first use the ▲/▼/◄/► buttons to select the folder, then press the OK button.

• To change to a higher level folder, use the ▲/▼/◄/► buttons to select the □... , then press the OK button.

- [RED(LIBRARY) button]: Selects the storage device between the built-in HDD and the external USB storage device. If the external USB storage device is not connected, this button is deactivated.

Note: When using external USB HDD, its file system must be FAT32.

• [GREEN(ALT) button]: Edits files by Add to Playlist, Sort, Copy, Rename, Delete and New folder. Use the ▲/▼ buttons to select a sub menu, then press the OK button. The listed functions are the same as in Music. (See page 35 and 36)
• [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the▲/▼ buttons to select a content, then press the OK button.

3.3.1. Slide Show

You can play photo files by slide show mode.

3.3.2. Slide Option

You can set the slide show speed and background music to on or off.

• Use the ◀/▶ buttons to select a desired option among Normal, Slow, Fast, On, and Off, then press the OK button to check.
• Use the ▶ button to select OK, then press the OK button.
• If you set the Music On, music files stored in the receiver are played in sequential order, while slide show is running. The music files should have been stored in the folder for slide show.

3.3.3. Sort

You can sort photo files in the file list.

• Use the ▲/▼ buttons to select a desired sorting type such as file name and size.
• When you press the OK button, file list is sorted by your desired sorting type.

3.3.4. Copy

Files can be copied between your receiver and an external USB storage device. Refer to the method as in video files moving. Only the difference is the target files are not removed from the source folder by Copy.

3.3.5. Rename

You can change the name of file or folder. (See page 30)

3.3.6. Delete

You can delete files from the file list.

- Use the ◀/▶ buttons to select Yes, then press the OK button.

3.3.7. New Folder

A new folder can be created on the current directory. (See page 34)

3.4. Radio

You can play and edit Radio channel recordings.

• Use the ▲/▼/◄/► buttons to select a Radio channel recording, then press the OK button.
• For entering a folder, first use the ▲/▼/◄/► buttons to select a folder, then press the OK button.
• To change to a higher level folder, use the ▲/▼/◄/► buttons to select the □... , then press the OK button.

- [GREEN(ALT) button]: Edits files such as Add to Playlist, Sort, Copy, Rename, Delete, and New folder. Use th▲/▼ button to select a sub menu, then press the OK button. Edit functions of Radio are the same as the ones in music. (See page 35 and 36)

- [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the▲/▼ button to select a content, then press the OK button.

4. Timer Recording

You can schedule timer recordings for the TV and Radio channels.

• Use the ▲/▼ buttons to select Timer Rec. on the main menu, then press the▶ button.
• Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

4.1. Scheduled Recordings

You can add, edit or delete the timer recording in the reserved list.

• [Title]: Title name of the timer recordings.
• [Date]: Date of the timer recordings.
• [Start]: Starting time of the timer recording.
• [Freq.]: Frequency of the timer recording such as Once, Daily, Weekly, and Work Day.

4.1.1. Add

You can add the timer recording to the reserved list.

• Press the RED(LIBRARY) button to add the timer recording to the scheduled list.

• Use the ▲/▼/◄/► buttons to set the channel, date, start time, end time, and frequency, then press the RED(LIBRARY) button to confirm.

• [▲/▼ buttons]: Adjusts the values.

• [◀/▶ buttons]: Moves through the items.
• [NUMERIC(0\~9) buttons]: Enters a number.
• [BLUE(PRE.CH) button]: Changes the recording name. The default name is created based on the channel, date, and start time of the recording(See page 30)

- To confirm the timer recording, press the RED(LIBRARY) button.

4.1.2. Edit

You can edit the timer recordings in the reserved list.

• Use the ▲/▼ buttons to select a timer recording you want to edit, then press the GREEN(ALT) button.
• Use the ▲/▼/◄/► buttons to edit the items of the timer recording, then press the RED(LIBRARY) button to confirm.

Note : You cannot modify the file that is in progress for recording.

4.1.3. Delete

You can delete a timer recording from the reserved list.

• Use the ▲/▼ buttons to select a timer recording you want to delete, then press the BLUE(PRE.CH) button.
• Use the ◀/▶ buttons to select Yes, then press the OK button.

4.2. EPG Setting

You can record the channels using EPG.

• Use the following buttons to select a channel you want to record, then press the RED(LIBRARY) button.
• [▲/▼ buttons]: Selects channels.
• [◀/▶ buttons]: Selects times.
• [SKIP(▶▶I) button]: Moves to the next day.
• Use the ▲/▼/◄/► buttons to select the start time and the duration, then press the OK button to confirm.
• The channel will be added to the reserved list automatically.

4.3. Manual Setting

You can set the channels using EPG.

- Use the ▲/▼/◄/► buttons to set the channel, date, start time, end time, and frequency, then press the RED(LIBRARY) button to confirm.

• [▲/▼ buttons]: Adjusts the values.
• [◀/▶ buttons]: Moves the items.
• [NUMERIC(0\~9) buttons]: Enters number.
• [BLUE(PRE.CH) button]: Changes the recording name.
  The default name is created based on the channel, date, and start time of the recording(See page 30)

5. Setup

You can set the setup items such as PVR, Preferences, Language, System, and Conax.

• Use the ▲/▼ buttons to select Setup in the main menu, then press the ▶ button.
• Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

5.1. PVR

You can set the Time Shift Buffer and executing Disc Manager.

The setting of Time Shift Buffer enables replay of previous scenes of live TV programme for up to 240 minutes before.

5.1.1. Time Shift Buffer

You can set the time length for the Time Shift function.

• Use the ▲/▼ buttons to select Time Shift Buffer, then press the OK or▶ button.
• Use the ▲/▼ buttons to desired time(such as 30, 60, 90, 120, and 240 minutes), then press the OK button.

5.1.2. Disc Manager

You can check the capacity information of the disc, and you can format the disc. All data stored in the disc will be deleted after formatting.

To format the disc:

• Press the ◀/▶ buttons to select a storage device between HDD and USB. If the external USB storage device is not connected, this button is deactivated.
• You cannot format the USB memory but can see information only.
• Use the ▲/▼ buttons to select Format, then press the OK button.
• Use the ◀▶buttons to select OK, then press the OK button to confirm.
• Enter your own PIN code to start format. (The factory preset PIN code: 0000)
  • After the formatting completes, press the OK button.

5.2. Preferences

You can set the preferences menu.

- Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

5.2.1. Screen Ratio

You can set the screen ratio.

- Use the ▲/▼ buttons to select a desired screen ratio (such as 4:3 and 16:9), then press the OK button.

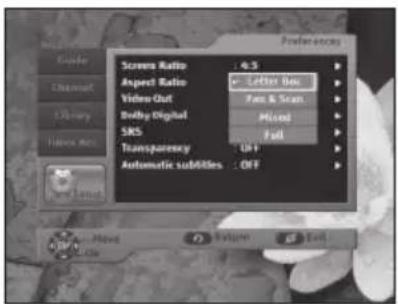

5.2.2. Aspect Ratio

You can set the aspect ratio of your TV.

- Use the ▲/▼ buttons to select the desired aspect ratio (such as Letter Box, Pan & Scan, Mixed, and Full), then press the OK button.

- [Letter Box]: Select this when you want to see a 16:9-ratio image on the 4:3-ratio TV monitor. It shrinks the 16:9-ratio image with no screen distortion so the top and bottom of the screen are black-empty.

- [Pan & Scan]: Select this when you want to see a 4:3-ratio image on the 16:9-ratio TV monitor. It shows the 4:3-ratio image with no screen distortion so extreme left and right sides are cut off.

- [Mixed]: Select this when you want to see a mixture image of Letter Box and Pan & Scan. So the top, bottom, extreme left, and extreme right are cut off.

- [Full]: Select this when you want to see an image with converted to full screen regardless of the aspect ratio of sources.

5.2.3. Video Out

You can set the video output signal format.

- Use the ▲/▼ buttons to select the desired video output signal format (such as RGB and Composite), then press the OK button.

• [RGB]: Selects for SCART cable.
• [Composite]: Selects for RCA cable.

5.2.4. Dolby Digital

You can set the Automatic Dolby digital audio to on or off.

- Use the ▲/▼ buttons to select ON or OFF, then press the OK button.

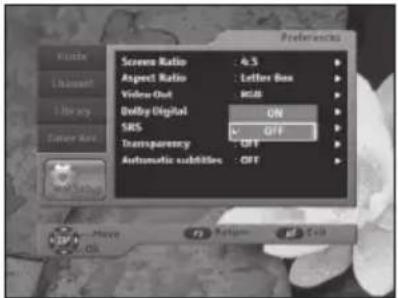

5.2.5. SRS

You can set the Sound Retrieval System to on or off.

- Use the ▲/▼ buttons to select ON or OFF, then press the OK button.

5.2.6. Transparency

You can set the OSD transparency to on or off.

- Use the ▲/▼ buttons to select ON or OFF, then press the OK button.

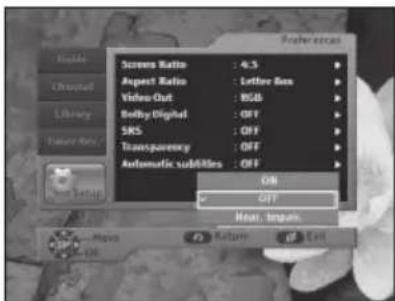

5.2.7. Automatic Subtitles

You can set the automatic subtitle display to on or off. To show effect sounds such as "knock knock" for hearing-impaired people, select Hear. Impair.

- Use the ▲/▼ buttons to select any of ON, OFF, and Hear. Impair., then press the OK button.

5.3. Language

You can set languages for OSD, Primary Audio Out, Secondary Audio Out, Audio Priority, Primary Subtitles, and Secondary Subtitles.

5.3.1. OSD

You can set the OSD language.

- Use the ▲/▼ buttons to select a desired language, then press the OK button.

5.3.2. Primary Audio Out

You can set the primary audio language. If multiple languages are available, this primary language is set to the audio language.

- Use the ▲/▼ buttons to select a desired language, then press the OK button.

5.3.3. Secondary Audio Out

You can set the secondary audio language. If the primary language is not available, this secondary language is set to the audio language.

- Use the ▲/▼ buttons to select a desired language, then press the OK button.

5.3.4. Audio Priority

You can select any of audio language and Dolby Digital. If the audio language has priority, you can hear the audio language without Dolby Digital sound.

- Use the ▲/▼ buttons to select any of audio language and Dolby Digital, then press the OK button.

5.3.5. Primary Subtitle

You can set the primary subtitle language. If multiple languages are available, this primary language is set to the subtitle language.

- Use the ▲/▼ buttons to select a desired language, then press the OK button.

5.3.6. Secondary Subtitle

You can set the secondary subtitle language. If the primary language is not available, this secondary language is set to the subtitle language.

- Use the ▲/▼ buttons to select a desired language, then press the OK button.

5.4. System

You can set the system menu.

- Use the ▲/▼ buttons to select a sub menu, then press the OK or ▶ button.

5.4.1. Initial Installation

You can set the initial installation.

• Enter your own PIN code, then press the OK button.
• Use the ◀/▶ buttons to select a language.
• Use the ▲/▼ buttons to move to Confirm, then press the OK button. (See page 13)

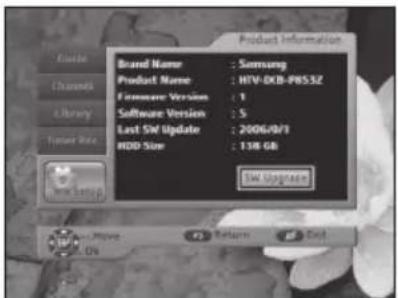

5.4.2. Product Information

You can display the product information such as Brand Name, Product Name, Firmware Version, Software Version, Last SW Update, and HDD Size.

To upgrade software:

• Press the OK button on the Product Information menu, then the SW Upgrade menu will appear.
• To scan particular channel, use the◀/▶ buttons to select a mode between Auto and Manual.
• In the manual mode, you can select the channel and PID value using the ▲/▼/◄/► buttons.
• To start the software upgrade, press the OK button.

Caution: When the receiver is transferring, you must keep a thing intact until transfer is ended.

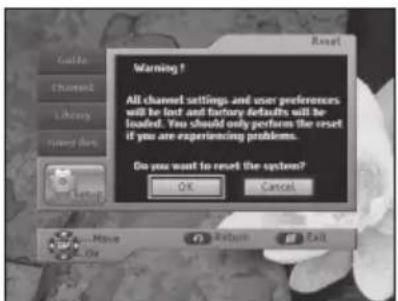

5.4.3. Reset

You can restore the factory preset values in case the user has encountered some problems after changing any new values for channel data and others, which may be in error.

• Use the ◀/▶ buttons to select OK, then press the OK button.
• Enter your own PIN code to start reset. (The factory preset PIN code: 0000)

5.5. Conax

You can see the smartcard-related information and change the PIN code using this menu.

Product Ordering

It loads the product catalog data.

Subscription Status

It shows you the subscription status of your smartcard. The status displays the valid terms.

Event Status

It shows you the events that are available to your smartcard.

Tokens

It shows you the tokens that are available to your smartcard.

Change CA PIN

If needed, you can change the current CA PIN code. You have to enter the new PIN code again to confirm.

Change Signature PIN

You can also change the current PIN code for signature.

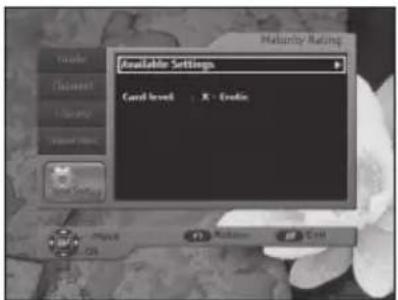

Maturity Rating

You can select the maturity rating. The available maturity ratings are general audience, parental guidance, over 18, and erotic. To watch the restricted programme, you have to enter the smartcard PIN code.

About Conax CA

It shows you the smartcard-related information.

AVAILABLE TV MANUFACTURER NUMBERS

1. TV button + 3-Digit User Code
2. TV Operating buttons: TV STANDBY/ON, NUMERIC(0\~9), CH^/∨, VOL+/-, INPUT SEL.,

(MUTE)

TV
Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

SAMSUNG 001 002 003 004 005 006 007 008 009
	010 050 066 076 102 195 217 365 379
	421
A.R. SYSTEMS 049 152
ACCENT 049 152
ACEC 112
ACURA 195
ADMIRAL 065 076 163 171 190 307 324 369 466
	481
ADYSON 379
AGASHI 076 379
AGEF 324
AIKO 049 076 102 141 152 172 195 225 379
AIWA 377 459
AKAI 049 050 055 066 076 102 107 123 139
	141 150 152 172 182 195 209 225 379
	428 433 437 471 475
AKIBA	049 123 152 380 378
AKITO	049 106 152
AKURA	049 076 123 195 378 426 470
ALARON 042 379
ALBA	018 049 050 107 123 134 163 168 195
	225 232 379 413 421 457
ALBIRAL 371
ALCYON 407
ALLORGAN	050 094 236 379
ALLSTAR	049 152
AMPLIVISION	113 379 421 425
AMSTRAD	012 049 076 123 131 152 172 195 225
	426 476
ANAM	049 152 195
ANAM NATIONAL	049 152
ANGLO	076 195
ANITECH 049 076 152 195 407
ANSONIC	045 049 107 112 152 195 210 226 391
	413 421
ARC EN CIEL	074 182 186 424 453 463
ARCAM	379 424
ARISTONA	049 050 065 079 112 152 160
ARTHUR MARTIN	107 127 136 139 153 307 425
ASA	020 065 078 080 091 146 171 197 307
	324 375 408 449
ASBERG	049 152 407
ASORA	195
ASTRA	195
ASUKA	050 076 123 378 379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

ATLANTIC	049 050 071 113 152 236 379
ATORI	195
AUCHAN	107 425
AUDIOSONIC	049 074 076 152 182 195 213 379 421
AUDIOTON	050 076 379 421
AUSIND	090 407
AUTOVOX	050 071 078 079 080 083 090 156 236 324 379 407 413 449 468 470
AWA	018 049 131 152 195 226 320 379 426 433
AYOMI	411
BAIRD	074 102 182 209 218 379 409
BANG & OLUFSEN	324 483
BARCO	107 371 480
BASIC LINE	049 107 123 195 226 378
BASTIDE	379
BAUR 049 107 150 152 172 247 249 357 414 454 470 475
BEKO	152 241 421 433 460
BEON	049 152 163
BEST	213 421
BESTAR	049 152 226 421
BINATONE	379
BLACK STAR	413
BLACKTRON	378
BLACKWAY	378
BLAUPUNKT	057 060 113 247 249 345 451 454 481
BLUE SKY	049 123 152 195 217 232 378 380 457
BLUE STAR	378
BONDSTEC	413
BOOTS	050 106 379
BPL	049 152 378
BRANDT 014 074 182 186 218 424 436 452 462
BRANDT ELECTRONIC	074 453 463
BRANDT ELECTRONIQUE	074 182 186 453
BRINKMANN	049 152 163
BRIONVEGA	049 065 083 152 167 172 324 356 476
BRITANNIA	379
BROTHER	076
BRUNS	065 324
BSR	094 107 110 139 168
BTC	123
BUSH	018 049 076 094 106 107 123 134 139 142 172 193 195 209 217 225 226 232 307 378 379 457 458 470 480
BUSH(UK)	107 168

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

CAPSONIC 049 076 152 380

CARREFOUR 018 177

CASCADE 049 064 152 195

CASIO 049 152

CATHAY 049 152

CCE 049 152 379

CENTURION 049 152

CENTURY 065 163 324 411 413 481

CGE 011 090 093 094 107 139 142 163 168

346 348 369 407 413 421 480

CIHAN 217

CIMLINE 123 134 195

CITY 195

CLARIVOX 049 125 163

CLATRONIC 045 049 076 113 123 152 195 225 379407 413 421

CMS HIGHTEC	379
COMTEL	125 217
CONCORDE	195
CONDOR	045 049 050 113 152 163 195 210 378 379 413 421 467
CONTEC	018 131 195 320 379

CONTINENTAL EDISON	014 074 182 186 232 424 453 462 463
COSMEL	195 213

CROSLEY 065 090 093 094 104 107 139 324 346
	348 407 413 469 481
CROWN	049 152 163 170 195 209 232 407 421
	470

CRYSTAL	477
CS ELECTRONICS	123 379 413
CTC	413
CTC CLATRONIC	045
CURTIS MATHES	126 190
CYBERTRON	123
DAENYK	042

DAEWOO	049 123 152 193 195 226 379 456 464
DAINICHI	123 379
DANSAI	049 076 141 152 195 379
DANSETTE	426
DANTAX	421
DATSURA	209
DAWA	049 152

DAYTON	049 152 195 226
DE GRAAF	107 139 209 307 479
DECCA	049 102 106 120 217
DECCA(UK)	046 049 050 102 106 131 152 379

DEITRON 049 152
DENKO	076
DENON	126
DERWENT	105
DESMET	049 113 152
DIGATRON	049

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

DIGILINE	049 152
DIXI	049 152 195 379 413
DORIC	104 105
DREAN	049 152
DTS 195
DUAL	049 050 107 139 152 156 168 182 243 379 414 417 424 468 470
DUAL TEC	040 050 168 195 379
DUMONT	045 065 080 102 139 146 324 375 379 449 469
DUMONT-FINLUX	020 045 078 091 104
DUX	049 112 152
DYNATRON	049 152
ELBE	049 107 123 152 172 210 243 369 391 411 421 435
ELBIT	217
ELCIT	045 046 062 065 104 107 150 168 324 413
ELECTA	076 378
ELECTRO TECH	195
ELEKTA	076 378
ELG 049 152
ELIN	020 049 107 139 152 172 195 379 470 479
ELITE	049 123 152 467
ELMAN	045 168
ELTA	195 076 379
EMERSON	012 042 049 065 113 152 225 324 378 413 475 481
ERRES	049 112 152
ESC	049 152
ETRON	049 107 139 152 195
EURO-FEEL 076
EUROMAN	049 076 152 379 421
EUROPA 049 152
EUROPHON	045 046 049 050 068 107 120 152 168 379 413
EXPERT	071 107 236 425
EXQUISIT	049 152 413
FAMILY LIFE	049 152
FENNER	152 195 226
FERGUSON 049 050 074	076 080 082 102 103 182 218 247 409 411 436 452 472
FIDELITY	049 050 076 107 152 225 307 379 475
FILSAI	050 379
FINLANDIA	033 139 172 197 209 307 375 470 474
FINLUX	020 042 045 049 078 080 090 091 102 104 107 139 146 152 163 197 210 324 375 379 407 408 428 429 437 449 469
FIRST LINE	045 049 094 102 107 134 139 152 191 195 209 210 226 379 411 413 457 470

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

FISHER 018 041 050 065 069 102 104 107 139156 172 209 320 324 379 408 414 421470

FLINT 049 102 123 152 380

FNR 045

FORMENTI 049 090 107 113 139 307 324 379 407467 469 480 481

FORMENTI-PHOENIX 050 104 113 307

FORTRESS 190 324

FRABA 049 152 421

FRIAC 045 049 152 195

FRONTECH 066 076 139 195 307 379 413 466 470477

FUJITSU 042 045 071 102 107 195 236 379

FUJITSU GENERAL 195 379

FUNAI 042 076 094

GALAXI 045 049 152

GALAXIS 045 049 152 163 421

GBC 104 107 139 168 195 226 480

GE 074 182 218 378

GEANT CASINO 107 425

GEC 049 102 104 107 120 152 171 172 307379 470

GEC(UK) 046 050 102 107 150 162

GELOSO 062 104 107 139 168 171 195 226 307413 469 481

GENERAL 064 074 182

GENERAL TECHNIC 195

GENEXXA 049 123 152 307 426 466

GOLDHAND 379

GOLDLINE 213

GOLDSTAR(LG) 049 050 055 107 139 152 168 172 182195 219 379 413 414 421 460

GOODMANS 018 042 049 076 102 134 139 141 152182 193 195 218 225 226 232 379 428450 456 464

GORENJE 421

GPM 123

GRADIENTE 049 152 170 177

GRAETZ 049 090 104 136 139 152 153 162 171172 198 225 307 466 469 475

GRANADA 013 018 033 041 049 102 104 105 112120 152 171 172 198 209 218 238 241307 379 407 425 470 471 472 474

GRANADA(UK) 046 050 090 107 139 162 307

GRANDIN 049 107 113 123 152 195 378 380 425435

GRONIC 045 379

GRUNDIG 049 080 090 152 232 247 249 407 454455

HALIFAX 076 379

HAMPTON 379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

HANIMEX	094
HANSEATIC	018 049 050 094 104 107 113 152 172 195 241 324 378 379 391 421 455 467 470 475
HANTAREX	045 046 049 152 195
HANTOR	049 152
HARLEY DAVIDSON 042
HARWOOD 049 152 195 426
HAUPPAUGE	049 152
HAVERMY	190
HCM	049 076 123 152 163 195 378 379 426
HEMA	195 379
HEMMERMANN	150 470
HIFIVOX	074 182 186 424 453 463
HIGASHI	050
HIGHLINE	049 076 152
HIKONA	123
HINARI	012 018 042 049 066 094 107 123 134 139 195 209 232 307
HISAWA	123 378 380 425
HIT	324
HITACHI	018 020 033 049 050 074 086 099 102 104 107 110 126 127 139 150 152 162 168 171 182 186 218 238 307 379 466 469 470 472 479
HITACHI FUJIAN	013
HITSU 123 195 380
HORNYPHON	049 112 152
HOSHAI 123 380
HUANYU	193 226 379
HYGASHI	379
HYPER	050 168 195 379 413
HYPERSONIC	172
HYPSON	049 076 152 217 378 379 380 425
IBERIA	049 152
ICE	049 076 123 152 195 225 379
ICES	123 379
IMPERIAL	011 049 090 093 094 107 142 152 163 168 307 346 348 369 407 413 421 470 480
INDIANA	049 152
INGELEN	090 104 136 139 153 162 171 198 232 435 466
INGERSOLL	195
INNO HIT	046 049 050 066 102 123 152 195 217 379 407 413
INNOVATION	049 152
INTERACTIVE	210
INTERBUY	076 195 413
INTERFUNK	049 065 067 074 090 104 107 112 139 150 152 153 172 182 307 324 413 421 453 463 466 475

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

INTERNAL 049 152
INTERVISION 045 049 055 076 107 123 152 225 232378 379 380 413 421
IR 346
IRRADIO 049 066 090 123 152 195 407 413
ISUKAI 049 123 152 378
ITC 379 480
ITS 049 076 123 152 225 378 379
ITT 042 090 107 134 139 150 157 162 171172 193 197 198 209 307 375 428 466469 470 471 475 479
ITT-NOKIA 042 090 104 107 134 136 139 150 153162 171 172 193 197 198 209 307 375470 428 433 435 437
ITV 076 049 152 413
JEAN 018
JEC 141
JET POINT 365
JVC	018 103 123 170 182 225 409 433 439465
KAISUI 049 050 123 152 195 378 379 380
KAMOSONIC	050
KAMP	379
KAPSCH	071 107 172 236 466
KARCHER 020 045 049 050 068 076 107 152 195217 378 421 435
KATHREIN	455
KAWASHO 379
KB ARISTOCRAT	107
KENDO	045 049 055 134 152 172 210 413 421435 476
KENNEDY	071 079 104 107 139 236 369 480
KINGSLEY	379
KLARMAX	371
KNEISSEL	049 152 210 243 369 391 411 421 435
KOLSTER	045 049 152 470
KONKA	049 123 152 225
KONTAKT	232
KORPEL	049 152
KORTING 065 094 113 324 421
KOSMOS	049 152
KOTRON	076 426
KOYODA	195
KRAKING	411
KRIESLER	050 065 079 112 152 160
KTV	050 379
KURO	445
KYOSHU	076 163 426
KYOTO	107
LECSON	049 152
LEMAIR	210
LENCO	049 107 152 195 226

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

LENOIR	050 195
LESA	413
LEYCO	049 076 094 102 152
LIESENK & TTER	049 112 152 345
LIFE	440 441 443 444
LIFETEC	049 076 123 152 195 226 440 441 443 444
LLOYD_S	195
LOEWE	035 049 089 120 152 324 391 421
LOEWE OPTA	035 046 049 065 120 144 152 213 324
LOGIK	131 225
LOGIX	195
LUMA	071 107 110 152 171 172 195 210 226 236 307
LUMATRON	049 076 107 152 172 236 379
LUX MAY	049 152 195
LUXOR	042 050 090 107 127 139 150 172 197 209 307 375 428 429 470 472 473 475
LYCO	076
MAAZ	371
MADISON	049 152
MAGNADYNE	045 046 062 065 104 107 120 139 150 168 324 413 469
MAGNAFON	045 046 050 068 090 120 379 407 481
MAGNAVOX	018 042 049 152
MAGNUM	440 441 443 444
MANDOR	076
MANESTH 076 094 113 134 141 152 379 467
MANHATTAN 049 195
MARANTZ	049 152 455
MARELLI	324
MARK	049 152 195 226 379
MASUDA	123 195 225
MATSUI	012 018 041 049 050 094 100 102 106 107 131 134 141 150 152 171 195 209 218 225 232 247 307 379 380 470
MAXIMAL	139
MAXWELL 371
MEDIATOR	049 112 152
MEDION	049 152 195 217 457
MEGAS	435
MEGATRON	126
MELECTRONIC	020 049 074 152 182 193 195 197 210 226 375 379 408 413 428 429 466 470
MELVOX	425
MEMOREX	099 195 217
MEMPHIS	102 125 195 213
MERCURY	049 152 195
METZ	049 065 067 070 092 247 324 412 420 454 481
MICROMAXX	049 152 195
MICROSTAR	440 441 443 444

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

MINERVA 080 090 232 247 249 407 454
MINOKA 049 152 426 470
MITSUBISHI 013 018 049 065 105 131 152 157 190247 324 454
MIVAR 046 050 058 072 081 090 120 379 391407 414 421 434
MONACO 195
MORGAN_S 049 152
MOTION 407
MOTOROLA 190
MTC 152 379 421 470
MTEC 106
MULTISTANDARD 045
MULTITEC 049 152 195
MULTITECH 045 046 049 050 120 152 195 379 407413 421 470
MURPHY 102 104 105 107 171 307 379
MURPHY(UK)	162
MUSIKLAND	123
MYRYAD	455
NAD	172 209 475
NAIKO	049 152
NAKIMURA	049 152 226
NAONIS	040 071 079 110 171
NAT 085 151
NATIONAL	033 085 104
NEC	018 049 113 131 152 177 195 226 379380
NECKERMANN	011 049 050 065 107 139 152 163 210247 249 307 324 357 379 413 421 455470 481
NEDIATOR	152
NEI	049 125 152 225 477
NESCO	042 413
NETSAT	049 152
NETWORK	213
NEUFUNK	049 152 195 435
NEW TECH	049 050 152 182 195 379
NEW WORLD	123
NICAMAGIC	379
NIKKAI	018 049 076 102 123 125 139 141 152195 213 379 066
NOBLEX	049 076 152
NOBLIKO	045 050 080 090 379 407
NOGAMATIC 074 182 186 424 453 463
NOKIA	090 104 107 134 136 139 150 153 157162 171 172 193 197 198 209 226 307375 428 429 433 437 465 470 475 478479
NORDMENDE	049 074 083 150 152 182 186 218 247307 424 453 463 469 481
NOVATRONIC	020 049 152 226

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

OCEANIC 086 094 104 107 108 109 139 172 209
	425 466 469 475
OCEANIC(F)	150
ODEON	076
OKANO 049 076 102 152 421
OMEGA	076
ONCEAS 050
ONWA	123 225
OPERA	049 152
OPTIMUS 099
OPTONICA	190
ORBIT	049 152
ORION	012 042 045 049 076 094 113 131 134 139 150 152 191 195 216 366 367 426 467
ORLINE	049 123 152
ORMENTI-PHOENIX	104
ORMOND	195
OSAKA	066
OSAKI	049 066 076 102 106 123 152 226 379 426
OSIO	049 152
OSO	123
OSUME	018 102 123
OTAKE	450
OTTO VERSAND	018 049 050 074 094 104 107 113 134 139 152 172 190 218 247 249 357 362 379 413 414 454 455 467 469 470 480 481
P.T ACTRON	217
PAEL	050 379
PALLADIUM	049 107 152 163 210 247 324 357 379 413 421 470
PALSONIC	049 055 076 152 379 426
PANAMA	049 076 152 195 379 413
PANASONIC	016 049 099 104 107 139 151 152 172 396 420 466 469 481
PANAVISION 049 152 210
PATHE CINEMA	107 113 379 391 411 425 467 470 480 481
PATHE CINEMA(F)	050 168
PATHE MARCONI	014 074 182 186 424 453 462 463
PAUSA	195
PAUZA	195
PERDIO	049 102 107 113 152 467
PERFEKT	049 152
PERSHIN	425
PHILCO 011 016 049 065 090 093 094 104 107 126 142 152 163 168 324 346 348 369 407 413 421 480 481
PHILEX	471
PHILHARMONIC	379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

PHILIPS 014 049 050 065 079 089 112 152 160
	182 193 216 217 220 226 247 249 324
	427 455 482
PHOENIX 049 050 102 104 107 113 152 324 379
	421
PHONOLA 049 050 065 079 112 152 160 324 379
PILOT 049 152
PIONEER 049 074 152 172 182 209 218 307 421
	427 466
PLANTRON 049 076 152 195
PLAYSONIC 379
POLICOM 074
POPPY 195
PORTLAND 226
POWERPOINT 232
PRANDONI-PRINCE 046 090 120 171 172 307 407 413
PRECISION 379
PREMIER	142
PRIMA	076 195 307
PRINCE	046 171
PRINZ	102 470
PROFEX	107 139 195 407 475
PROFI-TRONIC	045 049 152
PROLINE	049 102 112 191 366 436
PROSONIC	049 085 151 152 195 225 226 379 421
PROTECH	045 049 076 125 139 152 163 195 379
	413 457 470 477 480
PROVISION	049 152
PYE	050 065 079 112 152 160 226 324
PYMI	049 112 152 195 226 324
QUADRA VISION	425
QUASAR 045 046 068 099 413
QUELLE	018 020 049 050 074 076 078 080 090
	091 094 113 131 139 146 150 152 153
	172 195 247 249 320 345 346 348 357
	379 408 413 449 451 454 470 475 480
	481
QUESTA	018
RADIALVA	049 074 107 123 152
RADIOLA	014 049 050 065 079 112 152 160
RADIOMARELLI	045 046 062 065 104 105 150 152 168
	324 413
RADIONETTE	020 150
RADIOSHACK	049 152
RADIOTONE	049 076 152 163 195 421 426
RANK ARENA	018
RCA	190 218 436
RECOR	049 152
RECTILIGNE	049 152
REDIFFUSION	018 059 104 105 139 171 172 307 471
	475
REDIFFUSION(UK)	150 162

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

REDSTAR	049 152
REFLEX	049 152
REOC	460
REVOX	049 152 421
REX	040 071 079 107 110 152 171 210 236 243 307 413 466
RFT	076 102 241 324 391 421
RHAPSODY	379
R-LINE	049 152
ROADSTAR 049 076 123	152 163 195
ROBOTRON	065 324
RODEX 049 152
ROWA	458
ROWSONIC	050
ROYAL LUX 421 426
RTF	065
SABA	046 065 074 077 107 120 139 172 182 186 218 307 324 424 436 452 453 463 466 469 481
SACCS 411
SAGEM	378 380 435
SAISHO	012 050 076 107 131 134 195 307 379 477
SALORA	033 107 127 136 139 150 153 171 172 198 209 307 466 470 472 474 475 479
SAMBERS	045 046 068 090 120 407 481
SANDRA	379
SANELA	411
SANSUI	049 152 225
SANTON	195
SANYO	018 020 041 049 050 065 102 107 131 152 195 198 209 320 379 391 408 421 481
SAVE	049 152
SBR	049 112 152
SCHAUB LORENZ	090 104 136 139 153 162 171 198 307 433 469 470 475
SCHNEIDER	014 040 049 050 065 069 079 104 107 112 123 139 152 156 160 168 172 182 195 225 243 307 379 382 413 414 417 457 468 470
SCOTT	042
SEARS	042
SEG	018 045 049 050 076 107 152 172 195 232 379 413 407 457 480
SEI	012 045 049 094 107 139 152 236 324 357 469 470 481
SEI SINUDYNE	446
SELECO	040 071 079 107 110 152 171 172 210 236 243 307 369 466 476
SENCORA	195
SENTRA	123 139 141 195

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

SERINO 380 435

SHARP 018 094 170 190 320 362

SHORAI 042 094

SIAM 049 152

SIAREM 045 046 065 104 107 120 139 324 469 481

SIEMENS 018 049 066 113 152 247 249 307 320 345 451 454 469 481

SIERA 050 065 079 112 152 160

SIERRA 049 112 152

SIESTA 421

SILVA 049 152 379

SILVER 018 042 049 076 152 172

SINGER 045 049 065 104 152 195 324 369 413 425

SINUDYNE 012 045 065 094 104 107 134 139 150 152 172 210 216 236 324 357 366 367 469 470 481

SKANTIC 307 472 473
SKY 049 152
SKYWORTH 448
SOGERA	113
SOLAVOX	066 102 107 139 172 307 466 471
SONAWA	123
SONITRON	209 379 421
SONNECLAIR	049 152
SONOKO	049 050 076 152 195 378 379
SONOLOR	107 139 172 209 357 425 466
SONTEC	049 094 152 421
SONY	018 045 131 211 346 357 358 370
SOUND & VISION	045 123 226
SOUND WAVE	049 113 163
SOUNDESIGN	042
SPECTRA 195
SSANGYONG	195
STANDARD 049 050 113 123 152 195 226 379
STARLIGHT	049 076 107 152 195
STENWAY	123 378
STERN	040 071 079 107 110 152 171 236 243 307 466
STRATO	049 076 152 195
SUNKAI	049 094 123 134 152 191 232 367 380
SUNSTAR	049 152 195 225
SUNWOOD	049 152 195
SUPERLA	379
SUPERTECH	049 123 152 195 379
SUPRA	195 226
SUSUMU 123 218
SUTRON 195
SWISSLINE 413
SYDNEY	379
SYSLINE 044

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

SYTONG	379
TACTUS 106
TANDBERG	065 074 078 172 182 210 213 420 449
TANDY	050 102 123 190 307 379 413 466
TASHIKO 018 050 107 177 379 470 474
TATUNG	049 050 102 106 120 131 152 217 379
TCM	440 441 443 444
TEAC 049 076 152 163 195 217 378 380 426
	457 458 470
TEC	040 050 064 168 195 213 218 243 379
	413 480
TECH LINE	049 152 195
TECHICA	123
TECHNEMA	113 467
TECHNICS	099
TECHNOL ACE	042
TEDELEX	379
TEIRON	195
TEKNIKA 042
TELEAVIA	014 074 182 186 218 424 453 462 463
TELECOR	049 107 123 152 379
TELEFUNKEN	049 064 074 082 152 182 186 187 218
	230 346 348 424 436 452 453 463
TELEFUSION	049 152
TELEGAZI	049 076 107 123 152
TELEMEISTER	049 113 152 467
TELESONIC	049 152
TELESTAR	049 152
TELETECH	049 152 195 213 413
TELETON	018 067 071 107 236 379 470
TELEVIDEON	050 104 107 113 379
TELEVISO	425
TEMCO	094
TEMPEST	049 152 195
TENNESSEE	049 152
TENSAI	020 050 055 094 113 123 152 195 225
	226 379 413 450 467
TESMET	439
TETUNG	046
TEVION	049 152 195
TEXET 050 123 195 226 379
THOMSON 014 024 049 064 074 134 152 182 186
	218 230 424 436 453 462 463 470
THORN 049 102 103 106 141 152 218 226 346
	348 408 409 411 454 464 470 475
THORN-FERGUSON	074 076 080 082 103 218 357 358 375
TOKAI	049 102 107 152 195 213 226 379
TOKYO 141 379
TOMASHI	123 378
TOSHIBA	018 045 128 141 369 379
TOWADA	045 379 470 480
TOYODA	195

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

TRAKTON 076
TRANS CONTINENS 046 049 152 171 307 379
TRANSONIC 049 152 380 458
TRANSTEC 379
TRIDENT 379
TRISTAR 123
TRIUMPH 012 046 049 128 152 197 375
UHER 049 069 071 080 090 113 152 163 226
	236 307 407 414 421 467
ULTRA 409
ULTRAVOX 045 049 050 065 104 107 139 152 226
	324 379 413 471
UNIC LINE 049 152
UNITED 049 152
UNIVERSUM 011 012 018 020 049 074 076 094 107
	131 152 163 172 195 197 210 213 247
	320 345 346 357 375 379 407 408 413
	421 428 429 437 454 470 480
UNIVOX	049 107 152 213 324 411
UTAX	050
VEGAVOX	163
VESTEL	049 107 125 152 379
VEXA	152 195
VICTOR	170
VIDEO SYSTEM	049 152
VIDEOLOGIQUE	123 379
VIDEOSAT	413 447
VIDEOSYSTEM	049 152
VIDEOTECHNIC	113 226 379
VIDEOTON	107 472
VIDIKRON 045
VIDTECH	018
VIPER	213
VISIOLA	379
VISION	049 113 152 467
VISOREX	442
VISTAR	172 236
VOLTEC	074
VORTEC 152
VOXSON	049 065 090 152 163 171 307 324 407
	466
WALTHAM	049 152 163 182 307 379 472
WATSON	049 107 113 123 152 195 247 467
WATT RADIO	045 050 068 104 107 139 150 379 470
	480
WEGA	018 049 139 152 324
WEGA COLOR	065 088
WEGAVOX	195
WELTBLICK	113 152
WESTINGHOUSE	094 152
WESTON	168
WHARFEDALE	049 152

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

WHITE	045
WHITE WESTINGHOUSE	049 050 113 152 213 379 467
WINCO	426
WINDSTAR	378
XRYPTON	049 152
YAMISHI	049 123 152 378 379 380
YOKAN	049 152
YOKO	049 050 076 123 152 195 379 413 421 477
YORX	123
ZANUSSI	040 071 079 110 152 171 236 307 379
ZOPPAS	040 071 079 110 171 307

TROUBLESHOOTING

Problems Possible causes Solutions
No display on the front panel; No power supply	Power cord is not plugged in correctly	Plug in the power cord correctly
No pictures on the screen R	Receiver in Standby mode; SCART is not tightly connected to video output on TV; Incorrect channel or video output is selected	Set your receiver to “On”; Check and correct the connection; Check and correct channel and video output
No sound Audio cord is connected incorrectly; Volume level = 0; The (MUTE) button is pressed	Check and correct the connection; Increase the volume on your TV; Press the (MUTE) button
Remote control does not operate	TV mode is now selected; It is pointed wrong way; Batteries are discharged or wrongly inserted	Press the STB button; Point the remote control toward the receiver; Replace batteries or insert correctly
Poor picture Signal strength is too weak Check the signal strength in the Info Menu; Correct alignment of your antenna
On-screen error message “No signal”	Antenna cable is not connected or not tightly connected; Incorrect connection of the antenna	Check and correct the connection; Check the signal strength on the Info Menu
On-Screen error messages: “No card inserted.”	Smartcard:- not plugged in correctly;- not plugged in.	(depending on models)Check the Smartcard.“Insert the Smartcard.”
On-screen error message “No access”	Access to the channel is not allowed	Check that you have subscribed to the channel; If your STB was off for a long period, turn it on, select the channel, and wait for authorization for up to 60 minutes

DISPOSAL

The device, packaging material (e.g. Styrofoam) and the batteries must never be disposed of with household refuse.

Please obtain appropriate information about the regulations in your community, and dispose of all refuse in accordance with regulations at the separate locations provided.

TECHNICAL SPECIFICATIONS

Power Supply

Type: SMPS

Input voltage: AC 230V\~, 50/60 Hz

Fuse rating: 250V/T1.6AH

Power consumption: Max. 30W

Stand by: 18W

Tuner & Demodulator

Input frequency: VHF, UHF BAND (50\~870 MHz)

Demodulation: QAM DVB-C

Symbol rate: MAX 7 Msps

Constellation: 16, 32, 64, 128, 256 QAM

Cable out: Loopout for analog receiver

RF Input

Input connector: IEC, Female

Frequency range: 50 \~ 860 MHz

Input signal level: -78 \~ -20 dBm

Loop through: 50\~860 MHz

-78\~-20 dBm

50\~860 MHz, IED, Male

Video Decoder

System decoding:

MPEG 2 ISO/IEC 13818

(Transport Stream)

Profile and level: MPEG 2 MP@ML (4:2:2)

Data rate:

1\~15 Mbps

Video formats:

4:3 (normal) and 16:9 (wide screen)

Picture resolution:

720(H) x 576(V) x 50 fields/sec

Audio Decoder

System decoding:

MPEG 1 ISO/IEC 11172\~3 layer I & II

Audio mode: Stereo Audio Mode

Sampling frequency: 32, 44.1, 48kHz

Note : The specification of the STB may be changed without notice in advance.

BASE-BAND AUDIO/VIDEO OUTPUT

A/V Output

SCART(TV): VIDEO(CVBS/RGB), AUDIO L/R SCART(VCR): VIDEO(CVBS), AUDIO L/R RCA JACK: VIDEO(CVBS), AUDIO L/R DIGITAL AUDIO OUTPUT: OPTICAL

MEMORY

Flash: 8MB SDRAM: 64MB

BUILT-IN HDD 160GB

ACCESS EXTERNAL HDD USB2.0 (HOST)

PLAYABLE CONTENTS FILE FORMAT

Music: MP3 Photo: JPG

PHISICAL SPECIFICATION

Size (W x D x H): 381 x 267 x 60 mm Weight (Net): 3.1 Kg

Note : Actual formatted capacity may be less than what is marked on box and manual. (1GB=1billion byte)
