Product Type	Electric Water Heater (Boiler)
Model	KT3655
Brand	Malmbergs
Capacity	30 liters
Dimensions (H x W x D)	600 mm x 400 mm x 300 mm
Net Weight	15 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	C
Temperature Range	30 °C – 75 °C
Max Operating Pressure	0.8 MPa (8 bar)
Safety Features	Thermal cut-off, overheat protection, pressure relief valve
Installation Type	Wall-mounted
Water Connection	G 1/2" inlet and outlet
Protection Rating	IP24 (splash-proof)
Inner Tank Material	Enameled steel with magnesium anode
Heating Element	Stainless steel, 2000 W
Maintenance Requirements	Annual descaling and anode check
Warranty	2 years

Frequently Asked Questions - KT3655 Malmbergs

How do I adjust the temperature on my KT3655 boiler?

Use the thermostat dial on the front panel. Turn it clockwise to increase temperature (max 75 °C) and counterclockwise to decrease. Wait a few minutes for the water to heat.

What should I do if the boiler trips the circuit breaker?

First, reset the breaker. If it trips again, unplug the boiler and check for a short circuit or water leakage. Contact a qualified electrician if the problem persists.

How often should I descale the boiler?

Descaling is recommended once a year, especially in hard water areas. Use a descaling solution suitable for electric water heaters and follow the manufacturer's instructions.

Can I install the boiler myself?

Installation must be performed by a licensed professional plumber or electrician to ensure compliance with local regulations and safety standards.

Why is my water not getting hot?

Check the power supply, thermostat setting, and if the circuit breaker is on. If these are fine, the heating element or thermostat may be faulty and require replacement.

What is the purpose of the pressure relief valve?

The pressure relief valve automatically releases excess pressure from the tank to prevent explosion. If it leaks frequently, it may indicate a problem with the pressure or the valve itself.

How do I replace the magnesium anode?

Turn off power and water supply, drain the tank, unscrew the old anode from its mounting, and install a new one. Check the anode annually; replace if more than 60% corroded.

Is the boiler suitable for outdoor installation?

No, the KT3655 is designed for indoor use only. It has an IP24 rating, meaning it is splash-proof but not weatherproof.

Why does my boiler make a knocking noise?

Knocking is often caused by sediment buildup in the tank. Descale the boiler to remove limescale deposits. If noise persists, the heating element may need replacement.

What spare parts are available for the KT3655?

Common spare parts include the heating element, thermostat, magnesium anode, and pressure relief valve. Use only Malmbergs-approved parts to maintain safety and warranty.

USER MANUAL KT3655 Malmbergs

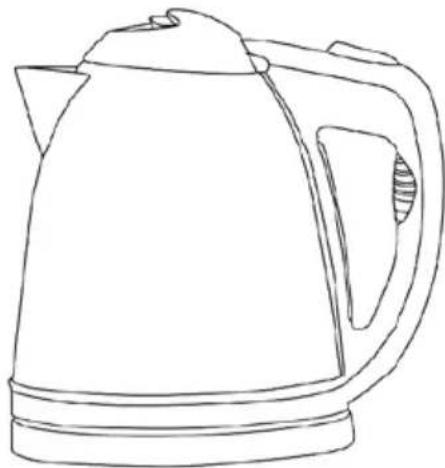

Line drawing of a modern kettle with handle and side panel (no text or symbols)

Line drawing of a simple electric kettle with handle and spout (no text or symbols)

Line drawing of a kettle with handle and spout (no text or symbols)

MALMBERGS

SE ......sida 3-6

FI ......sivu 7-10

EN ......page 11-14

EN NOTE! Please read through the manual carefully before using the appliance and keep it for future reference.

SE

BESKRIVNING AV DELAR

Art.nr: 99 940 39

Art.nr: 99 940 40

Art.nr: 99 940 41

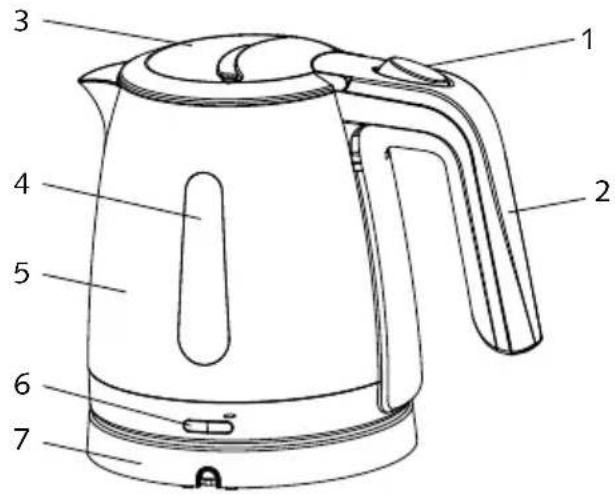

1. On/off switch
2. Handle
3. Lid
4. Water level gauge
5. Body
6. Indicate lamp
7. Base with power cord

Art.no: 99 940 40

1. Lid button
2. On/off switch
3. Water level gauge
4. Indicator lamp
5. Base with power cord

Art.no: 99 940 41

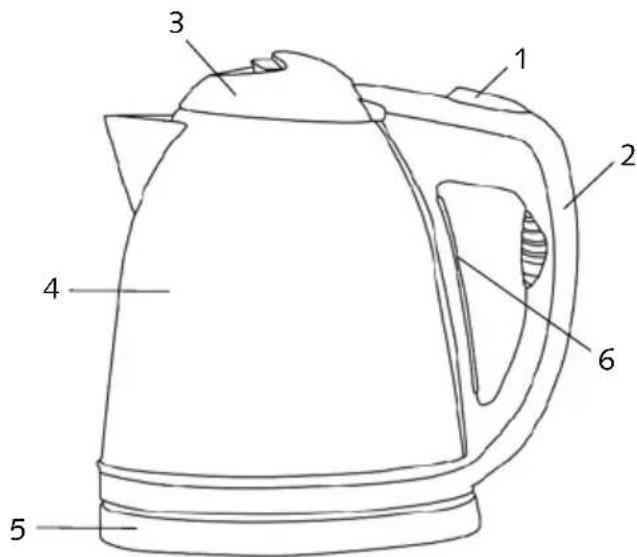

1. On/off switch
2. Handle
3. Lid
4. Body
5. Base with power cord
6. Water level gauge

IMPORTANT SAFEGUARDS

1. Please read these instructions carefully before using the appliance.
2. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. To protect against electrical hazards, do not immerse the cord, plug, or appliance itself in water or other liquids.
5. Only use the appliance for household purposes and in the way indicated in these instructions.
6. Stand the appliance on a stable, flat surface.
7. Never use the appliance near hot surfaces.
8. Make sure the cord never comes into contact with the hot parts of the appliance.
9. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
10. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner, return appliance to the nearest authorized service agent for examination, repair or adjustment.
11. Never use the appliance outdoors and always place it in a dry environment.
12. Only use fresh and cold water.
13. Always fill in water between the MIN and MAX level mark. Never use when water overfilling, since boiling water may be ejected.
14. When using, make sure the lid is closed correctly. Never open the lid when the jug kettle is in use and when there are risks of hot water projection due to boiling.
15. Be careful not to get burned by the hot steam when the water is boiling, especially when you open the lid.
16. Never touch the hot parts of the appliance such as the metal body (if applicable), only touch the plastic parts and take the jug kettle by the handle.

17. Do not forget that the temperature of the boiled water is high. Handle your kettle with care to avoid any risk of scalding.

18. Keep the appliance above 0^ C otherwise any water in the appliance will freeze and cause damage.

19. Unplug unit from outlet when not in use and make sure is has cooled down before cleaning or storing.
20. Use only the base supplied with the kettle.
21. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
22. Save this instruction for future use.

BEFORE THE FIRST OPERATION

Please read the operating instruction carefully.

Before using for the first time, boil fresh water at least twice in the appliance in order to clean any residue left from the manufacturing process.

OPERATION

Always remove the jug from its base before filling it.

Open the lid by pushing at the locking button and fill the tank with fresh • water, paying attention not to fill under the minimum mark and above the maximum mark in the water gauge. (You can see the level by the transparent water gauge on the body.)

Close the lid by pressing it down until it you hear a click. Make sure it • closes correctly.

Put the kettle onto the base, plug into the wall socket and switch on, then • the indicator lamp lights up.

The jug kettle will switch off automatically when the water has boiled.

Disconnect the kettle from the base, pour out the hot water with the lid • closed.

CLEANING AND MAINTENANCE

Make sure the appliance is unplugged from the supply socket and fully • cooled down before cleaning.

To clean the exterior surfaces, slightly wipe over with a soft damp cloth • and dry thoroughly.

To clean the inner walls of the kettle, use a soft damp cloth or a soft brush • to remove the dirt.

Note: Never use abrasive products.

To clean the filter, open the lid and pull the filter out from the interior •

body, then rinse with running water and dry it thoroughly before reassembling.

Never immerse the jug kettle or its base in water.

DESCALING

The appliance has to be descaled regularly to ensure optimum performance. The frequency depends on the water hardness and the boiling frequency.

1. If you begin to notice the increase of the noise during boiling, or the kettle switches off before boiled, this indicates that descaling is necessary.

Generally, the descaling should be done in the following periodicity:

With soft water, at least once every 6 months.

With hard water, at least once every 3 months.

1. It is highly recommended to use only descaling agent suitable for plastic kettles.

2. Read carefully the instructions of descaling agent then operate the descaling process step by step.

3. After the descaling, rinse the inner of the kettle thoroughly with clean water.

Note:

1. Never use vinegar as descaling agent.

2. In case of doubt concerning the water hardness, ask your local tap water company.

TECHNICAL DATA

Art.no. 99 940 39	99 940 40 99 940	41
Model KT3653 KT	3655 CW-KT09
Wattage 2000W 2	000W 2000W
Voltage 220-240V	~ 220-240V	~ 220-240V	~
Frequency 50Hz	50Hz	50Hz
Volume 1 litre	1.7 litres	1.5 litres
Colour	White	White	Stainless steel
