Product Type	TV Wall Mount
Brand	Kogan
Model	KAWLFM100LM
TV Size Compatibility	43 - 100 inches
Weight Capacity	120 kg (265 lbs)
Motion Type	Full-Motion (tilt, swivel, extension)
VESA Compatibility	Up to 800x600mm (M4, M6, M8 screws included)
Material	Cold Rolled Steel
Color	Black
Installation Type	Wall mount (drywall, masonry, concrete, wood stud)
Included Accessories	Spirit level, wall template, screws, washers, spacers, wall anchors
Required Tools	Drill, drill bits (6mm for drywall, 12mm for masonry), screwdriver, stud finder (for drywall)
Number of Brackets	Two TV brackets included
Tilt Adjustment	Yes (tension adjustable)
Intended Use	Indoor only
Maintenance	Check security every 3 months

Frequently Asked Questions - KAWLFM100LM Kogan

What is the maximum TV weight this mount can hold?

The maximum load capacity is 120 kg (265 lbs). Never exceed this weight to avoid product failure or injury.

What TV sizes are compatible with the KAWLFM100LM?

This mount is suitable for TVs from 43 to 100 inches in diagonal size.

What VESA patterns does this mount support?

It supports VESA patterns up to 800x600mm. The included screws (M4, M6, M8) and spacers accommodate various VESA hole configurations.

Can this mount be installed on drywall?

Yes, but it requires mounting directly into wood studs. Use a stud finder, drill 6mm pilot holes 90mm deep, and secure with the provided ST8x90 screws and washers. Do not use wall anchors for drywall.

What tools are needed for installation?

You will need a drill, appropriate drill bits (6mm for drywall, 12mm for masonry), a screwdriver, and a stud finder (for drywall). A spirit level is included.

Does the mount allow tilt adjustment?

Yes, it features adjustable tilt. Ensure the 4 bolts have enough tension to counterbalance the TV weight after adjustment.

Is it safe to install this mount outdoors?

No. This product is intended for indoor use only. Outdoor use could lead to product failure and personal injury.

Does the mount include all necessary hardware?

Yes, it comes with a complete set of screws, washers, spacers, wall anchors, a spirit level, and a wall template. Check the component list before installation.

How do I ensure the mount is level during installation?

Use the included spirit level (D) and the wall template (E) to mark hole positions. Ensure the bubble is centred before drilling.

How often should I check the mount for safety?

Kogan recommends checking the mount every three months to ensure it remains secure and safe to use.

USER MANUAL KAWLFM100LM Kogan

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

HEAVY-DUTY FULL- MOTION TV WALL MOUNT

(SUITABLE FOR 43-100" TVS)

KAWLFM100LM

SAFETY & WARNINGS

Read the entire user guide before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact your local distributor for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Never exceed the maximum load capacity of 120kg or it may result in product failure or personal injury.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

COMPONENTS

Technical line drawing of a mechanical frame or enclosure with mounting holes and internal compartments (no text or symbols)

A (x1)

E Template (x1)

M-A M6x14

Screw (x4)

M-E D8 Washer (x4)

W-B Wall Anchors (x6)

B (x1)

F M4x8 (x2)

M-B M8x16

Screw (x4)

M-F Spacer (x4)

W-C D8 Washer (x6)

C (x1)

G (x4)

M-C M6x30 Screw (x4)

M-G Spacer (x4)

D Spirit Level (x1)

H 10-13mm

M-D M8x35 Screw (x4)

W-A ST8x90 Screw (x6)

ASSEMBLY

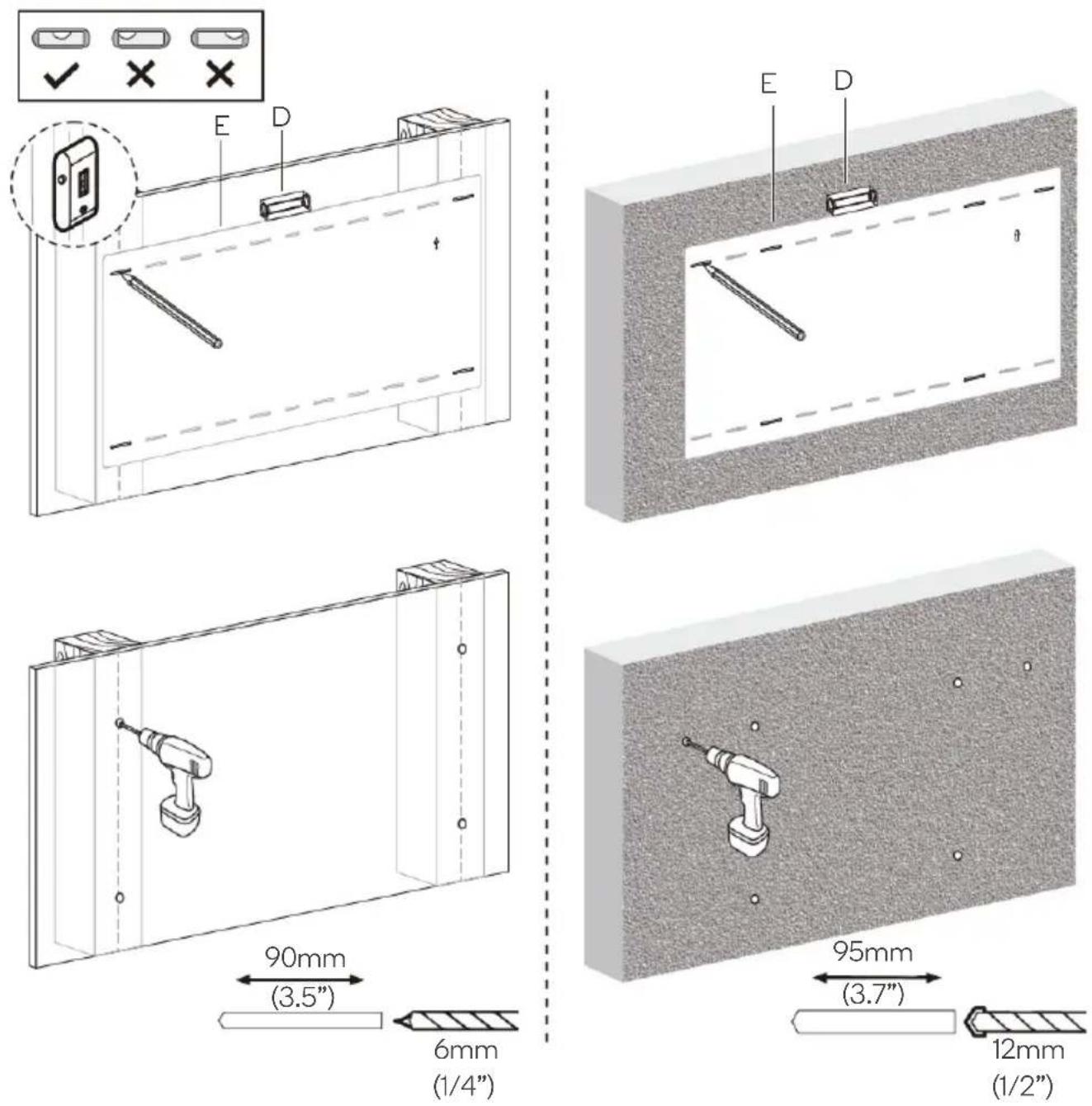

Step 1:

Using a pencil and spirit level (D), mark the desired position for the mount on your wall, using the template (E) for the hole positions. Note: When using spirit level, ensure the bubble is centred as per the image shown here.

If mounting on dry wall or plaster-board, use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.

Drywall / plaster: Use a 06mm or 1/4" drill bit, drilling 90mm deep - 4 holes

Masonry / concrete: Use a ø12mm or 1/2" drill bit, drilling 95mm deep - 6 holes

Step 2

Drywall / plaster: Attach the wall mount (A) to the wall using the 4 ST8x90 screws (W-A) and D8 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface. Do not use wall anchors.

Masonry / concrete: Insert wall anchors (W-B) into all 6 drilled holes. Attach the wall mount (A) to the wall using the 6 ST8x90 screws (W-A) and D8 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface.

Step 2:

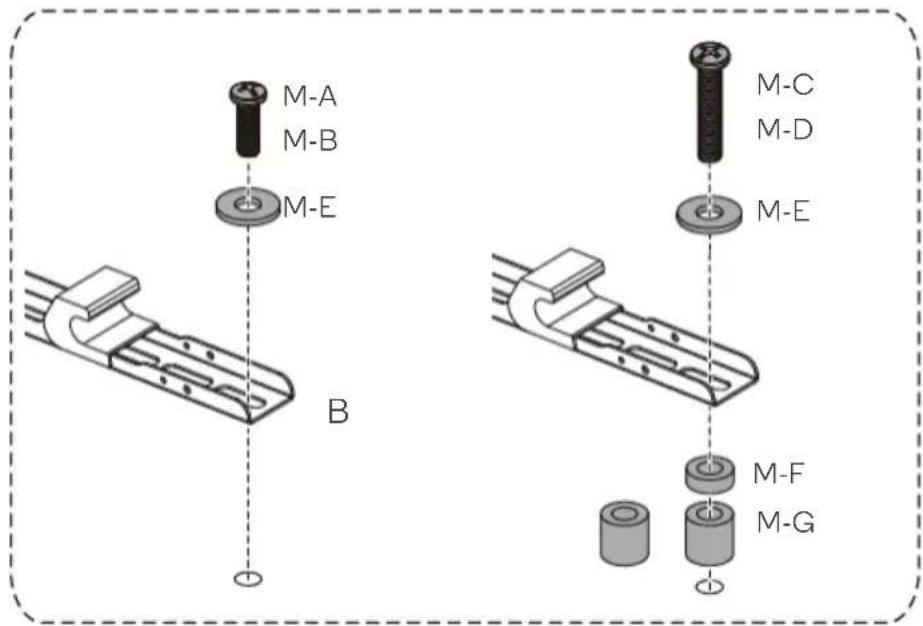

Align the brackets with your TV's VESA holes and secure using supplied screws ("M-" set), Washer (M-E) and spacers (M-F, M-G) depending on required length.

Step 3:

Hook the TV with brackets installed onto the wall mount. Two people should carry the TV to prevent damage.

Once in place, use fasteners (F) to secure the brackets in place.

Step 4:

Step 5:

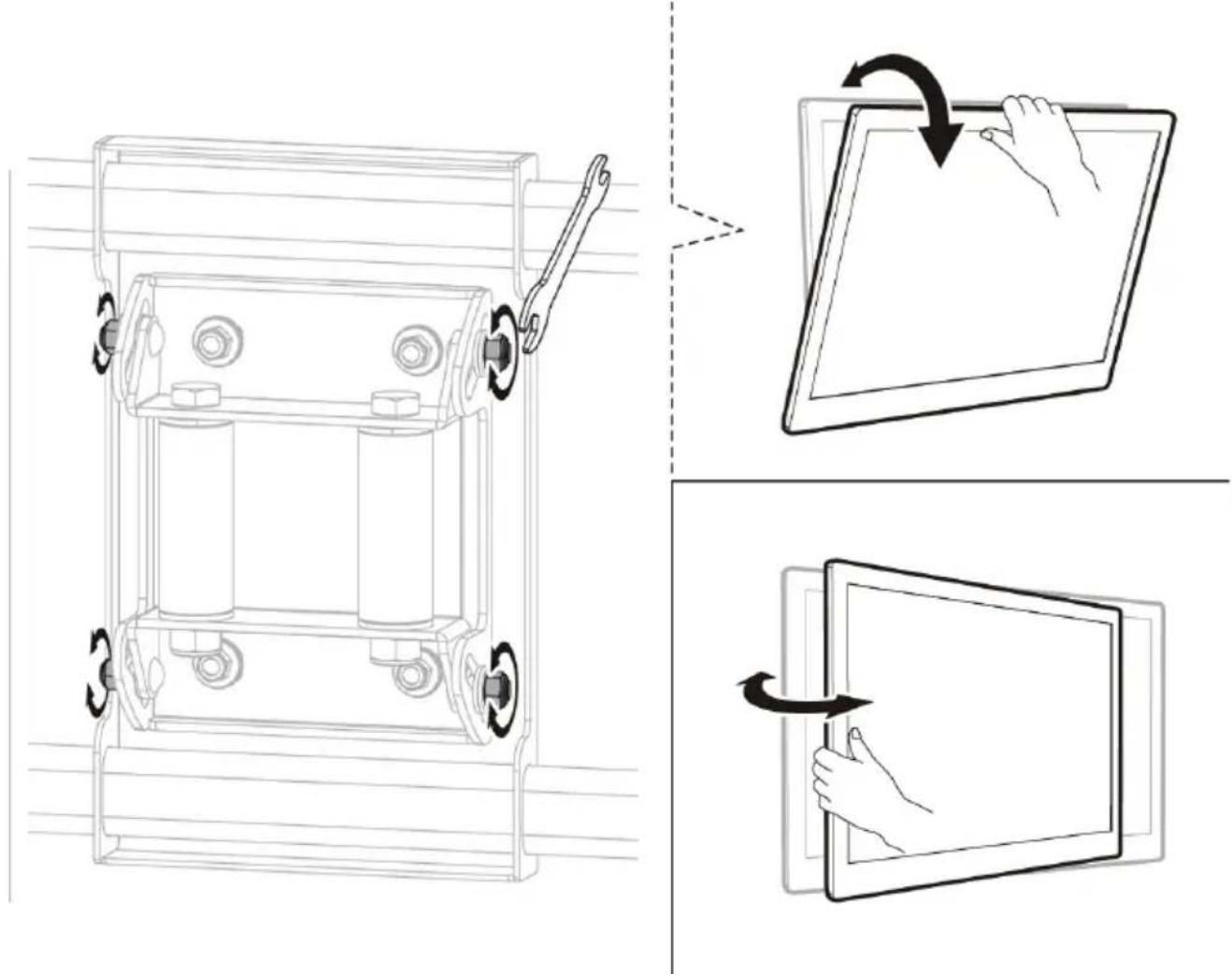

When adjusting the tilt, ensure the 4 bolts have enough tension to counterbalance the weight of the TV.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
