USER MANUAL 60-150 RIKON

1.5 HP Dust Collector

Rikon industrial dust collector with attached pipe and cover (no visible text or symbols)

Intertek 4001824

Operator's Manual

Record the serial number and date of purchase in your manual for future reference.

Serial Number: ____ Date of purchase: ____

For technical support or parts questions, email [e-mail] or call toll free at [phone]

TABLE OF CONTENTS

Specifications 2

Safety Warnings....3-6, 11

Electrical Requirements ....5

Dust Collector Safety Rules 6,11

Contents of Package 7

Assembly 8-11

Operation....11

Dust Hazards and Safety....6, 11

Parts Diagram 12

Parts List ....13

Accessories....13

Wiring Diagram....14

Trouble Shooting....14

Maintenance 15

Warranty 15

SPECIFICATIONS

Motor 1-1/2 HP, TEFC

Motor Speed (no load).... 3400 RPM

Volts 115 / 230 V

Amps, Hertz 10.4 / 5.2 A, 60 Hz

Dust Collection Velocity CFM 1192

Blower Impeller Diameter 10"

Blower Impeller Material .... Steel

Sound Rating @ 3 Feet .... <84.3 dB

Cloth Bag Filtration 5 Microns

Bag Diameter 20"

Bag Capacity 5.4 Cu. Ft.

Bag Length 33"

Dust Ports / Hose Connections 1 @ 5", 2 @ 4"

Overall Size (LxWxH) 37" x 22" x 76-1/2" (940 x 560 x 1945 mm)

Net Weight 84 lbs. (38.1 kg)

NOTE: The specifications, photographs, drawings and information in this manual represent the current model when the manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.

SAFETY INSTRUCTIONS

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. If you have any questions about its application, do not use the tool until you have contacted us and we have advised you.

SAFETY SYMBOLS

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used in conjunction with other symbols or pictographs.

Indicates an DANGER

imminently hazardous situation, which, if not avoided, could result in death or serious injury.

Indicates a WARNING injury.

potentially hazardous situation, which, if not avoided, could result in death or serious

Indicates a CAUTION moderate

i potentially hazardous situation, which, if not avoided, could result in minor or injury.

NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.

GENERAL SAFETY

KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific potential hazards.

BEFORE USING YOUR MACHINE

To avoid serious injury and damage to the tool, read and follow all of the Safety and Operating Instructions before operating the machine.

1. Some dust created by using power tools contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.

• Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• READ the entire Owner's Manual. LEARN how to use the tool for its intended applications.

• GROUND ALL TOOLS. If the tool is supplied with a 3-prong plug, it must be plugged into a 3-contact electrical receptacle. The 3rd prong is used to ground the tool and provide protection against accidental electric shock. DO NOT remove the 3rd prong. See Grounding Instructions on the following pages.

• AVOID A DANGEROUS WORKING ENVIRONMENT. DO NOT use electrical tools in a damp environment or expose them to rain.

• DO NOT use electrical tools in the presence of flammable liquids or gasses.
• ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an environment with floor surfaces that are slippery from debris, grease, and wax.
• KEEP VISITORS AND CHILDREN AWAY. DO NOT permit people to be in the immediate work area, especially when the electrical tool is operating.
• DO NOT FORCE THE TOOL to perform an operation for which it was not designed. It will do a safer and higher quality job by only performing operations for which the tool was intended.
• WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckties, or jewelry. These items can get caught in the machine during operations and pull the operator into the moving parts. The user must wear a protective cover on their hair, if the hair is long, to prevent it from contacting any moving parts.
• CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical receptacles, and using padlocks.
• ALWAYS UNPLUG THE TOOL FROM THE ELECTRICAL RECEPTACLE when making adjustments, changing parts or performing any maintenance.

SAFETY INSTRUCTIONS

1. KEEP PROTECTIVE GUARDS IN PLACE AND IN WORKING ORDER.

2. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the "OFF" position before plugging in the power cord to the electrical receptacle.

3. REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning "ON" the machine.

4. USE ONLY RECOMMENDED ACCESSORIES. Use of incorrect or improper accessories could cause serious injury to the operator and cause damage to the tool. If in doubt, check the instruction manual that comes with that particular accessory.

5. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to the "OFF" position. DO NOT leave the tool until it has come to a complete stop.

6. DO NOT STAND ON A TOOL. Serious injury could result if the tool tips over, or you accidentally contact the tool.

7. DO NOT store anything above or near the tool where anyone might try to stand on the tool to reach it.

8. MAINTAIN YOUR BALANCE. DO NOT extend yourself over the tool. Wear oil resistant rubber soled shoes. Keep floor clear of debris, grease, and wax.

9. MAINTAIN TOOLS WITH CARE. Always keep tools clean and in good working order. Keep all blades and tool bits sharp, dress grinding wheels and change other abrasive accessories when worn.

10. EACH AND EVERY TIME, CHECK FOR DAMAGED PARTS PRIOR TO USING THE TOOL. Carefully check all guards to see that they operate properly, are not damaged, and perform their intended functions. Check for alignment, binding or breaking of moving parts. A guard or other part that is damaged should be immediately repaired or replaced.

11. DO NOT OPERATE TOOL WHILE TIRED, OR UNDER THE INFLUENCE OF DRUGS, MEDICATION OR ALCOHOL.

12. SECURE ALL WORK. Use clamps or jigs to secure the work piece. This is safer than attempting to hold the work piece with your hands.

13. STAY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN OPERATING A POWER TOOL.

A moment of inattention while operating power tools may result in serious personal injury.

1. ALWAYS WEAR A DUST MASK TO PREVENT INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust and asbestos dust. Direct particles away from face and body. Always operate tool in well ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.

2. USE A PROPER EXTENSION CORD IN GOOD CONDITION. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. The table on the following page shows the correct size to use depending on cord length and nameplate amperage rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the larger diameter of the extension cord. If in doubt of the proper size of an extension cord, use a shorter and thicker cord. An undersized cord will cause a drop in line voltage resulting in a loss of power and overheating.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS A 3-PRONG GROUNDING PLUG AND A 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG.

1. ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from:

• Power Tool Institute 1300 Summer Avenue Cleveland, OH 44115-2851 www.powertoolinstitute.org

• National Safety Council 1121 Spring Lake Drive Itasca, IL 60143-3201 www.nsc.org

• American National Standards Institute 25 West 43rd Street, 4th Floor New York, NY 10036 www.ansi.org

• ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor regulations www.osha.gov

1. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others.

SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and requires a grounding plug (not included). The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY ANY PLUG. If it will not fit the electrical receptacle, have the proper electrical receptacle installed by a qualified electrician.

IMPROPER ELECTRICAL CONNECTION of the equipment grounding conductor can result in risk of electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. DO NOT connect the equipment grounding conductor to a live terminal if repair or replacement of the electric cord or plug is necessary.

CHECK with a qualified electrician or service personnel if you do not completely understand the grounding instructions, or if you are not sure the tool is properly grounded when installing or replacing a plug.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS THE PROPER TYPE OF A 3-PRONG GROUNDING PLUG THAT MATCHES THE MACHINE'S 3-PRONG PLUG AND ALSO THE 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG. FIG. A. *

REPLACE A DAMAGED OR WORN CORD IMMEDIATELY.

This tool is intended for use on a circuit that has a 120 volt electrical receptacle. FIGURE B shows the type of the 220v, 3-wire electrical plug and electrical receptacle that has a grounding conductor that is required if the motor wiring is changed. See page 14.

EXTENSION CORDS

WARNING: THE USE OF AN EXTENSION CORD WITH THIS MACHINE IS NOT RECOMMENDED. For best power and safety, plug the machine directly into a dedicated, grounded electrical outlet that is within the supplied cord length of the machine.

If an extension cord needs to be used, it should only be for a limited operation of the machine. The extension cord should be as short as possible in length, and have a minimum gauge size of 14AWG.

WARNING: Check extension cords before each use. If damaged, replace immediately. Never use a tool with a damaged cord, as touching the damaged area could cause electrical shock, resulting in serious injury.

Use a proper extension cord. Only use cords listed by Underwriters Laboratories (UL). Other extension cords can cause a drop in line voltage, resulting in a loss of power and overheating of tool. When operating a power tool outdoors, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)

120 VOLT OPERATION ONLY
	25' LONG	50' LONG	100' LONG	150' LONG
0 to 6 Amps	18 AWG	16 AWG	16 AWG	14 AWG
6 to 10 Amps	18 AWG	16 AWG	14 AWG	12 AWG
10 to 12 Amps	16 AWG	16 AWG	14 AWG	12 AWG

A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A

the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with your power tool.

* Canadian electrical codes require extension cords to be certified SJT type or better.

** The use of an adapter in Canada is not acceptable.

FIG. B
Sample of 220 volt plug required for this machine.

NEMA 6-15P

Consult a qualified electrician if the distance of the machine from the electrical panel is greater than 30 feet.

THIS SYMBOL DESIGNATES THAT THIS TOOL IS LISTED BY THE INTERTEK TESTING SERVICES, TO THE UNITED STATES AND CANADIAN STANDARDS.

SAFETY INSTRUCTIONS

SPECIFIC SAFETY INSTRUCTIONS FOR DUST COLLECTORS

This machine is intended for the collection of chips, shavings and dust from the surfacing, cutting and sanding of natural wood, plywood, plastics and other man-made wood based composites. It is for collecting DRY materials only. Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.

ATTENTION: Use of this dust collector still presents risks that cannot be eliminated by the manufacturer. Therefore, the user must be aware that wood working machines are dangerous if not used with care and all safety precautions are adhered to.

1. Do not operate this machine until you have read all of the following instructions.
2. Do not attempt to operate this machine until it is completely assembled.
3. Do not turn ON this machine if any pieces are missing or damaged.
4. If you are not familiar with the operation of the machine, obtain assistance from a qualified person.
5. It is highly recommended that this machine be placed on a level surface.
6. This machine must be properly grounded.
7. Always wear approved protective eye wear and hearing protection when operating this machine.
8. Always make sure the power switch is in the OFF position prior to plugging in the machine.
9. Always make sure the power switch is in the OFF position and the machine is unplugged when doing any cleaning, assembly, setup operation, or when not in use.
10. DO NOT use the dust collector for collecting liquids, substances impregnated with liquids, metals, gasoline or potentially flammable or combustible substances.
11. DO NOT use the dust collector to dissipate fumes or smoke. NEVER pick up any material that is burning or smoking, such as cigarettes, matches or hot ashes.
12. DO NOT use the dust collector without a filter bag and collector bag securely in place.
13. DO NOT use the dust collector with unused intake ports uncapped. Always cover exposed intake ports.
14. Always wear a dust mask when cleaning or working near a dust collector.
15. Make sure all machine parts, hose connections and bags are securely tightened before operating the machine. Periodically check bags and hoses for rips or tears. If present, repair or replace immediately.
16. The use of any accessories or attachments not recommended may cause injury to you and damage your machine.
17. Never reach inside of a running machine. Always keep your hands, body parts and clothing clear of openings and moving parts such as impellers, fans and hose intake openings.
18. Do not clear any hose blockage while the machine is running. Stop the machine, unplug it from the power source, and then remove the blockage in the hose.
19. Keep these instructions for future reference.

This owner's manual is not a teaching aid and is intended to show assembly, adjustments, and general use.

CALIFORNIA PROPOSITION 65 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

For more detailed information about California Proposition 65 log onto rikontools.com.

CONTENTS OF PACKAGE

When unpacking, check to make sure the following parts are included. If any parts are missing or broken, please call RIKON Power Tools (877-884-5167) as soon as possible for replacements.

Exterior view of a black electronic device with labeled components (A–E), no visible text or symbols beyond labels

Close-up of a black cylindrical mechanical component with a flanged end and a small protruding shaft (no text or symbols visible)

Exterior view of a white industrial machine with black rotor and wiring (no visible text or symbols)

Close-up of three transparent medical or laboratory glass tubes with black connectors, labeled 'H' in the corner (no text or symbols on tubes)

Assorted wrenches and bolts arranged in a pile, no text or symbols visible

Product photo of a curved pipe fitting with two metal brackets and a labeled part (MNO), no readable text or symbols present.

Four black and silver hover wheels arranged in a 2x2 grid, labeled 'P' below (no text or symbols on the wheels themselves)

A Motor Base J Hex Wrenches - 4mm, 5mm
B Base Plate K Hardware Pack
C Support Blocks (3) L 5" Hose & 2 Hose Clamps
D Upper Bag Support M 'Y' Inlet
E Collector Supports (3) N 5" Outlet
F Collector O Rubber Gasket
G Motor & Fan Housing P Casters with Hardware (4)
H Strap Clamps (2) Q Filter Bags (2)
I Wrenches - 10/12, 12/14, 17/19 R Manual & Warranty Card

(not shown)

Model 60-150 1.5HP Dust Collector is shipped complete in one box.

Unpacking and Clean-up

1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface for easy identification and assembly. If any parts are missing or broken, please call RIKON Customer Service (877-884-5167) as soon as possible for replacements. DO NOT turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to the machine.
2. Report any shipping damage to your local distributor. Take photographs for any possible insurance claims.
3. Clean any rust protected surfaces with ordinary house hold type grease or spot remover. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage painted surfaces.
4. Set packing material and shipping carton aside. Do not discard until the machine has been set up and is running properly.

ASSEMBLY

INSTALL THE CASTERS ON THE BASE PLATE

Locate the four swivel casters, eight 12MM flat washers, four star lock washers and four 10MM hex cap nuts from the hardware pack. NOTE: Some of these fasteners may be already mounted on the caster stems.

1. Place a flat washer and star lock washer onto the caster's threaded stud, and insert the stud through one of the four holes in the corner of the base plate.
2. Place a flat washer and hex cap nut onto the threaded stud of the caster and tighten. FIG. 1.
3. Repeat steps 1 and 2 for the remaining three swivel caster assemblies.

ATTACH THE MOTOR BASE TO BASE PLATE

Locate the motor base, base plate, four M8X16MM hex bolts and four 8MM washers.

1. Lay the motor base onto the base plate. Align the four holes in the motor base with the four threaded holes in the base plate.
2. Place a washer over a hex bolt and insert through the motor base into the threaded hole in the base plate and tighten. FIG. 2.
3. Repeat steps 1 and 2 for the remaining three hex bolts.

MOUNT MOTOR & FAN HOUSING TO THE BASE

Locate the motor & fan housing, four M8X25MM hex bolts, two M8X16MM hex bolts, and six 8MM washers.

1. Place the fan housing & motor onto the motor base. Align the four holes in the fan housing and motor with the holes in the motor base, and the two holes in the fan housing strut with the holes in the base plate.
2. Install a 25MM hex bolt with washer through the holes on the motor base, and secure it in place with a washer and a hex nut. Do not fully tighten. FIG. 3, A.
3. Repeat step 2 for the remaining three mounting positions. Do not fully tighten the bolts at this time.
4. Install a 16MM hex bolt with washer through the fan housing strut into the threaded hole in the base plate. FIG. 3, B. Repeat for the second strut.

Black rectangular electronic device with a metal wrench attached, no visible text or symbols

FIG. 1

Close-up of a black metal bracket mounted on a dark base plate with screws and a wrench, no visible text or symbols.

FIG. 2

FIG. 3

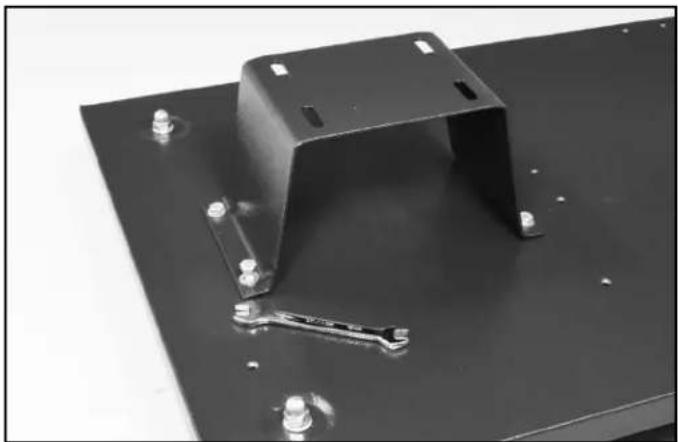

1. Once all 6 bolts (steps 1-4) are installed and the motor & fan housing is aligned with the base, the six bolts can be finally tightened.

ASSEMBLY

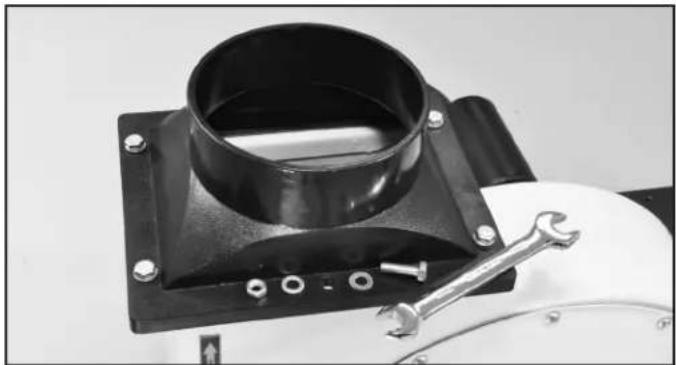

Locate the 5" plastic outlet, rubber gasket, six M6X-20MM hex bolts, twelve 6MM washers, and six nuts.

1. Place the rubber gasket on the flange of the fan housing so that the 6 holes align with the 6 holes in the fan housing.
2. Position the 5" outlet over the gasket so that the holes align with the gasket and fan housing holes.
3. Secure the assembly together with the six hex bolts, washers and nuts. FIG. 4.

INSTALL THE COLLECTOR SUPPORTS

Locate the three collector supports, six M8X45MM hex bolts and three 8MM washers.

1. Position one collector support upright over the threaded hole located near a caster mounting location on the base. FIG. 5.
2. Insert a hex bolt and washer through the collector support into the threaded hole in the base and tighten. NOTE: The support's bent sides must be facing inwards. See FIG. 5, A insert photo.
3. Repeat installation for the remaining two supports.

INSTALL THE COLLECTOR & BAG SUPPORT

Locate the collector barrel, upper bag support, four M8X15MM hex bolts and four 8MM washers.

1. With assistance, hold the collector in position and align the mounting holes with the support and support block holes. Position the collector so that the 5" hose inlet is facing the fan housing. FIG. 6.
2. Insert the hex bolts and washers through the collector support and block into the front threaded holes in the collector. Do not fully tighten the bolts at this time.
3. Bolt the collector support and block to the collector adding the upper bag support (A) as shown. FIG. 7. NOTE: The upper bag support rod should be attached to the rear support near the 5" hose inlet.
4. Once all supports are in place, tighten all bolts.

NOTE: If you purchased an optional filter canister, the upper bag support does not need to be installed.

Close-up of a mechanical component with black housing, bolts, and wrenches (no visible text or symbols)

FIG. 4

Close-up of two metal hardware components: a bracket with bolts and a wrench, both mounted on a dark surface (no text or symbols visible)

FIG. 5

Close-up of a hand using a wrench to adjust or install a mechanical component (no visible text or symbols)

FIG. 6

Close-up of a hand using a wrench to adjust a large cylindrical metal component, labeled 'A' (no text or symbols on the object itself)

FIG. 7

ASSEMBLY

INSTALL THE 5" HOSE

Locate the 5" hose and two hose clamps.

1. Slip a hose clamp (A) over both ends of the hose.
2. Place one end of the hose over the 5" outlet on the fan housing and the other end on the collector. FIG. 8.
3. Tighten the hose clamps with a slotted screwdriver or wrench.

INSTALL STRAP CLAMP IN FILTER BAG

1. Unfold and lay the cloth filter bag on a flat surface.
2. Locate the slit on the right side of the lip of the bag.
3. Start the slotted catch end of the band strap through the right slit, and work the strap around the inside of the bag until it emerges through the slot on the left side. FIG. 9.

INSTALL THE FILTER BAGS ON THE COLLECTOR

NOTE: If you purchased an optional canister, this step can be omitted for the top bag only.

1. Hang the cloth filter bag from the hook on the upper bag support.
2. Slide the cloth filter bag over the top rim of the collector housing so that it can be secured in place.
3. Engage the catch end of the strap with the clasp in the appropriate slot to ensure a tight fit, and press the lever with the palm of your hand to lock the clamp.
4. Install the lower, clear plastic collection bag onto the bottom rim of the collection housing. Temporarily secure it in place with some adhesive tape (masking, duct, etc), magnets or small binder clips.
5. Install the second strap clamp around the collector housing, over the plastic bag, and lock it in place with the strap clamp. Fig. 10. See step 3 above.

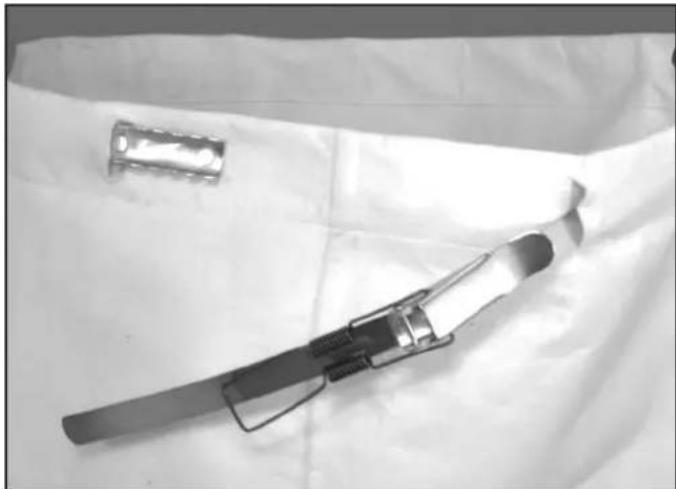

NOTE: To release the clamp, lift up on the lever. If the lever is hard to disengage, simply use a flat head screwdriver to pry the lever upwards.

Close-up of a flexible hose with labeled component 'A' (no text or symbols on the pipe itself)

FIG. 8
A

Black-and-white photo of a mechanical tool with a rectangular component, placed on a white fabric surface (no text or symbols visible)

FIG. 9

FIG. 10

A

ASSEMBLY

MOUNTING THE 'Y' INLET

1. Slide the 'Y' inlet over the large 5" opening on the fan housing, so that the three mounting holes align.
2. Secure the 'Y' inlet in place with the supplied three Phillips head screws and washers. FIG. 11.
3. The 'Y' Inlet has two 4" hose connections for use with two woodworking machines. A plastic cap is included (shown in FIG. 11 on the left) to plug one of the 4" inlets if only one machine hose is hooked up for dust collection.

Close-up of a black pipe fitting with chain links mounted on a dark base (no text or symbols visible)

FIG. 11

OPERATION

ON/OFF LOCKING SAFETY SWITCH

CAUTION: Make sure that the On/Off locking switch is in the "Off" position before plugging the dust collector into a power source.

The On/Off Locking Switch has a center key that can be used to prevent unauthorized use of the dust collector. The switch needs to have the center key inserted before the machine can be used. FIG. 12.

Close-up of a black electrical switch with 'ON' and 'OFF' labels, mounted on a metal panel (no additional text or symbols visible)

FIG. 12

EMPTYING & CLEANING THE DUST COLLECTOR

CAUTION: Make sure that the dust collector is unplugged before cleaning or servicing.

Always wear a dust mask or respirator while emptying the collector bags or cleaning the dust collector. Please refer to the California Proposition 65 warning on page 6 of this manual regarding hazards from exposure to wood dust. For more detailed information visit www.rikontools.com or www.oehha.ca.gov.

DUST HAZARDS AND SAFETY

GROUNDING THE DUCT WORK

Dust particles moving through flexible or rigid plastic duct work can cause static electricity build-up. The duct work must be properly grounded to ensure that static discharge does not ignite fine dust particles causing an explosion or fire.

To properly ground plastic duct work, simply run a small gauge bare copper wire through the ducting and have it emerge from the hose at the dust collector and at each dust producing machine. The bare copper wire should be bonded to the metal shell of each machine by means of a metal screw. The screw must be threaded into the metal shell to ensure a good connection.

The grounding of metal duct work is similar, the only difference is that there is no need to run the bare copper wire inside the ducting. It can be wrapped along the out side of the ducting and should be bonded to each machine as described above.

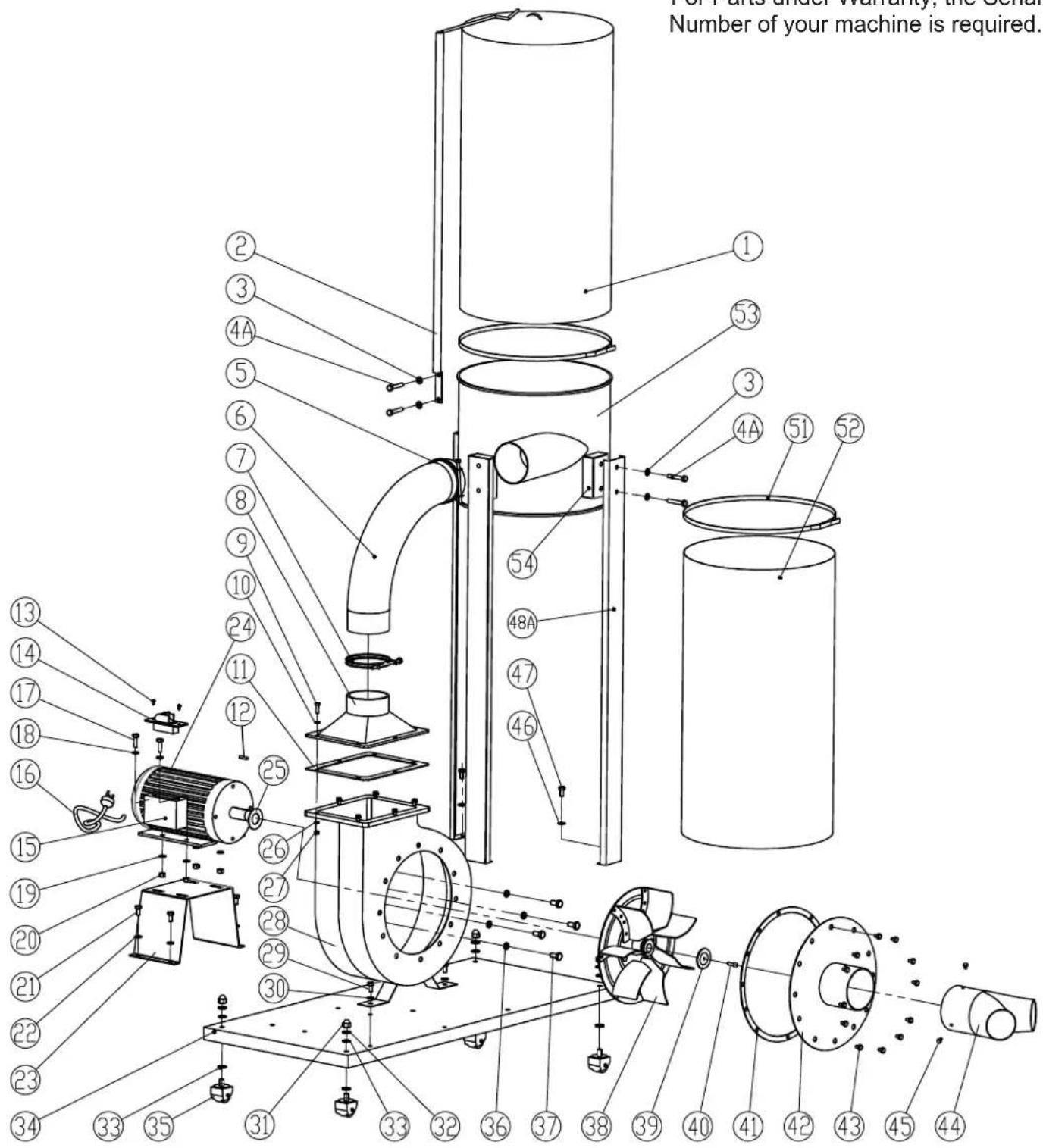

PARTS DIAGRAM

60-150

DUST

COLLECTOR

NOTE: Please reference the Key Number when calling for Replacement Parts.

For Parts under Warranty, the Serial Number of your machine is required.

PARTS LIST

KEYNO.	DESCRIPTION	PARTNO.	QTY
1	Upper cloth dust bag	FM250-01	1
2	Upper bag support	FM250-02	1
3	Flat washer 8	GB/T 95	6
4A	Hexagon bolt M8X45	GB/T 5781M8X45	6
5	Hose clamp	120-140	1
6	5" Extension hose	FM250-03	1
7	Hose clamp	120-140	1
8	Connector	FM250-04	1
9	Hexagon bolt M6X20	GB/T 5781M6X20	6
10	Flat washer 6	GB/T 95	6
11	Rubber gasket	FM250-05	1
12	Flat key	FM250-06	1
13	Pan head self-drilling screw ST4X10	GB/T 845ST4X10	2
14	Switch	CB-8	1
15	Switch box	FM250-20	1
16	Power cord	USA16AWG	1
17	Hexagon bolt M8X25	GB/T 5781M8X25	4
18	Flat washer 8	GB/T 95	4
19	Flat washer 8	GB/T 95	4
20	Hex nut M8	GB/T 6170M8	4
21	Hexagon bolt M8X16	GB/T 5781M8X16	4
22	Flat washer 8	GB/T 95	4
23	Motor support	FM250-07	1
24	Motor	FM250-08	1
25	Washer	FM250-09	1
26	Flat washer 6	GB/T 95	6

KEYNO.	DESCRIPTION	PARTNO.	QTY
27	Hex nut M6	GB/T 6170M6	6
28	Volute / Fan housing	FM250-10	1
29	Hexagon bolt M8X16	GB/T 5781M8X16	2
30	Flat washer 8	GB/T 95	2
31	Cap nut M10	GB/T 802	4
32	Tooth-type washer 10	GB/T 861.2	4
33	Flat washer 10	GB/T 95	8
34	Base plate	FM250-11	1
35	Caster wheel	690065	4
36	Spring washer 10	GB/T 93	4
37	Hexagon bolt M10X16	GB/T 5781M10X16	4
38	Fan blade	FM250-12	1
39	Spacer for fan blade	FM250-13	1
40	Socket cap screw M6X20	GB/T 70.1M6X20	1
41	Rubber gasket	FM250-14	1
42	Housing cover & dust port	FM250-15	1
43	Pan head screw M6x10	GB/T 818M6X10	12
44	2-Way ‘Y’ dust fitting	FM250-16	1
45	Pan head screw M5x10	GB/T 818M5X10	3
46	Flat washer 8	GB/T 95	3
47	Hexagon bolt M8X16	GB/T 5781M8X16	3
48A	Support bar	FM250-17	3
51	Steel band clamp	FM250-18	2
52	Lower plastic dust bag	FM250-19	1
53	Dust collecting barrel	FM250-21	1
54	Support block	FM250-22	3

NOTE: Please reference the Key Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.

ACCESSORIES

60-928 DUST BAG SET - PACK OF 2

Includes 1 cloth upper filtration bag (5 Microns) and 1 clear plastic lower collection bag.

60-902 CLEAR PLASTIC BAGS - PACK OF 5

Clear plastic lower bags for the collection and disposal of the debris from the dust collector.

Exterior view of a cylindrical industrial filter or dust collector with mesh insulation and a black handle (no text or symbols visible)

60-905 DUST CANISTER

Replaces top cloth upper bags. Filters to 1 micron particles and features a handle activated, built-in cleaning mechanism. Overall Approx. 20-1/8" diameter x 26" high.

WIRING DIAGRAM

WARNING:

This machine must be grounded. Replacement of the power supply cable should only be by a qualified electrician. See page 5 for additional electrical information.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Motor does not start	1. Machine not plugged in.2. Power switch in 'OFF' position.3. Power switch or cord is faulty.4. Fuse or circuit breaker are open.5. Low line voltage.6. Defective motor capacitor.7. Motor does not work.	1. Plug cord into electrical outlet.2. Lift switch to 'ON' position. The safety key must be in place. See page 11.3. Replace switch or cord.4. Correct overloaded electrical circuit.5. Correct low line voltage condition.6. Replace motor capacitor.7. Repair or replace the motor.
Motor runs hot	1. Restricted air flow due to dirty filter bag or blockage in the hoses.2. Motor overloaded.3. Extension cord is used.4. Machine used for extended time.5. Poor air flow in work area.	1. Clean filter and hoses for maximum air flow through the system.2. Reduce load on the motor.3. Do not use an extension cord. Plug the collector directly into an outlet.4. Reduce run time of machine.5. Reposition machine for better air flow.
Motor stalls or does not have full power	1. Incorrect line voltage.2. Motor capacitor has failed.3. Extension cord is being used.4. Impeller is clogged with debris.	1. Have qualified electrician check circuit for proper line voltage.2. Replace motor capacitor.3. Do not use an extension cord. Plug the collector directly into an outlet.4. Clean debris from blocked impeller.
Reduction of dust collection suction power	1. Malfunction of the bag cleaning system.2. Plugged hose lines.3. Retaining of dust in the collector due to low density.4. Wetting of filter bags.5. Bag is dirty or permeability of the cloth has increased.	1. Check all system components.2. Check and clean inlets and hoses for obstructions.3. Clean or replace filter bags and check all connections for leakage.4. Control intake of moisture.Dry wet bags for re-use.5. Clean or replace bags.
Loud or unusual noises from motor or fan	1. Motor, fan housing, base or parts of the frame are loose.2. Impeller fan is rubbing the housing.3. Motor bearings are loud.4. Impeller fan is loose, unbalanced, or damaged.	1. Inspect and tighten all parts or replace as needed.2. Check position of the fan and adjust or replace any loose/damaged parts.3. Replace worn bearings.4. Secure fan on motor shaft, and replace if any damage is found.

MAINTENANCE

WARNING:

Turn the power switch "OFF" and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance.

1. Before each use:

2. Check the power cord and plug for any wear or damage.

3. Check for any loose screws or hardware.

4. Check the area to make sure it is clear of any misplaced tools, lumber, cleaning supplies, etc. that could hamper the safe operation of the machines being used.

5. To avoid a build-up of wood dust, regularly clean all parts of your machines using a soft cloth, brush or compressed air. A general cleaning should be done after every use to avoid future problems and ensure the machines are in ready condition for the next time that they are used.

WARNING: If blowing sawdust, wear proper eye protection to prevent debris from blowing into eyes.

1. Check the duct work and hoses to make sure that there are no loose connections. Making sure that they are in proper operating condition will ensure that the dust collection will be the best possible.
2. Clean the upper filtering bag, or canister, on a regular basis to prevent the build-up of dust for better dust collection and air filtration. Check for abrasion, tears or damage.

WARNING: Always wear a dust mask or respirator while emptying the collector bags or cleaning the dust collector. Please refer to the California Proposition 65 warning on page 6 of this manual regarding hazards from exposure to wood dust. For more detailed information visit www.rikontools.com or www.oehha.ca.gov.

1. The motor does not need any maintenance as it is equipped with sealed, lubricated ball bearings.

WARRANTY

RIKON

POWER TOOLS

5-Year Limited Warranty

RIKON Power Tools Inc. ("Seller") warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This warranty does not cover products used for commercial, industrial or educational purposes.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels or belts and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To take advantage of this warranty, please fill out the enclosed warranty card and send it to:

RIKON Warranty, 16 Progress Rd., Billerica, MA 01821

The card must be entirely completed in order for it to be valid. If you have any questions please contact us at 877-884-5167

or [e-mail].

For more information:

16 Progress Road

Billerica, MA 01821

877-884-5167 / 978-528-5380

[e-mail]
