Product Type	Front-Loading Washing Machine
Brand	LG
Model	F4DV710S2SE
Capacity	10.5 kg
Dimensions (W x D x H)	600 x 565 x 850 mm
Product Weight	73 kg
Power Supply	220-240 V~, 50 Hz
Maximum Spin Speed	1400 rpm (selectable)
Energy Consumption (Eco 40-60 full load)	0.839 kWh
Water Consumption (Eco 40-60 full load)	70 L
Programs	Cotton, Eco 40-60, TurboWash 39, Mixed Fabric, Easy Care, Allergy Care, Steam Refresh, Delicates, Hand/Wool, Speed 14, Dry Only, Wash+Dry
Special Features	Steam, TurboWash, EcoHybrid, Wi-Fi (LG ThinQ), Remote Start, Smart Diagnosis, Child Lock, Anti-slip pads
Dispenser Drawer	3 compartments: main wash, pre-wash, fabric softener
Drum Material	Stainless steel
Door Opening	Front-loading, reversible? Not specified
Noise Level (Wash/Spin)	Approx. 74/76 dB (typical for class)
Safety Features	Child Lock, anti-flood protection, overheating protection
Maintenance	Drain pump filter cleaning, drum cleaning (Tub Clean), detergent drawer cleaning
Smart Diagnosis	Yes, via LG ThinQ app for troubleshooting
Spare Parts Availability	At least 10 years after purchase

Frequently Asked Questions - F4DV710S2SE LG

How do I install the LG F4DV710S2SE washing machine?

Ensure the machine is on a solid, level floor. Remove the transit bolts from the back, install the covers provided, and adjust the feet to level. Connect the cold water inlet hose to a tap (avoid hot water for single-inlet models) and attach the drain hose properly to a standpipe or sink. Plug into a grounded outlet that is easily accessible.

Why is my washing machine vibrating excessively?

Check that all transit bolts are removed. Ensure the machine is level and the locking nuts are tight. Use the anti-slip pads (provided or optional) under the front legs. Avoid overloading and distribute laundry evenly. Also, ensure the floor is strong and not sloping.

How do I use the LG ThinQ app with this washer?

Download the LG ThinQ app on your smartphone (supporting 2.4 GHz Wi-Fi). Connect the washer to your home network via the app. You can then use features like Remote Start, download new cycles, and receive notifications. The Wi-Fi icon on the panel will light up when connected.

What should I do if the washer displays an error code?

Refer to the troubleshooting section of your manual. Common codes include 'dE' (door not closed), 'nE' (drain problem), 'UE' (unbalanced load). You can also use the Smart Diagnosis feature via the LG ThinQ app to diagnose the issue. If the problem persists, contact LG customer service.

How do I clean the drain pump filter?

Unplug the washer and turn off the water tap. Open the lower access cover, place a container, and unscrew the drain pump filter cap. Drain any water, remove the filter, clean it from lint or debris, and replace it securely. Perform this regularly to maintain performance.

Can I use liquid detergent in this machine?

Yes, you can use liquid detergent. Pour it into the main wash compartment just before starting the cycle. Do not use liquid detergent if you have selected Pre Wash or Delay End, as it may harden in the drawer. For best results, follow the detergent manufacturer's instructions.

How do I activate the Child Lock?

Press and hold the Child Lock button (often combined with another button) for 3 seconds until the lock icon appears on the display. This prevents children from changing settings or opening the door during a cycle. To deactivate, press and hold the same button again.

Why is there a bad smell coming from my washing machine?

Odors are usually caused by mold or stagnant water. Run the Tub Clean cycle monthly. Clean the detergent drawer and door seal regularly. Leave the door open after use to dry the interior. Check the drain hose for kinks or blockages that may cause water to remain.

What is the maximum load for the Speed 14 program?

The Speed 14 program is for a maximum load of 2 kg. It is designed for lightly soiled items that need a quick wash in about 14 minutes. Do not exceed this load for proper washing and spinning.

How long does the Eco 40-60 program take?

The Eco 40-60 program duration depends on the load: full load (10.5 kg) takes approximately 4 hours, half load (5.25 kg) about 3 hours, and quarter load (2.5 kg) around 2 hours 25 minutes. It is designed to clean normally soiled cotton items efficiently.

USER MANUAL F4DV710S2SE LG

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

6 SAFETY INSTRUCTIONS

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.

Operation

- Do not touch the control panel with sharp objects to operate the washing machine.

- Do not attempt to separate the panels or disassemble the washing machine.

SAFETY INSTRUCTIONS

7

8 SAFETY INSTRUCTIONS

- Only qualified service personnel from the LG Electronics service center may disassemble, repair, or modify the appliance. If you move and install the appliance in another place, contact the LG Electronics customer information center.

Disposal

10 SAFETY INSTRUCTIONS

Disposal of your old appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) must be disposed of separately from municipal waste. Old electrical products may contain hazardous substances, so the correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain parts that can be reused to repair other products and other valuable materials that can be recycled to conserve limited resources.
• Depending on the level of interference/damage and the age of the item, old products can be repaired for a longer working life, which will help avoid waste. Products that are not suitable for reuse can be recycled to recover valuable resources and help reduce global consumption of new raw materials.
• You can take the appliance to the store where you purchased the product, or you can contact your local waste disposal office and obtain more information about the nearest authorized WEEE collection center. For the latest information from your country, visit www.lg.com/global/recycling.

INSTALLATION

1 Control panel ② Detergent dispenser drawer 3 Drum 4 Door 5 Top cover 6 Drain plug 7 Drain pump filter 8 Leveling feet

Rear view

12 INSTALLATION

Accessories

*1 Included accessories vary depending on the model purchased.

1

2

3

4

5

6

1	Dovodno crijevo za hladnu vodu	4	Podloge protiv klizanja*1
2	Ključ	5	Kutni držač za pričvršćivanje odvodnog crijeva
3	Poklopci za pokrivanje otvora matičnih vijaka za prijevoz	6	Spojnica*1

Technical specifications

Model	F4DV710*** F4DV709S** F4DV7009S2S
Napajanje 220 – 240 V~, 50 Hz
Težina proizvoda 73 kg

Dimensions (mm)

W 600	D 565 D" 1100
H	8	5	0	D	' 6

2

• To prevent vibration, we recommend placing rubber caps at least 15 mm thick ① under each leg of the appliance, secured with screws to at least two floor joists.
• If possible, place the washer in a corner of the room where the floor is most stable.
• Install rubber rings to reduce vibration.

CAUTION

14 INSTALLATION

NOTE

- Rubber caps (part no. 4620ER4002B) can be obtained from the LG service center.

Ventilation

- Make sure that air circulation around the washer is not obstructed by carpets, etc.

Ambient temperature

- Do not install the appliance in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be damaged at temperatures below freezing. - If the appliance is delivered in winter and temperatures are below freezing, place the appliance at room temperature for a few hours before starting.

Electrical connection

• Do not use an extension cord or double adapter.
• Always unplug the appliance and turn off the water supply after use.
• Connect the appliance to a grounded outlet in accordance with current wiring regulations.
• The appliance must be positioned so that the plug is easily accessible.
• The power outlet must not be more than 1 meter away from either side of the appliance.

⚠ WARNING

• Repairs to the appliance should only be carried out by qualified personnel. Repairs carried out by inexperienced personnel may cause injury or serious malfunction. Contact your local authorized LG service center.
• The plug must be connected to a suitable power outlet that is properly installed and grounded

in accordance with all local codes and regulations.

• Check that the drum holder 1* is removed together with the base and ensure that it is not stuck to the bottom of the appliance.
• If you need to lower the appliance to remove the cardboard base ②, always protect the side of the appliance and carefully lay it on its side. Do not lay the appliance on its front or back.

Removing the shipping bolt assemblies

To prevent dangerous vibrations and damage to the appliance, remove the shipping bolts and clamps.

2 Remove the bolt assemblies while gently moving them up and down and left and right.

3 Install the hole covers.

- Find the hole covers ② that are included in the accessory pack or attached to the back.

NOTE

16 INSTALLATION

3 Secure the adjustable feet with the lock nuts ② by turning them counterclockwise toward the bottom of the appliance.

4 Check that all nuts on the bottom of the washing machine are properly tightened.

NOTE

• Proper installation and leveling of the washing machine will ensure long, regular, and reliable operation.
• The appliance must be 100% horizontal and stand firmly on a hard, flat floor.
• It must not "rock" over the edges under load.
• Make sure the feet of the washing machine do not get wet. Otherwise, vibrations or noise may occur.

- Remove and clean foreign objects and moisture with a dry cloth. If moisture remains, the anti-slip pads may slip.

2 Adjust the level after placing the appliance in the installation area.

3 Place the adhesive side ¹ of the anti-slip pad on the floor.

- The most effective way to install the anti-slip pads is to insert them under the front feet of the washing machine. If placing the pads under the front feet is not possible, attach them under the rear feet.

4 Place the washing machine on the anti-slip pads.

- Do not attach the adhesive side of the anti-slip pads to the feet of the washing machine.

NOTE

- Additional anti-slip pads can be purchased from the LG Electronics service center.

Using anti-slip pads

NOTE

• Do not overtighten the water supply hose or use mechanical devices to fasten it to the inlet valves.
• No additional backflow protection is required for connection to the water supply.

NOTE

- For models with only one water inlet valve, do not connect the hose to hot water. Connect it only to cold water.

NOTE

• If water leaks from the hose after connection, repeat the procedure. Use a standard type faucet for the water supply. If the faucet is square or too large, remove the guide before inserting the faucet into the adapter.
• Make sure the hose is not bent or kinked.

18 INSTALLATION

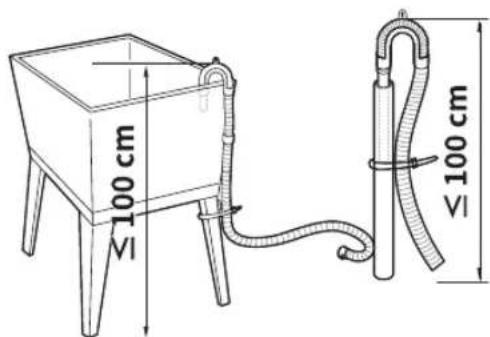

- Properly securing the drain hose will protect the floor from damage caused by water leakage.

OPERATION

Work overview

3 Close the door.

CAUTION

4 Add cleaning products or detergent and fabric softener.

- Add the correct amount of detergent to the detergent dispenser. If desired, add bleach or fabric softener to the appropriate compartments of the dispenser.

20 OPERATION

- Then select the wash temperature and spin speed. Pay attention to the garment care labels.

7 Start the cycle.

22 OPERATION

24 OPERATION

Preparing laundry for washing

• Wash delicate items (nylons, underwear) in a mesh laundry bag.
• Close zippers, hooks, and ties to ensure these items do not get caught on other clothing.
• Before washing, brush off dirt and stains with a small amount of diluted detergent to help lift the dirt.

Adding detergents and fabric softeners

Dosing detergent

- Detergent should be used in accordance with the manufacturer's instructions and selected according to the type, color, level of soiling, and washing temperature. Use only detergents suitable for front-loading washing machines.

- If too much foam appears, reduce the amount of detergent.

- If too much detergent is used, excessive foam may occur, leading to poor washing results or causing heavy load on the motor.

- If you want to use liquid detergent, follow the guidelines provided by the detergent manufacturer.

- You can pour liquid detergent directly into the main detergent drawer if you start the wash cycle immediately.

- Do not use liquid detergent if you have activated the Delay End function or selected the Pre Wash option, as the liquid will be distributed immediately and may harden in the drawer or drum.

① Compartment for main wash detergent 2 Compartment for prewash detergent 3 Compartment for liquid fabric softener

3 Before starting the cycle, carefully close the detergent dispenser drawer.

Rough and forceful closing of the drawer may cause detergent to overflow into another compartment or be released into the drum earlier than programmed.

• Be careful not to pinch your hand while closing the drawer.
• 26 OPERATION

- It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

Fabric softener compartment

28 RAD

Delicates (Osjetljivo rublje)		20 °C (Cold (Hladno) do 40 °C)	Maksimalno punjenje 3 kg
Opis	Pere donje rublje i prozirnu i čipkastu odjeću koja se može prati u perilici rublja.

30 RAD

Program	Steam (Vodena para)	Turbo Wash Dry (Sušenje) EcoHybrid			Pre Wash (Pretpranje)
Hand/Wool (Ručno pranje/vuna)
Speed 14 (Brzipogram 14)		*1
Dry Only (Samo sušenje)			*1
Wash+Dry (Pranje+suše nje)			*1

Option to select maximum spin speed

Program	Brzina centrifuge
	Zadano Dostupno
Cotton (Pamuk)	1400 okretaja u minuti Sve
Eco 40-60 (Eko 40-60)	1400 okretaja u minuti Sve
TurboWash 39 (TurboWash 59)	1200 okretaja u minuti 400 do 1400 opm
Mixed Fabric (Mješovita tkanina)	1000 okretaja u minuti Sve
Easy Care (Sintetika)	1400 okretaja u minuti Sve
Allergy Care (Antialergijski program)	1400 okretaja u minuti Sve
Steam Refresh (Osvježavanje vodenom parom)	-	-
Delicates (Osjetljivo rublje)	800 okretaja u minuti Do 800 okretaja u minuti
Hand/Wool (Ručno pranje/vuna)	800 okretaja u minuti Do 800 okretaja u minuti
Speed 14 (Brzi pogram 14)	400 okretaja u minuti Sve
Dry Only (Samo sušenje)	- -/1000/1200/1400 opm
Wash+Dry (Pranje+sušenje)	1400 okretaja u minuti 1000 do 1400 opm

NOTE

34 RAD

Drying program

• Fabric type: cotton or linen fabrics such as cotton towels, t-shirts, and linen bedding. • Maximum nominal load

Time 30 / 60 / 120 minutes

36 RAD

• Ironing (☐) - for drying laundry that remains damp for easier ironing
• Low temperature (6) - for delicate fabrics • Normal Eco ( 📋) - for heavier fabrics

4 Press the Start/Pause button.

NOTE

Settings

Child Lock

40 SMART FUNCTIONS

SMART FUNCTIONS

LG ThinQ Application

The LG ThinQ application allows you to communicate with the device using a smartphone.

LG ThinQ Application Features

Communicate with the washing machine using a smartphone and take advantage of convenient smart features.

Remote Start

3 Connect your smartphone to the wireless router.

NOTE

• To check the wireless Wi-Fi connection, check if the 📋 icon on the control panel is lit.
• The device supports only 2.4 GHz Wi-Fi networks. To check the network frequency, contact your internet service provider or refer to the wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any errors, malfunctions, or failures caused by the network connection.
• If the device has problems connecting to the Wi-Fi network, it may be too far from the router. Get a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not be established or may be interrupted due to the home network environment.
• The network connection may not work properly, depending on the internet service provider.
• The surrounding wireless environment may cause the wireless network to operate slowly.
• The device cannot be registered due to a problem with wireless signal transmission. Turn off the device and wait about a minute before trying again.
• If the firewall is enabled on the wireless router, disable the firewall or add an exception.
• The wireless network name (SSID) should contain a combination of Latin letters and numbers. (Do not use special characters.)
• The smartphone user interface (UI) may vary depending on the mobile operating system (OS) and manufacturer.
• If the router's security protocol is set to WEP, you may not be able to set up the network. Change to other security protocols

(WPA2 is recommended) and register the product again.

42 SMART FUNCTIONS

3 Press and hold the Remote Start button for 3 seconds to enable this remote control function. 4 Start the cycle from the LG ThinQ app on your smartphone.

NOTE

• When this function is enabled, the cycle can only be started from the LG ThinQ app on your smartphone. If the cycle is not started, the device will wait to start the cycle until it is remotely turned off from the app or this function is disabled.
• If the door is open, you cannot start the cycle remotely.

44 MAINTENANCE

MAINTENANCE

WARNING

WARNING

Cleaning the drain pump filter and performing emergency water drain

46 MAINTENANCE

3 First, remove the drain plug from the drain hose ①, then drain the water. Then slowly unscrew the drain pump filter ② to drain the remaining water, and then remove any dirt or objects from the filter.

Sounds you may hear

Unpleasant odor

Simptomi Mogući	uzrok i rješenje
Pljesniv ili neugodan miris u perilici	Unutrašnjost bubnja nije pravilno očišćena.Redovito izvršavajte funkciju Tub Clean (Čišćenje bubnja).
	Crijevo za izbacivanje vode nije pravilno postavljeno pa voda teče natrag u perilicu.Prilikom ugradnje crijeva za izbacivanje vode pazite da se ne savije ili blokira.
	Dozator deterdženta se ne čisti redovito.Izvadite i očistite dozator deterdženta, posebice gornji i donji dio otvora dozatora.
	Može doći do pojave neugodnih mirisa ako crijevo za izbacivanje vode nije pravilno postavljeno pa voda teče natrag u perilicu.Prilikom ugradnje crijeva za izbacivanje vode pazite da se ne savije ili blokira.
	Ako dozator deterdženta redovito ne čistite moguća je pojava neugodnih mirisa zbog plijesni ili stranih tvari.Izvadite i očistite dozator deterdženta, posebice gornji i donji dio otvora dozatora.

Drying

Simptomi Mogući	uzrok i rješenje
Problem sa sušenjem Provjerite slavinu dovoda vode.	Nemojte prepuniti perilicu. Provjerite odvodi li se ispravno voda iz perilice rublje za izdvajanje prikladne količine vode iz punjenja. Kada je veličina punjenja rublja premala za ispravno kotrljanje. Dodajte nekoliko ručnika.Isključite slavinu dovoda vode.
Vrijeme sušenja predugo je.	Temperatura okoline preniska je.Pobrinite se da je temperatura u dopuštenom rasponu.

54 TROUBLESHOOTING

Customer care and service

Contact the LG Electronics customer information center.

• You will find authorized LG Electronics service centers on our website www.lg.com, and follow the instructions provided there.
• It is not recommended to repair the appliance yourself, as this may cause further damage and void the warranty.
• Spare parts specified in Regulation 2019/2023 are available for at least 10 years.

Note

Smart Diagnosis ....46

SUPPORT

12 INSTALLATION

INSTALLATION

Accessories

16 INSTALLATION

NOTE

NOTE

NOTE

bg_main.book.book Page 20 Tuesday, September 1, 2020 10:46 AM

20 INSTALLATION

OPERATION

3 Close the door.

CAUTION

22 OPERATION

24 OPERATION

26 OPERATION

30 OPERATION

Program table

Washing program

Програма	Steam (Пара)	Turbo Wash	Dry (Сушене)	EcoHybrid	Pre Wash (Предпране)
Allergy Care (Грижа за алергии)	*1
Steam Refresh (Освежаване с пара)	*1
Delicates (Деликатно пране)
Hand/Wool (Ръчно пране/ Вълна)
Speed 14 (Бързо изпиране 14)		*1
Dry Only (Само сушене)			*1
Wash+Dry (Изпиране+С ушене)			*1

Програма	кг	ч:мм	kWh	°C	Литра	об./мин.	%
Eco 40-60 (Еко 40-60) (пълно)*1	10,5	4:00 0,8	39 36 70	0 1360	42,0
Eco 40-60 (Еко 40-60) (наполовина)*1	5,25	3:00 0,5	70 31 53	0 1360	41,1
Eco 40-60 (Еко 40-60) (четвърт)*1	2,5 2:25	0,310	26 43,0	1360 45,2
Mixed Fabric(Смесени тъкани)	4	1:21 0,6	03 35 5	4,0 1000	67,0
Speed 14 (Бързо изпиране 14)	2	0:14 0,0	51 21 41	0 400	106,0
Eco 40-60 (Еко 40-60) + ⚫*2(пълно)*3	7	8:20 4,8	70 32 1	20,0 1360	-
Eco 40-60 (Еко 40-60) + ⚫*2(наполовина)*3	3,5	4:55 2,4	60 28 7	0,0 1360	-

Model: F4DV709S** F4DV7009S2S

Програма	кг	ч:мм	kWh	°C	Литра	об./мин.	%
Cotton (Памук) 20 °C	9	2:59	0,298	26	69,0	1350	50,0
Cotton (Памук) 60 °C	9	3:59	1,553	48	70,0	1350	50,0
Eco 40-60 (Еко 40-60) (пълно)*1	9	3:48	0,755	35	61,0	1360	44,1
Eco 40-60 (Еко 40-60) (наполовина)*1	4,5	2:45	0,460	29	46,0	1360	41,5
Eco 40-60 (Еко 40-60) (четвърт)*1	2,5	2:25	0,295	27	42,0	1360	46,7
Mixed Fabric (Смесени тъкани)	4	1:21	0,603	35	54,0	1000	67,0

36 OPERATION

Програма	кг	ч:мм	kWh	°C	Литра	об./мин.	%
Speed 14 (Бързо изпиране 14)	2	0:14 0,051 21 41,0 400 106,0
Eco 40-60 (Еко 40-60) + ♂*2 (пълно)*3	6	7:50 4,520 34 110,0 1360 -
Eco 40-60 (Еко 40-60) + ♂*2 (наполовина)*3	3	4:50 2,180 30 60,0 1360 -

Drying program

38 OPERATION

NOTE

40 OPERATION

Turbo Wash

NOTE

MAINTENANCE

WARNING

48 SUPPORT

50 SUPPORT

56 TROUBLESHOOTING

Smell

Note

USER MANUAL

WASHING MACHINE

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

4 SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

5

6 SAFETY INSTRUCTIONS

8 SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

9

10 SAFETY INSTRUCTIONS

12 INSTALLATION

Accessories

14 INSTALLATION

CAUTION

• You can purchase rubber rings from the LG service center (part no. 4620ER4002B).

Ventilation

CAUTION

4 Check that all locking nuts under the appliance are properly tightened.

CAUTION

4 Place the appliance on the anti-slip pads.

CAUTION

CAUTION

18 INSTALLATION

USAGE

Usage Overview

Using the Appliance

3 Close the door.

CAUTION

4 Adding detergent and fabric softener.

5 Press the Power button to turn on the appliance.

20 USAGE

22 USAGE

24 USAGE

1 Main wash compartment 2 Pre-wash compartment 3 Liquid fabric softener compartment

26 USAGE

Fabric softener compartment

Program table

Washing program

28 USE

Special options

30 USE

Programm Steam (Aur)	Turbo Wash (Kiirpesu)	Dry (Kuivatus)	EcoHybrid (ÖkoHübriid)	Pre Wash (Eelpesu)
Dry Only (Ainult kuivatus)		*1
Wash+Dry (Pesu + kuivatus)		*1

Standard programs

Model: F4DV710***

Programm	kg	h:mm	kWh	°C	liitrit	p/min	%
Cotton (Puuvill) 20 °C	10,5	2:59 0,299 25 76,0 1350			50,0
Cotton (Puuvill) 60 °C	10,5	3:59 1,567 49 73,0 1350			50,0
Eco 40-60 (Öko 40-60) (Täis)*1	10,5	4:00 0,839 36 70,0 1360			42,0
Eco 40-60 (Öko 40-60) (Pool)*1	5,25	3:00 0,570 31 53,0 1360			41,1
Eco 40-60 (Öko 40-60) (Veerand)*1	2,5 2:25	0,310 26 43,0 1360 45,2
Mixed Fabric (Segakangapesu)	4	1:21 0,603 35 54,0 1000			67,0
Speed 14 (Kiirpesu 14)	2	0:14 0,051 21 41,0 400 106,0
Eco 40-60 (Öko 40-60)+*2(Täis)*3	7	8:20 4,870 32 120,0 1360 -
Eco 40-60 (Öko 40-60)+*2(Pool)*3	3,5	4:55 2,460		28 70,0 1360 -

Model: F4DV709S** F4DV7009S2S

32 USE

Programm	kg	h:mm	kWh	°C	liitrit	p/min	%
Cotton (Puuvill) 20 °C	9	2:59	0,298	26	69,0	1350	50,0
Cotton (Puuvill) 60 °C	9	3:59 1	,553 48	70,0 1350	50,0
Eco 40-60 (Öko 40-60) (Täis)*1	9	3:48	0,755	35	61,0	1360	44,1
Eco 40-60 (Öko 40-60) (Pool)*1	4,5	2:45	0,460	29	46,0	1360	41,5
Eco 40-60 (Öko 40-60) (Veerand)*1	2,5	2:25	0,295	27	42,0	1360	46,7
Mixed Fabric (Segakangapesu)	4	1:21	0,603	35	54,0	1000	67,0
Speed 14 (Kiirpesu 14)	2	0:14 0,05	1 21 41,0	400	106,0
Eco 40-60 (Öko 40-60) + ⚫*2(Täis)*3	6	7:50 4,5	20 34 1	10,0 1360	-
Eco 40-60 (Öko 40-60) + ⚫*2(Pool)*3	3	4:50 2,1	80 30 6	0,0 1360	-

USE

33

34 USE

Drying program

36 USE

Child Lock

WARNING

40 SMART FUNCTIONS

SMART FUNCTIONS

LG ThinQ application

WARNING

42 SMART FUNCTIONS

WARNING

44 MAINTENANCE

MAINTENANCE

DANGER

46 MAINTENANCE

MAINTENANCE

47

48 TROUBLESHOOTING

TROUBLESHOOTING

54 TROUBLESHOOTING

Odor

56 TROUBLESHOOTING

Customer Service

12 INSTALLATION

INSTALLATION

1 Control Panel

1 Power Cord

Accessories

NOTE

NOTE

18 INSTALLATION

NOTE

20 INSTALLATION

OPERATION

3 Close the door.

WARNING!

22 OPERATION

7 Starting the wash.

24 OPERATION

26 OPERATION

28 OPERATION

OPERATION

29

30 OPERATION

Program table

Wash program

32 OPERATION

Программа	кг	ч:мин	кВт·ч	°C	л	об/мин	%
Eco 40-60 (Эко 40-60) (полная)*1	10,5	4:00 0,839 36 70,0 1360			42,0
Eco 40-60 (Эко 40-60) (половина)*1	5,25	3:00 0,570 31 53,0 1360			41,1
Eco 40-60 (Эко 40-60) (четверть)*1	2,5 2:25 0,310		26 43,0	1360 45,2
Mixed Fabric(Смешанная)	4	1:21 0,603 35 54,0 1000			67,0
Speed 14 (Быстро14)	2	0:14 0,051 21 41,0 400			106,0
Eco 40-60 (Эко 40-60) + 5 2*2(полная)*3	7	8:20 4,870 32 120,0 1360 -
Eco 40-60 (Эко 40-60) + 5 2*2(половина)*3	3,5	4:55 2,460 28 70,0 1360 -

Models: F4DV709S** F4DV7009S2S

Программа	кг	ч:мин	кВт·ч	°C	л	об/мин	%
Cotton (Хлопок) 20 °C	9	2:59	0,298	26	69,0	1350	50,0
Cotton (Хлопок) 60 °C	9	3:59	1,553	48	70,0	1350	50,0
Eco 40-60 (Эко 40-60) (полная)*1	9	3:48	0,755	35	61,0	1360	44,1
Eco 40-60 (Эко 40-60) (половина)*1	4,5	2:45	0,460	29	46,0	1360	41,5
Eco 40-60 (Эко 40-60) (четверть)*1	2,5 2:25	0,295 27 42			,0 1	360 46,7
Mixed Fabric (Смешанная)	4	1:21	0,603	35	54,0	1000	67,0
Speed 14 (Быстро 14)	2	0:14 0,0	51 21 41,0 400 1	106,0

36 OPERATION

Программа	кг	ч:мин	кВт·ч	°C	л	об/мин	%
Eco 40-60 (Эко 40-60) + ♂*2(полная)*3	6	7:50 4,520 34 110,0 1360 -
Eco 40-60 (Эко 40-60) + ♂*2(половина)*3	3	4:50 2,180 30 60,0 1360 -

Drying program

38 OPERATION

40 OPERATION

42 OPERATION

NOTE

RUSSIAN

ru_main.book.book Page 61 Tuesday, September 1, 2020 11:57 AM

LG

Life's Good
