HBD201 - Food processor BLAUPUNKT - Free user manual and instructions

Product Type	Hand Blender (Food Processor)
Brand	Blaupunkt
Model	HBD201
Power	800 W
Voltage	220-240 V ~ 50/60 Hz
Max Continuous Working Time	3 minutes
Minimum Rest Time Between Uses	30 minutes
Speed Settings	2 speeds (slower and maximum rotational speed)
Accessories Included	Blending attachment
Blade Material	Stainless steel (typical)
Motor Body Material	Plastic
Cord Length	Approximately 1.2 m (typical)
Weight	Approximately 0.8 kg (typical)
Dimensions (Length x Diameter)	Approximately 40 cm x 8 cm
Cleaning Instructions	Wipe motor body with damp cloth; wash attachments with dishwashing liquid and water
Safety Features	CE certified; sharp blade warning; do not immerse motor in water; automatic shut-off? Not specified
Certifications	CE (LVD, EMC)
Environmental Compliance	WEEE directive (2012/19/EU)
Usage	Domestic use only

Frequently Asked Questions - HBD201 BLAUPUNKT

How do I clean the hand blender?

Wipe the motor body with a slightly damp cloth. Do not immerse it in water. Wash the blending attachment in water with dishwashing liquid and rinse thoroughly.

Can I chop ice with the hand blender?

No, do not use the blending attachment for chopping ice or hard products like bones, nuts, or coffee beans. It may damage the blades.

Can I blend hot liquids?

No, never use the blending attachment for chopping hot products, especially oil or fats. Let them cool before blending.

How do I attach the blending attachment?

Connect the blending attachment to the blender main body and fix it by turning it left (anti-clockwise) until secure.

What is the maximum continuous operating time?

The maximum continuous working time is 3 minutes. After that, allow a minimum rest period of 30 minutes before using again.

How do I control the speed?

The hand blender has two speed settings: press button (1a) for slower rotational speed, or button (1b) for maximum rotational speed.

Can I use the blender to grind nuts or coffee beans?

No, the blending attachment is not designed for hard products like nuts, coffee beans, or bones. Using it for such may damage the device.

What safety precautions should I take?

Always disconnect the blender from the mains when not in use or changing accessories. Never immerse the motor body in water. The blades are very sharp, handle with care. Do not use with wet hands.

What should I do if the blender stops working?

If the device does not work properly, do not try to repair it yourself. Return it to a professional service location authorized by Blaupunkt. Never use with a damaged power cord.

Where can I find replacement parts or accessories?

Only use original accessories or those recommended by Blaupunkt. Contact the service center at [e-mail] or call 00 48 22 331 99 54 for assistance.

USER MANUAL HBD201 BLAUPUNKT

Black and white photo of a Blaupunkt digital microphone (no visible text or symbols on body)

Enjoy it.

Hand blender Blender ręczny Tyčový mixér Ponorné mixéry Botmixerek Palični mešalnik

Štapni mikser Ραβδομπλέντερ Παςατορ Mixer de mână Rankinis maišytuvas Saumikser

IMPORTANT NOTES

• Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.
• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an earthed socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by

yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• The blades of the blending attachment are very sharp. Be extremely careful.
• Never use the blending attachment for chopping hot products, especially oil or fats.
• Do not use the blending attachment for chopping ice and other hard products like bones, nuts or coffee beans.
• Do not use the hand blender with wet hands.
  • Always disconnect the hand blender from the mains when not in use, or when you plan to change accessories.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 800W

Power supply: 220-240V\~50/60Hz

Max continuous working time KB = 3 min

Minimal time between use = 30 min

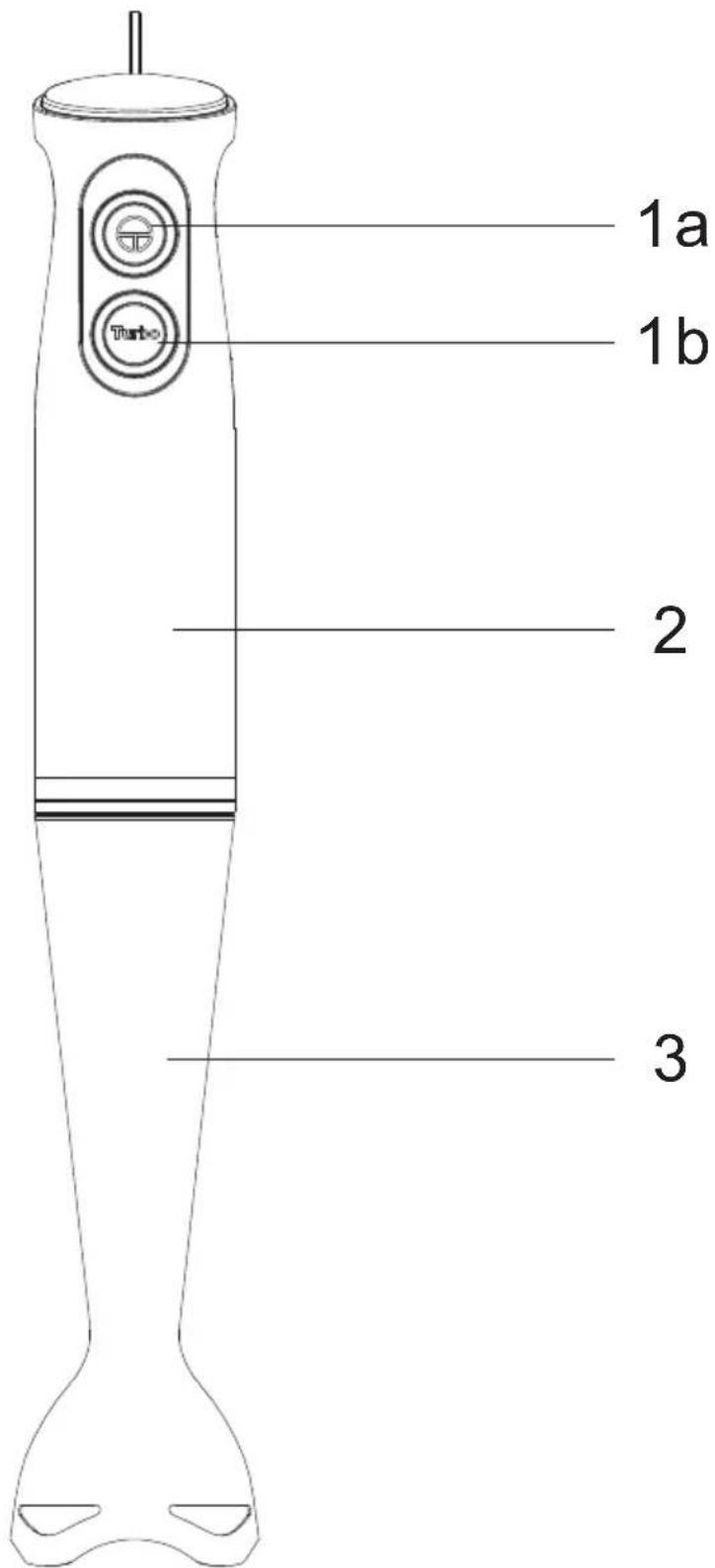

1. Switches of (1a) slower rotational speed, (1b) maximum rotational speed

2. Body with motor

3. Blending attachment

BEFORE FIRST USE

1. Remove all papers, cartons, and foils protecting the appliance and its parts.
2. Clean the appliance according to the instructions in the CLEANING AND MAINTENANCE chapter.

USING THE BLENDER

Connect the blending attachment to the blender main body. Fix it by turning it left (anti-clockwise). Put blending shaft into the jug with ingredients. Turn blender on by pressing buttons

CLEANING AND MAINTENANCE

The body with the motor should be wiped with a slightly moist cloth. Do not immerse in water. Wash the accessories in water with a dishwashing liquid. Rinse thoroughly.
