Product Type	Front-loading washing machine
Brand	Baumatic
Model	BWMF148
Energy Efficiency Class	A+++
Capacity (kg)	8 kg
Maximum Spin Speed (rpm)	1400 rpm
Dimensions (H x W x D)	850 x 600 x 560 mm
Weight	72 kg
Power Supply	220-240 V ~ 50 Hz
Water Consumption (per cycle)	L
Annual Energy Consumption (kWh)	175 kWh
Noise Level (Wash/Spin)	52 dB / 76 dB
Number of Programs	16
Programs	Cotton, Synthetics, Delicates, Wool, Quick 15’, Eco, Rinse & Spin, Drum Clean, etc.
Features	Delay start (up to 24h), Child lock, LED display, Variable speed, Load sensing
Drum Material	Stainless steel
Drain Pump	Yes
Water Level Selection	Automatic
Safety Features	Overheating protection, Overflow protection, Door lock
Maintenance	Clean filter regularly, Descaling every 3 months, Leave door ajar after use
Spare Parts Availability	User-replaceable: inlet hose, drain hose, door seal, filter; contact service for others

Frequently Asked Questions - BWMF148 BAUMATIC

How do I clean the drum of my Baumatic BWMF148 washing machine?

Run a hot empty cycle (90°C) with a drum cleaning product or white vinegar. Alternatively, select the 'Drum Clean' program if available. Wipe the door seal regularly.

What does the 'Child Lock' feature do and how do I activate it?

The child lock prevents accidental button presses during a cycle. To activate, press and hold the 'Child Lock' button (or combination) for 3 seconds. Check the manual for your specific model.

Why is my washing machine not spinning properly?

Ensure the load is balanced and not too large. Check that the drain hose is not kinked and the filter is clean. An unbalanced load can cause the machine to reduce spin speed.

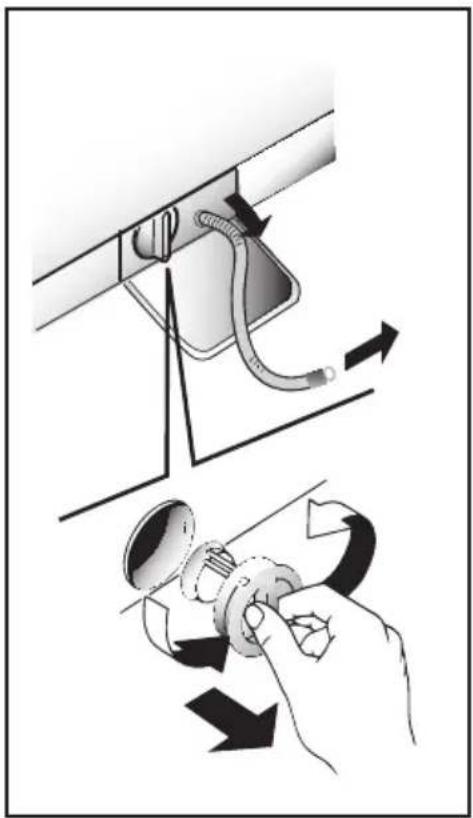

How often should I clean the filter?

Clean the filter every 1-2 months to prevent blockages. Turn off the machine and unplug before cleaning. The filter is located at the bottom front panel.

What should I do if an error code appears on the display?

Refer to the user manual for specific error codes. Common codes: E10 (water fill issue), E20 (drain issue), E30 (door lock). Try restarting the machine and check hoses and filter.

Can I use a 3-in-1 detergent tablet in this washing machine?

Yes, but ensure you place it in the drum directly (not in the detergent drawer) and select a program with prewash disabled if possible. Avoid overloading.

How do I install the washing machine?

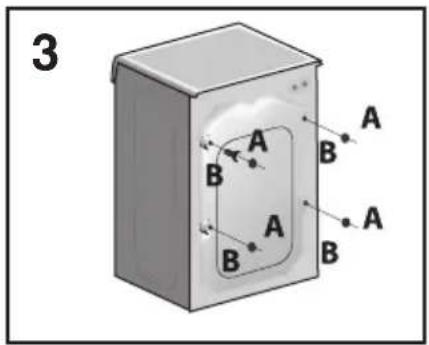

Remove all transit bolts and packing materials. Level the machine by adjusting the feet, and connect the inlet hose to a water supply (cold fill). Connect the drain hose to a standpipe or sink outlet.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm. You can adjust it depending on the fabric type.

How do I prevent mold and odors?

Leave the door and detergent drawer ajar after each wash. Run a maintenance wash at 90°C monthly. Use a liquid detergent for better rinsing.

Where can I find spare parts for my Baumatic BWMF148?

Contact Baumatic customer service or an authorized dealer. Common user-replaceable parts: inlet hose, drain hose, door seal, and filter. Provide your model number.

USER MANUAL BWMF148 BAUMATIC

BWMF 148 Washing Machine

INSTRUCTION MANUAL

General safety rules

- This appliances is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- Children of less than 3 years should be kept away unless continuously supervised.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets).

- Water pressure must be between 0,05 MPa and 0,8 MPa.

- Make sure that a carpet do not obstruct the base of the machine and ventilation openings.

- The OFF condition is reached by placing the reference mark on the programmes control/knob in the vertical position. Any other different position of such control sets the machine in ON condition (only for models with programmes knob).

• After installation, the appliance must be positioned so that the plug is accessible.
• The maximum load capacity of dry clothes depends on the model used (see control panel).
• To consult the product fiche please refer to the manufacturer website.

Safety instructions

• Before cleaning or maintaining the washing machine, unplug the appliance and turn off the water faucet.
• Makesuretheelectricalsystemisgrounded. Otherwise, seekqualified professional assistance.
• Please do not use converters, multiple sockets or extension cords.

WARNING: water may reach very high temperatures during the wash cycle.

• Make sure there is no water in the drum before opening the porthole.
• Do not pull on the power cord or appliance to unplug the machine.
• Do not expose the washing machine to rain, direct sunlight or other weather elements.
• Whenmoving, donotlift the washing machine by the knobs or detergent drawer; during transport, never rest the porthole on the trolley. We recommend two people lift the washing machine.
• In the event of fault and/or malfunction, turn off the washing machine, close the water faucet and do not tamper with the appliance. Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instruction may jeopardise appliance safety.

CE Appliance complies with European Directives:

• 2006/95/EC (LVD);
• 2004/108/EC (EMC);
• 2009/125/EC (ErP);
• 2011/65/EU (RoHS)
and subsequent amendments.

egaPs

	2General safety
General delivery notes	5
Quick start	5
Description of controls	6
Programme Table	14
Programme selector	16
Detergent drawer	19
Detergents, washing aids and amounts to use	20
Useful advice for the user	22
The main wash	23
ina@l ecnanetniaertiuodna gn	25
Investigating malfunctions	27
atadaihceT	29
Setting up + installation	30

BEFORE SWITCHING ON THE APPLIANCE MAKE SURE IT IS CORRECTLY INSTALLED AND THAT THE TRANSIT SCREWS ARE REMOVED AS SHOWN IN PAGE 30.

Please read these instructions for use carefully and all other information enclosed with the washing machine.

Keep all documentation in a safe place for future reference or for any future owners.

General delivery notes

On delivery check that there is the following with the appliance:

• Instruction manual
  – Certificate of guarantee
• Caps
• Inlet hose

and check that no damage has occurred during transit, and if so, call your nearest

Authorised Technical Support Service agent (see Customer Service)

Quick start

Washing

• Open the door by using the handle "A" (Fig. 1, page 6)

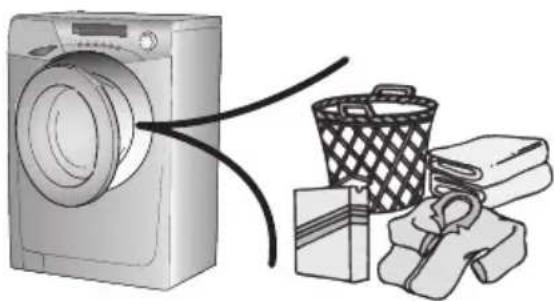

• Select laundry and put it in the machine
• Close the door

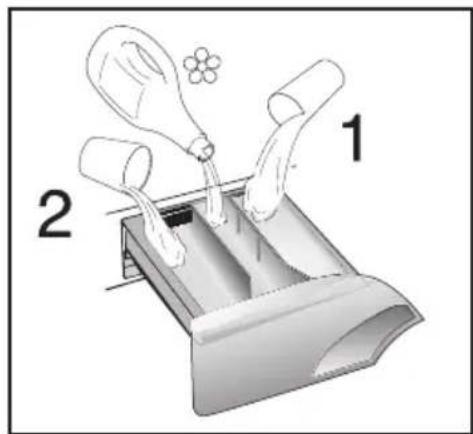

• Put detergent in the compartments as indicated in the programme guide in this instruction manual
• Select programme
• The display will show the settings for the programme selected.
• Adjust the wash temperature if necessary.

Press additional function buttons (if required)

• Press the "Start/Pause" button (page 8)
• The programme starts.

After washing

• The word "End" will appear on the display.
• Wait for the door lock to be released (about 2 minutes after the programme has finished). The “Door Security” indicator light will go out.
• Switch off the washing machine by turning the selector to "OFF" position.
• Open the door and remove the laundry.

Ensure that the machine is correctly installed in line with the instructions found on page 30.

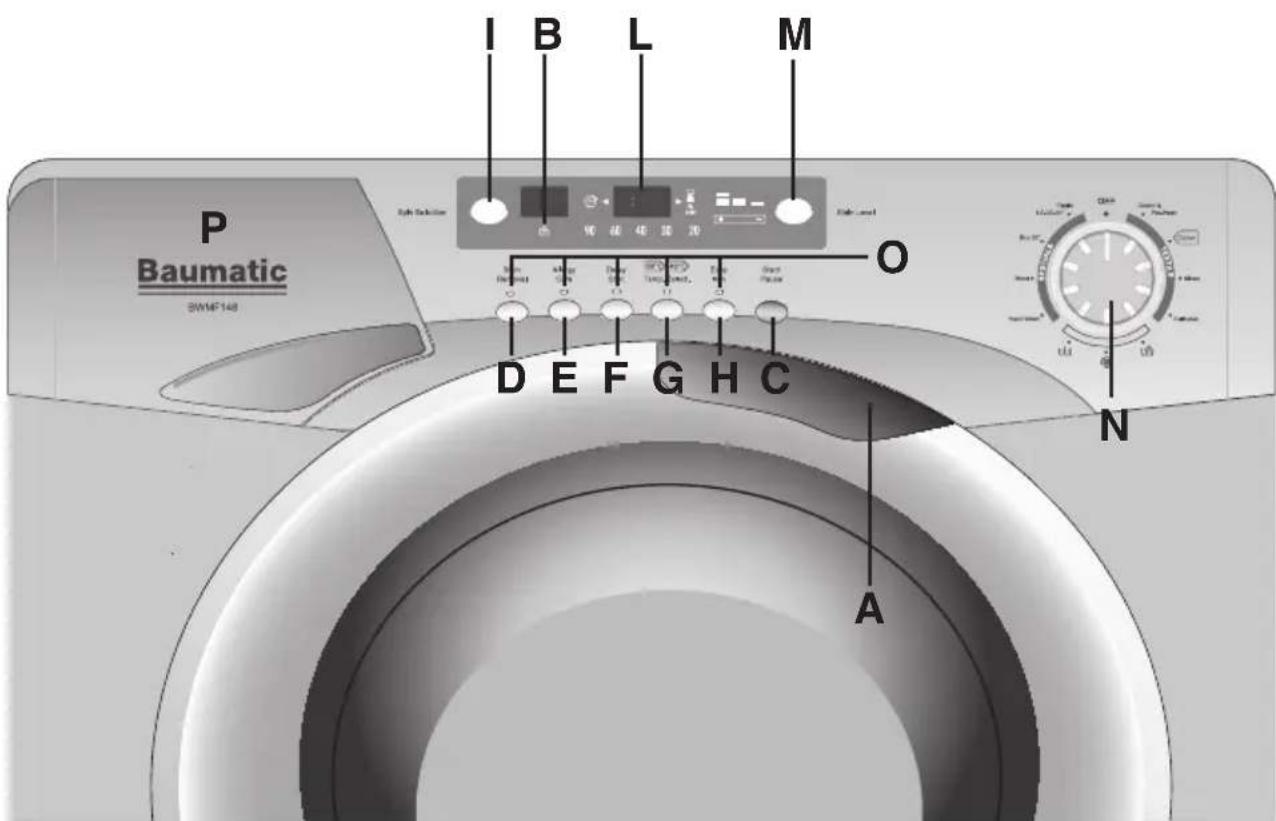

Description of controls

	AeldnaH rooD
"Door Security" indicator light	B
"Start/Pause" button	C
"Stain Removal" button	D
"Allergy Care" button	E
"Delay Start" button	F
"Temperature Selection" button	G
"Easy Iron" button	H
"Spin Selection" button	I
Digital display	L
"Stain Level" button	M
Programme selector with “OFF” position	N
Buttons indicator light	O
rand tnegreD	P

"Kg LOAD"

(Function active only on Cotton and Synthetics programmes)

Through every wash phase “Kg LOAD” allows to monitor information on the wash load in the drum.

So, as soon as the "Kg LOAD" is set in motion, in the first 4 minutes of the wash, it:

• adjusts the amount of water required
• determines the length of the wash cycle
• controls rinsing

according to the type of fabric selected to be washed it:

• adjusts the rhythm of drum rotation for the type of fabric being washed
• recognises the presence of lather, increasing, if necessary, the amount of water during rinsing
• adjusts the spin speed according to the load, thus avoiding any imbalance.

In this way “Kg LOAD” is able to decide, by itself, the most suitable programme for each individual wash from the hundreds of possible wash combinations.

"Kg LOAD" meets the need for easy use by permitting a simplified programme selection. Infact, the user need only tell the machine the type of fabric in the drum and the degree of soiling, to obtain a perfect wash with the highest level of drying possible with a spin which really cares for your clothes.

Door handle

To open the door turn the handle in the manner illustrated in fig. Aspecial safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door. At the end of the cycle turn the programme selector to "OFF".

A

Illustration of a washing machine with a hand operating the valve (no text or symbols visible)

DOOR SECURITY indicator light

The "Door Security" indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door. At the end of the cycle turn the programme selector to "OFF".

"START/PAUSE" button

Press to start the selected cycle.

NOTE: When the "Start/Pause" button has been pressed, the appliance can take few seconds before it starts working.

Changing the settings after the programmes has started (PAUSE)

Press and hold the "Start/Pause" button for about 2 seconds, the flashing lights on the options buttons and time remaining indicator will show that the machine has been paused, adjust as required and press the "Start/Pause" button again to cancel the flashing lights. If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door.

When you have carried out the manoeuvre, close the door, press "Start/Pause" button and the appliance will continue working where it left off.

CANCELLING THE PROGRAMME

To cancel the programme, set the selector to the "OFF" position.

Select a different programme.

Re-set the programme selector to the "OFF" position.

The option buttons should be selected before pressing the "Start/Pause" button.

"STAIN REMOVAL"button

D

By pressing this button, which can only be activated in the Cotton cycles, the sensors in the new system come into operation. They affect both the selected temperature, keeping it at a constant level throughout the wash cycle, and the mechanical function of the drum.

The drum is made to turn at two different speeds at crucial moments. When the detergent enters the garments, the drum rotates in such a way that the detergent is distributed in a uniform manner; during the wash and rinse procedures, however, the speed increases in order to maximise the cleaning action. Thanks to this special system, the efficiency of the wash procedure is improved WITHOUT ANY INCREASE IN THE LENGTH OF THE PROGRAM.

"ALLERGY CARE"button

E

By pressing this button you can activate a special new wash cycle in the Cotton and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of garments and the delicate skin of those who wear them.

The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres. This function has been specifically designed for people with delicate and sensitive skin, for whom even a very small amount of detergent can cause irritation or allergy.

You are advised to also use this function for children's clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent. To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Handwash programs.

"DELAY START" button

F

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.

To delay the start use the following procedure:

Set the required programme.

Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

Confirm by pressing the "Start/Pause" button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

It is possible to cancel the delay start by taking the following action:

Press and hold the button for 5 seconds until the display will show the settings for the programme selected.

At this stage it is possible to start the programme previously selected by pressing the "Start/Pause" button or to cancel the process by setting the selector to the "OFF" position and then selecting another programme.

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

"TEMPERATURE SELECTION" button

G

When a programme is selected the relevant indicator will light up to show the recommended wash temperature.

The Temperature button can be used to decrease or increase the temperature of your chosen wash cycle.

Each time the button is pressed, the new temperature level is shown on the Wash Temperature Indicator.

If you want carry out a cold wash all the indicators must be off.

"EASY IRON" button

H

The Easy Iron function (Not available on COTTON programmes) minimizes creases as much as possible with a uniquely designed anti-crease system that is tailored to specific fabrics.

MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no spinning and then a delicate spin assures the maximum relaxation of the fabrics.

DELICATE FABRICS – after the final two rinses with no spinning the machine stops in the final rinse stage and the option indicators blink. The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.

WOLLENS/HAND WASH – after the final rinse the load is held in the water in the drum, thus reducing creasing and enabling easier ironing and the option indicators blink.

To complete the cycle press the Easy Iron button and the machine will pump out the water and complete the cycle.

If you do not want to spin the clothes and activate drain only:

• Turn the programme selector to the "OFF" position;
• Select programme drain only ↓;
• Switch on the appliance again by pressing the "Start/Pause" button.

"SPIN SELECTION" button

The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs.

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled. To reactivate the spin cycle press the button until you reach the spin speed you would like to set. To prevent damage to the fabrics, it is not possible to increase the speed over that which is automatically suitable during the selection of the program.

It is possible to modify the spin speed without to pausing the machine.

Note:

The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

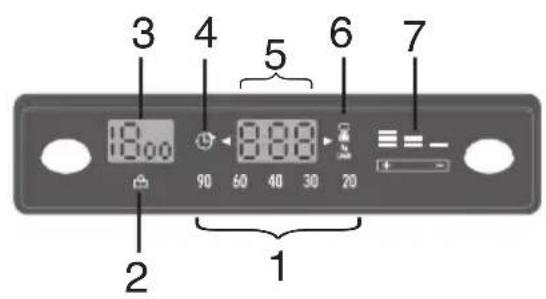

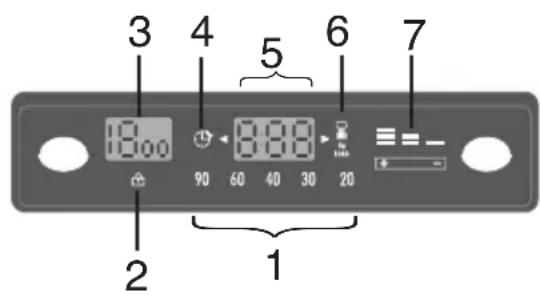

“DIGITAL” Display

The display's indicator system allows you to be constantly informed about the status of the machine:

1) WASH TEMPERATURE

When a programme is selected the relevant indicator will light up to show the recommended wash temperature. The Temperature button can be used to decrease or increase the temperature of your chosen wash cycle. Each time the button is pressed, the new temperature level is shown on the Wash Temperature Indicator.

If you want carry out a cold wash all the indicators must be off.

2) DOOR LIGHT

Once the "Start/Pause" button has been pressed the light first flashes then stops flashing and remains on until the end of the wash. 2 minutes after the end of the wash the light goes off to show that the door can now be opened.

3) SPIN SPEED

Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.

This flashes when delay start has been set.

5) CYCLE DURATION

When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected. Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.

The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

6) KG LOAD Indicator

Available on Cotton and Synthetic cycles, during the first 4 minutes of the cycle the indicator lights and wash time will flash. This means the intelligent sensor is weighing the laundry and will adjust the cycle time, water and electricity consumption accordingly.

7) STAIN LEVEL

Once the programme has been selected the indicator light will automatically show the stain level set for that programme. Selecting a different stain level the relevant indicator will light up.

"STAIN LEVEL" button

M

By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled.

Once the programme has been selected the indicator light will automatically show the wash time set for that programme. Selecting a different wash time the relevant indicator will light up. For example: Using this button on the Rapid Wash cycle will enable you to select either a 14, 30 or 44 minute wash cycle.

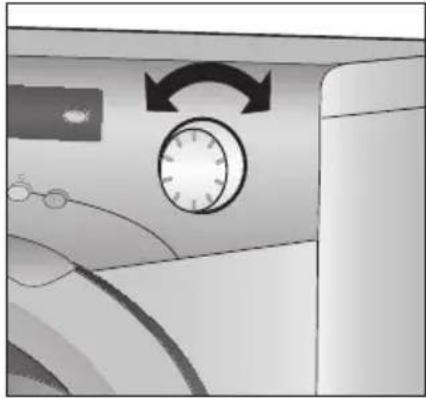

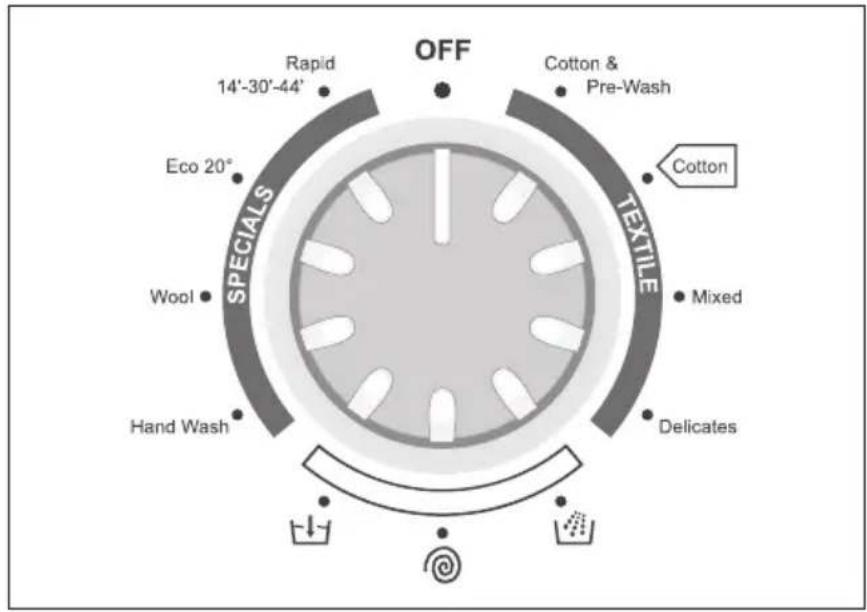

PROGRAMME selector with "OFF" position

N

When the programme selector is turned the display lights up to show the settings for the programme selected.

N.B. To switch the machine off, turn the programme selector to the "OFF" position.

Close-up of a washing machine side panel showing dial and control knob (no text or symbols)

Today, most detergents have been improved to wash efficiently at lower temperatures, therefore we have set the default temperature settings of each programme to a lower level, saving electricity and reducing the carbon footprint of your machine.

You can select an high temperature by pressing the temperature button.

please refer to the programme guide for the maximum temperature to which each programme can be set.

Press the "Start/Pause" button to start the selected cycle.

Once a programme is selected the programme selector remains stationary on the selected programme till cycle ends.

Switch off the washing machine by turning the selector to "OFF".

Note:

The programme selector must be returned to the "OFF" position at the end of each cycle or when starting a subsequent wash cycle prior to the next programme being selected and started.

Buttons indicator light

0

These light up when the relevant buttons are pressed.

If an option is selected that is not compatible with the selected programme then the light on the button first flashes and then goes off.

TABLE OF PROGRAMMES

PROGRAM FOR:	PROGRAMME SELECTOR ON:		WEIGHT MAX kg	TEMP. °C	CHARGE DETERGENT
					2	✿	1
Resistant fabrics Cotton, linen with prewash	1)	Cotton & Pre-Wash	8	Up to: 90°	●	●	●
Cotton, mixed resistant, Coloureds	1)	**	8	Up to: 60°	●	●
Mixed fabrics and synthetics Cotton, mixed fabrics, synthetics	1)	Mixed	4	Up to: 40°	●	●
Very delicate fabrics	Delicates		2,5	Up to: 40°	●	●
Rinse			-	-		●
Fast spin			-	-
Drain only			-	-
Hand wash	Hand Wash		1,5	Up to: 30°	●	●
"MACHINE WASHABLE" woollens	Wool		2	Up to: 40°	●	●
Resistant fabrics Mixed fabrics and synthetics	Eco 20°		8	Up to: 20°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 14 minute	2)	Rapid 14'-30'-44'	1,5	Up to: 30°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 30 minute			2,5	Up to: 40°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 44 minute			3,5	Up to: 40°	●	●

Please read these notes

** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and No 1061/2010

COTTON PROGRAMME with a temperature of 60^ C COTTON PROGRAMME with a temperature of 40^ C

These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing cotton laundry.

These programmes have been developed to be compliant with the temperature on the wash label on the garments and the actual water temperature may slightly differ from the declared temperature of the cycle.

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.

- Pressing the wash temperature button makes it possible to wash at any temperature below the maximum allowed.

1) For the programmes shown you can adjust the duration and intensity of the wash using the "STAIN LEVEL" button.

2) Using the "STAIN LEVEL" button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle.

Programme selector

For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programmes).

COTTON WITH PREWASH

The Cottons programme is designed for maximum washing and rinsing efficiency. With spin cycles in between, the programme guarantees the laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry as much as possible up to the maximum speed.

The Cotton programme includes a Prewash cycle. This option is particularly useful for really dirty loads and can be used independently of the main wash programme. Additional detergent for the Prewash part of the programme should be added to the first compartment of the soap drawer labelled "1" (please refer to the section of this manual entitled "Detergent"). We recommend you use only 20% of the quantity used for the main wash programme.

Cotton & Pre-Wash

MIXED AND SYNTHETIC FABRICS

The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

Mixed

DELICATE FIBRES

This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics.

The wash cycle and rinses are carried out with high water levels to ensure best results.

Delicates

"RINSE" PROGRAMME

This programme carries out three rinses with a intermediate spin (which can be reduced or excluded by using the correct button). It can be used for rinsing any type of fabric, eg. use after hand-washing.

"SPIN" PROGRAMME

Programme "SPIN" carries out a maximum spin (which can be reduced by using the correct button).

DRAIN ONLY

This programme drains out the water.

"HAND WASH" PROGRAMME

This washing machine also has a gentle Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as “Hand Wash only” on the fabric care label. The programme has a temperature of 30^ C and concludes with 3 rinses and a slow spin.

Hand Wash

WOOLMARK PROGRAMME

The special cycle enables to thoroughly wash garments without damaging them. The cycle comprises of alternate periods of activity and pauses. The programme has a maximum temperature of 40^ and concludes with 3 rinses and a short spin.

Wool

"ECO 20°C" PROGRAMME

This innovative programme, allows you to wash different fabrics and colours together, such as cottons, synthetics and mixed fabrics at only 20^ C and provides an excellent cleaning performance.

Eco 20°

Consumption on this program is about 40% of a conventional 40^ C cottons wash.

RAPID PROGRAMME

This programme is particularly suited to slightly dirty cottons and mixed fabrics. Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle.

Rapid

When selecting the rapid programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack. For information about these programmes please refer to the programmes table.

14'-30'-44'

Automatic Variable Capacity

The washing machine is fitted with an automatic reduction in consumption system (known as Automatic Variable Capacity).

This system enables the machine to use the amount of water needed to wash and rinse the laundry in relation to the particular load.

This results in a reduction in the amount of water used and electricity needed to heat it to the minimum required, without in any way compromising the washing and rinsing performance.

In fact the amount of water and electricity used will always be appropriate for the amount of washing.

The washing machine therefore ensures you achieve excellent washing results whilst respecting the environment and saving you money.

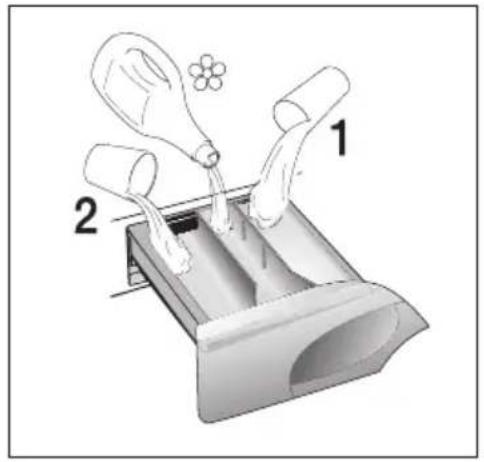

Detergent drawer

P

The detergent drawer is split into 3 compartments:

• the compartment labelled "1" is for prewash detergent;
• the compartment labelled "is for special additives, fabric softeners, fragrances, starch, brighteners etc;
• the compartment labelled "2" is for main wash detergent.

NOTE:

Some Detergents are Difficult to utilise. Ensure to use an in drum dispenser if recommended by the detergent Manufacturer.

Note: only put liquid products in the compartment labelled “ ✿”. The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles.

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

• Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.
• Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
  These detergents are not suitable for washing stained laundry, as they do not contain bleach.
• Biological detergents, not all the products available give a really thorough wash.

Additional laundry aids

• Water softener, means less detergent can be used where water hardness is classed as hard to very hard.
• Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents.
• Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children's reach.

Before pouring in the detergent check that there are no foreign bodies in the detergent drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

• water hardness: depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.
• the degree of soiling: it is possible to reduce the amount of detergent used depending on the degree of soiling.
• amount of laundry: it is possible to reduce the amount of detergent when washing only a small amount of laundry.

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a programme without prewash.

Put the detergent in compartment "2" of the drawer.

For heavily soiled laundry, choose a programme with prewash.

Put 1/4 of the detergent in compartment "1", 3/4 in compartment "2" of the drawer.

When using water softeners, first put in the detergent, then add the softener to compartment "2".

For highly concentrated detergents not in single dose format, follow what is shown on pack exactly as regards type and amount of dosage.

To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programmes without prewash, by using the special container which is placed in the drum or, for those models that have it, in the special insert for liquid detergents.

Recommendations on the use of detergent at various temperatures

When washing heavily soiled whites, we recommend using cotton programs of 60^ C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results. For washes between 40^ C and 60^ C the type of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents or “colour protecting” powders are suitable for coloured fabrics with light levels of soiling. For washing at temperatures below 40^ C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing. For washing wool or silk, only use detergents specifically formulated for these fabrics. For dosage amounts please follow the instructions on the detergent package label.

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical way

Do a full load in your washing machine

To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size. Up to 50% energy saving can be made with one full load compared to two half load washes

When is prewashing really needed?

Only with particularly dirty loads!

Energy savings of 5 to 15% are made by not selecting the prewash option for normal soiled laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60^ C.

Energy savings of up to 50% can be made by using a 60^ C wash temperature rather than 90^ C

Main wash

Sorting the laundry

• It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items.
• If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.
• Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry

Laundry for hot wash 95°

Coloured, easy-care materials 60° 50° 40°

Delicates and wool 40° 30°

Wash by hand

Items labelled with the following symbol are not suitable for machine washing:

Dry clean

For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag.

- Woollen items must be labelled with the "Pure New Wool" symbol to be washed in the machine and must also be labelled "non-matting" or "machine washable".

- Colour often leaks from new coloured items.

This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time separately.

For future washes, colourfast items can only be washed with whites up to 40^ C.

Note: when sorting laundry

• check there are no metal objects in the laundry (such as paper clips, safety pins, pins, coins etc...);
• button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords;
• remove curtain hooks;
• pay close attention to the labels on items
• if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

Pure mechanical component diagrams without any text, numbers, or symbols

- We recommend that you do not do a full load of towelling items only as these become too heavy since they absorb a lot of water.

The correct way to wash

Preparing the laundry

A) Select the laundry.

Loading the laundry

B) Open the porthole.

C) Put the laundry in the washing machine.

Close the porthole again, ensuring that no items of laundry are obstructing the lock.

Putting detergent in machine

D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer's instructions and the advice on page 20.

Add any other laundry aids (see page 20). Close the drawer again.

Illustration of a washing machine connected to a basket and accessories (no text or symbols)

Selecting the wash programme

Refer to the programme guide or the programme descriptions on the machine to select the most suitable programme.

Turning the selector knob, the required programme is activated.

Adjust the wash temperature if necessary.

Press additional function buttons (if required).

Check that the tap is turned on and that the discharge hose is positioned correctly.

Press the "Start/Pause" button.

When the "Start/Pause" button is pressed the machine sets the working sequence in motion.

The programme carries out with the programme selector stationary on the selected programme till cycle ends.

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

When the programme is finished

The word "End" will appear on the display.

Wait for the door lock to be released (about 2 minutes after the programme has finished).

The "Door Security" indicator light will go out.

Switch off the machine by turning the programme selector on the "OFF" position. Open the door and remove the laundry. Turn off the tap.

Cleaning and routine maintenance

Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

• Cleaning the filter.
• Cleaning the door glass.

- Cleaning the drawer compartments.

Cleaning the drawer compartments

Even if it is not strictly necessary, it is good to clean the compartments for bleaching detergents and additives occasionally.

A) To do this you just need to pull them out firmly, but without forcing them.
B) Clean everything in the compartment under running water.
C) Put everything back in its proper place.

Illustration of a hand using a faucet to lift or lift a drain into a container (no text or symbols)

Cleaning the filter

The washing machine is fitted with a special filter for handling large deposits which could block the discharge hose (coins, buttons etc.) and which can, therefore, be easily retrieved.

We recommend that the filter be cleaned at least once a month.

The cleaning operation is as follows:

1) Open the flap
2) Only available on certain models: Pull out the corrugated hose, remove the stopper and drain the water into a container.
3) Before removing the filter, place an absorbent towel below the filter cap to collect the small amount of water likely to be inside the pump
4) Turn the filter anti-clockwise until it stops in the vertical position. Remove and clean.
5) After cleaning, replace the filter and lock by tightening the filter screw. Then follow all procedures described above in reverse order.

Illustration showing a hand holding a circular component with directional arrows indicating motion or movement (no text or symbols present)

Attention: if the filter needs cleaning while there is washing still in the drum, follow the instructions on the following page to empty the water. This will prevent excessive loss of water via the filter.

Cleaning the door glass

Regularly clean the door glass with a damp cloth. A build up of soiling and

residues from the water may result in water leaking from the door.

Do not use abrasive cleaners as they can scratch the surface.

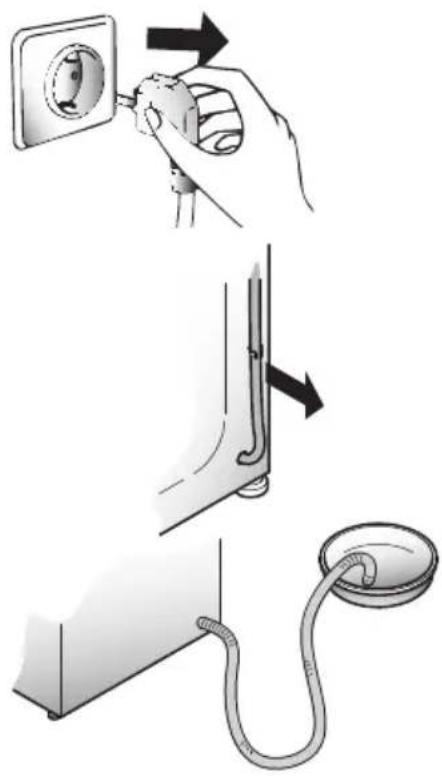

Transporting the appliance or long periods when appliance is not in use

If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from the hoses.

Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.

When finished, repeat the operation in the reverse order.

Illustration of three steps of a medical or electrical procedure: inserting a socket into a tube, adjusting the tube, and connecting a cable to a terminal (no text or symbols present)

Investigating malfunctions

What might be the cause of...

Defects you can remedy yourself

MALFUNCTION	CAUSE REMEDY
1. Does not work on any programme	Plug not in socket.Not switched on.Power failure.Fuse blown.Door open.	Plug it in.Switch on.Check.Check.Close door.
2. Does not fill with water	See cause 1.Tap turned off.Programme selector not correctly positioned.Fill hoses are kinked	Check.Turn on tap.Position programme selector correctly.Straighten fill hoses
3. Water does not drain away	Kink in discharge hose.House drain is blockedForeign bodies in filter	Straighten discharge hose.Clean drainExamine filter
4. Water on floor around the washing machine	Leaking gasket between tap and water inlet hose.House drain is blockedSoap drawer blocked with soap residues	Replace gasket and tighten hose and tap well.Clean drainClean soap drawer
5. Does not spin	Water has not yet drained away."No spin" selected (certain models only).	Wait a few minutes for machine to empty.Reset button or turn "no spin" knob.
6. Machine vibrates a lot during spin	Washing machine not completely level.Transit brackets not removed yet.Load not distributed evenly.	Adjust the special adjustable feet.Remove transit brackets.Rearrange the laundry evenly.
7. Door will not open	Two minutes have not elapsed since the programme finished.	Wait two minutes.
8. Display reads error0, 1, 5, 7, 8, 9	-	Call service.
9. Display reads error 2	No water fill.	Check water supplies are on.
10. Display reads error 3	No pump out.	Check drain is clear.Check drain hose is not kinked.
11. Display reads error 4	Machine overfilled with water.	Turn off water supply to machine.Call service.

The machine makes a different noise when spinning! This is because it has a brush motor for better performance.

Only a small level of water can be seen in the drum! This is because new machines do not use much water, yet achieve the same standard of washing and rinsing.

Note:

The use of environmentally-friendly, phosphate-free detergents can have the following effects:

- waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected;

- presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.

- The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing.

- Anionic surfactants used in washing detergent formulae often prove to be difficult to remove from the laundry itself and, even in small quantities, can still cause considerable foam production.

- Carrying out more rinse cycles does not serve any purpose in such cases.

Technical data
■ Max. load of dry laundry■ Water pressure		8 kg0,05 ÷ 0,8 MPa
Measurements■ Width■ Depth■ Height		60 cm52 cm85 cm

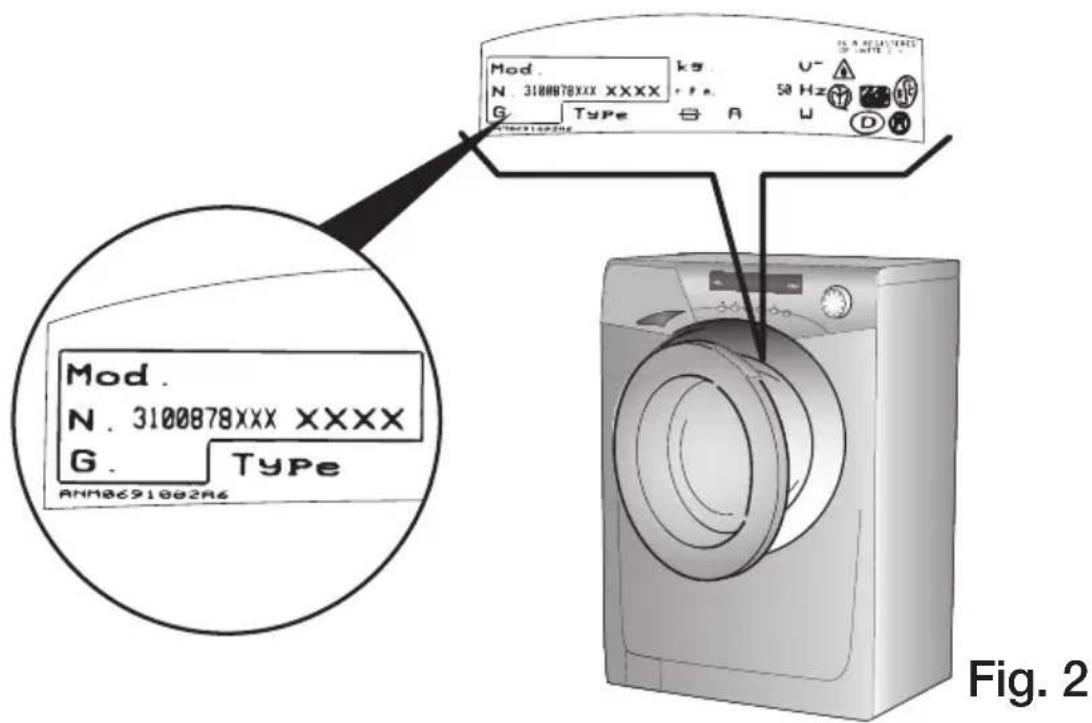

NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area) - as shown in diagram above.

SETTING UP + INSTALLATION

Illustration of a washing machine with a curved arrow pointing to it, no text or symbols present.

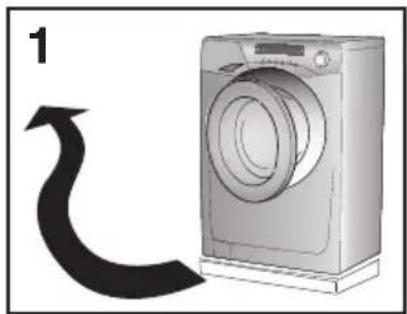

Remove the polystyrene base and place the machine near its permanent position (diagram 1).

Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2).

Remove the 4 fixing screws marked (A) and remove the 4 spacers marked (B) (diagram 3).

Illustration of a hand holding a tool with a spring, no text or symbols present

Cover the 4 holes using the caps provided in the instruction booklet pack (diagram 4).

3D diagram of a rectangular box with internal cavity and mounting holes, labeled with number 4 (no text or symbols on the object itself)

WARNING:

DO NOT LEAVE THE PACKAGING WITHIN REACH OF CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.

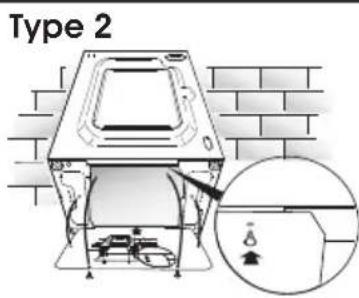

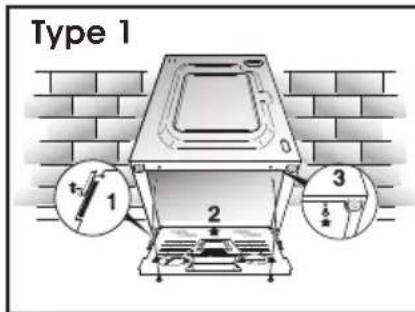

Apply the insulation sheet of corrugated material to the base as shown.

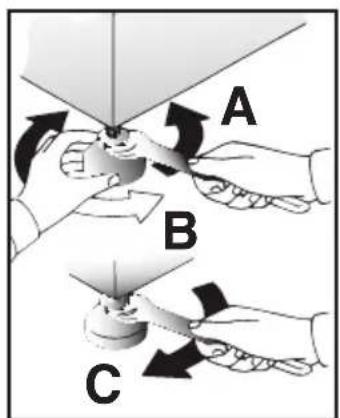

Use the 4 feet to level the machine with the floor:

a) Turn the nut clockwise to release the screw adjuster on the foot.
b) Rotate the foot to raise or lower it until it stands firmly on the ground.
c) Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine.

Note: we recommend you keep the screws to immobilise the machine for future transit.

The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation.

Water connection

The appliance must be connected to the water mains using new hose-sets.

The old hose-sets should not be re-used.

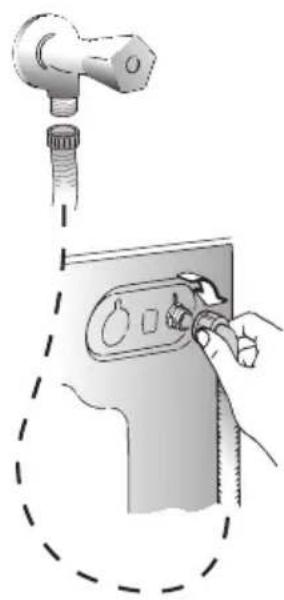

The machine has an inlet hose with 3/4" B.S.P threaded end connection to attach between the threaded connector on the appliance and the cold water supply.

This machine only uses cold water, therefore only one hose is needed to connect to the cold water supply. Do not connect to the hot supply. Cold fill is an energy efficient system. Only the water required for the washing is heated. There is no loss of heat in the pipeline from a hot water tank or boiler to the machine.

Illustration of a hand operating a device with a tool, showing no text or symbols

Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply.

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

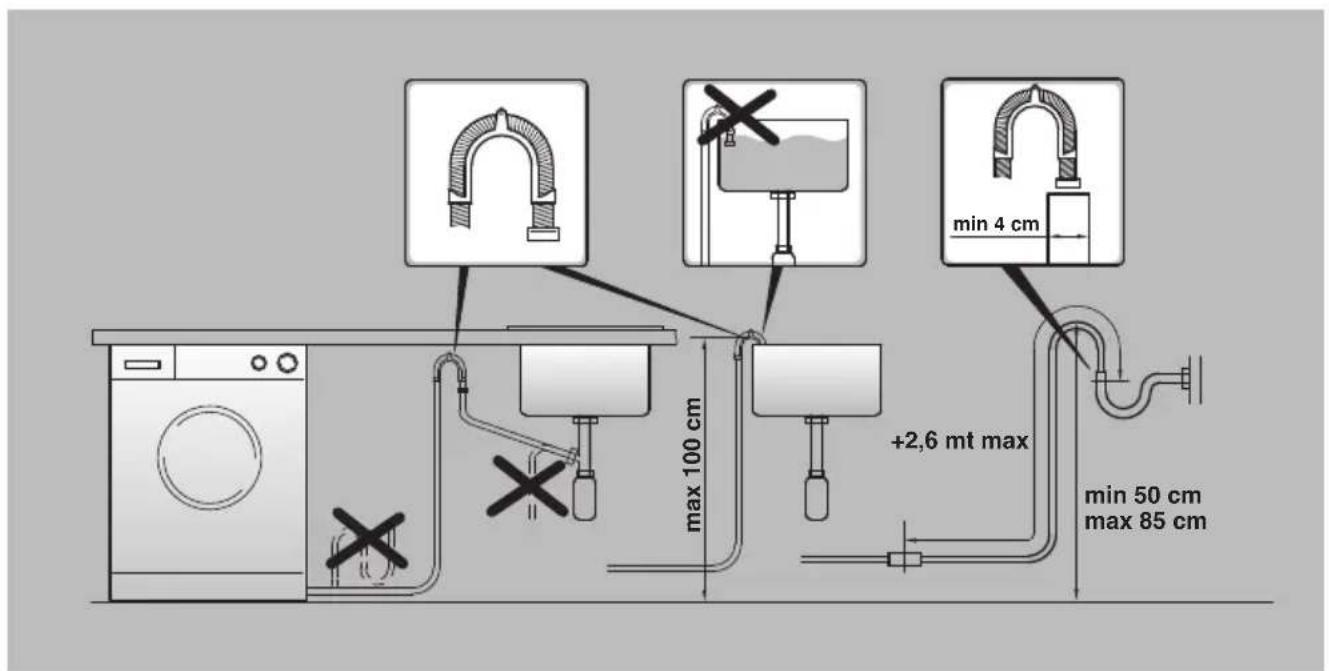

For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.

ELECTRICAL CONNECTIONS

After installation, the appliance must be positioned so that the plug is accessible.

If the plug we supply does not fit CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and the exposed wires could be dangerous if plugged in.

To fit a replacement plug, proceed as follows:

Connect to the terminal in the plug

green and yellow wire marked with the letter E,

OR marked with the symbol, — — — — OR coloured green, OR coloured green and yellow.

blue wire marked N

OR coloured black.

brown wire marked L

OR coloured red.

WARNING

This appliance must be earthed

Fuses and plugs

This appliance should be used only on a socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved. Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse cover (obtainable from your local retailer) must be the same colour as shown or named on the insert on the base of the plug.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Symbol of a trash bin crossed with no visible text or labels

Baumatic®

Unit 11, Beacontree Plaza

Gillette Way

Reading

RG2 0BS

Customer Care Telephone: [phone]

Spare Parts Telephone: [phone]

www.baumatic.co.uk

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Baumatic

Baumatic

Part of Hoover Candy

11 Beacontree Plaza

Gillette way

Reading

RG2 0BS

www.baumatic.co.uk
