Product Type	Portable Power Bank
Model	PD04 (TRU10A)
Brand	Valore
Battery Type	Lithium Polymer
Battery Capacity	10000mAh / 37Wh
USB Output Ports	2 x USB-A, 1 x USB-C
USB-A Output	5V/3A, 9V/2A, 12V/1.5A (max per port)
USB-C Output	5V/3A, 9V/2A, 12V/1.5A (Max PD18W)
USB-C Input	5V/3A, 9V/2A, 12V/1.5A
Micro USB Input	5V/2A, 9V/2A (Max)
Charging Time (PD 9V/2A)	Approximately 3 hours
Charging Time (5V/2A)	Approximately 5 hours
Recharging Cycles	300 times
Dimensions (L x W x D)	87 x 62 x 24 mm
Weight	191 g
Material	ABS + PC
Operating Temperature	-10°C to 40°C
Indicator	Digital battery percentage display
Power Button	Touch power button
Package Contents	Power bank, USB to USB-C cable, soft pouch
Compatible Devices	Smartphones, tablets, and USB-C enabled devices
Safety Features	Overcharge protection, short-circuit protection
Warranty	Refer to technical support, [e-mail]

Frequently Asked Questions - PD04 Valore

How do I charge the Valore PD04 power bank?

Use the provided USB to USB-C cable and connect to a USB adaptor (2.0A). The LED indicator will blink while charging and become solid when full. Fully charge for 14-16 hours before first use.

Can I charge my device while the power bank is charging?

Yes, the power bank supports simultaneous charging and discharging via the USB-C input/output.

What is the output power of the USB ports?

Each USB-A port can output 5V/3A, 9V/2A, or 12V/1.5A. The USB-C port supports up to 18W Power Delivery.

How long does it take to fully charge the power bank?

Approximately 3 hours with a 9V/2A PD charger, or 5 hours with a 5V/2A standard charger.

What devices are compatible with the PD04 power bank?

Most smartphones, tablets, and other USB-C or USB-A powered devices. For fast charging, ensure device supports PD or Quick Charge protocols.

How do I check the remaining battery level?

Press the touch power button once. The digital indicator will show the battery percentage.

Why is my power bank not charging my phone?

Ensure the power bank is charged. Check the cable connection and try a different cable. The power bank may need to be recharged if battery is flat.

Can I use a different charging cable?

Yes, any standard USB to Micro USB or USB-C cable can be used for charging the power bank or devices.

Is it safe to leave the power bank plugged in overnight?

Yes, the power bank has overcharge protection. However, it is recommended to unplug once fully charged to maximize battery lifespan.

How to store the power bank when not in use?

Store in a cool, dry place. Recharge every three months to maintain battery health. Avoid exposure to heat, water, or direct sunlight.

USER MANUAL PD04 Valore

Thank you for purchasing the Valore TRU10A 18W 10000mAh Power Bank (PD04)

• Dual input design to conveniently charge power bank using USB-C or Micro USB charging cable
• Dual USB & USB-C output for simultaneous device charging
• Power Delivery (PD) technology provides fast charging for most USB-C enabled devices

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications:

• Battery type: Lithium Polymer
• Battery capacity: 10000mAh – 37Wh
• USB 1&2 output: 5V/3A, 9V/2A, 12V/1.5A (max)
• USB-C input & output: 5V/3A, 9V/2A, 12V/1.5A (Max PD18W)
• Micro USB input: 5V/2A, 9V/2A (Max)
• Charging time: Approximately 3 hours (PD 9V/2A)
  Approximately 5 hours (5V/2A)
• Recharging cycle: 300 times cycle
• Dimensions (L x W x D): 87 x 62 x 24mm
• Material: ABS + PC
• Operating temperature: -10^ to 40^
• Weight: 191g

Package Contents:

• TRU10A 18W 10000mAh power bank
- USB to USB-C charging cable
- Soft pouch

UNDERSTANDING THE PRODUCT

① USB output ports
② Digital indicator
③ Touch power button
④ Micro USB input port
⑤ Type-C PD input/output

START USING THE 1000MAH PD POWER BANK

1) Charging the power bank

Connect your power bank to the USB adaptor (2.0A) using the charging cable provided.

When the LED indicator is all lit, it indicates that the battery is fully charged.

Press the touch power button once to display battery percentage.

While charging the power bank, the last digit will blink.

Diagram showing a device connected to a laptop via cable, with no visible text or symbols.

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries.

Recharge your power bank once every three months when not in use or seldom used.

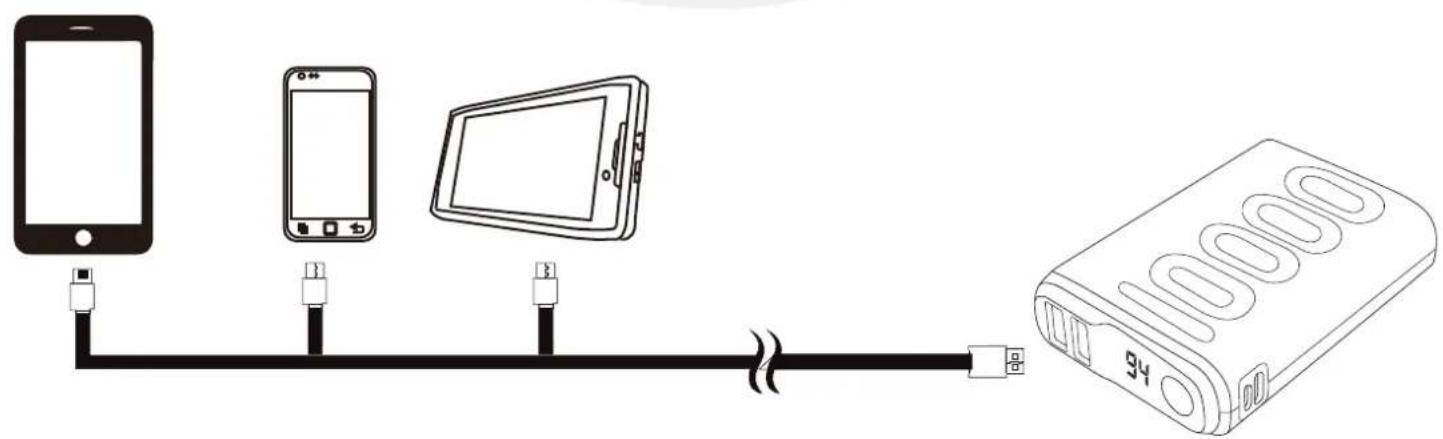

2) Charging of devices

Connect your power bank to your mobile device's charging port using a 8-pin, Micro USB, Type-C cable.

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAh for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank
