Jetix Plus PSI3630 - Iron Profilo - Free user manual and instructions

Type	Steam Iron
Brand	Profilo
Model	Jetix Plus PSI3630
Power	2400 W
Water Tank Capacity	300 ml
Soleplate Type	Ceramic
Variable Steam	Yes
Anti-Drip	Yes
Self-Clean	Yes
Temperature Control	Adjustable thermostat
Power Cord	2.5 m, swivel
Dimensions (W x D x H)	120 x 300 x 150 mm
Weight	1.5 kg
Voltage	220-240 V, 50-60 Hz
Color	White/Blue
Maintenance	Use distilled water; clean with damp cloth
Spare Parts	Available soleplate, tank cover
Repairability	Customer service accessible

Frequently Asked Questions - Jetix Plus PSI3630 Profilo

How do I fill the water tank?

Open the water inlet cover and tilt the iron to fill with tap water. Do not exceed the max level. Close the cover securely.

What steam settings are available?

The iron offers variable steam control from low to high, suitable for different fabrics. Use the steam dial to adjust.

How to use the self-clean function?

Fill the tank to max, set temperature to max, and press the self-clean button. Steam and dirt will flush out. Repeat monthly.

Why is no steam coming out?

Check water level, ensure temperature is high enough for steam, and wait for the iron to heat up. Also check if steam button is pressed.

Can I use the iron without water?

Yes, for dry ironing. Set the temperature according to fabric and do not use the steam function.

How to clean the soleplate?

Unplug and let cool. Wipe with a damp cloth. For stubborn residue, use a mild abrasive cleaner or a special soleplate cleaner.

What fabrics can I iron at high temperature?

Cotton, linen, and denim. Always check garment label and start with lower temperature for delicate fabrics.

How to store the iron?

Allow to cool completely, empty water tank, and store upright in a dry place. Do not wrap cord around hot iron.

Is the iron cord swivel?

Yes, the cord has a 360° swivel base for ease of movement.

What is the warranty period?

Standard warranty is 2 years from date of purchase. Keep receipt for service.

USER MANUAL Jetix Plus PSI3630 Profilo

Black and white photo of a Jefix Plus air iron with visible branding and power rating (2300 W), placed on a striped surface.

TR KULLANIM KILAVUZU BUHARLI ÜTÜ

4-7

EN USER MANUAL STEAM IRON

8-11

TR

Congratulations on your choice of our appliance, and welcome among the users of PROFiLO products.

In order to achieve best possible results we recommend using exclusively original PROFiLO accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

DANGER! / WARNING! Health hazard

• The iron must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.

- The appliance must be used and placed on a stable surface.

- When placed on its stand, make sure that the surface on which the stand is placed is stable.

- The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.

- With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.

- This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- The appliance is designed for use only in households located up to 2000 m above sea level.

CAUTION! Not observance can result in damage to possessions

This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.27Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
Unplug the appliance from the mains supply after each use, or if a fault is suspected.
The electrical plug must not be removed from the socket by pulling the cable.
Never immerse the iron in water or any other fluid.
Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).
Do not allow the power cord to come into contact with the soleplate when it is hot.

Store the iron in upright position.
Do not use descaling agents (unless they have been advised by Profilo), they can damage the appliance.
Never use abrasive products to clean the soleplate or any other part of the appliance.
To keep the soleplate smooth, you should avoid hard contact with metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

GESTION

Information on the product and suggestions for its use

The iron is intended for domestic usage only and you can use it solely according to herewith manual.

Before using the iron for the first time

① With the iron unplugged, fill in the tank of the iron with tap water and set the temperature dial to "max".
② Plug in the appliance to the mains. When the steam iron has reached the desired temperature (pilot light switches off), start steaming by setting the steam regulator to "2" and by repeatedly pressing the button
③ When using the steam function for the first time, do not apply it on the laundry, as there could still be dirt in the steam dispenser.
④ Your new iron may smell and give off some smoke when you use it for the first time, this is normal and will cease after a short while.

How to use the iron

① Check the laundry care label for the required ironing temperature. If you do not know what kind or kinds of fabric an article is made of, determine the right ironing temperature by ironing a part that will not be visible when you wear or use the article.
② Start ironing the articles that require the lowest ironing temperature, such as those made of synthetic fibres.
③ Silk, woollen or synthetic materials: iron the reverse side of the fabric to prevent shiny patches. Avoid using the spray function to prevent stains.

● Synthetics

●● Silk – Wool

●●● Cotton – Linen

Technical data

The iron technical parameters are included at the name plate.

Filling the water tank

Set the steam regulator to the "0" position and unplug the iron from the mains!

Use only clean water from the tap without mixing anything with it. The addition of other liquids, such as perfume, will damage the appliance.

Any damage aforementioned guarantee void.

caused products,

by the will n

use ake

of the

Do not use condensation water from tumble dryers, air conditionings or similar. This appliance has been designed to use normal tap water.

To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

To prevent spillage of water out of the appliance in vertical position, never fill beyond the "max" water level mark!

Getting ready

Remove any label or protective cover from the soleplate.

Ironing without steam

Set steam control to the "0" position.

Ironing with steam

Only when the temperature dial is placed in the areas with the steam symbol.

Extra steam

Get extra steam by pressing the steam regulator for maximum 2 seconds.

Sprey

Set the temperature dial in the max position Interval between shots of steam should be 5 sec.

Vertical steam

Do not iron clothing while it is being worn!

Never direct the steam at persons or animals!

Interval between shots should be 5 sec.

Wait 10 sec. after a cycle of 4 shot.

Multiple descaling system

Depending on the model, this range is equipped with the "AntiCalc" (=component 1 + 2 + 3) descaling system.

self-clean

Each time you use the steam regulator, the “self-clean” system cleans the mechanism of scale deposits.

Calc'n clean

The “calc’n clean” function helps to remove scale particles out of the steam chamber.

Use this function approximately every 2 weeks if the water in your area is very hard.

① Fill the water tank, set the temperature control to the "max" position and plug in the iron.
② After the necessary warm-up period, unplug the iron.
③ Hold the iron over a sink and remove the steam regulator by turning it to the position while pressing it down.
④ Pour slowly the content of one filling beaker into the steam regulator hole (see picture G).
⑤ Gently shake the iron. Boiling water and steam will come out of the soleplate carrying scale or deposits that might be there. When the iron stops dripping, reassemble the steam regulator by reinserting it, lining up the position with the pointer, pressing it in and turning it to the "0" position.
⑥ Heat up the iron again until the remaining water has evaporated.
⑦ If the steam regulator needle is soiled, remove any deposits from the tip with vinegar and rinse it off with clean water.

anti-calc

The “anti-calc” cartridge has been designed to reduce the build-up of scale produced during steam ironing, helping to extend the useful life of your iron. Nevertheless the “anti-calc” cartridge cannot remove all of the scale that is produced naturally over time.

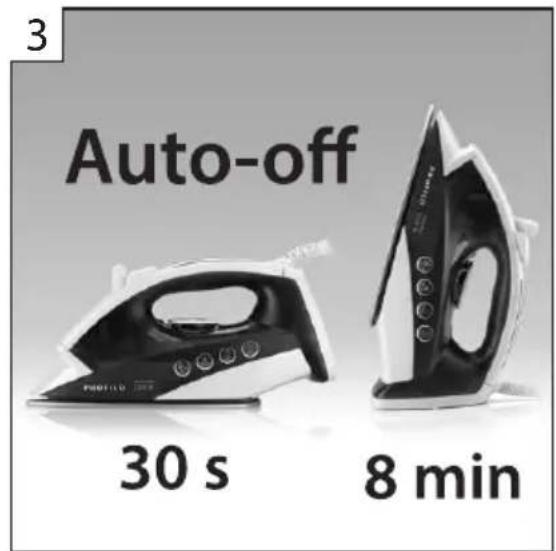

"Secure" auto shut-off function

(Model dependent)

The “Secure” auto shut-off function switches off the iron when it is left unattended, thus increasing security and saving energy.

After plugging in the appliance, this function will be inactive for the first two minutes in order to give the appliance time to reach the set temperature.

Alter such time, if the iron is not moved for 8 minutes while in the upright position or 30 seconds while resting on its soleplate or on its side, then the safety circuit will switch the appliance off automatically and the pilot light will start flashing.

To reconnect the iron, just move it about gently.

Anti-drip system

(Model dependent)

If the temperature is set too low, the steam is automatically switched off to avoid dripping.

Storing

Turn the steam regulator to position "0".

Cleaning

Tips to help you save energy

Steam production consumes the most energy. To help minimise the energy used, follow the advice below:

Start by ironing the fabrics that require the lowest ironing temperature.
Check the recommended ironing temperature in the label on the garment.
Regulate the steam according to the selected ironing temperature, following the instructions in this manual.
Only use steam if necessary. If possible, use the spray function instead.
Try to Iron the fabrics while they are still damp and reduce the steam setting. Steam will be generated from the fabrics rather than the iron. If you tumble dry your fabrics before ironing them, set the tumble drier on the 'iron dry' programme.
the fabrics are damp enough, turn off the steam regulator completely.
Stand the iron upright during pauses. Resting it horizontally with the steam regulator on generates wasted steam.

Trouble shooting guide

Problem Probable cause Solution
The iron does not heat. 1. Temperature control dial in very low position.2. No mains supply.		1. Turn to a higher position.2. Check with another appliance or plug the iron into a different socket.
The pilot light does not switch on.	1. The iron is cooling.2. The iron does not heat.	1. Wait until the heating cycle is completed.2. See previous paragraph.
The clothes tend to stick. 1.	Very high temperature. 1. Turn the temperature dial to a lower temperature.
Water comes out together with steam.	1. Temperature regulator in very low position.2. Steam regulator in very high position with low temperature.	1. Turn the temperature dial regulator to a higher position and wait until the pilot light switches off.2. Turn the steam regulator to a lower position.
Steam does not come out. 1.	Steam regulator in closed position.2. No water in the tank.3. Obstructed mechanism.4. The temperature is too low. Anti-drip system activated.	1. Turn the steam regulator to an open steam position.2. Fill the tank.3. Remove the needle and clean it, if this does not help, contact the Technical Service.4. Set a higher temperature if compatible with the fabric.
Spray does not work. 1. No	water in the tank.2. Obstructed mechanism.	1. Fill the tank.2. Contact the Technical Service.
Water comes out from the soleplate before connecting the iron.	1. The steam regulator is not properly closed.	1. Make sure to place the steam regulator in position “0”.Do not forget to empty the tank when you have finished ironing.
Smoke comes out when connecting the iron for the first time.	1. Lubrication of some of the inner parts.	1. Do not worry. It will disappear in a short period of time, after the first usage.

If the above does not solve the problem, get in touch with authorized technical service.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines

the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Close-up of a white iron with perforated grille and 'PROFITO' branding on the side (no readable text beyond label)

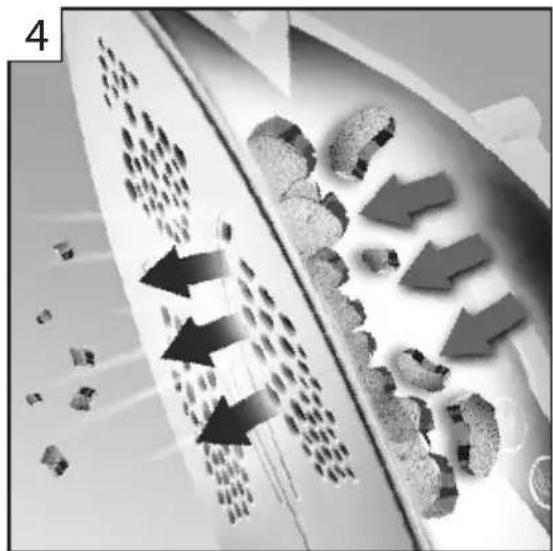

Diagram showing particle movement in a material or process, with arrows indicating direction and particle clusters (no text or symbols)
