Product TypeWork Surface (Single Bay)
BrandMiddle Atlantic
ModelWS1-S18-GOF
CategoryAudio-Visual Furniture
Construction1" thick, 45 lb. density industrial MDF board
FinishGraphite laminate with beveled oak trim
Dimensions (Estimated)22" W x 27" D x 1" H
Weight CapacityCompatible with console rated up to 1,500 lbs
CompatibilityMiddle Atlantic SC-1427 series consoles
MaintenanceClean with damp cloth; avoid abrasive cleaners
SafetySecure installation required; follow console manual
Spare PartsContact Middle Atlantic or authorized dealers
General InfoManufactured by ISO 9001 and ISO 14001 registered company

Frequently Asked Questions - WS1-S18-GOF Middle Atlantic

What is the WS1-S18-GOF?
The WS1-S18-GOF is a single-bay work surface from Middle Atlantic, designed for use with their SC-1427 series audio-visual consoles. It features a 1-inch thick industrial MDF board with a graphite laminate finish and beveled oak trim.
What materials is the WS1-S18-GOF made of?
It is made from 45 lb. density industrial MDF board, 1-inch thick, with a graphite laminate surface and a beveled oak trim edge.
What are the dimensions of the WS1-S18-GOF?
The exact dimensions are not listed, but based on the compatible console width and depth, it is approximately 22 inches wide, 27 inches deep, and 1 inch thick.
How do I clean and maintain the work surface?
Clean with a soft damp cloth and mild detergent if needed. Avoid abrasive cleaners or scouring pads that could damage the laminate finish. Dry immediately to prevent moisture damage.
Is the WS1-S18-GOF compatible with other Middle Atlantic racks?
It is specifically designed for SC-1427 series consoles (17° or 60° slope models). For other racks, consult Middle Atlantic for compatibility. It may also be used with SC3T top monitor racks via a connecting wedge.
What is the weight capacity of the work surface?
The work surface itself does not have a specified weight capacity, but the supporting console is rated up to 1,500 lbs. Ensure even weight distribution and follow console guidelines.
Does the WS1-S18-GOF come with mounting hardware?
Mounting hardware is typically not included with the work surface. It is designed to be screwed or bolted to the console frame using appropriate fasteners (not supplied). Refer to the console manual for installation.
Can I use the WS1-S18-GOF as a standing desk?
The work surface is intended for seated use with audio-visual equipment. It is not adjustable for height. For standing use, consider Middle Atlantic's adjustable console options.
What finish options are available?
The WS1-S18-GOF has a graphite laminate finish with beveled oak trim. Other models (e.g., WS1-S18-GB) offer black bullnose trim.
How do I order spare parts or replacement for the WS1-S18-GOF?
Contact Middle Atlantic customer service or an authorized dealer with the model number. Spare parts are not listed separately; the entire work surface may need to be replaced.

User questions about WS1-S18-GOF Middle Atlantic

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Audio-visual furniture in PDF format for free! Find your manual WS1-S18-GOF - Middle Atlantic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WS1-S18-GOF by Middle Atlantic.

USER MANUAL WS1-S18-GOF Middle Atlantic

Advanced functionality at a competitive price

Features

  • Fully welded 14-gauge construction (no assembly required)
  • Engineered ventilation locations promote proper passive convective cooling, extending equipment life and reducing maintenance
    • Weight capacity of 1,500 lbs.
  • Narrow 22" overall width, 27" overall depth
    • Available with a 17 ° or 60° sloped upper tier
  • 3 pairs fully-adjustable 11-gauge 10-32 threaded rackrail
  • Rackrail marked in numbered rackspace increments
  • Brush grommet cable entry above work surface
  • 3 point locking rear door standard on console, 2 point locking rear door standard on top monitor rack
  • Unique zero-space wedge saves space and includes 3 point locking rear door allowing interior to be used for cable management and power distribution
  • 1/2", 3/4", 1" and 1-1/2" electrical knockouts on removable bottom rear plates for cable pass-through
  • Available with slide out rotating equipment rack with detachable frame that allows for off-site integration
  • Seismic Certified (when used with SC-Z4 option) with an Ip value of 1.5
    • Durable textured black powder coat finish
  • Base console UL Listed in the US and Canada

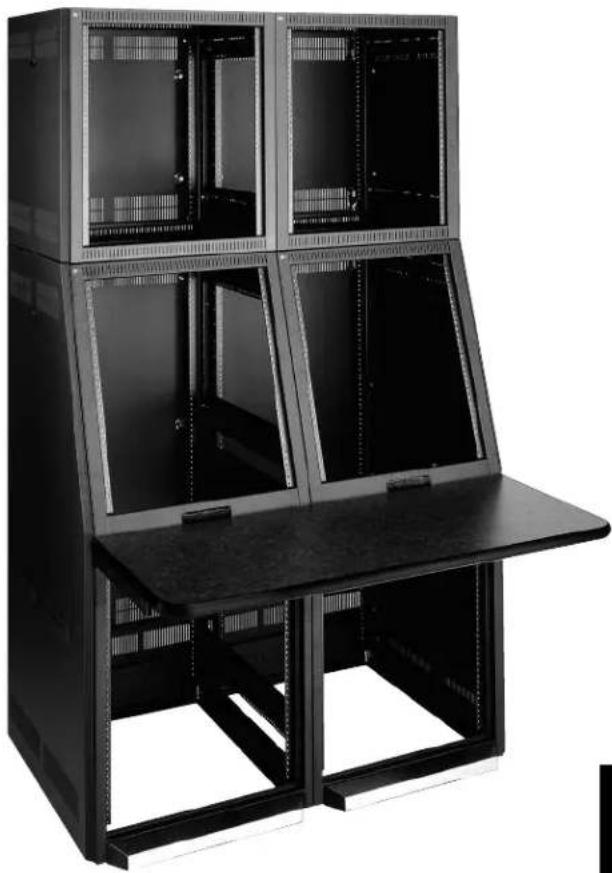

Middle Atlantic WS1-S18-GOF - Features - 1

natural_image Black server rack cabinet with multiple compartments and a central shelf (no visible text or labels)
QTY PART # DESCRIPTION
2 SC-427-1217BK Convective SeriesTM Console
2 SC3T-1427-1217-12BK Top Monitor Rack, Straight
1 SPN-1427-1217BK Pair console side panels
1 SPNGT-1427-1217-12BK Pair top monitor racks side panels, straight
1 WS2-S18-GBF 2 bay work surface - straight, black t-mold edge
2 SC-TK Stainless steel foot-rest

Architects' and Engineers' Specifications

19" gangable console shall be Middle Atlantic Products model # SC-1427-____BK (1217, 1460) and EIA compliant to standard 310D. Overall dimensions of console shall be 51.9"H x 22"W x 27"D. Useable height shall be 14 rackspaces on straight face, ____ (12, 14) rackspaces on ____° (17, 60) sloped tier. Fully welded construction provides a 1,500 lb. weight capacity. Rack shall be constructed of 14-gauge steel, horizontal braces shall be 16-gauge steel, rear door shall be 18-gauge steel, all structural elements shall be phosphate pre-treated and finished in a durable Black Textured powder coat. Console shall come equipped with 3 pairs of fully adjustable 11-gauge steel rackrail: 14 space on straight face, ____ (12, 14) space on ____° (17, 60) sloped tier, 22 space in rear; with tapped 10-32 mounting holes in universal EIA spacing with black e-coat finish and numbered rackspaces. The SC-1427-____ (1217, 1460) shall have a standard vented locking rear door with 3-point latch. Console shall have 2 removable rear knockout panels with 1/2", 3/4", 1", and 1-1/2" electrical knockouts installed in base. Grounding and bonding stud shall be 1/4 - 20 threaded, installed in base. Base console shall be UL Listed in the US and Canada. Convective Series™ consoles shall satisfy the 1997 UBC and 1998 CBC Seismic Zone 4 and the 2000 IBC, 2003 IBC, 2002 ASCE Standard 7 and NFPA 5000 Seismic Use Group III lateral force requirements for protecting 375 lbs. of essential equipment upper floor installations when used in conjunction with the SC-Z4 seismic floor anchor brackets with an Ip value of 1.5. Console shall be GREENGUARD Indoor Air Quality for Children and Schools. Console shall comply with the requirements of RoHS EU Directive 2002/95/EC. Console shall be manufactured by an ISO 9001 and ISO 14001 registered company.

19" gangable console outfitted with rotating sliding rail system shall be Middle Atlantic Products model # SC-1427-____ (1217, 1460) ____ BK - S and include all features of standard console. The rotating sliding rail system shall have 11 useable rackspaces, 23" useable depth, rotate 90° for access to equipment connections, have a 200 lb. weight capacity (console bay will have a 1,500 lb. overall weight capacity), and have a detachable frame that allows for off-site integration. SC-1427-____ (1217, 1460) ____ BK - S shall have a pre-installed stainless steel foot-rest.

19" gangable top monitor rack for 17° sloped consoles shall be Middle Atlantic Products model # SC3T-1427-1217-12BK (straight face) and SC3T-1427-1217-1217BK (17° sloped face) and EIA compliant to standard 310D. Overall dimensions of top monitor rack console shall be ____ "H x 22"W x ____ "D (refer to chart). Useable height shall be 12 rackspaces. Fully welded rack shall be constructed of 14-gauge steel, horizontal braces shall be 16-gauge steel, rear door shall be 16-gauge steel, all structural elements shall be phosphate pre-treated and finished in a durable Black Textured powder coat. Top monitor rack shall come equipped with 2 pairs of fully adjustable 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing with black e-coat finish and numbered rackspaces. The top monitor rack shall have a vented locking rear door with 2-point latch. Grounding and bonding stud shall be 1/4 - 20 threaded, installed in base.

45° 'Zero-space' Connecting wedge for base module shall be Middle Atlantic Products model # SCW45-1427-1217BK (for 17° sloped tier consoles) and SCW45-1427-1460BK (for 60° sloped tier consoles). Fully welded connecting wedge shall be constructed of 14-gauge steel and include 6 lacing bars for cable management, and be finished in a durable black textured powder coat. The base console connecting wedge shall have a standard locking rear door with 3-point latch. 45° Connecting wedge for top module shall be Middle Atlantic Products model #SC3TW45-1427-1217-1217BK (for connecting sloped face top modules) or SC3TW45-1427-1217-12BK (for connecting straight face top modules). Connecting wedge shall be constructed of 14-gauge steel and finished in a durable Black Textured powder coat. The connecting wedge shall have an 18-gauge locking rear door with 2-point latch.

Work surface shall be available in graphite laminate with beveled oak trim or graphite laminate with black bullnose trim model #WS__S18-G__ (refer to chart) shall be constructed of 1" thick 45 lb. density industrial MDF board.

Pair of vented locking side panels shall be Middle Atlantic Products model # SPN-1427-1217BK (for SC-1427-1217BK), SPN-1427-1460BK (for SC-1427-1460BK), SPN3T-1427-1217-12BK (for SC3T-1427-1217-12BK), and SPN3T-1427-1217-1217BK (for SC3T-1427-1217-1217BK).

Console caster base shall be Middle Atlantic Products model # SC-CBS-27 and shall be UL Listed in the US and Canada with a 400 lb. weight capacity.

Stainless steel foot-rest shall be Middle Atlantic Products model # SC-TK.

Solid front door shall be Middle Atlantic Products model # SCFD-14BK. The solid front door shall be user installed onto the straight face of the SC-1427-1217 or SC-1427-1460. The SCFD-14BK shall be constructed of 16-gauge steel and have a 3-point latch.

Additional rackrail shall be Middle Atlantic Products model # SC-RR12 (12 rackspaces) and SC-RR27 (27 rackspaces).

Seismic zone-4 compliancy floor anchor kit, model # SC-Z4

OPTIONS

  • Additional rackrail shall be Middle Atlantic Products model # SC-RR12 (12 rackspaces) and SC-RR27 (27 rackspaces).
  • Seismic reinforcement brackets shall be model # SC-Z4
    • SC-TK stainless steel foot-rest

Middle Atlantic WS1-S18-GOF - OPTIONS - 1

All dimensions in inches unless otherwise noted [All bracketed dimensions are in millimeters]

PART #STOPED FACE RACKINGHEICH / RACKSPACES RACKING HEIGHT/ BACKSPACES HEIGHTSTRAWLIGHT FACE RACKINGRear USCABLEOVERALLOVERALLUSGABLE DEPTH ONMIN. USGABLE DEPTHMAX. USGABLE DEPTH
SC-1427-1217BK21" / 12 spaces24.5" / 14 spaces38.5" / 22 spaces51.9"22"27"24"19"

24" [609] usable depth DETALL "B"
25" [635] 19" - 25" useable depth on slope 19" [482]

SIDE VIEW 1.96 [49] 27.00 [685] 1.83 [46] 24.0 useable depth 17° 21.00 [533] 20.00 See detail "B"

27.00 [685] 29.00 [736] 27.00 [685] 27.00 [75 (19)] 28.60 [726] 1.125 [28] 26.60 [66] 24.10 [612] 20.00 [508] 18.00 [457] 17 51.90 [1318] w/ leveling feet retracted 33 29.30 [744]

optional foot-rest
optonal locking side panel each side panel adds .66 [16] to OD width locking 3 point rear door standard removable top panel standard

FRONT VIEW
22.00 [558] work surface mounting points (does not occupy any rackspace) 24.5" 14 useable rackspaces brush growth cable entry 21" 12 useable rackspaces 51.9" with levelling refaceted 527 [1338] with levelling def max.

REAR VIEW
40° 22 rear usable рас Spaces independently removable EKO plates for cable entry feet see detail "A." rear door off to the account cable to 85 inch

DETAL "A" TOP VIEW independently removable EKO / wire access plates [206] 8.13 1 8 x 1-1/2" 3.50 [88] 2.01 [51] 2.75 [69] 22.00 [558] 1/2" & 3/4" 1.72 [43] 5.74 [145]

19.50 [495] 11.37 [288] 20.00 [508] 20.00 [508] Removable top plate optional foot-resl

2X 23.906 2X 20.307 2X 19.19 16.344 8X 0.438 mounting holes [581] 2X 2X grounding and bonding stud 2X 2X 19.88

BOTTOM VIEW
Middle Atlantic Products

Middle Atlantic WS1-S18-GOF - All dimensions in inches unless otherwise noted [All bracketed dimensions are in millimeters] - 10

Console basic dimensions - 17° slope

Middle Atlantic WS1-S18-GOF - Console basic dimensions - 17° slope - 1

SC-1427-1408K24.5" / 14 spaces24.5" / 14 spaces29.15" / 17 spaces42.18"22"27"21.5"
RIGHT / RACKSPACS HIGH / RACKSPACS RACKING HEIGHT WIDTH DEPTH STRAICHE FACE
PART # STOPED FACE PACKING STRAICHT FACE PACKING RCAR YEAR USEABLE OVERALL OVERALL OVERALL USEABLE DEPTH ONHEIGHT / RACKSPACS HELD / RACKSPACS RACKING HEIGHT WIDTH DEPTH STRAICHEFACE

locking side panel edges .66" [16] to overall width optonal foot-rest

FRONT VIEW 22.00 [558] work surface mounting points (does not impede any raccapace) 43.58" [1107] w/ levelling feet max. 24.5" [14 useable raccapaces] 42.78" [1086] w/ levelling feet retracted brush grommet cable entry SIDE VIEW 27.00 [685] 2.00 [50] 1.83 [46] 24" useable depth 32 60° 36.0 914 17 usingle raccapaces Leveling feet SEE DETAIL A FRAR VIEW

24.5" [600] usable depth 24.5" [600] (14 space)

2X 23.906 [607] 2X 20.307 [515] 2X 19.187 [487] 2X 16.344 [415] 2X 19.88 [505] 2X 0.438 [11] mounting holes

optimal roof-rest

22.00 [558] 1.8 [45] 2.2 [55] 1.7 [43] 1/2" 8.3/4" Removable EKO plates 6.1 EKO's [155]

TOP VIEW
BOTTOM VIEW
All dimensions in inches unless otherwise noted [All blacketed dimensions are in millimeters]

Top Monitor Rack and Connecting Wedge basic dimensions
STRAIGHT FACE TOP VIEW removable top plate 20.00 [508] SIDE VIEW 17.50" useable depth 24.14 [613] 21" 12 useable rackspaces .66 [16] side panel FRONT VIEW BOTTOM VIEW mounting points 11.97 [304] 18.34 [465] 11.37 [288] grounding and bonding stud opening for cable pass-through REAR VIEW with standard 2 point locking rear door [All bracketed dimensions are in millimeters] SC3T-1427-1217-12 Locking side panel adds .66 [16] to OD width

SLOPED FACE

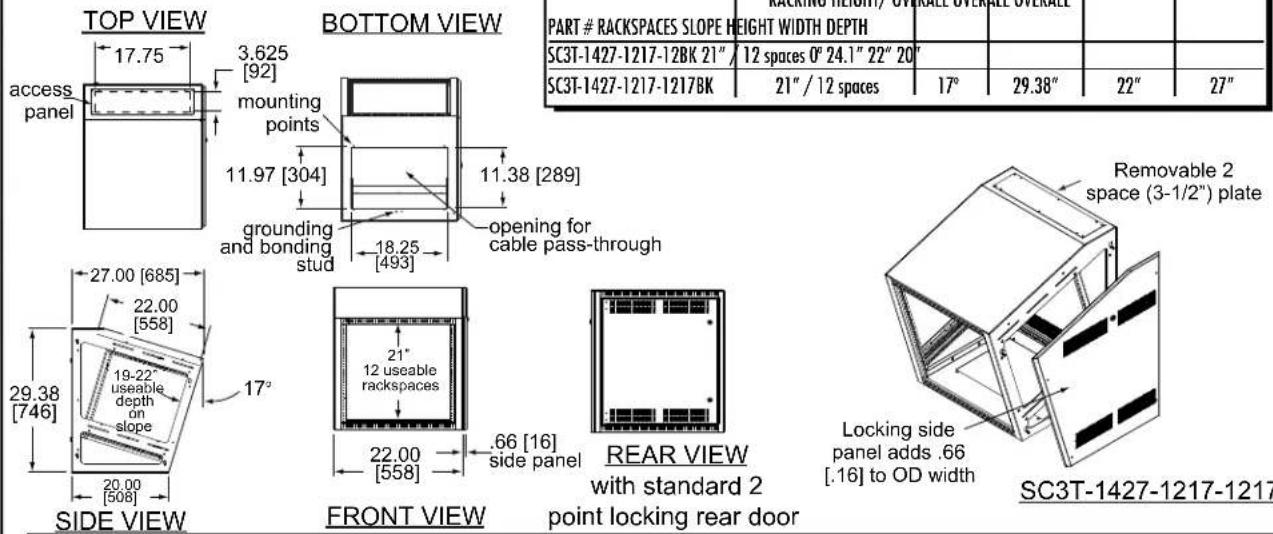

TOP VIEW access panel 17.75 3.625 [92] mounting points 11.97 [304] grounding and bonding stud 18.25 [493] BOTTOM VIEW 11.38 [289] opening for cable pass-through PART # RACKSPACES SLOPE HEIGHT WIDTH DEPTH SC3T-1427-1217-12BK 21" / 12 spaces 0° 24.1" 22" 20" SC3T-1427-1217-1217BK RACKING HEIGHT/ OVERALL OVERALL OVERALL 17° 29.38" 22" 27" Removable 2 space (3-1/2") plate SIDE VIEW 27.00 [685] 22.00 [558] 19-22° useable depth on slope 29.38 [746] 20.00 [508] FRONT VIEW 21° 12 useable rackspaces 22.00 [558] .66 [16] side panel REAR VIEW with standard 2 point locking rear door Locking side panel adds .66 [.16] to OD width SC3T-1427-1217-1217

45° CONNECTING WEDGE

REAR VIEW FRONT VIEW SC31W45-1427-1217-1217/BR SC31-1427-1217-1217/BR 51.80 [1315] see detail "A" 20.68 [525] 14.44 [366] 15.87 [403] BOTTOM VIEW TOP VIEWMDETAIL "A" SOCK45-1427-1217 REAR VIEW 45° connecting wedge provides full access for cable management and power distribution shown with standard rear doors removed for clarity independently removable EKO / wire access plates EKO's 1" & 1-1/2" EKO's 1/2" & 3/4" EKO's 1" included cable lacing bars zero space wedge allows consoles to connect corner to corner saving valuable floor space Middle Atlantic Products

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

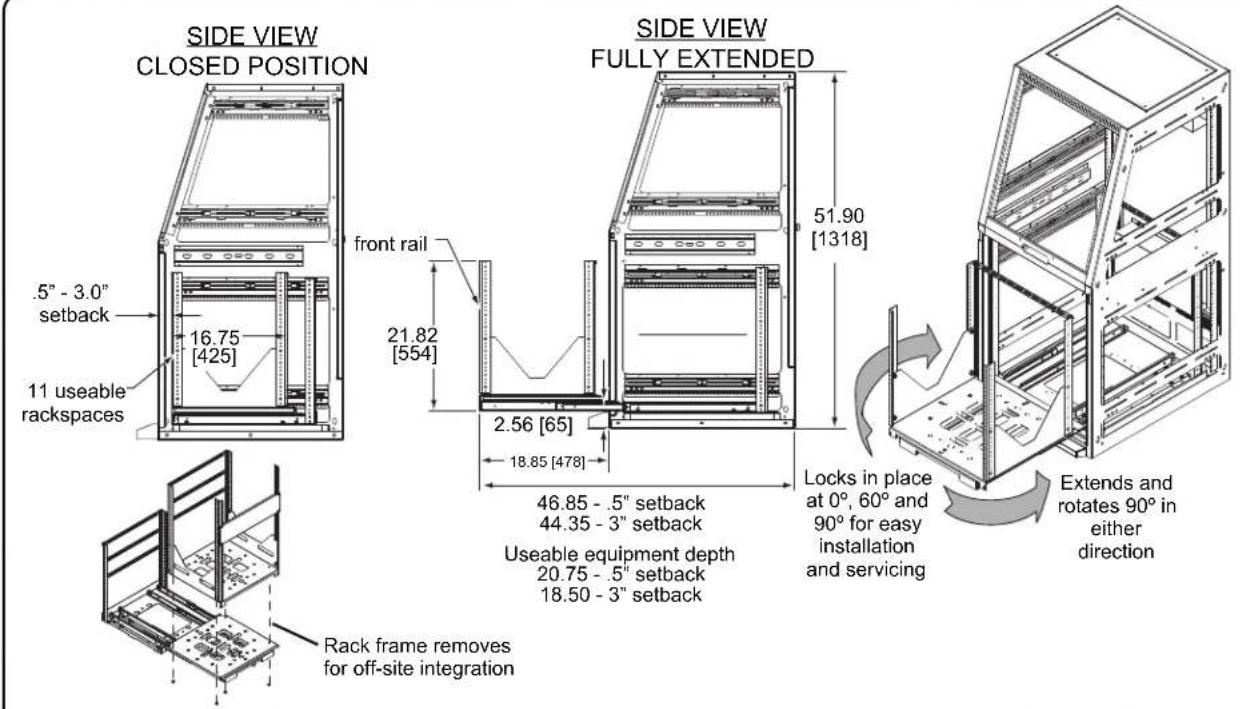

Rotating slide out rack and work surface basic dimensions
