Product Type	Wall-Mounted Loudspeaker
Model	FG20B (Black)
Dimensions (H x W x D)	10 x 6.9 x 6.7 inches (255 x 176 x 170 mm)
Weight	6 lbs (2.7 kg)
Acoustic System	Two-way, bass-reflex
Drivers	4" woofer, 1" tweeter
Sensitivity (1W/1m)	90 ± 2 dB SPL
Max SPL (1m)	103 ± 2 dB
Frequency Response	95 Hz - 20 kHz
Rated Power	20 W
Input Options	Constant voltage: 70V / 100V; Constant resistance: 8Ω
Power Tap Settings (70V/100V)	20W, 15W, 8W, 4W, 2W (plus 8Ω bypass)
Speaker Connection	9-inch two-wire pigtail
Mounting	U-shape bracket included; vertical or horizontal orientation; ±90° rotation
Color	Black (FG20B) / White (FG20W)
Warranty	2 years limited
Included Accessories	Wall mount bracket, 2 bracket knobs, user manual
Cleaning	Wipe with a soft, dry cloth; do not use harsh chemicals
Safety	Use mounting hardware rated for 10x speaker weight; attach safety cable (user-supplied)
Reparability	Contact Bogen Factory Service Department for repairs

Frequently Asked Questions - FG20B Bogen

How far apart should multiple FG20B speakers be installed?

Speakers should be installed no further than 16 feet apart for optimal coverage.

Can the FG20B be used with a 70V or 100V system?

Yes, the speaker supports both 70V and 100V constant voltage systems. Select the appropriate power tap setting using the rear panel knob.

What is the impedance when using the 8Ω tap?

The speaker presents an 8Ω impedance when the power tap knob is set to the 8Ω position. Do not connect to a 70V or 100V amplifier with this setting.

How do I wire the FG20B?

Connect the audio cable to the speaker's two-wire pigtail. For constant voltage systems, match the tap setting to the amplifier output. For low-impedance systems, set the tap to the 8Ω position.

Can the bracket be mounted horizontally or vertically?

Yes, the included U-shape bracket supports both vertical and horizontal mounting orientations. The speaker can be rotated ±90° for aiming.

What hardware do I need for mounting?

Use appropriate nails/screws (user-supplied) spaced 5.78 inches apart. The hardware and mounting surface must support at least 10 times the speaker's weight. A safety cable is also recommended.

How do I clean the FG20B?

Wipe the speaker with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the finish.

What is the warranty period for the FG20B?

The speaker is covered by a 2-year limited warranty from the date of original purchase against defects in material and workmanship.

Can I repair the FG20B myself?

Bogen recommends contacting their Factory Service Department for any repairs. Unauthorized modification or repair may void the warranty.

What is the maximum SPL of the FG20B?

The maximum SPL at 1 meter is 103 ± 2 dB, suitable for foreground music and paging applications.

USER MANUAL FG20B Bogen

Two black and white electronic speakers with visible sound waves (no text or symbols)

USER MANUAL

- For Black and white

Specifications are subject to change without notice.

©Copyright 2023, Bogen Communications LLC

740-00194A 230327

Contents

Introduction 1

Product Information 1

Installation 2

U-shape Bracket Installation 3

Rear Panel Introduction 4

Technical Parameters 5

Packing List 6

Product Information

Wall mounted speaker

Model	Height	Width	Depth
FG20B/FG20W	10in(255mm)	6.9in(176mm)	6.7in(170mm)

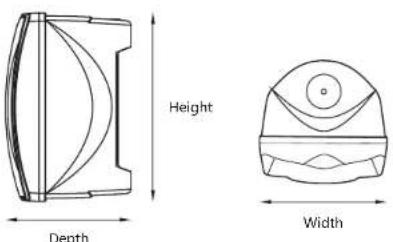

Product dimension

U-shape bracket

Installation

If multiple speakers are installed they should be no further than 16 feet apart.

U-shape bracket installation

Vertical installation

Space between bracket installation holes

Rotation angle±90° (above or below)

Horizontal installation

WARNING: Customer is responsible for using the appropriate mounting hardware for their application. Both the mounting hardware and surface to which the unit is to be attached must be specified to withstand 10X the weight of the suspended assembly. It is also recommended that a safety cable (user-supplied) be attached to the unit to prevent injury should the mounting hardware/surface attachment fail.

This bracket supports both vertical and horizontal installation orientations.

1. Install two nails/screws 5.78"(147mm) apart from one another and leave a small gap from the head of the screw to the wall.
2. Slide the bracket over the heads of the mounting hardware and verify that the location and orientation of the bracket is as desired then secure the hardware to the wall.
3. Connect the audio c able to the speaker.
4. Attach the speaker to the bracket using the knobs. Adjust the speaker to the desired angle and then tighten them.
5. Verify that the installation of the speaker is secure.

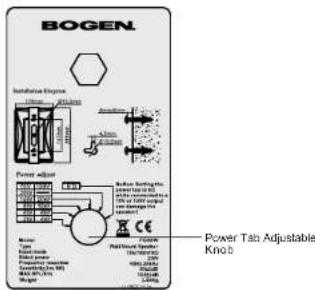

Rear Panel Settings

FG20W Power Tap Adjustment Knob

Power Voltage Terminal	Constant voltage		Constant resistance
	70V	100V	8Ω
Black-White	20W	—	20W
	15W 20W
	8W	15W
	4W	8W
	2W	4W

Notice:

Avoid setting the power tap to 8Ω when connecting to a 70V or 100V output. Failure to do so can result in damaging the speaker.

Technical Parameters

FG20B / FG20W
Frequency response characteristics

FG20B / FG20W

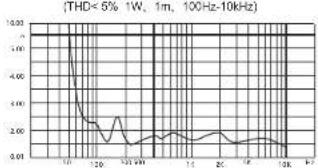

Distortion characteristic

Project	Specifications		FG20B /FG20W
Acoustic System	Driver Sizes		4"×1, 1"×1
	Sensitivity (1m,1W)		90±2dB
	Max. SPL (1m)		103±2dB
	Frequency Response		95Hz-20kHz
	Rated Power		20W
Other Specifications	Speaker Connection		9" Two-Wire Pigtail
	Input	Constant Voltage	70V/100V
		Constant Resistance	8Ω
	Dimension (H×W×D)		10×6.9×6.7in
	Net Weight		6ibs

FG20B / FG20W
Vertical directivity pattern

FG20B / FG20W
Horizontal directivity pattern

Packing List

Component

Quantity

Wall mount speaker 1

U-shape bracket 1

Bracket Knobs 2

User Manual 1

Limited Warranty; Exclusion of Certain Damages

The Bogen Foreground Speaker Model FG20 (B/W) is warranted to be free from defects in material and workmanship for two (2) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective (as confirmed by Bogen upon inspection) during the applicable warranty period, will be repaired or replaced by Bogen, at Bogen's option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 4570 Shelby Air Drive, Suite 11, Memphis TN 38118, USA. Repaired or replacement product will be returned to you freight prepaid. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.

THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or disposition, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product. IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLYING OF PRODUCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

Products that are out of warranty will also be repaired by the Bogen Factory Service Department – same address as above or call 201-934-8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping charges in addition to parts and labor charges will be at the owner's expense. All returns require a Return Authorization number. For most efficient warranty or repair service, please include a description of the failure.
