WT19M-RH - Cash register AOPEN - Free user manual and instructions

Product Type	Cash Register / POS Terminal
Brand	AOpen
Model	WT19M-RH
Display	19" LED backlight, 1440x900 resolution, multi-touch (10 fingers)
CPU	Intel Pentium B9xx (Sandy Bridge), socket 988
Chipset	Intel QM67
Memory	2x SO-DIMM DDR3, max 8GB, default 4GB
Storage	320GB 2.5" SATA HDD
Graphics	Integrated Intel CPU
Audio	Realtek ALC886, built-in 2W stereo speakers and microphone
LAN	Dual Intel GbE (82579LM + 82583V)
I/O Ports	4x COM (RJ-50), 6x USB 2.0, 1x Printer Port, 1x RJ-11 (cash drawer), 2x RJ-45 GbE, VGA in/out, audio jacks
Expansion	2x Mini-Card slots (Wi-Fi, TV tuner, 3G)
Power	DC 19V, 90W adapter
Dimensions (W x H x D)	465 x 314 x 67.6 mm
Weight	7.0 kg
Operating Temperature	Less than 40°C
Mounting	VESA 100x100mm, wall mount kit included
Compliance	FCC Class B, ICES-003
Maintenance	Clean with dry cloth; disconnect power before cleaning
Safety	Do not open; use specified voltage; avoid liquid ingress
Spare Parts	HDD, RAM, CPU, power adapter, fan, CF card module

Frequently Asked Questions - WT19M-RH AOPEN

How do I install the operating system?

The system comes with a Driver CD. Insert it and double-click 'index.htm' to select the model and install drivers. The OS is not pre-installed; you need to install a compatible OS like Windows 7 or later.

How do I calibrate the touchscreen?

Use the AOpen touch utility from the Driver CD or download from AOpen download page. Do not use Windows built-in tablet PC utility.

What are the power requirements?

The device uses a DC 19V, 90W power adapter. The power cord must match your local voltage.

How do I connect a cash drawer?

Connect the cash drawer to the RJ-11 port. The pin assignment is: 1-GND, 2-DOUT, 3-DIN, 4-12V/24V (selectable via jumper), 5-DOUT, 6-GND. Software control is done via GPIO registers; see manual for details.

Can I upgrade the RAM?

Yes. Remove the rear cover, then replace the SO-DIMM DDR3 modules. The device supports up to 8GB total (2 slots). Default is 4GB.

How do I replace the hard drive?

Remove the HDD door on the rear (1 screw), disconnect the SATA cable, and replace the 2.5' SATA HDD. The system comes with a 320GB drive.

What wireless options are available?

The device has two Mini-Card slots for optional Wi-Fi, Digital TV tuner, or 3G modules. You can also connect an external antenna.

How do I perform a factory reset?

The manual does not specify a factory reset procedure. You can reset BIOS settings via jumper (CMOS operation mode) or reinstall the OS using the Driver CD.

Is the device wall-mountable?

Yes. Use the included wall mount kit: fix the bracket to the wall, attach the VESA bracket to the device, and align them. The VESA pattern is 100x100mm.

What should I do if the touchscreen is not responding?

First, check the touch utility calibration. If still not working, ensure the driver is installed correctly. For persistent issues, reinstall the touch driver or contact AOpen support.

USER MANUAL WT19M-RH AOPEN

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under "Green Products"

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2011 by AOpen Inc.

All rights reserved.

AOpen Inc.

http://xc.aopen.com.tw

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Ambient operation temperature: less than 40 degrees C.

2. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

3. Wall Mounting Holder need to use UL 1678 approved product.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Table of Contents

1. Packing List .... 1
   1-1. Standard Accessories ....
   1-2. Optional Accessories ....

2. System View ...... 2
   2-1. Front View ....
   2-2. Rear View ....
   2-3. I/O Ports View ....
   2-4. Dimensions ....

3. System Assembly ...... 6

3-1. HDD Replacement ....
3-2. RAM Replacement ....
3-3. CPU Replacement ....
3-4. Power Adapter Replacement ....

1. Peripheral Installation ...... 9

4-1. External Module Installation ....
4-2. Wall Mount Kit Assembly ....
4-3. KIOSK Bracket Assembly ....
4-4. Wireless LAN Installation ....
4-5. CF Card Module Installation ....
4-6. Cash Drawer (RJ-11) Software Configuration ....
4-7. Gravity Vector Seneor's GPIO Pins Software Configuration ....

1. Specification 28

2. Jumper Setting ...... 30

6-1. For Motherboard ....

1. Monitor Setting (EDID or RS232).... 38

Appendix A: Drivers Installation . 39

9The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro Devices, Inc.

The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related information. AOpen

Company reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve all rights.

Under no circumstances are any types of duplicating and loading this brochure in any databases and media permitted except the permission signed on formal document by AOpen Company.

1996-2008 Copyrights, AOpen Ltd. All rights reserved.

http://www.aopen.com

1. Packing List

1-1. Standard Accessories

a.

Blank tablet device with blank screen area (no text or symbols)

d.

b.

e.

C.

a. System
b. Utility and Driver bank
c. Power adapter (90W)
d. Power cord

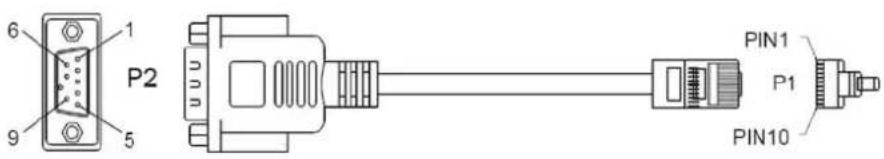

e. RJ50-to DB9 cable (x1) (P/N: 50.WT201.0110)

Note:

The pictures may look slightly different from the product you purchased, due to our constant product improvement effort.

1-2. Optional Accessories

RJ-50 to DB9 cable

P/N: 50.WT201.0110

Desktop Stand

P/N:90.WT134.0010

Floor Stand

P/N:90.WT134.0010

Illustration of a desktop microphone with a stand and cable connector (no text or symbols)

Desktop LCD Display / Stand

Configuration

Available for option

* This model is fitted with wheels and allows easy movement.
* LCD monitor can be adjustable the height from 1100mm jto 1700mm high.
* Main holder dimension: 1700(H) x 600(W) x 600(D) mm.
* With 75mm x 75mm & 100mm x 100mm VESA standard interface.
* Max loading: 10kgs.
* Material: Aluminum.
* Option second mounting KIT.

Line drawing of a standard office stand with five legs and a blank rectangular panel (no text or symbols)

Note:

Please set up monitor as landscape, for safety reason no allow turn it to portrait.

2. System View

2-1. Front View

Front view of a gray tablet device with blank screen (no text or symbols)

1 Touch screen

2 IR Receiver and LED indicate

2-2. Rear View

Technical line drawing of a rectangular electronic panel with internal components and mounting holes (no text or symbols)

3 Speaker holes
4 Hard drive disk door
5 VESA mounting screw holes
6 Ventilation holes

2-3. I/O Ports View

Caution: When you install devices or cables, please removed DC jack first. Prevent mistake in power on.

1. RJ-50 RS232 x 4
2. RJ-11 Cash Drawer Connector
3. RJ-50 Monitor RS232 support Daisy Chain
4. Printer Port
5. PC VGA out
6. Dual Giga LAN
7. USB x 6
8. Monitor VGA in
9. Antenna Hole x3

2-4. Dimensions

Panel Size System Size
WT19M-RH 495.6	(W) x 292.2 (H) x 16.35(D) (typ) 532x332x	60mm(WxHxD)

3. System Assembly

3-1. HDD Replacement

1. Turn to the rear side of the system.

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

1. Unscrew the screw (x1) securing the HDD door and the rear cover of the system.

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

1. Disconnect the SATA cable from the drive.

Technical line drawing of a computer case with a red arrow indicating direction (no text or symbols present)

3-2. RAM Replacement

Opening the Rear Cover

Please open the rear cover first then remove and replace the RAM module.

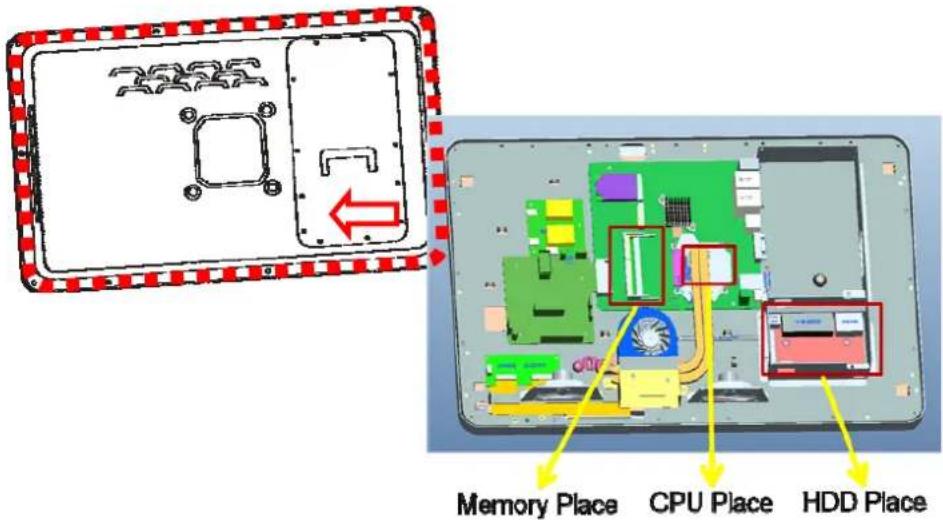

You can refer to the motherboard layout to find the memory compartment.

1. Remove the HDD (see Chapter 3-1) and unscrew the screws (x19) on the rear cover to access the motherboard.

Removing a RAM Module

1. Use both fingers to pull the ejector clips out of the sides of the module.
2. Slide the memory module out of the memory slot.

3D diagram of a mechanical component with internal channels and directional arrows indicating flow or movement (no text or symbols)

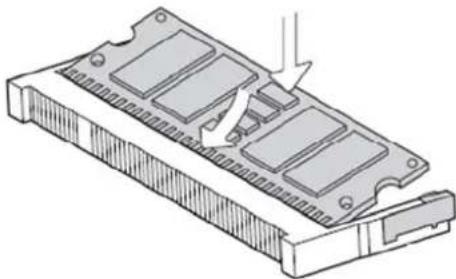

Installing a RAM Module

1. Slide the memory module into the memory slot and press down until the ejector clips click in place.

Diagram of a battery pack with internal compartments and mounting points (no text or symbols)

3-3. CPU Replacement

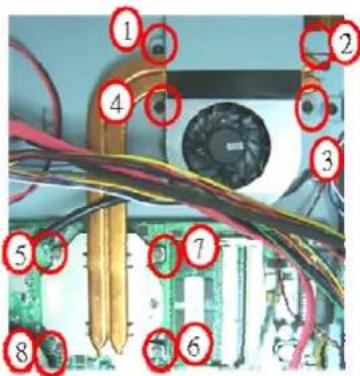

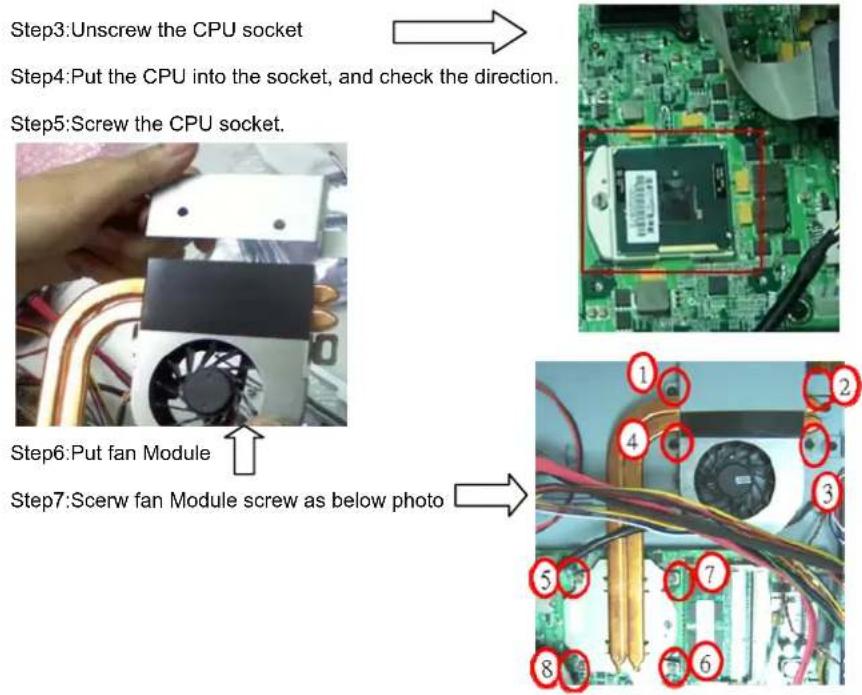

Step1: Unscerw fan Module screw as photo.

Close-up of a hand holding a white electronic device with a black cooling fan, surrounded by copper pipes and plastic components (no visible text or symbols)

3-4. Power Adapter Replacement

1. Disconnect the power cable from the I/O panel.

4. Peripheral Installation

4-1. External Module Installation

1. Turn the system to the rear side.
2. Attach the external module into the right position of the system and fasten the screws (x2).
3. Connect the external module cable to the USB and COM-RJ45 convertible connector on the I/O panel.

Note:

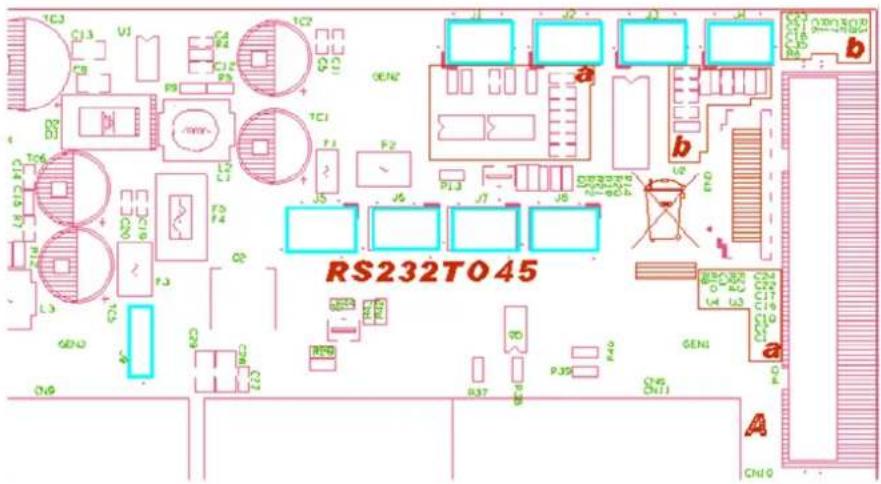

Please set up the power setting for COM3 or COM4 with 5V, see Chapter 6 - Jumper Setting

Technical line drawing of a device casing with mounting brackets and internal compartments (no text or symbols)

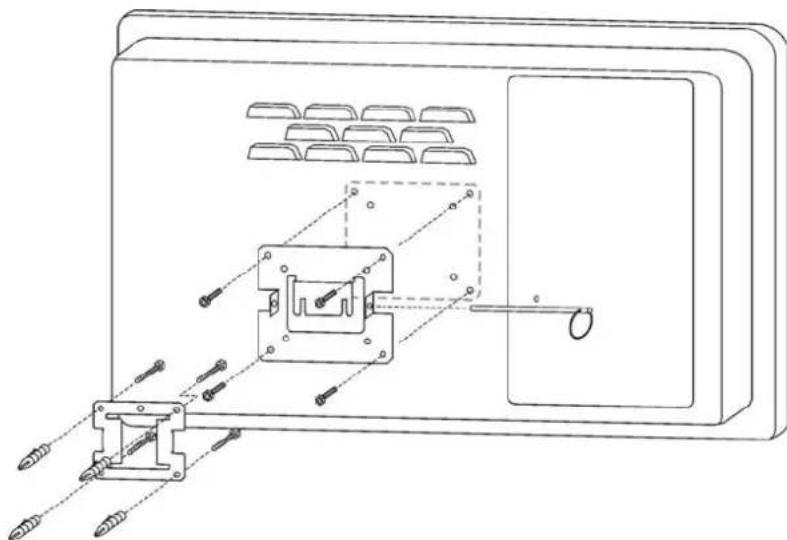

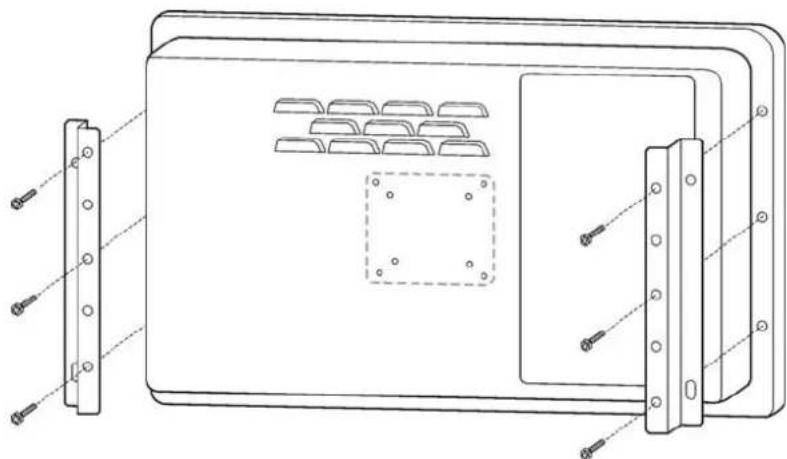

4-2. Wall Mount Kit Assembly

1. Fix the wall-mount bracket onto the wall.
2. Place the VESA bracket onto the VESA mounting holes on the system and fasten the screws (x4).
3. Align the VESA bracket with the system into the wall-mount brakcet and make sure they are well

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

4-3. KIOSK Bracket Assembly

Tickness : 68.3mm

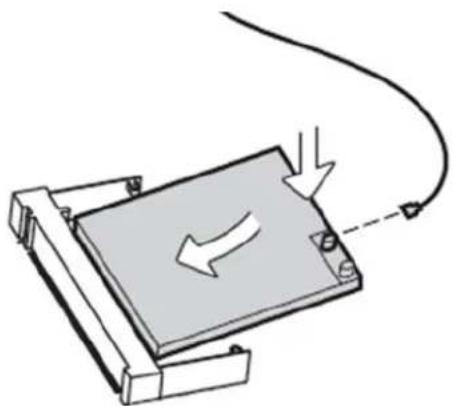

4-4. Wireless LAN Installation

To external antenna

Diagram of a mechanical device with a curved arrow indicating motion, connected to a wire (no text or symbols present)

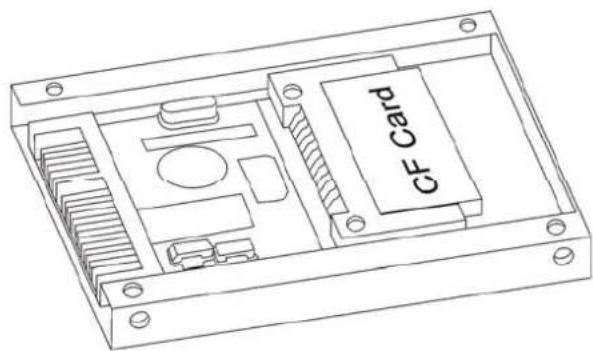

4-5. CF Card Module Installation

1. Turn over the system to access the HDD door.

2. Unfasten the screw (x1) to remove the HDD door.

Diagram of a mechanical device with a lever and adjustment knob, showing no text or symbols

1. Assemble the CF to SATA bridge board onto the HDD bay with the screws (x3).

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a blank rectangular frame with a downward arrow (no text or symbols)

1. Replace the CF card by sliding it into or outward from the slot of CF bridge board.

1. Reverse the step 1 to cover the HDD door.

4-6. Cash Drawer (RJ-11) Software Configuration

You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation.

Cash Drawer Pin Assignment

Pin	Signal
1	GND
2	DOUT
3	DIN
4 12V / 24V
5	DOUT
6	GND

bit0

bit0

bit1

Cash Drawer Controller Register

The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.

Attribute: Read / Write

Size: 8bit

BIT	BIT7	BIT6	BIT5	BIT4	BIT3	BIT2	BIT1	BIT0
Attribute	Reserved				Read	Reserved		Write

Reserved

COM Connector Pin 36 = SuperIO(F81865F) Pin 53 as GPIO01
COM Connector Pin 38 = SuperIO(F81865F) Pin 54 as GPIO02
COM Connector Pin 40 = SuperIO(F81865F) Pin 56 as GPIO04

How to program the related registers:

out 0x4e, 0x87 ; Enable register read/write by softere.

out 0x4e, 0x87

out 0x4e, 0x07

out 0x4f, 0x06 ; Set LDN

out 0x4e, 0x30 ; Set register's Index(0x30, for example)

in byte_value, 0x4f ; Get the register value from chip.

and byte_value, 0xfe ; Clear the related bits. ("Enable/Disable GPIO Port", for example)

or byte_value, 0x01 ; Set the related bits. ("Enable/Disable GPIO Port", for example)

out byte_value. 0x4f ; Set the register value into chip.

out 0x4e, 0xaa ; Disable register read/write by softere.

The register's in datasheet; you can reference to the attached file.

The session is "8.6 GPIO Registers(CR06)" in page 87.

You have to program the following registers in basic:

CR06 Index F0h[1] = 0/1 = GPIO01(COM Connector Pin 36) as input/output pin

CR06 Index F0h[2] = 0/1 = GPIO02(COM Connector Pin 38) as input/output pin

CR06 Index F0h[4] = 0/1 = GPIO04(COM Connector Pin 40) as input/output pin

CR06 Index F1h[1] = 0/1 = GPIO01(COM Connector Pin 36) with a Lo/Hi voltage output while it is output mode.

CR06 Index F1h[2] = 0/1 = GPIO02(COM Connector Pin 38) with a Lo/Hi voltage output while it is output mode.

CR06 Index F1h[4] = 0/1 = GPIO04(COM Connector Pin 40) with a Lo/Hi voltage output while it is output mode.

CR06 Index F2h[1] = 0/1 = GPIO01(COM Connector Pin 36) read as a Lo/Hi voltage input while it is input mode.

CR06 Index F2h[2] = 0/1 = GPIO02(COM Connector Pin 38) read as a Lo/Hi voltage input while it is input mode.

CR06 Index F2h[4] = 0/1 = GPIO04(COM Connector Pin 40) read as a Lo/Hi voltage input while it is input mode.

The following setting is by your add-board design:

CR06 Index F3h[1] = 0/1 = GPIO01(COM Connector Pin 36) with a open-drain/push-pull design.

CR06 Index F3h[2] = 0/1 = GPIO02(COM Connector Pin 38) with a open-drain/push-pull design.

CR06 Index F3h[4] = 0/1 = GPIO04(COM Connector Pin 40) with a open-drain/push-pull design.

In DOS, you just use ASM with "in" "out" command or C with "inportb" "outportb" or QBasic with "INP" "OUT".

If your program is in Windows, you have to write a Ring-0 I/O driver to access 0x4e/0x4f I/O ports.

Or, you can use the DLL written by some one:

IO.DLL - http://www.geekhideout.com/iodll.shtml

WinIO.DLL - http://www.internals.com/

How to write a C/C++/Basic or the other program: all description are on the OfficialWebSite and ZIP file, please reference it.

Cash Drawer Control Command Example

Use Debug.EXE program under DOS or Windows98

4-7. Gravity Vector Seneor's GPIO Pins Software Configuration

1. Set PCH_GPIO6, PCH_GPIO7 as GPIO pins mode

in byte_value, 0x0501

and byte_value, 0x3f

or byte_value, 0xc0

out 0x0501, byte_value

1. Set PCH_GPIO6, PCH_GPIO7 as Input pins mode

in byte_value, 0x0504

and byte_value, 0x3f

or byte_value, 0xc0

out 0x0504, byte_value

1. Read PCH_GPIO6, PCH_GPIO7 status to know the gravity vector.

in byte_value, 0x050c

and byte_value, 0xc0

if (byte_value = 0x00) { gravity vector = ? and what to do. } //; Depends on install location

if (byte_value = 0x40) { gravity vector = ? and what to do. }
if (byte_value = 0x80) { gravity vector = ? and what to do. }
if (byte_value = 0xc0) { gravity vector = ? and what to do. }

In DOS, you just use ASM with "in" "out" command or C with "inportb" "outportb" or QBasic with "INP" "OUT".

If your program is in Windows, you have to write a Ring-0 I/O driver to access 0x4e/0x4f I/O ports.

Or, you can use the DLL written by some one:

IO.DLL - http://www.geekhideout.com/iodll.shtml

WinIO.DLL - http://www.internals.com/

How to write a C/C++/Basic or the other program: all description are on the OfficialWebSite and ZIP file,

please reference it.

5. Specification

CPU

Intel Pentium B9xx (Sandy Bridge CPU) socket 988 (B960 or Above)

CHIPSET

Intel QM67 (Huron River Platform) -RHI support Ivy Bridge CPU

MEMORY

Support : SO-DIMM DDR3 x 2 (MAX 8G) Default 4G

GRAPHICS

Integrated Intel® CPU

LAN

Dual Intel Lan W82579LM+intel 82583V

Audio

Realtek ALC886

Mini-Card slot (Option)

x2 (Wi-Fi, Digital TV Tuner card, 3G Module for optional)

Storage

320G 2.5" SATA HDD

SYSTEM BIOS

AMI SPI Flash ROM BIOS

Touch Panel

Win 7 Premium above support 10 Fingers (AMR Multi Touch)

Chattering Time <10ms

Surface Pencil Hardness >=3H per ASTM D 3363

Finger Touch : operationally test more than 1M times.(Silicon Rubber SR50HS diameter

8mm/Loading 250g) in same location without failure.

Another SPEC

Standard VESA Screw Hole (100x100mm)

Build-in 2W Stereo Speaker and MIC

Build-in 1.3M Camera

Watchdog Timer: (1sec \~255sec)

Wall Mount kit included

Panel 19" (1440x900 250cd/m²)

LED Back Light

Side I/O – with cover

COM Port x4 (RI/5V/12V by Jumper)

COM2 (232/422/485 by Jumper)

RJ-11(Cash drawer 12V/19V by Jumper)

Printer Port x1

USB 2.0 x6

GbE LAN RJ45 *2

5.1 CH Audio Jack (horizontal x 3)

DC 19V (AC Adaptor 19V/90W)

VGA input connector x1 from AD board

VGA output connector x1 from Motherboard (for Dual Display)

On Board Pin Head / Connector on board

Fan power x 2

USB 8Pin x 1

Monitor IR Receiver and Remoter Controller (Optional)

Dimension / Weight

465x314x67.6mm(WxHxD) / 7.0Kg

6. Jumper Setting

6-1. For Motherboard

6-1-1.Motherboard Placement

6-1-2. I/O board Placement

6-1-3. Jumper Setting

RJ50-DB9F serial Cable

Pin Definition

RJ45 Pin RS_232 RS_485 RS_422 DB9 Pin
2	DCD#	RS485_TXRX-	RS422_TX-
4	RX#	RS485_TXRX+	RS422_TX+
6	TX#	NC	RS422_RX+
8	DTR#	NC	RS422_RX- 4
9	GND	GND	GND 5
3	DSR#	NC	NC
5	RTS#	NC	NC 7
7	CTS#	NC	NC 8
10	RI#	NC	NC 9
1	---	NC	NC ---

3

1

2

6

Pin	Signal	Pin	Signal
1	Data Carrier Detect	6	Data Set Ready
2	Received Data	7	Request to Send
3	Transmitted Data	8	Clear to Send
4	Data Terminal Ready	9	Ring Indicator
5	Signal Ground

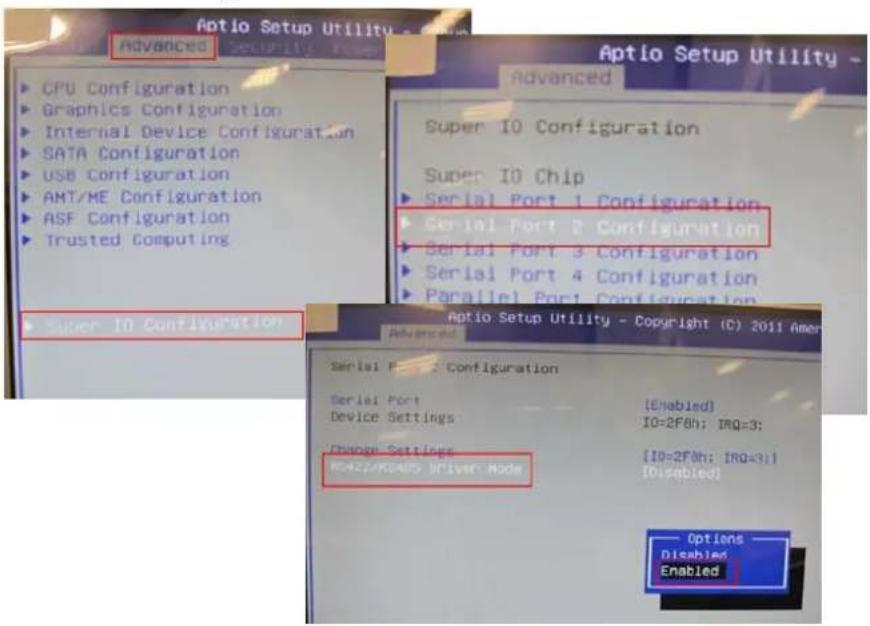

COM2 RS232/485/422 Setting

Default Setting

COM2 Setting BIOS					Setting
J1	J2 J3 J4
RS232 1-2		3-5 3-5 1-2			RS485 Driver Mode Disable
		4-6 4-6 3-4
		5-6
RS422 3-4		1-3 1-3 N/A			RS485 Driver Mode Disable
		2-4 2-4 N/A
		N/A
RS485 5-6		1-3 1-3 N/A			RS485 Driver Mode Enable
		2-4 2-4 N/A
		N/A

Note: RS422/485 Setting

COM1, COM2, COM3 & COM4 RI or Power Setting

Default Setting

RI Power
Jumper J5	J6 J7 J8
Port	COM1 COM2 COM3 CO
RI 1-2	1-2 1-2 1-2
5V 3-4	3-4 3-4 3-4
12V 5-6	5-6 5-6 5-6

Cash Drawer Power Setting

RJ11 Power
J9
12V 1-2
19V 2-3

CMOS Operation Mode

7. Monitor Setting (EDID or RS232)

VGA-IN support EDID

Please push Warmtouch "Menu" button and setting OSD menu from RS232 to ISP.

Monitor RS232 Mode enable: (support Monitor RS232 daisy chain)

Please push Warmtouch "Menu" button and setting OSD menu from ISP to RS232.

Appendix A: Drivers Installation

The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system.

Please insert the Driver CD into the drive and double click on the "index.htm" to select the models. You can refer to the drivers installation guide for each driver in the "Driver/Manual List".

Notice:

Please link below touch utility when you have touch accuracy issue. Don't use Windows build-in tablet PC utility to calibration.

http://global.aopen.com/download.aspx

Select Product : Warm Touch	Select Model : WT19M-RH	Select Categories : Utility
Select Product : Warm Touch	Select Model : WT19M-RH	Select Categories : Utility
Select Product : Warm Touch	Select Model : WT19M-RHI	Select Categories : Utility
Select Product : Warm Touch	Select Model : WT19M-RC	Select Categories : Utility

Intel QM67 support TPM, Please see \TPM folder find IFX_ReleaseNotes_RTM.pdf.

Please follow your model name to install utility from \Utility\ folder.

Such as WT22M-RH Touch Panel utility at \Utility\WT22M-RH\Touch Tools folder.

WT22M-RH Webcam utility at \Utility\WT22M-RH\WebCam folder.

WT22M-RH Roation utility at \Utility\WT22M-RH\Roation tools folder.

WT19M-RH Touch Panel utility at \Utility\WT19M-RH\Touch Tools folder.

WT19M-RH Webcam utility at \Utility\WT19M-RH\WebCam folder.

WT19M-RH Roation utility at \Utility\WT19M-RH\Roation tools folder.

WT19M-FH Touch Panel utility at \Utility\WT19M-FH\Touch Tools folder....

Part No.: 49.00000.0000 Doc. No.: WT22M-RH-OL-1108A
