Product Type	Octagonal Softbox
Brand	COLBOR
Model	BSO90
Diameter	90 cm (approx.)
Shape	Octagonal
Bowen Mount	Yes
Included Accessories	Grid, Soft Cloth (x2), Carrying Bag
Material	Fabric, Metal frame (estimated)
Weight	Approx. 1.5 kg (estimated)
Warranty	12 months limited warranty
Assembly Required	Yes, manual assembly of softbox
Water Resistance	Not waterproof; keep dry
Recommended Use	Studio photography, video lighting
Compatibility	Standard Bowen mount strobes
Grid Type	Removable fabric grid
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Keep away from heat, do not disassemble
Repair	Authorized technicians only
Manufacturer	Guangzhou Zhiying Technology Co., Ltd

Frequently Asked Questions - BSO90 COLBOR

How do I assemble the COLBOR BSO90 softbox?

Secure the Bowen mount ring with your hands, buckle the moveable handle on one side, lift it and press the softbox down until the lock toggles rebound. Refer to the assembly instructions in the manual.

How do I disassemble the softbox?

Push the lock toggles to unlock the softbox, then carefully collapse the frame. See the disassembly section of the manual.

What is included in the package?

The package includes: BSO90 Softbox x1, Grid x1, Soft Cloth x2, and a Carrying Bag x1.

Is the BSO90 compatible with all studio strobes?

It features a Bowen mount, which is compatible with most standard studio strobes that use the Bowen mount system.

How do I clean the softbox?

Wipe the fabric and frame with a dry, soft cloth. Do not use liquids or chemicals. Keep away from moisture.

What is the warranty period for COLBOR products?

COLBOR offers a 30-day free replacement/repair for defects and a 12-month limited warranty from the date of purchase.

Can I use the softbox without the grid?

Yes, the grid is optional. It helps direct the light; without it, the softbox provides a broader, softer light.

What should I do if the product malfunctions?

Contact COLBOR customer service via email at [e-mail] or reach out to a local agent. Do not attempt to repair yourself.

Is the softbox waterproof?

No, it is not waterproof. Do not use or handle it with wet hands. Keep away from rain and moisture.

What is the purpose of the soft cloths?

The soft cloths are used as an additional diffusion layer to soften the light further. They can be attached inside the softbox.

USER MANUAL BSO90 COLBOR

Thank you for choosing COLBOR product. Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your COLBOR Product

• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanical damage.
• Do not leave the product unattended while in use. Keep out of reach of children.
• The product is not waterproof. Do not handle it with wet hands.
• Do not attempt to disassemble or modify the product. Doing so voids the warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happen.
• Malfunction may be caused by dropping, the impact of external force.
• Failure to follow all the instructions may result in mechanical damage.
• Warranty does not apply to human errors.

Assembly Instructions

1. Take out the product.

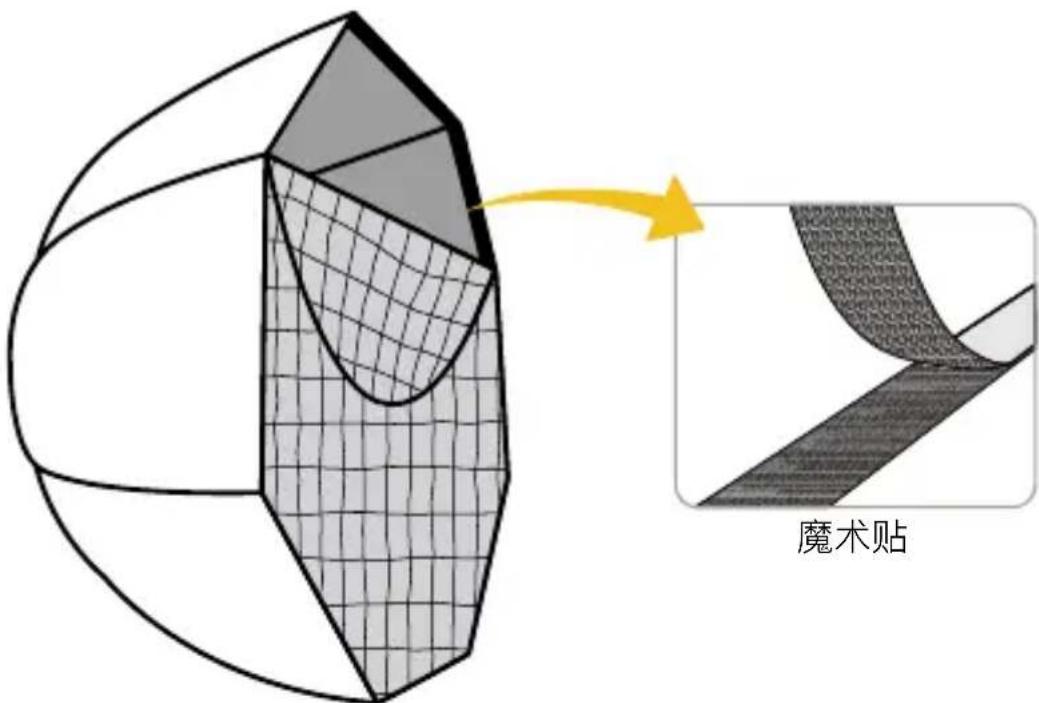

2. Install the soft cloth and grid.

3. Assembly and Disassembly

Assembly

Secure the Bowen mount ring with your hands, buckle the moveable handle on one side, lift it and press the softbox down until the lock toggles rebound.

Technical illustration of a mechanical component with two views: one showing a circular feature and arrow indicating rotation, the other showing a flanged housing (no text or symbols)

Technical line drawing of a mechanical component with a yellow downward arrow indicating direction (no text or symbols)

Disassembly

Push the lock toggles to unlock the softbox.

Line drawing of a hand holding a mechanical component with a yellow arrow indicating force or adjustment (no text or symbols)

Package List

Pure technical line drawing of a fan or blade assembly without any text, numbers, or symbols

BSO90 Softbox x1

Circular diagram with a grid pattern inside, no text or symbols present

Grid x1

Simple geometric diagram of two concentric circles (no text or symbols)

Soft Cloth x2Carrying bag x1

WARRANTY

Warranty Period

Thank you for purchasing COLBOR products.

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original COLBOR products are entitled to a 12-month limited warranty service. The warranty period begins on the date of purchase of brand-new, unused products by the first end-user.

Within the warranty period, if the product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

1. Faults resulted from inappropriate use of a product without following its operation specification
2. Artificial damage, e.g. crash, squeeze, scratch, soaking, exposure to rain or damp
3. Modifications to a product by its user or a third party without the prior written consent of COLBOR, e.g. replacement of element or circuit, label alteration
4. The code on the product is inconsistent with that of the warranty certificate, or the code on the product or warranty certificate is altered or torn off
5. All consumable accessories attached to a product, like cable, cover
6. Faults result from force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

1. If failure or any problem occurs with your product after purchase, please contact a local agent for assistance, or you can always contact COLBOR's customer service through email.

2. Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.

3. If the COLBOR product is out of warranty coverage, the service and the parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd

Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District, Guangzhou, China, 510000

[e-mail]

www.colborlight.com
