Product Type	Built-in Electric Oven
Brand	Samsung
Model	NV60M7140BW
Dimensions (W x H x D)	595 x 595 x 575 mm
Oven Capacity	76 liters
Net Weight	38 kg
Power Supply	220-240 V, 50/60 Hz, 16 A
Energy Efficiency Class	A+
Heating Methods	Convection, Grill, Bottom Heat, Top Heat, Eco
Cleaning Type	Pyrolytic Self-Cleaning
Control Type	Touch Control with Dial
Display	LED
Door Type	Drop-Down with Soft Close
Number of Oven Functions	12
Temperature Range	30°C - 275°C
Child Lock	Yes
Interior Light	Yes
Cooling Fan	Yes
Accessories Included	1 Baking Tray, 1 Wire Shelf, 1 Grill Rack
Warranty	2 years
Spare Parts Availability	10 years after discontinuation

Frequently Asked Questions - NV60M7140BW SAMSUNG

What are the dimensions of the Samsung NV60M7140BW oven?

The oven dimensions are 595 mm width, 595 mm height, and 575 mm depth. Ensure your cabinet cutout matches these dimensions for proper installation.

How do I activate the child lock on this oven?

Press and hold the lock button (usually marked with a key icon) for 3 seconds until the display shows a lock symbol. To deactivate, repeat the process.

What cleaning method does the Samsung NV60M7140BW use?

It features a pyrolytic self-cleaning function. This heats the oven to high temperatures (around 500°C) to burn off food residues, which can then be wiped away easily.

Can I use aluminum foil on the bottom of the oven?

No, do not place aluminum foil on the oven floor. It can damage the enamel coating and cause overheating. Use oven-safe trays or parchment paper on shelves.

How do I replace the oven light bulb?

Ensure the oven is cool and disconnected from power. Remove the glass lens cover (usually by turning counterclockwise), then replace the bulb with a halogen type (e.g., 25W, 300°C resistant). Reassemble carefully.

What should I do if the oven does not heat up?

First, check if the oven is properly plugged in and the circuit breaker is on. Ensure the selected function and temperature are set correctly. If the problem persists, the heating element or thermostat may be faulty; contact service.

Is the oven suitable for cooking with convection?

Yes, it has a convection fan for even heat distribution. This is ideal for baking and roasting multiple dishes simultaneously.

What is the energy efficiency class of this oven?

It is rated A+, indicating high energy efficiency. To save energy, use residual heat to finish cooking and avoid preheating for longer than necessary.

Can the oven door be removed for cleaning?

Yes, the door can be removed by lifting the hinges in the locked position. Refer to the manual for detailed steps. This makes cleaning the door glass easier.

What is the warranty period for the Samsung NV60M7140BW?

The standard warranty is 2 years from the date of purchase. Check your local dealer for extended warranty options and terms.

USER MANUAL NV60M7140BW SAMSUNG

Thank you for relying on this product.

We aim to allow you to optimally and efficiently use this environment-friendly product produced in our modern facilities under precise conditions with respect to sense of quality in total.

We advise you to read these operating manual thoroughly before using the oven and keep it permanently so that the features of the built-in oven you have purchased will stay the same as the first day for a long time.

NOTE:

This Operating Manual is prepared for multiple models. Your appliance may not feature some functions specified in the manual.

The product images are schematic.

This product has been produced in modern environment-friendly facilities without adversely affecting nature.

Products marked with (*) are optional.

"Complies with AEEE Regulation"

CONTENTS

Important Warnings 4

Introducing The Appliance 6

Technical Specifications 7

Installation Of Appliance 7

Important Warnings 13

Control Panel 14

Program Types 15

Cooking Recommendations 16

Cooking Table 16

Using The Oven 17

Replacing Oven Lamp 18

Cleaning Oven Glass 18

Cleaning And Mounting Oven Door 19

Maintenance And Cleaning 20

Accessories 21

Troubleshooting 22

Customers' Right Of Choice 25

Handling Rules 26

Environmentally-Friendly Disposal 26

Package Information 26

Service List 27

IMPORTANT WARNINGS

1. WARNING: To avoid electric shock, ensure that the appliance circuit is open before changing the lamp.
2. WARNING: All supply circuit connections must be disconnected before accessing terminals.
3. WARNING: The accessible parts may be hot during use of grid. Children must be kept away.
4. WARNING: Fire hazard; do not store materials on cooking surface.
5. WARNING: If the surface is cracked, open the appliance circuit to avoid risk of electric shock.
6. WARNING: Appliance and its accessible parts are hot during operation.
7. Setting conditions of this appliance are specified on the label.(Or on the data plate)
8. Accessible parts might be hot during use of grill. Small children should be kept away.
9. WARNING: Appliance is intended for cooking only. It should not be used for other purposes like heating a room.
10. There are additional protective tools avoiding contact with oven doors. This part must be attached when it's likely that there are children around.
11. Do not use steam cleaners to clean the appliance.

12. NEVER try to put out the fire with water. Only shut down the appliance circuit and then cover the flame with a cover or a fire blanket.

13. Hard and abrasive cleaners or hard metal scrapers should not be used to clean the oven glass door, as these can scratch the surface and cause breaking.

14. Ensure that door is fully closed after food is placed.

15. Children under 8 years of age should be kept away, if they cannot be monitored continuously.

16. Touching the heating elements should be avoided.

17. This appliance can be used by children over 8 years of age, people with physical, hearing or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the dangers.

18. The appliance hasn't been designed for operation with an external time or a separate remote control system.

19. This device has been designed for domestic use.

20. Cleaning and user maintenance can't be made by children without adult supervision.

21. Children must not play with the appliance. Cleaning and user maintenance shouldn't be made by children unless they are older than 8 years old and under adult supervision.

22. Make sure that children at and under 8 can't reach appliance and appliance cable.

23. Keep curtains, tissue paper or combustible (inflammable) materials away from appliance before starting to use it. Do not place inflammable or combustible materials in or on the appliance.

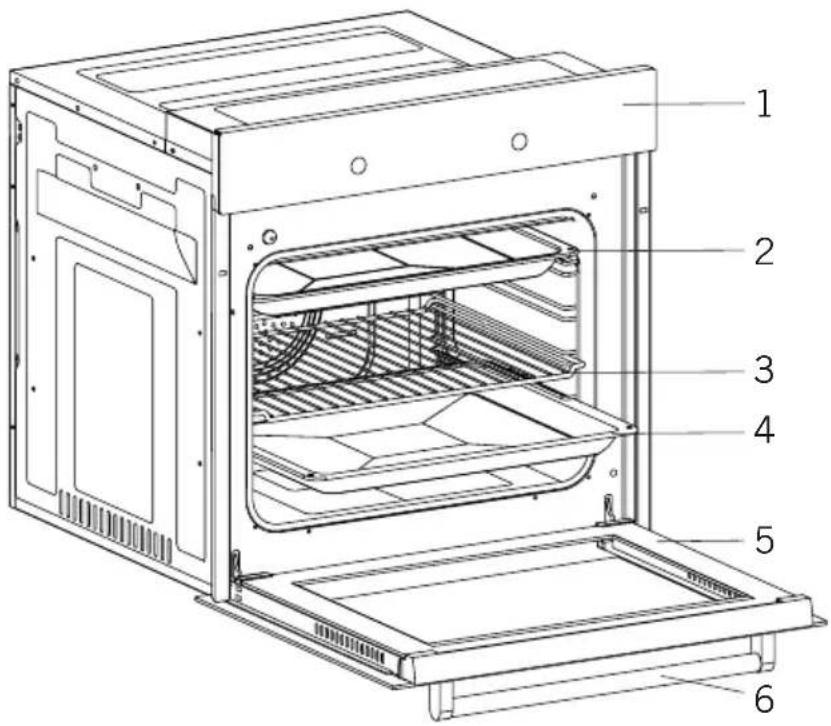

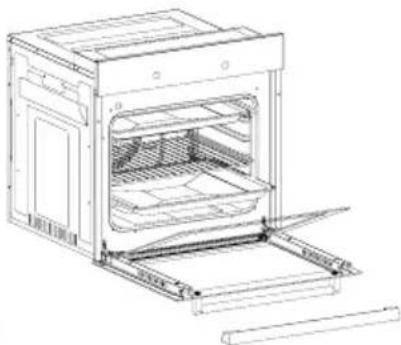

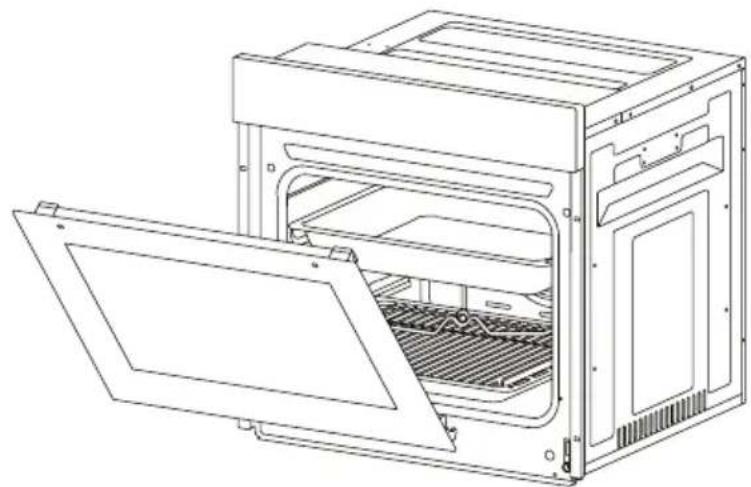

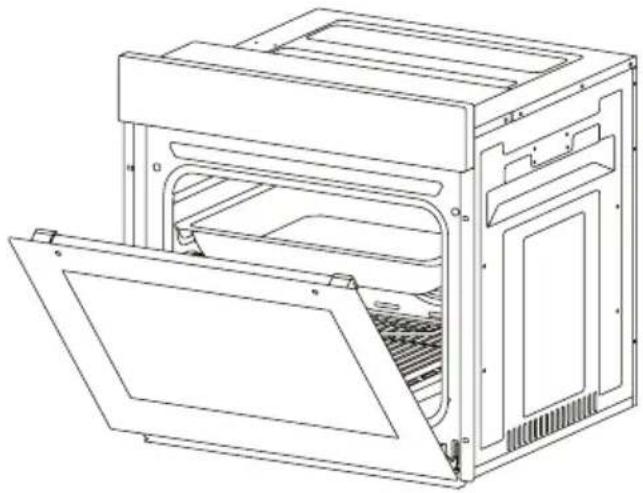

INTRODUCING THE APPLIANCE

1. Control Panel 4. Deep Tray
2. Standard Tray 5. Oven door
   3.Wire Grill 6. Handle

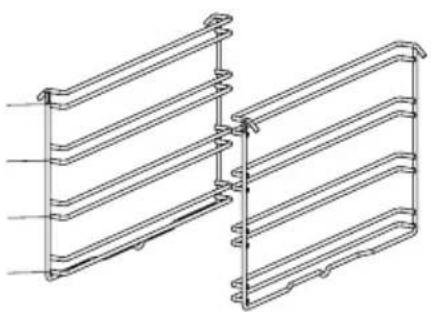

Rack 4 Rack 3 Rack 2 Rack 1

1. Standard Tray

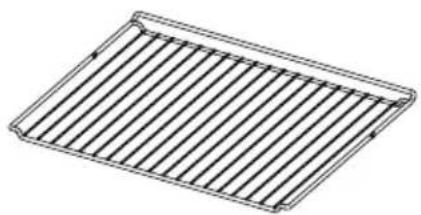

2. Wire Grill
3. Deep Tray

TECHNICAL SPECIFICATIONS

SPECIFICATIONS 60 cm Built-In Oven
Lamp Power 15W
Thermostat	40-250 / Max °C
Lower Heater 1200W
Upper Heater 1000W
Turbo Heater 1800W
Grill Heater Small Grill 1000W Big Grill 2000W
Supply Voltage 220V-240V 50 Hz

Technical specifications can be changed without prior notice to improve product quality.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

Figures in this guide are schematic and may not be exactly match your product.

INSTALLATION OF APPLIANCE

Ensure that electrical installation is suitable for operationalising the appliance. If not, call an electrician and plumber to make necessary arrangements. Manufacturing firm can't be hold responsible for damages to arise due to operations by unauthorized people and product warranty becomes void.

WARNING: It is customer's responsibility to prepare the location the product shall be placed on and also have power utility prepared.

WARNING: The rules about electrical local standards must be adhered to during product installation.

WARNING: Check for any damage on the product before installing it. Do not have product installed if it's damaged. Damaged products pose danger for your safety.

Important Warnings for Installation:

Figure 1

Cooling fan shall take extra steam out and prevent outer surfaces of appliance from overheating during operation of oven. This is a necessary condition for better appliance operation and better cooking.

Cooling fan shall continue operation after cooking is finished. Fan shall automatically stop after cooling is completed.

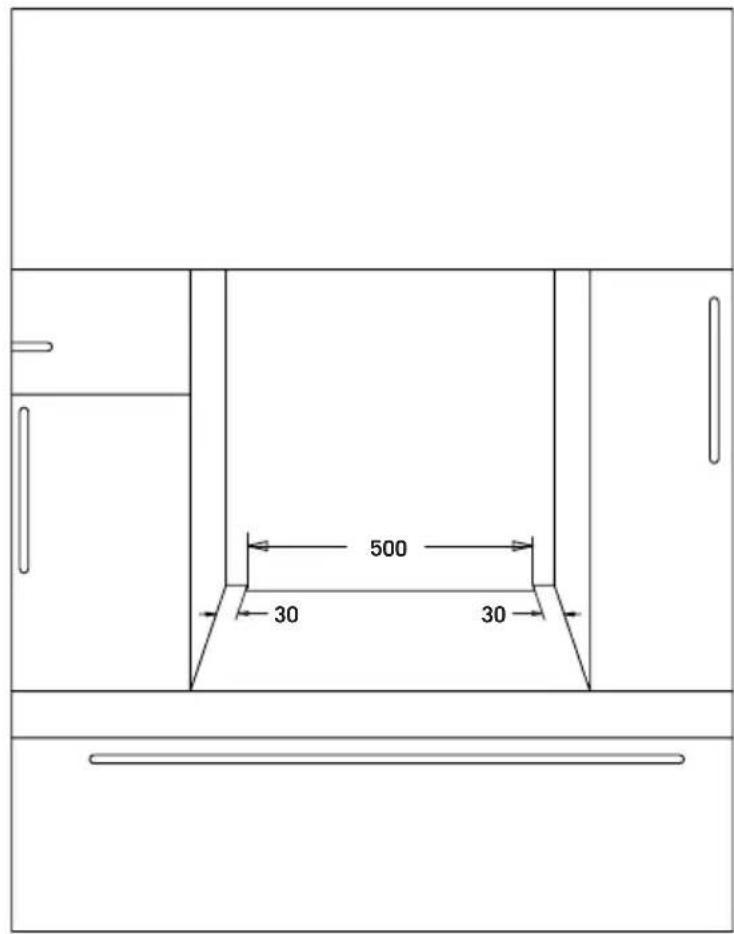

A clearance must be left behind the enclosure where you'll place the appliance for efficient and good operation. This clearance shouldn't be ignored as it's required for ventilation system of the appliance to operate.

Right Place For Installation

Product has been designed to be mounted to worktops procured from market. A safe distance must be left between the product and kitchen walls or furniture. See the drawing provided on the next page for proper distances. (values in mm).

• Used surfaces, synthetic laminates and adhesives must be heat resistant. (minimum 100°C).
• Kitchen cupboards must be level with product and secured.
• If there is a drawer below the oven, a rack must be placed between oven and drawer.

WARNING: Do not install the product next to refrigerators or coolers. The heat emitted by the product increases the energy consumption of cooling devices.

60 cm Built-In Oven Installation and Mounting

Place of use for product must be located before starting installation.

Product mustn't be installed in places which are under the effect of strong air flow.

Carry the product with minimum two people. Do not drag the product so that floor isn't damaged.

Remove all transportation materials inside and outside the product. Remove all materials and documents in the product.

Installation Under Counter

Cabin must match the dimensions provided in Figure 2.

A clearance must be provided at the rear part of the cabin as indicated in the figure so that necessary ventilation can be achieved.

After mounting, the clearance between lower and upper part of the counter is indicated in Figure 5 with "A". It's for ventilation and shouldn't be covered.

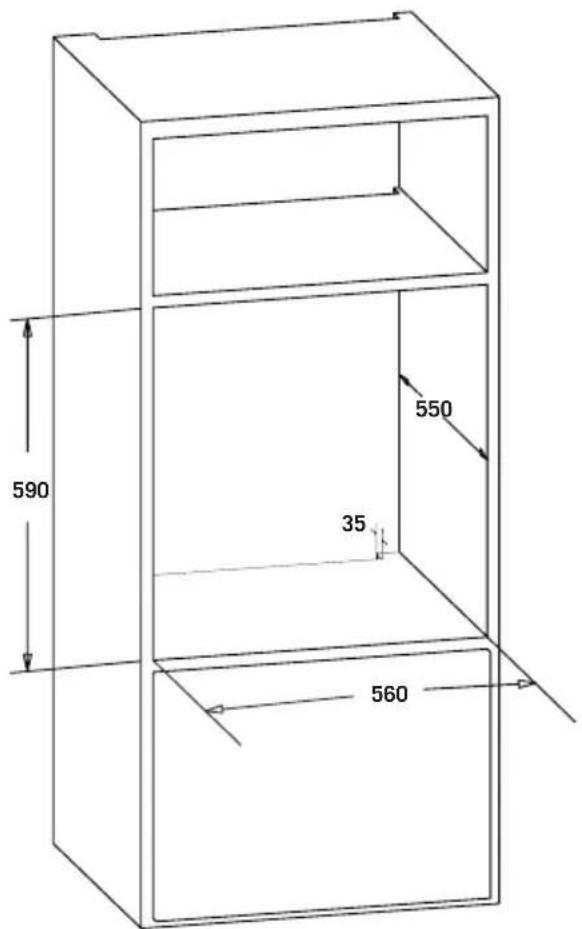

Installation In An Elevated Cabinet

Cabin must match the dimensions provided in Figure 4.

The clearances with the dimensions indicated in the figure must be provided at the rear part of cabin, upper and lower sections so that necessary ventilation can be achieved.

Installation Requirements

Product dimensions are provided in the Figure 3.

Furniture surfaces for mounting and mounting materials to be used must have a minimum temperature resistance of 100\ °C .

Mounting cabin must be secured and its floor must be plane for product not to tilt over.

Cabin floor must have a minimum strength that would handle a load of 60 kg.

Placing and Securing the Oven

Place the oven into the cabin with two or more people.

Ensure that oven's frame and front edge of the furniture match uniformly.

Supply cord mustn't be under the oven, squeeze in between oven and furniture or bend.

Fix the oven to the furniture by using the screws provided with the product. Screws must be mounted as shown in Figure 5 by passing them through plastics attached to frame of the product. Screws mustn't be overtightened. Otherwise, screw sockets might be worn.

Check that oven doesn't move after mounting. If oven isn't mounted in accordance with instructions, there is a risk of tilt over during operation.

Electrical Connection

Mounting place of the product must have appropriate electrical installation.

Network voltage must be compatible with the values provided on type label of product.

Product connection must be made in accordance with local and national electrical requirements.

Before starting the mounting disconnect network power. Do not connect the product to network until its mounting is completed.

Mounting

Figure 2

GB

Figure 3

GB

Figure 4

Figure 5

IMPORTANT WARNINGS

Electrical Connection and Safety

This oven must be installed and connected to its place correctly according to manufacturer instructions and by an authorized service.

Appliance must be installed in an oven enclosure providing high ventilation.

Electrical connections of the appliance must be made only via sockets having earth system furnished in compliance with rules. Contact an authorized electrician if there is no socket complying with the earthed system at where appliance will be placed. Manufacturing company is by no means responsible for damage resulting from connection of non-earthed sockets to appliance.

Plug of your oven must be earthed; ensure that socket for the plug is earthed. Plug must be located in a place that can be accessed after installation.

Your oven has been manufactured as 220-240 V 50 Hz. AC power supply compliant and requires a 16 Amp fuse. If your power network is different that these indicated values, refer to an electrician or your authorized service.

When you need to replace the electrical fuse, please ensure that electrical connection is made as follows:

GB

• Phase (to live terminal) brown cable
- Blue cable to neutral terminal
- Yellow-green cable to earth terminal

Oven disconnecting switches must be in an accessible place for final user while oven is in its place.

Power supply cable (plug in cable) mustn't touch hot parts of the appliance.

If supply cord (plug in cable) is damaged, this cord must be replaced by the importer or its service agent or an equally competent personnel to prevent a hazardous situation.

CONTROL PANEL

Adjustment can be made only when button is popped for models with pop-up button.

Figure 6

Make sure that button is popped by pressing on the button as shown in the figure at left side.

Figure 7

You can make necessary adjustments by turning right or left when button is popped enough.

Figure 8

Thermostat Button: Helps to set cooking temperature of the food to be cooked in the oven. You can set the desired temperature by turning the button after placing the food into the oven. Check cooking table related to cooking temperatures of different foods. Oven heats up to the adjusted temperature and maintains it. During heating, temperature lamp stays on.

Figure 9

Program Button: Helps to set with which heaters the food placed in oven will be cooked. Heater program types in this button and their functions are stated below. Every model might not have all heater types and thus program types of these heaters.

PROGRAM TYPES

Heating program types in your appliance and important explanations of them are provided below for you can cook different foods appealing to your taste.

	Fan Lower Heating Element
	Lower and Upper Heating Elements		Grill and Fan
	Lower-Upper Heating Element and Fan		Grill
	Turbo Heater and Fan Multifunctional	oking

Fan: For defrosting e.g.meat, poultry, bread and cakes. The fan causes the air to circulate around the dish.

Lower and upper heating elements: A program that can be used for cooking foods like cake, pizza, biscuit and cookie.

Lower and upper heating element and fan: The program suitable for cooking foods like cakes, dried cakes, lasagne. Suitable for cooking meat dishes, as well.

Turbo heater and fan: Suitable for baking and roasting. Keep heat setting lower than “Lower and Upper Heater” program since heat is conveyed immediately via air flow.

Lower heating element: Select this program towards end of cooking time if lower part of the food cooked will be roasted.

Grill and fan: Suitable for cooking meat type foods. Do not forget to place a cooking tray in a lower rack inside the oven and a little water in it while grilling.

Grill: Grill cooker is used for grilling meat like foods such as steak, sausage and fish. While grilling, tray should be placed in the lower rack and water must be placed in it.

GB

Multi Functional Cooking: Suitable for baking and roasting. Lower and upper heaters operate as well as quick transmission of heat via air flow. Suitable for cooking requiring single tray and intense heat.

COOKING RECOMMENDATIONS

You can find in the following table the information of food types which we tested and identified their cooking values in our labs. Cooking times can vary depending on the network voltage, quality of material to be cooked, quantity and temperature. Dishes to cook by using these values might not appeal to your taste. You can set various values for obtaining different tastes and results appealing to your taste by making tests.

WARNING: Oven must be preheated for 7-10 minutes before placing the food in it.

COOKING TABLE

Food	Cooking Function	Cooking Temperature (°C)	Cooking Rack	Cooking Time (min.)
Cake Static 160-17	0 2-3 40-60
Small Cake	Static 170-18	80 2 25-30
	Static +Fan 160	-170 2 25-30
Pie Static +Fan 18	0-200 2 30-40
Pastry Static +Fan	180-200 2 15-20
Cookie Static 170-18	180 2 15-20
Apple Pie Static+Fan	160-170 1 60-70
Sponge cake	Static 160-17	70 2 40-45
	Static +Fan 160	-170 2 35-40
Meat Pastry Static	180-190 2 35-45
Pizza Static+Fan 19	90-200 2 15-20
Lasagne	Static 180-20	0 2 30-40
Meringue	Static+Fan	90-100	2 50-60
Grilled Chicken* Grill+Fan		200-220 3 30-40
Grilled Fish*	Grill+Fan	200-220 3 25-35
Calf Steak*	Grill+Fan	Max	4 15-20
Grilled Meatball*	Grill+Fan	Max	4 20-25

*Food must be turned after half of the cooking time.

USING THE OVEN

Initial Use of Oven

Here are the things you must do at first use of your oven after making its necessary connections as per instructions:

1. Remove labels or accessories attached inside the oven. If any, take out the protective folio on front side of the appliance.
2. Remove dust and package residues by wiping inside of the oven with a damp cloth. Inside of oven must be empty. Plug the cable of appliance into the electrical socket.
3. Set the thermostat button to the highest temperature (250 Max. °C) and run the oven for 30 minutes with its door closed. Meanwhile a slight smoke and smell might occur and that's a normal situation.
4. Wipe inside of the oven with a slightly warm water with detergent after it becomes cold and then dry with a clean cloth. Now you can use your oven.

Normal Use of Oven

1. Adjust thermostat button and temperature at which you want to cook the food to start cooking.
2. You can set cooking time to any desired time by using the button at models with mechanical timer. Timer will de-energize heaters when time expired and provide warning beep as ringing.
3. Timer turns the heaters off and provides audible signal when cooking time expires in line with the information entered in the models with digital timer.
4. Cooling system of the appliance will continue to operate after cooking is completed. Do not cut the power of appliance in this situation which is required for appliance to cool down. System will shut down after cooling is completed.

REPLACING OVEN LAMP

WARNING: To avoid electric shock, ensure that the appliance circuit is open before changing the lamp. (having circuit open means power is off)

Figure 10

First disconnect the power of appliance and ensure that appliance is cold.

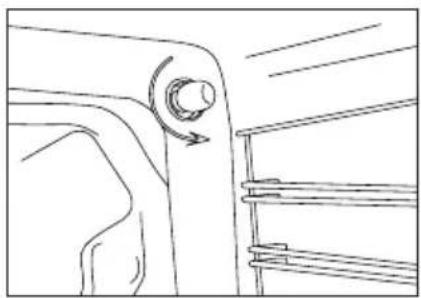

Remove the glass protection by turning as indicated in the figure on the left side. If you have difficulty in turning, then using plastic gloves will help you in turning.

Figure 11

Then remove the lamp by turning, install the new lamp with same specifications. Lamp specifications must be as follows;

-220-240 V 50 Hz AC, -15 W, -Type E14

Reinstall glass protection, plug the power cable of appliance into electrical socket and complete replacement. Now you can use your oven.

CLEANING OVEN GLASS

Hold the plastic profile from the left and right holding points as shown in Figure 12 and than pull the profile toward yourself as in Figure 13. Glass is released after profile is removed as shown in Figure 14. Remove the released glass by pulling toward yourself carefully. Outer glass is fixed to oven door profile. You can perform glass cleaning easily after glasses are released. You can mount glasses back by performing the operations reversely after cleaning and maintenance are completed. Ensure that profile is seated properly in place.

Figure 12 Figure 13 Figure 14

CLEANING AND MOUNTING OVEN DOOR

Figure 15

Figure 16

Figure 15.1 Figure 15.2 Figure 16.1 Figure 16.2

Open the door fully by pulling the oven door toward yourself. Then perform unlock operation by pulling the hinge lock upwards with the aid of screwdriver as indicated in

Figure 15.1.

Set the hinge lock to the widest angle as in Figure 15.2. Adjust both hinges connecting oven door to the oven to the same position.

Later, close the opened oven door so that it will be in a position to contact with hinge lock as in

Figure 16.1.

For easier removal of oven door, when it comes close to closed position, hold the cover with two hands as in Figure 16.2 and pull upwards.

Reversely perform respectively what you did while opening door to reinstall oven door back.

MAINTENANCE AND CLEANING

1. Remove the power plug from electrical socket.
2. Do not clean inner parts, panel, trays and other parts of the product with hard tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching materials or detergent.
3. Rinse after wiping the parts at inner parts of the product with soapy cloth, then dry thoroughly with a soft cloth.
4. Clean glass surfaces with special glass cleaning material.
5. Do not clean your product with steam cleaners.
6. Never use combustibles like acid, thinner and gas while cleaning your product.
7. Do not wash any part of the product in dishwasher.
8. "Use potassium stearate (soft soap) for dirt and stains."

You can perform cleaning with a soft textured cloth not to scratch surfaces according to the figures below.

ACCESSORIES

Deep Tray

Used for pastry, big roasts, watery foods. It can also be used as oil collecting container if you roast directly on grill with cake, frozen foods and meat dishes.

Tray

Used for pastry (cookie, biscuit etc.), frozen foods.

Wire Grill

Used for roasting or placing foods to be baked, roasted and frozen into desired rack.

Telescopic Rail

Trays and wire racks can be removed and installed easily thanks to telescopic rails.

Wire Racks

You can place deep tray and tray on lower and upper wire racks while cooking.

TROUBLESHOOTING

You can solve the problems you can face with your product by checking the following points before calling the technical service.

Checkpoints

If you encounter a problem with the oven first check the table below and try the suggestions. If the problem continues, contact a local Samsung service centre.

Problem Cause Action
The oven does not work.	If there is no power supplied	Check whether there is power supplied.
The oven stops while in operation.	If it is unplugged from the power socket	Reconnect the power.
The power turns off during operation.	If continuous cooking takes a long time	After cooking for a long time, let the oven cool.
	If the cooling fan does not work	Listen for the sound of the cooling fan.
	If the oven is installed in a place without good ventilation	Keep the gaps specified in the product installation guide.
	When using several power plugs in the same socket	Use a single plug.
The oven exterior is too hot during operation.	If the oven is installed in a place without good ventilation	Keep the gaps specified in the product installation guide.
The door cannot be opened properly.	If there is food residue stuck between the door and product interior	Clean the oven well and then open the door again.
The interior light is dim or does not turn on.	If the lamp turns on and then off	The lamp automatically turns off after a certain amount of time to save power. You can turn it on again by pressing the oven light button.
	If the lamp is covered by foreign matter during cooking	Clean the inside of the oven and then check.
Electric shock occurs on the oven.	·If the power is not properly grounded	·Check whether the power supply is properly grounded.
	·If you are using a socket without grounding
There is water dripping.	·There may be water or steam in some cases depending on the food. This is not a product malfunction.	·Let the oven cool and then wipe with a dry dish towel.
There is steam through a crack in the door.
There is water remaining in the oven.
The brightness inside the oven varies.	·The brightness changes depending on power output changes.	·Power output changes during cooking are not malfunctions, so there is no need to worry.
Cooking is finished, but the cooling fan is still running.	·The fan automatically runs for a certain amount of time to ventilate inside the oven.	·This is not a product malfunction, so there is no need to worry.
The oven does not heat.	·If the door is open	·Close the door and restart.
	·If oven controls are not correctly set	·Refer to the chapter on oven operation and reset the oven.
	·If the household fuse has been blown or the circuit breaker has operated	·Replace the fuse or reset the circuit. If it happens repeatedly, call an electrician.
Smoke comes out during operation.	·During initial operation	·Smoke may come from the heater when you first use the oven. This is not a malfunction, and if you run the oven 2-3 times, it should stop happening.
	·If there is food on the heater	·Let the oven cool sufficiently and remove the food from the heater.
There is a burning or plastic smell when using the oven.	·If using plastic or other containers that are not heat-resistant	·Use glass containers suitable for hot temperatures.
The oven does not cook properly.	·If the door is often opened during cooking	·Do not frequently open the door unless you are cooking things that need to be turned. If you frequently open the door, the interior temperature will be lower and this may affect the results of your cooking.
The buttons cannot be pressed properly.	·If there is foreign matter caught between the buttons	·Remove the foreign matter and try again.
	·If the lock function is set	·Check whether the lock function is set.
The time is not displayed.	·If there is no power supplied	·Check whether there is power supplied.

CUSTOMERS' RIGHT OF CHOICE

In case of realising that the product is defective, the consumers can use their right stated in the Article 11 of the Law on Protection of the Consumer No 6502 as below;

a- Withdrawal of contract,
b- Claiming discount over sale price,
c- Claiming repair free of charge,
d- Claiming another non-defective copy of the same product.

If the consumer prefers the free repair amongst these rights, then the seller is liable to overhaul the product without asking any other price under the name of anything such as labour, price for the replaced part or anything else. The consumer can use the right of free repair against the manufacturer or importer. Reseller, manufacturer and importer are severally responsible for the customer to use the before-mentioned right.

If the consumer uses the right of free repair;

• In case the product is malfunctioned again within the warranty period,
• In case the maximum duration required for repairing is exceeded,
• In case the product is reported as irreparable by the authorised service station, seller, manufacturer or the importer, the consumer can claim for refund, discount on the product in proportion to defectiveness or if possible, for replacement of the product with a non-defective copy from the reseller. The seller cannot decline this demand posed by the consumer. If this demand is not fulfilled, then the seller, the manufacturer and the importer shall severally be held responsible.

If the Certificate of Warranty is not given by the seller, the consumer can apply to the General Directorate of Ministry of Customs and Trade, Protection of the Consumer and Market Surveillance.

The consumer may also file an application -for any complaints and objections that may arise over conflict- to the Arbitration Committee for Consumer Problems or Consumer Court which is located at the area he / she resides.

HANDLING RULES

1. Do not use the door or the handle to carry or move the product.
2. Conduct the handling and transportation with the original packaging of the product.
3. Maximum attention must be paid to the product during loading, unloading and handling.
4. Ensure that the packaging is fully wrapped during handling and transportation.
5. Protect the packaging and pack against the agents that may harm them. (such as moist, water, shock and so on)
6. Pay attention so as to prevent the product from being broken, deformed, damaged during use and from being damaged or having a malfunction during handling and from getting harmed due to impact, shock, drop and similar external factors.

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

SERVICE LIST
CITY DISTRICT	AUTHORIZED SERVICE ADDRESS TELEPHONE
ADANA CEYHAN KAR	TEKNİK MURADIYE MAH. SAİD AKMAN CD. NO:54 [phone]
ADANA KOZAN SÖNMEZ	SOĞUTMA		TUFANPAŞA MAH. İMAMHATİP SK. KELEBEK APT.NO:12/A KOZAN	[phone]
ADANA SEYHAN AGEM	ELEKTRONİK P/NAR MAH. 74203 SK. 1/A SEYHAN [phone]
ADANA SEYHAN EMİN	ELEKTRONİK		MÜCAHİTLER CAD. NO:51/D ÖZLEM APT ALTI SEYHAN	[phone]
ADANA YÜREGİR GÖK	TEKNİK YAVUZLAR MH KISLA CD NO.285 / A [phone]
ADIYAMAN	GÖLBAŞI	KAR SOĞUTMA	CUMHURİYET MAH. 38 SOK. NO:10	[phone]
ADIYAMAN	KAHTA	MERSİNLİ TEKNİK	ATATÜRK MAH. ATATÜRK CAD. NO:84	[phone]
ADIYAMAN	MERKEZ	STAR ELEKTRONİK	İSTİKLAL CD NO:14/B	[phone]
BATMAN	MERKEZ	PİLATİN ELEKTRONİK	MEYDAN MAH GÜLİSTAN CAD NO:53	[phone]
DİYARBAKIR	BİSMİL	ÖZKA ELEKTRONİK	ALTIOK MAH. İSMAİL BEŞİKÇİ CAD.NO:97/B	[phone]
DİYARBAKIR	ERGANİ	UFUK NEBİ TEMEL	ADNAN MENDERES MAH. SİRMEN CAD.NO:26	[phone]
DİYARBAKIR	MERKEZ	HİZMET ELEKTRONİK SUBE	DİCLEKENT BLV. 153 SOK. SEÇKİN SİTESİ ALTI NO:5	[phone]
ELAZIĞ	MERKEZ	GÜNEŞ ELEKTRONİK	KÜLTÜR MH. VALİ FAHRİ BEY CD. NO:97/A	[phone]
ELAZIĞ	MERKEZ	HAZAR SOĞUTMA ISITMA	RÜSTEMPAŞA MH.HACIHAYRİ CD. 100/E	[phone]
GAZİANTEP	ISLAHİYE	SÖYLEMEZ SOĞUTMA	ERENLER MAH. HATAY BLV. NO: 61 İSLAHİYE	[phone]
GAZİANTEP	MERKEZ	ÜNAL ŞENSÖYLER ELEKTRONİK	BATIKENT MAH.ABDÜLKADİR AKSU BUL. ZÜMRÜT AP. ALTI NO:62/F SEHİTKAMIL	[phone]
GAZİANTEP	ŞEHİTKAMİL	AY TEKNİK	MUCİTLER CAD. 52043 SK. KUĞU APT. NO:5/B1	[phone]
HATAY	ANTAKYA	ŞAHİN ELEKTRONİK	KURTULUŞ CD. NO:59	[phone]
HATAY	ANTAKYA	YÜCE SOĞUTMA	SÜMERLER MH. HARBIYE CD. NO.41 ANTAKYA	[phone]
HATAY	DÖRTYOL	ÜN SOĞUTMA	YESİL MAH. ATATÜRK CAD. KERVAN SOK. NO:4 DÖRTYOL / HATAY	[phone]
HATAY	İSKENDERUN	UZAY ELEKTRONİK	HÜRRİYET MAH. İSMET İNÖNÜ CAD. NO: 80/A İSKENDERUN / HATAY	[phone]
HATAY	İSKENDERUN	ÖZÜNLÜ TEKNİK	DUMLUPINAR MAH. YILDIRIM BEYAZIT CD. NO:4 İSKENDERUN HATAY	[phone]
HATAY	KIRIKHAN	BAŞKARLAR TEKNİK SOĞUTMA	BARBAROS MAH. ŞEHİT ERDOĞAN CAD. NO: 141/C KIRIKHAN-HATAY	[phone]
KAHRAMANMARAŞ	ELBİSTAN	ÇİÇEK SOĞUTMA	GÜNEŞLİ MAH. LEVENTKUŞOĞLU CAD. NO:2/B ELBİSTAN/ K.MARAŞ	[phone]
KAHRAMANMARAŞ	MERKEZ	SÜPER ELEKTRONİK	SARAYALTI CD PLATİN SİTESİ ALTI NO42/B	[phone]
KAHRAMANMARAŞ	PAZARCIK	BEYAZAY TEKNİK	CENGİZ TOPEL MAH. 3. CADDE NO:104/A	[phone]
KAHRAMANMARAŞ	MERKEZ	TÜRKMEN TEKNİK	HAYRULLAH MAH.MALİKEJDER CAD. ARIKAN SİT.A BLOK NO:22/C	[phone]
KİLİS	MERKEZ	GENERAL SOĞUTMA	ŞIHABDULLAH MAH. NEMİKA CAD.NO:73	[phone]
MALATYA	MERKEZ	GÜVEN TEKNİK	UCBAGLAR MAH YUNUS EMRE CD MEHMET BUGDAYCI AP NO.25	[phone]
MARDİN	ARTUKLU	MARDİN TEKNİK	13 MART MAH. VALİ OZAN CAD. OKUMUŞLAR APT.ALTI NO:116/J	[phone]
MARDİN	KIZILTEPE	KARDEŞ ELEKTRONİK	TEPEBAŞI MH. A.MENDERES CD. NO:3/A KIZILTEPE MARDİN	[phone]
CITY DISTRICT	AUTHORIZED SERVICE	ICE ADDRESS TELEPHONE
MARDİN MİDYAT		AYKATEK KLIMA VE BEYAZ EŞYA	YENİ MAH. MARDİN ÇEVREYOLU BUL. NO: 85/A	[phone]
MARDİN NUSAYBİN ÇAĞDAŞ ELEKTRONİK		NIK LOZAN CAD. NO:115 NUSAYBİN/MARDİN [phone]
MERSİN ANAMUR ÜSTÜN ELEKTRONİK			BULVAR CD YEŞİLYURT MH OTOGAR ÜSTÜ NO:56	[phone]
MERSİN ERDEMLİ KÜÇÜKCİN TEKNİK			AKDENİZ MAH KAZIM KARABEKIR CAD 1010 SK NO: 5	[phone]
MERSİN	MERKEZ	PINAR ELEKTRONİK	MAHMUDİYE MH 108 CD. NO:32/B AKDENİZ	[phone]
MERSİN MUT	İKLİM SOĞUTMA		PINARBAŞI MAH. ATATÜRK BUL. NO:61/C 33600 MUT/MERSIN	[phone]
MERSİN SİLIFKE ESİN	SOĞUTMA		SARAY MAH.İNÖNÜ CAD. 69/B SİLIFKE / MERSİN	[phone]
MERSİN TARSUS	CÜCELER SOĞUTMA		ANIT MAH. 0338 SK. ÇİLEM APT ZEMİN KAT NO:15 TARSUS/MERSİN	[phone]
MERSİN TARSUS	GÜNEY TEKNİK		SEHİT İSAK MH MELVANA CD NO.11 TARSUS / MERSIN	[phone]
MERSİN YENİŞEHİR	AK GÜVEN ELEKTRONİK		H.OKAN MEZECİ BLV. NO: 476-1 YENİŞEHİR / MERSİN	[phone]
OSMANİYE	KADİRLİ	KUZEY SOĞUTMA	DERE MH. KARATEPE CD. NO 59 KADİRLİ / OSMANIYE	[phone]
OSMANİYE	MERKEZ EM-TA	TEKNİK	YEDI OCAK MAH DR AHMET ALKAN CAD. NO:132-C / OSMANIYE	[phone]
SIIRT	MERKEZ HAKAN ELEKTRONİK		BAHÇELİEVLER MAH. HANI EFENDİ CAD. NO:14	[phone]
ŞANLIURFA	BİRECİK	YARAŞIR SOĞUTMA	MEYDAN MH.KÖPRÜ ÇIKIŞI NO:9	[phone]
ŞANLIURFA	CEYLANPİNAR	NUR-İŞ SOĞUTMA	İNKILAP MAH. 1004 CAD. NO:64 CEYLANPINAR / ŞANLIURFA	[phone]
ŞANLIURFA	MERKEZ DOĞUŞ ELEKTRONİK		EMNİYET CAD. HAMİDİYE MAH. 263 SOKAK NO:27/A ŞANLIURFA	[phone]
ŞANLIURFA	MERKEZ MEGA	SOĞUTMA	VEYSEL KARANI MAH. 462 SK. ŞAFAK APT. ALTI NO:1	[phone]
ŞANLIURFA	MERKEZ KILIÇ	TEKNİK	PAŞABAĞI MAH. 751 SK. FARUK NAHYA APT. ALTI NO:2	[phone]
ŞANLIURFA	SİVEREK	GERİLİM ISITMA VE SOĞUTMA	YENİŞEHİR MAH SAİD NURSİ BUL. NO:204 SİVEREK - ŞANLIURFA	[phone]
ŞANLIURFA	VİRANŞEHİR	SERVAN ELEKTRONİK	ŞARKPINAR MAH. 64 SK. NO:4/A	[phone]
ŞIRNAK	CİZRE	SERDAR ELEKTRONİK	ŞAH MH. NURULLAH CD. NO:26	[phone]
AKSARAY	MERKEZ TEKN	K SOĞUTMA	BÜYÜKBÖLCEL MH. 2431.SK. DUYGU APT. NO:9 AKSARAY	[phone]
ANKARA	BEYPAZARI	TAŞÇIOĞLU ELEKTRONİK	KURTULUŞ MAH. KEMAL MİLASLI CAD. ALTIPARMAK İŞ HANI NO:2 BEYPAZARI / ANKARA	[phone]
ANKARA	ÇANKAYA	BULUT TEKNIK LTD. STI	LİBYA CD.NO.8 KOLEJ KIZILAY / ANKARA	[phone]
ANKARA	ÇANKAYA	SISTEM GRUP ELEKTRONİK TIC. TAAHHUT LTD. STI	GMK BULVARI NO:104/A MALTEPE / ANKARA	[phone]
ANKARA	GÖLBAŞI	DOĞA TEKNİK	BAHÇELİEVLER MH 281 CD NO:94/B	[phone]
ANKARA	KEÇİÖREN SIMGE	ELEKTRONİK	HALİL SEZAİ ERKUT CD.MARTI SK. NO:B3/16-18 ETLİK K.ÖREN/ANKARA	[phone]
ANKARA	POLATLI	İYİ ELEKTRONİK	CUMHURİYET MH. BATTALGAZİ CD. NO:92/A	[phone]
CITY DISTRICT	AUTHORIZED SERVICE ADDRESS TELEPHONE
ANKARA PURSAKLAR	EMSA ISITMA SOGUTMA MERKEZ MH. KARACA		CAD. NO:5/B [phone]
BOLU	MERKEZ	BOLU TEKNİK	KARAMANLI MAH. YUNUS EMRE SK. NO: 29/A	[phone]
ESKİŞEHİR TEPEBAŞI	NİLKAN ELEKTRONİK		M.K.PAŞA MAH. SİVRİHİSAR 1 CAD. NO:49 ESKİŞEHİR	[phone]
KAYSERİ MELİKGAZİ	EYLÜL ELEKTRONİK		KILIÇASLAN MAH. KIZILIRMAK CAD. NO:27/A	[phone]
KIRIKKALE	MERKEZ	KALETEK	TEPEBAŞI MAH. ERGENEKON CAD. NO: 60	[phone]
KIRŞEHİR	MERKEZ BEST	ELEKTRONİK	AHI EVRAN MH. ZUBEYDE HANIM CAD. NO:11 ONAT APT.	[phone]
NEVŞEHİR	MERKEZ	ÜNAL ELEKTRONİK	GÜZELYURT MH ÜRGÜP CD NO:37/A	[phone]
NİĞDE	MERKEZ	TEK ELEKTRONİK	Esenbey Mah. Balım Sok. NO:3/B	[phone]
YOZGAT	MERKEZ ALKAN	DİGITAL	ADNAN MENDERES BULVARI SİVAS CAD. YENİ ÇAĞRI SİTESİ ALTI NO:105	[phone]
ÇANKIRI	MERKEZ TÜRKÖĞLU TEKNİK		ABDULHALIK RENDA MAH TUGGENERAL ZEKİ DURLANIK CAD NO:5 MERKEZ CANKIRI	[phone]
AFYON	DİNAR	ÖZBAL ELEKTRONİK	ADLİYE MAH. BUDAKLAR SK. NO:8	[phone]
AFYON	MERKEZ	DAMAR ELEKTRONİK	CUMHURİYET MAHALLESİ YEŞİL YOL NO: 47/A	[phone]
ANTALYA	ALANYA	ŞENGÖZ ELEKTRONİK	SARAY MH.MEHMET ÇAVUŞ SK. CEBİ AP.NO:5/A	[phone]
ANTALYA KAŞ	SERİN SOĞUTMA		YAYLA CADDESİMENEKŞE MH NO:50 KALKAN/ KAŞ ANTALYA	[phone]
ANTALYA KEMER	ÇETİNKAYA	ELEKTRONİK	YENİ MH DORTYOL CD NAIL ERKAN APT. 70 B KEMER ANTALYA	[phone]
ANTALYA KEPEZ	TURKUT TEKNİK		YÜKSELİŞ MH GAZİ BULVARI 2130 SK. NO1/1-2 KALVA APT	[phone]
ANTALYA KORKUTELİ	EMRE ELEKTRONİK		KİREMİTLİ MH GARAJ ÇIKIŞI YASİNCE APT NO3/C	[phone]
ANTALYA KUMLUCA EYMEN TEKNİK			MEYDAN MAH. GÜRBÜZLER SOKAK NO: 38/11	---
ANTALYA	MANAVGAT	MANAVGAT SOĞUTMA	ŞELALE MAH. REMZİ GÜVEN CAD. NO:173/B	[phone]
ANTALYA MURATPAŞA	YILDIRIM ELEKTRONİK		TAHILPAZARI MH ADNAN MENDERES BULV. NO:23/A ANTALYA	[phone]
ANTALYA SERİK	BAŞARAN SOĞUTMA		KÖRFEZ MAH. BURMAHANCI CAD. NO:104/C ANTALYA / SERİK	[phone]
BURDUR	GÖLHİSAR	GENÇ ELEKTRONİK	FATİH MAH.CUMHURİYET CAD. NO:140/D GÖLHİSAR BURDUR	[phone]
BURDUR	MERKEZ ATASEVEN TEKNİK		BAĞLAR MAH.İZEKİ BURDURLU CAD. NO:26/A	[phone]
ISPARTA	EĞİRDİR DEMKAR TEKNİKSOĞUTMA		SEYDİM MAH 2.SAHİL YOLU NO:17/A ISPARTA EĞİRDİR	[phone]
ISPARTA	YALVAÇ	SET ELEKTRONİK	PAZARAŞAĞI MAH YEŞİL ÇINAR BULVARI NO:84/B YALVAÇ/ ISPARTA	[phone]
KARAMAN	MERKEZ ÖZ SOĞUTMA		SEKİ ÇİŞME MH. DR.MEHMET ARMUTLU CD. NO:26 KARAMAN	[phone]
KONYA	AKŞEHİR	KARTAL SOĞUTMA	MEYDAN MAH. TACEDDİN YALTIRIK SOK. ÇETMELİ PASAJI NO:3 AKŞEHİR/KONYA	[phone]
KONYA	BEYŞEHİR	ÇAĞ SOĞUTMA	HAMİDİYE MAH SÜLEYMAN BEY CAD. NO: 19/1 BEYŞEHİR / KONYA	[phone]

CITY DISTRICT	AUTHORIZED SERVICE ADDRESS TELEPHONE
KONYA ÇUMRA ÇUMRA SOĞUTMA		İZZETBEY MAH.LALE SOK.NO:28/B ÇUMRA/KONYA	[phone]
KONYA EREĞLİ		TEKSER SERVİSHİZMETLERİ	ESNAF SİTESİ A BLOK NO:7 [phone]
KONYA SELÇUKLU SAMTİT ELEKTRONİK		MUSALLA BAĞLARI MAH. TELGRAFCI HAMDİBEY CAD. NO:10A	[phone]
ISPARTA MERKEZ AKARSU TEKNİK GU LEVLER MAH 106 CD 138/5 [phone]
AĞRI DOĞUBEYAZIT ÖZKAN ELEKTRONİK		ŞEHİTLİK CAD. SUAT SOK.GÜVEN EVLERİ C-BLOK ALTI NO:12 DOĞUBEYAZIT/AĞRI	[phone]
AĞRI	MERKEZ	ERHAN ELEKTRONİK	MURAT MAH. ESKİ VAN CAD. NO:239
ARDAHAN	MERKEZ MURATCAN FIRINCI		KARAGÖL MAH. MAREŞAL FEVZİ ÇAKMAK CAD. NO.23/1 MERKEZ
ARTVİN	MERKEZ TUNCER ATABAY		ÇARŞI MAH. HURRİYET CAD. SOSYAL APT. NO:18/E ARTVİN
BAYBURT	MERKEZ	SEYYİD TEKNİK	KADIZADE MAH. KULOĞLU SK. NO:3-B
BİNGÖL	MERKEZ GELİŞİM ELEKTRONİK		YEŞİLYURT MAH. FEVZİ ÇAKMAK CAD. NO.33/C BİNGÖL
BİTLİS	TATVAN	AY-BUZ TEKNİK	CUMHURİYET CD. SÜPHAN PASAJI NO: 73
ERZİNCAN	MERKEZ	ÖZTÜRK ELEKTRONİK	MERKEZ ÇARŞI 6.SK NO:11
ERZURUM	YAKUTİYE	EMİR ELEKTRONİK	ÇAYKARA CAD. GEZ MAH. NO: 44/14 ERZURUM
GİRESUN	MERKEZ	MUTLU ELEKTRONİK	NİZAMİYE MH. ORHAN YILMAZ CD. NO:52
HAKKARİ YÜKSEKOVA	MEDYA ELEKTRONİK		GÜNGÖR MAH. 23 NISAN CAD. 28-1 YÜKSEKOVA
IĞDIR	MERKEZ CAN ELEKTRONİK		14 KASIM MAH NIHAT POLAT CAD. 743 SK. ATA APT.2 /B IĞDIR
KARS	MERKEZ HAFIZOĞLU ELEKTRONİK		MERKEZ MAHALLESİ FAİKBEY CAD. NO:209 KARS
MUŞ	MERKEZ	GÜNAY SOĞUTMA	ATATÜRK BULVARI NO:141\A
RİZE	MERKEZ	KUTUP DAY.TÜK.MAM. LTD. ŞTİ.	CAMİ ÖNÜ MAH. NO:94 LİMAN KARŞISI RİZE
TRABZON	MERKEZ	STAR ELEKTRONİK SERV. HİZ.	İNÖNÜ MAH. YAVUZ SELİM BULVARI YAVUZ SELİM APT. NO:164 ORTAHİSAR
TUNCELİ	MERKEZ	BATIN ELEKTRONİK	ATATURK MH 25CD NO:1 TUNCELİ
VAN ERCİŞ	HAKAN İŞLER		LATİFIYE MAH. DALAN CAD. NO:23 ERCİŞ /VAN
VAN MERKEZ İZMİR ELEKTRONİK			ŞEREFİYE MAH. FEVZİ ÇAKMAK CAD. DEMİCİLER SK. CANER İŞ MERKEZİ ALTI NO:30 MERKEZ /VAN
GÜMÜŞHANE	MERKEZ DİNAMİK TEKNİK		HASANBEY MAH. HASANBEY CAD. EFEM APT. 42 1 MERKEZ/GUMUSHANE
BURSA	GEMLİK	ÖYKÜ TEKNİK	ESREF DINCER MAH ESKI PAZAR CAD. No:62/C
BURSA	İNEGÖL	BOZTEPE TEKNİK	SİNANBEY MAH. AHMET AKYOLLU CAD. NO:35/A
BURSA	KESTEL	CİHAN İKLİMLENDİRME SİSTEMLERİ	AHMET VEFİK PAŞA MH ORTAOKUL CAD. MANOLYA SK NO:34
BURSA	MUSTAFA KEMALPAŞA	ZAFER TEKNİK	HAMZABEY MAH. KORUCUBAŞI SOK. NO:7/A

CITY DISTRICT	AUTHORIZED SERVICE	ICE ADDRESS TELEPHONE
BURSA NILÜFER		ABC TEKNİK SERVİSHİZMETLERİ	ODUNLUK MAH AKADEMİ CAD. ZENOBUSINESS CENTER A BLOK NO15	[phone]
ÇANAKKALE BİGA ERÇAN ELEKTRONİK İSTİKLAL CD. NO: 198 (286)			316-4827
ÇANAKKALE GELİBOLU UĞUR ELEKTRONİK			CAMİKEBİR MAH. GAZİ SÜLEYMANPAŞACAD NO:46	[phone]
ÇANAKKALE MERKEZ UĞUR ELEKTRONİK			İSMET PAŞA MAH. DEMİRCİOĞLU CAD.NO:70/A	[phone]
DÜZCE MERKEZ KUTÜP SOĞUTMA ŞE	REFİYE MH CUMHURİYET SK NO		017/A-B [phone]
EDİRNE	KEŞAN	SİMGE SOĞUTMA	BÜYÜK CAMİ MH İSTİKLAL CD NO:27	[phone]
EDİRNE MERKEZ ATEŞ ELEKTRONİK			FATİH MAH İBRAHİM AY CAD PEMBEKÖŞK APT NO:1	[phone]
İSTANBUL ATAŞEHİR		ATASER ELEKTRİKLİ VE ELEKTRONİK EV ALETLERİISITMA SOĞUTMASİSTEMLERİ LTD.ŞTİ	KARSLI AHMET CAD.AHMET TARIK SOK.NO : 18 A ATAŞEHİR/ İSTANBUL	[phone] - 05
İSTANBUL BAKIRKÖY ARDA ELEKTRONİK			SAKIZAGACI MAH İSTANBUL CAD.TAYYARECİ SADIK SK NO:51A	[phone]
İSTANBUL	EYÜP	GARANTI SERVİS	GÜZELTEPE MH AVCI SK NO:8/B	[phone]
İSTANBUL KAĞITHANE KOÇAK ELEKTRONİK			ATALAR CD NO4/B BACADİBİ GÜLTEPE /KAĞITHANE	[phone]
İSTANBUL	KÜÇÜKÇEK-MECE	MAKSA ELEKTRONİK	HALKALI MERKEZ MAH. FATİH CAD. FİLİZSOK.NO:21/A	[phone]
İSTANBUL PENDİK		DST ELEKTRONİK VE İLETİŞİM	DOĞU MAH. EMANET SOK. NO:3/B-1PENDİK / İSTANBUL	[phone]
İSTANBUL ŞİŞLİ		VE-BE ELEKTRONİK	KAZIM ORBAY CAD. SAKRIKONAK APT. NO:1	[phone]
İSTANBUL ÜMRANIYE		TEKOGULLARI BILISIM	MEHMET AKIF MAH SAHIN CAD NO 17/B	[phone]
KIRKLARELİ	LÜLEBURGAZ	AKAY TEKNİK	İSTİKLAL MAH. BÜKLÜM CD. NO:27/29	[phone]
KIRKLARELİ	MERKEZ	ULAŞIM ELEKTRONİK	KARACAİBRAHİM MH CUMHURİYETCAD NO:97	[phone]
KOCAELİ	GEBZE	BERK SERVİS	OSMAN YILMAZ MH KIZILAY CD NO:3/A	[phone]
KOCAELİ	İZMİT	DANISTEK BIL. BILG.TEKN.IC ve DIS TIC. LTD. STI.	KÖRFEZ MH. ŞEHİT RAFET KARACABULVARI NO:14	[phone]
TEKİRDAĞ ÇORLU		WEGA ELEKTRONİK	CAMİ ATİK MH. ÇALIŞKAN SK. NO:8/A	[phone]
TEKİRDAĞ HAYRABOLU		POYRAZ TEKNİK	HISAR MH ADALET SK NO:24	[phone]
TEKİRDAĞ MERKEZ		POYRAZ TEKNİK	ORTACAMİİ MAH. SOĞUKKUYU CAD. NO:1	[phone]
YALOVA MERKEZ		EVSAN EV ALETLERİ	İSTANBUL CD. BORA SK. NO:15	[phone]
SAKARYA ADAPAZARI		ADA EKSEN ELEKTRIKELEK EV ALETTEKNIKSERVIS HIZM INS GIDA	YENIGUN MAH HASIRCILAR CAD.NO: 7/F SAKARYA	[phone]
AYDIN DİDİM		MAVI SERVİS	YENİ MAH. PINAR CADDESİ NO:3/ABERRA APT.	[phone]
AYDIN KUŞADASI		KALE SOĞUTMA	CUMHURİYET MH. DEVRİM SK.NO:16 KUŞADASI	[phone]
AYDIN MERKEZ		OBEN ELEKTRONİK	FATİH MAH. BATI AYDIN BULVARI NO:92/A	[phone]
AYDIN NAZİLLİ		MERT SOĞUTMA	ALTINTAŞ MH FEVZİ ÇAKMAK CD NO:22/A	[phone]
AYDIN SÖKE		MURAT SOĞUTMA	ÇELTİKÇİ MAH.ALBAYRAK CAD.NO:38/C SÖKE/ AYDIN	[phone]
BALIKESİR	AYVALIK	EGE ELEKTRONİK	ATATÜRK BULVARI NO:44 150 EVLER	[phone]
BALIKESİR	BANDIRMA	BAYRAM TELEVİZYON	GÜNAYDIN MH. PAZAR CD. NO:44	[phone]
BALIKESİR EDREMİT	BAYRAK TEKNİK	CAMIVASAT MAH.9.SOK NO:14/B [phone]
BALIKESİR GÖNEN BIRLIK TEKNİK			MALKOÇ MH M SEVKET CD NO: 60-D BALIKESİR GÖNEN	[phone]
BALIKESİR MERKEZ SARFAKLAR ELEKTRONİK			HACI ILBEY MAH. ANAFARTALAR CAD. NO:80/A ALTIEYLUL	[phone]
DENİZLİ CİVRİL CELINLI SERVİS			AŞAGI MAH. HUKUMET CAD. NO:1/D CİVRİL / DENİZLİ	[phone]
DENİZLİ MERKEZ MAYİAY MÜHENDİSLİK			MERKEZEFENDİ MH. 29 EKİM BULVARI NO: 37/A MAVİAY İŞ MERKEZİ MERKEZEFENDİ / DENİZLİ	---
İZMİR	ALİAĞA DEREN	TEKNİK	ESAT PAŞA MH. İKİNCİ İSTASYONALTI GEÇİDİ CAD. NO:14 MENEMEN İZMİR	[phone]
İZMİR	BERGAMA	ERTİK SOĞUTMA	MALTEPE MAHALLESİ İZMİR CADDESİ NO:157 BERGAMA-İZMİR	[phone]
İZMİR	DİKİLİ	ERTİK SOĞUTMA	İSMETPAŞA MAH 3 SOKAK NO:23/A DİKİLİ/ İZMİR	[phone]
İZMİR	KEMALPAŞA	REIS TEKNİK	SEKIZ EYLUL MH İZMİR CD NO: 80-A KEMALPAŞA İZMİR	[phone]
İZMİR	ÖDEMİŞ	YARKIN ÇINAR ELEKTRONİK	INONU MAH.KANUNI CAD. NO:8/10-A	[phone]
İZMİR	TORBALI	DİZAYN ELEKTRONİK	ERTUĞRUL MAHALLESİ MİTHATPAŞA CADDESİ 3028 SOKAK NO: 6 / 7 TORBALI / İZMİR	[phone]
İZMİR	URLA	SEZER SOĞUTMA	BÜLENT BARATALI BLV. NO:91/A URLA / İZMİR	[phone]
KÜTAHYA GEDİZ	ÇAĞDAŞ ISITMA SOĞUTMA		ÖZYURT MH.150 SK NO:9/10 GEDİZ / KÜTAHYA	[phone]
KÜTAHYA MERKEZ OSMANLI ELEKTRONİK			MİTHATPAŞA CD PANCAR KOP. YANI KONAKÇI AP.ALTI	[phone]
KÜTAHYA	SİMAV	BEYAZ SERVİS	TABAKHANE MH TABAKHANE CD NO:34	[phone]
KÜTAHYA	TAVŞANLI	KAHYAOĞLU ELEKTRONİK	DURAK MH. İKİZLER SK. NO:6	[phone]
MANİSA	AKHİSAR	YİĞİT ELEKTRONİK	ULU CAMİ MH. 50 SK. NO:117 AKHİSAR / MANİSA	[phone]
MANİSA	ALAŞEHİR	UĞUR TİCARET	SÜMER ORAL CD. NO:187 MANİSA	[phone]
MANİSA	MERKEZ	CADDE TEKNOLOJİ	MEHMETCIK CAD NO 14/7	[phone]
MANİSA	SALİHLİ	SALİHLİ TEKNİK	CUMUHRİYET MH ATA-TÜRK CD NO:194/A SALİHLİ/ MANİSA	[phone]
MANİSA	SOMA	AR-CAN TEKNİK	ADALET CD. NO:43 SOMA MANİSA	[phone]
MANİSA	TURGUTLU	SALİHLİ TEKNİK	CUMHURİYET MH ESKİ MANİSA YOLUNO.87 TURGUTLU / MANİSA	[phone]
MUĞLA	BODRUM	ŞAKİR LÜLE - HALİKARNAS TEKNİK	YOKUSBASI MAH. EMIN ANTER BULVARI NO:49/A-B BODRUM	[phone]
MUĞLA	FETHİYE	YEREKER ELEKTRONİK	ÇARŞI CD. ESKİ İTFAİYE YANI NO 302\A	[phone]
MUĞLA	MARMARİS	MOSFET ELEKTRONİK	KEMERALTI MH. 62.SK.HAYRİYE POYRAZ APT. NO:13/3	[phone]
MUĞLA	MİLAS	EMEK SOĞUTMA	FİRUZPAŞA MH. KİŞLA CD. NO:45 MUĞLA / MİLAS	[phone]
MUĞLACITY DISTRICT	ORTACAAUTHORIZED SERVICE ADDRESS TELEPHONE	BİRCAN ELEKTRONİK	CUMHURİYET CD NO:137	[phone]
UŞAK	MERKEZ	YAMALI ELEKTRONİK	İSLİCE MH.AVCILAR SK. NO:3/B	[phone]
İZMİR BALCOVA CADDE	TEKNOLOJİ İZ MİR EKREM GUER SK. NO:124	B ---
AMASYA MERKEZ BÜLENT	ELEKTRONİK	YÜZEVLER MH. AHMET PEH SK. NO:4/A AMASYA	[phone]
AMASYA MERZIFON TAŞKIN	ELEKTRONİK	HARMANLAR CAD. NO:3/B MERZİFON /AMASYA	[phone]
BARTIN MERKEZ		KIVANÇ BİLGİSAYAR ELEKTRONİK	KEMERKÖPRÜ MH.246. SK.YILMAZ APT. NO:30/1	[phone]
ÇORUM	MERKEZ	TANER ELEKTRONİK	ULUKAVAK MAH. TARAKÇI 8. SK. NO:18/A	[phone]
KARABÜK	MERKEZ STAR ELEKTRONİK	ERGENEKON MAH.FATİH CAD.ŞENTÜRK APT NO:7/1 KARABÜK	[phone]
KASTAMONU	MERKEZ	KMS SATİŞ SONRASI HİZMETLER	İSMAİLBEY MH İNEBOLU CD NO51	[phone]
ORDU FATSA		FTS ELEKTRONİK BEYAZ EŞYA SOĞUTMA SİSTEMLERİ	SAKARYA MAH. İNÖNÜ CAD. NO:53/1 FATSA / ORDU	[phone]
ORDU MERKEZ		TEKNİK ISITMA VE SOĞUTMA	YENİ MAH. ALPARSLAN TÜRKEŞ CAD: NO:33 A/1 ALTINORDU	[phone]
ORDU ÜNYE	YÜKSELEN ELEKTRONİK	KALEDERE MH. CINARLIK CAD NO:22/A UNYE	[phone]
SAMSUN	İLKADIM	BAYRAK ELEKTRONİK TAMİR BKM HİZ.SAN.TİC. LTD.ŞTİ.	ONDOKUZ MAYIS MAH. AĞABALİ CAD. NO:38 İLKADİM/SAMSUN	[phone] [phone]
SİNOP	MERKEZ DEMİR TEKNİK	KALEYAZISI MAHALLESİ AZAKLIOĞLU SK. NO : 3/1 SİNOP	[phone]
SİVAS MERKEZ SVS USTUN	TEKNİK	ECE MAH.HALİL RIFAT PAŞA CAD.ELİF APT. NO:28 SIVAS	[phone]
TOKAT	ERBAA AKAŞ TEKNİK	CUMHURİYET MH. KAYMAKAM UĞUR BORAN CAD. NO:14/1	[phone]
TOKAT	MERKEZ TEKNO CENTER KLİMA	GÜLBAHAR HATUN MAH. BEHZAT BULVARI 75/B MERKEZ/TOKAT	[phone]
ZONGULDAK	MERKEZ AYGÜN ELEKTRONİK	TERAKKİ MAH. DOKTOR OĞUZ GÜRCAN SOK. NO:12/D SOĞUKSU	[phone]
ZONGULDAK	EREĞLİ	MUFTU MAH IBRAHIM EFE CAD NO47/B	[phone]
ANKARA	ETİMESGUT	A&Y TEKNİK	ŞEKER MAH. 1408.SOK NO:3/A ETİMESGUT	---
SİIRT	MERKEZ	YÜZER ELEKTRONİK	KOOP MAH. NİHAT AYKUT CAD. No:76/2	0484 223 20 20
KONYA	MERKEZ AKMER TEKNİK	MUSALLA BAĞLARI MAH ŞEHİT AHMET DEĞERLİ SOK LEVENT 58-B SELÇUKLU /KONYA	---
MERSİN ERDEMLİ ELİT	ELEKTRONİK	AKDENIZ MAH KAZIM KARABEKIR CAD. 1010 SK NO: 5	(324) 5157913

Değerli müşterimiz,

1. Kontrol Paneli 4. Derin Tepsi
2. Standart Tepsi 5. Fırın Kapağı
   3.Tel Izgara 6.Tutamak

Raf 4

Raf 3

Raf 2

Raf 1

1. Standart Tepsi
2. Tel Izgara
3. Derin Tepsi

TEKNİK ÖZELLİKLER

Şekil 1

Şekil 2

TR

Şekil 3

TR

Şekil 4

TR

Figure 5

ÖNEMLİ UYARILAR

Şekil 6

Şekil 7*

Şekil 9

Şekil 10

Şekil 11

AKSESUARLAR

Derin Tepsi

Tepsi

Tel Izgara

Teleskobik Ray

Tel Raflar
