Oxygen 49 - MIDI Keyboard PINNACLE - Free user manual and instructions
Find the device manual for free Oxygen 49 PINNACLE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | MIDI Keyboard Controller |
| Brand | Pinnacle |
| Model | Oxygen 49 |
| Number of Keys | 49 |
| Key Type | Velocity-sensitive |
| Connectivity | USB, MIDI Out (5-pin DIN) |
| Power Supply | USB bus-powered or optional 9V DC adapter |
| Dimensions (W x D x H) | 830 x 200 x 70 mm (32.7 x 7.9 x 2.8 in) |
| Weight | 2.5 kg (5.5 lbs) |
| Included Accessories | USB cable, software download card |
| Compatible Operating Systems | Windows (7/8/10/11), macOS (10.10+), iOS (via Camera Connection Kit) |

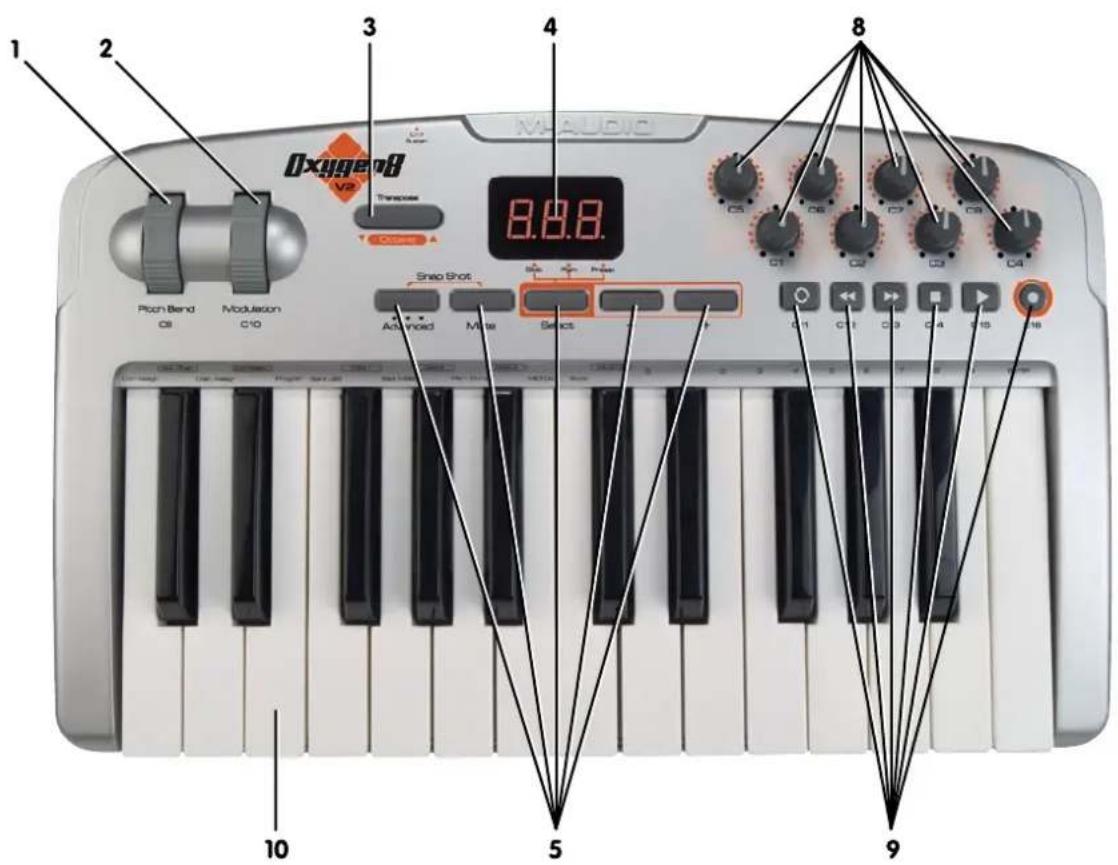

| Control Elements | Pitch Bend wheel, Modulation wheel, 8 assignable knobs, 8 assignable buttons, Transport controls, Octave shift buttons |
| Maintenance | Clean with a soft, dry cloth. Do not use solvents or abrasives. |
| Safety Precautions | Keep away from liquids. Use only USB or specified power adapter. Do not disassemble. |
| Spare Parts Availability | Individual parts are not available for repair. Contact support for service options. |
| Reparability | Not user-serviceable. Refer to qualified technician if needed. |
| Warranty | 1 year limited warranty (check local terms) |
Frequently Asked Questions - Oxygen 49 PINNACLE
How do I connect the Oxygen 49 to my computer?

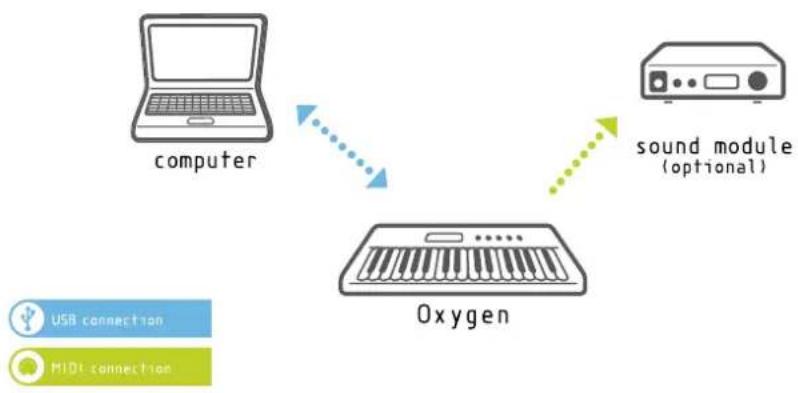

Connect the keyboard to your computer using the provided USB cable. The device should be automatically recognized by your operating system. For DAW integration, select the keyboard as a MIDI input device.
Does the Oxygen 49 work with all major DAWs?
Yes, it is compatible with popular DAWs such as Ableton Live, FL Studio, Logic Pro, Cubase, and Pro Tools. Many functions are pre-mapped for quick setup.
How can I assign the knobs and buttons to control software parameters?
Use the included software editor (e.g., Enigma or direct MIDI mapping) to assign each knob/button to a specific MIDI CC number. Alternatively, your DAW may offer learn functions.
Do I need to install any drivers?
On most systems (Windows 8/10/11, macOS), the keyboard is class-compliant and works without extra drivers. For advanced features, the Pinnacle Control Panel software may be required.
Can I use the Oxygen 49 with an iPad?
Yes, it works with iOS devices via the Apple Lightning to USB Camera Connection Kit. Some apps may require a powered USB hub to supply adequate power.
How do I reset the keyboard to factory defaults?
Hold down the + and - Octave buttons while turning on the keyboard. All settings will return to factory defaults.
What is velocity sensitivity and can I adjust it?

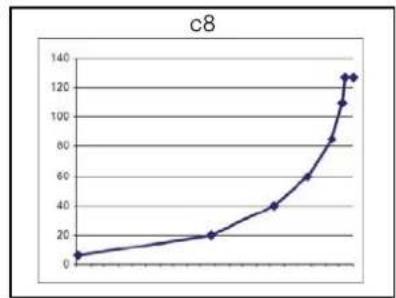

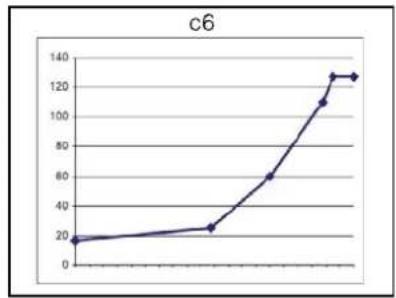

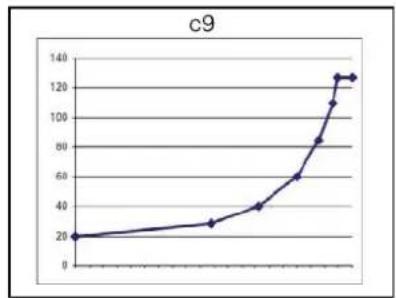

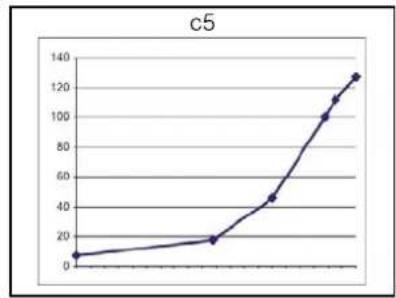

Velocity sensitivity means keys respond to how hard you press, producing louder sounds for harder presses. You can adjust the velocity curve via the editor software to match your playing style.
How do I change the octave range?
Use the Octave + and – buttons to shift the keyboard up or down by octaves. The LED display will show the current octave offset.
How can I update the firmware on my Oxygen 49?
Check the Pinnacle support website for firmware updates. Download the update utility and connect the keyboard via USB while following the on-screen instructions.
What should I do if some keys stop working?
First, perform a factory reset (hold Octave +/- while powering on). If the issue persists, check for debris under the keys. If still faulty, contact Pinnacle support for repair options under warranty.
User questions about Oxygen 49 PINNACLE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your MIDI Keyboard in PDF format for free! Find your manual Oxygen 49 - PINNACLE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Oxygen 49 by PINNACLE.
