DS-GTC-313 (Getac V110) - Docking Station Havis - Free user manual and instructions

Product Type	Docking Station
Compatible Devices	Getac V110 Fully Rugged Convertible Notebook
Model	DS-GTC-313
Brand	Havis
Dimensions (H x W x D)	2.8 x 11.8 x 11.0 inches (7.1 x 29.9 x 27.9 cm)
Weight	5.1 lbs (2.3 kg)
Power Input	19V DC (requires external power supply, not included)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 71°C (-40°F to 160°F)
Mounting	Includes mounting bracket with multiple hole patterns; requires 1/4"-20 screws (provided)
Locking Mechanism	Key lock for theft deterrence
Included Accessories	Keys (2), Mounting Bracket, Button Head Screws (9), Zip Ties (6)
Port Replication	Rearward facing ports (connectivity for USB, video, etc.)
Antenna Pass-Through (optional)	Available on DS-GTC-313-3 model for WLAN/WiFi, Cellular, GPS (SMA connectors)
Compliance	EC Declaration of Conformity per EN 50498, RoHS compliant
Safety Warning	Do not mount in airbag deployment zone; do not use computer while driving
Power Supply Requirement	Must use certified 19V DC power supply (Getac approved); do not connect directly to vehicle voltage
Battery Charging	Charges Getac V110 battery when docked; temperature range 0°C to 50°C (32°F to 122°F)
Cable Management	Strain relief points and zip ties for securing cables
Maintenance	Keep dry and clean; avoid moisture and dust
Repairability	Contact Havis for service; use only specified power supply

Frequently Asked Questions - DS-GTC-313 (Getac V110) Havis

How do I dock the Getac V110 onto the DS-GTC-313?

Ensure the docking station is unlatched. Load the front of the computer into the front hooks of the docking station. Lower the back of the computer, ensuring alignment with the locator pin. Apply light downward pressure to the rear and pull the front latching handle forward until latched.

How do I undock the computer?

If locked, use the supplied key to unlock. Depress the barrel lock to unlatch the computer. Then grasp both sides of the computer and lift it out, rear end first.

What power supply do I need?

You must use a certified, Getac approved 19V DC power supply. Suitable options include the Havis LPS-116. Do not connect directly to vehicle voltage, as this will cause damage not covered by warranty.

Can I use this docking station in a vehicle?

Yes, but install it safely away from airbag deployment zones. Do not use the computer while driving. Use an automotive-grade power supply (e.g., LPS-116 with cigarette lighter adapter).

What are the dimensions and weight?

Dimensions: 2.8 x 11.8 x 11.0 inches (7.1 x 29.9 x 27.9 cm). Weight: 5.1 lbs (2.3 kg).

Does it support antenna pass-through?

The standard DS-GTC-313 does not. The DS-GTC-313-3 model includes SMA connectors for WLAN/WiFi, Cellular, and GPS antenna pass-through.

What is included in the box?

The box includes the docking station, mounting bracket, 2 keys, 9 button head screws, and 6 zip ties.

How do I install the mounting bracket?

Attach the mounting bracket to the motion device using three 1/4"-20 x 5/8" screws (torque to 80 in-lbs). Then lower the docking station onto the bracket and secure with four screws, torqued to the same specification.

Is the docking station lockable?

Yes, it comes with two keys. Once the computer is docked, you can lock it by turning the key to prevent theft.

What is the temperature range for operation?

Operating temperature: -20°C to 60°C (-4°F to 140°F). Storage temperature: -40°C to 71°C (-40°F to 160°F).

USER MANUAL DS-GTC-313 (Getac V110) Havis

Owner's Manual Havis Docking Station for Getac V110 Convertible Notebook

DS-GTC-310 Series

Abstract geometric design with two overlapping orange and blue rectangles (no text or symbols)

3D CAD model of a black mechanical housing with yellow connectors and internal components (no text or symbols visible)

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900

www.havis.com

1-800-524-9900

Before Beginning

(Original Instructions)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-310 Series Docking Station for Getac V110 Fully Rugged Convertible Notebooks

For questions regarding the set-up of your DS-GTC-310 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-311

DS-GTC-312

DS-GTC-313

DS-GTC-315

DS-GTC-311-3

DS-GTC-312-3

DS-GTC-313-3

DS-GTC-315-3

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
  • DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT
• DOCKING OR UNDOCKING YOUR COMPUTER WHILE IN ON, STANDBY, HIBERNATION, OR SLEEP MODE CAN CAUSE SOME DEVICES TO NOT INITIALIZE PROPERLY. IF THIS OCCURS, PLEASE TURN OFF YOUR COMPUTER AND RESTART IT WHILE IT IS DOCKED.
• FOR THE DS-GTC-311, DS-GTC-311-3, DS-GTC-312, & DS-GTC-312-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-313 & DS-GTC-313-3 DOCKING STATION: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac V110 notebook requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-312/312-3/315/315-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
• WHEN NOTEBOOK IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 122°F). PLEASE REFER TO GETAC V110 OWNER'S MANUAL FOR MORE INFORMATION.

Related Products

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-310 Series Docking Station. For more information or to order, please visit www.havis.com.

LPS-116

95W Power Supply

External power supply and cable for Getac Notebooks with cigarette lighter adaptor.

DS-DA-102

Night Eyes II

In-vehicle night time viewing from six long lasting, soft true, red LED lights on a flexible steel gooseneck.

DS-DA-413

Screen Stiffener

Secure your laptop screen to prevent excess wear and reduce vibration while in use.

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-GTC-310 Series Docking Stations.

Operation - Undocking (continued)

3) Once unlatched grab both sides of computer and carefully lift out of Docking Station, rear end first.

3D rendering of a mechanical device housing with orange arrows indicating components (no text or symbols visible)

Table of Contents

Specifications 3

Parts Included 4

Port Replication Capability 5

Antenna Identification 5

Installation 6

Cable Management 7

Operation - Docking 8

Operation - Undocking 9

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS 116) with this Docking Station
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85^ircC, 185^ircF )

for a long period of time

Specifications

Power Supply Input 19V DC-In
Dimensions 2.8" (7.1 cm) H x 11.8" (29.9 cm) W x 11.0" (27.9 cm) D
Weight 5.1 lbs (2.3 kg)
Operating Environment -20°C to 60°C (-4°F to 140°F)
Storage Environment -40°C to 71°C (-40°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac V110 Fully Rugged Convertible Notebook
Model: DS-GTC-31X, where 'X' may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC)
2004/108/EC. Product family standard for aftermarket electronic equipment in vehicles
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth Iwp, MI, USA. July 30, 2014 Bruce Jonik, Director of Engineering, Havis, Inc.

Parts Included Operation - Docking (continued)

This Hardware Kit includes:

1. Zip Ties (6)
2. Keys (2)
3. 1/4"-20 x 5/8" long Button Head Screws (9)

Tools required for installation:

- 5/32" Hex Drive

(For attaching Mounting Bracket to Motion Device with Button Head 1/4"-20 Screws)

Illustration of three types of screw components: straight rods, two small blocks, and multiple screws arranged in a row (no text or symbols)

4) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2).

Mechanical component diagram showing a valve mechanism with directional arrows and lock icons (no text or labels)

Operation - Undocking
1) If previously locked, unlock Docking Station using supplied key.

Mechanical component diagram showing a valve mechanism with directional arrows and lock icons (no text or symbols)

2) Depress Barrel Lock to unlatch Docking Station from computer.

3D rendering of a mechanical component with highlighted internal structure and orange arrow indicator (no text or symbols)

Operation - Docking Port Replication Capability

CAUTION

DO NOT FORCE NOTEBOOK ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF NOTEBOOK ON DOCKING STATION.

1) Ensure the Docking Station is unlatched by pushing the Lock to release.

Mechanical component diagram showing a piston and gear assembly with directional arrows and lock icons (no text or symbols)

2) With rear of computer elevated, load front of computer into Docking Station ensuring the computer's front hook pockets align with the front hooks of the Docking Station as shown.

3D model of a mechanical device with orange annotation highlighting a component detail (no text or symbols present)

3) Lower back of computer onto Docking Station, ensuring computer properly aligns with the Locator Pin on the Docking Station. With computer seated on Docking Station, a apply light downward pressure to the rear of computer and, b pull the Front Latching Handle forward until latched.

Rearward Facing Ports

Antenna Identification (DS-GTC-311-3, DS-GTC-312-3, DS-GTC-313-3, DS-GTC-315-3)

A
B - WLAN/WIFI - 4C/CELLULAR - GPS

Laptop InterfaceAntenna Connectors (SMA)

1) Remove the Mounting Bracket from the packaging. Install the Mounting Bracket to the Motion Device using (3) 1/4"-20 x 5/8" long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%. NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors'

NOTE: We recommend applying a drop of medium strength (blue) thread locking adhesive to the threads of all fasteners.

2) Lower the Docking Station to the Mounting Bracket as shown and secure with (4) 1/4"-20 x 5/8" long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0 Nm) ± 10%.

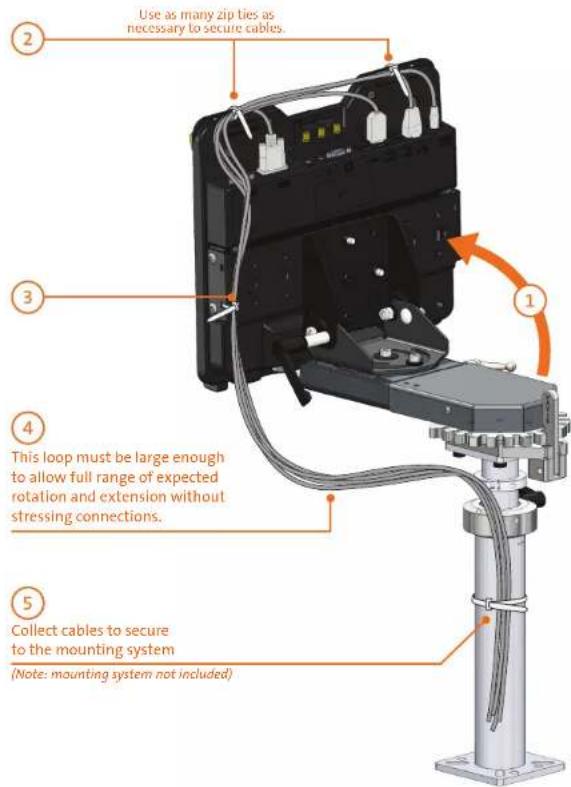

Cable Management Installation

1) Orient the Docking Station in a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs. Use Zip Ties (Hardware Kit Item 1) to strain relieve cables to the Strain Relief Points, routing all cables together to the front of the Docking Station.
3) Secure cable bundle to the Mounting Bracket with a supplied Zip Tie.
4) Create a service loop with cable bundle to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system. (Mounting system not included with Docking Station)
