Product Type	Docking Station / Connection Base
Brand	Havis
Model	PKG-DS-GTC-902-3
Compatibility	Getac K120 Tablet (also DS-GTC-901, 903, 906 series)
Dimensions (H x W x D)	11.4" x 11.9" x 3.7" (28.9 cm x 30.2 cm x 9.4 cm)
Weight	3.72 lbs (1.69 kg)
Power Supply Input	11-32 V DC (via external power supply LPS-140 or equivalent)
Power Supply Output	19 V DC, 120W (continuous, regulated)
Mounting Pattern	VESA 75 (75mm x 75mm) using 4x M4 screws
Port Replication	Yes (downward and forward facing ports)
Locking Mechanism	Barrel lock with two keys (theft deterrence)
Docking Connectors	2x docking connectors for tablet interface
Alignment	Alignment posts and sockets for secure connection
Cable Management	Strain relief points and zip ties (included)
Pass-Through Antenna	Triple pass-through antenna (optional)
Operating Temperature	-21°C to 60°C (-6°F to 140°F)
Storage Temperature	-51°C to 71°C (-60°F to 160°F)
Regulatory Compliance	CE (EN 50498), FCC Class B, RoHS
Warranty	Standard Havis warranty (refer to manual)
Included Hardware Kit	Screws, washers, lock washers, zip ties, keys (HWK-0031)
Optional Accessories	Desktop stand (DS-DA-218), power supply bracket (LPS-211), stylus holder (DS-DA-103), etc.

Frequently Asked Questions - PKG-DS-GTC-902-3 Havis

What is the Havis PKG-DS-GTC-902-3 docking station compatible with?

The PKG-DS-GTC-902-3 is designed for the Getac K120 tablet. It is part of the DS-GTC-900 series, which also supports models like DS-GTC-901, DS-GTC-903, and DS-GTC-906.

Can I connect the docking station directly to a vehicle power source?

No, do not connect directly to vehicle voltage. This product requires a certified, automotive-grade, Getac-approved 120W power source with a regulated 19VDC output, such as the Havis LPS-140 or equivalent.

How do I dock the Getac K120 tablet onto the station?

Ensure the docking station is unlatched (press and release the barrel lock button). Hold the tablet in landscape orientation with the bottom connector angled toward the dock, lower it in, then pivot the tablet flush and press the latch handle until you hear a click. For security, lock with the supplied key.

What is the proper undocking procedure?

Unlock the station if locked. Secure the tablet, then push down on the barrel lock button and release quickly. If the latch hook does not extend fully, lift it lightly. Then grab both sides of the tablet, rock the top forward, and lift out top end first.

What are the dimensions and weight of the docking station?

The dimensions are 11.4" (H) x 11.9" (W) x 3.7" (D) (28.9 cm x 30.2 cm x 9.4 cm), and it weighs 3.72 lbs (1.69 kg).

What mounting pattern does the docking station use?

It uses the VESA 75 hole pattern (75mm x 75mm). Four M4 x 0.7 x 20mm pan head screws, washers, and lock washers are included in the hardware kit.

Does the docking station include any theft deterrence?

Yes, it features a barrel lock and includes two keys to secure the tablet to the docking station.

What is the operating temperature range for the docking station?

The operating temperature is -21°C to 60°C (-6°F to 140°F). Storage temperature range is -51°C to 71°C (-60°F to 160°F).

Can I use the tablet while docked in a vehicle?

Havis warns not to use the computer while driving. Additionally, the battery will only charge when docked between 2°C and 50°C (35°F to 122°F).

Where can I find the full owner's manual or additional support?

The owner's manual is available for free download from notice-facile.com or the Havis website (www.havis.com). For support, contact Havis at 1-800-524-9900.

USER MANUAL PKG-DS-GTC-902-3 Havis

Owner's Manual Havis Docking Station For Getac K120 Tablet

Abstract graphic with orange and blue geometric shapes (no text or symbols)

DS-GTC-900 Series

3D rendering of a black Havis electronic device casing with orange logo and ports (no readable text or symbols beyond branding)

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

DS-GTC-900-SERIES_OMN_10-18

Before Beginning

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the

DS-GTC-900 Series Docking Station for the Getac K120 Tablet.

For questions regarding the set-up of your DS-GTC-900 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-901

DS-GTC-902

DS-GTC-903

DS-GTC-906

DS-GTC-901-3

DS-GTC-902-3

DS-GTC-903-3

DS-GTC-906-3

WARNING

• CUSTOMERS USING HAVIS K120 DOCKING STATIONS WITH PORT REPLICATION:

DO NOT CONNECT A SECOND POWER SOURCE DIRECTLY TO THE POWER INPUT JACK OF A DOCKED COMPUTER AS THIS MAY CAUSE DAMAGE TO THE COMPUTER OR POWER SOURCES.

- NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.

•DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

- READ A LL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT

•DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.

•FOR T HE DS-GTC-901, DS-GTC-901-3, DS-GTC-902, & DS-GTC-902-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 120W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-140 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

FOR THE DS-GTC-903, DS-GTC-903-3, DS-GTC-906 & DS-GTC-906-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac K120 Tablet requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

FOR D OCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-902, DS-GTC-902-3, DS-GTC-906, & DS-GTC-906-3) REFER TO THE SUPPLIED GETAC POWER SUPPLY REFERENCE GUIDE.

- WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 2°C to 50°C (35°F to 122°F). PLEASE REFER TO GETAC K120 TABLET OWNER'S MANUAL FOR MORE INFORMATION.

Precautions

- Do not place metal objects or containers of liquid on top of the Docking Station

- If a malfunction occurs, immediately unplug the Power Supply and remove the laptop

- Use o nly the specified Power Supply (Part # LPS-140) with this Docking Station

- Do not connect cables into ports other than what they are specified for

- Do not leave the Docking Station in a high temperature environment (greater than 85^ircC, 185^ircF ) for a long period of time

Specifications

Power Supply Input External Power SupplyLPS-140 DC-DC	INPUT11-32 V DC-In	OUTPUT19V DC
Dimensions 11.4" (28.9 cm) H x 11.9" (30.2 cm) W x 3.7" (9.4 cm) D
Weight 3.72 lbs. (1.69 kg)
Operating Environment	-21°C to 60°C (-6°F to 140°F)
Storage Environment	-51°C to 71°C (-60°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac K120 Tablet Only

Model: DS-GTC-90X, where 'X' may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive

EN 50498:2010, Electromagnetic compatibility (EMC) -

2004/108/EC:

Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU

Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Warminster, PA, USA

September 20, 2018

Bruce Jonik, Director of Engineering, Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-90X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.

Parts Included

Docking Station

Latch Hook

Barrel Lock

Docking Connectors (x2)

Alignment Posts

Pass-Through Antenna

(Triple, optional)

Strain Relief Points

3D CAD model of a mechanical part with internal structural elements and mounting holes (no visible text or symbols)

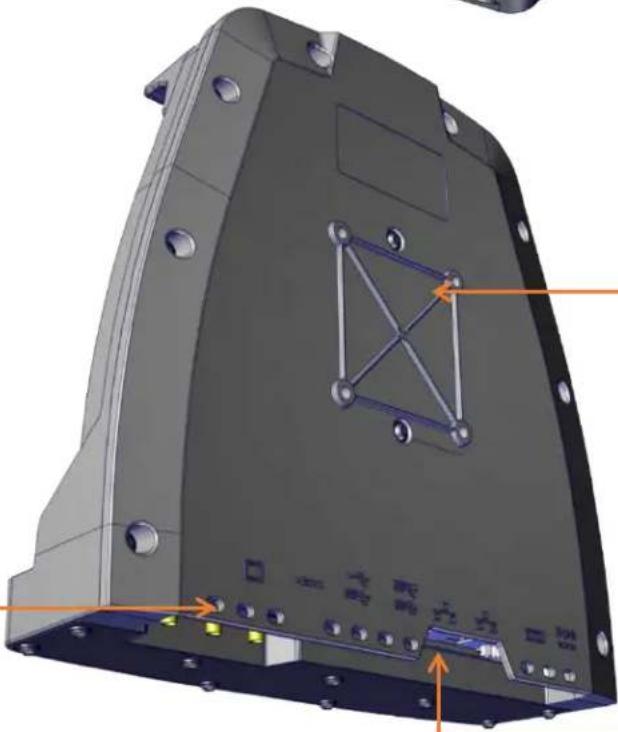

Mounting Holes

(VESA 75 Hole Pattern)

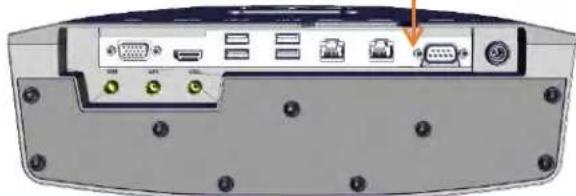

Ports

Back view of a computer monitor rear panel showing ports, connectors, and a close-up of the front panel (no visible text or labels)

Parts Included (continued)

Hardware Kit (HWK-0031)

This Hardware Kit includes:

1. Zip Ties (4)
2. Keys (2)
3. M4 x 0.7 x 20mm long Pan Head Screws (5)
4. Split Lock Washers (5)
5. Washers, M4 (5)

Tools required for installation:

• #2 Phillips (For M4 Pan Head Screws)

①

Five black cylindrical pins arranged diagonally (no text or symbols visible)

②

③

④

⑤

Antenna Identification

Antenna Connectors (SMA) Tablet Interface

Port Replication Capability

Downward Facing Ports

Forward Facing Ports

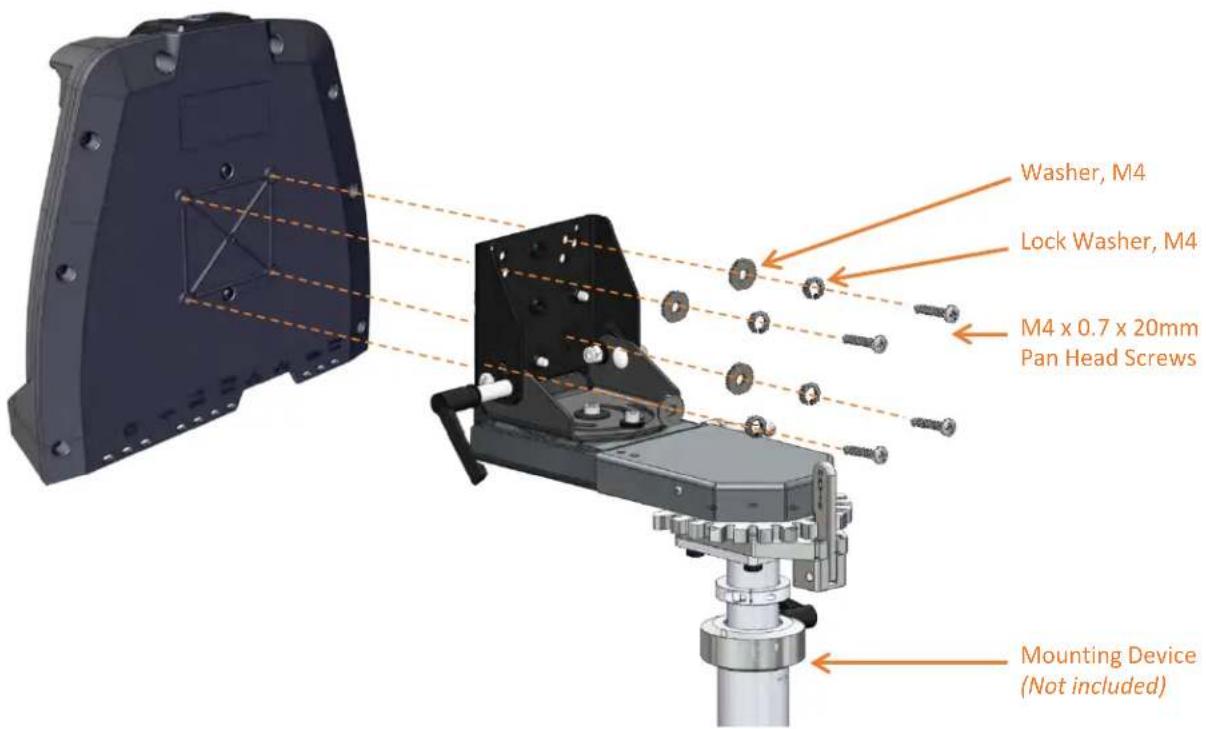

1) Align Docking Station mounting holes with the hole pattern on mounting device. Using the four (4) M4 0.7 x 20mm Pan Head Screws (Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%

A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218).

B) In-Vehicle mounting system installation (not included).

Cable Management

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.
3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects.

Back panel of a computer or electronic device showing internal components and wiring (no visible text or symbols)

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

Operation - Docking

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

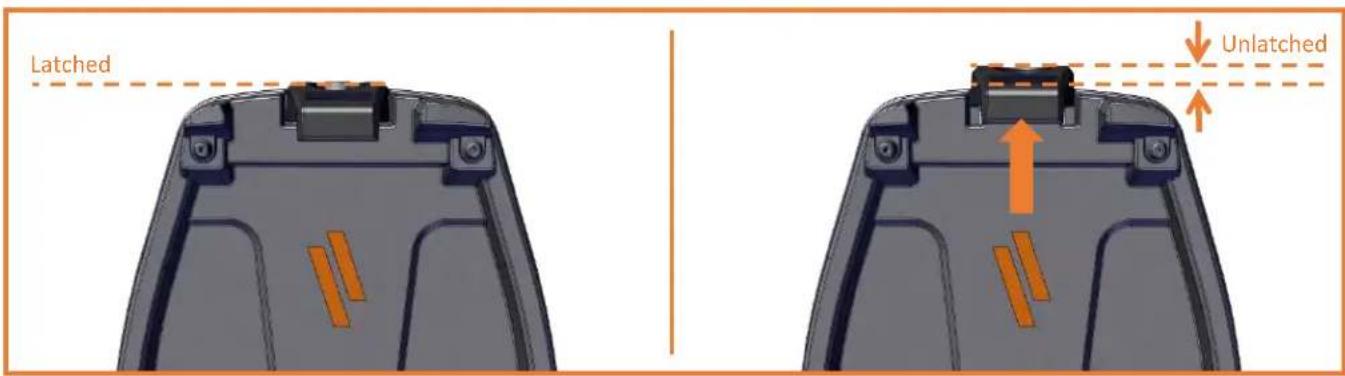

1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly.

3D model of a mechanical component with orange tool inserted, no visible text or symbols

Operation - Docking (continued)

2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station.

3D model of a Havis device with orange arrow indicating compression or disassembly (no text or symbols on the device itself)

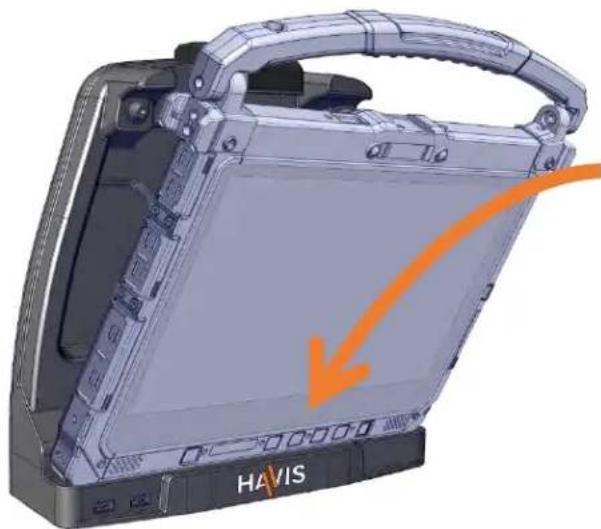

3) Pivot tablet so it sits flush in the Docking Station and hold while depressing the Latch Handle to secure tablet in place. You will hear an audible click when Latch Hook is fully engaged.

3D rendering of a Havis device with orange arrow indicating motion (no text or symbols on the device itself)

3D rendering of a Havis device with an orange arrow pointing to a component, no text or symbols present.

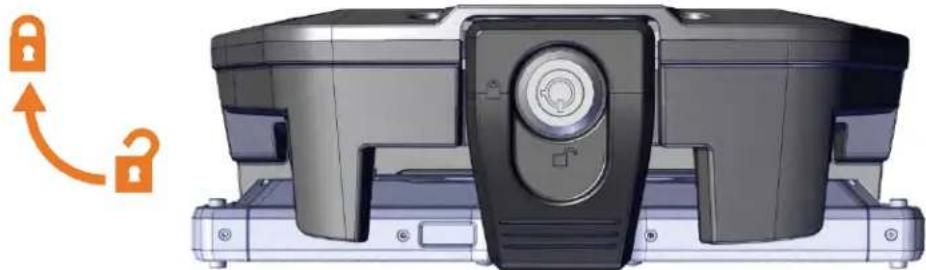

4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).

3D model of a mechanical device with a lock icon and orange arrow indicating rotation (no text or symbols)

Operation - Undocking

1) If previously locked, unlock Docking Station using supplied key.

3D model of a mechanical device with a lock icon and orange arrow indicating a lock mechanism (no text or symbols present)

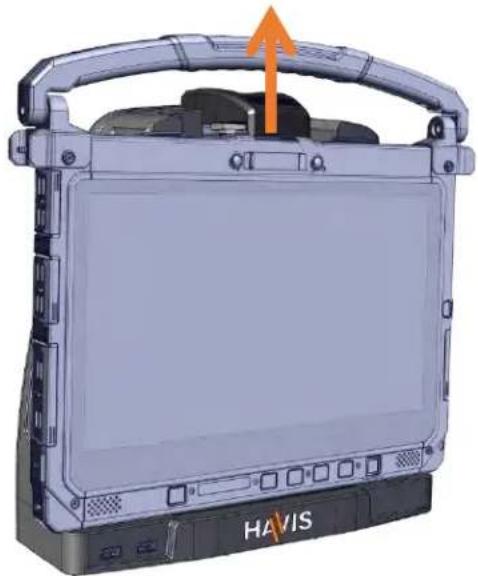

2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release.

3D rendering of a HAVIS electronic device with a handle and control panel, showing no text or symbols on the device itself.

3D rendering of a Havis electronic device with an orange arrow pointing to the top panel (no text or symbols on the device itself)

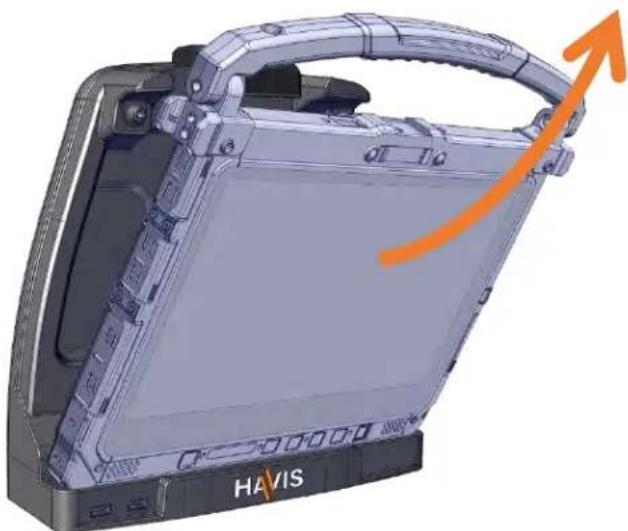

3) Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first.

3D model of a HAVIS device with an orange arrow indicating upward motion (no text or symbols on the device itself)

Related Products

Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com.

LPS-140

120W Power Supply

External in-vehicle power supply and cable for Getac K120

Tablet with cigarette lighter adaptor.

Mechanical component with two mounting holes and four bolts (no text or symbols visible)

LPS-211

Power Supply Mounting Bracket

Mount a power supply directly to your Docking Station with this versatile bracket.

DS-DA-103

Stylus Holder

Secure a wide array of styluses to your Docking Station.

Metal bracket with four circular holes, no text or symbols visible

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

DS-DA-102

USB Powered Keyboard Light

Soft red LED light illuminates the laptop keyboard for night viewing.

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-GTC-900 Series Docking Stations.
