AAW-10CR1FHUE - Air-conditioner Admiral - Free user manual and instructions
Find the device manual for free AAW-10CR1FHUE Admiral in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Window Air Conditioner |
| Brand | Admiral |
| Model | AAW-10CR1FHUE |
| Cooling Capacity | 10,000 BTU/h |
| Recommended Area | Up to 30 m² |
| Dimensions (Width x Height x Depth) | 45 cm x 35 cm x 45 cm |
| Weight | 30 kg |
| Power Supply | 115 V, 60 Hz |
| Power Consumption | 900 W |
| Main Functions | Cooling, dehumidification, fan only, auto mode |
| Remote Control | Included |
| Air Filter | Washable and reusable |
| Noise Level | 55 dB |
| Refrigerant | R-410A |

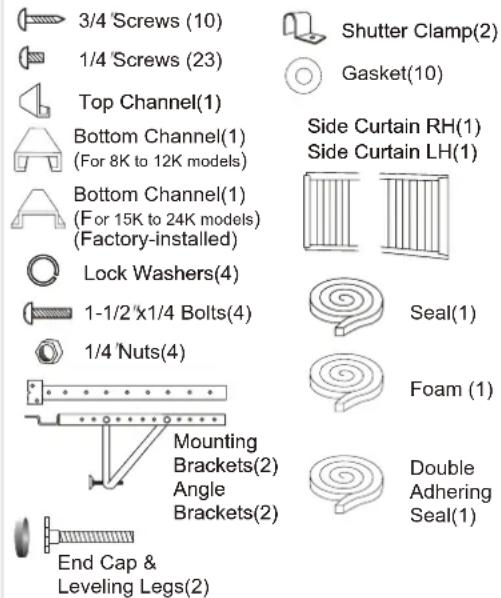

| Installation | Window installation, mounting kit included |
| Filter Cleaning | Every 2 weeks |
| General Maintenance | Clean coils and drain annually |
| Safety | Auto shut-off on overload, frost protection |
| Available Spare Parts | Filters, remote control, drain hose |
| Repairability | Authorized technical support, service manual available |
| Warranty | 1 year |
Frequently Asked Questions - AAW-10CR1FHUE Admiral

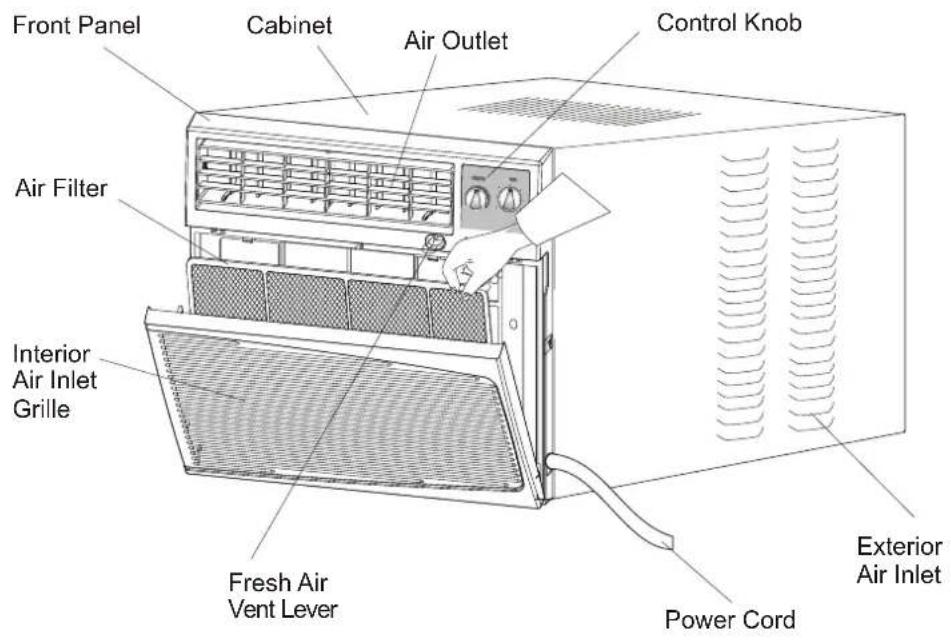

How do I clean the filter of the Admiral AAW-10CR1FHUE air conditioner?
Turn off and unplug the unit. Remove the front panel and take out the filter. Wash it with warm water and mild soap, dry it completely, and reinstall it. Cleaning is recommended every two weeks.
What does error code E1 on my Admiral AAW-10CR1FHUE mean?
Code E1 indicates a problem with the room temperature sensor. Check that airflow is not obstructed and clean the filter. If it persists, contact technical support.
Can I use the air conditioner without the remote control?

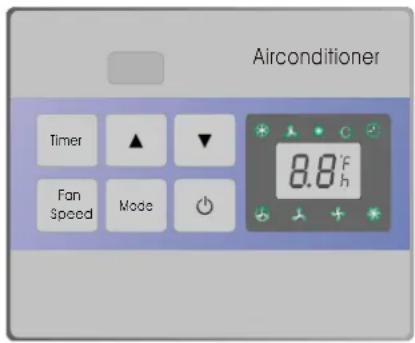

Yes, the front panel has manual control buttons for power on/off, mode, and temperature. However, the remote control offers more options like timer.
How do I set the shut-off timer?
With the remote control, press the 'Timer' button and adjust the desired time using the +/- buttons, then press 'OK'. The unit will turn off automatically.
What should I do if the air conditioner is not cooling enough?
Check that the filter is clean, that there are no obstructions at the air intake/outlet, and that the unit is properly sized for the room. Also check the thermostat setting.
How do I drain water from the Admiral AAW-10CR1FHUE?
The unit automatically removes condensation via a splash system. In very humid climates, you can use the included drain hose for continuous drainage.

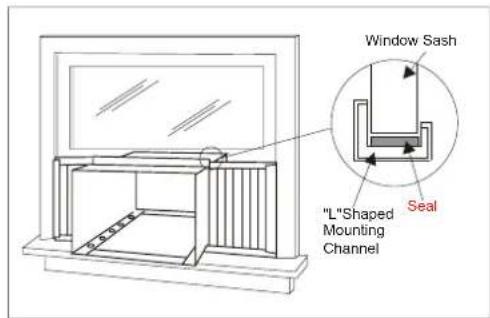

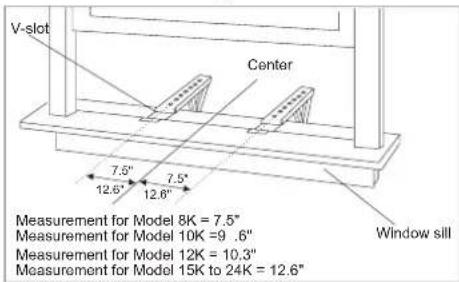

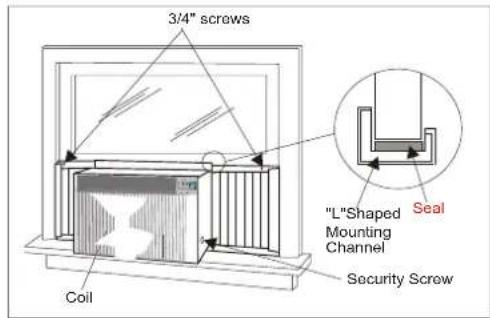

Is it necessary to install the air conditioner in a window?
Yes, this model is designed for window installation. It includes a support and sealing kit. Follow the manual instructions for safe installation.
Which fan mode is most efficient?
'Auto' mode adjusts fan speed based on room temperature. To save energy, use 'Eco' or 'Energy Saver' mode if available.
How do I reset the air conditioner after a power outage?
The unit automatically restarts with the previous settings. If it does not work, unplug it for 5 minutes and plug it back in.
Where can I find replacement parts for my Admiral AAW-10CR1FHUE?
You can purchase spare parts such as filters and remote controls at appliance stores or directly from Admiral customer service. Check the spare parts page on their website.
