USER MANUAL RU-050505 Recom

• Twin independent outputs
  • 1kVDC or 2kVDC input/output basic isolation
  • 1kVDC output/output isolation
  • Power sharing on outputs
  • Standard and miniature versions
• Optional continued short circuit protected
  • Efficiency up to 76%
  • Efficiency up to 76%

Unregulated

Converters

Description

The RU DC/DC converter offers two independent isolated outputs. Typical applications include multiple channel circuits where inter-channel isolation is also required. The RUM offers similar specifications in a miniature case for applications where space is at a premium. Both converters offer 1KVDC input/output isolation and 1kVDC output/output isolation. The /H versions offer 2kVDC isolation between input and outputs.

Selection Guide
Part nom. Input Output Output Output Efficiency max. Capacitive Number Voltage Voltage V1 Voltage V2 Current typ.

	[VDC]	[VDC]	[VDC]	[mA]	[%]	[μF]
RU-3.30505 (3,4)	3.3	5	5	100/100	76	470/470
RU-050505 (3,4)	5	5	5	100/100	72	470/470
RUM-3.30505 (3,4)	3.3	5	5	100/100	78	470/470
RUM-050505 (3,4)	5	5	5	100/100	72	470/470

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient
Note2: Max Cap Load is tested at nominal input and full resistive load and is defined as the capacitive load that will allow start up in under 1s without damage to the converter

Model Numbering

Notes:

Note3: standard part is without continuous short circuit protection

add suffix „/P“ for continuous short circuit protection

Note4: add suffix „/H“ for 2kVDC isolation

or add suffix „/HP“ for 2kVDC isolation and continuous short circuit protection

Ordering Examples:

RU-050505/P= 5V Input Voltage, 5V Output Voltage (V1VDC), 5V Output Voltage (V2VDC) with continuous short circuit protection

RUM-3.30505/HP=12V Input Voltage, 24V Output Voltage (V1VDC), 24V Output Voltage (V2VDC) with

2kVDC isolation and continuous short circuit protection

RU/RUM

1 Watt

SIP7

Isolated

Dual Output

IEC60950-1 certified

EN60950-1 certified

Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)

BASIC CHARACTERISTICS

Parameter Condition Min. Typ. Max.
Input Voltage Range ±10%
Minimum Load (5)			0%
Internal Operating Frequency			20kHz 70kHz	105kHz
Output Ripple and Noise 20MHz BW		RU RUM			75mVp-p 100mVp-p

Notes:

Note5: Operation below 10% load will not harm the converter, but specifications may not be met

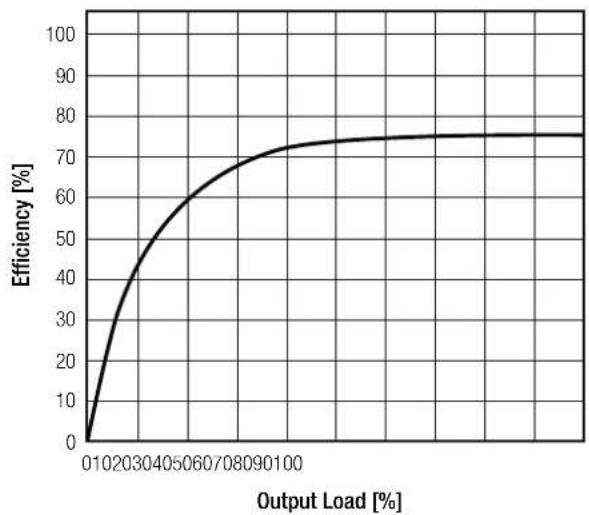

Efficiency vs. Load

REGULATIONS

Parameter	Condition		Value
Output Accuracy			±5.0% max.
Line Regulation	low line to high line		±1.2% of 1.0% Vin typ.
Load Regulation	10% to 100% load	3.3, 5Vout12, 15, 24Vout	15.0% max.10.0% max.

Deviation vs. Load

continued on next page

Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)

PROTECTIONS

Parameter Type Value
Short Circuit Protection (SCP)	without suffixwith suffix "/P"			1 secondcontinuous
Isolation Voltage ®	I/P to O/P	without suffix	tested for 1 secondrated for 1 minute	1kVDC500VAC / 60Hz
		with suffix"/H"	tested for 1 secondrated for 1 minute	2kVDC1kVAC / 60Hz
	O/P1 to O/P2 tested for 1 second 1kVDC
Isolation Resistance 10G				Ω min.
Isolation Capacitance 20pF min. / 94pF max.
Insulation Grade basic

Notes:
Note6: For repeat Hi-Pot testing, reduce the time and/or the test voltage
Note7: Refer to local wiring regulations if input over-current protection is also required. Recommended fuse: T1A slow blow type

ENVIRONMENTAL

Parameter Condition			Value
Operating Temperature Range full load @ free air convection (see graph) -40°C to + 85°C
Operating Altitude 2000m
Operating Humidity non-condensing 95% RH max.
Pollution Degree			PD2
MTBF	according to MIL-HDBK-217F, G.B.	+25°C+85°C	1012 × 10^3 hours 151 × 10^3 hours

Derating Graph

(@free air convection)

SAFETY AND CERTIFICATIONS

Certificate Type (Safety)	Report / File Number	Standard
Information Technology Equipment, General Requirements for Safety	1602031	IEC60950-1:2005, 2nd Edition + A2:2013EN60950-1:2006 + A2:2013
EAC	RU-AT.49.09571	TP TC 004/2011
RoHs 2+		RoHS-2011/65/EU + AM-2015/863

Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)

DIMENSION AND PHYSICAL CHARACTERISTICS

Parameter Type Value
Material	case	non-conductive black plastic (UL94 V-1)
	potting	epoxy, (UL94 V-0)
	PCB	FR4, (UL94 V-1)
Package Dimension (LxWxH)	RU	19.65 x 7.0 x 10.2mm
	RUM	16.55 x 6.0 x 7.7mm
Package Weight 2.7g typ.

Dimension Drawing (mm)

RU

SIP7 Package

Recommended Footprint Details

Pinning information

Pin # Single

1 +Vin

2 -Vin

4 +Vout 1

5 -Vout 1

6 +Vout 2

7 -Vout 2

Tolerance:

xx.x=±0.5mm

xx.xx=±0.25mm

RUM

SIP6 Package

Recommended Footprint Details

Pinning information

Pin # Single

1 +Vin

2 -Vin

3 +Vout 1

4 -Vout 1

5 +Vout 2

6 -Vout 2

Tolerance:

xx.x=±0.5mm

xx.xx=±0.25mm

Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)

INSTALLATION AND APPLICATION
Typical Application

PACKAGING INFORMATION
Parameter Type Value
Packaging Dimension (LxWxH) tube 520.0 x 16.0 x 9.0mm
Packaging Quantity tube		RU RUM	25pcs 30pcs
Storage Temperature Range -55°C to + 125°C
Storage Humidity 95% RH max.
