Product Type	Commercial Blender
Model	BB900P
Brand	Waring Commercial
Jar Capacity	64 oz (1.9 L)
Jar Material	Polycarbonate
Blade Material	Stainless Steel
Motor Power	1200 W
Voltage	120 V, 60 Hz
Speed Settings	Variable with Pulse
Control Type	Push-button and Dial
Dimensions (H x W x D)	20 x 8 x 8 inches
Weight	12.5 lbs
Cord Length	6 ft
Safety Features	Overload Protection, Non-slip Feet
Dishwasher Safe Parts	Jar, Lid, Blade Assembly
Certifications	NSF, UL
Warranty	1 Year Limited
BPA Free	Yes
Usage	Commercial Heavy-Duty

Frequently Asked Questions - BB900P Waring Commercial

What is the maximum capacity of the BB900P blender jar?

The jar has a capacity of 64 oz (1.9 L), suitable for large batches of smoothies, soups, or sauces.

Can the blender jar be washed in a dishwasher?

Yes, the polycarbonate jar, lid, and blade assembly are all dishwasher safe for easy cleaning.

What type of blender is the BB900P?

It is a commercial heavy-duty blender designed for continuous use in bars, restaurants, and cafes.

How do I clean the blender base?

Unplug the blender and wipe the base with a damp cloth. Do not immerse in water or use abrasive cleaners.

Does the BB900P have variable speed control?

Yes, it features variable speed control with a dial and a pulse function for precise blending.

What is the wattage of the motor?

The motor is rated at 1200 W, providing powerful blending for ice, frozen fruits, and tough ingredients.

Is the blender jar made of glass or plastic?

The jar is made of high-impact polycarbonate, which is shatter-resistant and lightweight.

What safety features does the BB900P include?

It includes overload protection to prevent motor burnout and non-slip feet for stability during operation.

Can I blend hot liquids in this blender?

Yes, the polycarbonate jar is heat-resistant up to 212°F (100°C), but allow hot liquids to cool slightly before blending to avoid pressure buildup.

Does the blender come with a warranty?

Yes, it includes a 1-year limited warranty against defects in materials and workmanship.

USER MANUAL BB900P Waring Commercial

Container with Blending Assembly (on units after 5/3/2013)
503403 Container with Blending Assembly (on units after 4/3/2012)
500210 Container with 007314 Blending Assembly

500664 2 Piece Lid

Container with Blending Assembly

2 Speed Bar Blenders
BB900G glass container
BB900P plastic container
BB900S stainless steel container

Marked for Deletion BB900M (on 10/13/2003) BB900P with Boku nameplate

500665 2 Piece Lid (center lid 011700)

007314W Blending Assembly
500757 Container with Blending Assembly 500750 Container with Blending Assembly and Lid

Page 2 of 5 Revised January 6, 2022

Base Unit Components

BB900G

glass container

BB900P

plastic container

BB900S

stainless steel container

Marked for Deletion

BB900M (on 10/13/2003)

BB900P with Boku nameplate

Illustration# Part# Description

1 003146 Center Lid

2 003574-09

Clover Leaf Outer Lid

(changed after 3/19/2007)

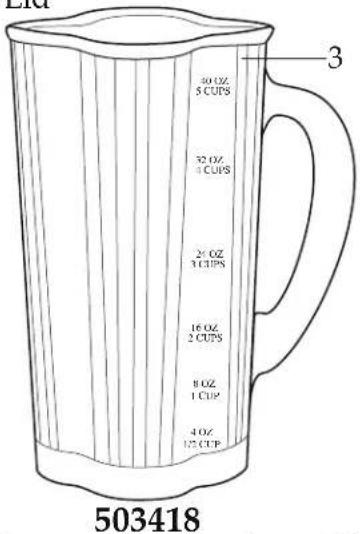

3 003573 40 oz. Glass Container

4

011700

Center Lid

5

013442

Outer Lid

6

027862

Cap Nut (on units after 7/2/2021)

003504 Cap Nut

7

024203

Blade (changed after 2/12/2002)

8 014846 Bearing Cap

9

003601

Shaft

10

002903

Rubber Washer

11

009778

Bearing Holder

12

009724

Nylon Washer

13

003537

Stainless Steel Washer

Waring Factory Service Center

314 Ella T. Grasso Ave.

Torrington, CT 06790

Tele. 1-800-269-6640

Fax [phone]

www.waringcommercialproducts.com

14

003509

Neoprene Washer (2 required)

15

014549-E

48 oz. Eastman Container (changed after 6/23/2011)

16

015055

Container Adapter

17

009780

Hex Nut

18

003526

Phenolic Washer

19

006937

Stainless Steel Washer

20

003138

Coupling

21

013443

Outer Lid

22

012860

32 oz. Stainless Steel Container

23

009762

Gasket

24

014009

Coupling

25

033058-09

Jar Pad (on units after 4/3/2012)

003137-09

Use 033058-09S

26

007967

Jar Pad Stud (4 required)

27

035756

Cap Washer (on units after 10/12/2017)

28

017289

Plated Top Cover

29

012752

Seal

(4 required)

30

012751

Alum Spacer (4 required)

31

015165

Whizlock Nut (4 required)

Catalog

Model

(units after 3/31/2010) (units after 2/1/1999)

BB900G WF2111211 51BL20 33BL78

BB900P WF2111215 51BL21 34BL62

BB900S WF2111213 51BL20 33BL78

BB900M Marked for Deletion 39BL55

Illustration# Part# Description

32 032645 Housing Seal (on units after 10/12/2017)

018594 Housing Seal

33 038087 Spacer (4 required on units after 11/26/2020)

34 038105 Base with 014899 Name Plate Attached 014790-B-CHM Base (on units after 11/26/2020) 014790-A-CHM Bright Chrome Base ONLY (changed after 4/3/2012)

35 009051 Wire Nut (1 required on units after 8/5/2004) - (2 required)

36 013731 Cable Tie

37 501162 Cord Set (on units after 6/25/2008) 003565 Cord Set (on units after 9/4/2002) 500830 Cord Set

38 016041 Strain Relief (on units after 10/12/2017) 013680 Strain Relief (on units after 8/4/2008) 016041 Strain Relief

39 002676 Alum Spacers (4 required)

40 035309 Chiaphua Motor (on units after 10/12/2017) 027255 ECM Motor (changed after 8/5/2004)

41 002943 Ground Washer

42 027278 Ground Screw (on units after 4/3/2012) 013659 Ground Screw

43 029355 Switch (on units after 6/30/2009) 026800 Use 029355 (changed after 7/29/2003) 012698 Switch

44 012703 Switch Seal (boot)

45 028532 Plastic Bottom Plate ONLY (on units after 10/12/2017) 503470 Plastic Bottom Plate Assembly with Cord (on units after 10/12/2017) 027790 Metal Bottom Plate ONLY (on units after 8/4/2008) 503011 Metal Bottom Plate Assembly with Cord Set (on units after 8/4/2008) 502974 Plastic Bottom Plate Assembly with Cord Set (on BB900G & P after 8/5/2004) ( on BB900S after 4/1/2005 ) 026151 Plastic Bottom Plate ONLY 502776 Plastic Bottom Plate Assembly with Cord Set

46 035531 Foot (3 required on units after 10/12/2017) 503376 Screw & Foot Assembly (3 required on units after 5/12/2010) 002891 Foot (3 required on units after 8/4/2008) 024645 Foot (3 required plastic bottom plates)

47 013659 Screw (3 required on units after 10/12/2017) 003569 Screw (on units after 8/4/2008 use 503376) 013659 Screw (3 required plastic bottom plates)

48 003532 Rivet (2 required)

Waring Factory Service Center

314 Ella T. Grasso Ave.

Torrington, CT 06790

Tele. 1-800-269-6640

Fax [phone] www.waringcommercialproducts.com

Catalog

Model

(units after 3/31/2010) (units after 2/1/1999)

BB900G

WF2111211

51BL20

33BL78

BB900P

WF2111215

51BL21

34BL62

BB900S

WF2111213

51BL20

33BL78

BB900M

Marked for Deletion

39BL55

Parts No Longer Used

003563
Baffle

(on units with ECM motors)

025628
Brush & Spring
(2 required)

(on units with ECM motors)

Hex Nut

(BB900P units before 2/14/2003 & All BB900M)

Cable Clamp

(BB900P units before 2/14/2003 & All BB900M)

Screw

(BB900P units before 2/14/2003 & All BB900M)

Lead Assembly with 003262-Diode

(on units before 1/3/2004)

502874

Lead Assembly with 003262-Diode

(for BB900M and BB900 (on units before 4/1/2005)

002962
Clamp Screw

(BB900G & S units before 2/14/2003)

016211
Foot Plug

(3 required for BB900M & BB900P units before 2/14/2003)

016410
Clamp Stain Relief

(BB900G & S units before 2/14/2003)
