Type Eurorack Power Supply Module
Brand Endorphin.es
Model Power
Category Audio Module
Form Factor 8 HP Eurorack
Power Output +12V, -12V, +5V
Current Ratings +12V: 1.5A, -12V: 1.5A, +5V: 1A
Protection Reverse polarity, overcurrent, short circuit
Connections Eurorack bus board header (16-pin), power input (2.1mm DC jack)
LED Indicators Power on (green) for each rail
Dimensions 40.4 mm (W) x 128.5 mm (H) x 25 mm (D)
Weight 80 g (approx)
Power Input 12V DC, 2.1mm center positive, >2A recommended
Included Accessories Power ribbon cable, mounting screws
Compliance CE, RoHS
Warranty 2 years limited
Maintenance Keep clean, avoid liquids, check connections periodically
Safety Use only with approved power supply, do not expose to moisture

Frequently Asked Questions - Power Endorphin.es

What is the Endorphin.es Power module?
The Endorphin.es Power is a Eurorack power supply module that provides stable +12V, -12V, and +5V rails to power your modular synthesizer system.
How do I install the Power module in my Eurorack case?
Mount the module using 2 M3 screws, connect the included ribbon cable to your bus board (observe red stripe for -12V), and plug in the power supply.
What power supply should I use with the Power module?
Use a 12V DC power supply with a 2.1mm center positive plug, rated at least 2A. We recommend a regulated supply for best performance.
Can the Power module supply enough current for a large system?
The module provides up to 1.5A on +12V, 1.5A on -12V, and 1A on +5V. For larger systems, you may need additional power modules.
What do the LEDs on the Power module indicate?
Green LEDs indicate that the corresponding rail (+12V, -12V, +5V) is powered and functioning correctly.
Is the Power module protected against reverse polarity?
Yes, the module includes reverse polarity protection to prevent damage if the power supply is connected incorrectly.
Can I use the Power module with a Eurorack case that has a built-in power supply?
The Power module is designed as a standalone supply. You can use it to add extra power or as a replacement, but check compatibility with your case's bus board.
How do I clean and maintain the Power module?
Keep the module dry and dust-free. Use a soft brush or compressed air to clean the PCB. Avoid using liquids.
What is the depth of the Power module?
The module is 25mm deep, making it compatible with most Eurorack cases including skiffs.
Where can I find the user manual for the Power module?
You can download the manual for free from notice-facile.com in PDF format. It includes installation instructions, specifications, and troubleshooting tips.

User questions about Power Endorphin.es

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Audio module in PDF format for free! Find your manual Power - Endorphin.es and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Power by Endorphin.es.

USER MANUAL Power Endorphin.es

DC power input from adopter or power bank Module will provide +/-12V at its backside pin connector Multiple Input: Signal plugged in the first jack will be multiplied (available, splitted) to lower 2 as well as most lower two jacks mult in* Status LED: • Pink: both +12V and -12V work (normal operati…

2HP POWER

  • Portable 2hp power module with dual passive mults – for compact cases
    12-20VDC
    (2.1 or 2.5mm / 5.5 mm DC barrel, PSU not included)
    • Delivers up to 1A from +12V,
    • Delivers up to 650mA from -12V via flying busboard

Depth: 42mm (with plugged ribbon cable)

Included flying ribbon cable busboard: approx. 40 cm Number of female sockets [to the bus]: 2

Number of male (bus) sockets to power modules: 5

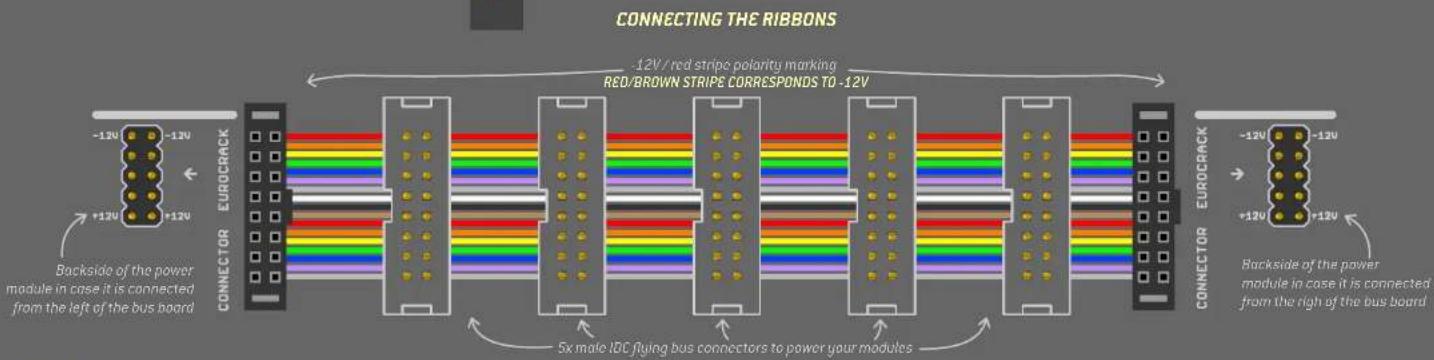


WARRANTY

RTFM – be so kind and read the manual. It will provide you with the information you need to fully indulge the module you just purchased – for which we like to thank you.

Enjoy your sound experiences, dear sonic traveller.

Beginning from the product's purchase date a 1-year warranty is guaranteed for each product in case of any manufacturing errors or other functional deficiencies during runtime.

The warranty does not apply in case of:

• damage caused by misuse
- mechanical damage arising from careless treatment (dropping, vigorous shaking, mishandling, etc.)
• damage caused by liquids or powders penetrating the device
- heat damage caused by overexposure to sunlight or heating
■ electric damage caused by improper connecting

The warranty covers replacement or repair, as decided by us. Please contact us via email for a return authorization before sending anything. Shipping costs of sending a module back for servicing is paid by the customer.

Device complies with all EU regulations concerning RoHS lead-free manufacturing and WEEE disposal

Endorphin.es are made in Barcelona, Spain

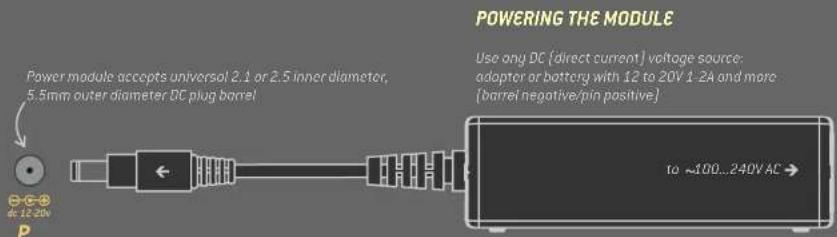

POWERING THE MODULE Use any DC (direct current) voltage source: adopter or battery with 12 to 20V 1-2A and more (barrel negative/pin positive) to ~100...240V AC → Power module accepts universal 2.1 or 2.5 inner diameter, 5.5mm outer diameter DC plug barrel AC 12-20V P

Recommended PSU model: Mean Well GST90A12-P1M 6.5A 12V Recommended battery model: Vinsic 3000GmAh Power Bank 4.5A 19V

Visit us:

http://endorphin.es

https://youtube.com/user/TheEndorphines

https://facebook.com/TheEndorphines

https://www.instagram.com/endorphin.es/

Drop us a line:

info@endorphin.es

FURTH BARCELONA, S.L.

VAT ID:ES B66836487

ENDORPHIN.ES® - POWER

Module design by Andreas Zhukovsky

Collection Spring/Summer 2019

Made in Barcelona

Follow, like, post and tag us at instagram:

● endorphin.es

or contact us:

info@endorphin.es
