DPT420KR-3 - Drink dispenser Micro Matic - Free user manual and instructions

Product Type	Draft Beer Tower
Model	DPT420KR-3
Number of Faucets	20
Finishes Available	Polished Stainless Steel (DPT420PSSKR-3) and PVD Brass (DPT420PVDKR-3)
Dispense System	Kool-Rite (Glycol) Integrated Module
Beer Contact Material	All Stainless Steel (316 grade for purity)
Dimensions (L x W x H)	1168 mm x 940 mm x 406 mm (46" x 37" x 16")
Shipping Weight	26 kg (66 lbs)
Beer Line Type	6.4 mm (1/4") O.D. Stainless Steel with 6.4-9.5 mm (1/4-3/8") Tapered Barb Fittings
Cooling System	Kool-Rite Module ensures optimum cooling at point of dispense
Installation	Plug 'N' Pour – simplified installation process
Certifications	NSF Certified (National Sanitation Foundation)
Warranty	Refer to manufacturer's warranty documentation
Recommended Use	High-volume commercial bars and establishments
Maintenance	Regular cleaning of faucets and lines; exterior wipe down with mild detergent
Spare Parts Availability	Contact Micro Matic for replacement faucets, fittings, and Kool-Rite modules

Frequently Asked Questions - DPT420KR-3 Micro Matic

What is the DPT420KR-3 draft tower used for?

The DPT420KR-3 is a commercial-grade draft beer tower designed for high-volume dispensing, featuring 20 faucets and an integrated Kool-Rite glycol cooling system.

What finishes are available for this model?

It comes in two finishes: Polished Stainless Steel (DPT420PSSKR-3) and PVD Brass (DPT420PVDKR-3).

How does the Kool-Rite cooling system work?

The Kool-Rite module uses glycol to provide optimum cooling at the point of dispense, ensuring beer is served at the ideal temperature.

What are the dimensions and weight of the DPT420KR-3?

Dimensions are 1168 mm x 940 mm x 406 mm (46" x 37" x 16") and it weighs 26 kg (66 lbs) when shipped.

Is the DPT420KR-3 certified for sanitation?

Yes, it is NSF Certified by the National Sanitation Foundation, ensuring it meets strict public health standards.

What type of beer lines does it use?

It uses 6.4 mm (1/4") O.D. stainless steel lines with tapered barb fittings sized from 6.4 mm to 9.5 mm (1/4" to 3/8").

How many faucets does the DPT420KR-3 have?

It is a double service tower with 20 faucets, allowing simultaneous dispensing of multiple beer varieties.

Is installation complicated?

No, the Kool-Rite module is designed for Plug 'N' Pour installation, making it as simple as connecting a few components.

What maintenance is required?

Regularly clean the faucets and beer lines. Exterior surfaces can be wiped with a mild detergent. Refer to the manual for detailed cleaning instructions.

Where can I find spare parts or repair service?

Contact Micro Matic directly at 1-866-327-4159 or visit their website for replacement parts like faucets, fittings, and Kool-Rite modules.

USER MANUAL DPT420KR-3 Micro Matic

• Variety and fast service from both sides of the tower.
• The draft tower is a marketing tool, not just a bar fixture.
• Exterior finish will provide years of durable service.
• All stainless steel contact with the beer for the ultimate in draft purity.

3D rendering of a stainless steel-colored tap闸板 (no text or symbols visible)

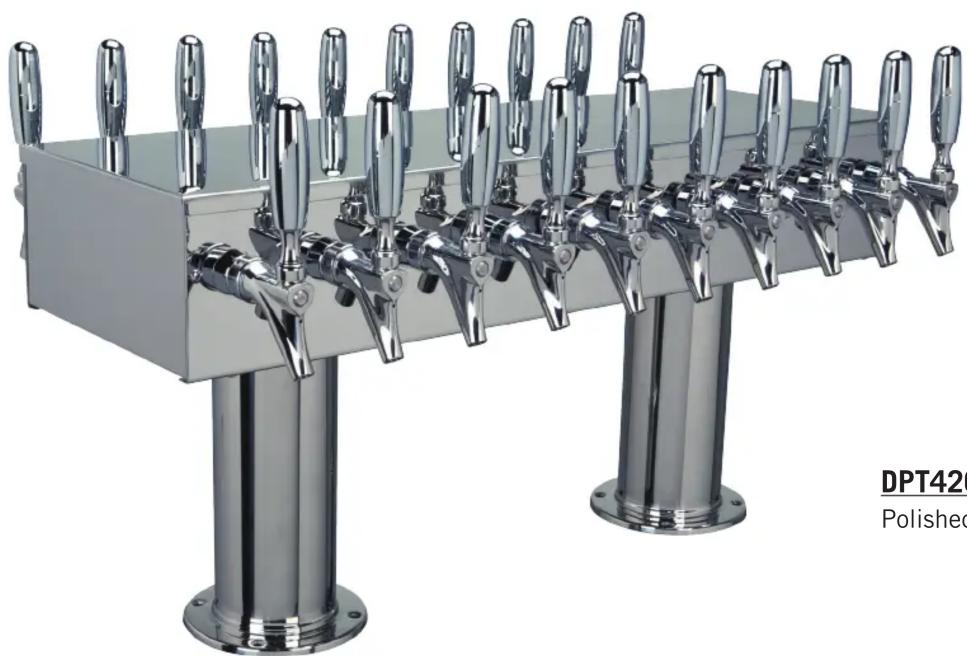

DPT420PSSKR-3
Polished Stainless Steel

Golden industrial water spray rack with multiple vertical fins (no text or symbols visible)

DPT420PVDKR-3
PVD Brass

Certified

by the National

Sanitation Foundation

Stainless Steel

Beer Contact

The integrated Kool-Rite module provides

optimum cooling at the point of dispense.

The module construction makes the installation

process as simple as PLUG "N" POUR.

www.micromatic.com • 1 [phone]

DOUBLE SERVICE - 20 FAUCETS

Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions

☐ DPT420PSSKR-3	20 Polished	Stainless Steel Kool-Rite (Glycol)	(26 kg 1168mm L x 940mm W x 406mm H
			66 lbs 46"L x 37"W x 16"H
☐ DPT420PVDKR-3	20 PVD Brass Kool-Rite (Glycol)		26 kg 1168mm L x 940mm W x 406mm H
			66 lbs 46"L x 37"W x 16"H

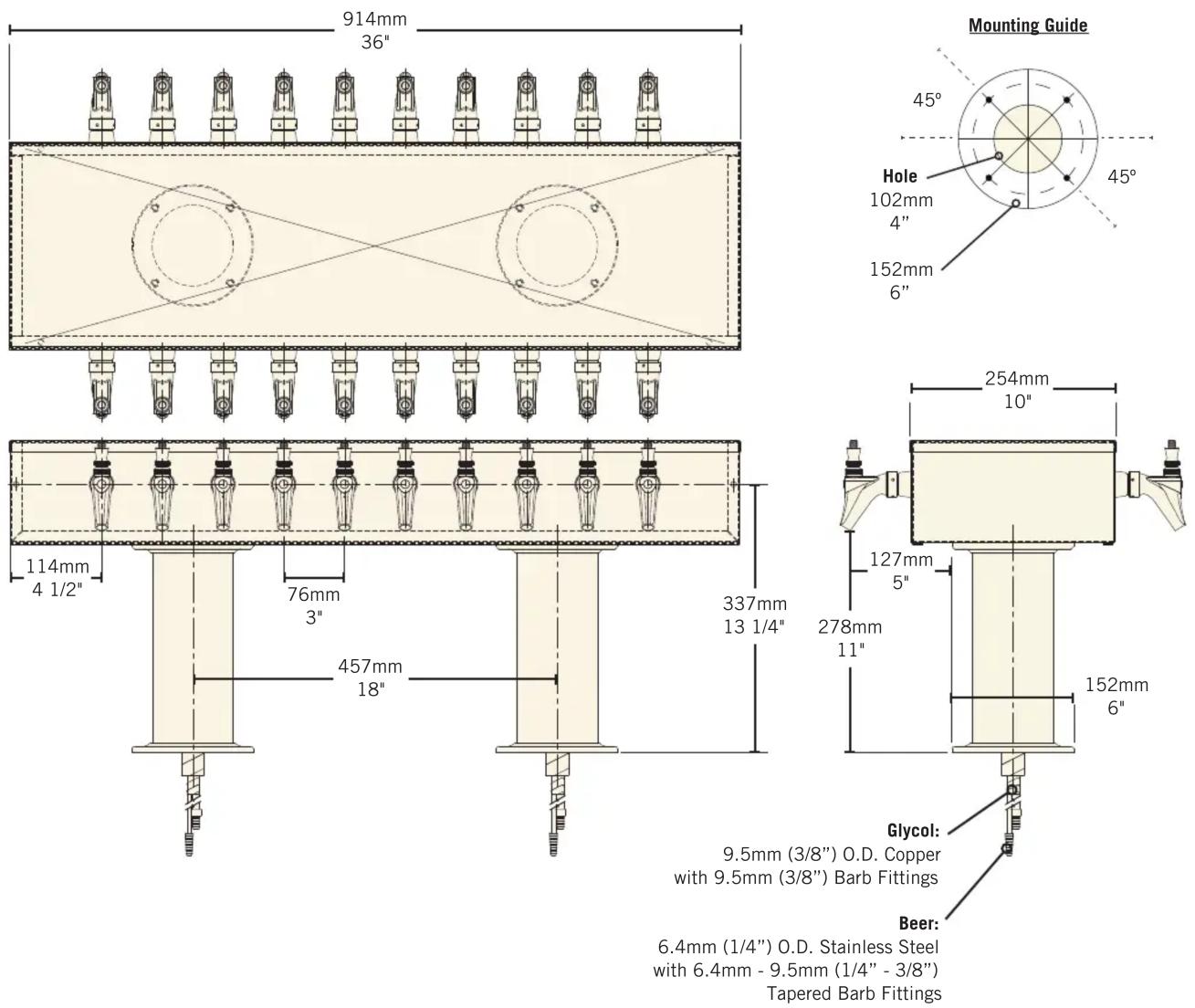

Dimensions

6.4mm (1/4") O.D. Stainless Steel with 6.4mm - 9.5mm (1/4" - 3/8") Tapered Barb Fittings
