Product Type Car Speaker
Brand Caliber
Model CSP16
Speaker Type Coaxial 2-Way
Size 6.5 inches (165 mm)
Impedance 4 Ohms
Power Handling (RMS) 50 W
Power Handling (Peak) 200 W
Sensitivity 90 dB (1W/1m)
Frequency Response 60 Hz - 20 kHz
Mounting Depth 55 mm
Cutout Diameter 140 mm
Woofer Cone Material Polypropylene
Tweeter Type Piezo or Cloth Dome
Magnet Type Ferrite
Weight 0.9 kg per speaker
Compliance CE, RoHS
Warranty 1 year

Frequently Asked Questions - CSP16 CALIBER

What is the size of the Caliber CSP16 speaker?
The Caliber CSP16 is a 6.5-inch (165 mm) car speaker, standard fit for most vehicles.
What is the power handling of the CSP16?
It handles 50W RMS and 200W peak power, suitable for most aftermarket head units or amplifiers.
What is the impedance of the CSP16?
The impedance is 4 Ohms, compatible with most car audio systems.
How do I install the Caliber CSP16 speakers?
Installation requires removing the old speakers, connecting the wires to the positive and negative terminals, and mounting the speaker with screws. Ensure the polarity is correct.
What is the mounting depth of the CSP16?
The mounting depth is approximately 55 mm. Check your vehicle's door clearance before installation.
Can the CSP16 be used with an amplifier?
Yes, the CSP16 works well with an external amplifier. Use an amplifier that delivers 50W RMS per channel for optimal performance.
What is the frequency response of the CSP16?
The frequency response ranges from 60 Hz to 20 kHz, providing clear mids and highs, but limited deep bass.
Are the CSP16 speakers waterproof?
No, they are not fully waterproof. Avoid direct water exposure. Use waterproof baffles in doors if needed.
What is the sensitivity of the CSP16?
Sensitivity is 90 dB (1W/1m), meaning they produce decent volume with low power.
How do I clean the Caliber CSP16 speakers?
Gently wipe the cone and grille with a soft dry cloth. Do not use liquids or compressed air.

User questions about CSP16 CALIBER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Car speaker in PDF format for free! Find your manual CSP16 - CALIBER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CSP16 by CALIBER.

USER MANUAL CSP16 CALIBER

natural_image Line drawing of a speaker base with concentric rings and two meshed circular components (no text or symbols)

CSP-C

Component system Manual

Manual des ensembles compo Komponentensysteme handbuch Manuale del set componibile Manual del equipo compo Manual do conjunto compo Handledning till komponentsystem System komponentowy, instukcja Príručka komponentného systému Εγχειρίδιο συστήματος συνιστωσών Handleiding composet

① Fig. A x 8 x 8 ② ③ - +

CSP 13C measurements 153 mm 26 mm 55 mm 115 mm 61 mm 130 mm 173 mm 29 mm 61 mm 145 mm 66 mm 167 mm CSP 16C measurements

④ 47 mm 51 mm 57 mm 17 mm 49 mm

5 Audio output (R or L) PERFORMANCE SERIES BY CALIBER CA 160P2 700W 2 CHANNEL AMPLIFIER Amplifier(any) - not included + in - 0dB -3dB -6dB Woofer out + - Tweeter out + CSP-C Crossover filter - included + - + - + + CSP-C tweeter and speaker - included 0 Tweeter 0dB -3dB -6dB -10 -20 -30 -400Hz -500Hz -600Hz 1000Hz 3000Hz frequency (Hz)

GB - INSTALLATION

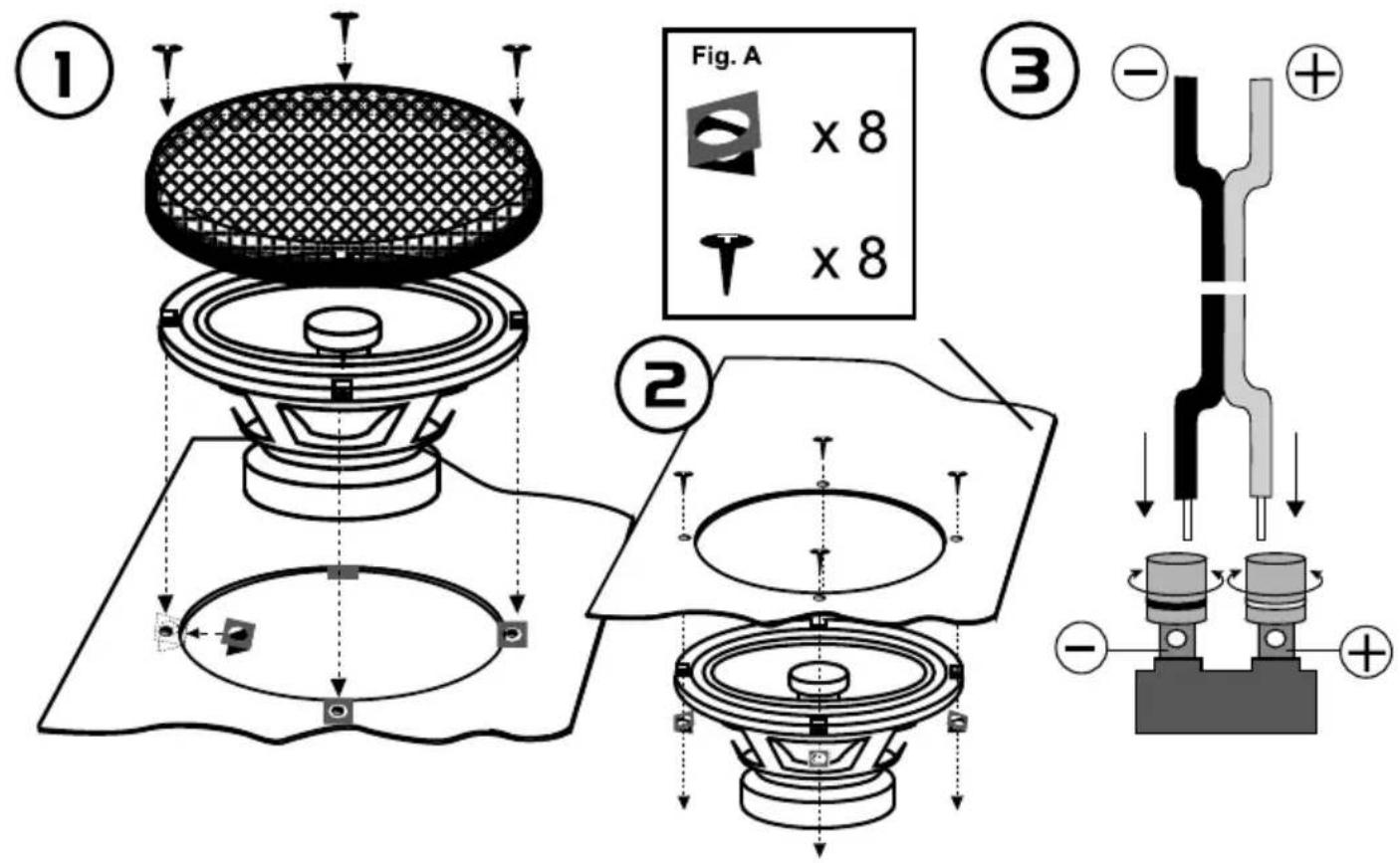

  • Use the template on the packaging to mark off the mounting hole on the underside of the rear shelf or in the door (quite often there is a hole for mounting the speaker in the door). Cut or saw this out and drill holes in the positions marked.
    • The speakers can be fitted in two ways to the rear shelf: from above using the grill (1) and from the underside without using the grill (2)
  • Only use the clamping screws provided (fig. A) when mounting on a thin-walled partition.
  • Cable to the speaker is connected using the screw connectors (3).

Installing the tweeters

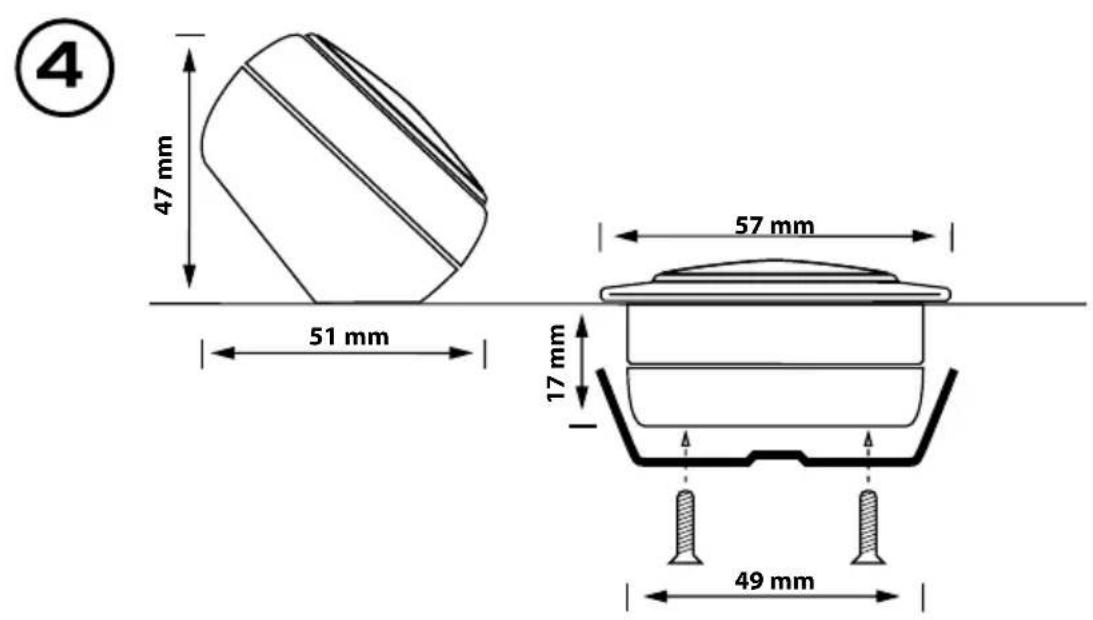

  • Use the fittings supplied to attach the tweeters. (4)
  • The tweeters can now be screwed in the required position.
  • Connect the tweeters to the output of your crossover (5).
  • Use the various connections (-6dB, -3dB and 0dB) on the crossover to regulate the correct tweeter volume.

F - INSTALLATION

DECLARATION OF CONFORMITY

GB

Caliber hereby declares that the CSP-C items are in compliance with the essential requirements and other relevant provisions of Directive 2011/65/EU (RoHS).

FR

Declaration form can be found at: www.caliber.nl/media/forms/DeclarationCSP-C.pdf

CALIBER CSP16 - FR - 1

Caution!

  • Do not touch the speaker flexible wire.
  • Do not change the direction of the speakers terminals assembly.
  • Make sure lead and speaker terminals do not contact metal.
  • When making connections, refer also the instruction manual of the installed car stereo and/or amplifier

Attention!

GB Old appliances and/or batteries must not be disposed with garbage! If the device/battery can not be used anymore, every user is legally obliged to dispose of old appliances and/or batteries separated from the garbage, e.g. at a collection point of his municipality/district.

CALIBER CSP16 - Attention! - 1
