USER MANUAL ACC166 Peerless-AV

Interior view of a hotel room with a large bed, TV, and desk (no visible text or symbols)

Max Load
3lb
(1.36kg)

Set Top Box Holder for HPF665

DEDICATED TO FIT THE LG PRO:CENTRIC SMART ULTRA HD SET TOP BOX (STB-5500)

The ACC166 has dedicated mounting points for the LG Pro:Centric Smart Ultra HD Set Top Box (STB-5500) and power brick, making it the perfect accessory to keep your STB mounted and hidden behind the TV. This STB Holder was designed to work specifically with the Peerless-AV® Universal Swing-Out Wall Mount (HPF665). The accessory's versatile design can be mounted above or below the HPF665's wall arm.

• Provides dedicated mounting points for the LG Pro:Centric Smart Ultra HD Set Top Box (STB-5500) and power brick
  ACC166 may fit other set top box models; Please verify compatibility by contacting Peerless-AV® Customer Care
• Peerless-AV® Universal Swing-Out Wall Mount (HPF665)
• Supports AV components up to 3lb (1.36kg)
• Includes cable ties and STB-5500 attachment hardware
• Capable of mounting above or below the HPF665 wall arm

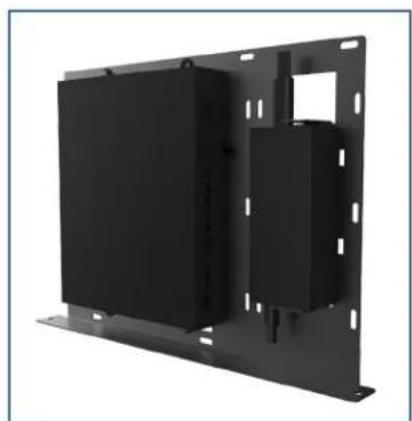

Exterior view of a black industrial enclosure or enclosure unit mounted on a metal frame (no visible text or symbols)

Designed to Fit LG ST3 5500 and Power Brick

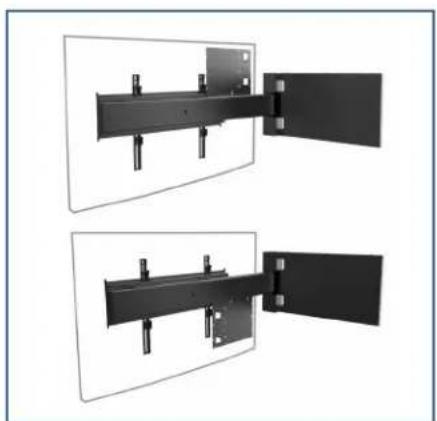

Two identical diagrams showing a black structural component being inserted into a panel, with no visible text or symbols.

Flexible Design Capable of Attaching Above or Below HPF655's Wall Arm

RoHS

Please visit peerless-av.com/en-us/patents for patent information.

[e-mail]

peerless-av.com

peerless-AV ^® Driving Technology Through Innovation

ACC166 Set Top Box Holder for HPF665 dedicated to fit LG Pro:Centric Smart Ultra HD Set Top Box (STB-5500)

Product Specifications

	DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS
ACC166	14.00" x 9.70" x 1.31"(356 x 246 x 33mm)	2.50lb (1.13kg) 3lb (1.36kg) Powder Coat Black

Package Specifications

	PACKAGE SIZE (W x H x D)	PACKAGE SHIP WEIGHT	PACKAGE UPC CODE	PACKAGE CONTENTS	UNITS IN PACKAGE
ACC166	15.40" x 11.40" x 4.63"(391 x 290 x 118mm)	5lb (2.26kg) 735029339908		Mount, Cable Ties,and Hardware	1

All dimensions = inch (mm)

FRONT VIEW

SIDE VIEW

Architect Specifications

The Set Top Box Holder for HPF665 shall be a Peerless-AV model ACC166 and shall be located where indicated on the plans. Assembly and installation shall be done according to instructions provided by the manufacturer.

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including outdoor displays, kiosks, digital audio, display mounts, projector mounts, carts/stands, and a full assortment of accessories.

Peerless-AV 2300 White Oak Circle Aurora, IL 60502 USA

[phone] [phone] Fax: [phone]

Peerless-AV EMEA Unit 3 Watford Interchange Colonial Way, Watford Herts, WD24 4WP United Kingdom [phone] Fax: [phone]

Peerless-AV Latin America Av. de las Industrias 413 Parque Industrial Escobedo General Escobedo, N.L., México, 66062 [phone] Fax: [phone]

LIT-1808 rev.1
