Product Type	Display Wall Mount
Brand	Peerless-AV
Model	KIP588-4LG-EUK
Compatibility	Compatible with most flat-panel displays, including LG, up to 88 inches
VESA Compatibility	Up to 800x600 mm
Weight Capacity	125 lbs (56.7 kg)
Mount Type	Fixed, low-profile mount
Installation	Single stud or concrete wall, includes hardware
Adjustments	Tilt: 0-12 degrees, Leveling: +/- 4 degrees
Material	High-grade steel, powder-coated finish
Distance from Wall	2.2 inches (55.9 mm)
Safety	UL listed, meets safety standards
Included Accessories	Mounting brackets, hardware, security screws
Maintenance	Wipe with a dry, soft cloth; do not use solvents
Warranty	5-year limited warranty
Dimensions (Mount)	32.5 x 15.2 x 2.2 inches (826 x 386 x 56 mm)
Weight (Mount)	12.5 lbs (5.7 kg)
Spare Parts	Contact Peerless-AV customer service for replacement parts

Frequently Asked Questions - KIP588-4LG-EUK Peerless-AV

What is the weight capacity of the KIP588-4LG-EUK mount?

The KIP588-4LG-EUK has a weight capacity of 125 lbs (56.7 kg). Always ensure your display does not exceed this limit.

Is this mount compatible with LG OLED TVs?

Yes, the KIP588-4LG-EUK is designed for LG displays up to 88 inches. It supports VESA patterns up to 800x600 mm, which covers most LG models.

What type of wall is required for installation?

This mount can be installed on wood studs or concrete walls. The included hardware is suitable for both. For other wall types, consult a professional.

Does the mount tilt or swivel?

The KIP588-4LG-EUK is a fixed mount with limited tilt (0-12 degrees) and leveling adjustment (+/- 4 degrees). It does not swivel or extend.

How far from the wall will the TV sit?

The mount holds the TV approximately 2.2 inches (55.9 mm) from the wall, providing a low-profile look.

Are installation instructions included?

Yes, the mount comes with a detailed user manual. You can also download it from our website for free.

What is the warranty period?

Peerless-AV offers a 5-year limited warranty on this mount. Keep your receipt for warranty claims.

Can I use this mount for a monitor instead of a TV?

Yes, as long as the monitor's weight and VESA pattern are within the mount's specifications, it can be used for monitors.

How do I clean the mount?

Clean the mount with a dry, soft cloth. Avoid using solvents or abrasive cleaners to prevent damage to the finish.

Where can I purchase spare parts?

Spare parts can be ordered by contacting Peerless-AV customer service. Refer to the manual for part numbers.

USER MANUAL KIP588-4LG-EUK Peerless-AV

Isometric line drawing of a vertical cylindrical device with ventilation grilles and mounting base (no text or symbols)

ENG This page was intentionally left blank

WARNING

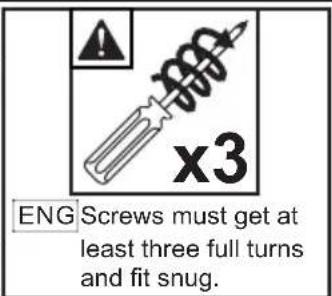

ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To reduce the risk of electric shock or fire, do not expose product to water or moisture. Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking airflow could damage product. Arrange product to allow air to flow freely around product. Keep product away from direct sunlight or any source of heat. For support please call 1-800-865-2112.

ENG Tools Needed for Assembly.

Line drawing of a screwdriver inside a circle (no text or symbols)

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts ListDescription Qty		KIP586-1LG Part #	KIP586-1LG-S Part #	KIP588-1LG Part #	KIP588-1LG-S Part #
A main assembly 1 151-T1279 151-T1279 152-T1441 152-T1441
B base cover 2 151-P1268 151-4268 152-P1437 152-4437
C display bracket 2 151-T1213 151-T1213 151-T1213 151-T1213
D top panel 1 151-P1274 151-4274 152-P1433 152-4433

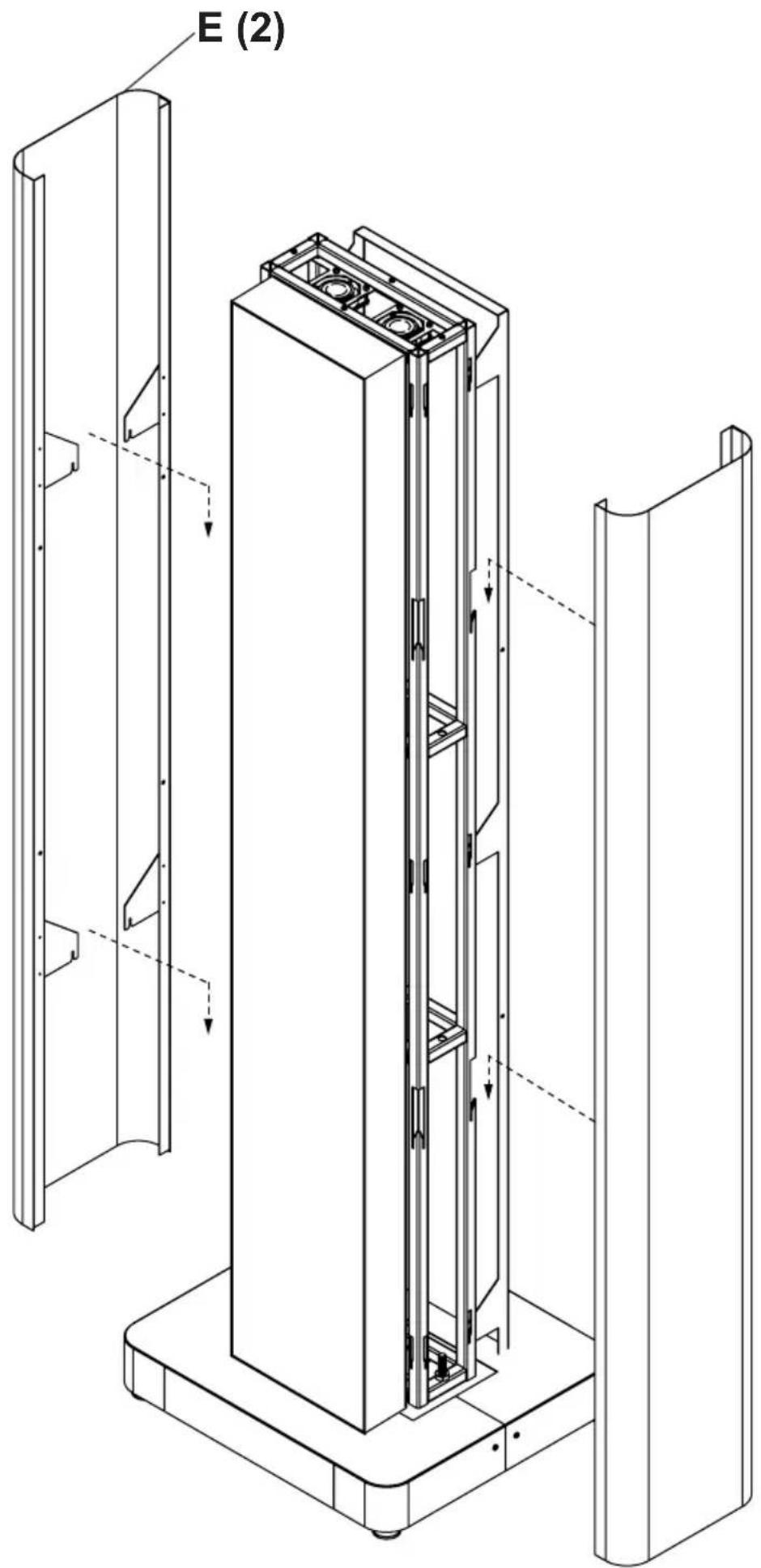

E side cover 2 151-P1275 151-4275 152-P1432 152-4432
F M8 x 10mm phillips screw 16 520-1605 520-1605 520-1605 520-1605
G #10-32 x .375" philips screw black	8	520-1130	520-1130	520-1130	520-1130
H #10-32 x .375" phillips screw zinc	8	520-2130	520-2130	520-2130	520-2130
I cable tie	5	590-1168	590-1168	590-1168	590-1168
J back cover	1	151-P1280P	151-4280P	152-P1429	152-4429
K surge protector	1 600-0370 600-0370 600-0370 600-0370

1

2

Simple line drawing of a screwdriver inside a circle (no text or symbols)

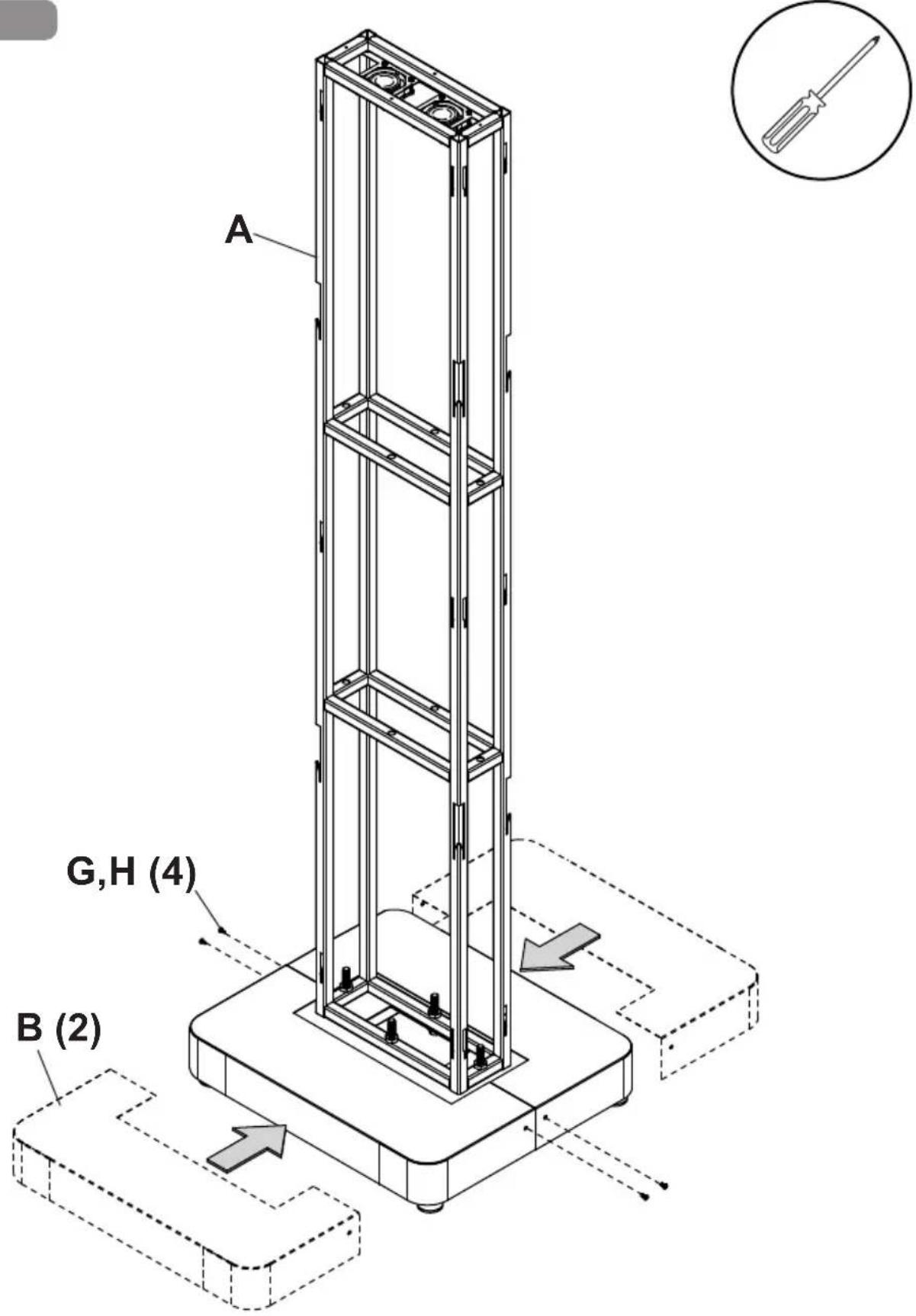

Technical line drawing of a multi-tiered vertical structural frame with mounting base (no text or symbols)

4

5

6

Simple line drawing of a screwdriver inside a circle (no text or symbols)

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless-AV") warrants to original end-users that each Peerless-AV mounting product will be free from defects in material and workmanship, under normal use, for the applicable warranty period (from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

Any implied warranty of merchantability or fitness for a particular purpose shall be limited to the period of the express warranty set forth below.

In no event shall Peerless-AV be liable for incidental or consequential damages, whether or not secured by a security device which may be included with the product.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of incidental or consequential damages, so the above limitation and/or the above exclusion may not apply to you.

This warranty does not cover damage caused by incorrect selection, installation or the failure to follow Peerless-AV instructions or warnings when installing, using or storing the product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state. To make a warranty claim in North America, contact Peerless-AV customer care at 1-800-865-2112. See complete global warranty information for regions outside North America at www.peerless-av.com/en-uk/customer-care/warranties-returns.
