MIC 020 - Microphone Williams Sound - Free user manual and instructions

Product Type	Handheld Dynamic Microphone
Brand	Williams Sound
Model	MIC 020
Dimensions (approx.)	18 cm x 5 cm (7.1 in x 2.0 in)
Weight (approx.)	200 g (7.1 oz)
Power Supply	None (passive dynamic microphone)
Polar Pattern	Cardioid
Frequency Response	50 Hz - 15 kHz
Connector	XLR (3-pin)
Main Functions	Voice amplification for public speaking, presentations, and PA systems
Maintenance & Cleaning	Wipe with a soft, damp cloth; avoid moisture and extreme temperatures
Safety	Keep away from water and high humidity; do not drop or expose to impact
Spare Parts & Repairability	Replacement grilles and cables available; contact Williams Sound support
Warranty	Limited 2-year warranty
Country of Origin	USA (designed, assembled in USA)

Frequently Asked Questions - MIC 020 Williams Sound

What type of microphone is the Williams Sound MIC 020?

The MIC 020 is a handheld dynamic microphone with a cardioid polar pattern, ideal for public speaking and vocal applications.

Does the MIC 020 require a battery or phantom power?

No, it is a passive dynamic microphone that does not require any power source.

What connector does the MIC 020 use?

It uses a standard 3-pin XLR connector for balanced audio output.

Is the MIC 020 compatible with any PA system?

Yes, it works with any audio system that has an XLR input and provides sufficient gain.

How should I clean and maintain the MIC 020?

Wipe the exterior with a soft, damp cloth. Avoid getting moisture inside the grille. Store in a dry place.

Can I replace the grille or cable of the MIC 020?

Yes, replacement grilles and XLR cables are available from Williams Sound or authorized dealers.

What is the frequency response of the MIC 020?

It has a frequency response of 50 Hz to 15 kHz, optimized for speech clarity.

How long is the warranty for the Williams Sound MIC 020?

It comes with a limited 2-year warranty against defects in materials and workmanship.

Is the MIC 020 suitable for outdoor use?

While it can be used outdoors, it is not weatherproof. Protect it from rain and extreme humidity.

Where can I find the user manual for the MIC 020?

The manual can be downloaded in PDF format from notice-facile.com or the Williams Sound official website.

USER MANUAL MIC 020 Williams Sound

Production Intercom • High Noise Environments • Live Sound Stage • Factory Tours • Military Training

MIC 020

Plug mount microphone

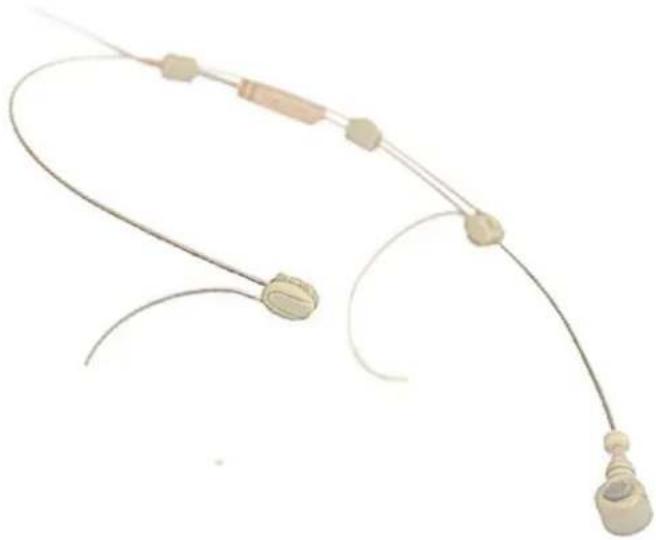

Medical or laboratory device with curved wires and connectors, no visible text or symbols

Lightweight, rear-wear unidirectional microphone. Can be used with the TGS systems, Digi-Wave™ DLT-100 transceiver, iC-2 interpreter control console and PPA T27 transmitter.

MIC 020

Color	Clay
Weight	16 g (0.6 oz)
Plug	3.5 mm Mono
Cord	39"
Phantom Powered	No
Nominal Impedance	1400Ω @ 1kHz
Operating Voltage	1-10VDC
Freq. Response	70 - 16kHz
Pick-Up Pattern	Uni-direct
Transducer Type	Electret Cond
Max Input Sound Level	117dB SPL
Sensitivity	-66dB + 3dB
Replacement Windscreen	WND 020
Warranty	90 days
