Product Type	Luxury Watch
Brand	Hublot
Model	Spirit Of Big Bang Ceramic Blue 601.CI.7170.LR
Movement Type	Automatic Chronograph (HUB4700)
Power Reserve	Approximately 72 hours
Case Material	Ceramic
Case Diameter	45 mm
Case Thickness	15 mm
Dial Color	Blue
Crystal	Sapphire with Anti-Reflective Coating
Water Resistance	100 meters / 10 ATM
Strap Material	Blue Rubber with Ceramic Buckle
Functions	Hours, Minutes, Seconds, Date, Chronograph
Clasp Type	Deployant Buckle
Weight	Approximately 160 g
Warranty	2 years international
Country of Origin	Switzerland
Maintenance	Professional service every 3-5 years
Cleaning	Wipe with soft cloth; avoid chemicals
Safety	Avoid strong magnetic fields and shocks
Spare Parts	Authorized service centers only

Frequently Asked Questions - Spirit Of Big Bang Ceramic Blue 601.CI.7170.LR HUBLOT

How do I set the time and date on my Hublot Spirit Of Big Bang?

Pull the crown to position 2 to set the time, and position 1 to set the date. Rotate the crown clockwise to adjust the date, and pull to position 2 for time. Ensure the date changes at midnight, not noon, by setting the hands forward.

Is this watch a chronograph? How do I use it?

Yes, it features a chronograph function. Press the top pusher to start/stop the chronograph, and the bottom pusher to reset. The subdials show elapsed minutes and hours.

How do I wind the watch automatically?

The watch is automatic and winds itself with wrist movement. If stopped, wind it manually by turning the crown clockwise about 20 times in position 1.

What is the water resistance rating?

The watch is water resistant to 100 meters (10 ATM). Suitable for swimming but not diving. Avoid pressing buttons underwater.

How should I clean and maintain my ceramic watch?

Clean with a soft, damp cloth and mild soap if needed. Avoid abrasive cleaners. For maintenance, have it serviced every 3-5 years by an authorized Hublot center.

Can I change the strap? What size?

Yes, the strap is interchangeable. Use a spring bar tool. The lug width is typically 22 mm. Hublot offers various rubber and alligator straps.

What movement is inside the Spirit Of Big Bang?

It uses the HUB4700 automatic chronograph movement, which has a column wheel and a 72-hour power reserve.

How do I adjust the bracelet length?

The rubber strap has a deployant buckle with micro-adjustments. For a perfect fit, consult an authorized retailer or adjust with a tool on the buckle.

What does the warranty cover?

The 2-year international warranty covers manufacturing defects. Excludes normal wear, strap, and damage from misuse. Retain your warranty card.

Why does my watch stop if I don't wear it?

The automatic movement relies on motion to stay wound. If not worn for 2-3 days, it may stop. Wind it manually before wearing again.

USER MANUAL Spirit Of Big Bang Ceramic Blue 601.CI.7170.LR HUBLOT

SPIRIT OF BIG BANG INSTRUCTION MANUAL

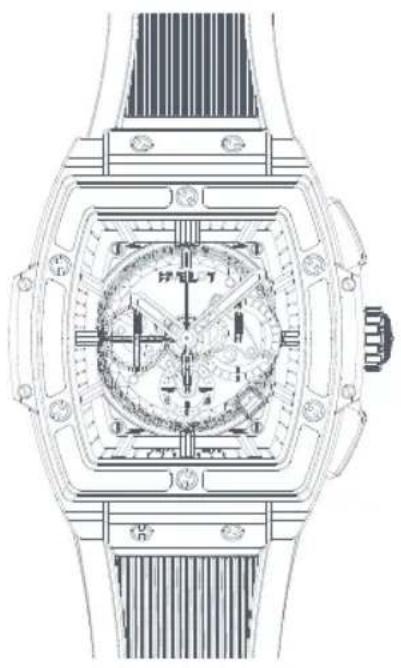

Technical line drawing of a wristwatch with mechanical components and no visible text or symbols

HUBLOT

SPIRIT OF BIG BANG

ENGLISH

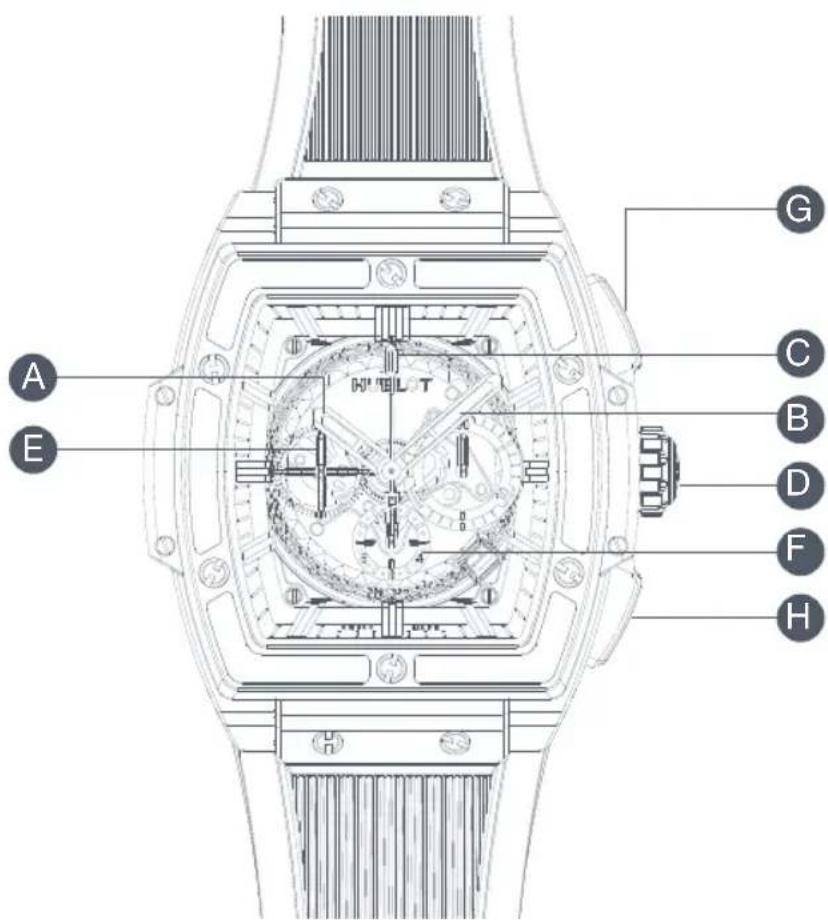

A. Hour hand
B. Minute hand
C. Chronograph hand
D. Screw-in crown
E. Second hand
F. Chronograph counters
G. Pushbutton: start and end
H. Pushbutton: reset to zero

ENGLISH

INTRODUCTION

You have chosen a Hublot watch; you are about to enter a whole new world... Every piece cultivates its distinction, to assert its powerful and incredible personality every time. Yet this formidable wealth of materials, functions, colors and shapes, gives rise to a singular watchmaker: Hublot.

Committed to the concept of “the Art of Fusion” and fuelled by this spirit of innovation, the Swiss watchmaking manufacture Hublot represents the link between watchmaking tradition and modernity, creating fusions of unexpected high-performance elements such as carbon, zirconium, tantalum, titanium, tungsten, ceramic and aluminium with more conventional materials such as gold, steel, diamonds and precious stones – while developing traditional movements, always with an innovative and creative design.

This fundamental concept makes your watch a unique timepiece. As you turn this page, you will enter the world of the Spirit of Big Bang.

QUICK START

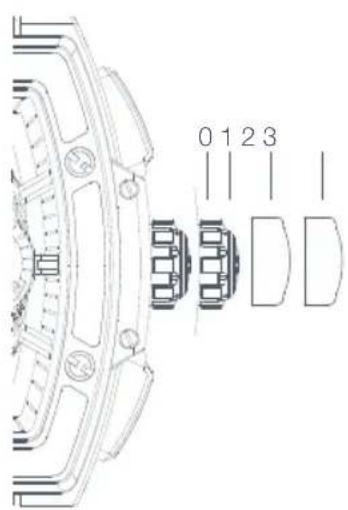

CROWN FUNCTIONS

Crown positions:

1. screw-in crown
2. winding
3. time setting
4. date setting

SCREW-IN CROWN

POSITION 0

This type of crown offers excellent protection to ensure the case's water resistance.

The crown has to be unscrewed before any operation and must be screwed back in fully afterwards.

USE

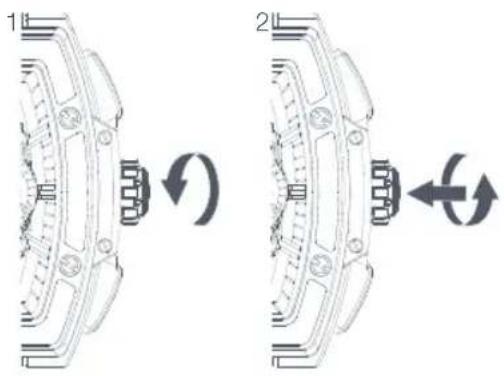

1. Unscrew the crown before any operation.
2. Press the crown firmly against the case while screwing it back in.

Occasionally, check that the crown is screwed in correctly.

Diagram showing two mechanical components with rotational arrows indicating motion (no text or symbols)

WINDING

POSITION 1

This function accumulates the energy required by your watch to run properly.

USE

Technical line drawing of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Self-winding

This term means that your watch automatically stores the energy generated by your arm movements when the watch is worn on your wrist.

If your watch has not been worn for some time and has stopped, you must wind it manually by rotating the crown clockwise through approximately ten turns. See drawing.

Spirit of Big Bang watches have a power reserve of 50H.

Do not forget to screw the crown back in completely to ensure its water resistance.

TIME SETTING

POSITION 2

This function enables you to set the time of your watch using the crown.

When performing this operation, make sure that the calendar date change is at midnight and not at midday.

USE

1. Pull the crown out to position 2, at the exact moment when the seconds hand is at the 12 o'clock position; the hand will then stop.
2. Then turn the crown either way to set the hour and minute hands to the
3. desired time.
4. Press the crown back in completely against the case; the watch will restart.

Mechanical component diagram showing a gear assembly with rotational arrow (no text or symbols)

Do not forget to screw the crown back in completely to ensure its water resistance.

Pure mechanical component diagram without any text, numbers, or symbols

DATE SETTING

POSITION 3

This function enables you to set the date displayed by the watch rapidly, without changing the time, using only the crown.

It is strongly recommended not to make this correction between 8 pm and 1 am, as the calendar disc is “engaged” during this period, so the operation might damage the mechanism.

USE

1. Pull the crown out to position 3.
2. Turn the crown clockwise (or anti-clockwise, according to the model) until the desired date appears in the window.
3. Press the crown back in completely against the case.

Do not forget to screw the crown back in completely to ensure its water resistance.

OPERATION OF THE CHRONOGRAPH

The chronograph function enables you to measure a time.

The dial features 3 counters :

The hour counter is at the bottom, and the minute counter on the right; the left-hand counter shows the elapsing time, and the seconds are counted by the central direct-drive hand.

USE

Before timing, make sure that the chronograph centre hand (direct-drive), and the minute and hour counter hands have been reset. Then:

1. Press push-piece (A): the chronograph hand will start instantly.
2. When the event ends, press push-piece (A): the hand will stop and display the exact elapsed time.
3. Press push-piece (B): the direct-drive hand and counter hands will be reset.

To measure a series of sequential times: press push-piece (A) again to restart the hands.

N.B.: the chronograph can only be reset if it has first been stopped by pressing push-piece (A).

LIMITED INTERNATIONAL GUARANTEE

Your Hublot watch has been manufactured in the authentic tradition of Swiss watchmaking and has been individually tested to ensure that it is water-resistant and that it runs perfectly. Nevertheless, it is covered by a limited international guarantee against any manufacturing defect for a period of two years from the date of purchase, and for a period of one year after repair, under the conditions below.

What is covered?

Under this limited guarantee Hublot undertakes to repair, free of charge, any problem with the functions of the watch that result from defective manufacturing. This guarantee is only honored in Hublot Customer Service Centers which contact details are to be found on Hublot's website at www.hublot.com. In addition, certain limiting conditions do apply and for this reason it is essential that you read the following paragraphs.

What are the limiting conditions of this guarantee?

To benefit from this limited guarantee the following conditions must be met: – the international guarantee card must have been activated by the dealer who sold the watch, or must be enclosed with the watch when it is sent for repair and must be signed and dated at the time of purchase by an authorized Hublot dealer. Hublot will not honor the guarantee for watches sold without a valid guarantee card properly filled out and signed by an authorized Hublot dealer or by a dedicated Hublot boutique;

– the serial number engraved on the case is perfectly legible and no part of the original case back or original serial number has been removed, modified, falsified, altered, replaced, erased, defaced or made illegible. Failure to abide by any of the above conditions renders all rights resulting from the Hublot international guarantee null and void.

What is not covered?

Damage resulting from service provided anywhere other than at an Hublot Customer Service Center is not covered and shall void the guarantee. The limited guarantee also does not cover bracelets, crystals and batteries, or any scratches, dents or damages to the case or movement due to improper handling. More generally, it does not apply if there has been improper or inadequate use of the watch.

General conditions and limitations:

This limited guarantee replaces any guarantees implied by some countries' local law, including the implied guarantee of merchantability, which are disclaimed. Some countries' local law may not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This guarantee gives you specific legal rights and you may also have other rights under local laws which vary from country to country. Hublot and its Customer Service Centers shall have sole discretion to decide to repair or replace any Hublot timepiece under this limited international guarantee.

We recommend that you send your watch by registered mail, carefully wrapped to avoid damage, to the nearest Hublot Customer Service Center, or take it to your authorized Hublot dealer or dedicated Hublot boutique. Hublot is not responsible for loss or damage during shipping. The list of Hublot Customer Service Centers can be found on our website. On request, these Hublot Customer Service Centers will provide you with the details of your nearest authorized Hublot dealer or dedicated Hublot boutique. This guarantee does not affect your legal rights as a consumer. Please check that you have an international guarantee card – otherwise you will not be covered by the limited guarantee services outlined above.

On our website you will find a number of recommendations for the use and maintenance of your Hublot watch. Please follow them carefully since the guarantee will become invalid in the event of inappropriate use or handling.

In addition, if you wish to join our Hublotista Club, please visit our dedicated website: www.Hublotista.com. The Club allows you to become part of the Hublot Family and enjoy special privileges and exclusivities.

Recommendations and limited guarantee specific to the Australian and New Zealand markets

Hublot goods come with guarantees that cannot be excluded under the Australian Consumer Law: the customer is entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage, and the customer is also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

RECOMMENDATIONS & CARE

The constituent parts of your Hublot watch are all of the finest quality, and inspected under extremely stringent criteria. They combine to form a piece with exceptional water resistance, with certain models capable of reaching a depth of 4000 meters. To preserve these qualities, we recommend a complete overhaul every 3 to 5 years, since temperature variations, humidity, perspiration and repeated shocks may affect its water resistance as the years go by. With its water resistant case and rubber, ceramic or carbon strap, or gold or steel bracelet, your Hublot watch can be washed easily. If the watch has an alligator strap, you are advised to take it off when bathing. Clean it regularly in lukewarm soapy water, rinsing and wiping down carefully with a soft cloth. After wearing your Hublot watch in seawater, please rinse it in fresh water.
