Product Type	Hand Vacuum Cleaner
Brand	Koblenz
Model	HV-12 HDN
Power Source	Rechargeable battery (12V)
Battery Type	Nickel-Metal Hydride (NiMH)
Charging Time	Approximately 3-4 hours
Run Time	Up to 20 minutes
Dust Capacity	0.5 liters (bagless)
Filter System	Washable foam filter
Suction Power	Approximately 15 Air Watts
Noise Level	70 dB
Weight	1.2 kg
Dimensions (LxWxH)	400 x 100 x 150 mm
Cord Length	Cordless
Included Accessories	Crevice tool, dusting brush
Wall Mount	Yes (bracket included)
LED Indicator	Charging status LED
Filter Cleaning	Wash with water, air dry
Safety Features	Overcharge protection, thermal cutoff
Repairability	Replaceable battery, filter, and motor brushes
Warranty	1 year limited warranty

Frequently Asked Questions - HV-12 HDN Koblenz

How do I charge the Koblenz HV-12 HDN hand vacuum?

Plug the charger into the vacuum's charging port and connect to a wall outlet. The LED indicator will light up during charging. Full charge takes about 3-4 hours. Avoid overcharging; unplug once fully charged.

How do I clean the filter?

Remove the dust cup and take out the foam filter. Rinse it under running water until clean. Squeeze out excess water and let it air dry completely before reinstalling. Do not use the vacuum without a dry filter.

What is the battery type and can I replace it?

The HV-12 HDN uses a 12V NiMH rechargeable battery. The battery is replaceable; contact Koblenz or an authorized service center for a replacement part.

How long does the battery last after a full charge?

Under normal use, the battery provides up to 20 minutes of continuous operation. Actual runtime may vary depending on surface type and suction load.

What accessories are included with the vacuum?

The vacuum comes with a crevice tool for tight spaces and a dusting brush for delicate surfaces. Both attach to the front nozzle.

How do I empty the dust cup?

Press the release button to remove the dust cup from the vacuum. Hold it over a trash bin, open the bottom lid, and tap to empty. Rinse the cup if necessary and dry before reattaching.

Is the vacuum suitable for pet hair?

Yes, the HV-12 HDN can pick up pet hair from upholstery and hard floors. For best results, use the brush accessory to agitate hair.

Why does the vacuum stop working suddenly?

This could be due to a tripped thermal protection (if overheating) or a depleted battery. Let the vacuum cool for 30 minutes. If the battery is dead, recharge it. If problem persists, check the filter or contact support.

Can I use the vacuum while it is charging?

No, the HV-12 HDN must be disconnected from the charger during use. Operating while charging may damage the battery or charger.

Where can I find replacement parts?

Replacement parts such as filters, batteries, and chargers can be ordered from Koblenz's official website or through authorized dealers. Use only genuine parts to ensure performance and safety.

USER MANUAL HV-12 HDN Koblenz

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. This product is warranted against malfunctions and defects in material and workmanship for a period of one year for domestic use.

THIS WARRANTY SHALL NOT APPLY to any products or parts there of which have been damaged by tampering, misuse or abuse or which have been altered or repaired by an unauthorized person or service center.

THIS WARRANTY SHALL NOT APPLY to brushes or accessories since their life depends upon the amount of use.

FOR REPAIR the inoperative machine must be delivered with shipping and delivery charges prepaid together with satisfactory evidence of the purchase date to an authorized service center or Thorne Electric Company at the address that appears below. Koblenz will either repair or replace, at its election, all defective machines during the warranty period.

The foregoing obligations are in lieu of all other obligations and liabilities including negligence and state Koblenz's entire and exclusive liability and purchaser's exclusive remedy. Koblenz will in no event be liable for any direct, indirect, special, incidental or consequential damages or losses whatsoever. Koblenz's liability under no circumstances will exceed the contract price for the goods or parts for which liability is claimed. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

may not apply to you.

Thorne Electric, Co. 610 Lopack Quits 205

610 Lanark Suite 205

San Antonio, TX.

78218-0363 U.S.A.

Tel: [phone]

Made in Mexico

Canada Call:

Tel: [phone]

GARANTÍA

Line drawing of two different handwashers with handles and control buttons (no text or symbols)

For models / Para modelos:

HV-12-HDN, HV-120-HDB, HV-120 KA, HV-120-HD,

HV-120 HDC, HV-120 CM, HV-120 KAS,

HV-120-KG2, HV-120-ST

Congratulations!

You have just purchased a Koblenz ^® Vacuum Cleaner. Please read this manual carefully before operating the machine, Model and serial number may be found on the back of your vac. You should record both model and serial numbers to and keep them in a safe place for future use. Keep this manual.

Felicidades!

IMPORTANT SAFETY INFORMATION

This owner's manual contains IMPORTANT SAFETY INSTRUCTIONS. First and foremost, when using a 120 volt appliance, basic precautions should always be followed, including the following:

1. Do not use to pick up flammable or combustible liquids, such as gasoline or use in areas where such items may be present.
2. Use products only as described in this manual, use only manufacture's recommended attachments.
3. Do not pick up anything that is burning or smoking; such as cigarettes, matches or hot ashes.
4. Do not leave vacuum plugged in. Unplug from outlet when not in use and before servicing.
5. Turn unit off before unplugging.
6. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint hair and anything that may reduce airflow.
7. Do not use without filter in place
8. Do not allow vacuum to be used as a toy, or to run unattended at any time. If used by children or near them, close supervision is necessary.
9. Do not store outdoors.
10. Do not use with damage cord or plug. If vacuum is not working as it should, or if it has been dropped, damaged, or submerged into water, return it to an authorized service center.
11. Do not pull or carry by cord, use cord as a handle, close a door on a cord or pull cord around sharp edges or corners, do not run vacuum over cord. Keep away from heated surfaces.
12. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
13. Do not unplug or vacuum with wet hands. Use extra care when cleaning stairs
14. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
15. Do not use to pick up any liquids
16. If the line cord is damaged it must be replaced by the manufacturer or an authorized center.

OPERATION

1. Connect the power plug to the electricity outlet
2. Push the power switch forward to operate.
   Unit will continue to run as long as the power switch is held forward.

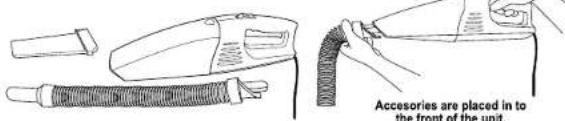

3. To use with accessories firmly push accessory into the open end of dust cup
4. To empty dust cup, press the release button and remove the dust cup by pulling it downward away from the unit (Fig. 1)
5. Empty the cup and brush off the filter. The filter may be removed, (Fig. 2) and washed in water.
   Replace dust filter only after it is completely dry. Replace dust cup.
   NEVER OPERATE WITH FILTER OR DUST CUP REMOVED.
6. The body may be cleaned with dampened cloth. Do not clean with solvents.

a) Not all models include all accessories. Check side panel on packaging.

UNITS WITH STRECH HOSE

HV-120 KA, HV-120-HD, HV-120 HDC & HV-120 CM HAND VAC SPECIFICATIONS
The above models include the unit and a crevice tool.
Model HV-120 KAS includes: the unit and a stretch hose, upholstery tool and crevice tool.
Model HV-120 ST includes: unit, metal handle, adaptor, upholstery tool and combination floor tool.
Power supply: 120 V 60 Hz 400 W
Operating Tem. (Environment): 40-100 degrees F (4-49°C)
Cord Length: 18 ft
