Product Type	Overlapping Double Door
Model	P2DO1616
Brand	Hoffman
Material	14 gauge (1.75 mm) mild steel
Finish	Polyester powder paint, RAL 7035 textured light gray
Door Height	1583 mm (62.3 in)
Door Width	1598 mm (62.9 in)
Fits Frame Size (H x W)	1600 mm x 1600 mm
Load Rating	250/113 kg (safety factor 1.5) for frame size 2000x600x800 mm (varies by frame size)
Latching System	Smooth Glide with timed latch engagement
Number of Latch Points	3-point latch system (top, middle, bottom)
Lock Type	Low-profile Swing Handle with key lock (standard)
Hinge Type	140-degree standard, 180-degree optional
Gasket	Seamless polyurethane, UL Component Recognized, watertight and dust-tight
Grounding	Two grounding studs included
Reversible Door	Yes, without removing side covers
Mounting Hardware	Included
Selling Unit	Sold individually
Accessories	ProLine Grounding Kit, Door Stop Kit, 180-Degree Hinge Kit, Side Door Adapter, Flush Swing Handles, L-Handle, Flush Bezels, Small Flush Swing Handle, Steel Data Pocket, Thermoplastic Data Pocket, Door Bar Grid Straps, Door Support Roller Kit

Frequently Asked Questions - P2DO1616 Hoffman

What is the load rating of the Hoffman P2DO1616 door?

The load rating is 250/113 kg with a safety factor of 1.5 for a frame size of 2000x600x800 mm. Ratings vary by frame size.

Can the door be hinged on the left or right?

Yes, single doors can be hinged on left or right (default left). For overlapping double doors like the P2DO1616, the primary door can be left or right (default right).

Is the door reversible?

Yes, the door can be reversed without removing the side covers.

What type of gasket does the door use?

It uses a seamless polyurethane gasket that is UL Component Recognized, providing a watertight and dust-tight seal.

What locking mechanism is included?

The standard lock is a low-profile Swing Handle with a key lock. Other options are available.

What is the door material and thickness?

The door is made of 14 gauge (1.75 mm) mild steel.

Can the door be used on the sides of an enclosure?

Yes, with a side door adapter (not included).

What are the maintenance requirements?

Regular cleaning with mild soap and water is recommended. Inspect gaskets and latches periodically for wear.

Is the door available in custom colors?

Yes, custom colors are available upon request. Standard color is RAL 7035 textured light gray.

What is the hinge angle standard?

Standard hinging is 140 degrees. A 180-degree hinge option is available.

USER MANUAL P2DO1616 Hoffman

Two white industrial cabinets with black handles, one open and one closed, shown from different angles (no text or symbols visible)

APPLICATION

ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action, ensuring a solid door seal with a low closure force. Sold individually.

FEATURES

• Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
• Low-profile Swing Handle with key lock; other options available
• Seamless polyurethane gasket (UL Component Recognized) provides a watertight, dust-tight seal against moisture and contaminants

SPECIFICATIONS

• Single doors available for frames up to 1000 mm wide
  • Overlapping double doors available for frames 800 mm wide and greater
  • Door bar system on all doors
• Timed latch engagement to ensure top and bottom of door catch reliably
• Durable, double-flanged latch rod and three Delrin ^® rollers to prevent metal-on-metal grinding

• 3-point latch system for doors 1000 mm or greater in height
• Key lock handle standard; other options available
- Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
• 14 gauge (1.75 mm) mild steel
• 140-degree hinging standard (180-degree hinge option available)
- Door can be reversed without removing the side covers
- Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
- Two grounding studs
• All mounting hardware included
- Soldindividually

Overlapping Double Doors – Additional Specifications

• Primary door with Smooth Glide latching system
- Secondary door has two latch points with a center lever to ensure secure door closure

EMC Doors - Additional Specifications:

• Plated to provide corrosion resistance while maintaining a metal-to-metal contact with the metal fiber gasket
• Metalized non-woven fabric EMI/RFI material covering UL94HP rated urethane foam gasket
• Plating exposed in interior and paint over plated exterior
• Longer lead times required for EMC items

FINISH

• Polyester powder paint; RAL 7035 textured light gray standard

- Custom colors available

LOAD RATING

- 250/113kg, safety factor 1.5; frame size: 2000x600x800 mm (load ratings vary by frame size)

ACCESSORIES

• ProLine Grounding Kit
- Door Stop Kit
• 180-Degree Hinge Kit
- Side Door Adapter
- Flush Swing Handles
- LHandle
- Flush Bezels
• Small Flush Swing Handle
• Steel Data Pocket
• Thermoplastic Data Pocket
• Door Bar Grid Straps
• Door Support Roller Kit

BULLETIN: P40

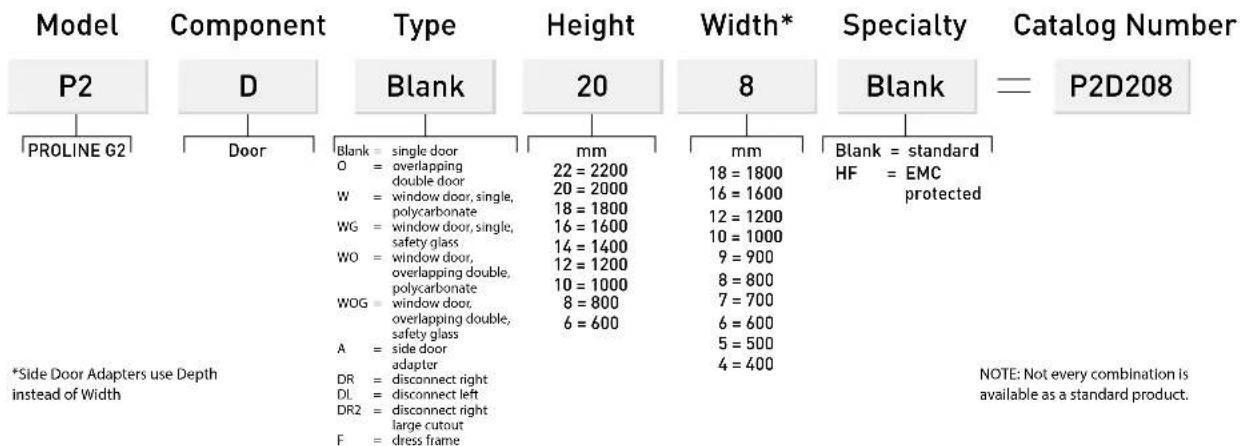

Standard Product Single Door

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.)	Fits Frame HxW (mm)		Description
P2D64 58323.039815.7600x400			Painted
P2D66 58323.059823.5600x600			Painted
P2D68 58323.079831.4600x800			Painted
P2D86 78330.859823.5800x600			Painted
P2D88 78330.879831.4800x800			Painted
P2D105	983	38.7	498	19.6	1000x500	Painted
P2D106	983	38.7	598	23.5	1000x600	Painted
P2D108	983	38.7	798	31.4	1000x800	Painted
P2D125	1183	46.6	498	19.6	1200x500	Painted
P2D126	1183	46.6	598	23.5	1200x600	Painted
P2D128	1183	46.6	798	31.4	1200x800	Painted
P2D145	1383	54.4	498	19.6	1400x500	Painted
P2D146	1383	54.4	598	23.5	1400x600	Painted
P2D146HF	1383	54.4	598	23.5	1400x600	EMC
P2D164	1583	62.3	398	15.7	1600x400	Painted
P2D165	1583	62.3	498	19.6	1600x500	Painted
P2D166	1583	62.3	598	23.5	1600x600	Painted
P2D168	1583	62.3	798	31.4	1600x800	Painted
P2D184	1783	70.2	398	15.7	1800x400	Painted
P2D185	1783	70.2	498	19.6	1800x500	Painted
P2D186	1783	70.2	598	23.5	1800x600	Painted
P2D186HF	1783	70.2	598	23.5	1800x600	EMC
P2D187	1783	70.2	698	27.5	1800x700	Painted

Catalog Number	H (mm) H (in.) W (mm) W (in.) Fits Frame HxW (mm)	Description
P2D188 178370.279831.41800x800Painted
P2D189 178370.289835.41800x900Painted
P2D1810 178370.299839.31800x1000Painted
P2D205 198378.149819.62000x500Painted
P2D206 198378.159823.52000x600Painted
P2D206HF 198378.159823.52000x600EMC
P2D207 198378.169827.52000x700Painted
P2D208 198378.179831.42000x800Painted
P2D208HF 198378.179831.42000x800EMC
P2D2010 198378.199839.32000x1000Painted
P2D225 218385.949819.62200x500Painted
P2D226 218385.959823.52200x600Painted
P2D226HF 218385.959823.52200x600EMC
P2D227 218385.969827.52200x700Painted
P2D228 218385.979831.42200x800Painted
P2D228HF 218385.979831.42200x800EMC
P2D2210 218385.999839.32200x1000Painted

89129475

Standard Product Overlapping Doors

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.)	Fits Frame HxW mm	Description
P2DO68	58323.079831	4600x800Painted
P2DO88	78330.879831	4800x800Painted
P2DO108	98338.779831	41000x800Painted
P2DO1012	98338.7119847	21000x1200Painted
P2DO128	1183	46.679831	41200x800Painted
P2DO1212	1183	46.6119847	21200x1200Painted
P2DO148	1383	54.479831	41400x800Painted
P2DO1412	1383	54.4119847	21400x1200Painted
P2DO168	1583	62.379831	41600x800Painted
P2DO1612	1583	62.3119847	21600x1200Painted
P2DO1616	1583	62.3159862	91600x1600Painted
P2DO188	1783	70.279831	41800x800Painted
P2DO1810	1783	70.299839	31800x1000Painted
P2DO1810HF	1783	70.2	998	39.3	1800x1000	EMC
P2DO1816	1783	70.2159862	91800x1600Painted
P2DO1818	1783	70.2179870	81800x1800Painted
P2DO208	1983	78.179831	42000x800Painted
P2DO208HF	1983	78.179831	42000x800EMC
P2DO2012	1983	78.1119847	22000x1200Painted
P2DO2016	1983	78.1159862	92000x1600Painted
P2DO2018	1983	78.1179870	82000x1800Painted
P2DO228	2183	85.979831	42200x800Painted
P2DO228HF	2183	85.979831	42200x800EMC
P2DO2212	2183	85.9119847	22200x1200Painted
P2DO2216	2183	85.9159862	92200x1600Painted
P2DO2218	2183	85.9179870	82200x1800Painted

Notes
