Product Type	Sliding Shower Door
Brand	DreamLine
Model	Unidoor-X E1280634-04
Overall Width (Opening)	56–60 inches (adjustable)
Overall Height	72–76 inches (depending on configuration)
Glass Thickness	3/8 inch (10 mm) tempered
Frame Material	Aluminum
Glass Type	Clear tempered glass with safety film
Finish	Brushed Nickel (standard)
Door Operation	Sliding (bypass)
Number of Panels	2 sliding panels
Weight (Approx.)	65 lbs (29.5 kg)
Included Hardware	Rollers, handles, thresholds, wall profiles
Wall Profile Type	U-channel with adjustable anchoring
Threshold	Low profile aluminum sweep
Water Containment	Yes – integrated drip rails and seals
Clean-in-Place	Yes – removable rollers for easy glass cleaning
Safety Certification	ANSI Z97.1 / CPSC 16 CFR 1201 (tempered glass)
Warranty	Limited Lifetime (residential use)
Installation	DIY-friendly with detailed instructions; 2 people recommended
Replacement Parts Availability	Rollers, handles, seals, and glass available via DreamLine
Maintenance	Clean with mild soap and water; avoid abrasive cleaners

Frequently Asked Questions - Unidoor-X E1280634-04 DreamLine

How do I adjust the door rollers if the door doesn't slide smoothly?

Locate the adjustment screws on the bottom of each roller. Use a Phillips screwdriver to turn clockwise to raise the door or counterclockwise to lower it. Adjust in small increments until the door glides freely.

Can the Unidoor-X be installed over ceramic tile?

Yes, but you will need a diamond-tipped drill bit for the wall anchors. The included hardware is designed for standard stud walls; tile requires careful drilling to avoid cracks.

What is the recommended glass cleaning method?

Use a non-abrasive glass cleaner or a mixture of vinegar and water. Wipe with a soft microfiber cloth. Avoid harsh chemicals as they may damage the aluminum frame finish.

How do I replace a broken glass panel?

Contact DreamLine customer support for a replacement glass. Do not attempt to remove the broken panel yourself – it is tempered and may shatter. A professional installer should handle the replacement.

Does the door include a towel bar?

No, the Unidoor-X does not come with a towel bar. However, you can purchase DreamLine optional towel bar accessories that mount on the wall or end panel.

What is the minimum and maximum opening width for this model?

The Unidoor-X fits openings from 56 to 60 inches wide. For widths outside that range, consider DreamLine's custom-size options.

Are the glass panels reversible (left or right opening)?

Yes, the Unidoor-X is reversible. The installation manual explains how to swap the panels to suit your bathroom layout.

How do I clean the aluminum frame without scratching it?

Use a soft sponge and mild soapy water. Rinse thoroughly and dry with a soft cloth. Avoid steel wool or abrasive pads.

Does the door have a lock?

No, sliding shower doors typically do not include locks for safety reasons. The door stays closed via magnetic or gravity catches.

What tools are needed for installation?

You will need a level, drill, drill bits, Phillips screwdriver, measuring tape, and a silicone sealant. A second person is recommended to lift and secure the glass panels.

USER MANUAL Unidoor-X E1280634-04 DreamLine

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model's web page on DreamLine.com

STYLE M3

STEP 1: Install Shower Door

STEP 2: Install Panels

Questions?

Please Call DreamLine Customer Support: 1-855-831-2126

Hours of Operation M-F 8AM - 7PM EST and Saturday 9AM - 5PM EST

[e-mail]

For more information about DreamLine Shower Doors, Tub Doors and Enclosures, please visit DreamLine.com

UNIDOOR-X Style M

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model's web page on DreamLine.com

Right Hand Door installation shown

Questions?

Please Call DreamLine Customer Support: 1-855-831-2126

Hours of Operation M-F 8AM - 7PM EST and Saturday 9AM - 5PM EST

[e-mail]

For more information about DreamLine® products please visit DreamLine.com

This model is treated with DreamLine's exclusive ClearMax^TM Glass technology. This is a specially-formulated coating that prevents the build up of soap and water spots.

Install the surface with the ClearMax™ label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.

For best results, squeegee the glass after each use and dry with a soft cloth.

Model Numbers

UNIDOOR-X Style M

with 6" hinge panel with Hinge Panel Glass Bracket

D12372-##

D12472-##

D12572-##

D12672-##

D12772-##

D12872-##

D12972-##

D13072-##

UNIDOOR-X Style M

with 24" hinge panel with Left or Right L-Bracket

D32372L-##

D32372R-##

D32472L-##

D32472R-##

D32572L-##

D32572R-##

D32672L-##

D32672R-##

D32772L-##

D32772R-##

D32872L-##

D32872R-##

D32972L-##

D32972R-##

D33072L-##

D33072R-##

- hardware finish

01- Chrome

04- Brushed Nickel

06- Oil Rubbed Bronze

09 - Satin Black

Unidoor-X Style M manual used with the following Model Styles:

Style L1

Style M

Style M1

Style M2

Style M3

Style M4

When installing one of the configurations shown above with glass-to-glass hinges, discard the Style A manual that is packaged with the door glass and use this Style M manual for the installation of the hinge panel glass and door glass.

Next, use the manual that is packaged with the panel glass for the panel installation instructions based on the Style or configuration:

■ for Style M1 - use manuals for Style M & Style F

■ for Style M2 - use manuals for Style M & Style G

■ for Style M3 - use manuals for Style M & Style I

■ for Style M4 - use manuals for Style M & Style J

■ for Style L1 - use manuals for Style M & Style L

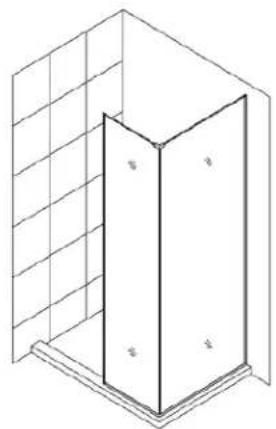

STYLE L1 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel and with 30"-34" full height return panel secured using u-channel

STYLE M *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel secured using u-channel

STYLE M1 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel and with 6", 6-1/2", 14", 14-1/2", 22" or 22-1/2" full height inline panel secured using u-channel

STYLE M2 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel with 12", 18", 24" or 26" inline buttress panel secured using u-channel

STYLE M3 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel, with 6", 6-1/2", 14", 14-1/2", 22" or 22-1/2" full height inline panel and 30" - 34" full height return panel secured using u-channel

STYLE M4 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel, with 12", 18", 24" or 26" in-line buttress panel and 30", 36" or 40" buttress return panel secured using u-channel

* For the panel installation instructions, please refer to the separate manual included in the panel glass packaging.

Depending on the panel glass size, some panel glass may have both an inline panel manual and a return panel manual. Use the appropriate manual for the model style/configuration.

For Example: a 30" full height panel can be used as an inline panel or a full height return panel.

NOTE: The Unidoor series doors and enclosures are reversible for left or right-hand door installation. This manual will show the right-hand door installation. For a left-hand door installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary.

use Right-hand L-bracket
use Left-hand L-bracket

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the "Detailed Diagram of Shower Door Components". If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions, and please provide an order number, job name or other proof of purchase to help us identify your original order.
2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.
3. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Note that some adjustments and drilling will be necessary during the installation process.
5. Please protect all primary surfaces of the product during installation. Never set the glass down directly onto a tile floor. Leave corner protectors in place until it is necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
6. This unit must be installed upon a finished threshold and against finished walls.
7. The hinge panel glass for this model should not be adjusted more than 1/4" for out-of-plumb within the U-channel. This model does NOT have any adjustment for overall width. Verify that the model size ordered will fit the finished opening before beginning installation.
8. This model requires that you drill into the threshold for proper installation.
9. It is recommended to install the hinge-side U-channel into a stud.
10. This model requires minimum 5/8" of flat threshold space for installation.

Professional installation recommended

NOTE: DO NOT install the handle onto the door glass until instructed to do so. DO NOT attempt to lift the glass using the handle. This could result in damage to the glass and/or serious personal injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.

Tools

Tape Phillips Measure

PencilLevel

Screwdriver

Hammer

Drill bit (∅=5/16")

Drill bit Power ( =1/8" )

Drill

Miter saw

or Hacksaw

Metal File

Silicone*

*Quick-drying/fast curing silicone recommended for the installation of hinge panels.

Table of Contents

Section title	Page #
Preparation	6
Tools	7
Parts List	8
Hinge Panel Glass Bracket installation	10~14
Hinge Panel Glass with L-Bracket installation	15~21
Hinges and Door Glass installation	22~23
Vinyl Seals	24~25
Adjustable Hinge instructions	27
Product maintenance	28

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in your manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

Retain these installation instructions for future reference.

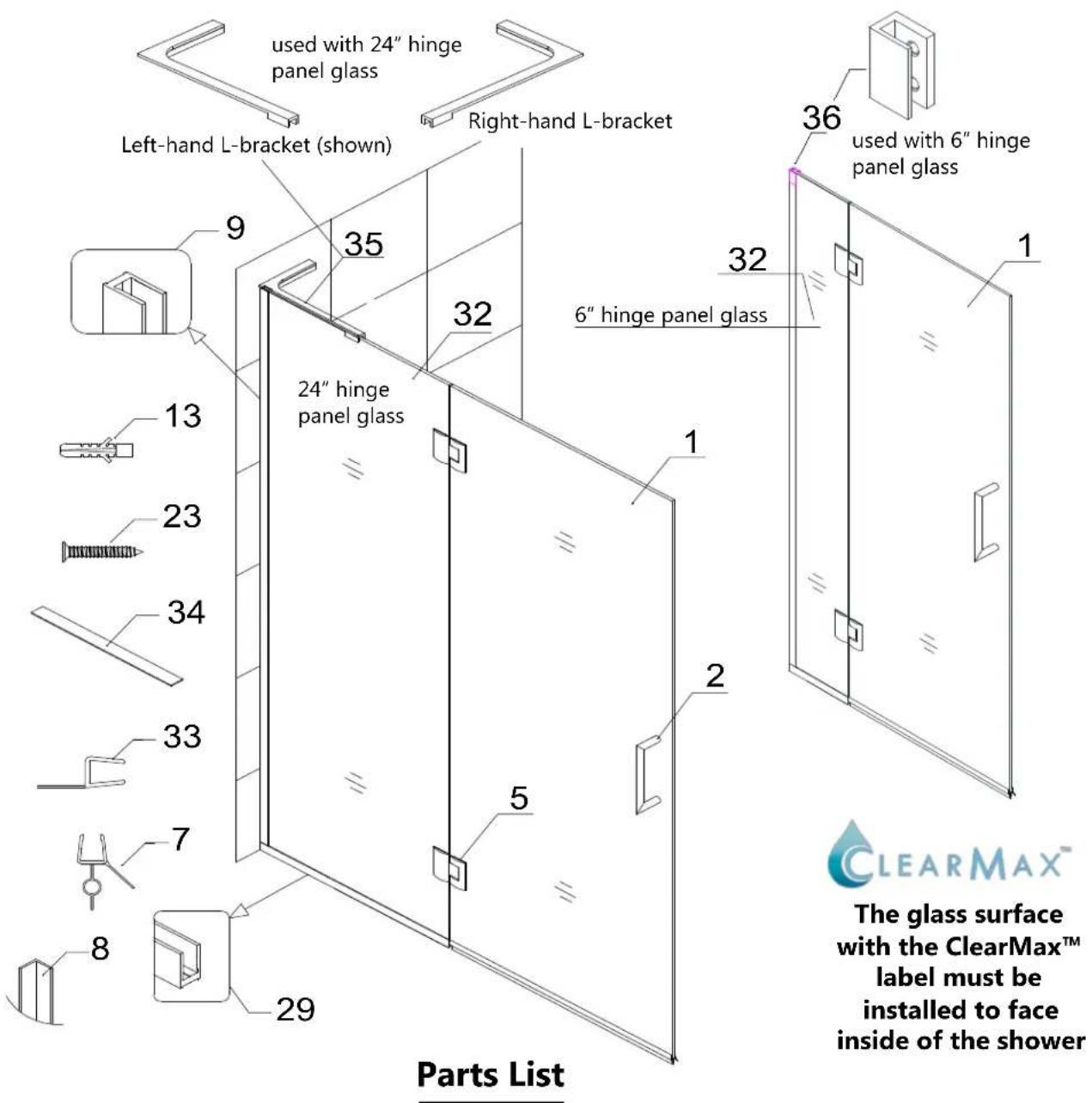

Detailed Diagram of shower door components

01	Door Glass	1pc	23	Countersunk screw ST4.2x40	8pcs
02	Handle	1pc	29	U-channel 2 (44", bottom profile)	1pc
05	Glass-to-Glass Hinge	2pcs	32	Hinge panel glass (6" or 24")***	1pc
07	Bottom anti-water strip	1pc	33	Flanged anti-water strip	1pc
08	L-shaped strip *	1pc	34	PVC glass spacer (0.5mm)	1pc
09	U-channel 1 (76", wall profile)	1pc	35	L-Bracket (Left or Right) (for 24")**	1pc
13	∅5/16" Wall anchor	5pcs	36	Hinge Panel Glass Bracket (for 6") ^	1pc

* L-shaped strip (#08) only used for Style M configuration

** L-Bracket (for 24" hinge panel glass) is not included with 6" hinge panel glass

*** Hinge panel glass - the top hinge cutout is 7-7/8" to center, the bottom cutout is 8-3/8" to center.

^ Hinge Panel Glass Bracket (#36) is for the 6" hinge panel only and is not to be used with the 24" hinge panel glass

Installation steps

Style M - 6" & 24" Inline Panel and Shower Door Installation

NOTE: The following shower door installation instructions should be used as a general guide and prerequisite to the installation of the UNIDOOR Style M, M1, M2, M3, M4 and L1 models. Before you begin the installation, please check your finished opening size and model dimensions to ensure proper placement of the Hinge Panel Glass (#32) and Door Glass (#01). Specific size information can be found on our website: DreamLine.com.

NOTE: The 24" Hinge Panel Glass (#32) installs with either a left or right L-Bracket (#35). (Fig 1)

The 6" Hinge Panel Glass installs with the Hinge Panel Glass Bracket (#36). (Fig 2)

This manual includes the instructions for both methods.

NOTE: There is a top and a bottom to the Hinge Panel Glass (#32): The top hinge cutout is 7-7/8" to center, the bottom hinge cutout is 8-3/8" to center. The hinge panel glass must be installed correctly.

NOTE: For the 6" Hinge Panel Glass (#32) installation, begin with Step #1. The Hinge Panel Glass Bracket (#36) installs at the top of the vertical U-channel. (Fig 2)

The Hinge Panel Glass Bracket (#36) is only for use with the 6" Hinge Panel Glass (#32). DO NOT USE this bracket with the 24" hinge panel glass.

For the 24" Hinge Panel Glass (#32) installation with the L-Bracket (#35), begin with Step #10 on Page 15.

Note: The L-Bracket (#35) is not included with the 6" hinge panel installation.

NOTE: It is strongly recommended that the silicone be allowed to fully cure in the U-channels before hanging the door glass.

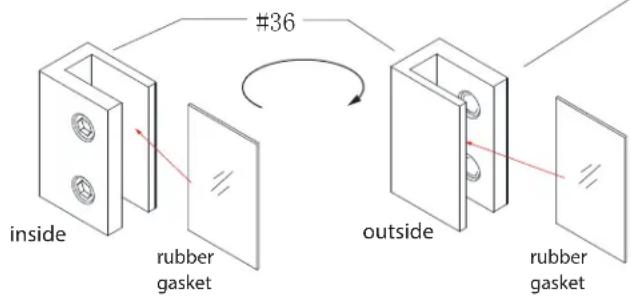

NOTE: The Hinge Panel Glass Bracket (#36) is only to be installed with the 6" Hinge Panel Glass (#32) for the UNIDOOR-X models. Maximum out-of-plumb adjustment for Hinge Panel Glass = 1/4"

24" Hinge Panel with left L-bracket (#35)
Fig 1

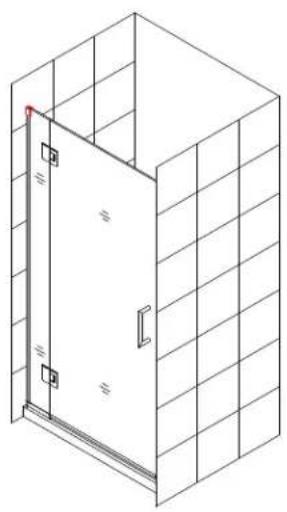

6" Hinge Panel with Hinge Panel Glass Bracket (#36)
Fig 2

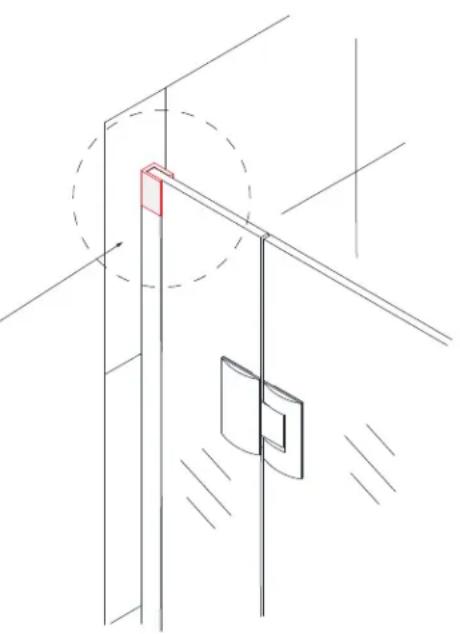

Installation steps for 6" hinge panel with Hinge Panel Glass Bracket

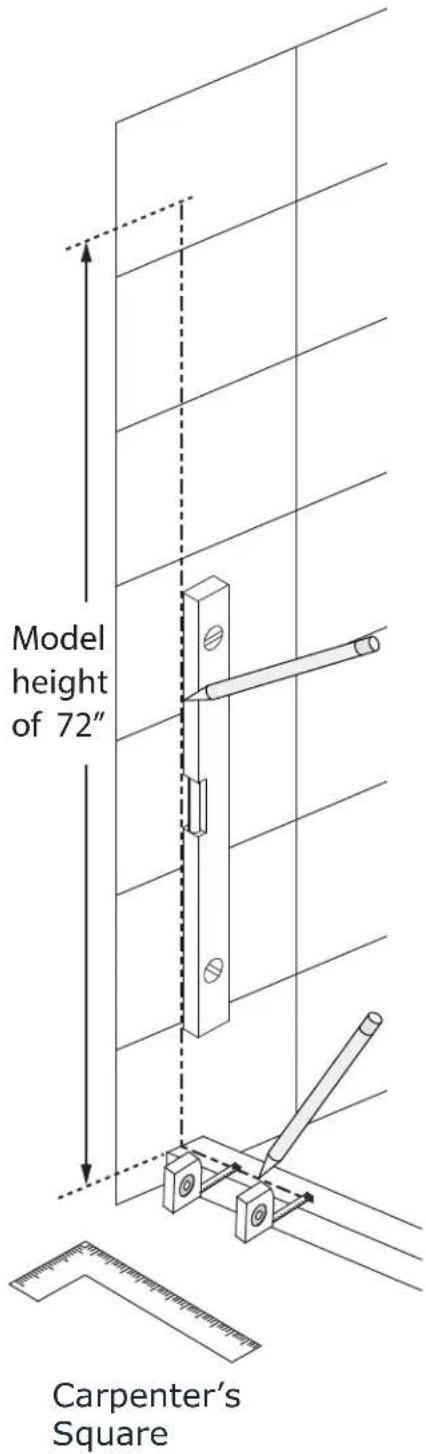

1. Draw a line on the threshold and on the wall to represent the centerline of the U-channel. Make sure the line is parallel to the front edge of the threshold. (Fig 3)

2. Cut the vertical U-channel to 69-7/16". Cut the bottom U-channel** to 6". (Fig 4)

Fig 3

4. Mark the hole positions on the centerline on the wall and threshold through the holes in the U-channels and the Hinge Panel Glass Bracket (#36). (Note that the Hinge Panel Glass Bracket (#36) is wider than the u-channel). (Fig 6)  Fig 6Fig 5 5. Drill ∅5/16" holes in the wall and install the wall anchors. Drill ∅1/8" holes into an acrylic threshold (or ∅5/16" holes and anchors for a tile threshold). (Fig 7) 6. Apply silicone to the back of the U-channels and the screw holes, then install the U-channels and Hinge Panel Glass Bracket (#36) using the ST4.2 x 40mm screws (#23). (Fig 8)  Fig 7  Fig 8 7. Add the 0.5mm shims into the bottom U-channel to protect the bottom corners of the glass. Apply a bead of silicone into the length of the U-channels. (Fig 9) Quick-drying/fast curing silicone is recommended for the installation of hinge panel glass into u-channels.  Cut and install two 2" pcs of the 0.5 mm shims (#34) into the bottom U-channel to protect the corners of the glass Fig 9 8. Install the Hinge Panel Glass (#32) into the U-channel, checking for level and plumb. Install the gasket into the Hinge Panel Glass Bracket. (Note: Make sure the top of the hinge panel glass is at the top). (Fig 10) Hinge Panel Glass Bracket with gasket  Fig 10 9. Tighten the rubber-tipped set screws on the Hinge Panel Glass Bracket (#36) to secure the glass. Do Not overtighten! (Fig 11)  Fig 11  NOTE: Following the installation of the Hinge Panel Glass (#32), it is strongly recommended that the silicone be allowed to fully cure before hanging the door glass. (Fig 12) Go to Step #18 on Page 21 to continue the installation of the Hinges, Door Glass and other components.  Fig 12

Installation steps for 24" hinge panel glass with L-Bracket

10. Cut the vertical U-channel 1 (#09) to 71". (Fig 13)

 Fig 13

11. Cut the bottom U-channel 2 (#29) to 24" (see note** below). (Fig 14)

 Fig 14 12. Position the U-channel 2 (bottom profile) (#29) onto the threshold, parallel to the outside edge. Mark the position of the U-channel and mark the position of the holes for drilling. You need to use at least 3 holes for the U-channel 2 (bottom profile) (#29): one near each end and one near the center. - Drill the holes into the threshold using an 1 / 8'' drill bit. (Or use a 5 / 16'' bit and anchor for tile) - Apply a bead of silicone to the bottom of the U-channel 2 (bottom profile) (#29) and attach it to the threshold using the ST4.2 x 40mm screws (#23) (Fig. 15) NOTE: If installing this hinge panel and door for one of the Unidoor-X enclosure configurations, it is important that the hinge panel is installed at the correct dimension for the enclosure model size. Refer to panel installation manual packaged with the panel glass for details and dimensions.      Fig 15  13. Next, position the vertical U-channel 1 (#09) (wall profile) on top of the installed bottom U-channel. Use a level to plumb the U-channel 1 (#09) (wall profile) and mark the positions of the holes for drilling. You need to use at least four holes for the U-channel 1 (#09) (wall profile). - Drill the holes into the wall using a ∅5/16" drill bit. - Insert the Wall Anchors (#13) into the 5/16" holes. - Apply silicone to the back of the U-channel 1 (#09) (wall profile) and attach it to the wall using the ST4.2 x 40mm screws (#23). (Fig 16)  14. Add several 2" pieces of the 0.5mm Adjustment Spacers (#34) into the bottom U-channel to protect the bottom and corners of the glass. Apply a good quality mildew-resistant silicone into both U-channels. (Fig 17)      Fig 16    Fig 17 NOTE: There is a top and a bottom to the Hinge Panel Glass (#32): The top hinge cutout is 7-7/8" to center, the bottom hinge cutout is 8-3/8" to center. The hinge panel glass must be installed correctly so that the door glass can be installed correctly. 15. Install the Hinge Panel glass (#32) into the U-channel 2 (#29) (bottom profile) and the U-channel 1 (#09) (wall profile). Apply a dab of silicone to the exposed end of the bottom u-channel. (Fig 18 and 19)     Fig 18

Installation steps for 24" hinge panel glass with L-Bracket

L- Bracket Assembly Parts List**

35.1	PVC spacer 1 pc 35.6 Wall plate 1 pc
35.2	Rubber tip set screw 2 pcs 35.7 Truss Head Screw ST 4.2 x 40 2 pcs
35.3	L-Bracket (left hand shown) 1 pc 35.8 Flat head Screw M5 x 14 2 pcs
35.4	Decorative cover 1 pc 35.9 Wall Plate adjustment set screw 2 pcs
35.5	∅5/16" Wall anchor 6 pcs

**L- Bracket Assembly not included with the 6" hinge panel

(Left-hand bracket installation shown)

16. Position the L-Bracket assembly (#35) onto the Hinge Panel Glass (#32) as shown and mark its position on the wall. Remove the Wall Plate (#35.6) from the L-bracket. Hold the Wall Plate (#35.6) to the marks on the wall. Check for level and mark the holes for drilling through the wider, untapped holes. (Fig 20.2) Drill two ∅5/16" (8mm) holes and insert the ∅5/16" Wall anchors (#35.5). (Fig 20)     Fig 20 17. Attach the Wall Plate (#06) to the wall using the ST4.2 x 40 (#35.7) screws. Re-attach the L-Bracket (#35.3) to the Wall Plate (#35.6) using the Flat Head Screw M5x14 (#35.8) and adjust the angle if necessary by using the Wall Plate Adjustment Set Screws (#35.9). (Fig 21.7 and 21.8)     Fig 21 18. Adjust the Stationary Glass to plumb and tighten the screws. Attach the Decorative Cover (#35.4). Secure the L-Bracket (#35.5) to the top of the Stationary Glass using the clear gasket and rubber-tipped set screws. Do not overtighten! (Fig 22)    Fig 22  Left-hand bracket installation  Fig 23 Right-hand bracket installation NOTE: The left-hand L-bracket installation is shown. Follow the same steps for installing the right-hand L-bracket. 19. Attach the Hinges (#05) to the Hinge Panel Glass (#32) with the bolts facing inside the shower. Install the hinges onto the Hinge Panel Glass (#32) flush with the edge of the glass. Use at least one 2mm hinge gasket per side. Tighten the hinge bolts evenly and snap in the decorative bolt caps. (Figs 24 and 25)   Fig 24 NOTE: These adjustable hinges are factory set to overclose. See Page 27 for instructions regarding the adjustment features of these hinges.  NOTE: Do not attach the handle to the door glass until instructed. Do not attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury. Use a professional grade glass suction cup and an assistant when handling heavy glass. 20. The Door Glass (#01) ships with four 5/8" spacers attached to the top (2pcs) and bottom (2pcs). These 5/8" spacers will create the proper spacing at the bottom of the door glass and will ensure the installed door height finishes at 72", but always confirm with a measurement.    Set the Door Glass (#01) with the 5/8" spacers attached onto the threshold, inline with the Hinge Panel Glass (#32). Level up the Door Glass (#01) with the Hinge Panel Glass (#32) and fasten the hinges onto the Door Glass (#01) using one 2mm hinge gasket per side. Make sure the top edges of the Door Glass (#01) and Hinge Panel Glass (#32) are aligned and that there is an even reveal between the door and panel glass. Remove the 5/8" spacers from beneath the Door Glass (#01) once the hinge panel glass is fully secured.** (Figs 24 and 25) ** NOTE: It is strongly recommended that the 5/8" shims be left beneath the door glass until the silicone securing the hinge panel glass has fully cured.  Fig 26  Use the 5/8" spacers included with the door glass 21. Mount the Handle (#02) to the Glass door (#01). (Fig 26) 22. Measure the bottom of the Door Glass (#01) from side to side to determine the actual width of the door. Cut the Bottom Anti-Water Strip (#07) to the size of your measurement and notch 3/8" of the inner side of the Bottom Anti-Water Strip (#07) as shown in Fig 27.2. Press the Bottom Anti-Water Strip (#07) onto the bottom edge of the Glass Door (#01). NOTE: Make sure the Bottom Anti-Water Strip (#07) is flush to the vertical edge of the handle side of the Door Glass (#01). (Fig 27)  Fig 27 23. To install the Flanged Anti-Water Strip (#33), take three measurements: \- from the top edge of the Door Glass (#01) to the top of the center portion of the top Hinge (#06) (see Fig 28.1 for an example to use for taking all three measurements) • from the bottom of the center portion of the top Hinge to the top of the center portion of the bottom Hinge (#05) • from the bottom of the center portion of the bottom Hinge (#05) to the threshold Cut the Flanged Anti-Water Strip (#33) according to these measurements. Notch the cut strips to slide them into the hinges and around the installed Bottom Anti-Water Strip (#07) to cover the space between both glass panels. Open the door and press the cut strips onto the vertical edge of the Door Glass (#01) so they will overlap the panel glass. (Fig. 28)  Fig 28 For Style M only: If your model does not include additional panel glass, proceed to the next step to install the L-shaped Strip (#08) to the wall.

ATTENTION:

Prior to the next step, please be sure the section of the wall where you need to attach the L-shaped Strip (#08) is clean, dry, and free from soap, oil or any construction debris. 24. With the door closed, place the L-shaped Strip (#08) on the door edge and mark its location on the wall. Please note that the corner of the L-shaped Strip (#08) should face into the shower. (Fig 29.1 and 29.2) With the door open, remove the tape backing from the adhesive strip and firmly press the L-shaped Strip (#08) to the wall. Allow time for the adhesive to set before allowing the door to close against the L-shaped Strip (#08). (Fig 29)

NOTE:

The above procedure for installing the L-shaped Strip (#08) is for the Unidoor Style M shower door only. If installing another model, please refer to the separate panel glass installation manual located in the glass packaging for model specific instructions. Hinges set to overclose require the use of the L-shaped Strip (#08) or other strike vinyl that ships with the panel glass.   Fig 29  Fig 30  25. With the door open, apply a good quality mildew-resistant/waterproof silicone along the connection of both U-Channels to the wall and threshold on the inside of the shower. NOTE: The surface needs to be clean and free of debris before applying silicone. Let the silicone cure before closing the door to avoid contact with the Bottom anti-water strip (#33) (Fig. 31)  Fig 31 26. Allow 24 hours for the silicone to fully cure before using the shower.   NOTE: If your model includes additional panel glass, please find the manual for the panel glass installation in the panel glass packaging. (See page 4 for details)  HG-PRS20A Adjustable Hinge Manual

Installation & Adjustment

1. Make sure the door glass is plumb and the edge of the hinge is installed flush with the glass edge. Tighten the faceplate screws. (Figure 1) 2. The hinges are set to overclose at 172° degrees. You can change this angle by using the adjustment screws on the hinge plate. (Figure 2) 3. Use the supplied Allen Key to loosen the adjustment screws on the hinge plate, adjust the door to the desired angle then tighten the adjustment screws. (Figure 3)  Figure 1  Figure 2  Figure 3

Safe Use & Daily Maintenance

- The overclose setting requires strike vinyl for the door to close against and seal. - Use a soft cloth to clean the hinge surfaces. Do not use abrasives or acidic liquids as this will damage the finish. - Be careful not to scratch the finished surfaces of the hinge during installation.

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface. GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface. HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces. NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. TEL: [phone] FAX: [phone] DREAMLINE.COM

DREAMLINE® THE ULTIMATE SHOWER DOOR

UNIDOOR PLUS (STYLE I)

SHOWER ENCLOSURE GLASS PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model's web page on DreamLine.com   STYLE I Right side panel installation shown ATTENTION: This model is also available with the Half Frosted Band glass option. Please see specific installation instructions on page 2 when applicable. Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists Monday through Friday 8AM – 7PM and Saturday 9AM-5PM EST at Phone: [phone], Fax: [phone] or e-mail our technical support group at [e-mail] For more information about DreamLine® products please visit DreamLine.com

Style "I": Half Frosted Band Glass Installation

This model features the half frosted glass option. Hinged Left installation shown. To install for hinged Right, flip the door and panels to the proper handing. NOTE: The textured surface of both the stationary glass and door glass should face outside of the shower.  Model#s:

SHEN-24290300

SHEN-24290340

SHEN-24295300

SHEN-24295340

SHEN-24300300

SHEN-24300340

SHEN-24305300

SHEN-24305340

SHEN-24310300

SHEN-24310340

SHEN-24315300

SHEN-24315340

SHEN-24320300

SHEN-24320340

SHEN-24325300

SHEN-24325340

SHEN-24330300

SHEN-24330340

SHEN-24335300

SHEN-24335340

SHEN-24340300

SHEN-24340340

SHEN-24345300

SHEN-24345340

SHEN-24350300

SHEN-24350340

SHEN-24355300

SHEN-24355340

SHEN-24360300

SHEN-24360340

SHEN-24365300

SHEN-24365340

SHEN-24290300-HFR

SHEN-24290340-HFR

SHEN-24295300-HFR

SHEN-24295340-HFR

SHEN-24300300-HFR

SHEN-24300340-HFR

SHEN-24305300-HFR

SHEN-24305340-HFR

SHEN-24310300-HFR

SHEN-24310340-HFR

SHEN-24315300-HFR

SHEN-24315340-HFR

SHEN-24320300-HFR

SHEN-24320340-HFR

SHEN-24325300-HFR

SHEN-24325340-HFR

SHEN-24330300-HFR

SHEN-24330340-HFR

SHEN-24335300-HFR

SHEN-24335340-HFR

SHEN-24340300-HFR

SHEN-24340340-HFR

SHEN-24345300-HFR

SHEN-24345340-HFR

SHEN-24350300-HFR

SHEN-24350340-HFR

SHEN-24355300-HFR

SHEN-24355340-HFR

SHEN-24360300-HFR

SHEN-24360340-HFR

SHEN-24365300-HFR

SHEN-24365340-HFR

Model#s:

SHEN-24370300

SHEN-24370340

SHEN-24375300

SHEN-24375340

SHEN-24380300

SHEN-24380340

SHEN-24385300

SHEN-24385340

SHEN-24390300

SHEN-24390340

SHEN-24395300

SHEN-24395340

SHEN-24400300

SHEN-24400340

SHEN-24405300

SHEN-24405340

SHEN-24410300

SHEN-24410340

SHEN-24415300

SHEN-24415340

SHEN-24420300

SHEN-24420340

SHEN-24425300

SHEN-24425340

SHEN-24430300

SHEN-24430340

SHEN-24435300

SHEN-24435340

SHEN-24440300

SHEN-24440340

SHEN-24445300

SHEN-24445340

SHEN-24370300-HFR

SHEN-24370340-HFR

SHEN-24375300-HFR

SHEN-24375340-HFR

SHEN-24380300-HFR

SHEN-24380340-HFR

SHEN-24385300-HFR

SHEN-24385340-HFR

SHEN-24390300-HFR

SHEN-24390340-HFR

SHEN-24395300-HFR

SHEN-24395340-HFR

SHEN-24400300-HFR

SHEN-24400340-HFR

SHEN-24405300-HFR

SHEN-24405340-HFR

SHEN-24410300-HFR

SHEN-24410340-HFR

SHEN-24415300-HFR

SHEN-24415340-HFR

SHEN-24420300-HFR

SHEN-24420340-HFR

SHEN-24425300-HFR

SHEN-24425340-HFR

SHEN-24430300-HFR

SHEN-24430340-HFR

SHEN-24435300-HFR

SHEN-24435340-HFR

SHEN-24440300-HFR

SHEN-24440340-HFR

SHEN-24445300-HFR

SHEN-24445340-HFR

Model#s:

SHEN-24450300

SHEN-24450340

SHEN-24455300

SHEN-24455340

SHEN-24460300

SHEN-24460340

SHEN-24465300

SHEN-24465340

SHEN-24470300

SHEN-24470340

SHEN-24475300

SHEN-24475340

SHEN-24480300

SHEN-24480340

SHEN-24485300

SHEN-24485340

SHEN-24490300

SHEN-24490340

SHEN-24495300

SHEN-24495340

SHEN-24500300

SHEN-24500340

SHEN-24505300

SHEN-24505340

SHEN-24510300

SHEN-24510340

SHEN-24515300

SHEN-24515340

SHEN-24520300

SHEN-24520340

SHEN-24525300

SHEN-24525340

SHEN-24450300-HFR

SHEN-24450340-HFR

SHEN-24455300-HFR

SHEN-24455340-HFR

SHEN-24460300-HFR

SHEN-24460340-HFR

SHEN-24465300-HFR

SHEN-24465340-HFR

SHEN-24470300-HFR

SHEN-24470340-HFR

SHEN-24475300-HFR

SHEN-24475340-HFR

SHEN-24480300-HFR

SHEN-24480340-HFR

SHEN-24485300-HFR

SHEN-24485340-HFR

SHEN-24490300-HFR

SHEN-24490340-HFR

SHEN-24495300-HFR

SHEN-24495340-HFR

SHEN-24500300-HFR

SHEN-24500340-HFR

SHEN-24505300-HFR

SHEN-24505340-HFR

SHEN-24510300-HFR

SHEN-24510340-HFR

SHEN-24515300-HFR

SHEN-24515340-HFR

SHEN-24520300-HFR

SHEN-24520340-HFR

SHEN-24525300-HFR

SHEN-24525340-HFR

Model#s:

SHEN-24530300

SHEN-24530340

SHEN-24535300

SHEN-24535340

SHEN-24540300

SHEN-24540340

SHEN-24545300

SHEN-24545340

SHEN-24550300

SHEN-24550340

SHEN-24555300

SHEN-24555340

SHEN-24560300

SHEN-24560340

SHEN-24565300

SHEN-24565340

SHEN-24570300

SHEN-24570340

SHEN-24575300

SHEN-24575340

SHEN-24580300

SHEN-24580340

SHEN-24585300

SHEN-24585340

SHEN-24590300

SHEN-24590340

SHEN-24595300

SHEN-24595340

SHEN-24600300

SHEN-24600340

SHEN-24605300

SHEN-24605340

SHEN-24530300-HFR

SHEN-24535300-HFR

SHEN-24530340-HFR

SHEN-24535340-HFR

SHEN-24540300-HFR

SHEN-24545300-HFR

SHEN-24540340-HFR

SHEN-24545340-HFR

SHEN-24550300-HFR

SHEN-24555300-HFR

SHEN-24550340-HFR

SHEN-24555340-HFR

SHEN-24560300-HFR

SHEN-24565300-HFR

SHEN-24560340-HFR

SHEN-24565340-HFR

SHEN-24570300-HFR

SHEN-24575300-HFR

SHEN-24570340-HFR

SHEN-24575340-HFR

SHEN-24580300-HFR

SHEN-24585300-HFR

SHEN-24580340-HFR

SHEN-24585340-HFR

SHEN-24590300-HFR

SHEN-24595300-HFR

SHEN-24590340-HFR

SHEN-24595340-HFR

SHEN-24600300-HFR

SHEN-24605300-HFR

SHEN-24600340-HFR

Finishes: -01 Chrome -04 Brushed Nickel -06 Oil Rubbed Bronze -09 Satin Black HFR= Half Frosted Band

ADDITIONAL MODEL CONFIGURATIONS for UNIDOOR-X GLASS-TO-GLASS HINGE DOORS

 Style M3 ⁶  Style M3 ²⁴

Model#s:	E1271434	E3280630L
E1230630-##	E12714530	E3280630R
E1230634	E12714534	E3280634L
E12306530	E1281430	E3280634R
E12306534	E1281434	E32806530L
E1233030	E1292230	E32806530R
E1233034	E1292234	E32806534L
E12330530	E12922530	E32806534R
E12330534	E12922534	E3290630L
E1240630	E1302230	E3290630R
E1240634	E1302234	E3290634L
E1243030	E13022530	E3290634R
E1243034	E13022534	E32906530L
E1251430	E3270630L	E32906530R
E1251434	E3270630R	E32906534L
E12514530	E3270634L	E32906534R
E12514534	E3270634R	E3300630L
E1261430	E32706530L	E3300630R
E1261434	E32706530R	E3300634L
E12614530	E32706534L	E3300634R
E12614534	E32706534R
E1271430

Finishes: -01 Chrome -04 Brushed Nickel -06 Oil Rubbed Bronze -09 Satin Black HFR= Half Frosted Band

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the "Detailed Diagram of Shower Door Components". If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions, and please provide an order number, job name or other proof of purchase to help us identify your original order. 2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine is not responsible for code compliance standards for your project and will not accept any returns. 3. If this unit is going to be installed in new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation. 4. Prior to the installation, please ensure that the installation surface is level and solid and will be able to support the total weight of the unit. Also make sure that the walls are plumb. Depending on the type of unit you are installing, some adjustments in leveling may be possible. However, irregular installation, surface level or out of square conditions can result in serious problems for your installation. Please note that some adjustments and drilling may be necessary. Please protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass. 5. Note: The installation of this unit requires that you drill down into the threshold. 6. This model requires a minimum 5/8" of flat threshold space for installation. 7. This model has 1/2" of adjustment within the u-channel on the stationary panel side for out-of-plumb wall conditions and overall width within the model size. Confirm the finished opening conditions before proceeding with the installation. 8. Professional installation recommended. NOTE: This model is reversible for left or right hand installation. This manual will show the right side panel installation. For a left side panel installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary. Tools Required  Detailed Diagram of Glass Panel Components  Packing List

09	U-channel 1 (76", wall profile)	1pc	23	Countersunk screw ST4.2x40	14pcs
11	Stationary glass	1pc	26	Return panel glass	1pc
13	∅5/16" Wall anchor	14pcs	28	Adjustment Spacer	6pcs
19	Anti-Water strip (inline panel)	1pc	29	U-channel 2 (44", bottom profile)	2pcs
20	Anti-Water strip (enclosure) *	1pc	30	90° Corner Bracket	1pc

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in your manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration. NOTE: Retain these installation instructions for future reference. * ATTENTION: Anti-Water strip (enclosure) (20) used for 30"- 34" return stationary panel Installation (STYLE L) only.

Style "I": In-Line Panel with 30"-34" Return Panel Installation

NOTE: The Unidoor shower door needs to be installed prior to proceeding with the following Stationary and Return Glass installation instructions. Please see the Single Shower Door installation manual included in the door packaging for complete shower door installation instructions. Before you begin the installation, please recheck your shower opening size. Specific size information can be found using the "SKU TO GLASS SIZE GUIDE" below. NOTE: The installation of this enclosure requires two installers. NOTE: Use parts from "Detailed Diagram of Glass Panel Components" for the glass panel assembly and installation.  1. Please locate and record the SKU numbers found on the packaging of both glass panels and door. You will specifically need all Product Width values to calculate your Shower Enclosure size. SKU TO GLASS SIZE GUIDE

Example

SHDR-GL2402-227210-HFR Unidoor Plus Shower Door Glass Panel 22" x 72" x 10mm. Half-Frosted Band. 2. Please mark measurement lines on the wall and threshold for the Glass Door and U-channel according to the size of your model. You will need to use the Product Width values determined in step #1 in Size Table A. Please Note that these dimensions are nominal dimensions and not actual glass sizes. NOTE: M and L dimensions are from the finished wall to the outside of the U-channel as shown in Fig. 1.

M =	Door	+	Panel	-	1/8"
L =	Return Panel			+	7/16"

Size Table A  Fig. 1 NOTE: The Unidoor hinge is factory set to over close 8°. The following procedure is recommended to ensure proper alignment of the panel glass and door. 3. Align the Door so that it is perpendicular to the wall and parallel to the threshold. Measure across the bottom span of the Door and threshold on the outside of shower and determine an equal value. Mark a line on the threshold base on the handle side to assist with aligning the inline panel glass. See Fig. 2 for details.   Fig. 2 4. Measure the actual width of your Return panel glass (26) panel. NOTE: You will be doing straight and 45° cuts for this enclosure installation. *All 45° cuts are from the outside dimension. (tip to tip) *It may be necessary to remove any burrs from the cut end of the U-channels with a metal file before placing the U-channel onto the glass. Use a miter saw to rough straight cut one of the U-channel 2 (44", bottom profiles) (29) to the actual width of the glass (+) 1-1/4". See Fig. 3 & 4 for details.  Fig. 3  Fig. 4 5. Slip the cut U-channel 2 (44", bottom profile) (29) and uncut U-channel 1 (76", wall profile) (09) onto the Return panel glass (26) in the shown locations. Insert three to four 2" pieces of the Adjustment spacer (#28) into the bottom u-channel (#29) as necessary to level the panel glass. (Fig.5.1) With the door open, place the Return panel glass on the threshold adjacent to door and in line with the wall mark. Adjust the Return panel glass and U-channel 1 (wall profile) against the wall to compensate for any out of plumb conditions ensuring that the Return panel glass is level vertically and U-channel 1 is flush with the wall. Mark the U-channel 2 (bottom profile) end opposite of the wall at the exposed vertical glass edge. Remove the U-channel 2 (bottom profile). Leave the U-channel 1 (wall profile) on the Return panel glass. Set the Return panel glass aside. Cut the U-channel 2 (bottom profile) 45° to the mark (+) 1/2". The end facing the wall will remain straight. Slip the U-channel 2 (bottom profile) back onto the Return panel glass and set the Return panel glass aside. See Fig. 5 for details.       Fig. 5 6. Measure the actual width of your Stationary glass (11) panel. Use a miter saw to cut the second U-channel 2 (44", bottom profile) (29) 45° to the actual width of the glass (+) 1/16". See Fig. 6 & 7 for details.  Fig. 6  NOTE: The top of the Enclosure glass must be level with the Glass door. By using a level across the top of both the In-line Stationary panel glass (11) and door, height differences can be measured. The Adjustment spacers (28) are provided for the Return panel glass (26) only to compensate for such differences by inserting them into the U-Channel 2 (bottom profile) (29). Please use the correct spacer size that is needed for your situation.  Fig. 7 7. Slip the U-channel 2 (44", bottom profile) (29) onto the Stationary glass (11) and ensure that the straight end of the U-channel 2 is flush with the vertical glass edge. Press the Anti-Water strip (inline panel) (19) onto the vertical edge of the Stationary glass allowing the base of the strip to rest on top of the U-channel. Carefully butt the Stationary glass and Return panel glass (26) together to form a tight corner from bottom to top. The Stationary glass will be in front of the Return panel glass. While securely holding the two glass panels, attach the 90° Corner Bracket (30) to the top corner. Ensure that the 90° Corner Bracket is square and gaskets are aligned properly before tightening the glass holding screws. Temporarily secure the bottom corner of the glass panels with a generous strip of Painters tape. See Fig. 8 & 9 for details.  Fig. 8 NOTE: The next step involves careful handling of the glass panels that were just temporarily fixed together to determine a custom fit measurement unique to your installation. It is essential that two installers be used along with responsive communication.  Fig. 9 8. Carefully butt the Return panel glass (26) up against the wall vertically according to the M value stated in Size Table A on page 5. Intermittently use a level throughout these steps to ensure that this glass enclosure is leveled properly. While securely holding the glass panels, close the Glass Door and align the Stationary glass (11) to it. Use the door mark on the threshold as a reference to ensure that the Door is perpendicular to the wall. If needed, adjust the position of the Stationary glass and Return panel glass so that the Anti-Water strip (inline panel) (19) makes tight contact to the Glass Door from top to bottom. The U-channel 1 (wall profile) (09) will remain flush against the wall. Outline the position of the glass panels along the inside bottom edge of all U-channels on the threshold and wall. Mark the U-channel 1 (wall profile) (09) at the top horizontal glass edge. See Fig. 10 for details.    Fig. 10 9. Carefully disassemble the panels for the next steps. See Fig. 11 for details.  Fig. 11 10. Place the U-Channel 2 (bottom profile) (29) for the Return panel glass (26) onto the threshold base in line with the inside threshold mark. Mark the drill holes on the threshold through the predrilled holes in the U-Channel 2 and drill the holes using ∅1/8" drill bit. Apply waterproof silicone along the bottom surface and around the holes of the U-Channel 2 and fasten it to the base with the Countersunk screws ST4.2×40 (23). NOTE: The surface needs to be clean and free of debris before applying silicone. See Fig. 12 & 13 for details.      Fig. 12  Fig. 13 11. Straight cut the U-channel 1 (76", wall profile) (09) at the top mark that was made in step #8. Place the U-Channel 1 (wall profile) on the U-Channel 2 (bottom profile) (29) and align vertically with the inside wall mark. Mark the drill holes on the wall through the predrilled holes in the U-Channel 1. Now drill holes in the wall using ∅5/16 drill bit and insert the ∅5/16" Wall anchors (13). See Fig. 14 for details.      Fig. 14 12. Apply waterproof silicone along the bottom surface and around the holes of the U-Channel 1 (76", wall profile) (09). Fasten the U-Channel 1 to the wall with the Countersunk screw ST4.2x40 (23). Insert the provided 2" pieces of the Adjustment Spacers (28) into U-Channel 2 (bottom profile) (29) for minor adjustments if necessary. Apply Waterproof silicone into the groove of both U-Channels. See Fig. 15 & 16 for details     Fig. 15  Fig. 16 13. Slide the Return panel glass (26) into the groove of both U-Channels.

NOTE:

If you have difficulty sliding the Return panel glass into the U-Channels, you can slightly tap on the Return panel glass with a rubber mallet and a piece of wood. See fig. 17 & 18 for details.    Fig. 17  Use Adjustment spacers (#28) as necessary to level your glass  Fig. 18 14. Place the U-Channel 2 (bottom profile) (29) for the Stationary glass (11) onto the threshold base in line with the inside threshold mark and flush with 45° corner cut. Mark the drill holes on the threshold through the predrilled holes in the U-Channel 2 and drill the holes using ∅1/8" drill bit. Apply waterproof silicone along the bottom surface and around the holes of the U- Channel 2 and fasten it to the base with the Countersunk screws ST4.2×40 (23). NOTE: The surface needs to be clean and free of debris before applying silicone. See Fig. 19 & 20 for details.      Fig. 19  Fig. 20 15. Apply Waterproof silicone into the groove of the U-Channel 2 (bottom profile) (29) and sparingly along the vertical edge of the Return panel glass (26). See Fig. 21 & 22 for details.   Fig. 21  Fig. 22 16. Slide the Stationary glass (11) into the groove of the U-Channel. Make sure the vertical edge of the Stationary glass is flush with outer face of the Return panel glass (26) at the corner. Apply a bead of silicone on the open end of the U-Channel, and its connection.

NOTE:

If you have difficulty sliding the Stationary glass into the U-Channel, you can slightly tap on the Stationary glass with a rubber mallet and a piece of wood. See fig. 23 & 24 for details.     Fig. 23  Fig. 24 17. Attach the 90° Corner Bracket (30) to the top corner of both glass panels. Ensure that the 90° Corner Bracket is square and gaskets are aligned properly before tightening the glass holding screws. Temporarily secure the corner of the glass panels with several generous strips of Painters tape to keep the corner tight until the silicone cures. See fig. 25 & 26 for details.  Fig. 25  Fig. 26 18. Apply waterproof silicone along the connection of all U-Channels to the wall and threshold on the inside of shower. Carefully apply an even bead of silicone down the inside corner of the glass panels. See Fig. 27 & 28 for details.  Fig. 27  Fig. 28 19. Notch the Anti-Water strip (inline panel) (19) 1" at the base to fit around bottom U-channel. Press the Anti-Water strip onto the vertical edge of the Stationary glass (11). See Fig. 29 for details.     Fig. 29

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface. GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface. HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces. NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

DREAMLINE® THE ULTIMATE SHOWER DOOR

TEL: [phone] FAX: [phone] DREAMLINE.COM For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com
