CM-CSCD - Car phone holder Sabrent - Free user manual and instructions

Product Type	Universal Smartphone CD Slot Mount
Brand	Sabrent
Model	CM-CSCD
Compatible Smartphone Size	3.5 to 5.5 inches
Device Height Range	55mm - 85mm
Device Thickness Range	6mm - 12mm
CD Slot Entrance Gap Requirement	4mm to 6mm
Vertical Clearance Needed	20mm upward, 40mm downward from CD slot
Installation	Spring holder, no tools required
Rotation	360° rotation
Tilt	Adjustable tilt
Height Adjustment	Yes
Sub Pad Thickness Options	1.5mm, 2.0mm, 2.5mm
Sub Pad Use	Insert into locking wing hole for secure fit in CD slot
Locking Mechanism	Locking lever and locking wing
Material	Plastic and metal components (estimated)
Weight	Approximately 80g (estimated)
Power Source	None (mechanical mount)
Maintenance	Wipe with dry cloth; avoid harsh chemicals
Safety	Ensure sub pad is used if locking wing is loose; do not block airbags
Included Accessories	Main mount, spring holder, locking lever, sub pad set (3 thicknesses)
Warranty	Limited manufacturer warranty (check package)

Frequently Asked Questions - CM-CSCD Sabrent

What smartphones are compatible with the Sabrent CM-CSCD mount?

The mount fits smartphones with a height between 55mm and 85mm and a thickness between 6mm and 12mm, typically 3.5 to 5.5 inch devices.

Do I need any tools to install this mount?

No, the mount features a spring holder design that requires no tools for installation.

Can I rotate my phone to landscape mode?

Yes, the mount provides 360° rotation so you can easily switch between portrait and landscape views.

How do I adjust the tilt?

The mount has a tilting mechanism that allows you to angle the phone for optimal viewing. Simply move the holder to the desired tilt position.

What if the mount feels loose in the CD slot?

Use one of the included sub pads (thickness options: 1.5mm, 2.0mm, 2.5mm) by inserting it into the sub pad hole on the locking wing to ensure a snug fit.

What is the required CD slot size?

The CD slot entrance should have a gap between 4mm and 6mm. Additionally, you need at least 20mm of space above and 40mm below the slot for installation.

Can I use this mount with a GPS device?

The mount is designed for smartphones, but any device within the size range (55-85mm height, 6-12mm thickness) may work. GPS devices are not included.

How do I clean the mount?

Wipe the mount with a dry, soft cloth. Avoid using harsh chemicals or abrasive materials to prevent damage.

Does the mount block my car's CD player?

While it occupies the CD slot, the mount can be removed easily. It is designed to not interfere with the CD player when properly inserted, but you cannot insert a CD while the mount is in use.

Is there a warranty for this product?

Sabrent offers a limited manufacturer warranty. Refer to the packaging or contact Sabrent support for warranty duration and terms.

USER MANUAL CM-CSCD Sabrent

Connecting Differently™

UNIVERSAL SMARTPHONE CD SLOT MOUNT

User Manual

3.5"

5.5"

SMARTPHONES

Images for understanding the actual product may differ from products in the box. Mobile phone and GPS device are not included.

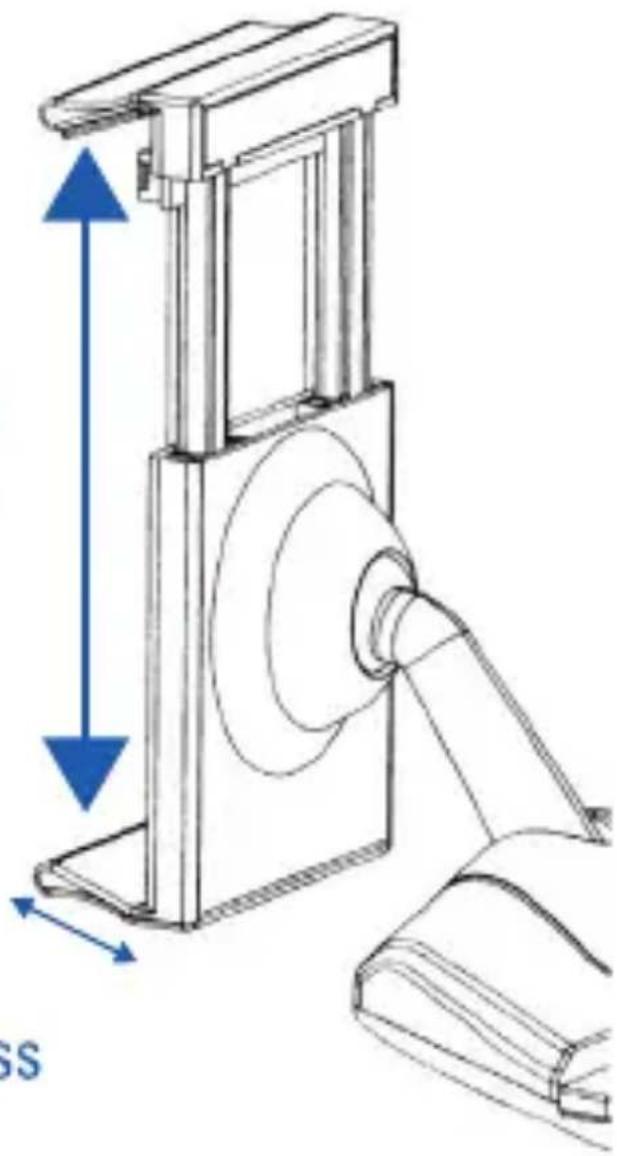

55mm - 85mm Device Height

6mm - 12mm Device Thickness

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a pair of shoes on a platform, no text or symbols present

Main Product

Stack of three blank rectangular sheets with no text or symbols

Manual

Abstract 3D geometric shape resembling a stylized letter or symbol (no text or symbols present)

2.5mm
2.0mm
1.5mm

Sub Pad

Technical line drawing of a mechanical component or housing (no text or symbols)

Easy Mount with Spring Holder

No tools necessary for installation

Simple line drawing of a computer monitor with cables, no text or symbols present

CD slot mount

Simple line drawing of a tablet device inside a rounded square frame (no text or symbols)

3.5"- 5.5" smartphone

Height adjustment for easy use

Line drawing of a person performing a bicycle lift exercise (no text or symbols)

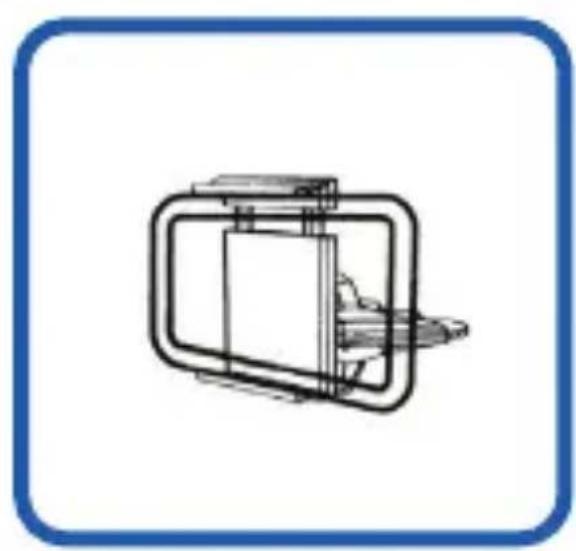

360° Rotation

Simple diagram of a rectangular object with two side handles and curved arrows indicating rotation (no text or symbols)

Tilting

Mechanical assembly diagram showing rotational motion with arrows indicating direction (no text or labels)

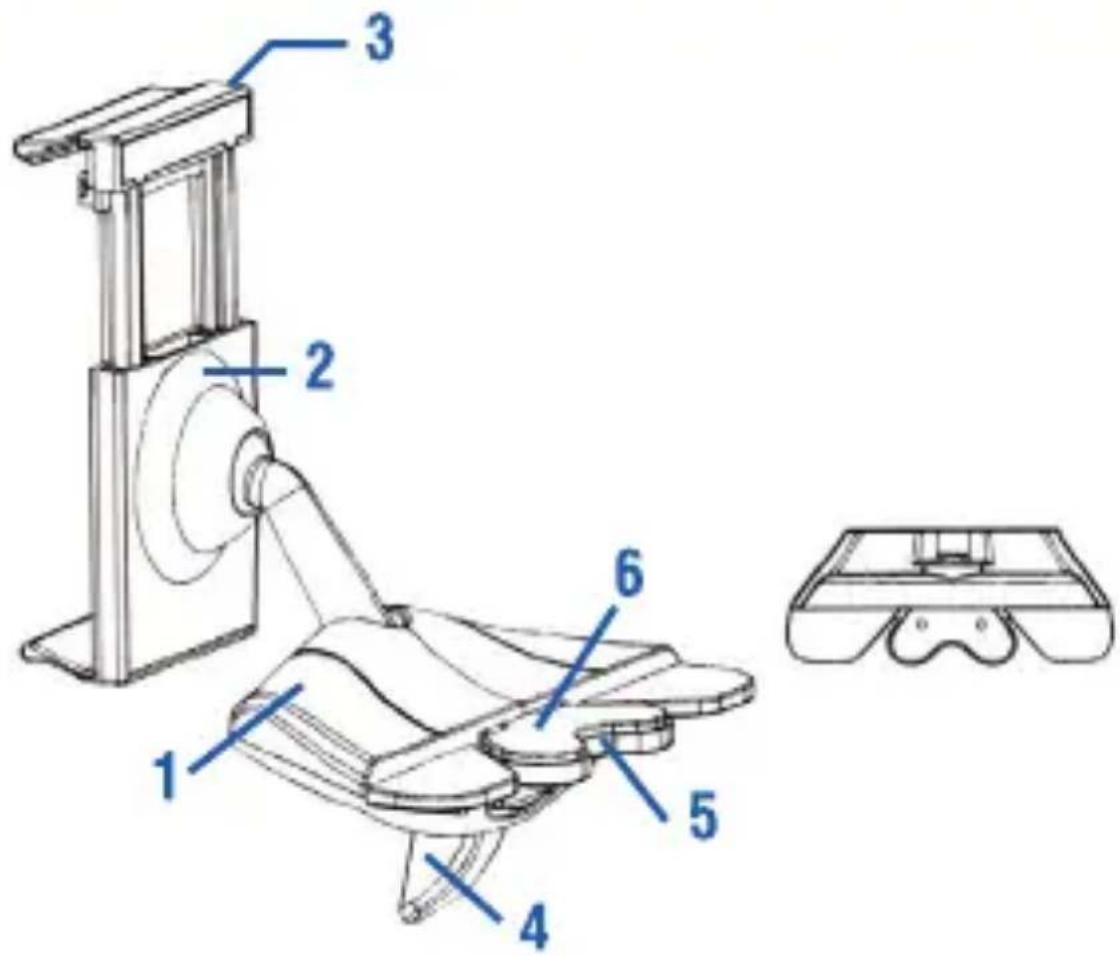

1. Body
2. Holder
3. Spring Holder
4. Locking Lever
5. Locking Wing
6. Sub Pad Hole

Pure mechanical linkage diagram without any text, numbers, or symbols

Use Sub Pad when locking wing is loose in the CD slot

There are three options for sub pad thickness 1.5/2.0/2.5mm

Technical line drawing of a mechanical bracket and mounting bracket (no text or symbols)

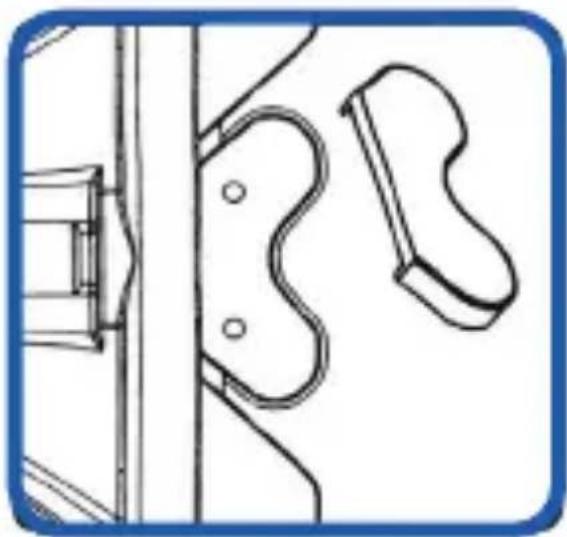

Insert the appropriate sub pad to the sub pad hole on the locking wing

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

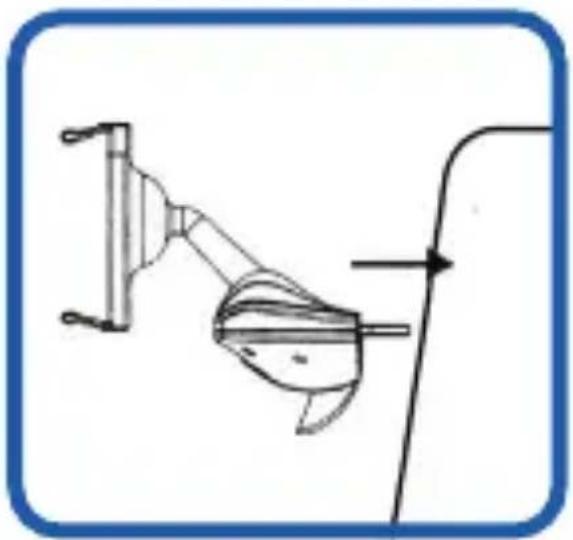

Insert the locking wing of the product into the CD slot

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Press the locking lever and fasten the locking wing in the CD slot

Line drawing of a hand holding a smartphone (no text or symbols)

Hold the smartphone with one hand

Line drawing of a hand holding a smartphone (no text or symbols)

Push up the spring holder with smartphone

Simple line drawing of a flat-screen monitor inside a blue rounded square frame (no text or symbols)

Put the smartphone into the holder and mount it

1

Installation accommodates 4mm to 6mm gap of CD slot entrance

2

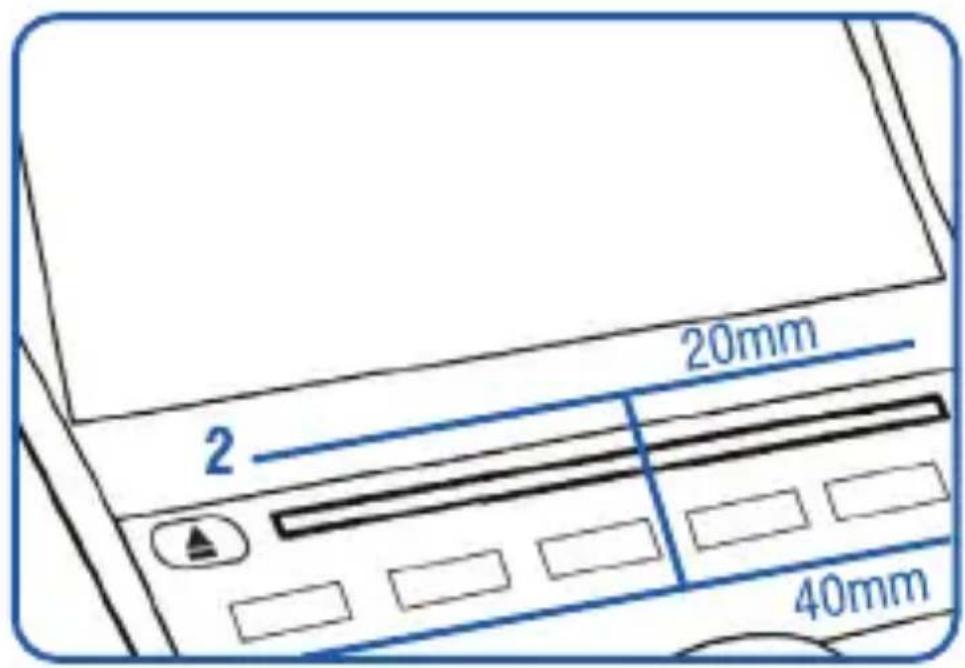

20mm upward and 40mm downward from the CD slot is necessary for installation
