Product Type	Pole Mount Accessory for Satellite Loudspeaker on Subwoofer
Brand	RCF
Model	AC PRO-PM
Category	Audio Accessory
Rod Material	Steel, powder coated (black)
Screw and Safety Pin Material	Steel, nickel plated
Ring Lock Material	Aluminium
Mandrel Elements Material	Polyamide (PA)
Maximum Central Load	35 kg (77 lb)
Height Adjustment Range	950 to 1370 mm (37.4 to 53.9 in)
Expanding Mandrel Diameter	35 to 37 mm (1.38 to 1.46 in)
Expanding Mandrel Height	102 mm (4.0 in)
Package Dimensions	1050 x 50 x 100 mm (41.3 x 2.0 x 3.9 in)
Net Weight	2.4 kg (5.3 lb)
Installation Requirements	Subwoofer with suitable mounting adapter; subwoofer heavier than satellite; flat solid surface
Safety Features	Clamping screw, safety pin; must be used and tightened; never remove pin or loosen screw without control
Maintenance	Clean with damp cloth; do not use solvents, alcohol, benzene

Frequently Asked Questions - AC PRO-PM RCF

What is the RCF AC PRO-PM used for?

The RCF AC PRO-PM is a pole mount accessory designed to install a satellite loudspeaker on top of a subwoofer.

What is the maximum load capacity of this pole?

The maximum central load is 35 kg (77 lb) when properly installed with a suitable subwoofer and satellite.

What materials are used in the AC PRO-PM?

The rod is steel with powder coating (black), the screw and safety pin are nickel-plated steel, the ring lock is aluminium, and the mandrel elements are polyamide (PA).

How do I install the satellite loudspeaker on this stand?

Turn the mandrel locking ring to OPEN, place the loudspeaker on the rod (directly or with a K&M adapter), then turn the locking ring to CLOSE until the mandrels lock into place.

Can I tilt or rotate the loudspeaker after installation?

Yes, you can change the direction by opening the locking ring (part 5) and turning the loudspeaker in the desired direction.

What safety precautions should I follow?

Always tighten the clamping screw, insert the safety pin, ensure the subwoofer is on a flat solid surface and heavier than the satellite, and never remove the pin or loosen screw in an uncontrolled manner.

What is the height adjustment range of the pole?

The pole can be adjusted from 950 mm to 1370 mm (37.4 to 53.9 in).

How do I clean the AC PRO-PM?

Clean with a damp cloth. Do not use solvents, alcohol, benzene, or other volatile substances.

What is the diameter range of the expanding mandrel?

The expanding mandrel fits diameters from 35 mm to 37 mm (1.38 to 1.46 in).

Is this accessory compatible with any subwoofer?

It requires a subwoofer with a suitable mounting adapter (e.g., flange adapter of correct size) and must be heavier than the satellite. Always use proper accessories.

USER MANUAL AC PRO-PM RCF

MANUALE D'USO OWNER MANUAL

ACPRO-PM

• ASTA PER L'INSTALLAZIONE DI UN DIFFUSORE "SATELLITE" SU UN SUBWOOFER
• POLE MOUNT ACCESSORY FOR A SATELLITE LOUDSPEAKER ON A SUBWOOFER

AVVERTENZE PER LA SICUREZZA

IMPORTANTE

SAFETY AND OPERATING PRECAUTIONS

IMPORTANT

Before using this product, please read this instruction manual carefully and keep it on hand for future reference. This manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions.

RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

WARNING

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.
2. This rod cannot be loaded in a one-sided manner.
3. Place this rod on a subwoofer having a suitable mounting adapter.
   Tighten thoroughly the clamping screw and use the safety pin.
   After placing the satellite loudspeaker on the stand, check its stability.
4. Ensure the use of suitable loudspeaker accessories (e.g. flange adapters shall be the right size and quality products).
5. Do not exceed the maximum central load: 35 kg.
   The load of 35 kg is only possible with a proper installation of the subwoofer and the satellite loudspeaker; e.g.:
6. The subwoofer is placed on a flat and solid-compact surface.
7. The subwoofer is heavier than the satellite.
8. The satellite is secured against lateral impacts.
9. The safety pin is inserted.
10. The subwoofer is placed on a flat and solid-compact surface.
11. The subwoofer is heavier than the satellite.
12. The satellite is secured against lateral impacts.
13. The safety pin is inserted.
14. Never remove the safety pin, nor loosen the clamping screw in an uncontrolled manner.
15. Careful handling is required, since adjustments may lead to possible pinching.
16. Do not use solvents, alcohol, benzene or other volatile substances to clean the external parts of this product; simply use a damp cloth.

IMPORTANT

WARNING

RCF S.p.A. thanks you for purchasing this product, which has been designed to guarantee reliability and high performance.

INSTALLATION

SET UP INSTRUCTIONS

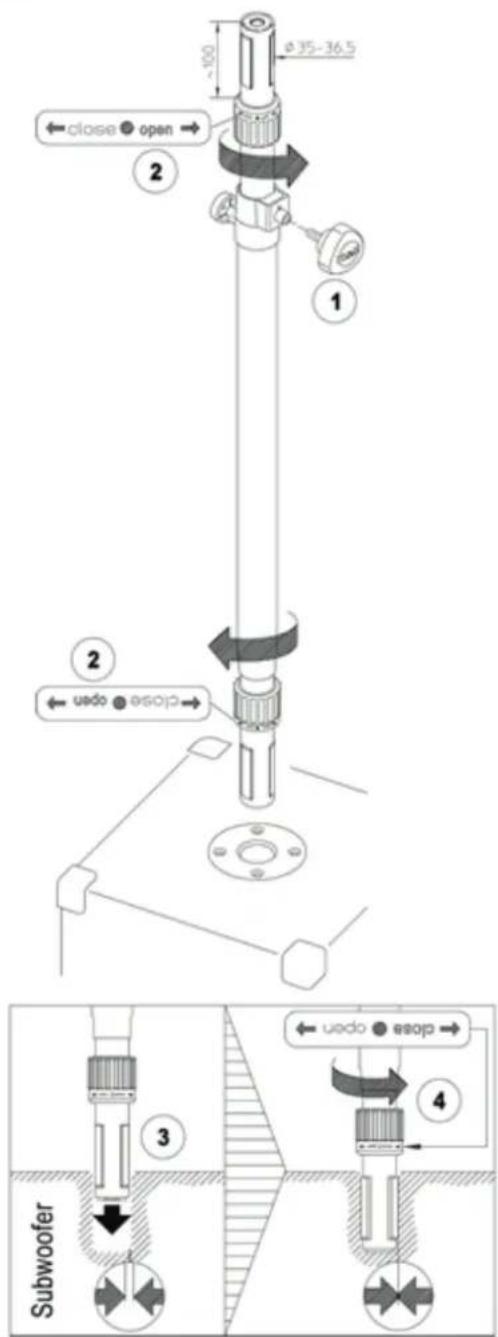

1. Remove the distance rod from the box and screw the clamp screw into the clamping bracket.
2. Then turn both mandrel locking rings so that they are facing OPEN, to be able to set the system to the smallest diameter.
3. Expand the mandrel until it stops in the flange of the subwoofer.
4. Turn the lower locking ring towards the right (Direction CLOSE) until the mandrel fits tight in the flange adapter.

ATTACH LOUDSPEAKER TO THE STAND

1. Turn the Mandrel Locking Ring to the right (Direction OPEN), to be able to set the system to the smallest diameter.
2. Place the loudspeaker on the rod (directly or with a K&M-Adapter).
3. Now turn the locking ring to the left (Direction CLOSE) until the mandrels lock into place.

CHANGE THE DIRECTION OF THE LOUDSPEAKERS

Open locking ring 5 and turn the loudspeaker in the desired direction.

MOVING THE WEIGHT

Technicians:

FP - First Person: operates the distance rod with the weight

SP - Second Person: operates the clamping bracket's clamping screw and locking pin.

Order when extending the rod:

FP - 8 holds the distance rod

SP - 9 loosens the clamp screw and holds it

SP - 10 pulls the locking knob until the locking pin is no longer in the locked position

FP - 11 extends the distance rod with the box to the desired approx. height. NOTE: to find the pin hole easily, the locking pin should be placed just above the hole.

SP - 12 lets go of the locking knob, so that the pin can click into the distance rod.

FP - 13 slowly lowers the distance rod so that the locking pin locks into the hole.

SP - 14 tightens the clamping screw (manual strength is enough) When retracting the distance rod the reverse order applies.

IMPORTANT: ensure that one person tightens the clamping screw 14 immediately in the event the second person is not able to hold the distance rod.

SPECIFICATIONS

MATERIALS:

Rod:

Screw, safety pin:

Ring lock:

Mandrel elements:

MAX. LOAD:

DIMENSIONS:

Height:

Expanding mandrel system:

Package dimensions:

Weight:

steel, powder coated (colour: black)

steel, nickel plated

aluminium

polyamide (PA)

35 kg (central)

950 ÷ 1370 mm

ø 35÷37 mm, 102 mm height

1050 x 50 x 100 mm

2.4 kg
