Product Type	Beard Trimmer
Brand	DCG
Model	HSM1101
Battery Type	Lithium Rechargeable
Battery Rated Voltage	3.7 V
Battery Capacity	3400 mAh
Adapter Input	100-240 V ~ 50/60 Hz
Adapter Output	DC 5.0 V, 1 A
Power Consumption	3 W
Charging Time	Approximately 2 hours
LED Display	Shows battery percentage (1-99) and charging status (red plug icon)
Turbo Mode	Two speed levels; yellow turbo icon on LED for Speed II
Cord/Cordless Operation	Yes (can be used while charging)
Cutting Length Adjustment	Adjustable (details not specified)
Oil Points	3 positions (add one drip to each before use)
Cleaning Instructions	Clean cutting head with brush; use diluted soap water; do not use petrol, alcohol, or thinner
Water Resistance	Not waterproof; do not immerse in water
Usage While Charging	Yes (plug-and-play feature)
Warranty	1 year (excluding blade, attachments, transportation, and door-to-door service)
Safety Notes	Do not charge more than 6 hours; keep away from children; do not use if damaged
Included Accessories	Adapter, charging base, oil, cleaning brush (assumed)

Frequently Asked Questions - HSM1101 DCG

How long does it take to fully charge the DCG HSM1101 beard trimmer?

The charging time is approximately 2 hours. The LED display will show number 99 and a fixed red plug icon when fully charged.

Can I use the beard trimmer while it is charging?

Yes, the HSM1101 supports plug-and-play function. You can use the product while charging by connecting the adapter directly to the trimmer. If the battery is completely depleted, it may need 1-2 minutes of charging before it can be turned on.

How do I clean the cutting head?

After use, remove hair from the cutting head using the included cleaning brush. For deeper cleaning, use diluted soap water. Do not use petrol, alcohol, or thinner as they may damage the product.

Where should I apply oil and how often?

Before each use, add one drip of oil to each of the 3 oil points indicated by circles on the cutter head. Regular oiling ensures smooth operation and prolongs the life of the blades.

What does the LED display show?

The LED display shows the battery percentage (1-99) during use or charging. When charging, a red plug icon appears. If the icon is flashing, the battery is below 15%. In turbo mode, a yellow turbo icon is displayed.

What is the turbo mode and how to activate it?

Turbo mode is a higher speed setting (Speed II). When activated, a yellow turbo icon appears on the LED display. The manual does not specify the exact button, but it is likely a switch on the trimmer.

Why is the trimmer not turning on even after plugging it in?

If the battery is completely depleted, it may be difficult to start immediately. Charge for 1-2 minutes before attempting to turn it on. Also ensure the adapter is properly connected and the socket is working.

How should I maintain the battery if not using the trimmer for a long time?

To prevent battery damage, charge the battery at least once every 3 months if the product is not used for an extended period.

Is the beard trimmer waterproof?

No, the HSM1101 is not waterproof. Never immerse the appliance in water or any other liquid. Clean only with a damp cloth or brush.

What is the warranty period and what does it cover?

The product comes with a 1-year warranty covering defects in manufacturing or materials (excluding the blade, attachments, transportation, and door-to-door service charges). The warranty is valid only if the purchase date on the warranty card and invoice match.

USER MANUAL HSM1101 DCG

CARATTERISTICHE TECNICHE - TECHNICAL FEATURES

Batteria: 3,6 V 3400 mAh

1. Avvertenze

Output: DC 5,0 V 1 A

Potenza: 3 W

3. Avvertenze

Illustration of a hand holding a tool next to a mechanical component (no text or symbols visible)

1mm

Illustration of a hand using a hairpin to brush the product (no text or symbols visible)

Line drawing of a hand inserting a small component into an electrical outlet (no text or symbols)

Illustration of a hand inserting a plug into a socket, with a separate close-up of the plug and cable (no text or symbols)

Illustration of a tool interacting with a mechanical component, showing motion and spray (no text or symbols)

Illustration of a hand holding a screwdriver with a tool, no text or symbols present

11. Attenzione!

☐ Please read these instructions carefully before use.
- Keep present instructions for future references.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Only use the appliance for domestic purposes and household or similar applications such as:

• staff kitchen areas, in shops, offices and other working environments;
• By clients in hotels, motels and other residential type environments;
• Environment type like : • Farm Houses • Bed and Breakfast.

☐ Only use the appliance in the way indicated in these instructions.
☐ Inform potential users of these instructions.
☐ Never leave the appliance unsupervised when in use.
☐ The appliance must be used only for its intended purpose. No responsibility can be taken for any possible damage caused by incorrect use or improper handling.
☐ Children and persons with disabilities are not always aware of the danger posed by the use of appliances.
☐ This device can be used by children aged 8 years and older and adults, with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
□ Cleaning and user maintenance shall not be made by children without supervision.
☐ This device is not a toy, do not leave small children or people with disabilities to play with.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
☐ Caution ! Do not allow small children to play with the foil :

THERE IS A DANGER OF SUFFOCATION!

☐ Never immerse the appliance in water or any other liquid for any reason whatsoever.
□ Never place it into the dishwasher.
☐ Never use the appliance near hot surfaces.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Make sure the appliance has cooled down before cleaning and storing it.
☐ This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Always place the unit on a flat surface. Ensure, also, not to cover the device and not to put anything on it.

☐ Incorrect operation and improper use can damage the appliance and cause injury to the user.
☐ This device, designed for home use, complies with standards relating to this type of product.
☐ The item is not to be used, if it has been dropped or if there are visible signs of damage.
☐ This appliance is only intended for household use.
☐ Regarding the instructions for cleaning, thanks to refer to the below paragraph of the manual.
☐ This appliance is only intended for household use.

2. Specifications

Lithium Rechargeable Battery Rated Voltage :3.7V
Adaptor	Input:100-240V 50/60Hz
	Output: DC 5.0V 1A
	Power:3W

3. Notices

Add the oil into the cutter head before use. (Check the left picture for reference) The product body may be a little hot when using or charging. But it will not affect its performance.

Positions to add oil (one drip to each of the 3 positions)

Illustration of a hand holding a tool near a mechanical component (no text or symbols visible)

• Add the oil to the positions as directed by circle.
• Don't use petrol, alcohol, thinner to clean the product. Otherwise, the product color may be changed then.
  ● Use diluted soap water to clean the product.
• Do not charge the product if the room temperature is higher than 40 or lower than 0.
• Keep it out of the reach of children to avoid cutting by clipper blade or swallowing its small parts.

4. Parts name

Notes:

● The product can be cord or cordless using.
● The yellow Turbo icon will be shown in LED display if the product is switched to speed II.
● The white numbers (from 1 to 99) in LED display means the battery left capacity in percentage.

5. Cutting Size adjustment

6. Charging Method

● Put the adaptor connector terminal into the base.
● Make sure the product is in the position of Power Off and then put it into charging base. The display will show a fixed red plug icon and the left power percentage. As soon as it is fully charged, the display will show number 99 together with fixed red plug icon. And only fixed red plug icon will be shown after 3 minutes of finished charging.

● Charging time is around 2 hours.
● The red plug icon in display will be flashing if the left power is less than 15%.
- If using charging base, please connect the adaptor with the base and then plug into the socket. And then put the product into the base to start the charging.

7. Charging Notices

Notes: If the product not being used for a long time, please ensure the battery be charged at least one time within 3 months to avoid damage. Plug-and-play function means that you can use the product while charging in case of insufficient power.

- Put the adaptor connector terminal into the port of the product and then plug into a socket. Switch on the product and then use it.

● After using, switch off and then disconnect the adaptor connector with product.

- If the battery has been used out, it may be difficult to start the product even if it is plugged. You should restart it after charging at least one or two minutes. while charging, the product body and the adaptor may be a little hot, however, it is a normal phenomenon.

- Take the adaptor out from the power socket Take the plug out from the product Please hold the plug and take it out. Don't pull the cord in order to avoid any damage for adaptor.

- Don't charge the product more than 6 hours each time.

Hand inserting a small component into a wall socket (no text or symbols visible)

Illustration of a hand inserting a plug into a socket with a tool, next to a magnified view of the bulb (no text or symbols)

As soon as the charging is finished, take the plug out from the socket.

8. Cutting Head Cleaning & Maintain

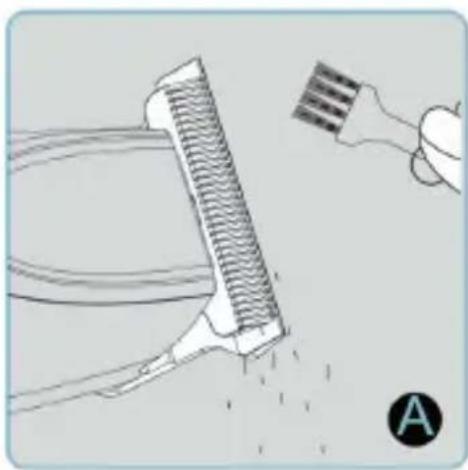

Illustration of a hairbrush cleaning a tooth with a brush and a tool nearby (no text or symbols)

Clean the left hairs in cutting head

Illustration of a hand holding a tool next to a mechanical component (no text or symbols visible)

Put a drip of oil to each circles

9. Repairing Service

• From the date of purchase, you can get one year warranty if our appointed repairman confirms that the problems or the defects are cause by production process or material. (Except for the changes of blade.)
• This free service doesn't include the attachment, auxiliary device, transportation charge, and door-to-door service charge.
• It can only be valid as the date of purchase both in warranty card and purchase voucher are matched.
• Warranty card and invoice or other purchase voucher should be provided when repairing.
  ● The warranty card only can be used in American mainland.
• The warranty card is the evidence of free repairing within specified conditions and period. But it doesn't limit the rights of consumers in law.
• Please keep the warranty card well after purchase.

Free repairing service can't be provided under the following conditions:

• The damage was caused by the repair or reconstruct in the place which isn't appointed by our company.
  ● The damage was caused by incorrect use, dropping, or accidents.
  ● The damage was caused by natural disaster or abnormal voltage.
• The damage was caused by industrial use, commercial use, or some other uses which are out of the ranges mentioned in instruction manual.

10. Detailed Trimming Hairstyle Reference

11. Warning!

• Don't take the adaptor out from the socket by wet hands to avoid the risk of electric shock.
  ● As soon as the charging is finished.
  ● Take the adaptor out from the power socket.
  ● Take the plug out from the product.
• Please hold the plug and take it out. Don't pull the cord in order to avoid any damage for the adaptor.
• Don’t charge the product more than 6 hours each time.
• Otherwise, the life time of battery will be reduced.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
