Product Type	Walk-behind lawn mower
Model	LM 510
Brand	Biltema
Cutting Width	51 cm (approx.)
Engine Type	4-stroke, petrol
Start System	Electric key start and recoil start
Self-Propelled	Yes, with gear-driven transmission
Drive System	Rear wheel drive
Cutting Height Adjustment	Central lever, multiple positions
Discharge Options	Side discharge, rear bagging, mulching (with plug)
Grass Collector Capacity	60 litres (approx.)
Wheel Size	Front: 8 inches, Rear: 10 inches (approx.)
Fuel Tank Capacity	1.0 litre (approx.)
Engine Oil Capacity	0.6 litre (approx.)
Blade Type	Single steel blade with bolt attachment
Safety Features	Deadman's bail, side discharge safety lock, rear door interlock
Maintenance	Air filter cleaning, oil change, spark plug replacement, blade sharpening
Spare Parts Available	Blade, air filter, spark plug, belt, drive cable, wheel, collector bag
Weight	Approximately 35 kg
Dimensions (L x W x H)	150 x 56 x 100 cm (approx.)

Frequently Asked Questions - LM 510 Biltema

What type of engine oil does the Biltema LM 510 lawn mower require?

Use SAE 30 weight engine oil for temperatures above 0°C, or SAE 10W-30 for all-season use. Check the dipstick regularly and fill to the correct level.

How do I start the Biltema LM 510 lawn mower?

Ensure the deadman's bail is held down. Turn the key to the ON position and press the start button for electric start, or pull the recoil starter handle firmly. If the engine is cold, press the primer bulb 3-5 times first.

How do I adjust the cutting height on the LM 510?

Locate the central height adjustment lever near the wheels. Pull the lever outward and move it to one of the several pre-set positions to raise or lower the cutting deck.

How do I install the grass collector bag?

Lift the rear flap and hook the bag onto the brackets. Ensure the bag is properly attached and the flap closes securely over the bag to prevent grass from escaping.

How often should I change the engine oil?

Change the oil after the first 5 hours of operation, then every 25 hours or once per season. Use a funnel to drain old oil from the drain plug and refill with fresh oil.

How do I replace the blade on the Biltema LM 510?

Remove the spark plug cap for safety. Tilt the mower on its side (air filter up). Use a wrench to loosen the blade bolt (counterclockwise). Replace with a sharp blade and tighten the bolt securely.

What should I do if the mower vibrates excessively?

Stop the engine and inspect the blade for damage or imbalance. Check if the blade is properly balanced and tightened. Also inspect the cutting deck for debris or loose parts.

Can I use the lawn mower without the grass bag?

Yes, you can use side discharge or mulching. For side discharge, ensure the side discharge guard is open and the discharge plug is installed if mulching. Never operate without a deflector or bag in place.

How do I clean the air filter?

Remove the air filter cover and take out the foam element. Wash it in warm soapy water, squeeze dry, and apply a few drops of engine oil. Reinstall the element and cover.

What is the recommended spark plug gap?

Use a Champion RJ19LM or equivalent. Set the gap to 0.030 inch (0.76 mm). Replace the spark plug every 100 hours or at the start of each season.

USER MANUAL LM 510 Biltema

Black and blue BILTE lawn mower with blue handle and wheels (no visible text or symbols)

Icon of a person reading a book inside a black circle (no text or symbols)

Product Manager/Authorised to compile the technical file

BRUKSANVISNING I ORIGINAL

GRÄSKLIPPPARE LM 510

INTRODUKTION

PRODUKTFAKTA ....SIDA 5

ANVÄNDNING....SIDA 8

SKÖTSEL ....SIDA 10

SÄKERHET

Technical line drawing of a vehicle chassis and engine components (no text or labels)

Maskinens delar

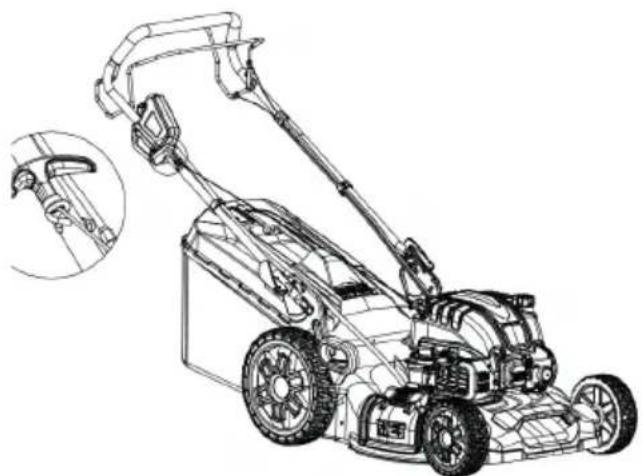

Line drawing of a lawn mower with an inset close-up showing the blade and handle (no text or symbols)

b. Häng eventuellt kabeln till snörstarten i kroken på handtaget.

Line drawing of a lawn mower with attached lever and gear assembly, shown in technical sketch (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Isometric line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

Technical line drawing of a motorcycle chassis with visible wheels and structural components (no text or symbols)

Technical line drawing of a vehicle chassis with two wheels and a separate open box (no text or symbols)

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

ANVÄNDNING

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Byte av magnapull

Technical line drawing of a vehicle chassis with exploded views and component labels (no text or symbols present)

Maskinens deler

1. Håndtak
2. Fremdriftsbøyle
3. Kabelklips
4. Peilepinne/oljepåfylling
5. Lyddemper
6. Dreneringsskrue, olje
7. Luke, sideutkast
8. Sikkerhetssperre, sideutkast

9. Bakre luke

10. Oppsamler

11. Starthåndtak

12. Dødmannsbøyle

13. Indikatorluke

14. Låsespak for håndtak

15. Hjul

16. Klippeaggregat

17. Luftfilter

18. Tennplugg og plugghette

19. Snorstart

20. Spak, høydejustering

21. Tanklokk

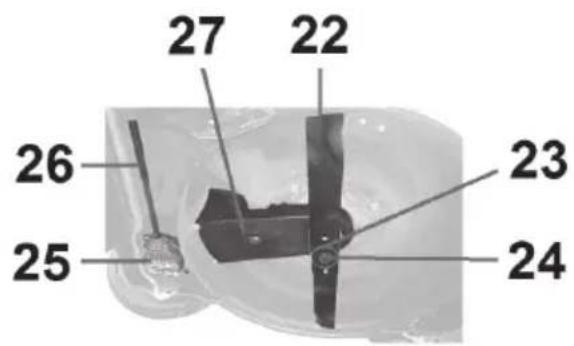

22. Kniv

23. Flat skive
24. Knivbolt
25. Gir
26. Drivaksling
27. Drivreimdeksel
28. Sideutkast
29. Utkastplugg
30. Primerpumpe
31. Startbatteri
32. Startnøkkel
33. Startknapp

Montering

Line drawing of a lawn mower with an inset close-up showing the blade and handle (no text or symbols)

Line drawing of a lawn mower with attached lever and gear assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

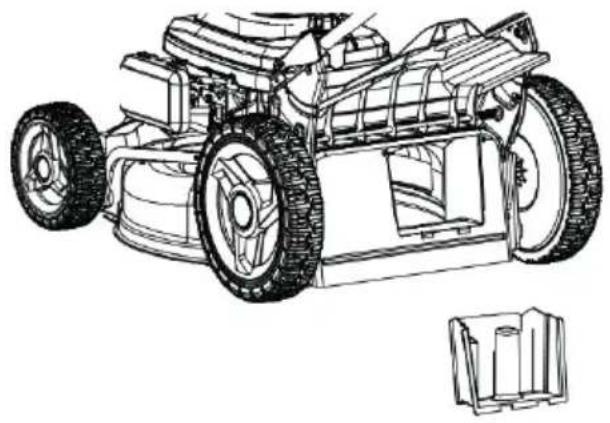

d. Løft opp luken, og monter utkastpluggen, eller fest enheten på gressklipperen.

Technical line drawing of a grass lawn mower with visible tire tracks and structural components (no text or symbols)

Technical line drawing of a vehicle chassis with visible wheels and structural components (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

e. Monter kabelklemmene.

Simple line drawing of a mechanical clamp or bracket attached to two parallel wires (no text or symbols)

BRUK

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Bytte magnapull

Technical line drawing of a vehicle chassis with exploded views and components (no text or labels)

Koneen osat

Line drawing of a lawn mower with an inset close-up showing the blade and handle (no text or symbols)

Line drawing of a lawn mower with attached lever and head assembly, shown with an inset close-up of the handle (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Isometric line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

Technical line drawing of a grass lawn mower with visible tire tracks and structural components (no text or symbols)

Technical line drawing of a vehicle chassis with visible wheels and structural components (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

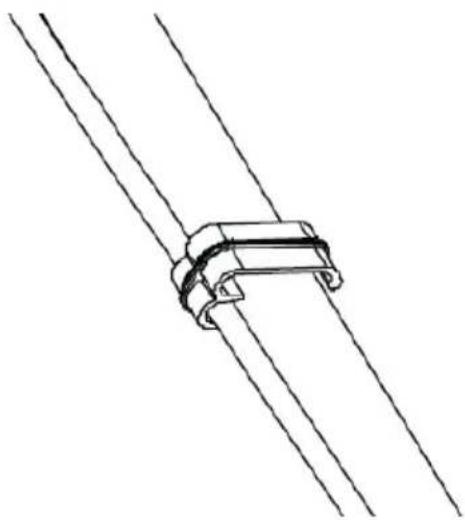

e. Asenna vaijeripidikkeet.

Simple line drawing of a mechanical clamp or bracket attached to two parallel wires (no text or symbols)

KÄYTTÄMINEN

Line drawing of a car interior with hand holding tool, no visible text or symbols

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Technical line drawing of a vehicle chassis with exploded and assembled components (no text or labels)

Maskinens dele

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Line drawing of a lawn mower with attached lever and head assembly, shown in technical sketch (no text or symbols)

Technical line drawing of a mechanical device with internal components and a cable (no text or symbols)

Isometric line drawing of a mechanical component with internal channels and mounting features (no text or symbols)

Technical line drawing of a wheeled vehicle showing front wheel, rear wheels, and internal components (no text or symbols)

Technical line drawing of a vehicle chassis with visible wheels and structural components (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a cable or clamp securing two parallel wires (no text or symbols)

ANVENDELSE

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)
