Product Type	Dash Installation Kit
Brand	Metra
Model	95-7331
Category	Car Stereo Installation Kit
Compatible Vehicles	Select Ford, Lincoln, Mercury models (1990s-2000s)
Material	ABS Plastic
Color	Black
Included Components	Dash trim panel, mounting brackets, screws, wire harness adapter
Radio Size Supported	Single DIN or Double DIN (with adapter)
Installation Difficulty	Moderate
Tools Required	Screwdrivers, panel removal tool, wire crimpers
Dimensions (L x W x H)	7.5 x 5.5 x 4.0 inches (approx.)
Weight	1.2 lbs (approx.)
Warranty	1 year limited
Features	Paintable surface, OEM matched texture, includes ISO/DIN radio provisions
Installation Notes	Use with Metra wiring harness for plug-and-play connectivity
Cleaning	Wipe with damp cloth; avoid harsh chemicals
Repairability	Replace individual trim pieces if damaged; kit is not repairable as whole
Safety	Ensure vehicle battery is disconnected before installation

Frequently Asked Questions - 95-7331 Metra

What vehicles is the Metra 95-7331 compatible with?

The Metra 95-7331 is compatible with select Ford, Lincoln, and Mercury models from the 1990s to early 2000s. Always verify compatibility with your specific vehicle before purchasing.

Does this kit include a wiring harness?

Yes, the kit includes a wire harness adapter for connecting the aftermarket radio to the vehicle's factory wiring.

Can I install a Double DIN radio with this kit?

Yes, the kit supports both Single DIN and Double DIN radios, though a separate adapter may be required for Double DIN installation.

What tools are needed for installation?

You will need a screwdriver set, panel removal tool, and wire crimpers. It is also recommended to have electrical tape and zip ties.

Is the kit paintable?

Yes, the ABS plastic trim can be painted to match your vehicle's interior color. Use a plastic primer and compatible paint.

Does the kit include installation instructions?

Yes, a detailed instruction manual is included in the package. You can also download a PDF version from the Metra website.

How do I remove the factory radio before installing this kit?

Use a panel removal tool to gently pry off the factory trim bezel. Then remove the screws holding the factory radio and slide it out. Disconnect the wiring harness and antenna.

Can I reuse the kit if I change vehicles?

The kit is designed for specific vehicle applications and may not fit other models. It is not recommended for reuse in different vehicles.

What is the warranty on the Metra 95-7331?

Metra offers a 1-year limited warranty against manufacturing defects. Retain your receipt for warranty claims.

How do I clean the kit after installation?

Clean the trim pieces with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the plastic.

USER MANUAL 95-7331 Metra

Installation instructions for part 95-7331

Kia Amanti 2007-2009 95-7331

KIT FEATURES

• ISO DDIN radio provision

KIT COMPONENTS

• A) Radio housing • B) Radio brackets

A

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1004 • 70-7303 (2009 model only)

Antenna Adapter: • 40-KI10

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver - 10mm socket wrench

Interior view of a car dashboard with air conditioner, fan, and control panel (no visible text or symbols)

Table of Contents

Dash Disassembly 2-3

Kit Assembly

- ISO DDIN radio provision .... 4

CAUTION! Metra recommends disconnecting the negative battery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for more information. All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory radio with the key in the on position, or the vehicle running. It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio.

95-7331

Dash Disassembly

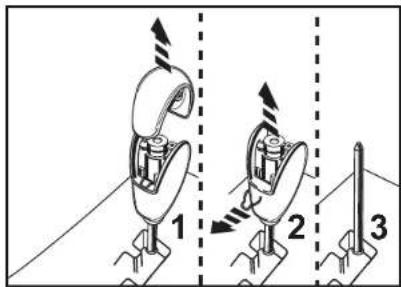

1. Unclip the top half of the shift knob and remove the "C" clip securing the shifter. Pull up on the shifter to remove. (Figure A)

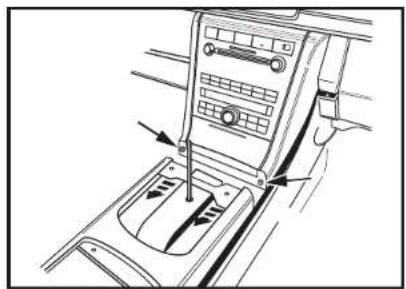

2. Unclip and remove the panel surrounding the shifter. (Figure B)
3. Unclip and remove the top half of center console, including the cup holders. (Figure C)
4. Open the center console and remove the screw cover located in the bottom.
5. Remove (2) 10mm bolts securing the compartment, and then unclip and remove the compartment. (Figure D)

Continued on the next page

(Figure A) (Figure C)

Line drawing of a car interior showing dashboard, intake manifold, and exhaust vent (no text or symbols)

Diagram of a car interior showing a switch and directional arrows (no text or symbols)

(Figure B) (Figure D)

Technical line drawing of a car interior showing a component with arrows indicating direction (no text or symbols)

95-7331

Dash Disassembly

1. Unclip the rear trim panel from the center console, including the a/c vents. Unplug and remove the rear trim panel. (Figure E)
2. Remove (1) Phillips screw from each side at the rear of the center console. (Figure E)
3. Unclip the side panels from the front of the center console. (Figure F)

Note: It is not necessary to remove these panels.

1. Remove (4) Phillips screws securing the center console, and then lift and slide the center console back out of the way. (Figure G)

Note: You do not have to take the center console all the way out.

1. Remove (1) Phillips screw from each side panel, and then unclip and remove the panels. (Figure H)
2. Remove (4) Phillips screws securing the radio, and then unplug and remove the radio.
3. Unclip and remove the switches and/or switch covers along the top of the factory radio.

Note: Retain the switches and/or covers to be reinstalled in the radio housing.

Continue to kit assembly

Line drawing of a car interior showing airflow direction arrows (no text or symbols)

(Figure E) (Figure G)

Line drawing of a car interior control panel with arrows indicating movement or adjustment points (no text or symbols)

Line drawing of a car interior panel with directional arrows indicating movement or force (no text or symbols)

(Figure F) (Figure H)

Line drawing of a car air intake system with control panel and directional arrows (no text or symbols)

Installation instructions for part 95-7331

Kit Assembly

ISO DDIN radio provision

1. Snap the switches removed in dash disassembly into the radio housing, in the same location as removed from the factory radio. (Figure A)
2. Snap the radio brackets to the inside edge of the radio housing. (Figure B)
3. Slide the radio into the completed assembly from the rear, and then secure it to the assembly using the screws supplied with the radio. (Figure C)

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

(Figure A) (Figure C)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

(Figure B)

Technical line drawing of a device casing with arrows indicating assembly or movement (no text or symbols)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
